Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro Whoop FPV Racing Drone BNF w/ CADDX Turtle V2 HD Mini Camera

Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro Whoop FPV Racing Drone BNF w/ CADDX Turtle V2 HD Mini Camera
Part No.: Mobula7-B
Manufacturer: hymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible
2S for indoor Cine whoop mode
3S for outdoor Freestyle whoop mode
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
The lightest 1102 brushless motor only 2.7g with double ball bearings
Powerful and smoothly
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
Caddx turtle v2 + 1080p 60fps DVR ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Special Breath light ready
Real Bind and Fly version
Compatible both for 2s-3s Lipo/LIHV

Product Details

Crazybee F4 PRO V2.0 Flight Controller
tem Name: Crazybee F4 Pro V2 FC
MCU:  STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-3S battery input (DC 3.5-13V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Receiver ( Diffirent version having diffirent receiver,
                            without receiver version doesn't have rx)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection

Onboard 5A 4 In 1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-3S LiPo/LiPo HV (3.5v/13v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600

EX1102 10000KV Motor
Model: EX1102
KV: 10000KV
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 2mm
Shaft Diameter: Φ1.0
Motor Dimension (Dia.*Len) : Φ10.5*14.5mm
Weight: 2.7g
Support 1-3S Lipo

5.8G 40CH 25-200mW VTX
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g

CADDX Turtle V2 Camera
Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
Color: Red

Lipo Battery
Capacity:300mAh
Voltage:11.4v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 65mmx18mmx11mm
Weight: 23g
Connector: XT30
Propeller
40mm 4-blade Propeller ( 4 CW + 4 CCW)

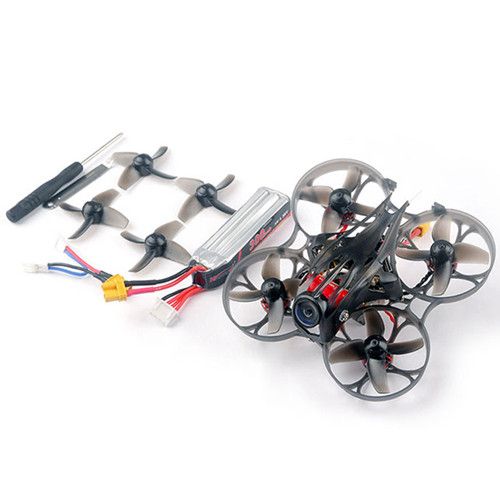

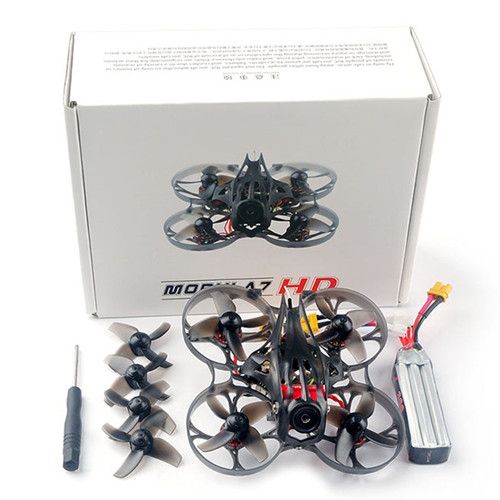

Item Packing

Mobula7 V3 Frame x 1
Crazybee F4DX PRO FC built-in Serial-bus DSM2/DSMX RX x 1
EX1102 KV10000 Motor  x 4
40mm propeller(4cw+4ccw) x 1
Caddx Turtle v2+1080p 60fps DVR x 1
5.8G 40ch 25mw-200mw VTX x 1
3S 11.4v 300mah 30C/60C battery x 1
Propeller disassemble tool x 1
Screwdriver x 1

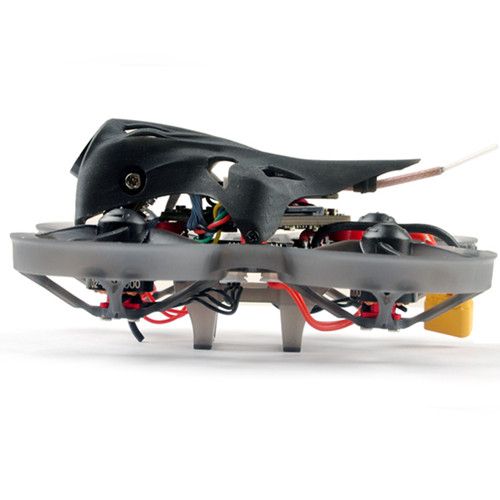

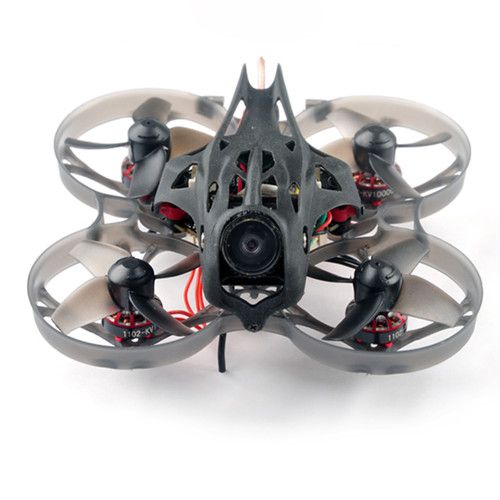

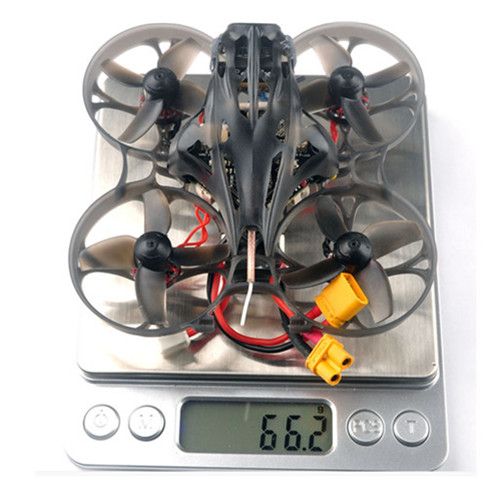

Detailed Images
