90mm Full Metal Ducted Fan 12 Blades JP Hobby 90mm 8S 4250 KV1330 CW Motor For RC Jet Plane

90mm Full Metal Ducted Fan 12 Blades JP Hobby 90mm 8S 4250 KV1330 CW Motor For RC Jet Plane
Part No.: 90EDF-1330CW
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

1.100% CNC aluminium JP Hobby EDF unit (shroud and rotor) for 8s.
2.The V2 version offers an exceptional reduced gap of 0.25mm between each blade edge and the EDF shroud for more efficiency.
3.High grade aluminium alloy material for highest rigid structure and lightest weight.
4.The shroud acts as a heat sink, removing heat from the motor. This design creates a more efficiently running motor and will provide peak performance while extending the lifespan of the motor.
5.The highly rigid structure design is capable of running up to 88,000 RPM to produce extremely high efflux velocity for maximum speed and efficiency.
6.Anti Blade flying out design,the Blades be safety kept in the shroud and without damage.It is the best replacement for your plastic or carbon shroud if you want to have a safety EDF fan.
7.Each metal blade is precisely made of High Grade Aluminum alloy to generate jet airflow. Every blade has been tested for 8 hours of metal fatigue test as well as in the dynamic balance machine for calibration, making it bring a better and safer user experience for every RC fan.

Product Details

Descriptions:
1.You could assemble our EDF system with any other motor without losing dynamic balance effect.
2.The motor and fan unit comes assembled and balanced from the factory.

Specifications:
Material: Metal
Color: Orange
Type: 8S

8S
Model: JP 90mm EDF
Working Voltage: 8S Li-Battery
Shell Material: Aluminum Alloy
Fan Blade: (all metal 12 blades) Over balanced
Motor Model: 4250-1330KV CW
Weight: 488g
Thrust Force: 30V   96A    2880W   4.0KG

Package Information:
Package Size: 200x150x190mm/7.8x5.85x7.41in
Package Weight: 498g/1.1lb
General Box Package

Item Packing

 EDF Full Metal Ducted Fan x1

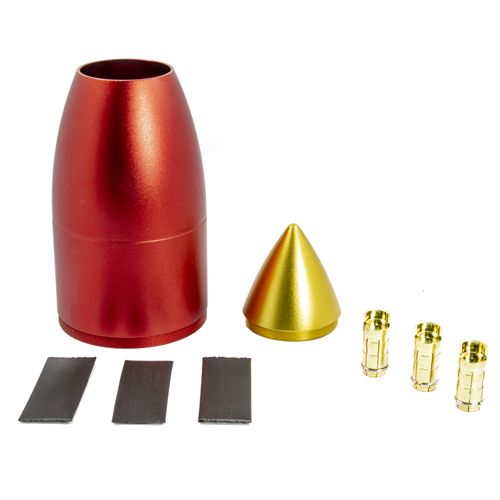

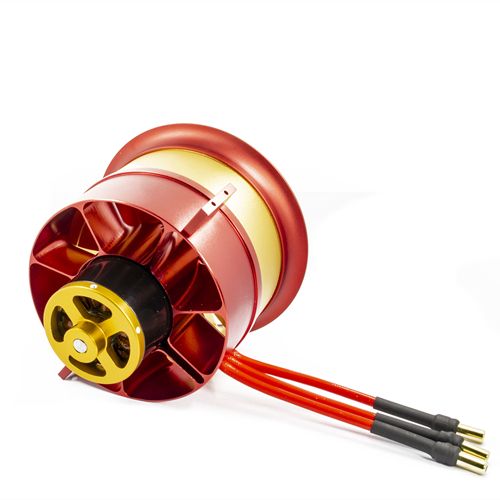

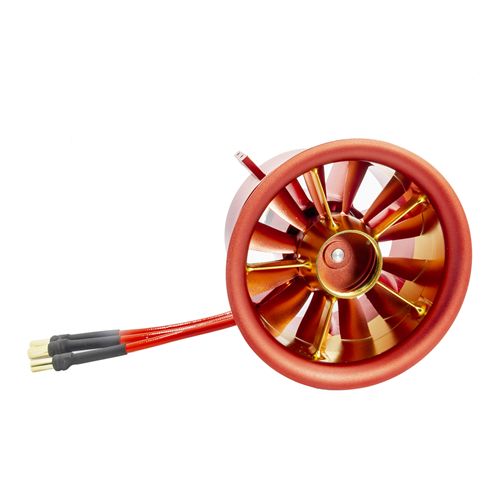

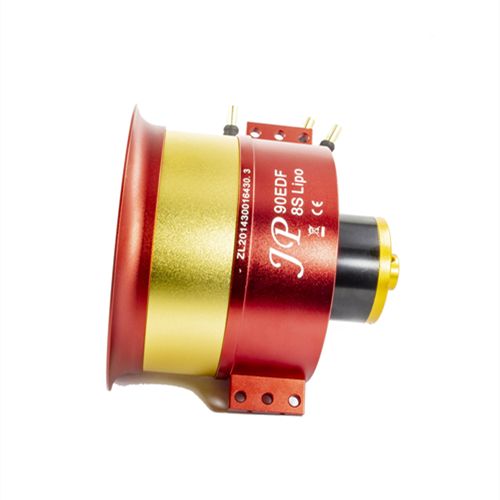

Detailed Images
