Hobbywing platinum hv 130a esc v4 brushless for RC model

Hobbywing platinum hv 130a esc v4 brushless for RC model
Part No.: Platinum-HV-130A
Manufacturer:

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

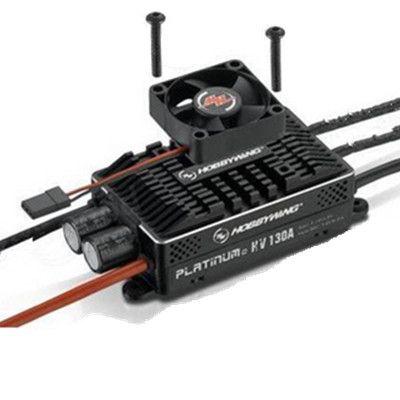

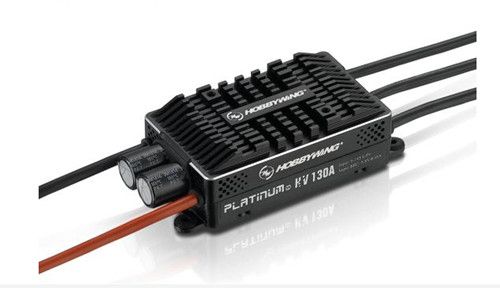

Product Name: Platinum HV 130A V4
Type: Brushless, High Voltage
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: Switch Mode:5-8V,10A
Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
(Note: All the wire length above is the original length not the length you see from the outside.)
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Separate Program Port
Firmware Upgrade: Supported
Size: 101.0x45.5x27.0mm
Weight: 169g
Applications: 550-600 Class Heli (Main Blade: 550-690mm)
                        .90-.140 Class Fixed-wing Airplane, 2m FAIF3A & 3D
                        EDF (with Diameter≦105mm)

Product Details

1. Super Soft Start-up
● Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience.
● The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

2. Excellent Motor Speed Governing
● High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing.
● Together with the adjustable governor parameters guarantee every pilot a precise control experience.

3. High Voltage Built-in BEC
● The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 10A and peak current of 25A can supply enough power for your servos to operate efficiently.

4. Other Features
A separate program port for connecting programmer on this ESC allows user to
● Program ESC,
● Check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve
(in Heli Governing Store mode) of the flight parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module & our Apple/Android phone App.

5. DEO Technology
The DEO (Driving Efficiency Optimization or so-called “Active Freewheeling”)
technology implemented in the ESC has multiple advantages.
● Rapider response to throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.

6. Built-in Sparkproof Circuit
Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.

Item Packing

1x Hobbywing hv 130 v4 esc

Detailed Images
