Black Foxeer XAT600M HS1177 600TVL NTSC CCD Camera Mini FPV Cam with 2.8MM Lens

Black Foxeer XAT600M HS1177 600TVL NTSC CCD Camera Mini FPV Cam with 2.8MM Lens
Part No.: HS1177-N
Manufacturer: Foxeer

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

2.8mm Lens
Super mini CCD camera, which make it nearly suits any drone.
It adopts 1/3 inch Sony Super HAD II CCD, Nextchip 2040 DSP.
5-22V wide range input voltage allow you change battery without worries.
600TVL high picture quality
5 keys powerful OSD menu.
D-WDR (Wide Dynamic Range)
2D-DNR (Digital Noise Reduction)
Low Power Consumption(70mA)
Mirror function
Privacy areas: 8 areas
Low Power Consumption
Suitable for FPV

Product Details

Brand Name: Foxeer
Model: XAT600M
CCD: 1/3” Sony SUPER HAD II CCD
DSP model Nextchip 2040
Pixel: NTSC 768(H)x494(V)
TV System: NTSC
Resolution: 600TVL (color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS): NTSC: 1/60-1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Low illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
Private shading: (PRIVACY) 1-8 private shading area
Motion Detection: (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC 5V-22V
Working Temperature: -10 C - 50 C
Working Humidity: 20-80%
Storage Temperature: -40 C - 60 C
Storage Humidity: 20-95%
Power Consumption: 70mA
Color: black

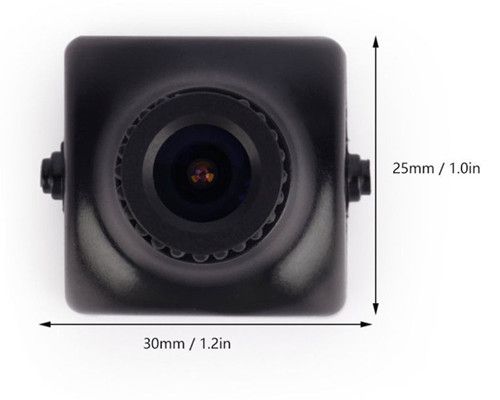

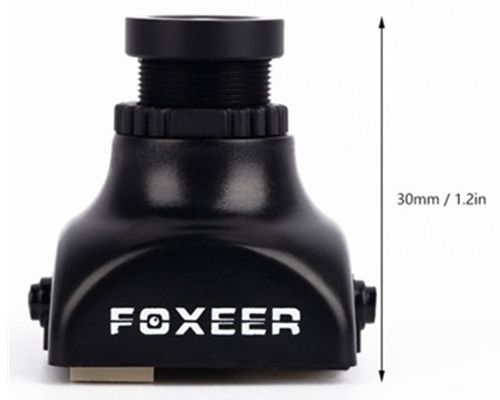

Size: approx. 30 x 25 x 30mm/1.2 x 1 x 1.2 inch
Package size: 90 x 60 x 53mm/ 3.5 x 2.4 x 2.1 inch
Net weight: 42g
Package weight: 69g

Item Packing

1 x Camera with 2.8 Lens
1 x Mounting bracket
1 x Camera cable with Male Servo end
1 x OSD Joystick cable
1 x manual

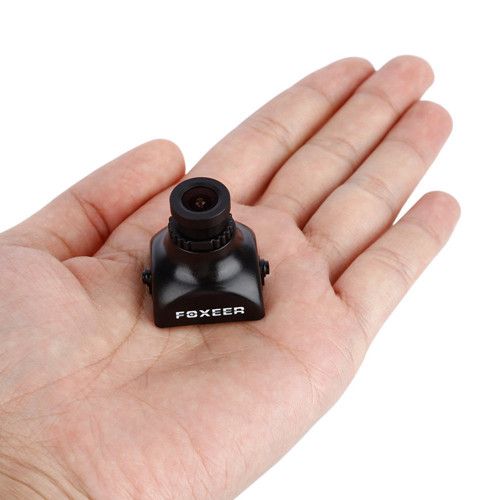

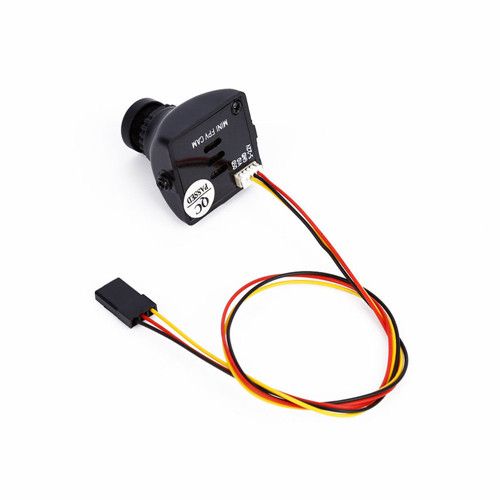

Detailed Images
