UltraPower UP9 AC100W DC200W 10A Four Channel Quick Charging Balance Charger for Lipo LiHV Lilon LiFe RC Models Battery

UltraPower UP9 AC100W DC200W 10A Four Channel Quick Charging Balance Charger for Lipo LiHV Lilon LiFe RC Models Battery
Part No.: LC-UP9
Manufacturer: UltraPower

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Higher efficiency: Four intelligent balanced charging ports, easily handle multiple batteries, Independent output, not influence each other. Four different types of batteries can be charged simultaneously. Including Lipo , LIHV (Support 4 . 45V Battery) , Lilon , Life , Nimh , Nicd , Lead Acid.

AC / DC double-input, more convenient: It can support AC input or DC input, meet different use requirements. The output power is 100W in AC mode, 200W in DC mode.

2.4'' High-definition IPS colorful screen: All the data are visible under the sunshine , easy to get the information

Intelligent protection, safe charging: 32 bit ARM chip, high accuracy charging management, balance precision within 0.005V, well protect your battery automatically under various accident circumstance.

Product Details

Input voltage:AC 100-240V, DC 9.0-32.0V
Output voltage: 0.1-30V
Charge Current: 0.1-10.0AX2
Discharge Current: CH1:0.1-2.0A/ 0.1-15.0A(External discharge mode); CH2:0.1-2.0A
Charge Power: DC Input:2x200W
                         AC Input: Max.200W (CH1+CH2=200W)
Support power distribution
Discharge power: CH1:6W/200W(External discharge mode); CH2:6W
Balance current: Max.1000mA/cell
LiPo/LiHV/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)
LCD Screen type: 2.4〃320×240 IPS LCD
Dimensions: 100x199x64mm
Weight: 450g

Item Packing

UP9 Balance Charger x 1

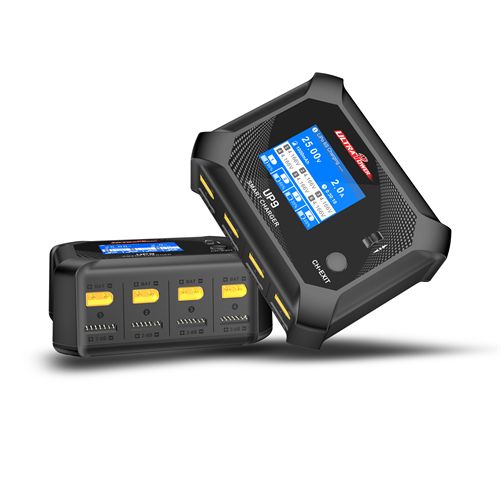

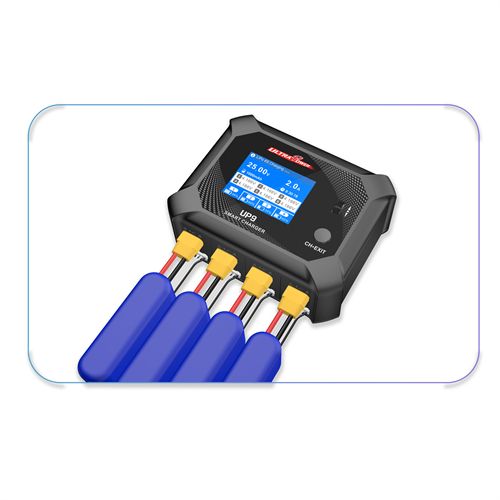

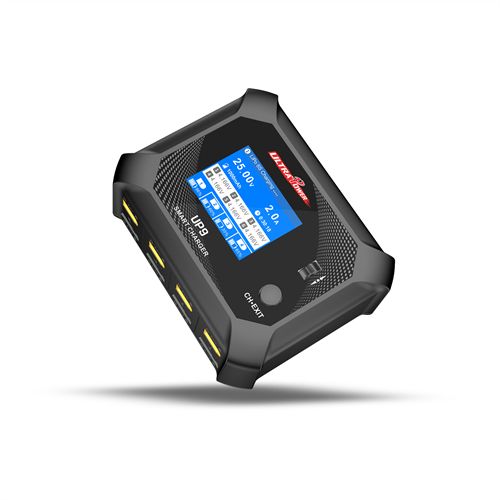

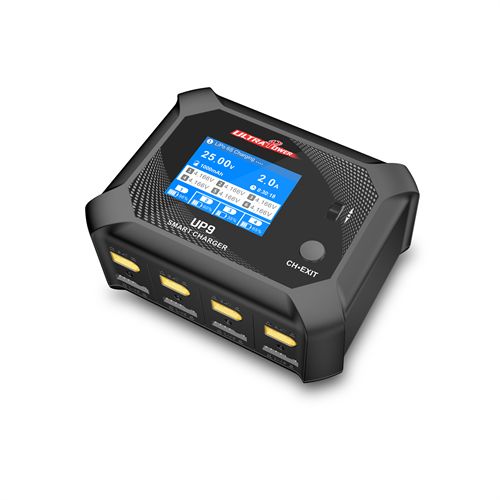

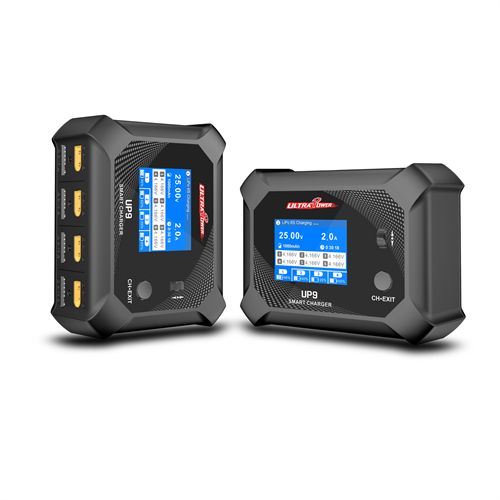

Detailed Images
