GARTT ML4114 330KV Brushless Motor For Multirotor Quadcopter Hexa DJI S800 S1000 RC Drone
| Part No.: | ML4114-330KV |
| Manufacturer: | Feixiang |
Send to a friend
Features
GARTT ML4114 330KV Brushless Motor For Multirotor Quadcopter Hexa DJI S800 S1000 RC Drone
Product Details
ML4114 Motor
Motor(KV):330KV RPM/V
Motor Resistance (RM): 0.1082 Ω
Idle Current (Io/10V): 0.6A/10V
Max Continuous Current : 25A
Max Continuous Power: 750W
Weight ≈170g/6oz
Lipo Cell : 4S~8S

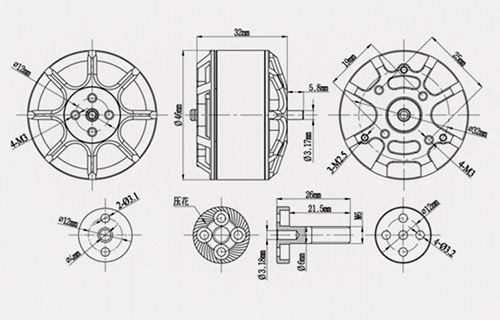

Motor Diameter: 46mm/1.81in
Motor Body Length: 32.5mm/1.28in
Configu-ration: 24N22P
Overall Shaft Length: 40.4mm/1.59in
Shaft Diameter: 3.175mm/0.125in
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6
Motor(KV):330KV RPM/V
Motor Resistance (RM): 0.1082 Ω
Idle Current (Io/10V): 0.6A/10V
Max Continuous Current : 25A
Max Continuous Power: 750W
Weight ≈170g/6oz
Lipo Cell : 4S~8S
Motor Diameter: 46mm/1.81in
Motor Body Length: 32.5mm/1.28in
Configu-ration: 24N22P
Overall Shaft Length: 40.4mm/1.59in
Shaft Diameter: 3.175mm/0.125in
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6
Item Packing

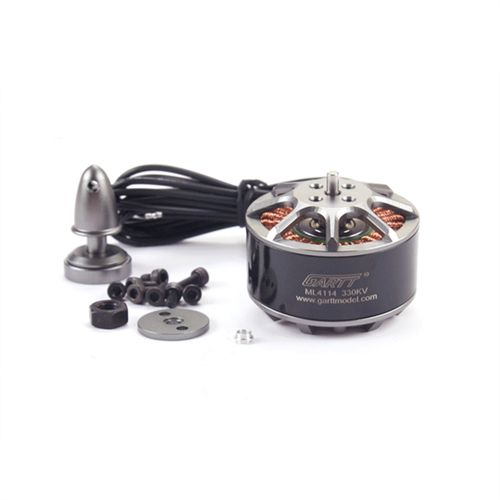

ML4114 330KV Brushless Motor x 1

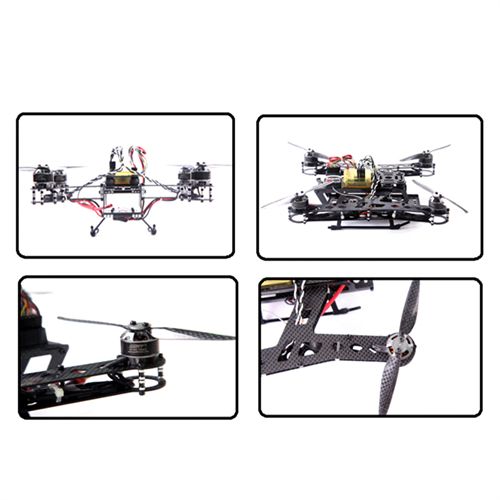

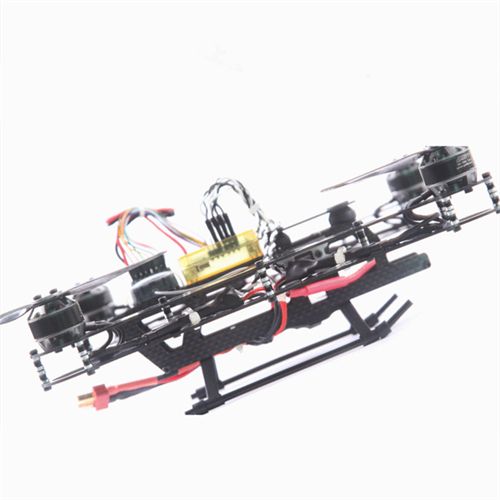

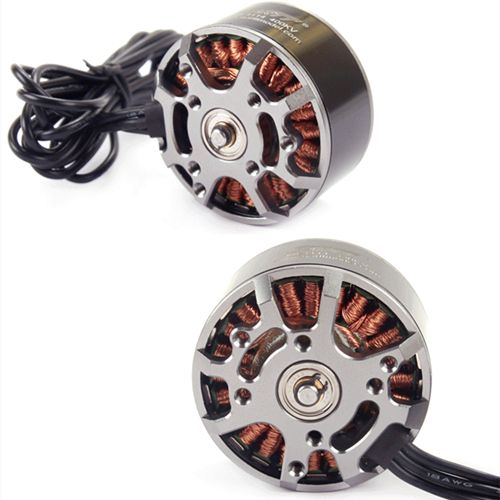

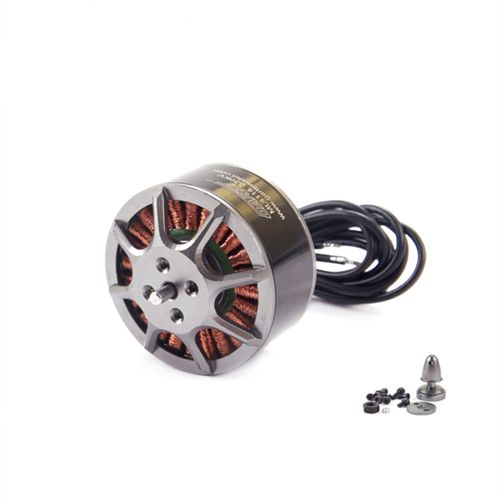

Detailed Images
