GARTT ML4108 620KV Brushless Motor For Multi-rotor Quadcopter Hexacopter RC Drone
| Part No.: | ML4108-620KV |
| Manufacturer: | Feixiang |
Send to a friend
Features
GARTT ML4108 620KV Brushless Motor For Multi-rotor Quadcopter Hexacopter RC Drone
Product Details
ML4108 Motor
Motor(KV): 620KV RPM/V
Motor Resistance (RM): 0.0765 Ω
Idle Current (Io/10V): 0.8A/10V
Max Continuous Current : 30A
Max Continuous Power: 465W
Weight ≈112g/3.95oz
Lipo Cell : 3~4S
Motor Diameter: 46mm/1.81in
Motor Body Length: 25.5mm/1.003in
No. of Stator Arms: 24
Pole Count: 22
Overall Shaft Length: 33.4mm/1.31in
Shaft Diameter: 3.175mm/0.125in
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6
Motor(KV): 620KV RPM/V
Motor Resistance (RM): 0.0765 Ω
Idle Current (Io/10V): 0.8A/10V
Max Continuous Current : 30A
Max Continuous Power: 465W
Weight ≈112g/3.95oz
Lipo Cell : 3~4S
Motor Diameter: 46mm/1.81in
Motor Body Length: 25.5mm/1.003in
No. of Stator Arms: 24
Pole Count: 22
Overall Shaft Length: 33.4mm/1.31in
Shaft Diameter: 3.175mm/0.125in
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6
Item Packing
ML4108 620KV Brushless Motor x 1

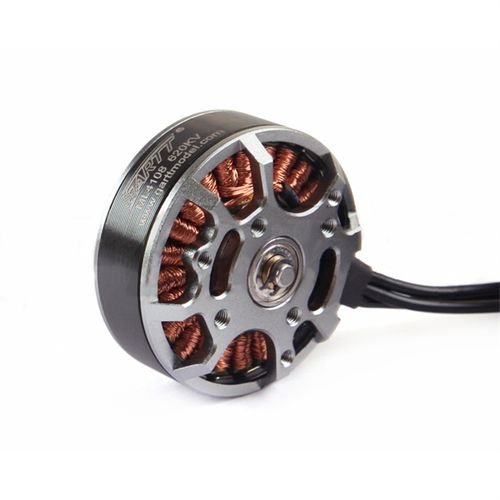

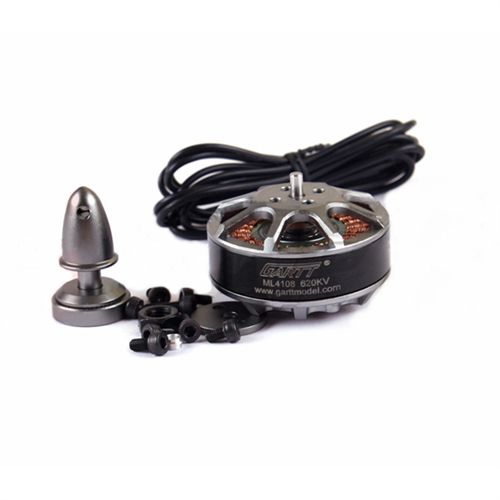

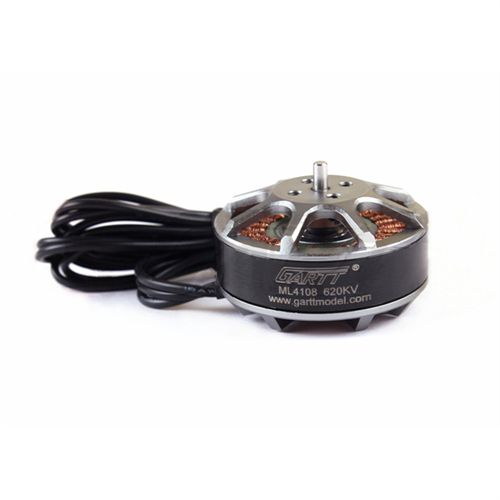

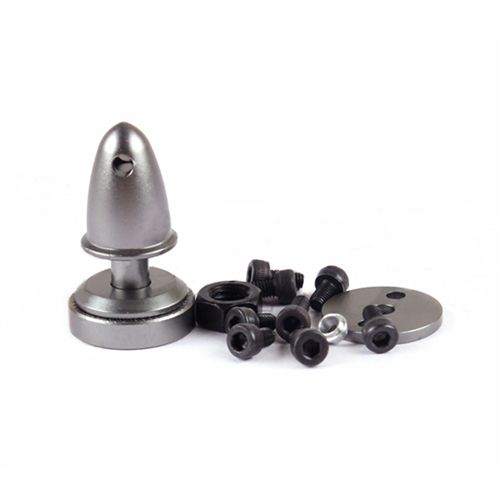

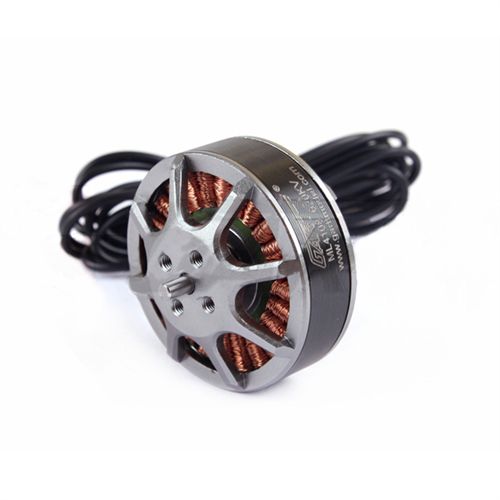

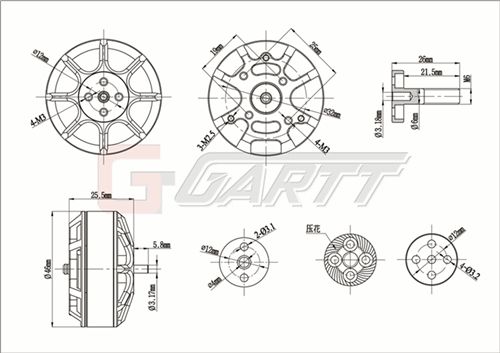

Detailed Images
