RUSHFPV RUSH BLADE F722 DIGITAL FLIGHT CONTROLLER
MCU：STM32F722RET6
GYRO：ICM42688P
BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
OSD ：AT7456E CVBS OSD
BLACKBOX ：16MB FLASH
TARGET： RUSH_BLADE_F7
PORT ：8×PWM 5×UART 1×I2C
ADC： V-BATT / CURR-ESC
LED：WS2812 LED STRIP
BARO：BMP280
MOUNTING HOLES： 30.5*30.5mm
SIZE ：36.5mm*37mm*5.2mm
WEIGHT： 11g(without cable)

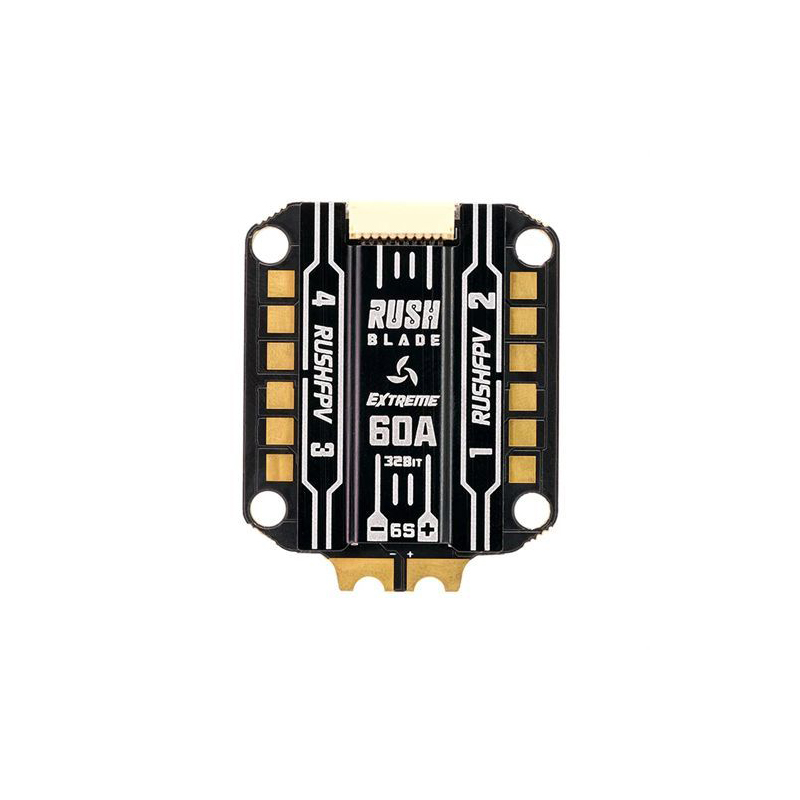

RUSHFPV RUSH BLADE 60A 128KHZ 3-6S BLHELI_32 4-IN-1 ESC
Rated Current: 60A
Peak Current: 80A
Input Voltage: 3-6S Lipo
MCU: F4 @ 200MHz
PWM FREQ: 24-128KHz
LED Color: Orange
Weight：16.5g
Dimension: 45*36.5*7.5mm
BL32 FW: RUSH_BLADE_EXTREME
1 x RUSHFPV RUSH BLADE F722 Digital Flight Controller V2 Version
1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 128kHz 4-in-1 ESC
