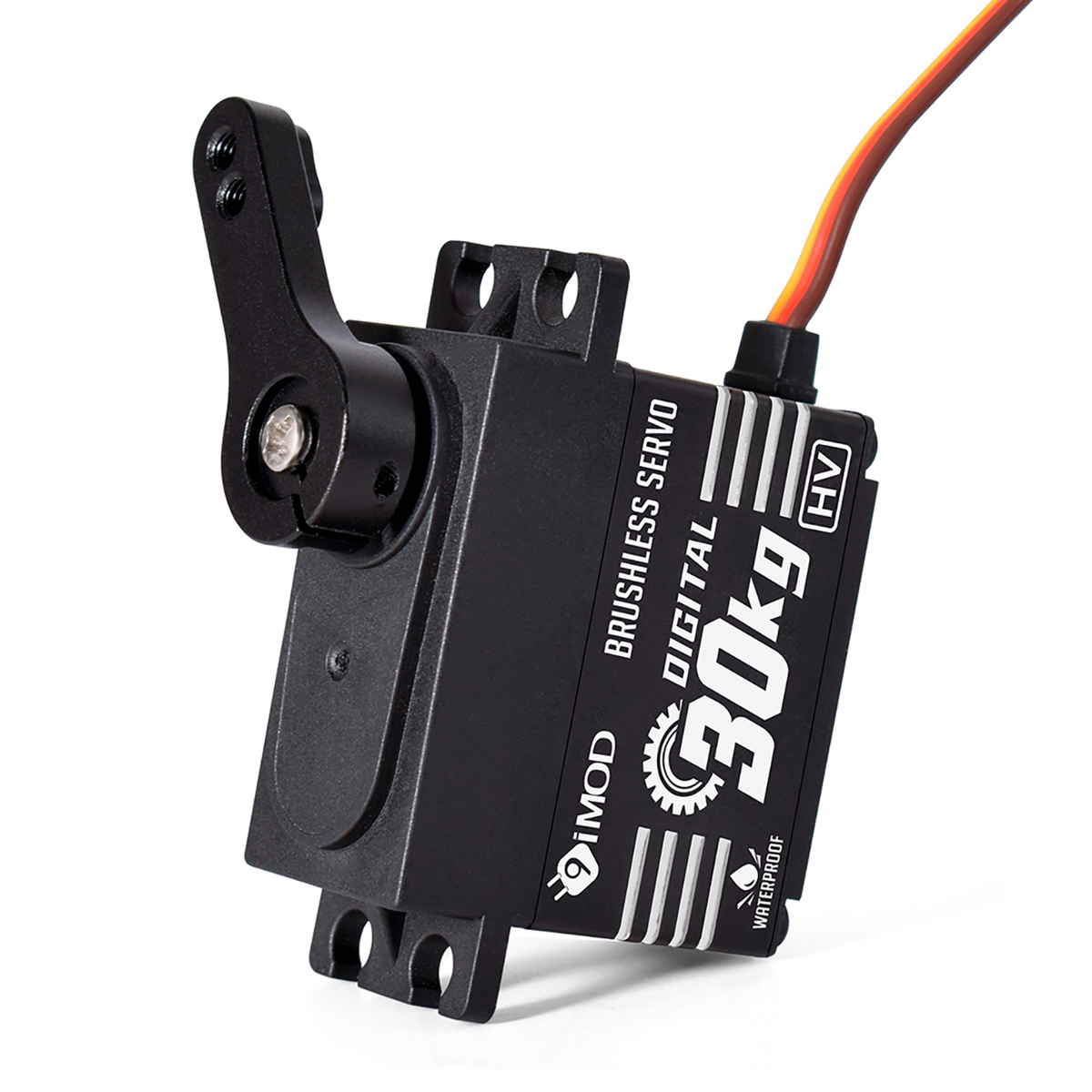

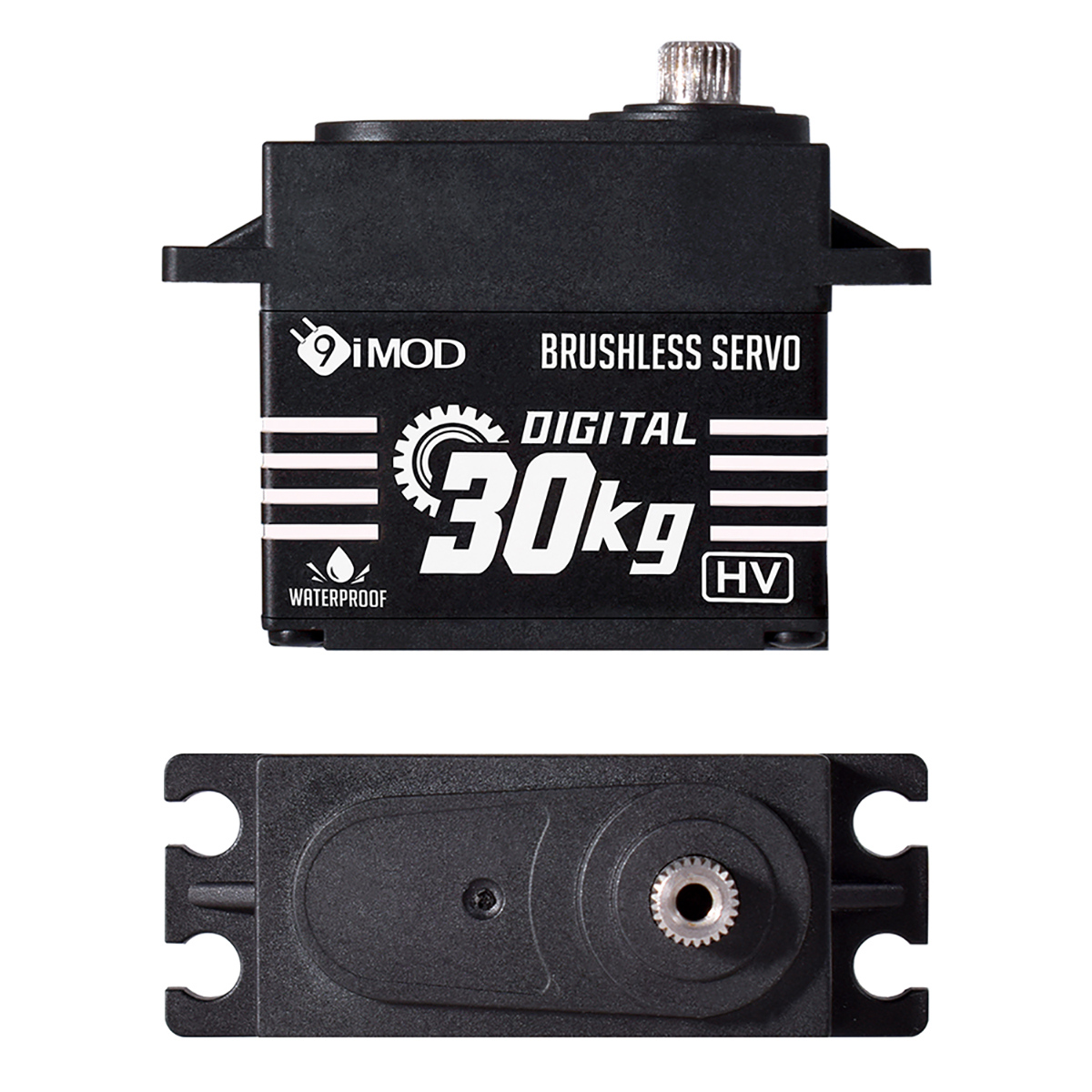

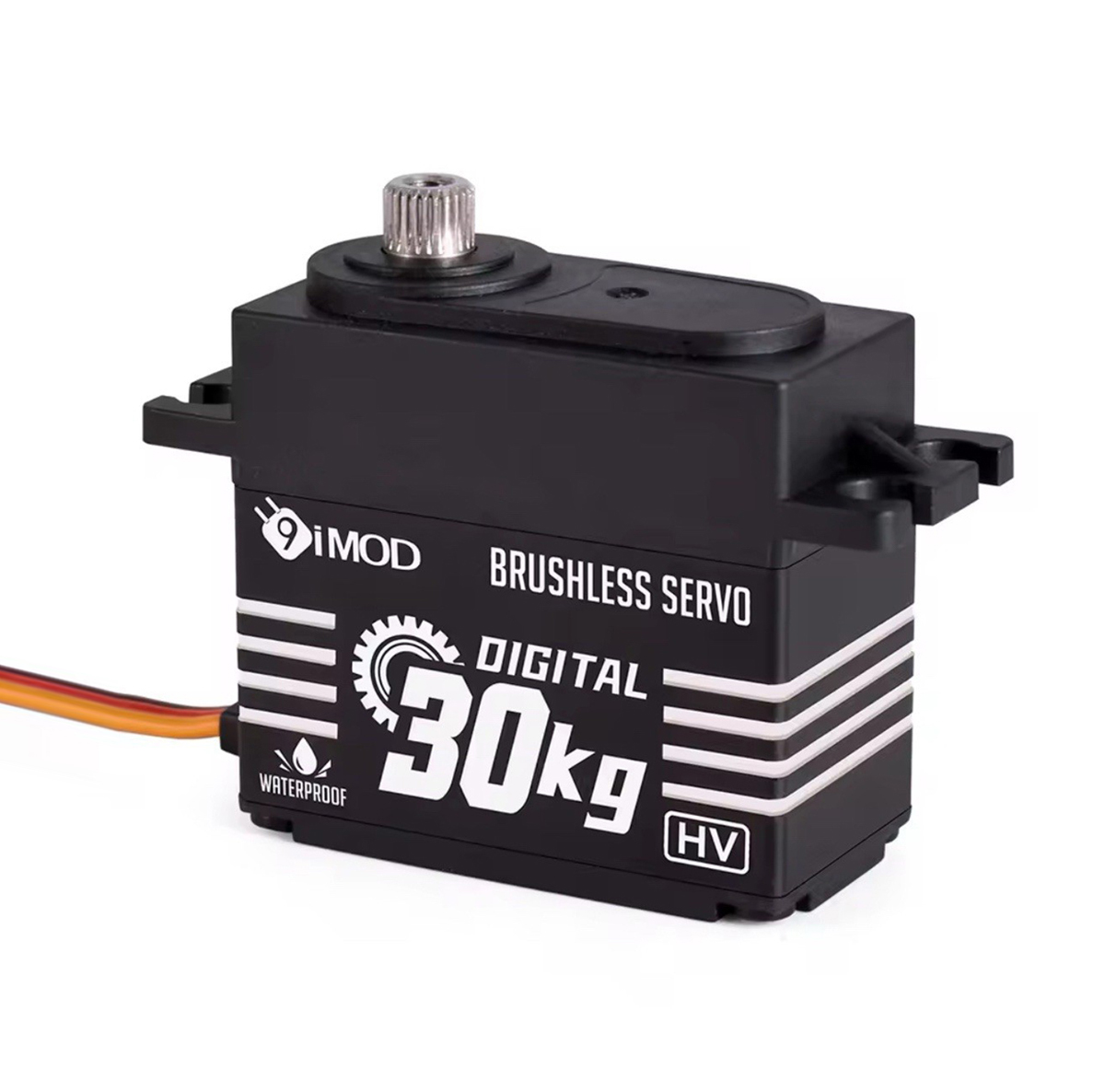

9imod 7.4V 30kg Metal Gear 180 Degree HV Brushless Motor Waterproof Digital Servo for RC Crawler Car Boat
9imod 7.4V 30kg Metal Gear 180 Degree HV Brushless Motor Waterproof Digital Servo for RC Crawler Car Boat
The 9imod BLS-HV Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range, It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Features:
6.0V ~8.4V High voltage.High performance digital High Voltage Brushless
Waterproof performance: waterproof,Excellent linearity, precision control

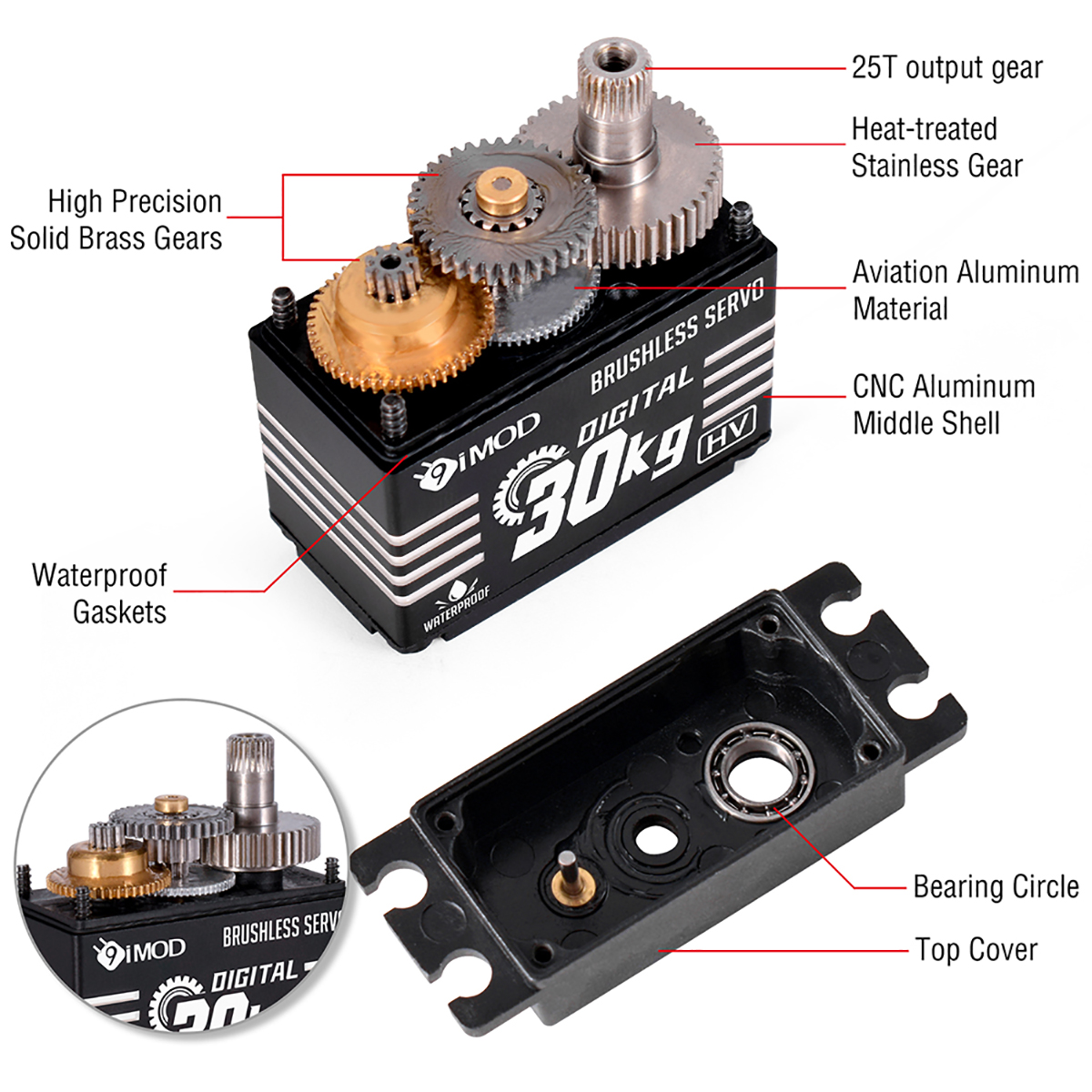

Equipped with Metal Gears, Aluminum alloy case, Less Noise, light weight.Dual ball bearings
Widely Use Digital Servo:Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car/Robot /Boat and other remote control models
Model:BLS-HV30KG
Color: Black

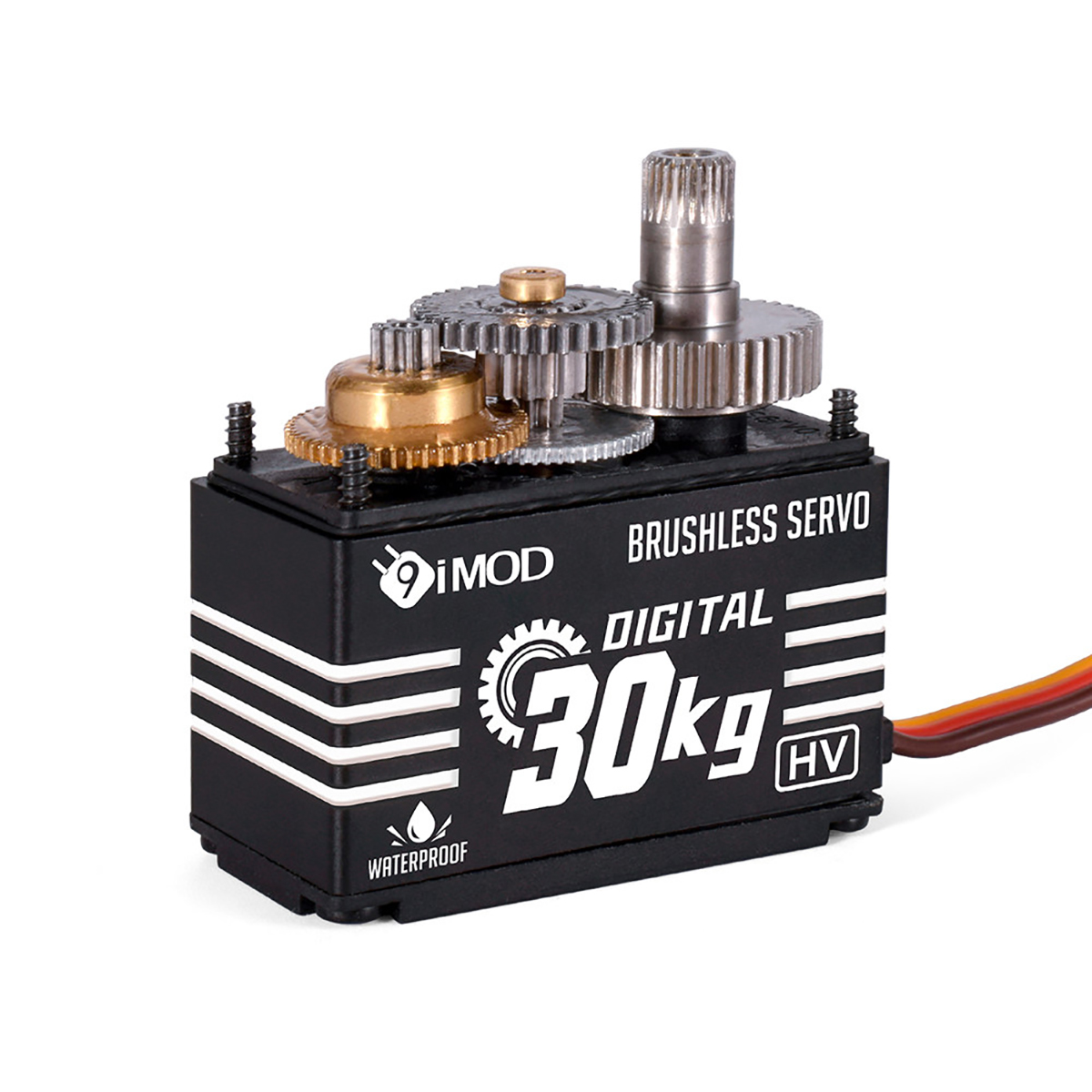

Gear Material: Metal Gear
Case Material: Aluminum Alloy AL6061 + Nylon Additive
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃

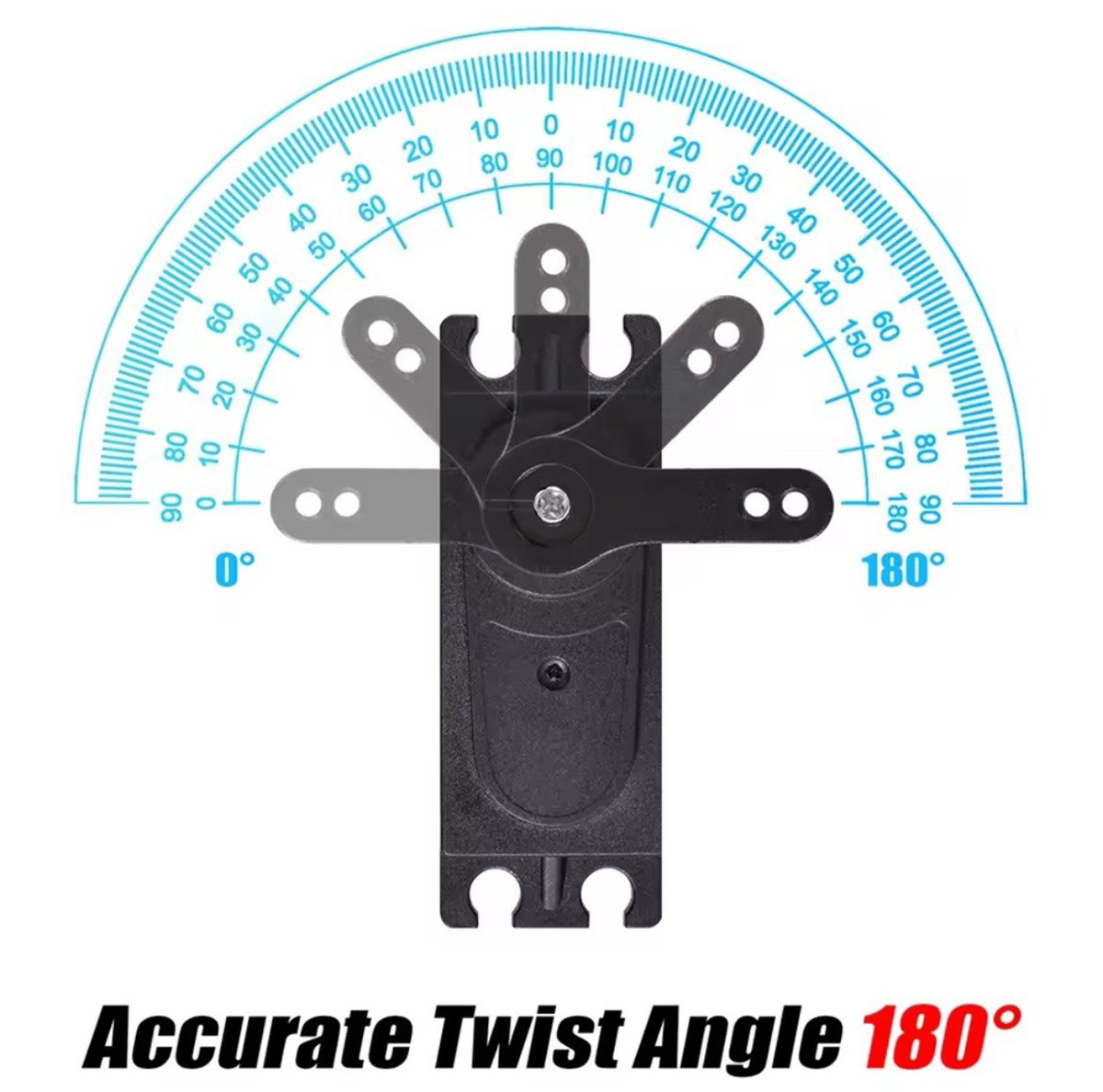

Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

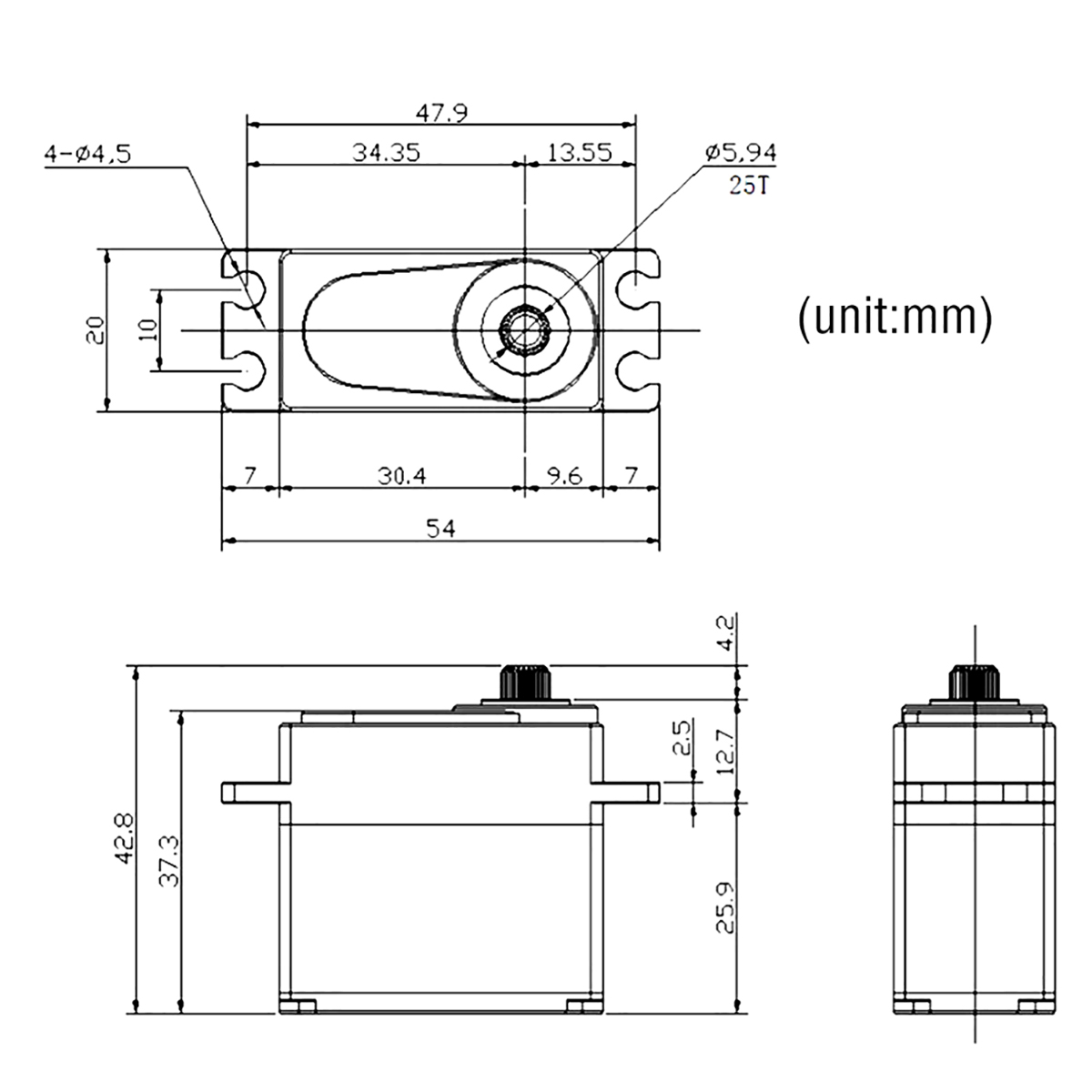

Dimensions: 40x20x37.3mm
Weight: 69.2g (Without Servo Horn)
Ball Bearing: 2BB

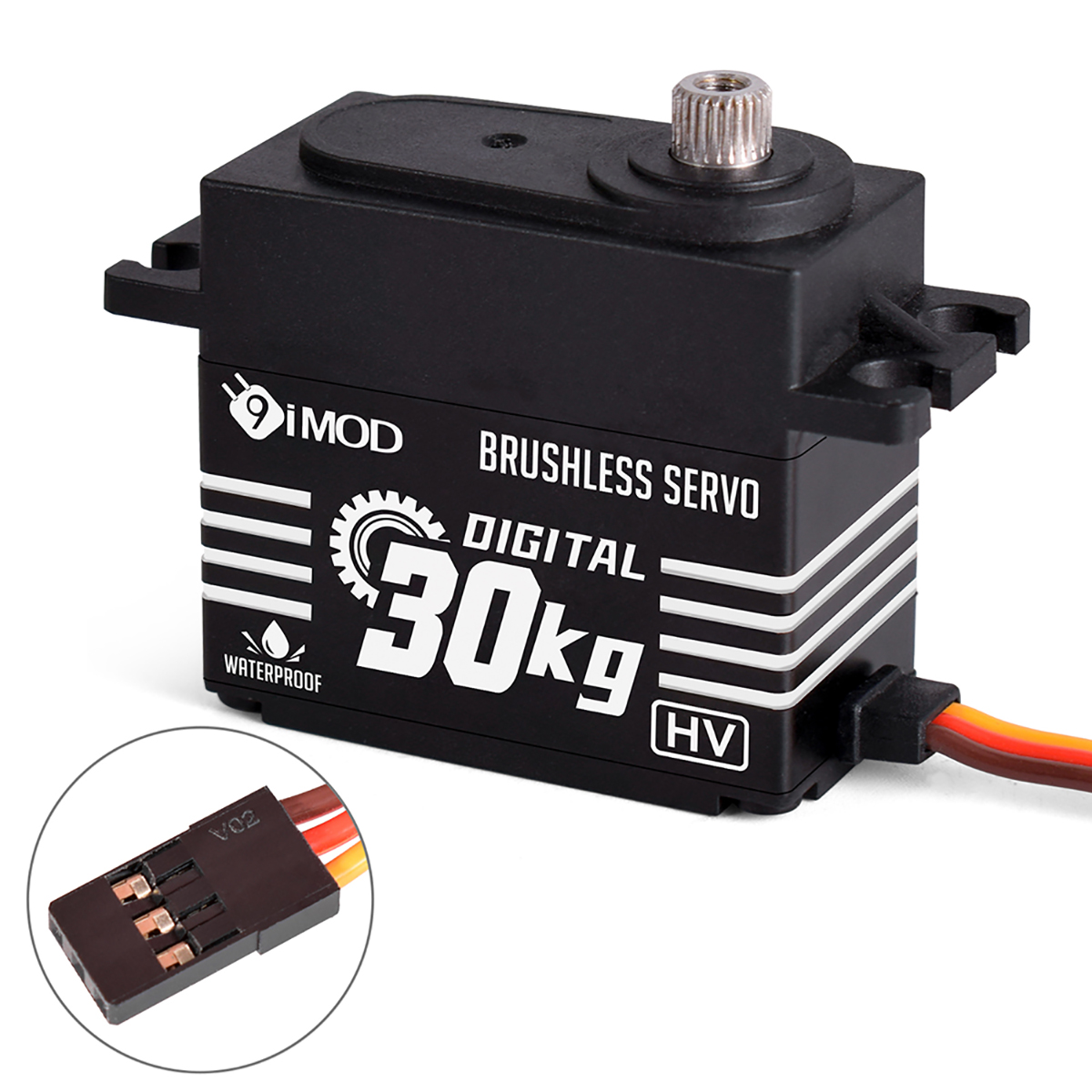

Connector Wire Length: 300mm JR Plug
Dead Band Width: 2μsec

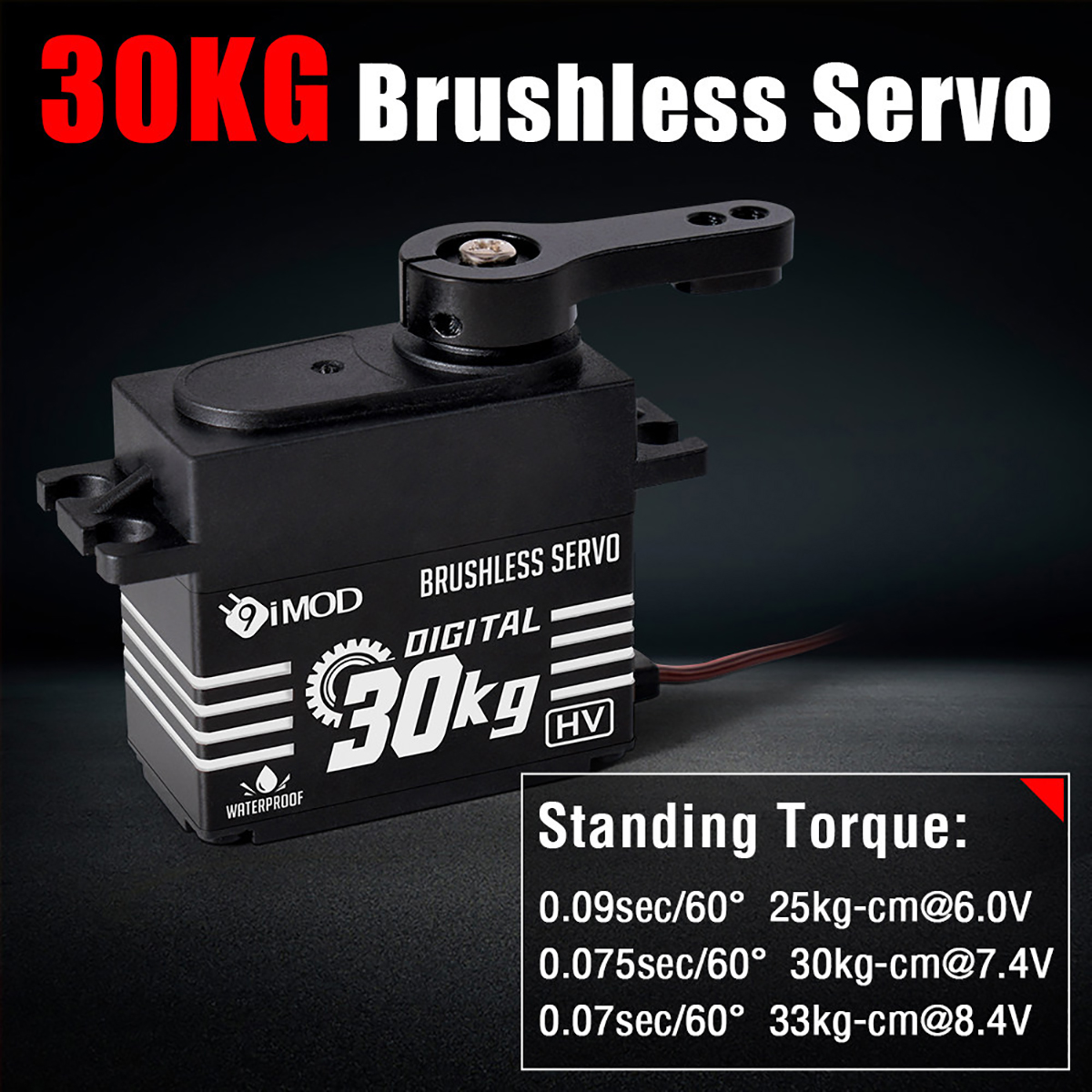

Standing Torque: 0.09sec/60°, 25kg-cm @6.0V ; 0.075sec/60°, 30kg-cm @7.4V ; 0.07sec/60°, 33kg-cm @8.4V

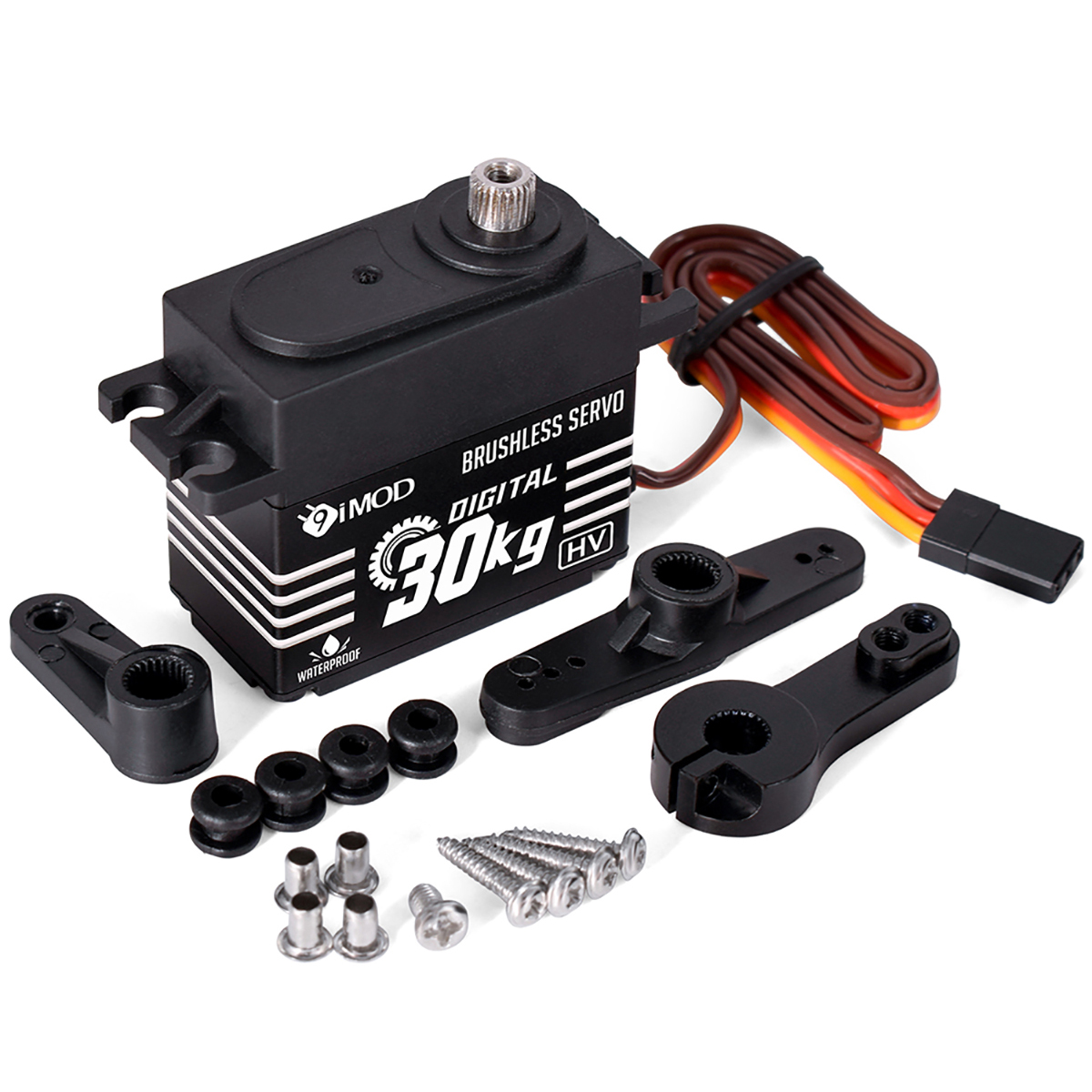

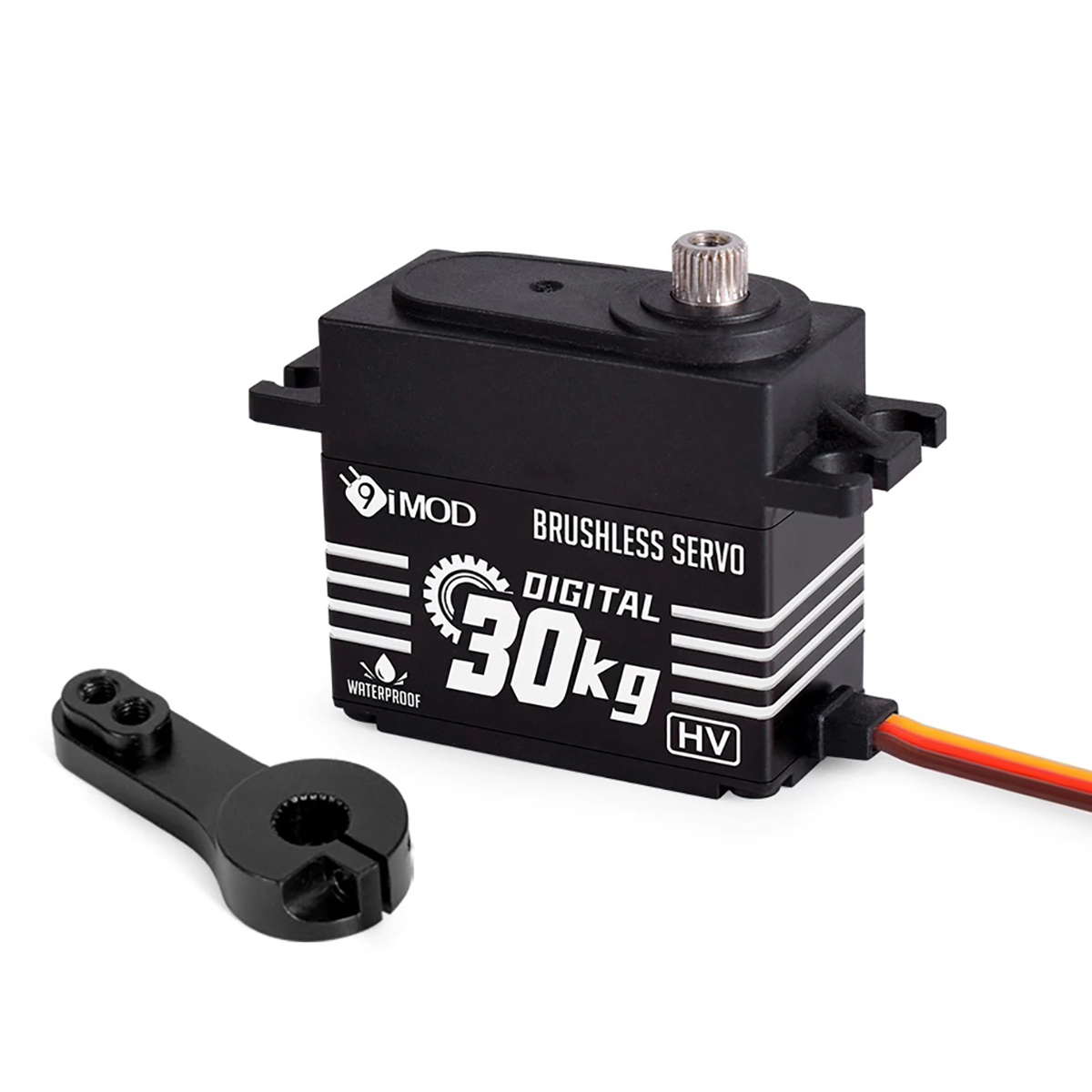

Servo x1
Servo Accessories x1
