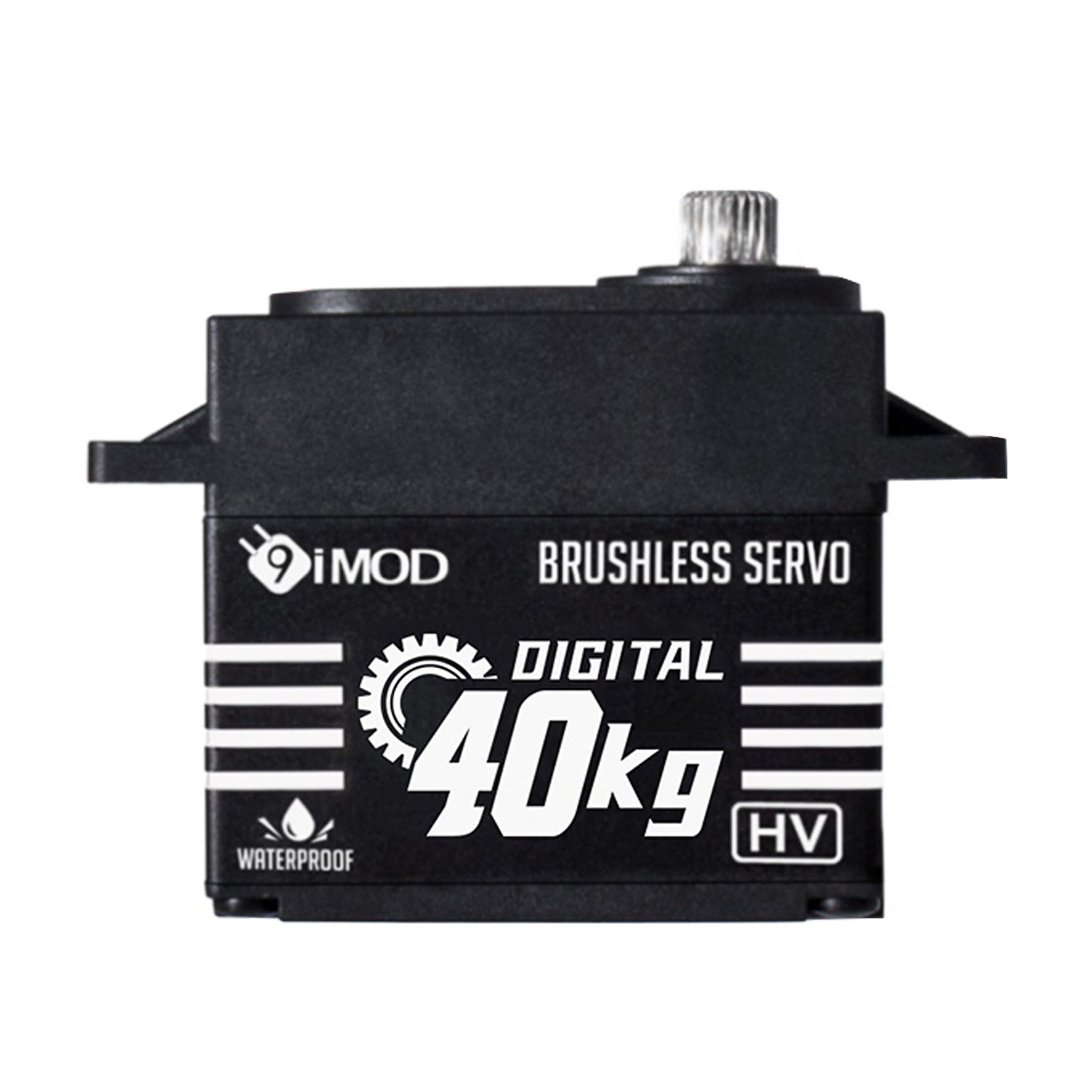

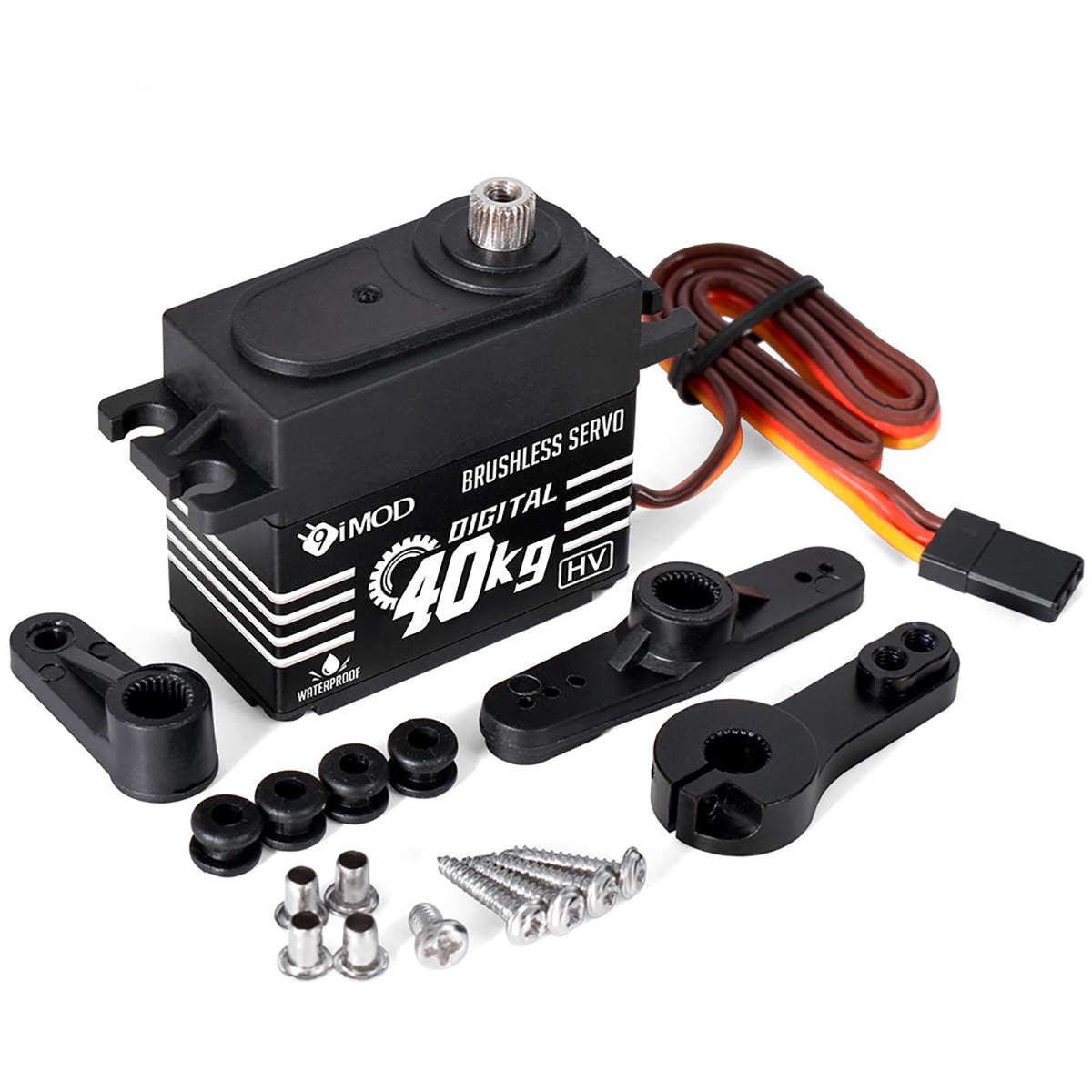

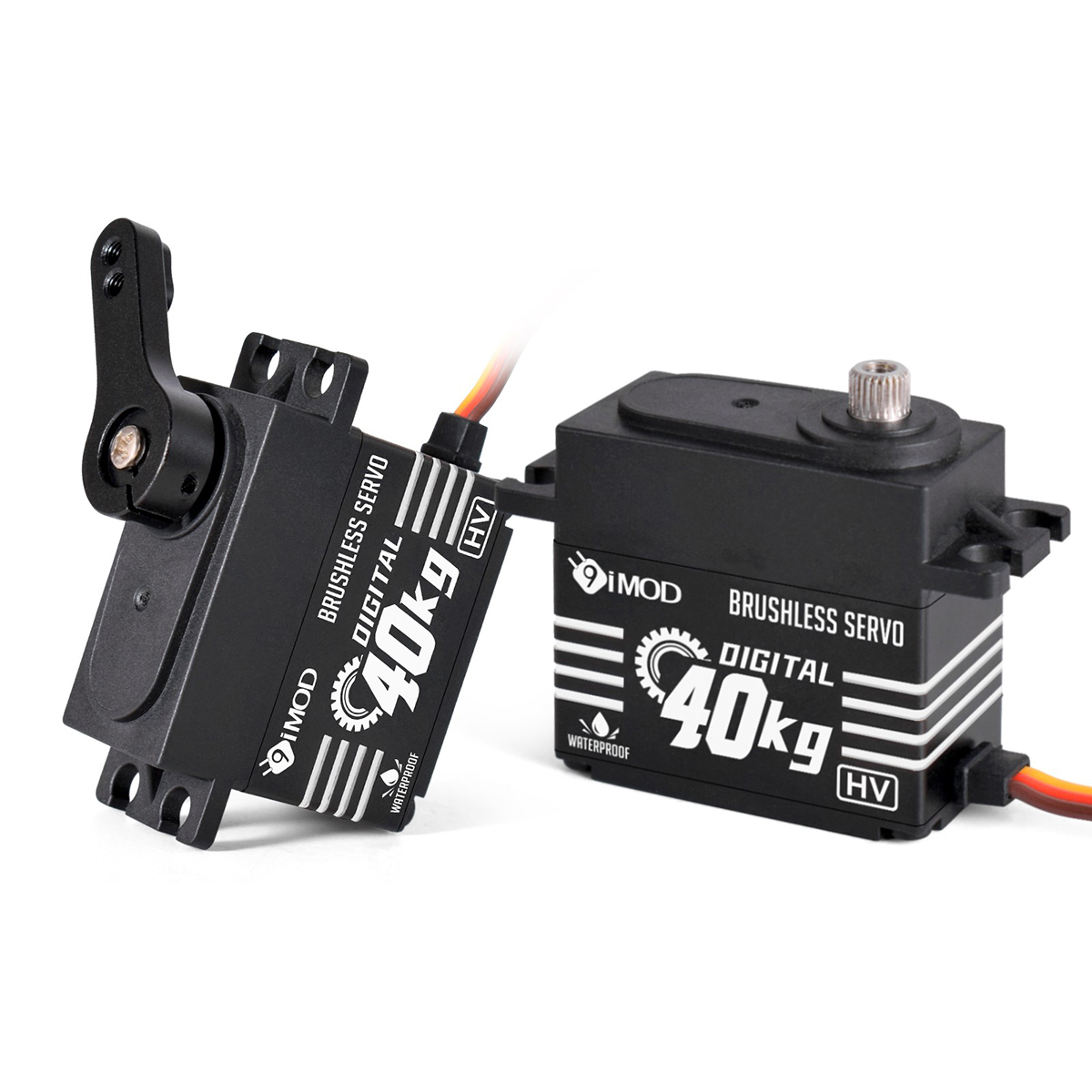

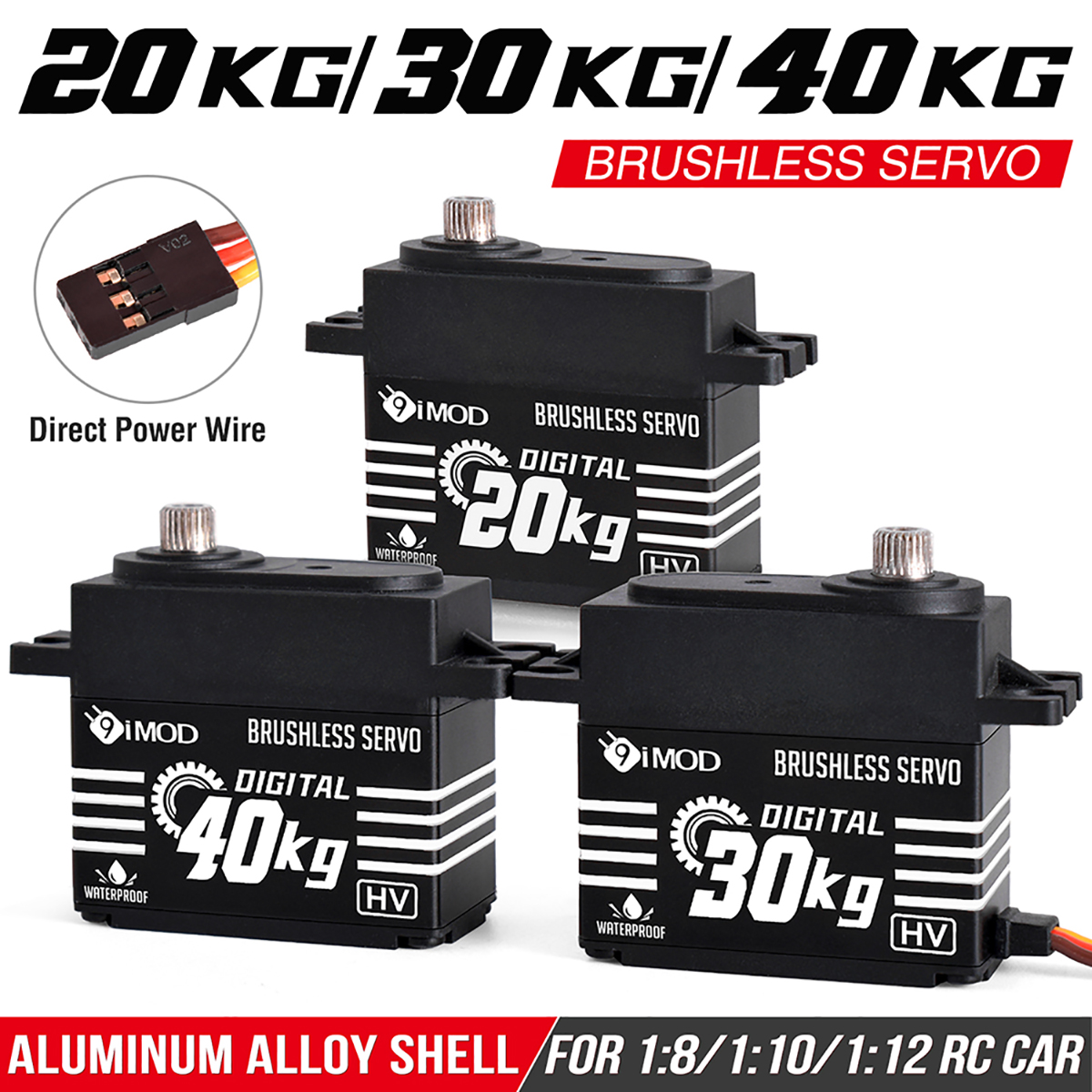

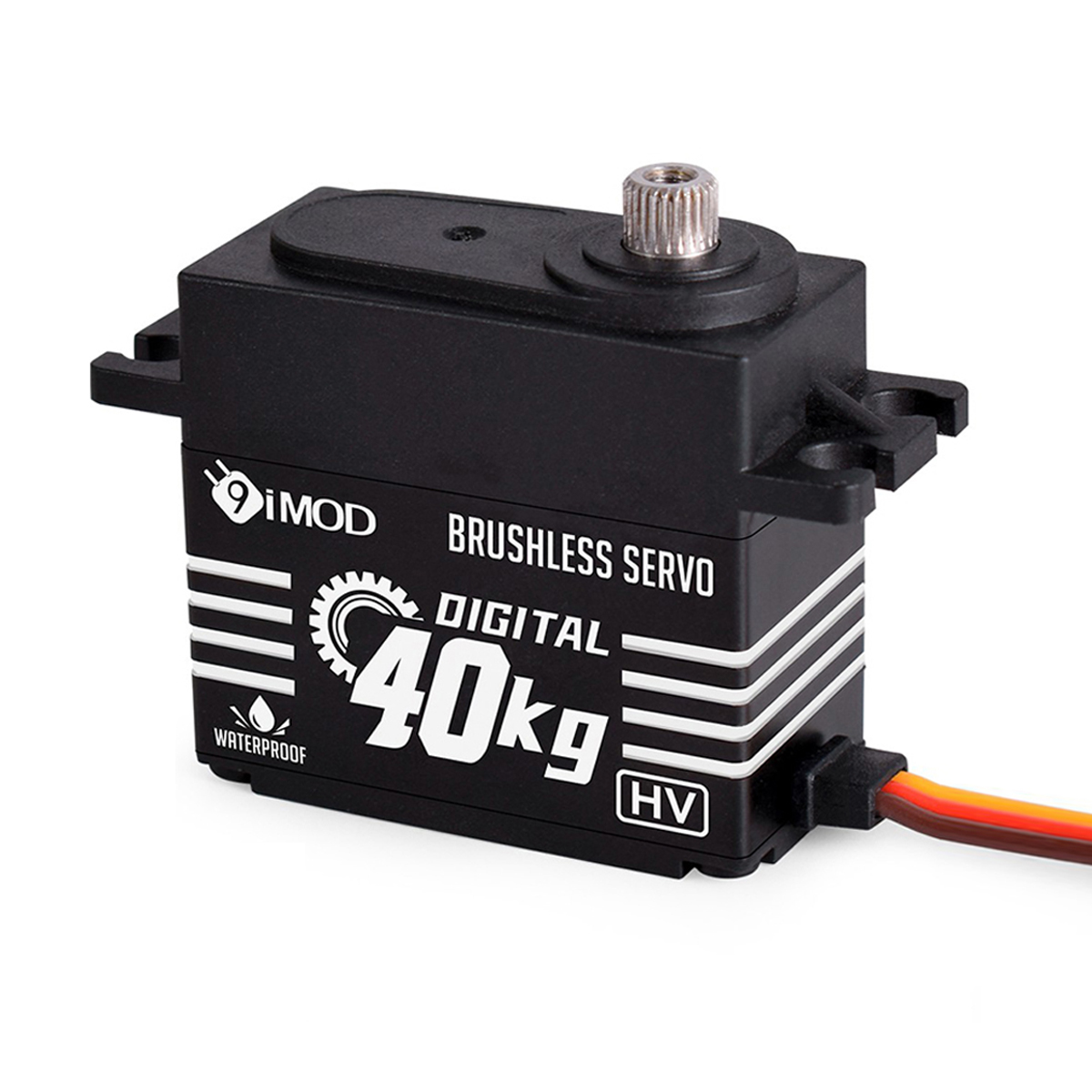

9imod 7.4V 40kg Metal Gear 180 Degree HV Brushless Digital Servo for 1/8 1/10 RC Crawler Car Boat DIY

SKU BLS-HV40KG-180 Category LX Servo and Other Servo Tag Digital Servo Brand: 9imod

9imod 7.4V 40kg Metal Gear 180 Degree HV Brushless Digital Servo for 1/8 1/10 RC Crawler Car Boat DIY

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

The 9imod BLS-HV Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range, It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

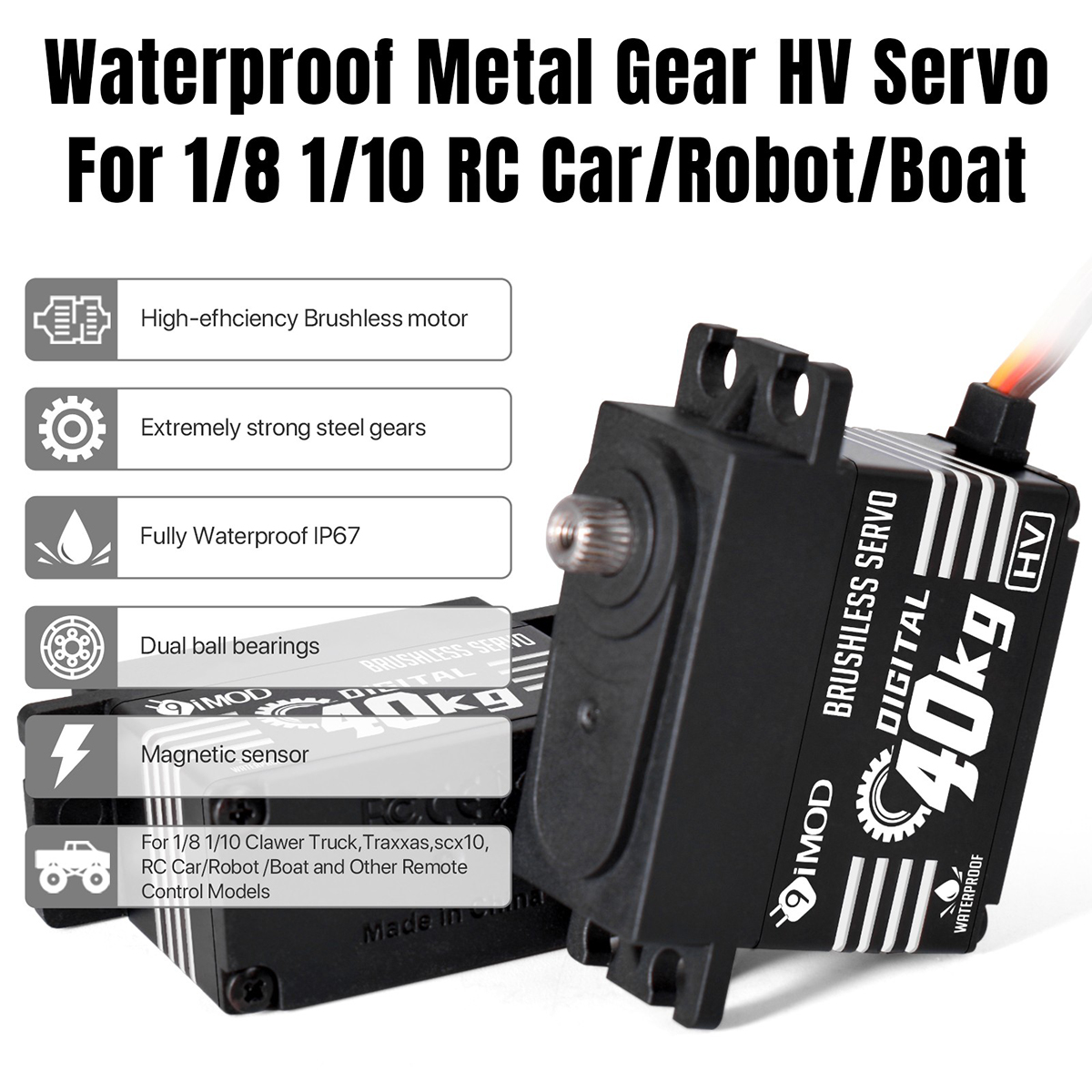

Features:
6.0V ~8.4V High voltage.High performance digital High Voltage Brushless

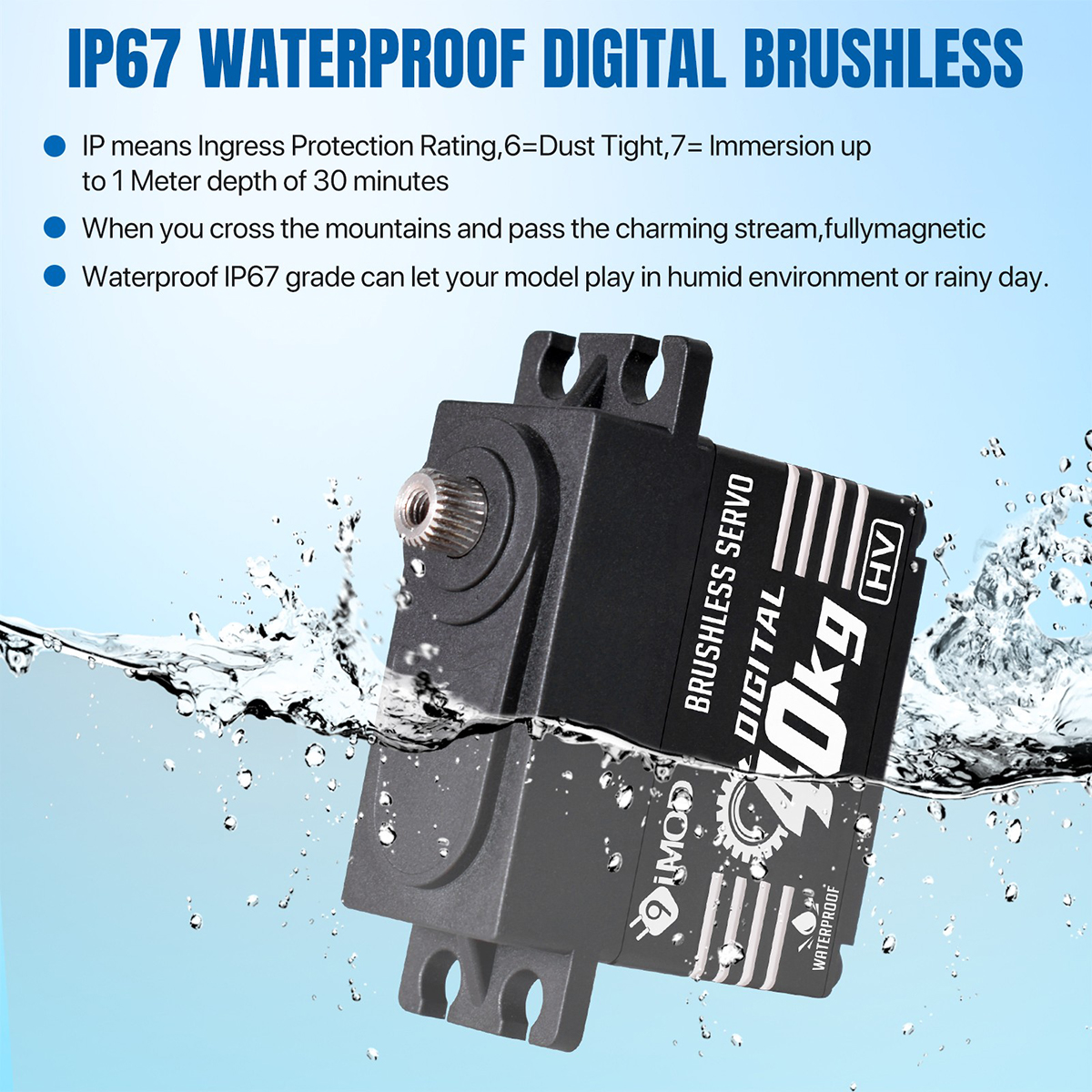

Waterproof performance: waterproof,Excellent linearity, precision control

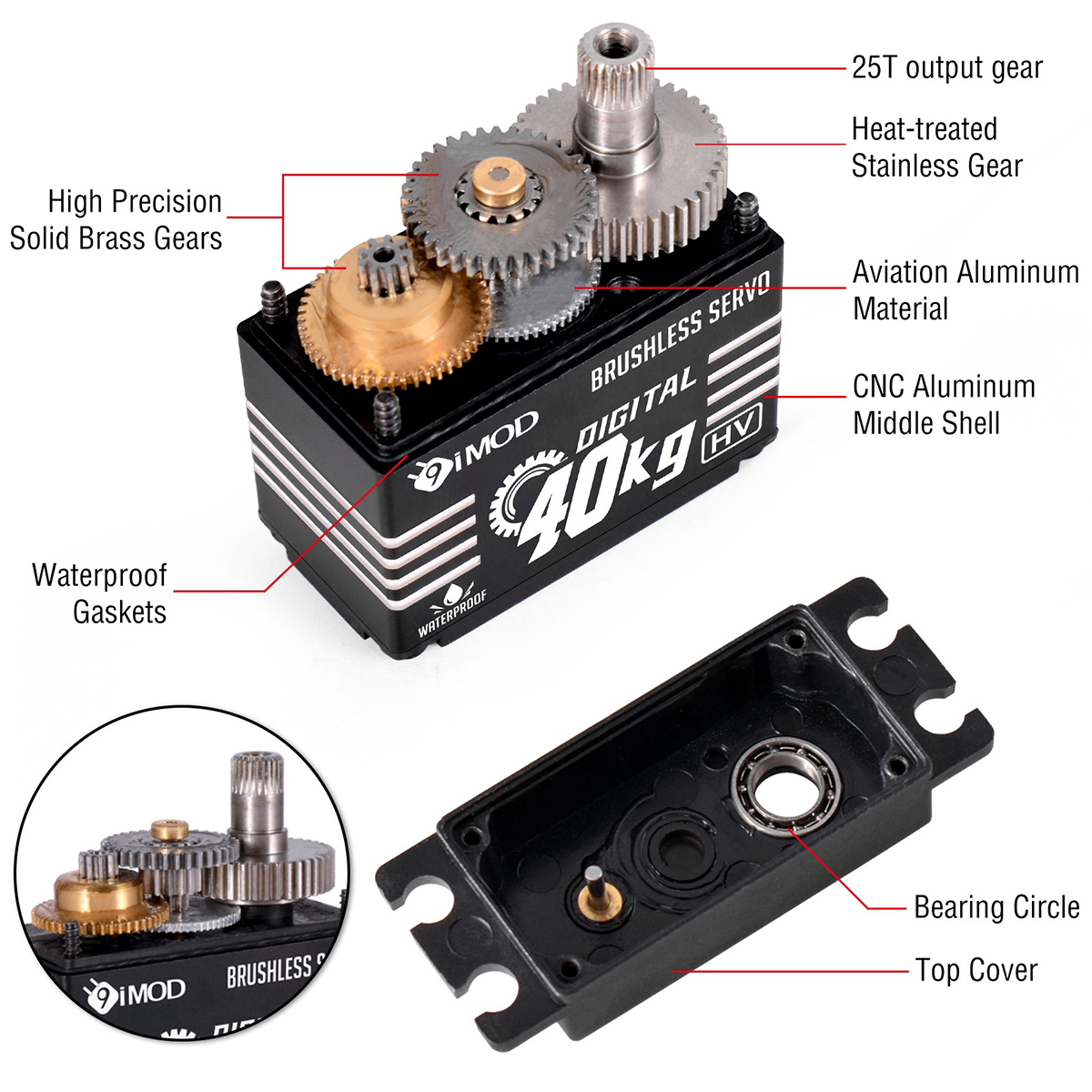

Equipped with Metal Gears, Aluminum alloy case, Less Noise, light weight.Dual ball bearings

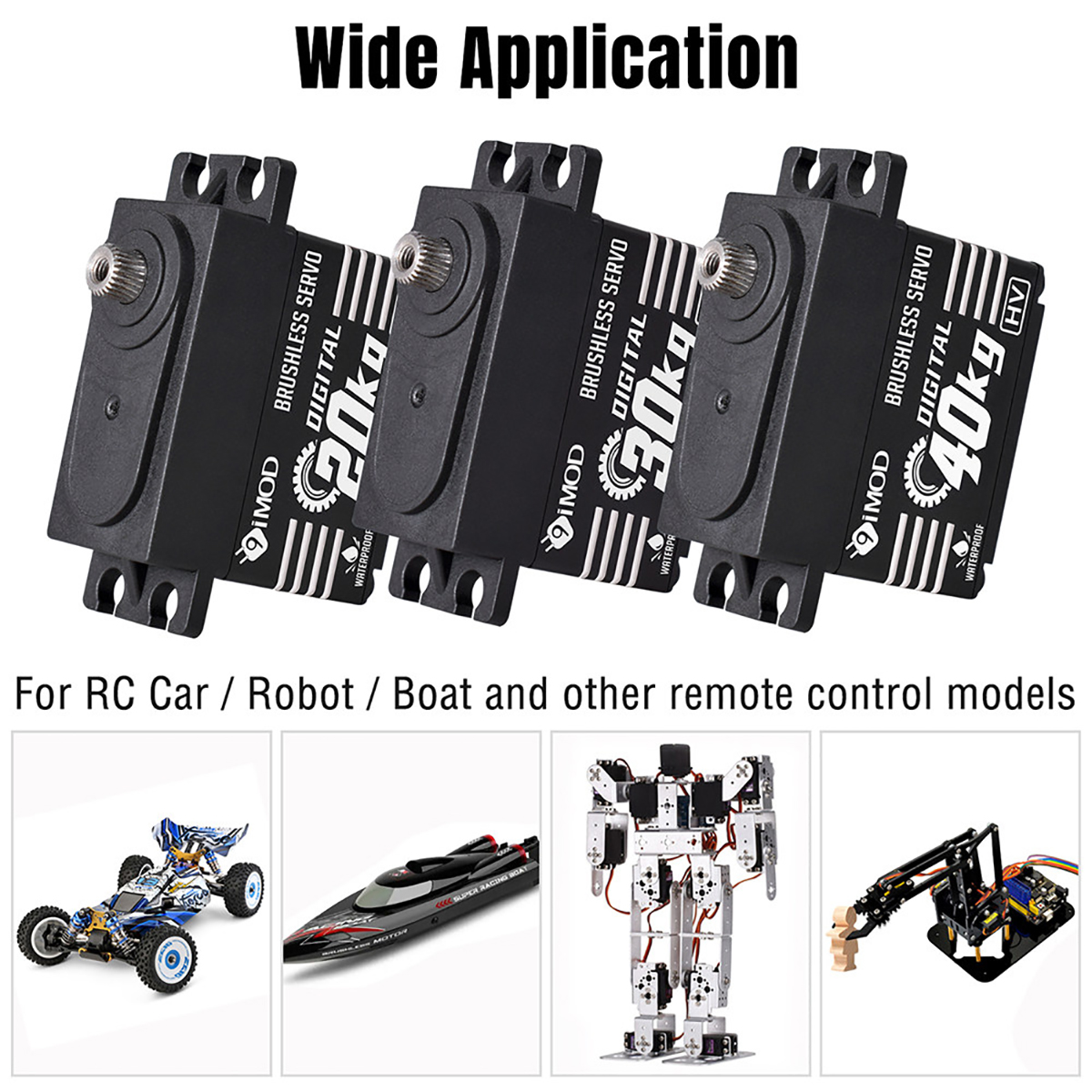

Widely Use Digital Servo:Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car/Robot /Boat and other remote control models

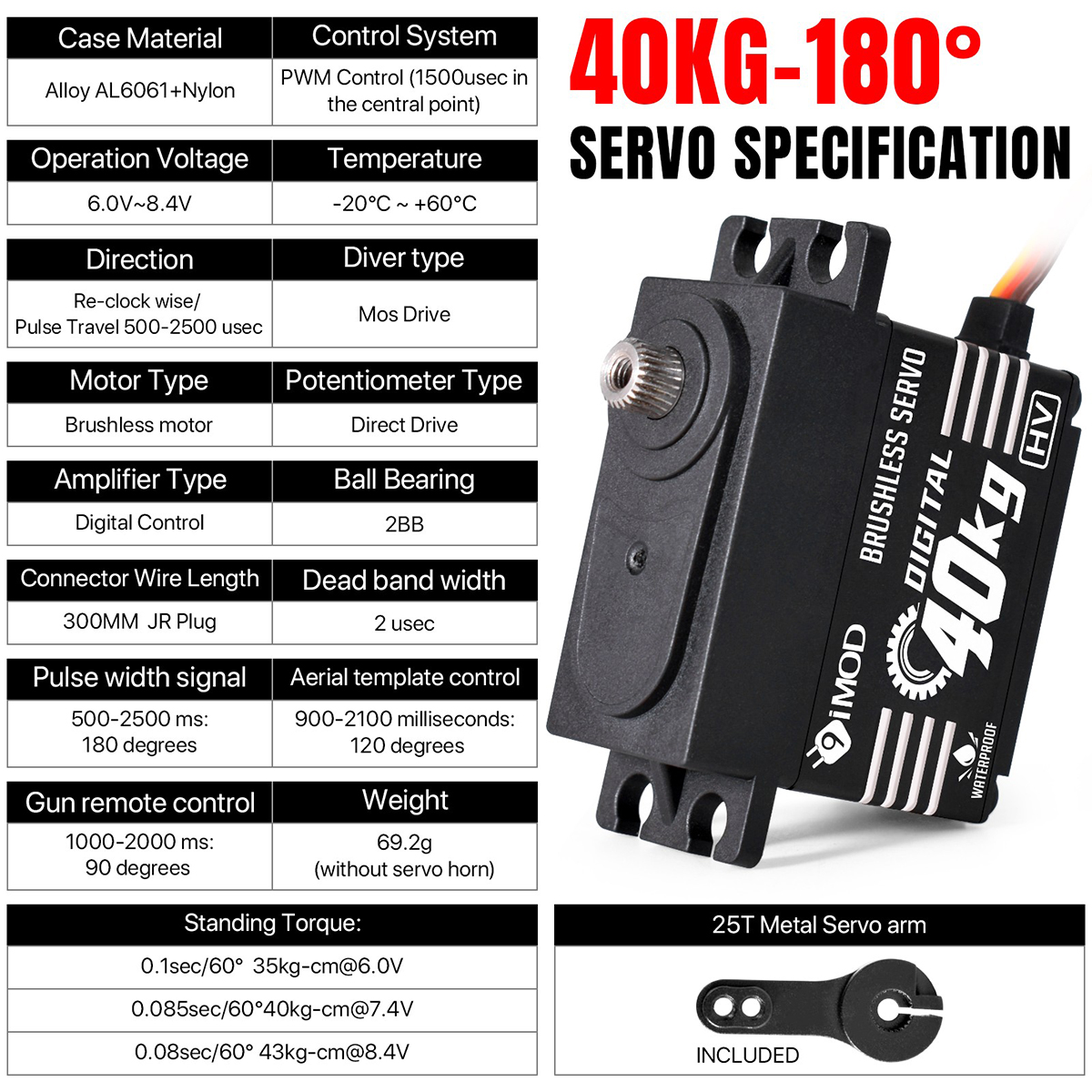

Model: BLS-HV40KG
Color: Black
Gear Material: Metal Gear
Case Material: Aluminum Alloy AL6061 + Nylon Additive
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃

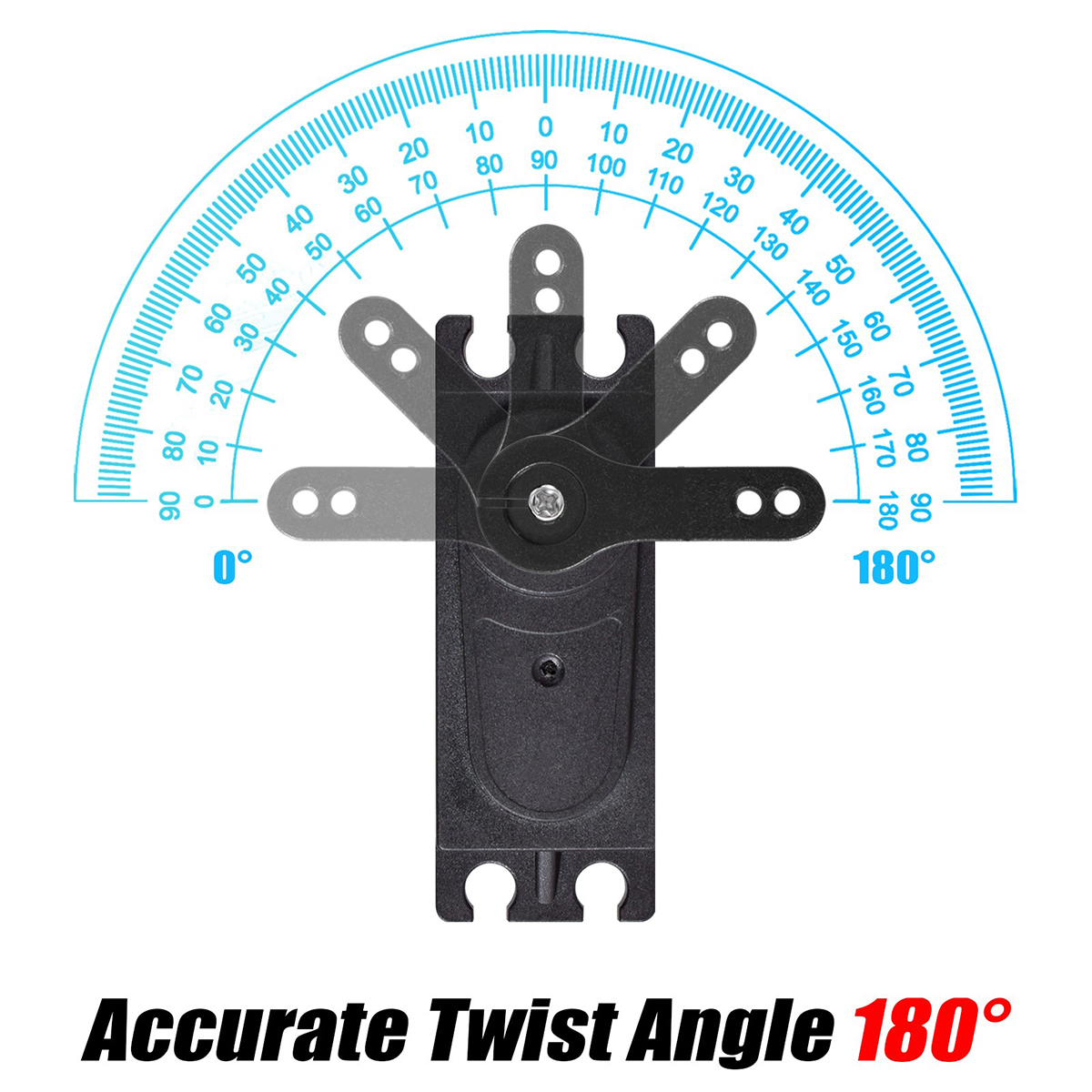

Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

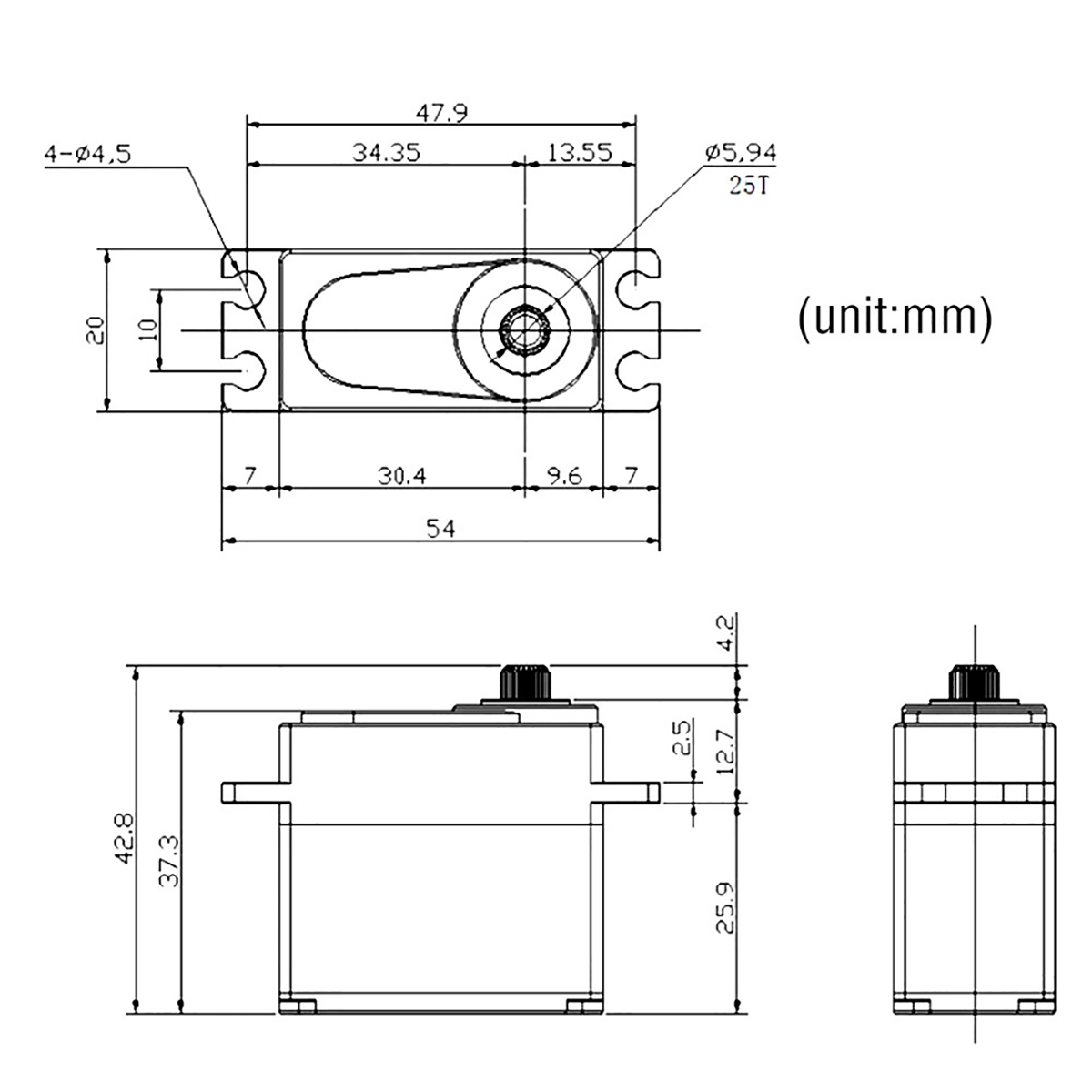

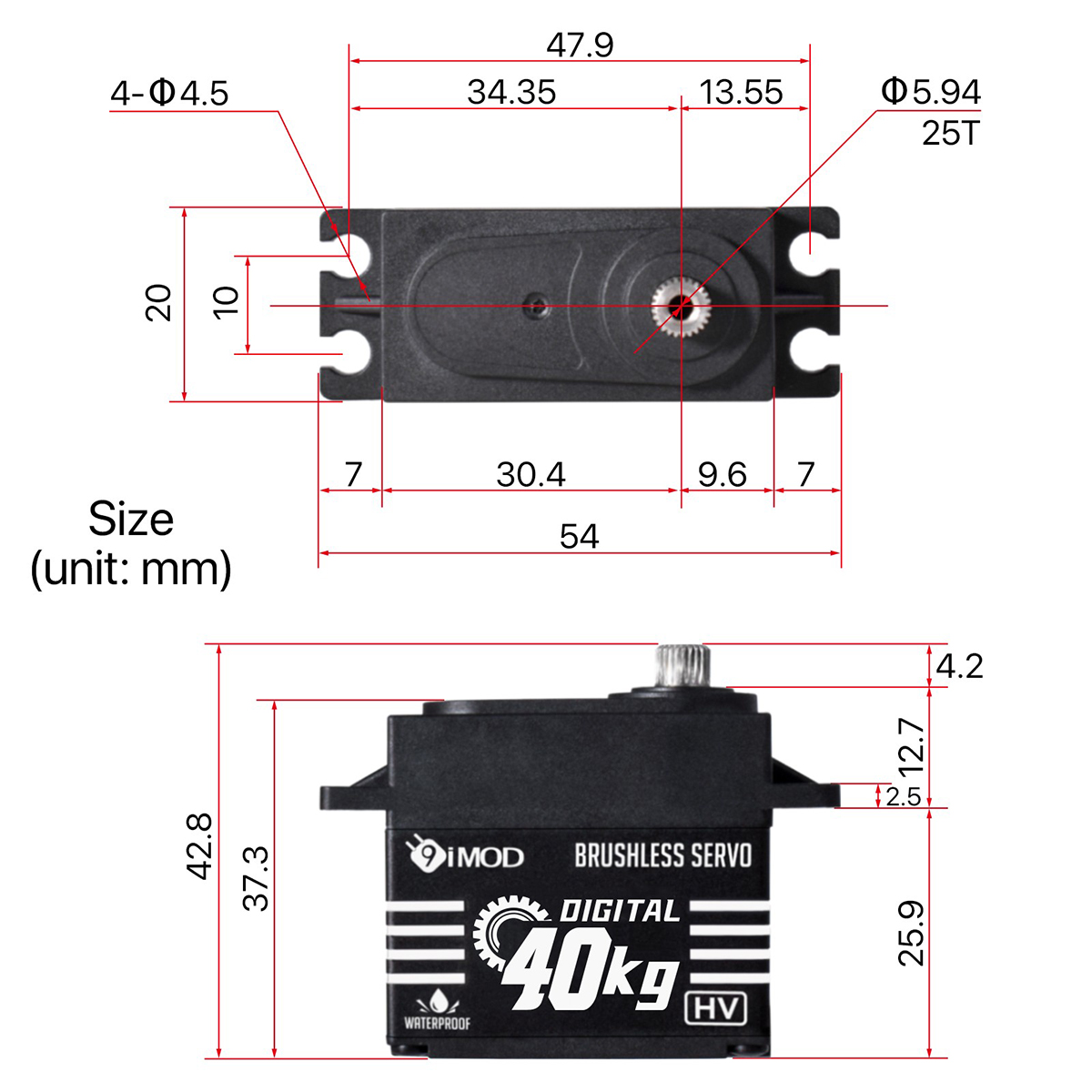

Dimensions: 40x20x37.3mm
Weight: 69.2g (Without Servo Horn)
Ball Bearing: 2BB

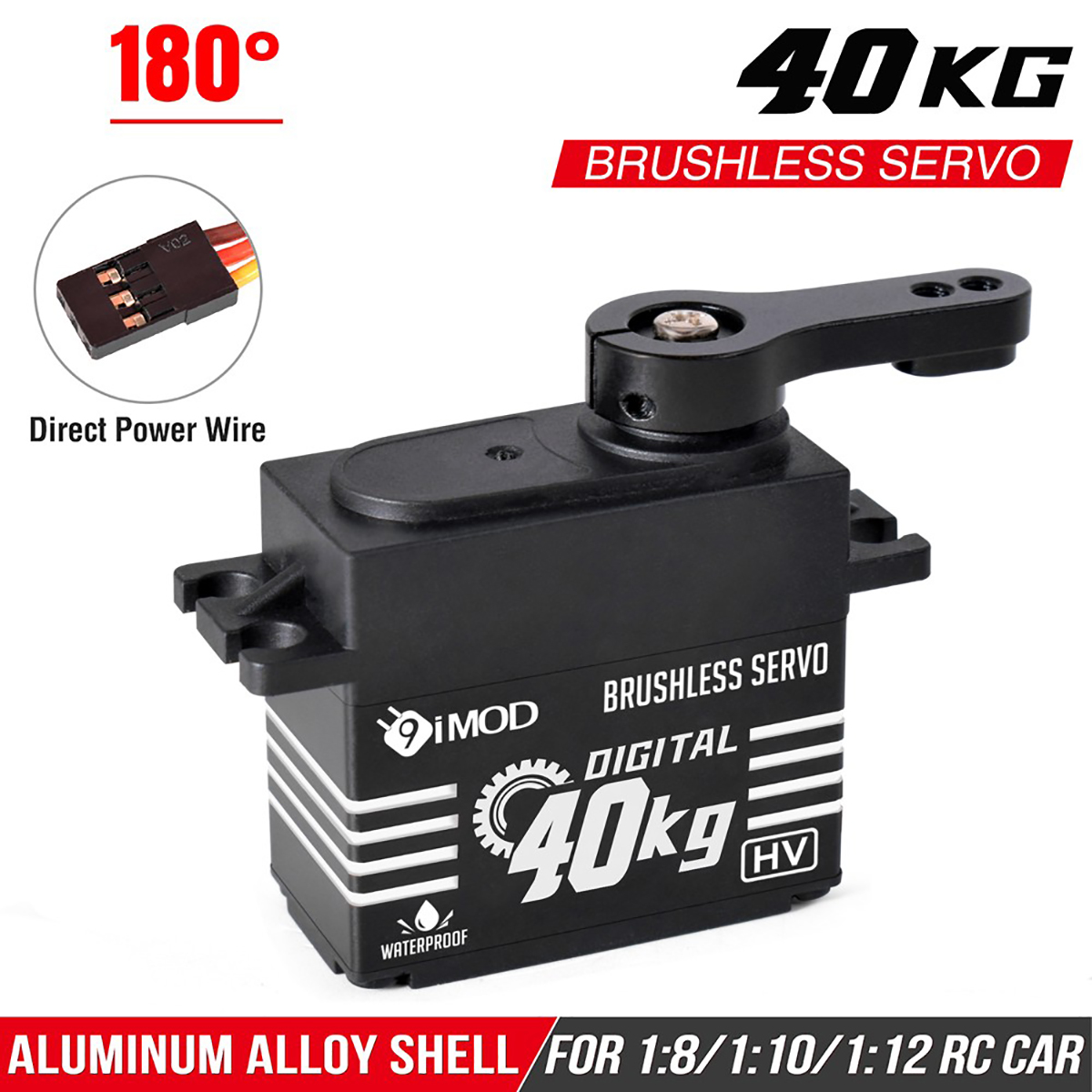

Connector Wire Length: 300mm JR Plug
Dead Band Width: 2μsec

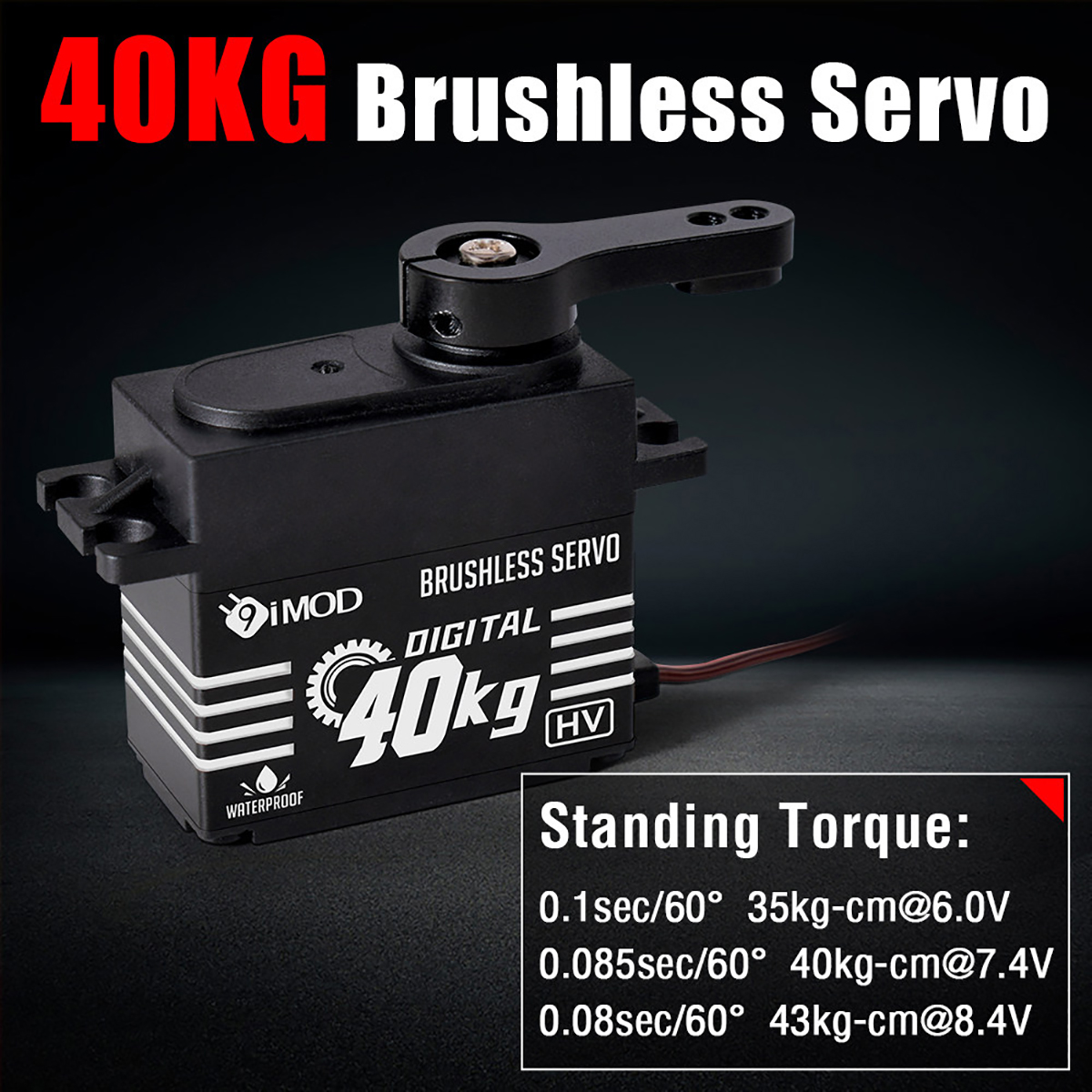

Standing Torque: 0.10sec/60°, 35kg-cm @6.0V ; 0.085sec/60°, 40kg-cm @7.4V ; 0.08sec/60°, 43kg-cm @8.4V
