9imod BLS-HV35MG 35kg 180 Degree Aluminum Case Metal Gear HV Brushless Motor Waterproof Digital Servo

SKU BLS-HV35MG-180 Category Tag Brand:

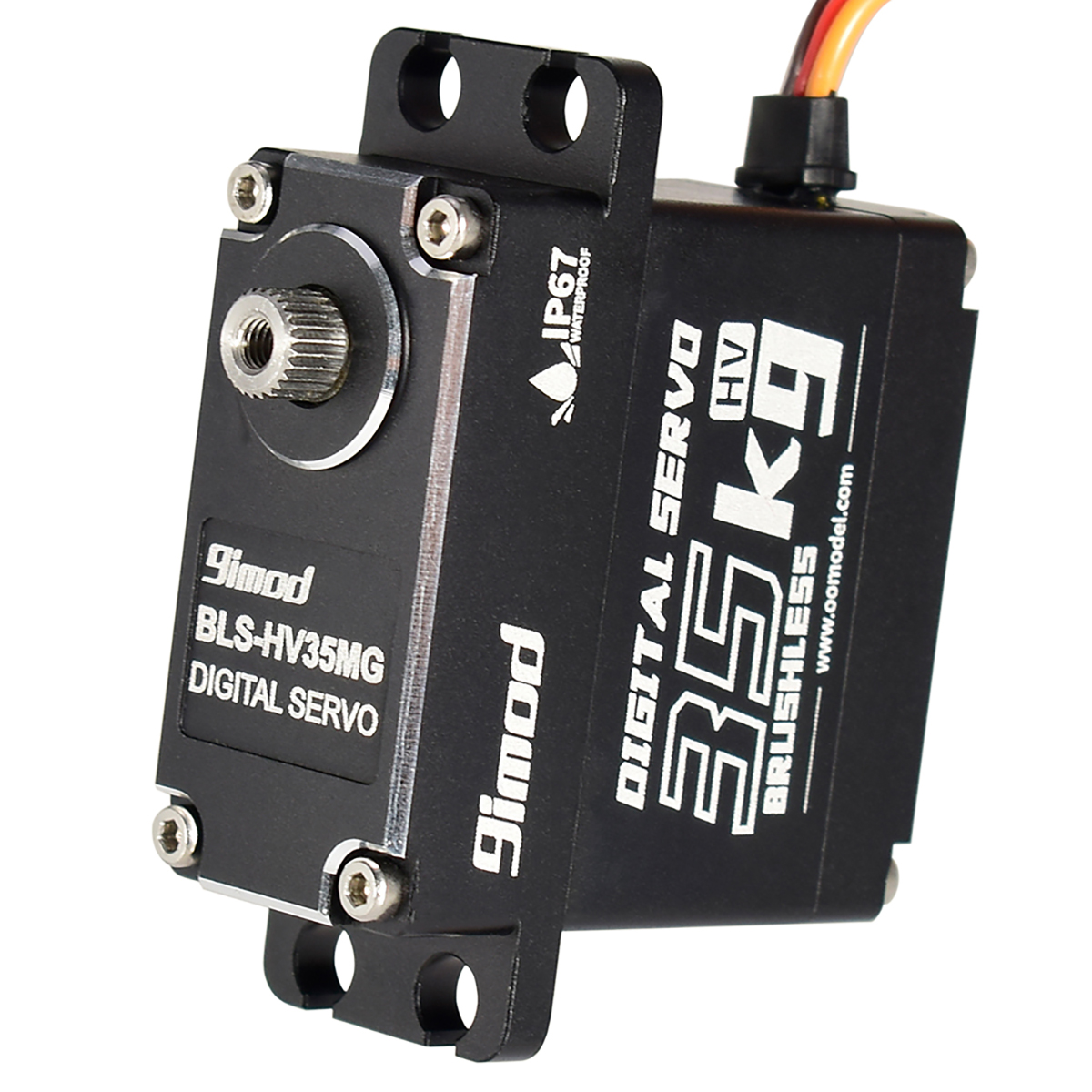

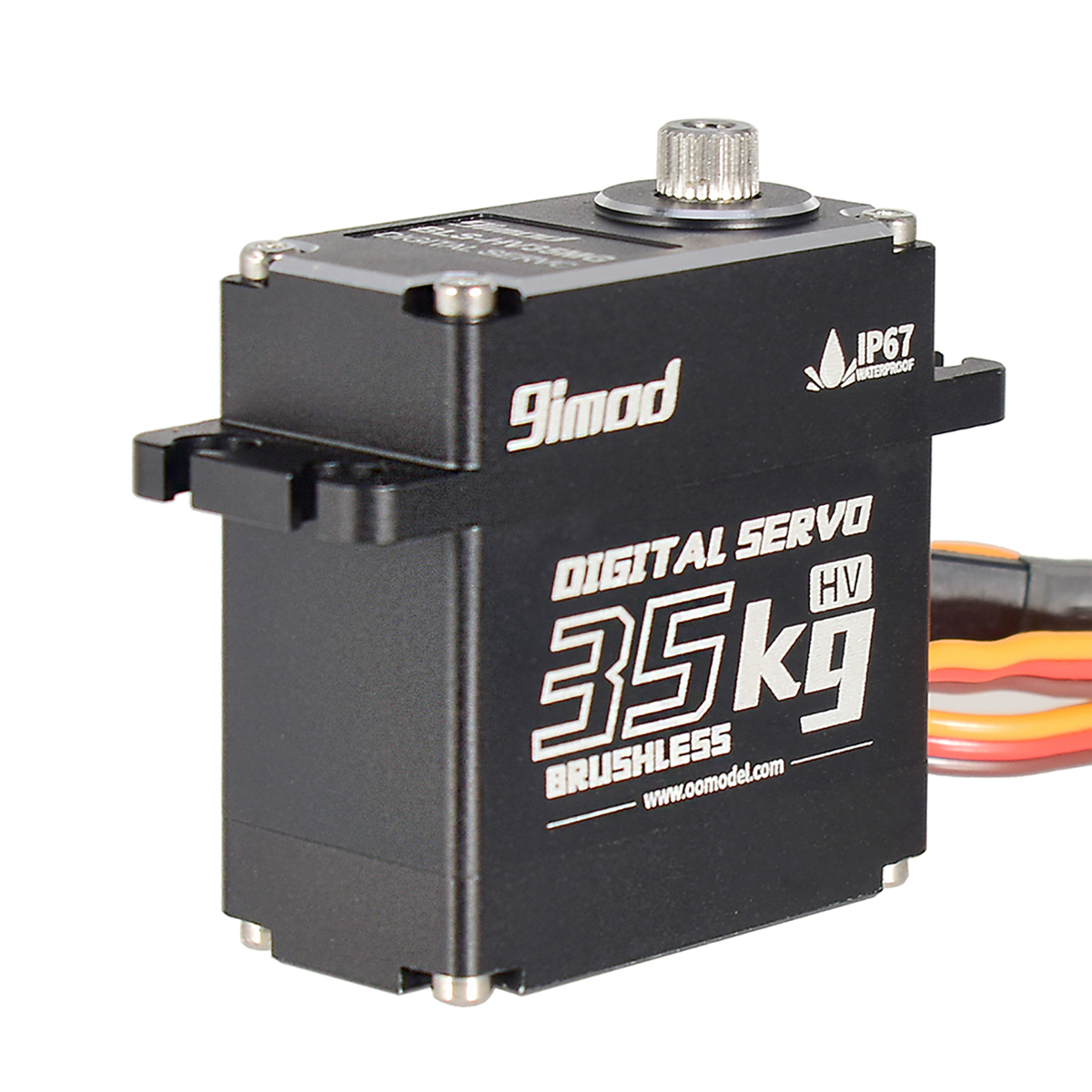

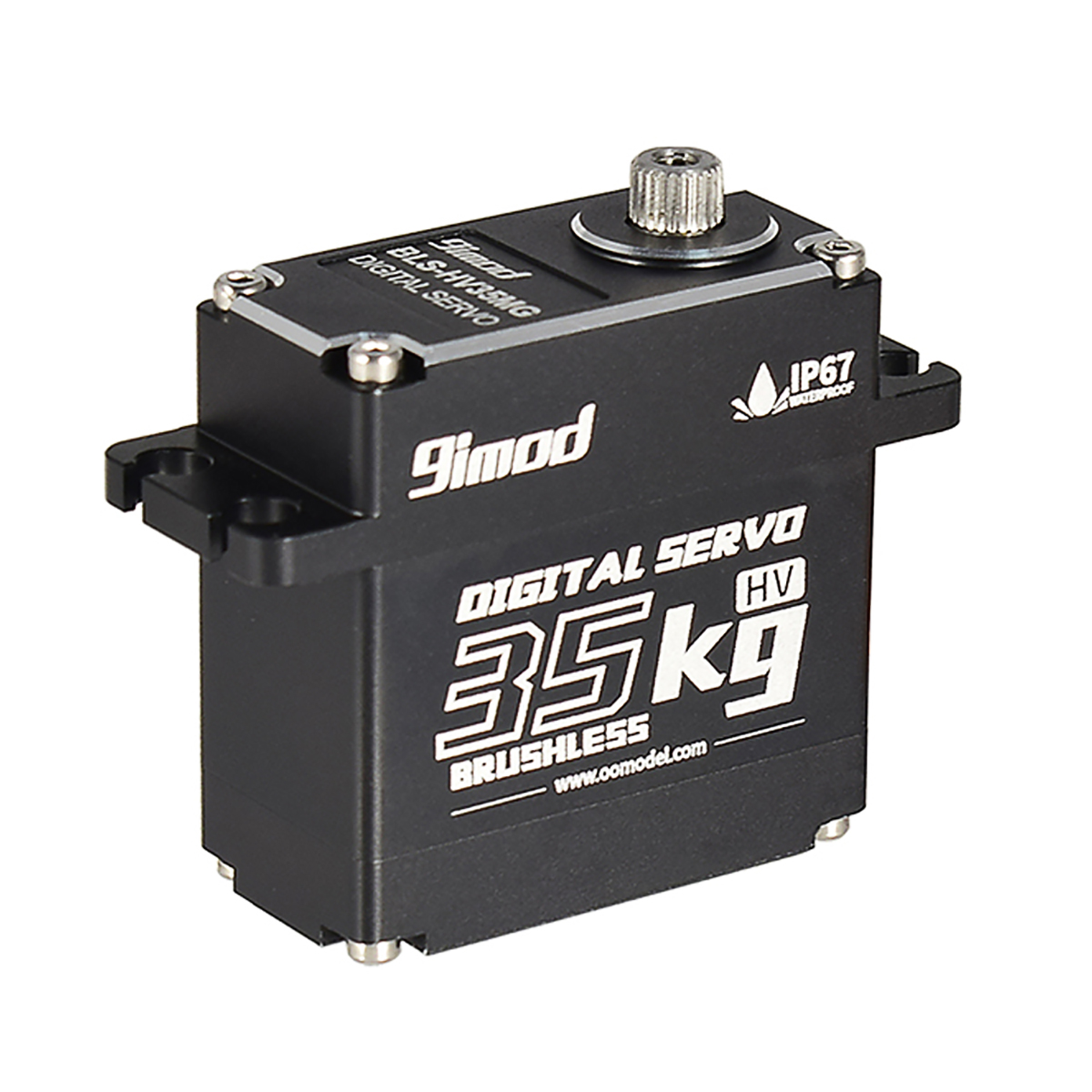

9imod BLS-HV35MG 35kg 180 Degree Aluminum Case Metal Gear HV Brushless Motor Waterproof Digital Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

The 9imod BLS-HV35MG Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,
It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Features:
6.0V ~8.4V High voltage.High performance digital High Voltage Brushless

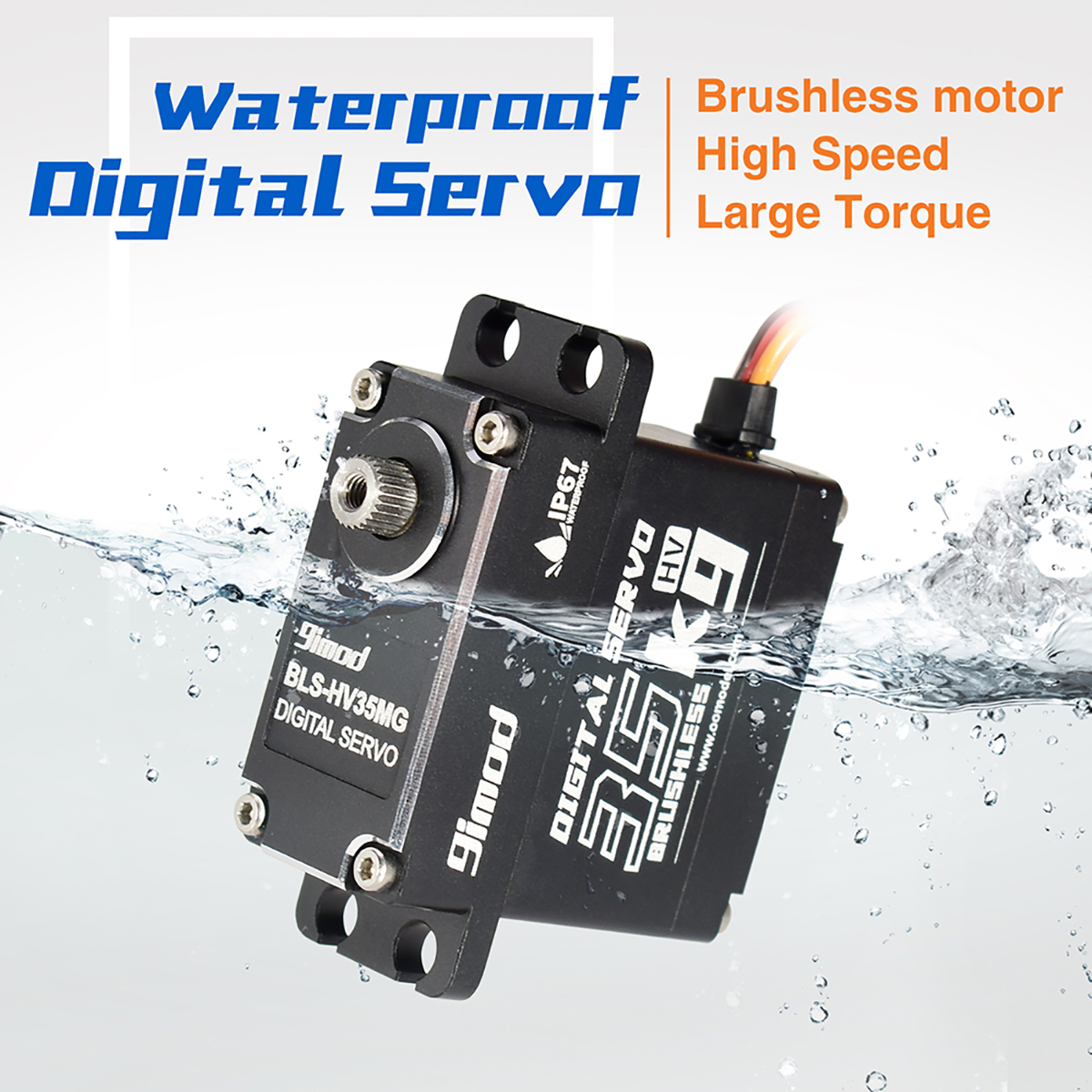

Waterproof performance: IP67 waterproof (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
Widely Use Digital Servo:The steering servo (Control Angle 180°) Compatible with 1/5,1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car / Robot / Boat and other remote control models.

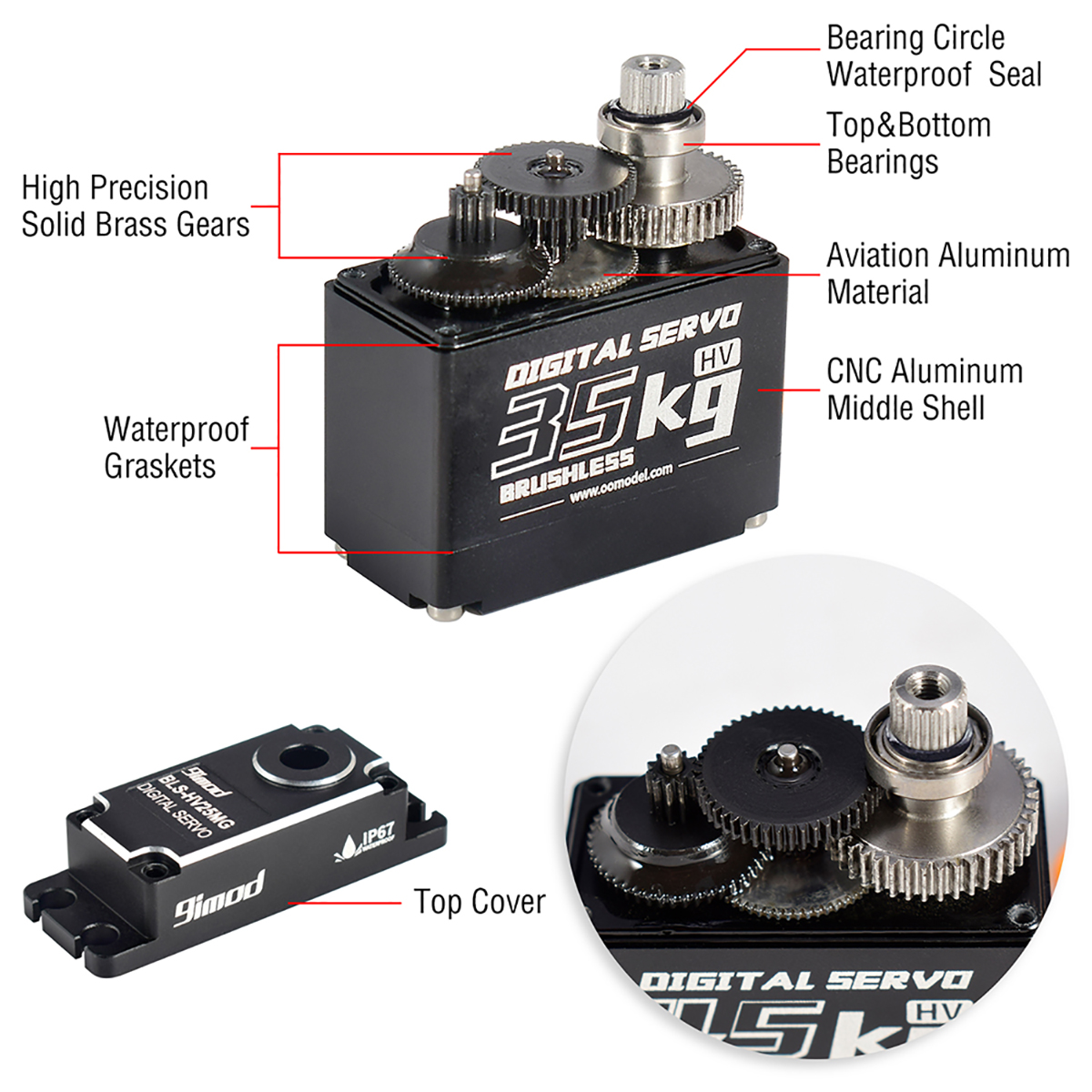

Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.

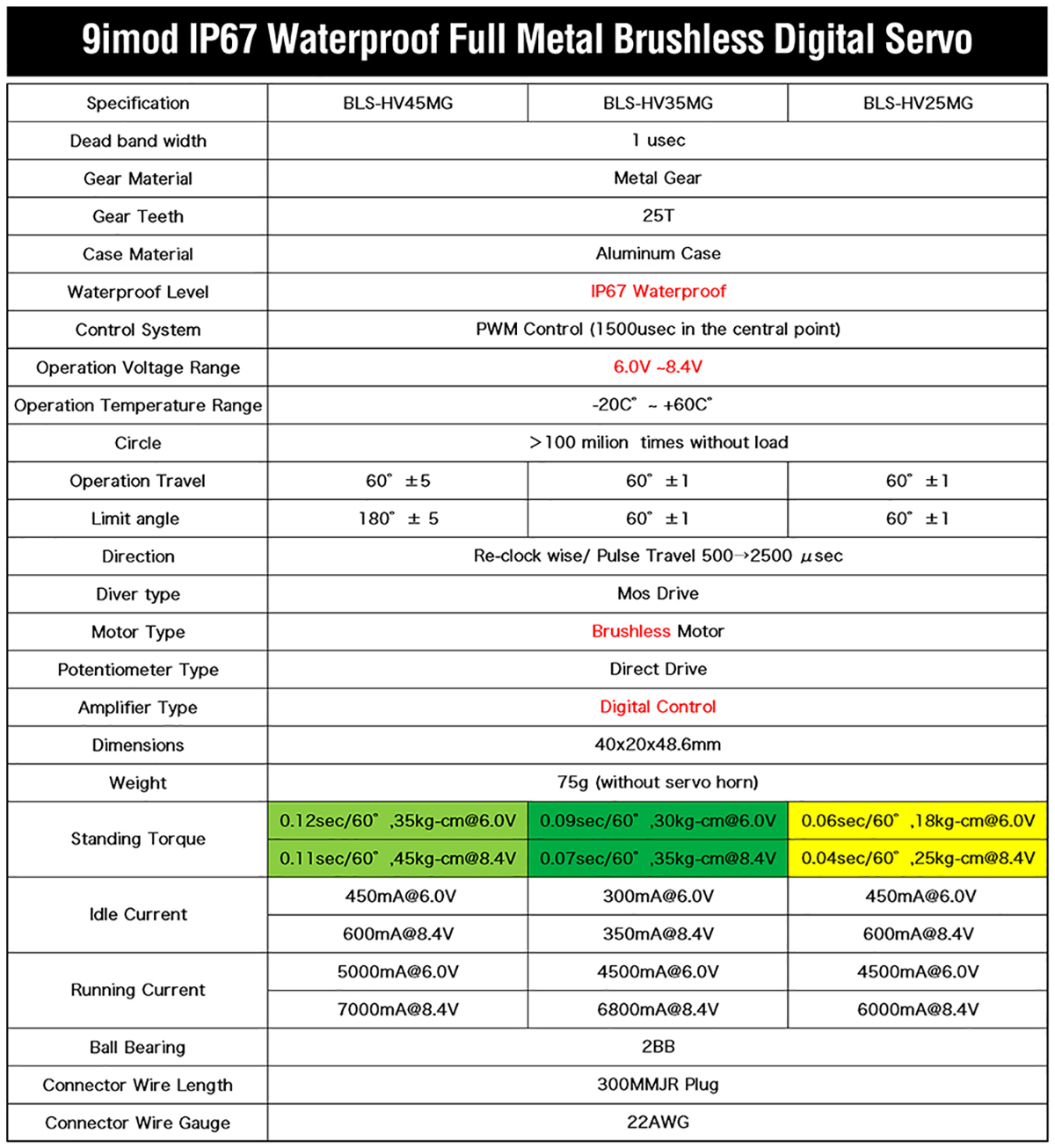

Model: BLS-HV35MG
Color: Black
Dead Band Width: 1μsec
Gear Material: Metal Gear
Case Material: Aluminum Case
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >100 Million Times Without Load
Operation Travel: 60°±1
Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

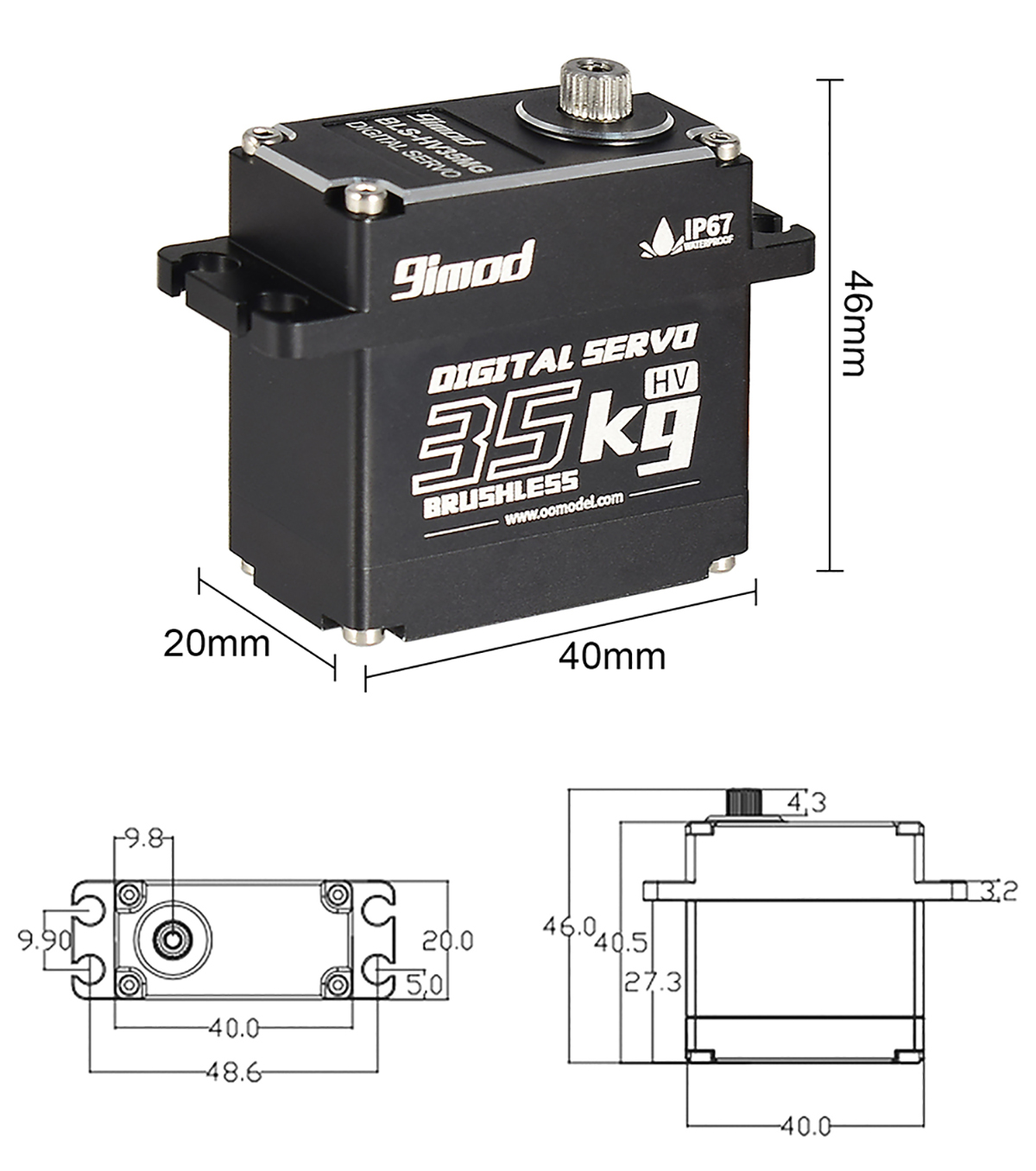

Dimensions: 40x20x48.6mm
Weight: 75g (Without Servo Horn)
Standing Torque: 0.09sec/60°, 30kg-cm @6.0V ; 0.07sec/60°, 35kg-cm @8.4V
Idle Current: 300mA @6.0V ; 350mA @8.4V
Running Current: 4500mA @6.0V ; 6800mA @8.4V
Ball Bearing: 2BB
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG

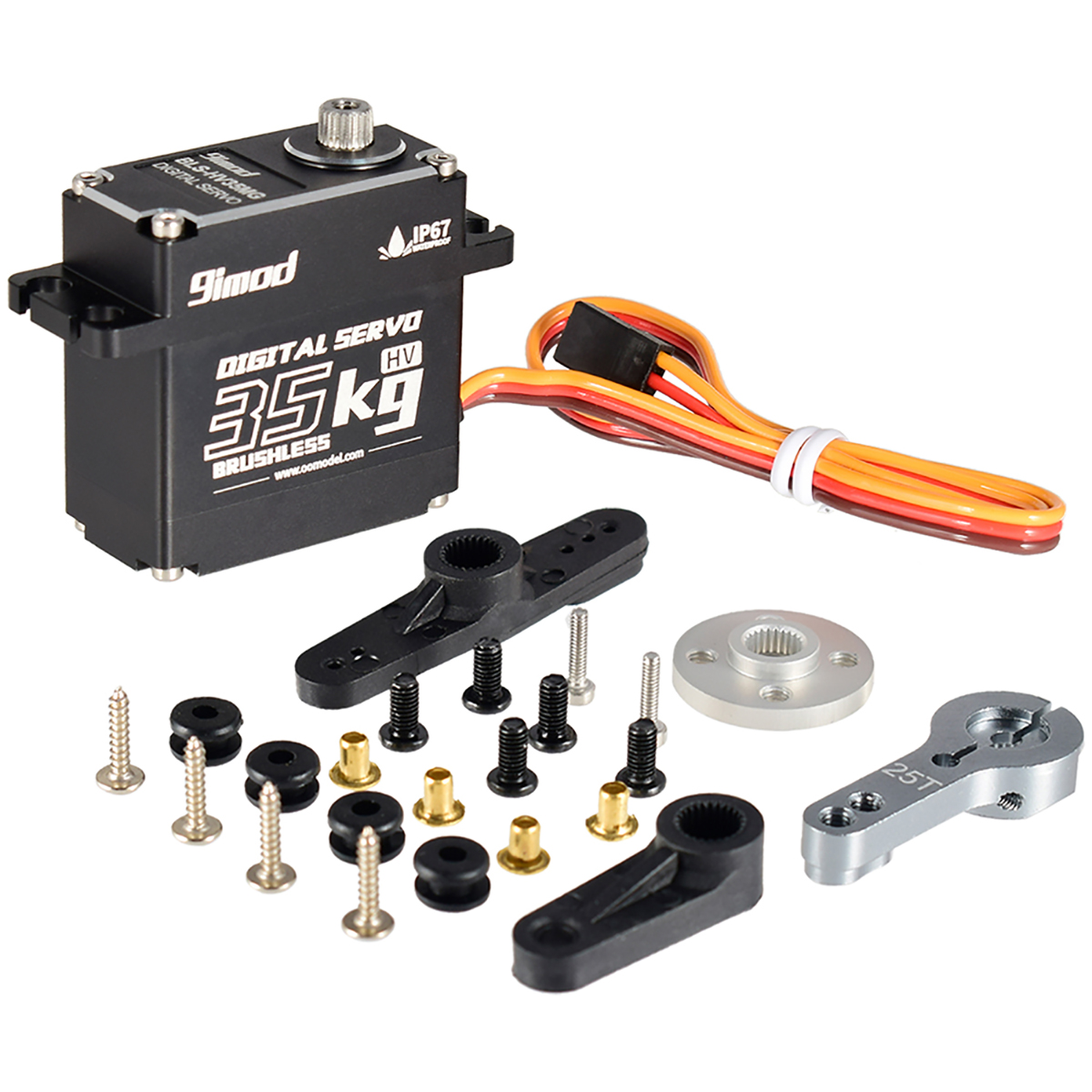

Servo x1
Servo Accessories x1
