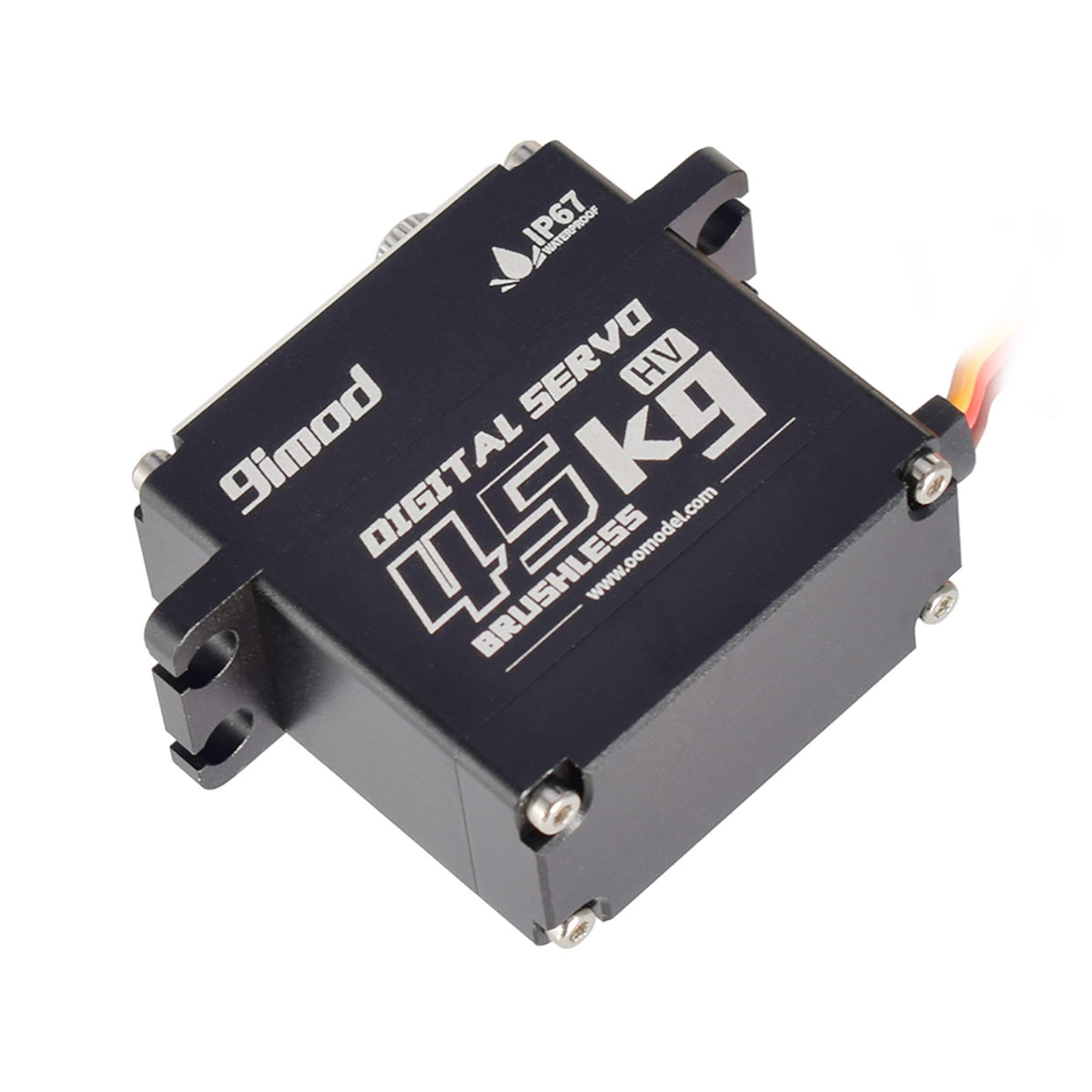

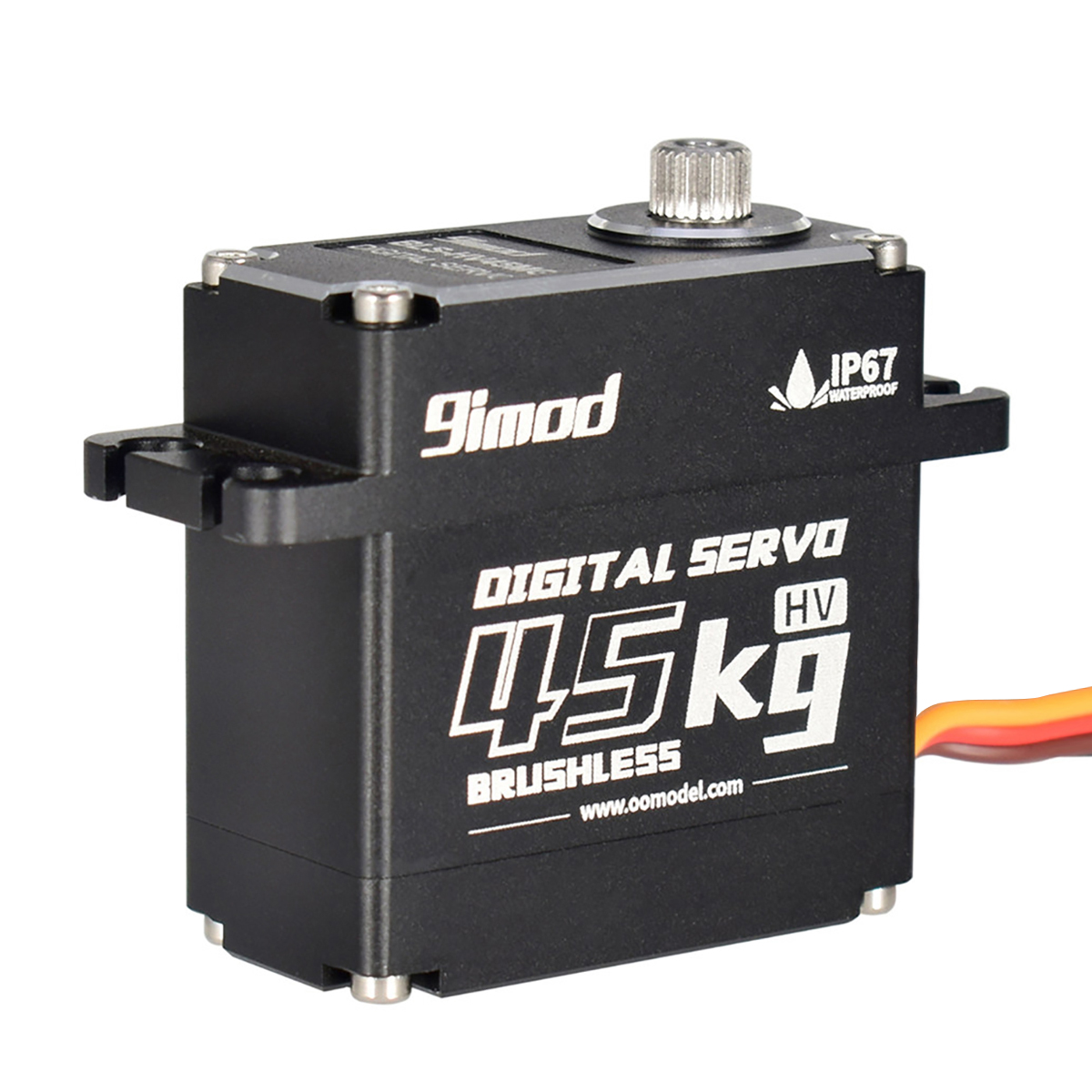

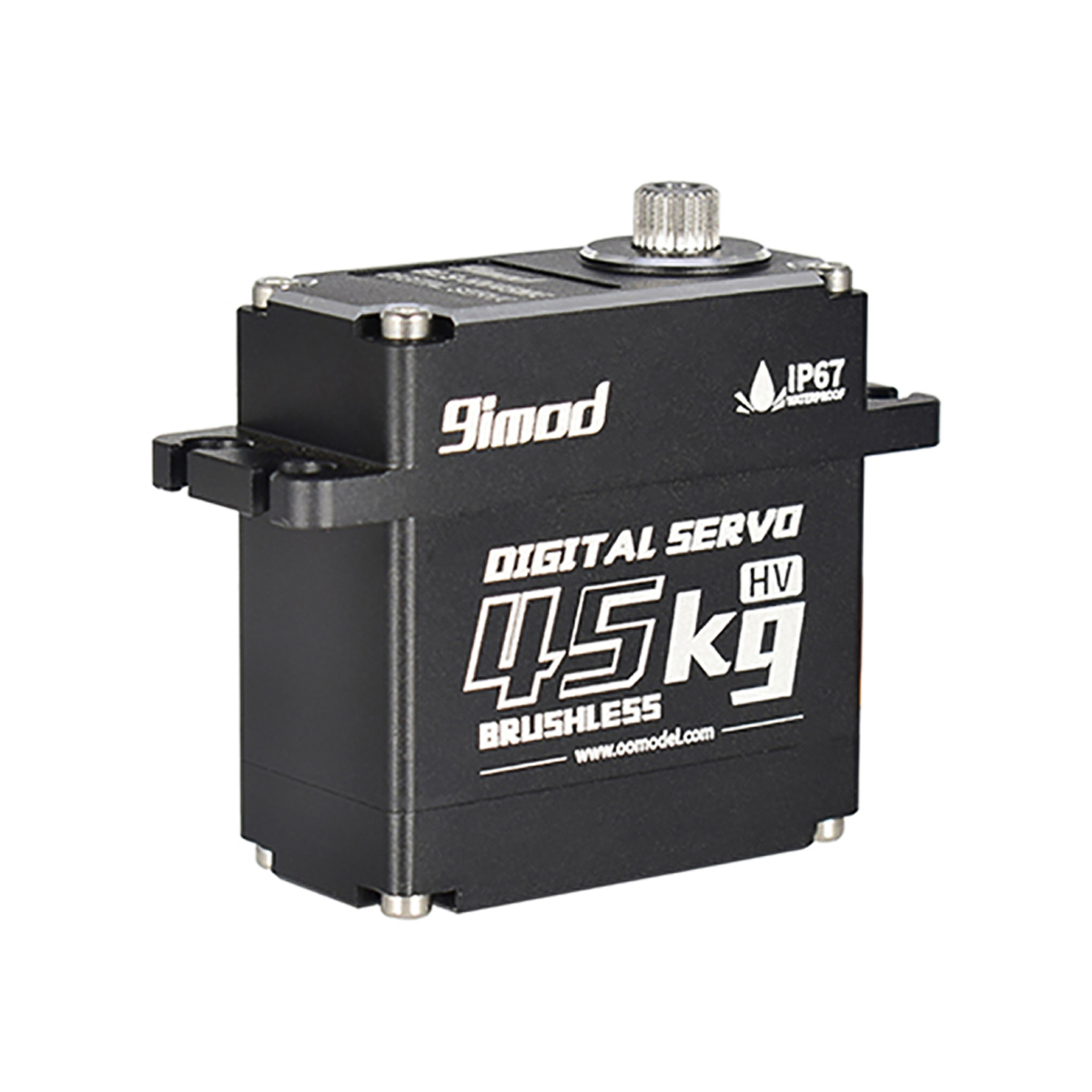

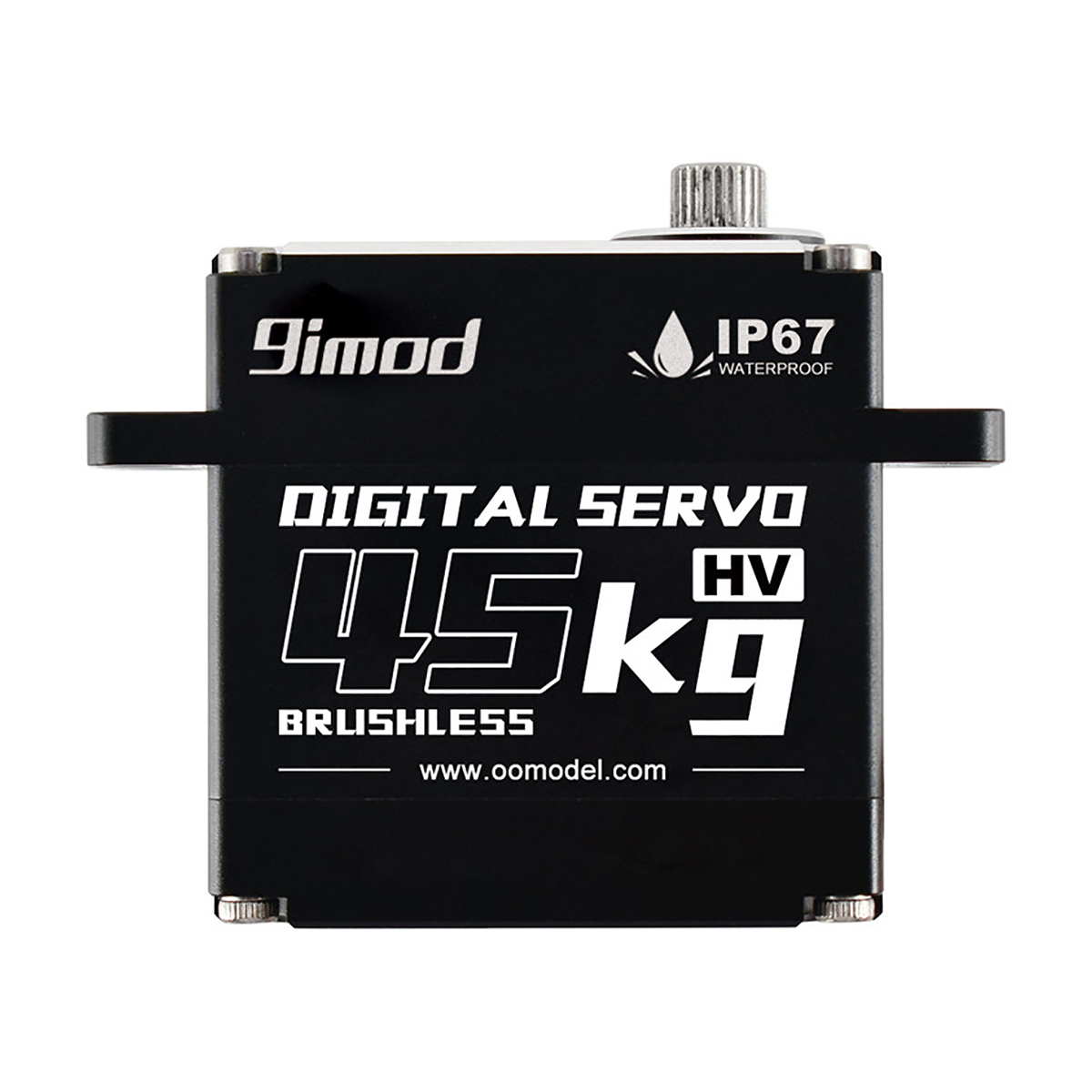

9imod BLS-HV45MG 8.4V 45kg 180 Degree Metal Gear HV Brushless Digital Servo for RC Car Truck Crawler Boat












9imod BLS-HV45MG 8.4V 45kg 180 Degree Metal Gear HV Brushless Digital Servo for RC Car Truck Crawler Boat
The 9imod BLS-HV45MG Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,
It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Features:
6.0V ~8.4V High voltage.High performance digital High Voltage Brushless

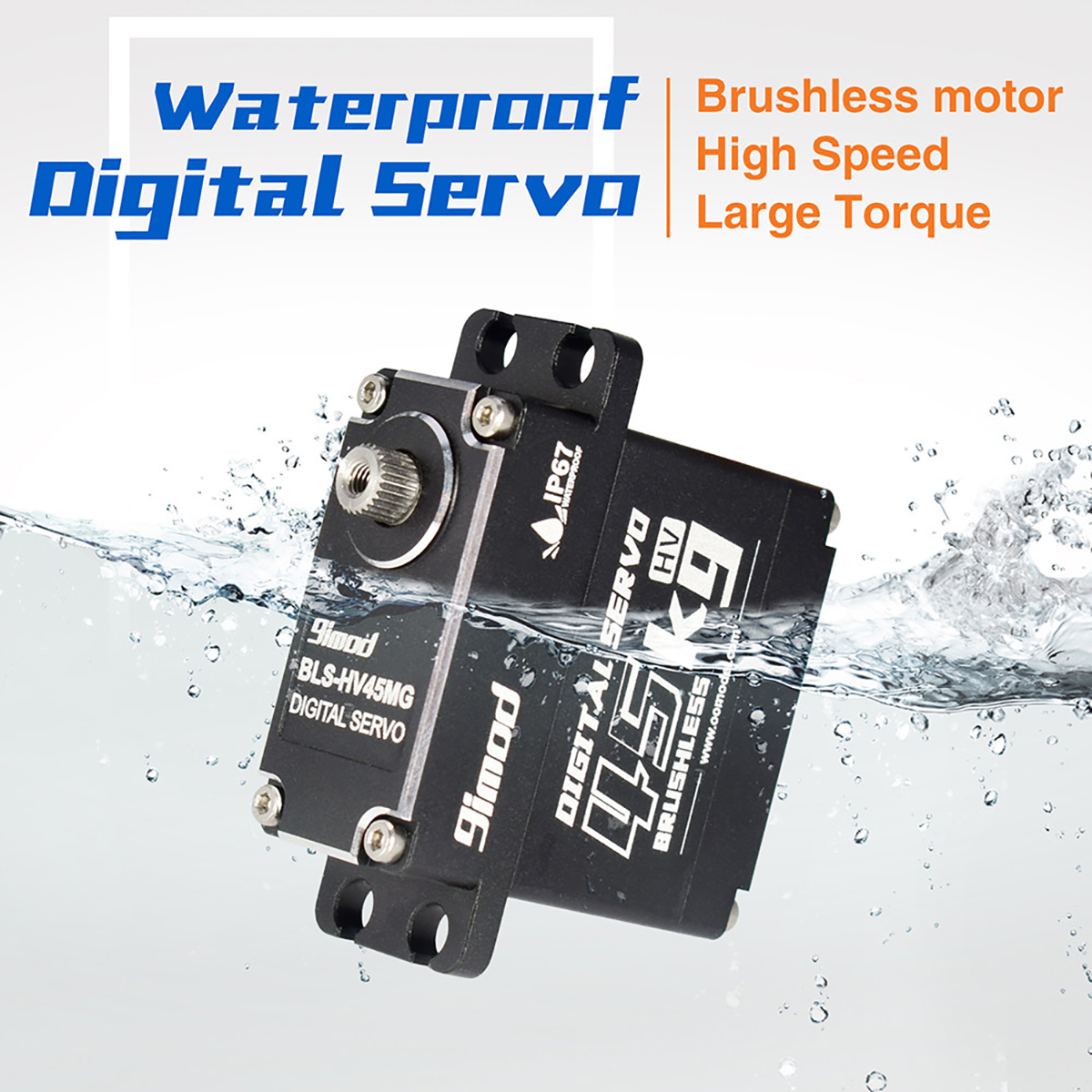

Waterproof performance: IP67 waterproof (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
Widely Use Digital Servo:The steering servo (Control Angle 180°) Compatible with 1/5,1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car / Robot / Boat and other remote control models.

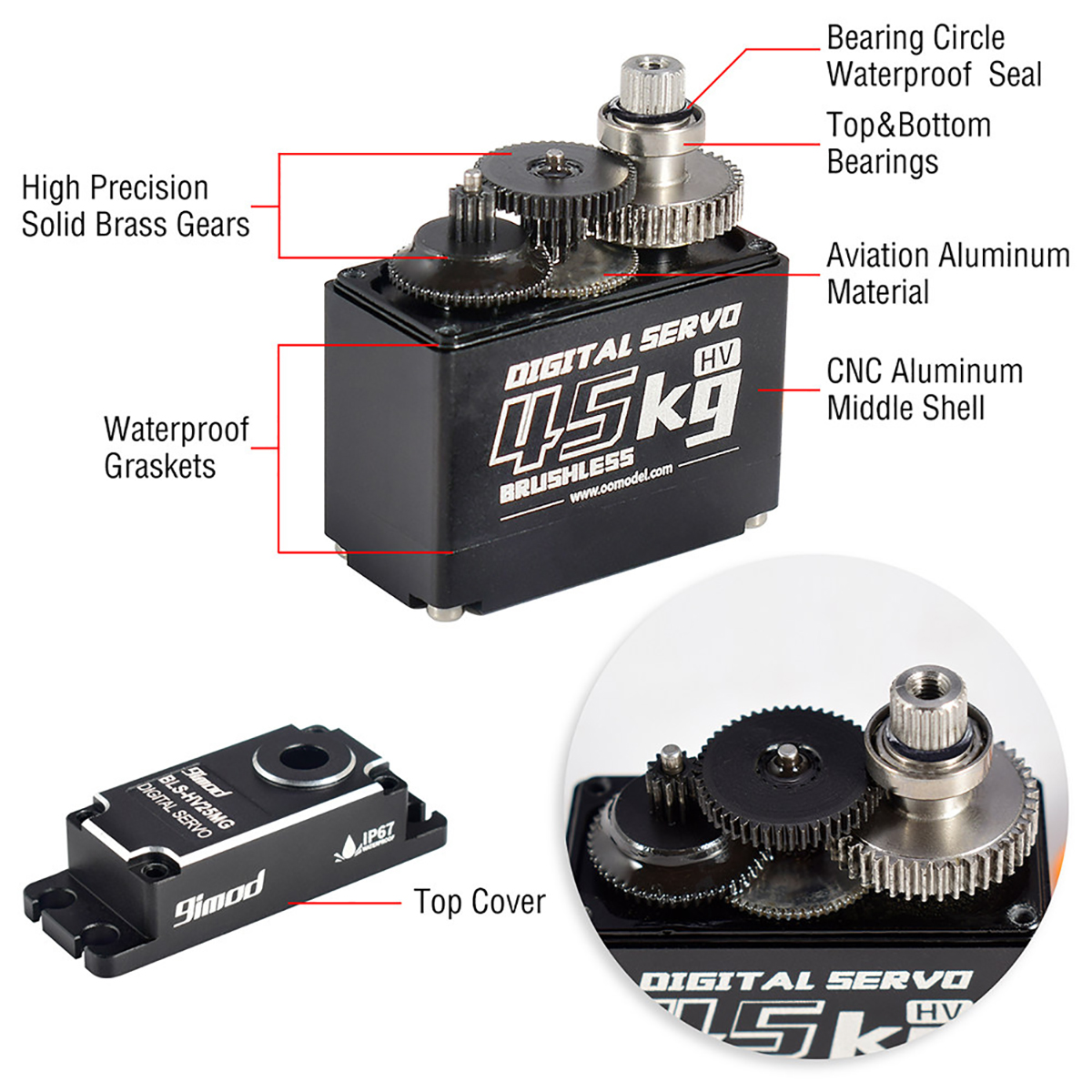

Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.

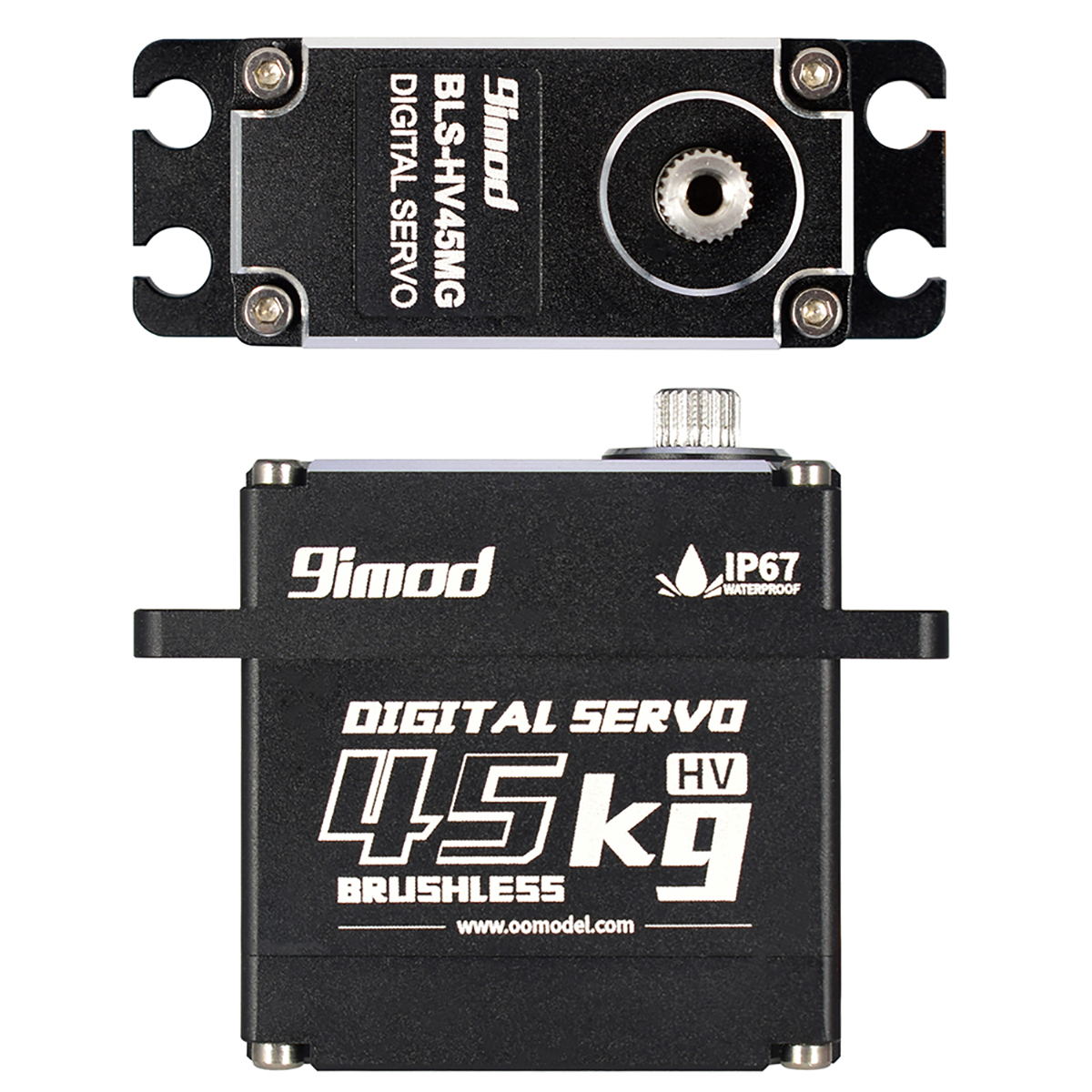

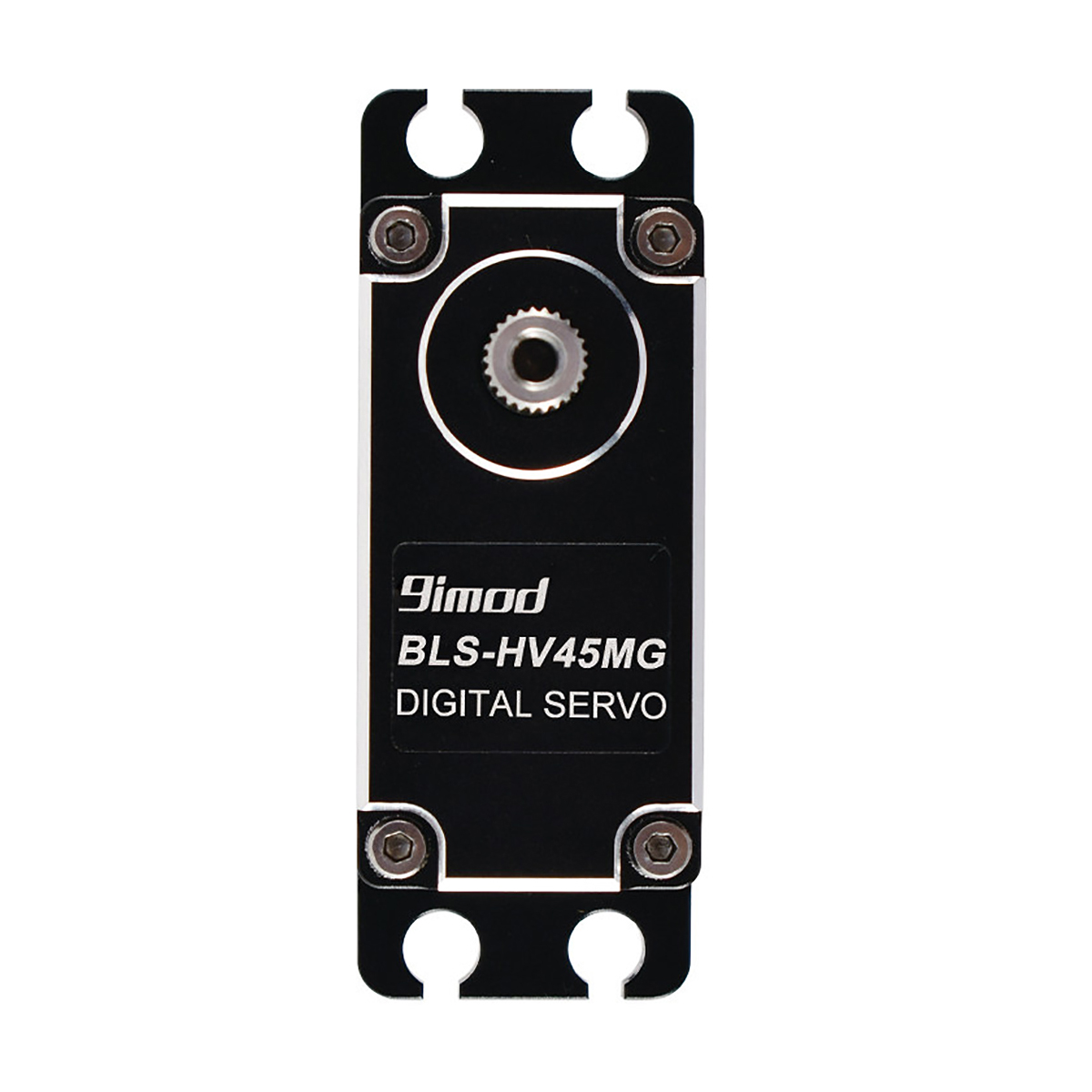

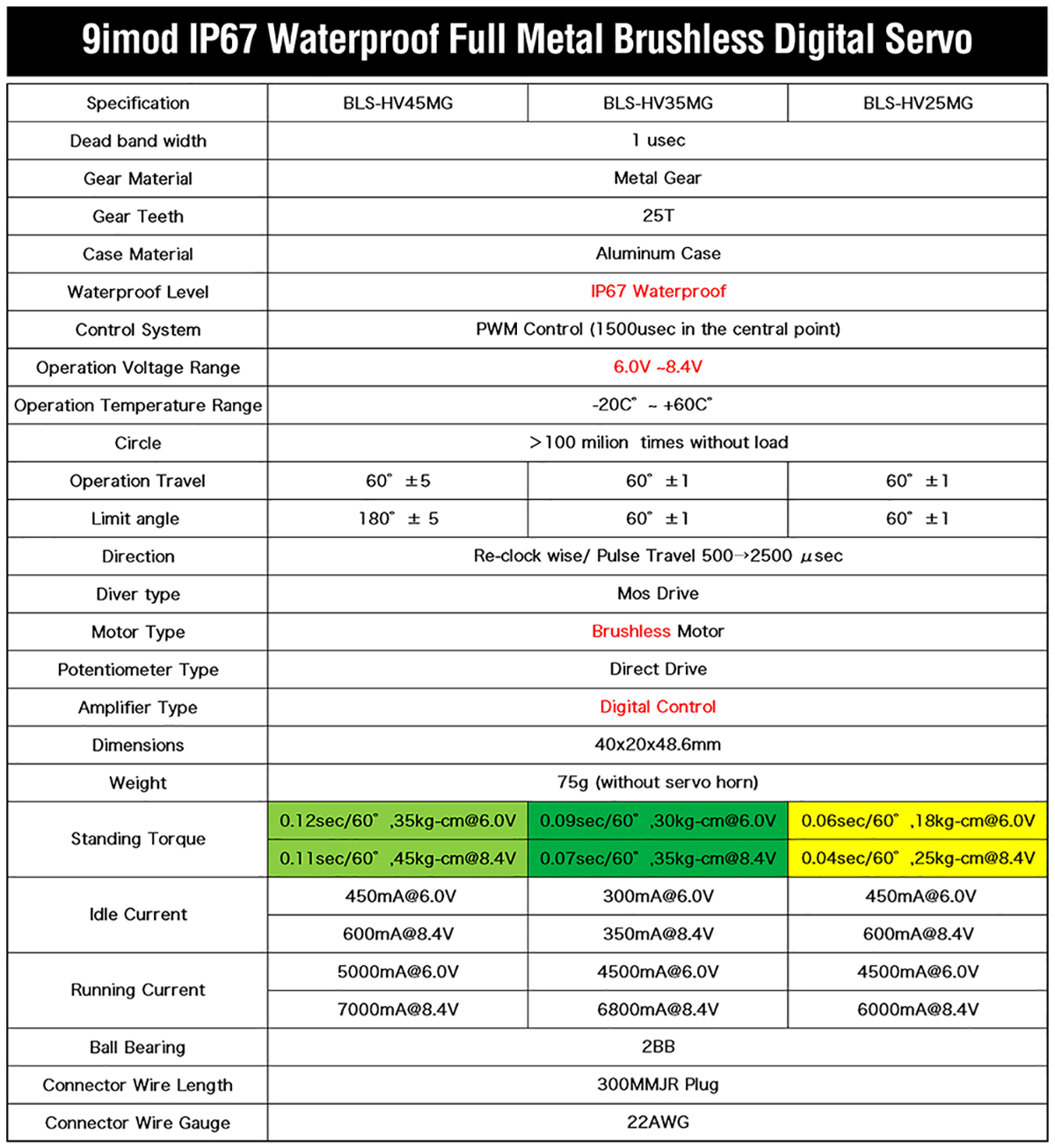

Model: BLS-HV45MG
Color: Black
Dead Band Width: 1μsec
Gear Material: Metal Gear
Case Material: Aluminum Case
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >100 Million Times Without Load
Operation Travel: 60°±5
Limit Angle: 180°±5
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

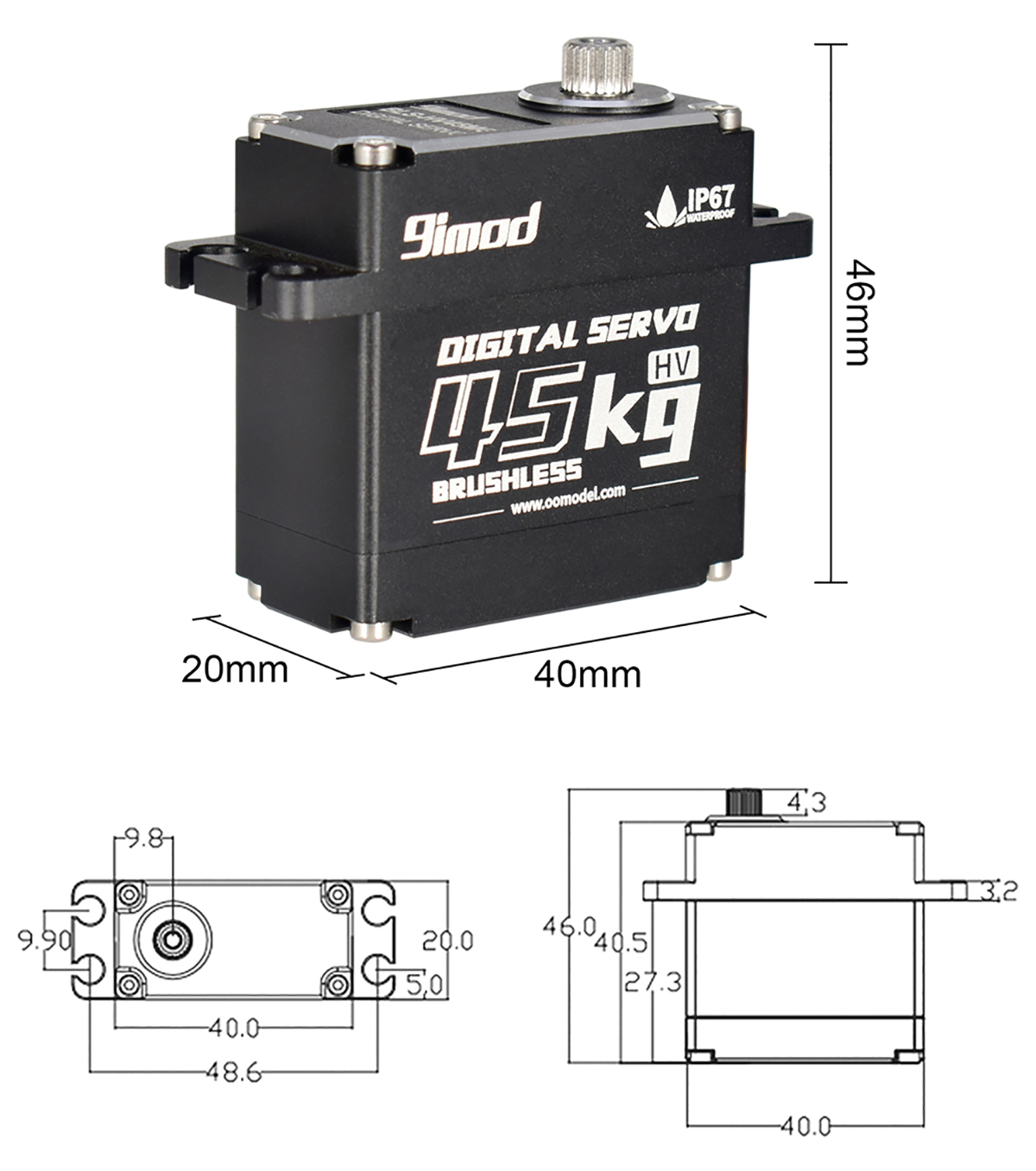

Dimensions: 40x20x48.6mm
Weight: 75g (Without Servo Horn)
Standing Torque: 0.12sec/60°, 35kg-cm @6.0V ; 0.11sec/60°, 45kg-cm @8.4V
Idle Current: 450mA @6.0V ; 600mA @8.4V
Running Current: 5000mA @6.0V ; 7000mA @8.4V
Ball Bearing: 2BB
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG

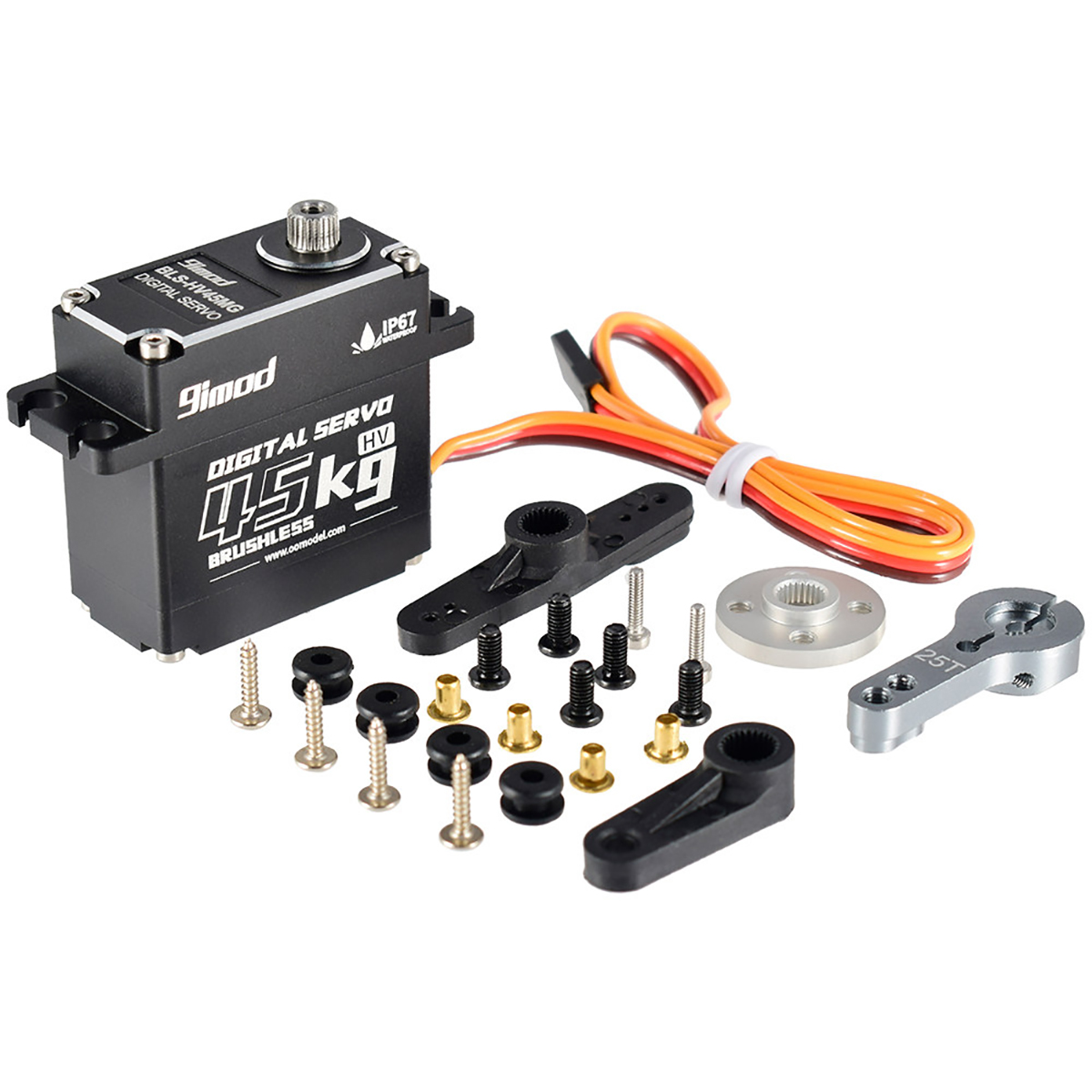

Servo x1
Servo Accessories x1
