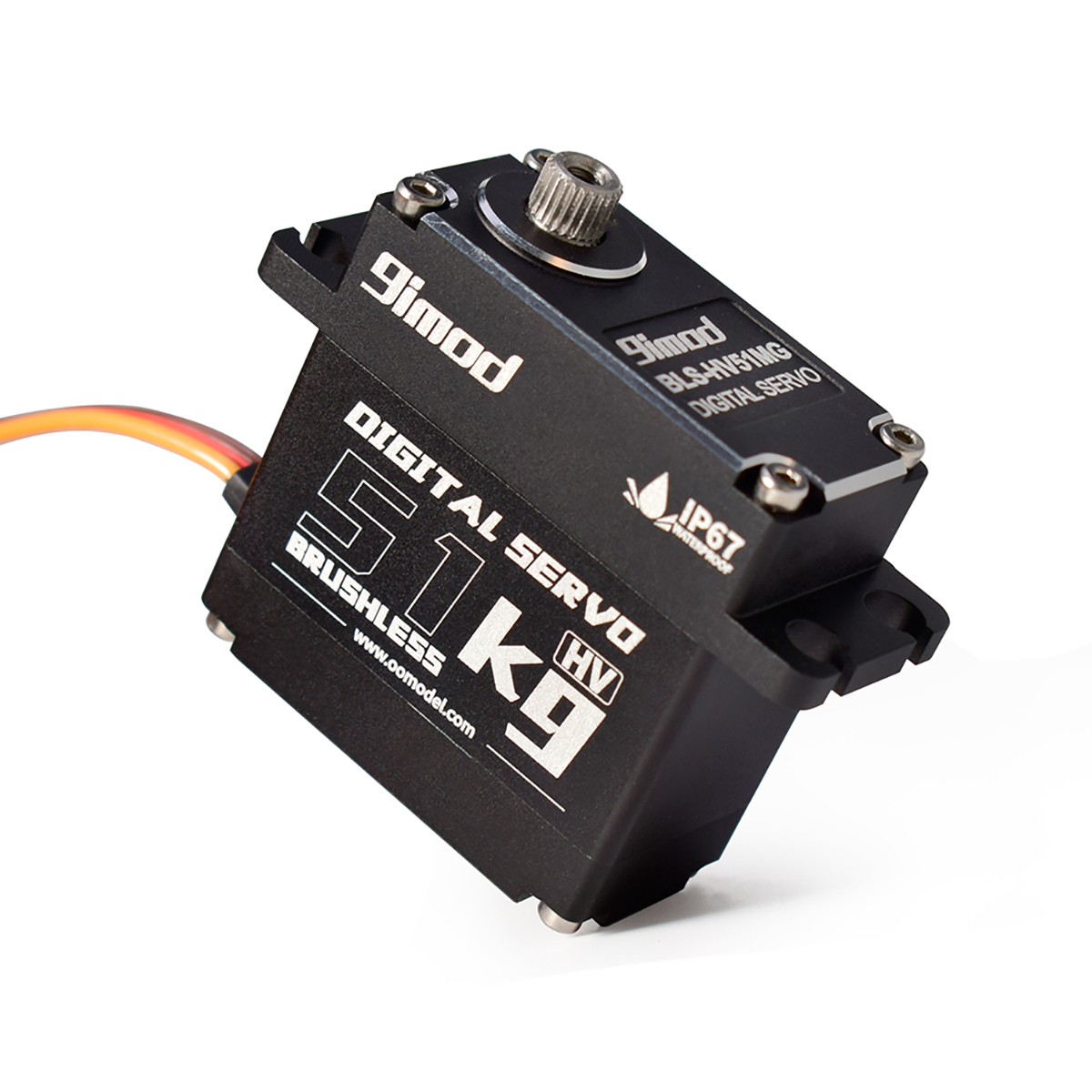

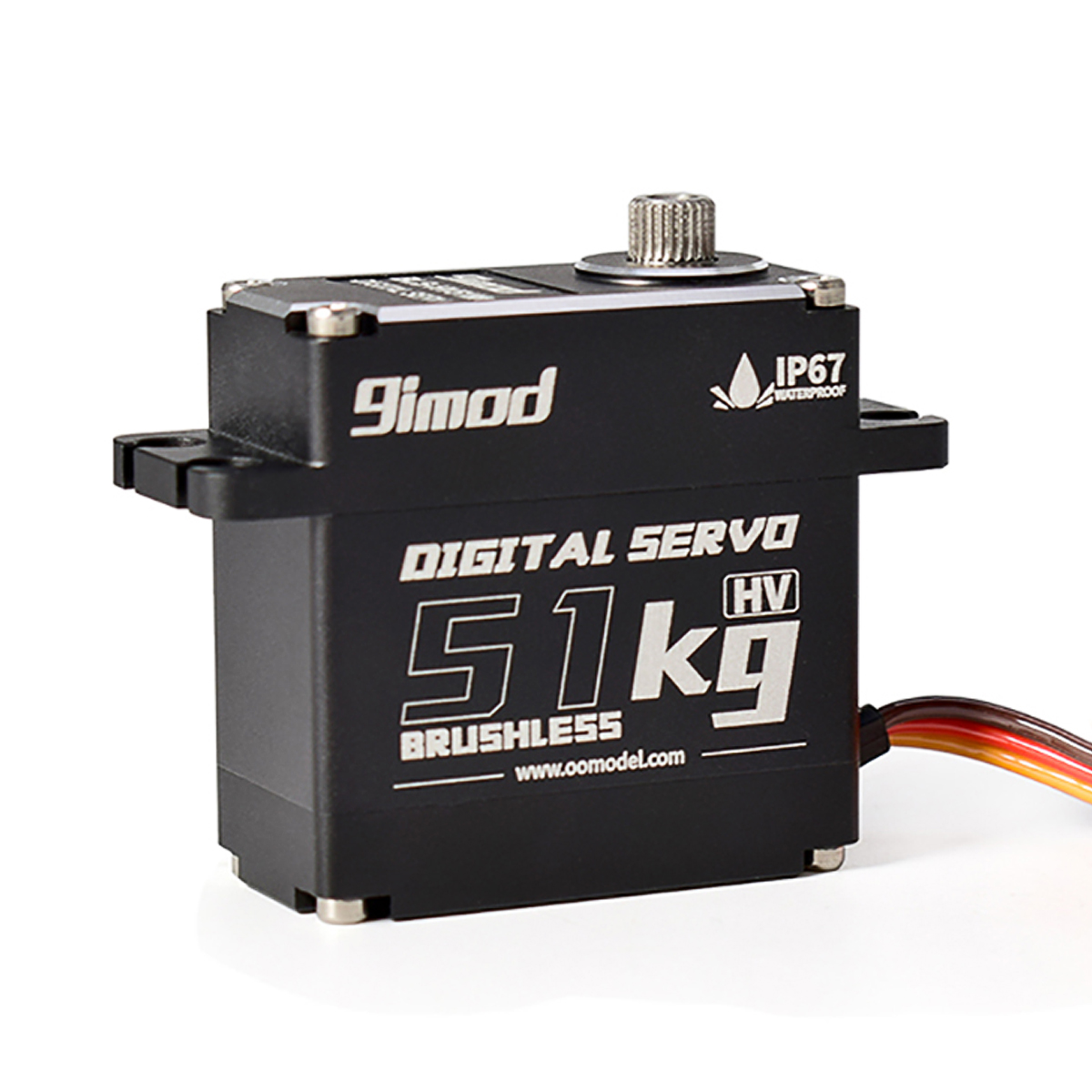

9imod BLS-HV51MG 8.4V 51kg High Torque 180 Degree Metal Gear HV Brushless Digital Servo for 1:8 1:10 RC Car Boat
9imod BLS-HV51MG 8.4V 51kg High Torque 180 Degree Metal Gear HV Brushless Digital Servo for 1:8 1:10 RC Car Boat

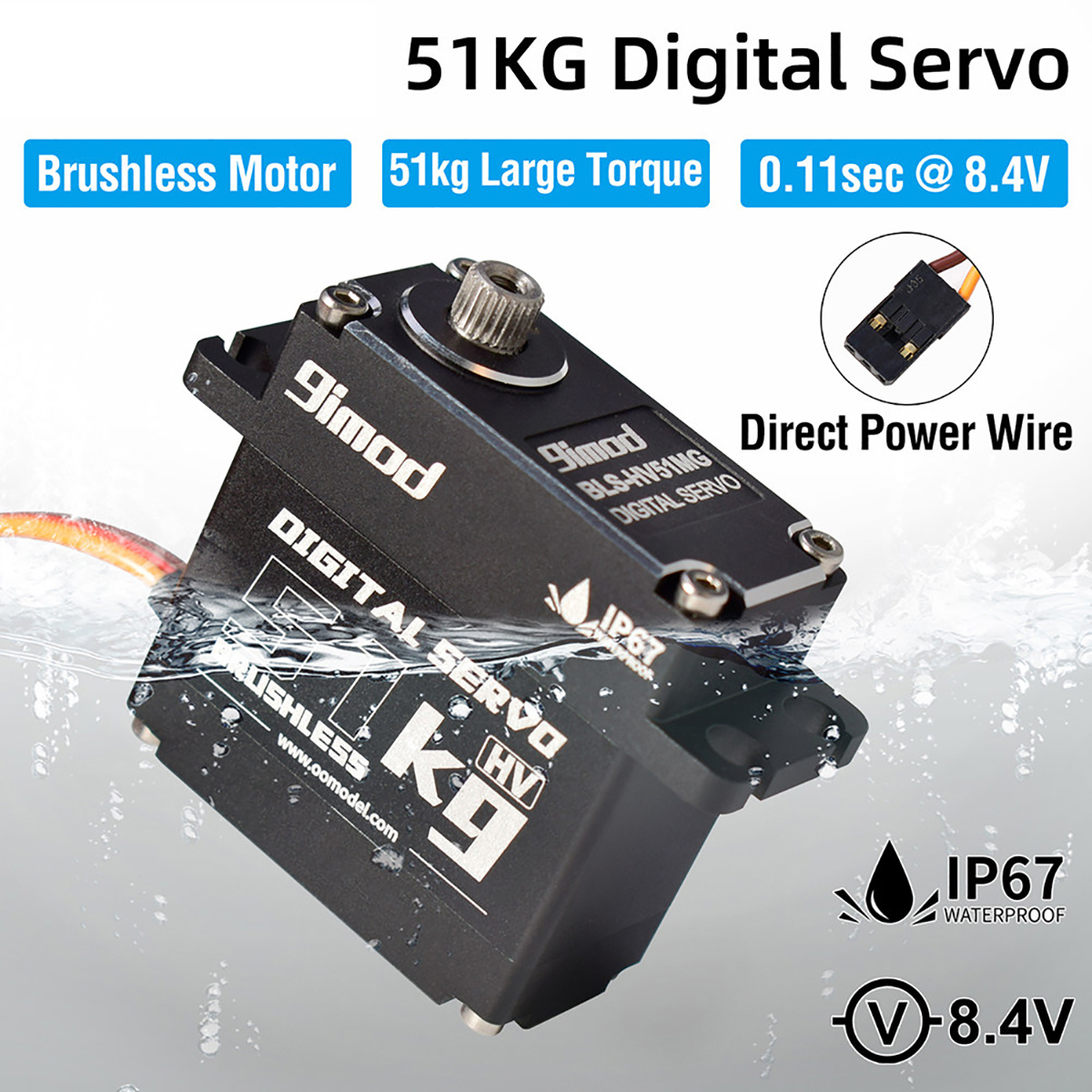

The 9imod BLS-HV510M 51KG Large torque Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6V -8.4V High Operation Voltage Range, It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Features:
6V -8.4V High voltage:High performance digital High Voltage Brushless .

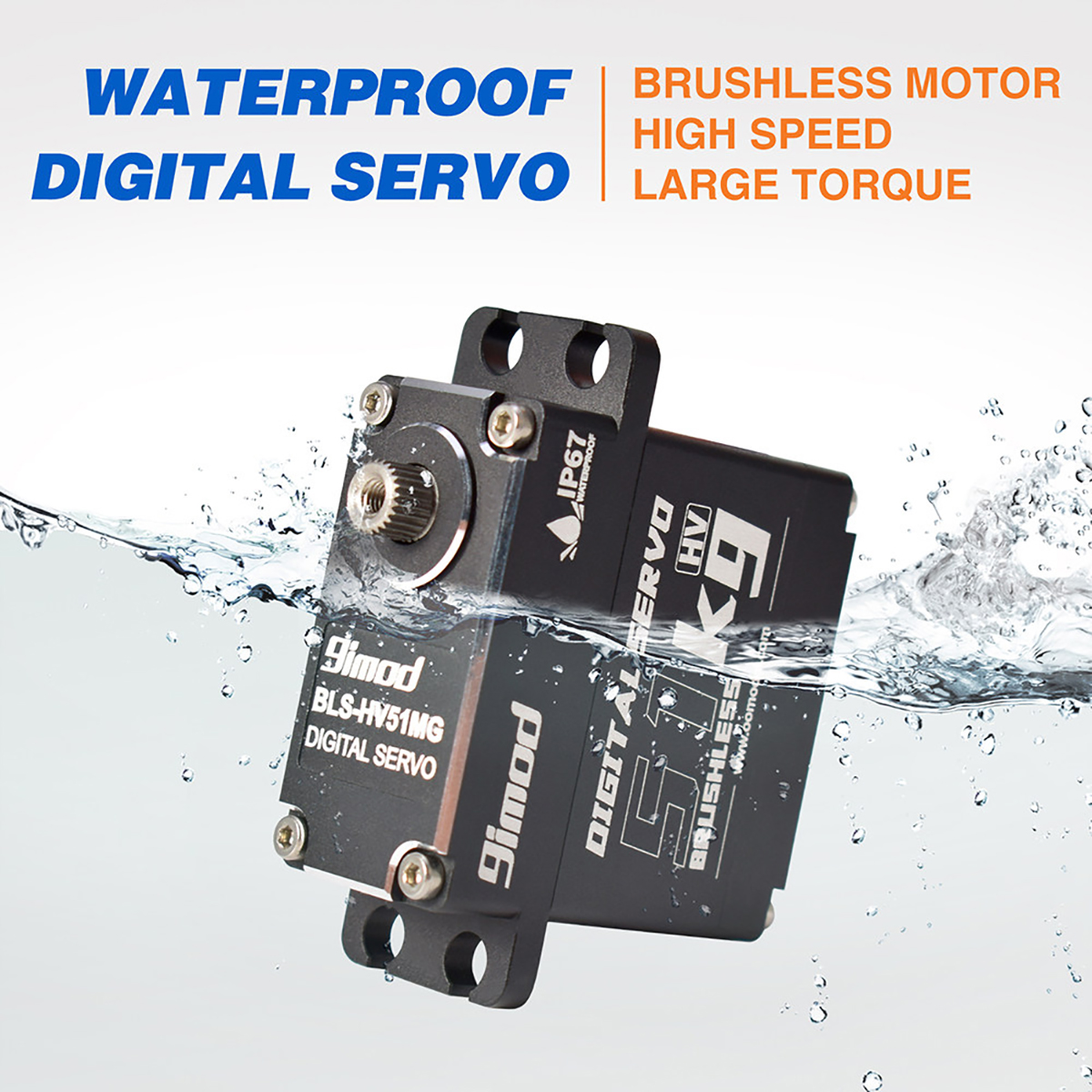

Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.

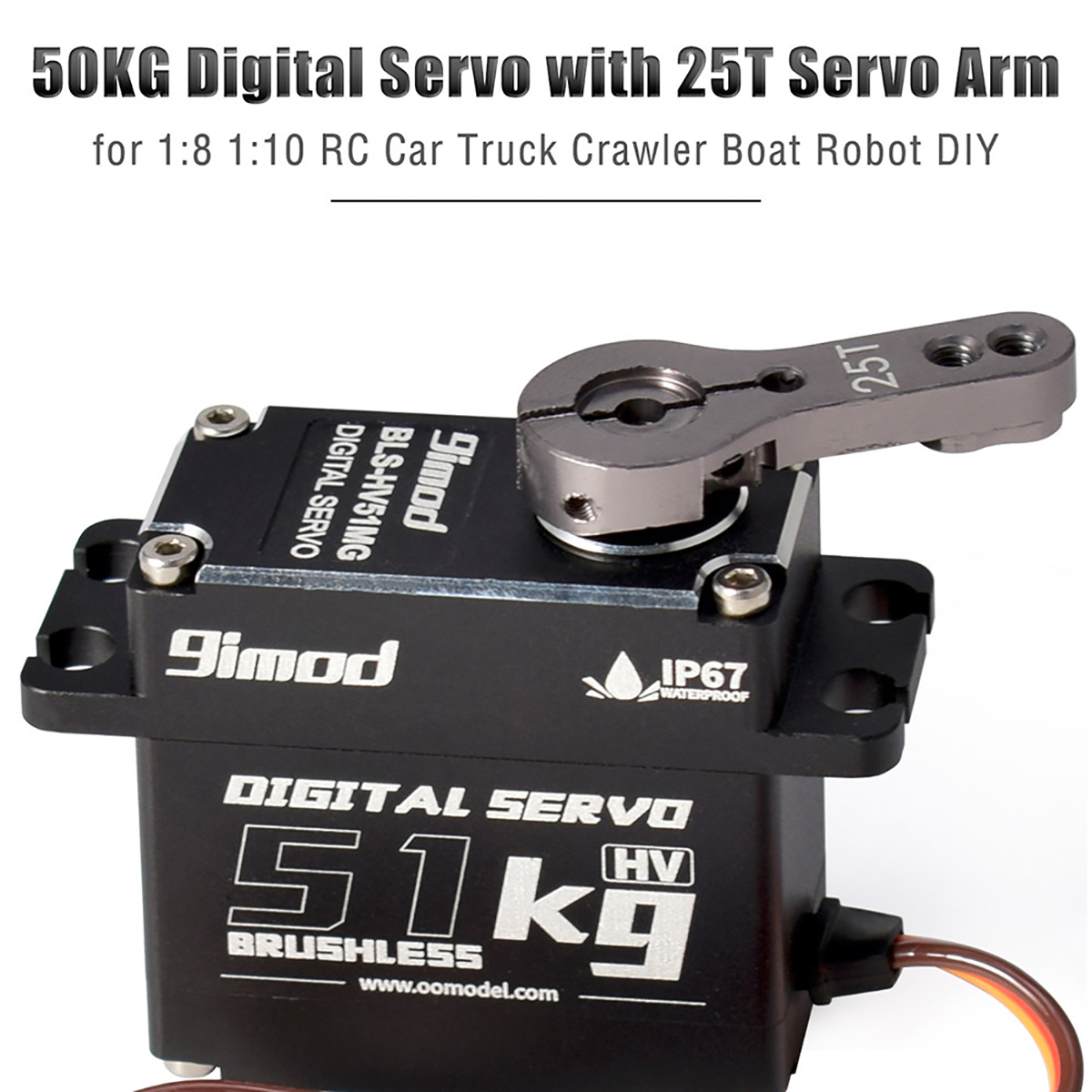

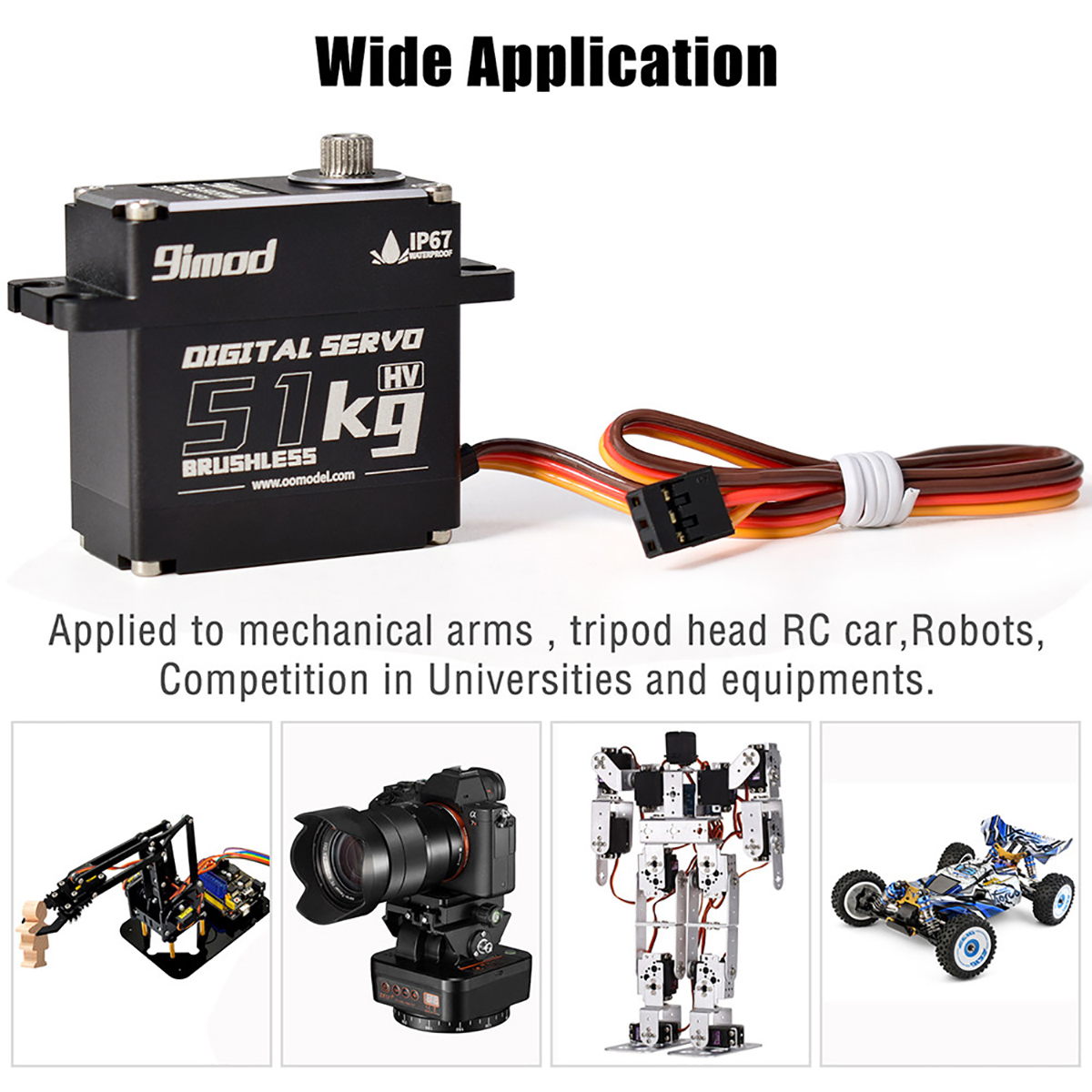

Widely Use Digital Servo:The steering servo (Control Angle 180°/270°/360° optional) Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car / Robot / Boat and other remote control models.

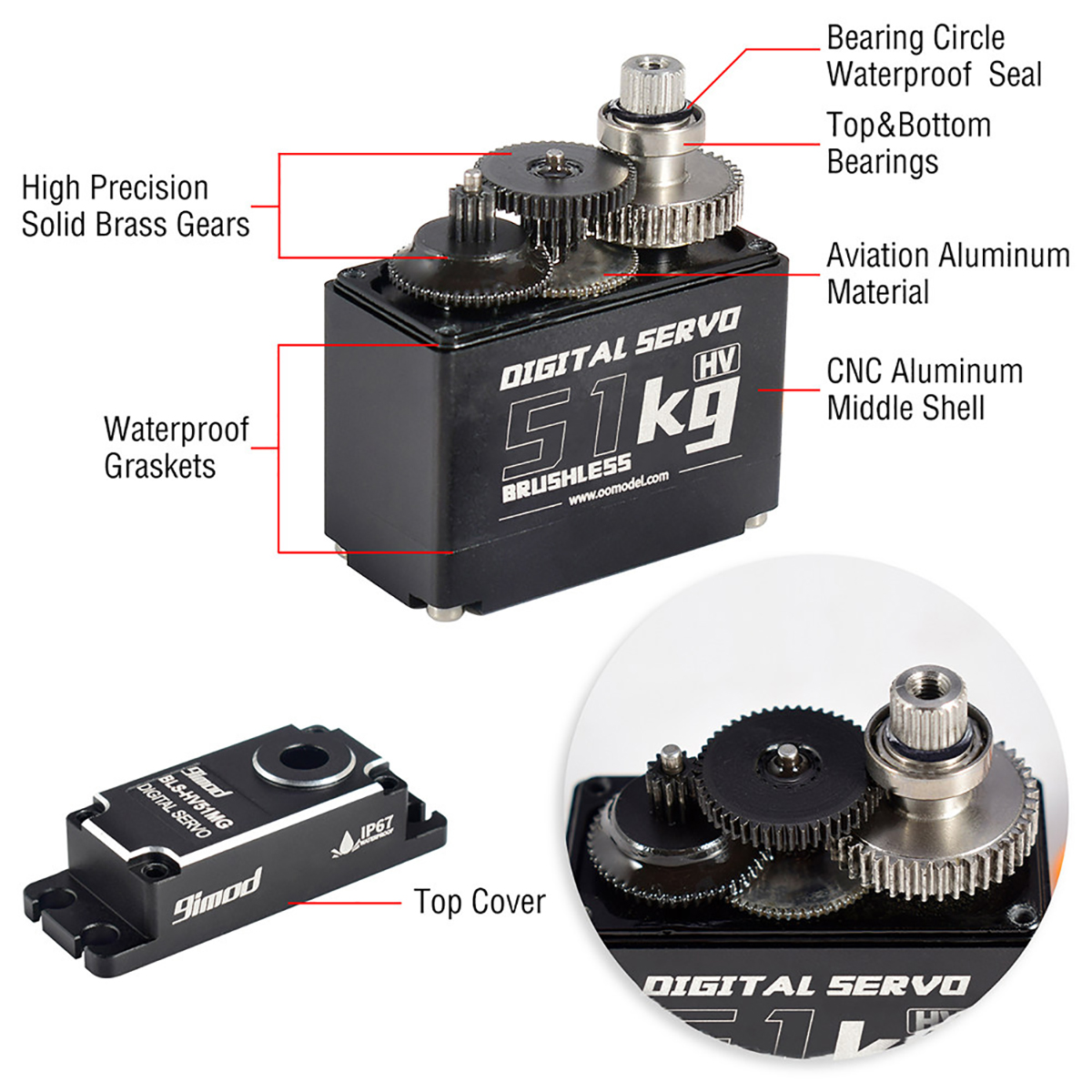

Metal Gear brushless Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.
High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (79g)

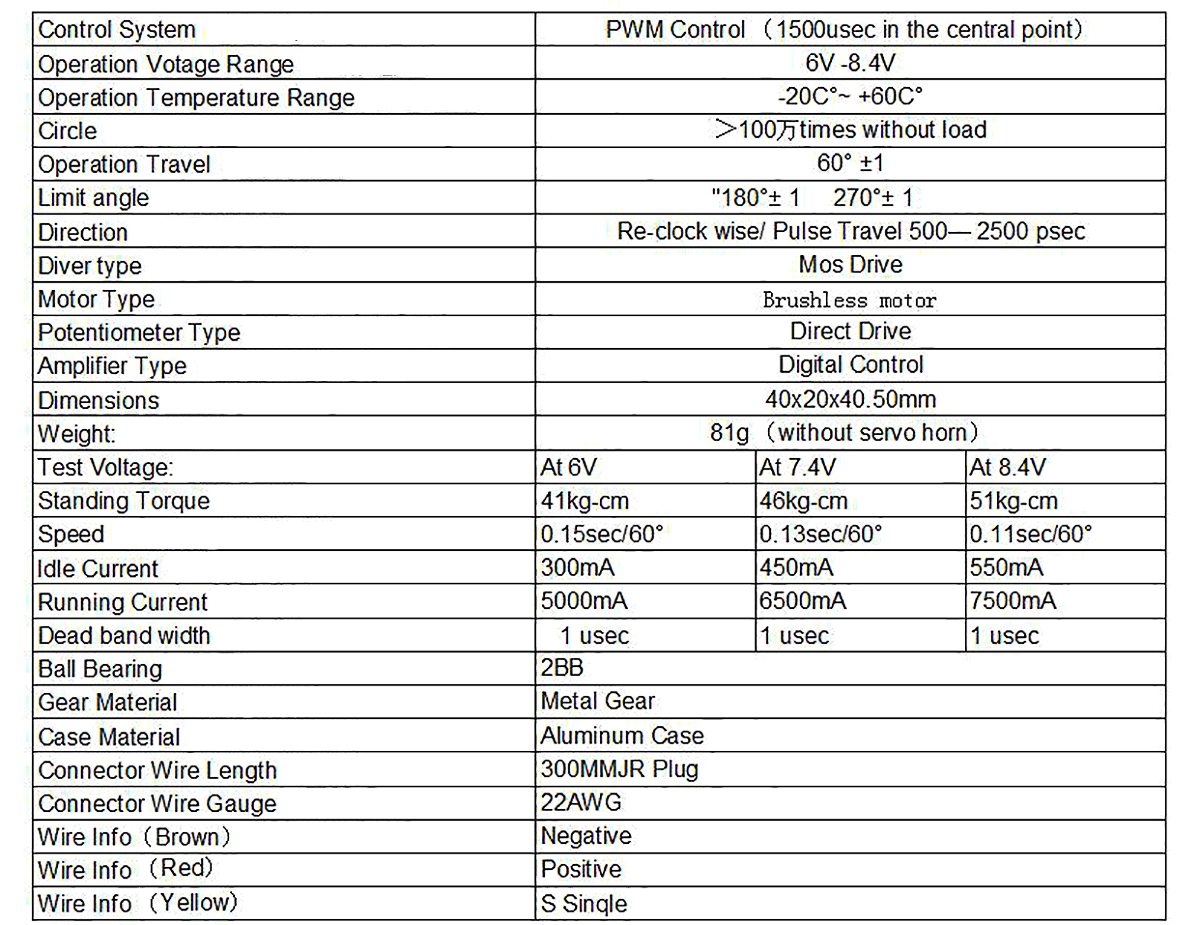

Model: BLS-HV51MG
Color: Black
Dead Band Width: 1μsec
Gear Material: Metal Gear
Case Material: Aluminum Case
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >100 Million Times Without Load
Operation Travel: 60°±1
Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

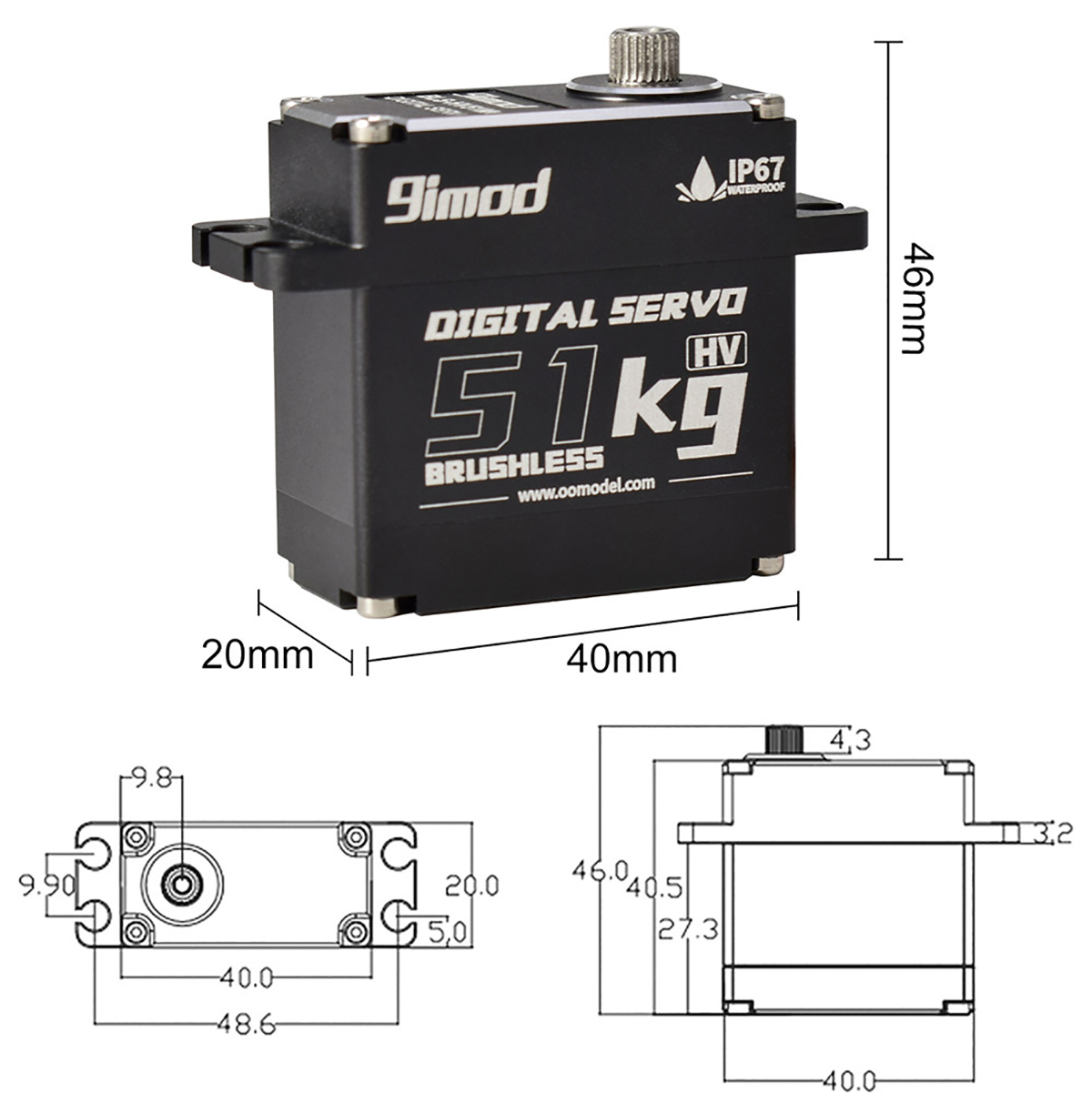

Dimensions: 40x20x40.50mm
Weight: 81g (Without Servo Horn)

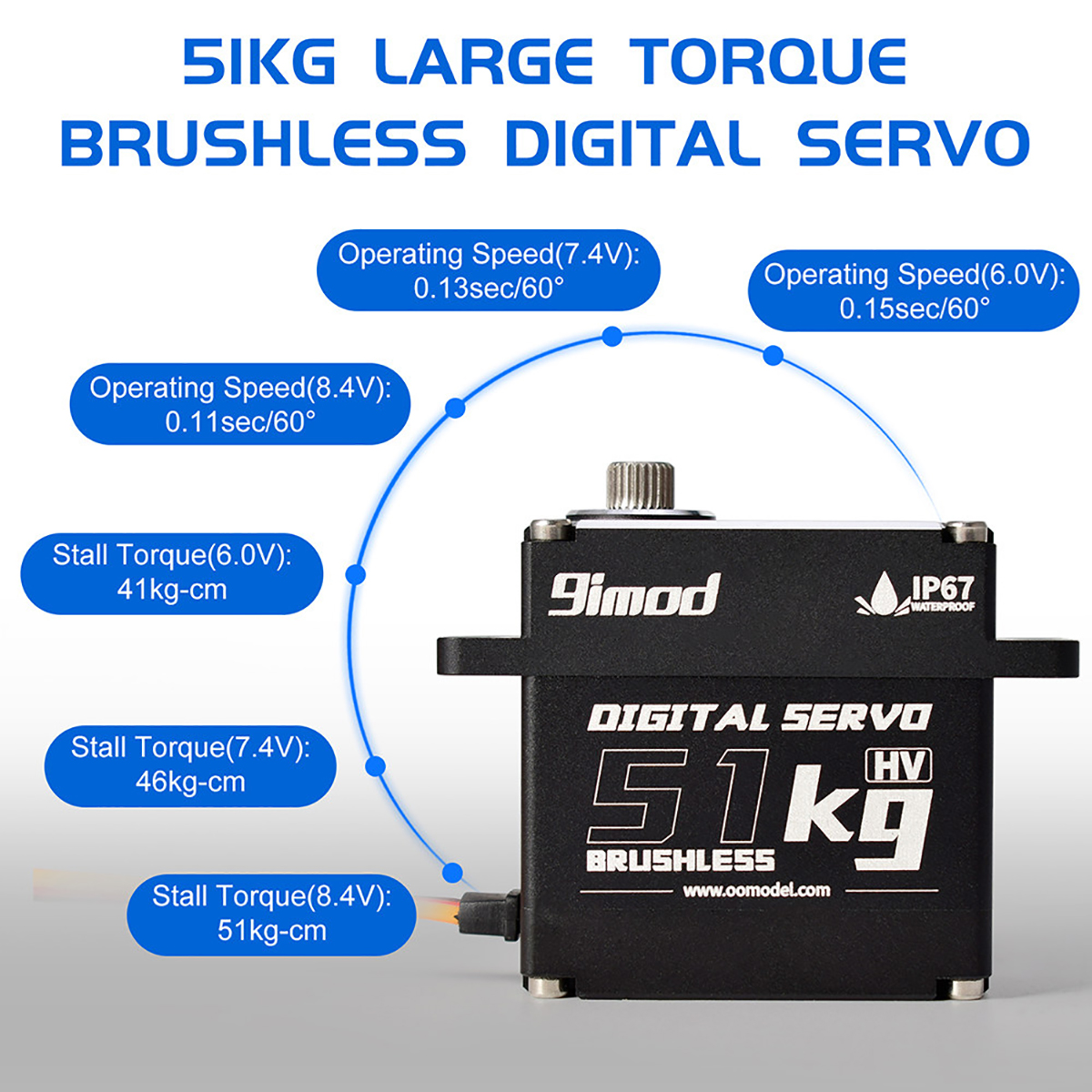

Standing Torque: 0.15sec/60°, 41kg-cm @6.0V ; 0.13sec/60°, 46kg-cm @7.4V ; 0.11sec/60°, 51kg-cm @8.4V
Idle Current: 300mA @6.0V ; 450mA @7.4V ; 550mA @8.4V
Running Current: 5000mA @6.0V ; 6500mA @7.4V ; 7500mA @8.4V
Ball Bearing: 2BB
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG

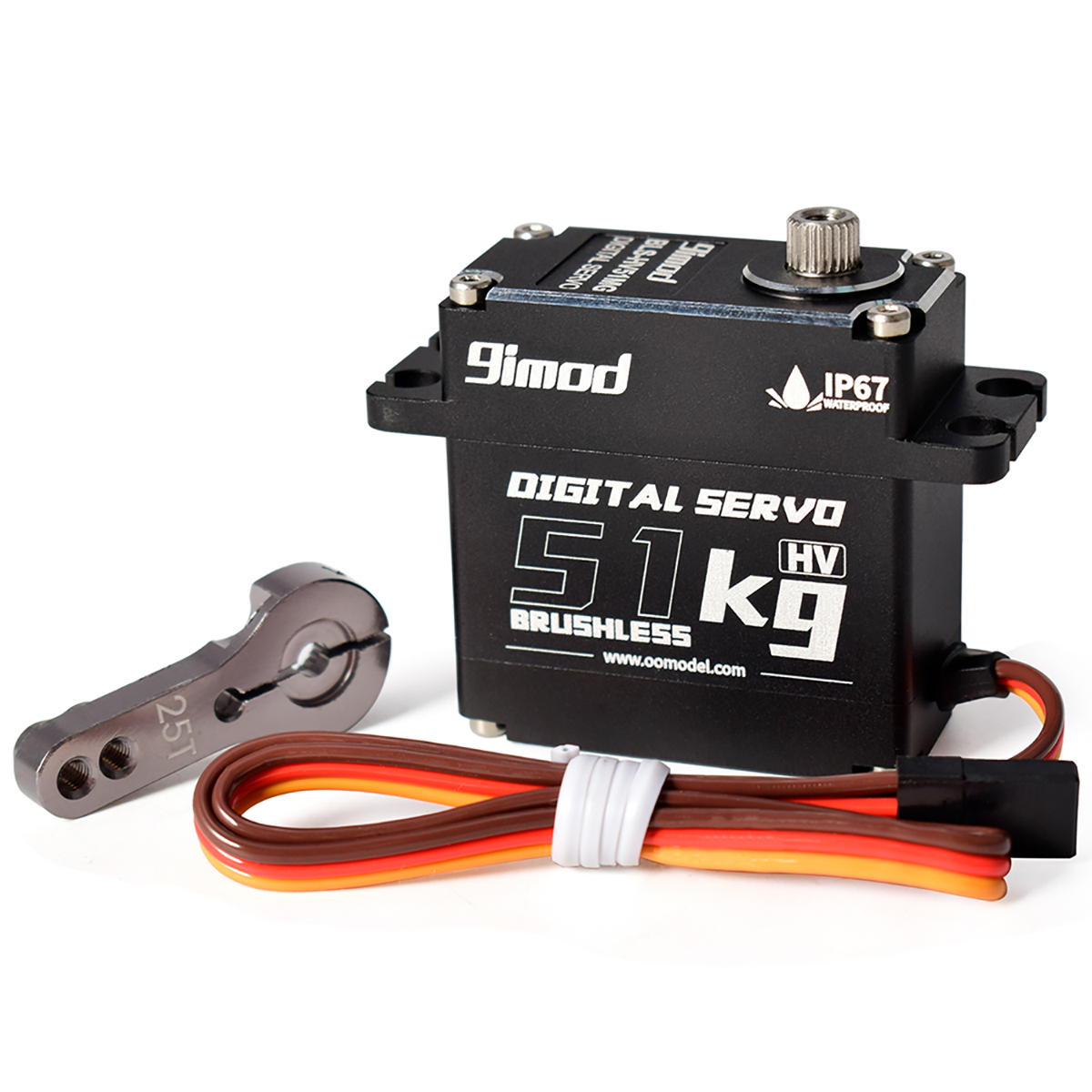

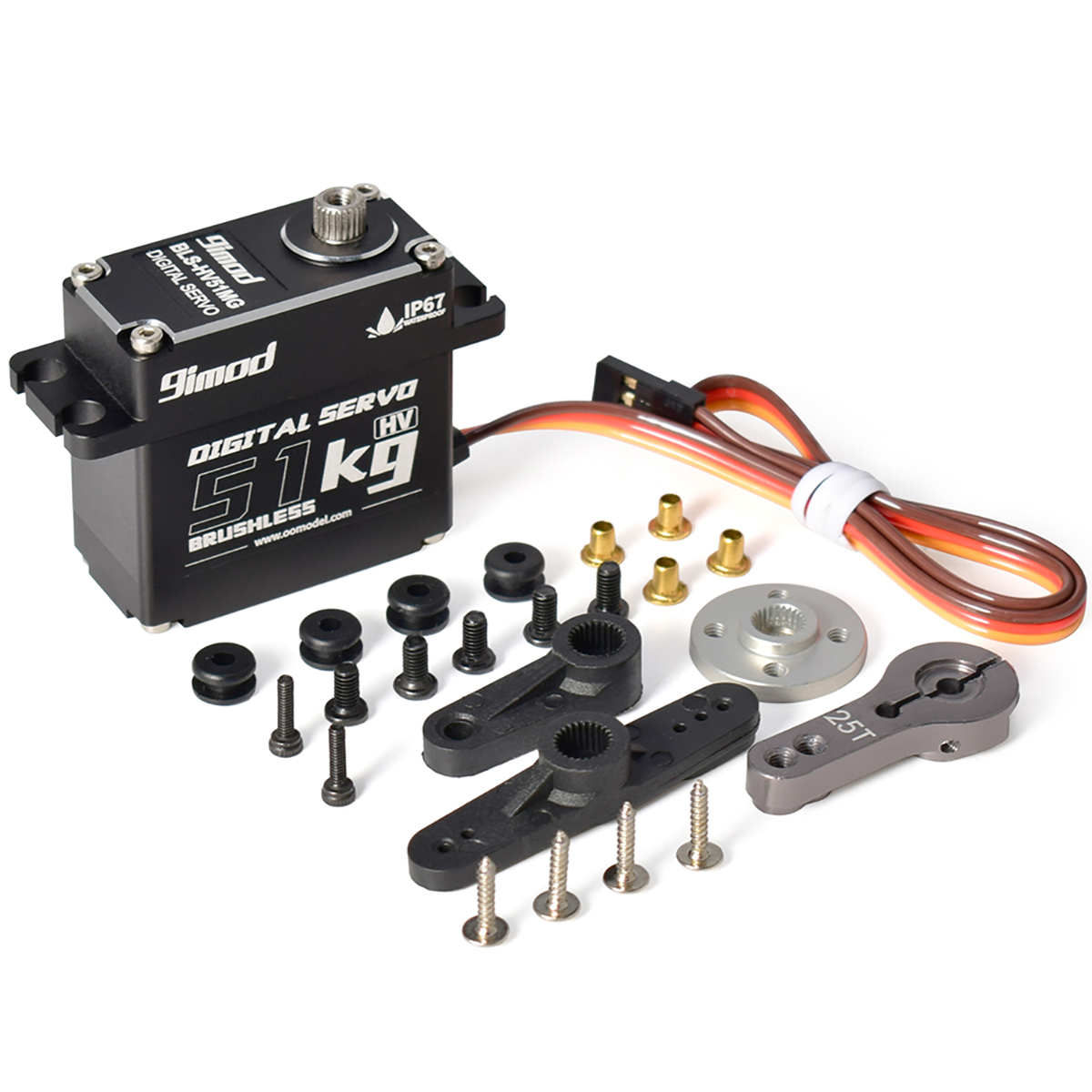

Servo x1
Servo Accessories x1
