9imod BLS-HV70MG 14V 70kg High Torque 180 Degree Metal Gear HV Brushless Servo for 1/8 1/10 RC Crawler Car

SKU BLS-HV70MG-180 Category Tag Brand:

9imod BLS-HV70MG 14V 70kg High Torque 180 Degree Metal Gear HV Brushless Servo for 1/8 1/10 RC Crawler Car

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

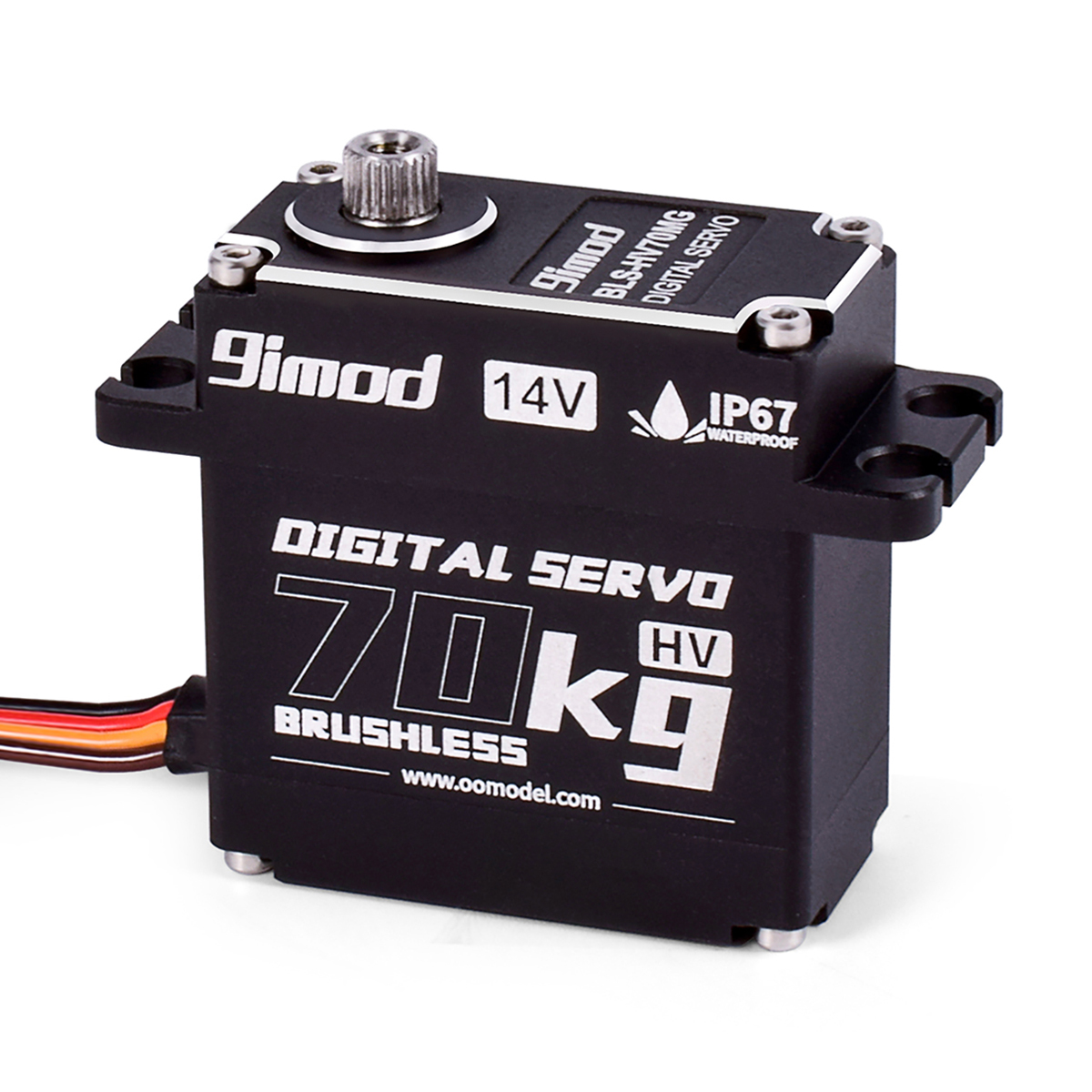

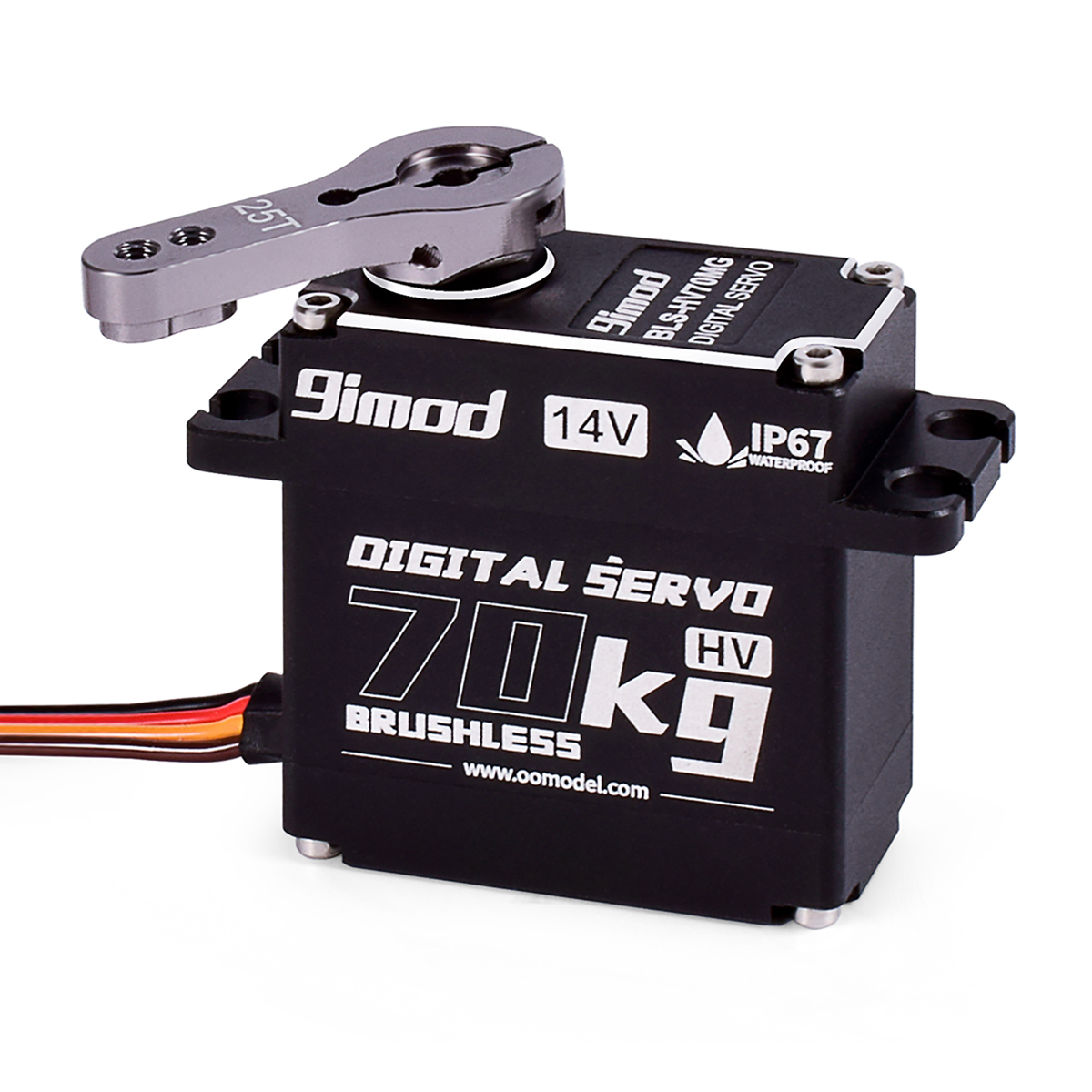

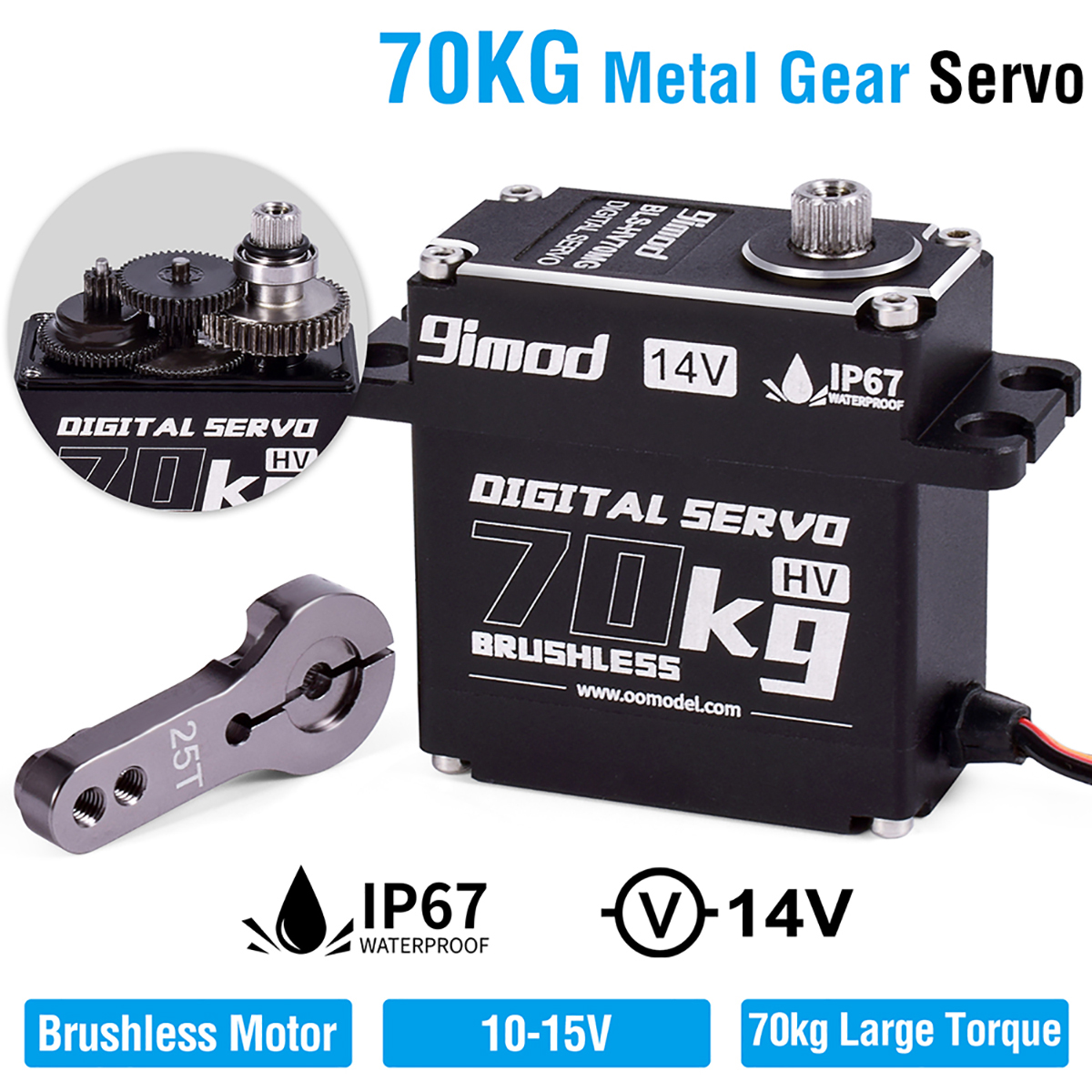

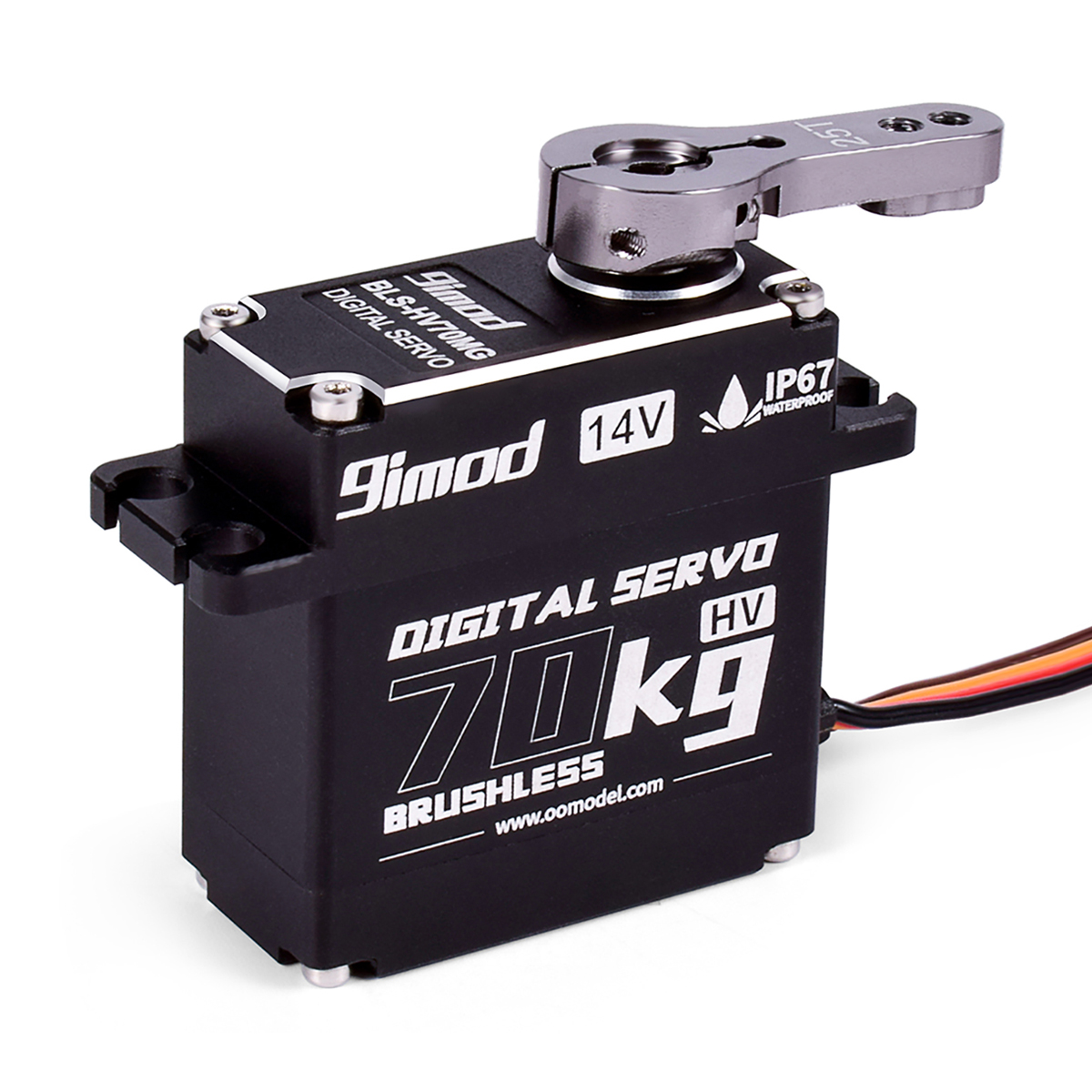

9imod Digital Servo Motor 70KG with 25T metal servo arm,It has 10V~15V high operation voltage range brushless large torque and waterproof.Compared with ordinary servo, the speed is much faster and the reaction is also fast.
It’s a good steering servo for your 1:8/1:10 RC Car Truck Crawler Boat Robot and DIY model toy!

Features:

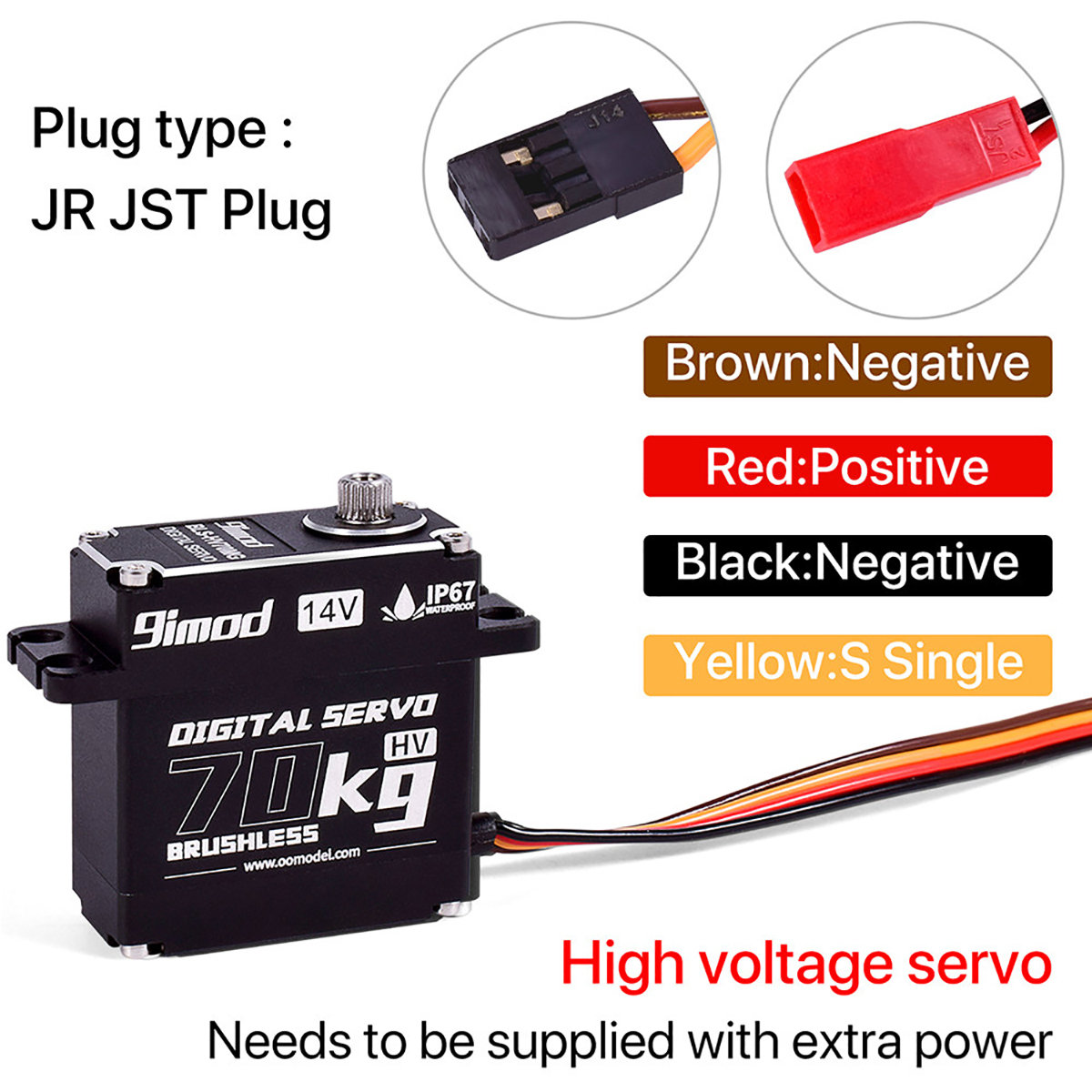

Upgraded Version: Less heat, more sensitive ,high torque!10.0V ~15V high performance digital high voltage brushless . (The High voltage servo is a direct power servo that needs to be supplied with extra power).Waterproof Servo:The waterproof protection level is IP67. It can adapt to different wading environments.

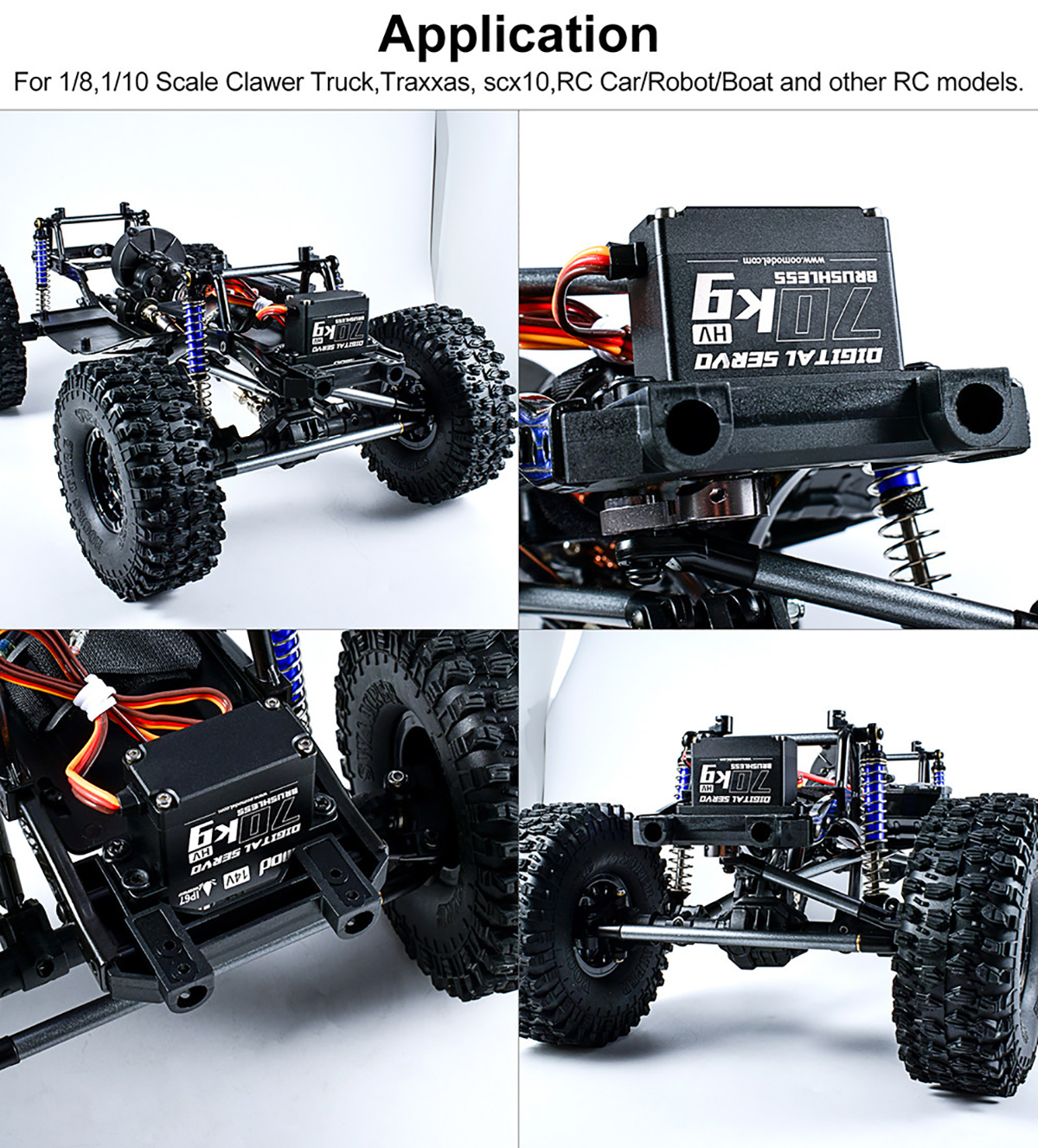

High Rotation :The steering servo is widely use.Excellent linearity, precision control. Compatible with 1/8, 1/10 Scale Clawer Truck, scx10, RC Car / Robot / Boat and other remote control models.

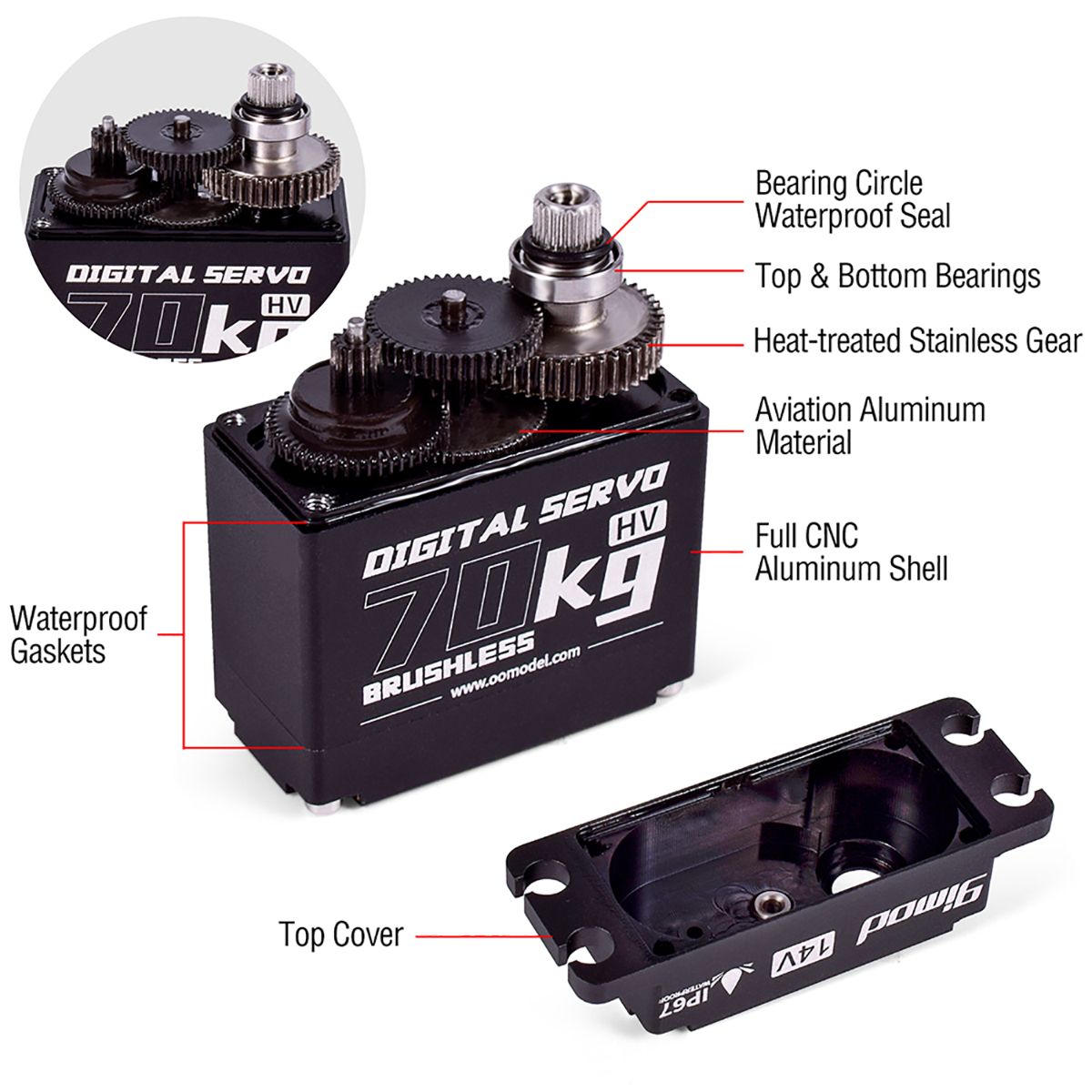

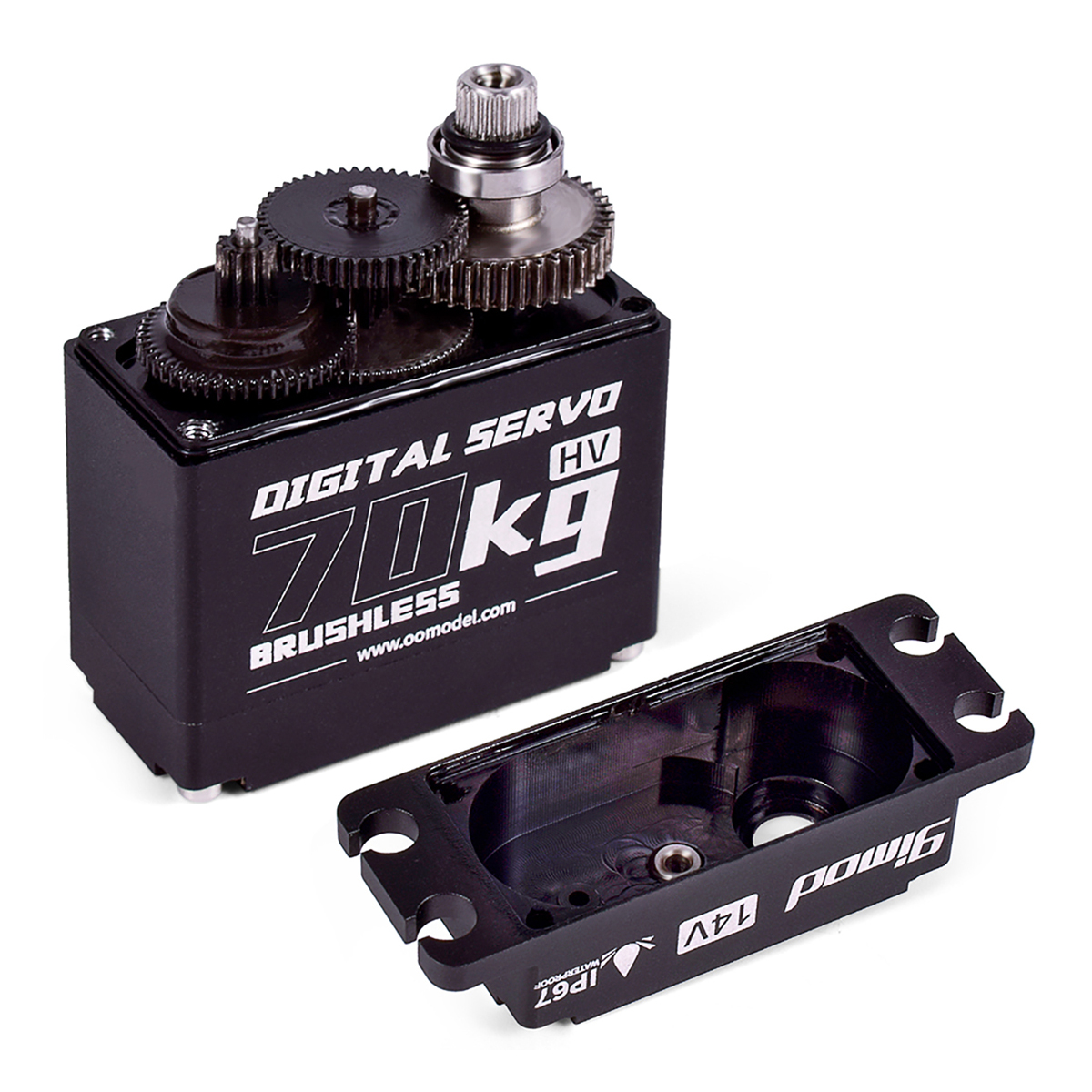

High Quality :Metal gear brushless servo equipped with stainless steel gears, full CNC aluminium shell, less noise, light weight.Dual ball bearings.

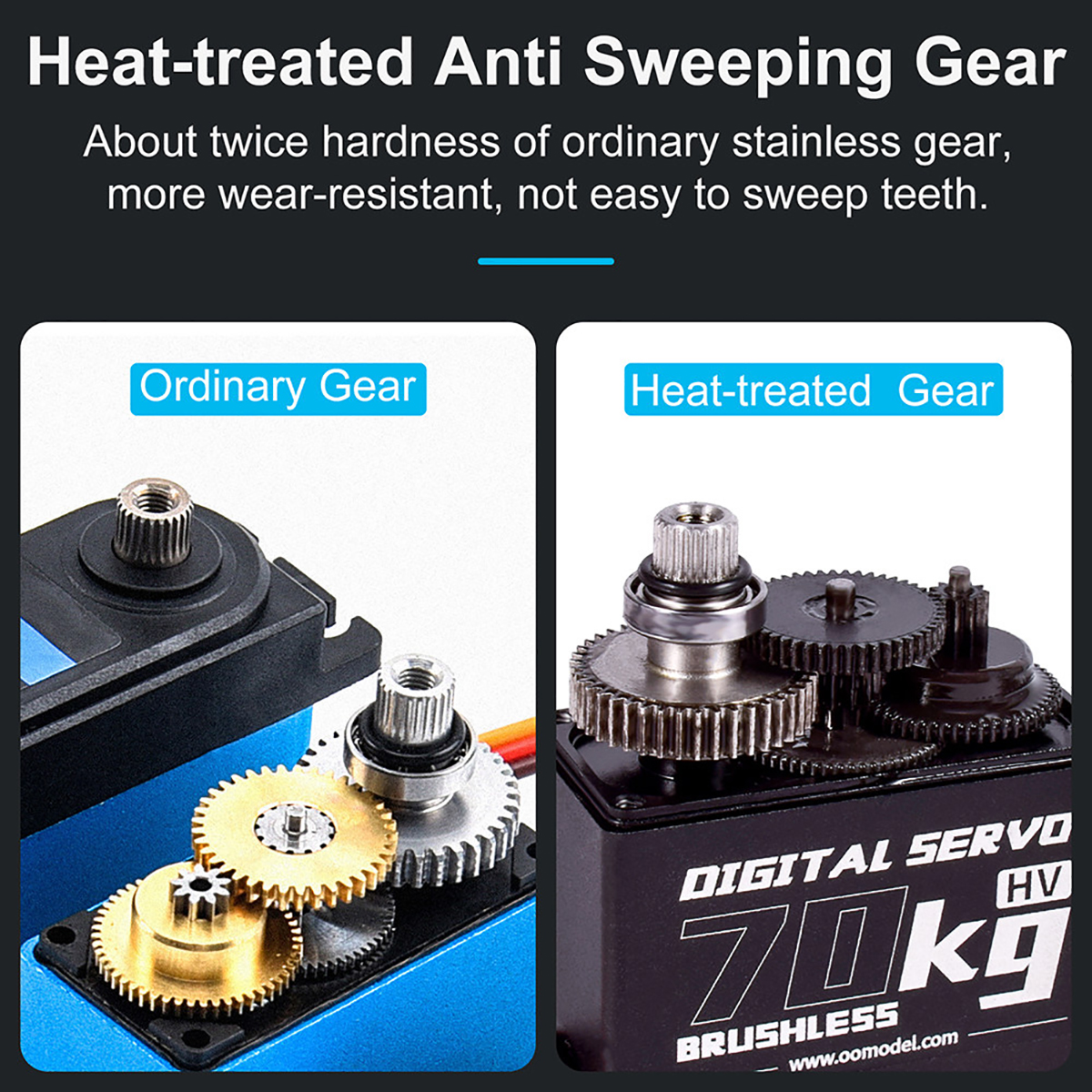

Black Heat-treated Gear:About twice hardness of ordinary stainless gear, more wear-resistant, not easy to sweep teeth.

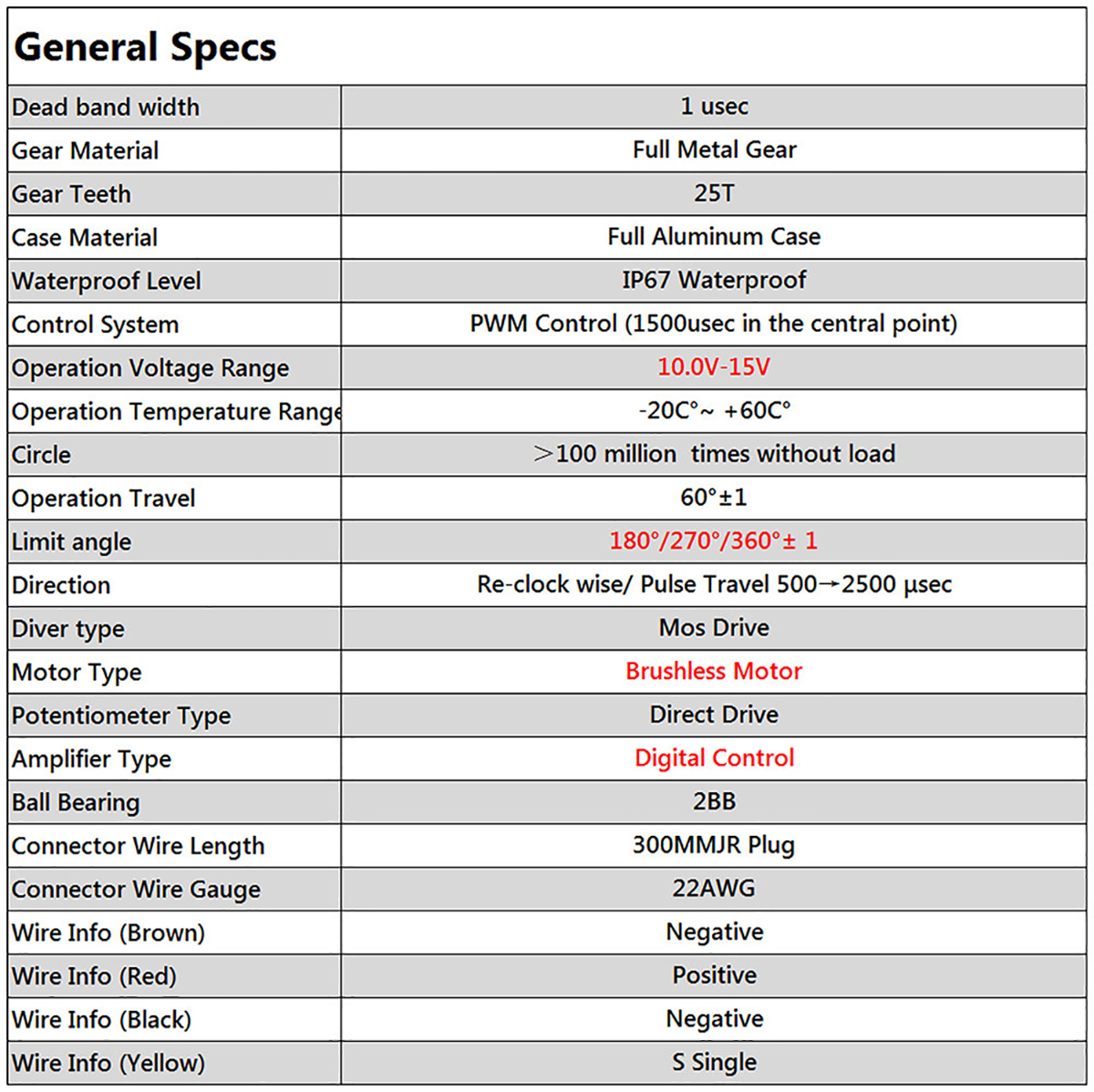

Model: BLS-HV70MG
Color: Black
Dead Band Width: 1μsec
Gear Material: Metal Gear
Case Material: Aluminum Case
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 10.0V ~ 15V
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >100 Million Times Without Load
Operation Travel: 60°±1

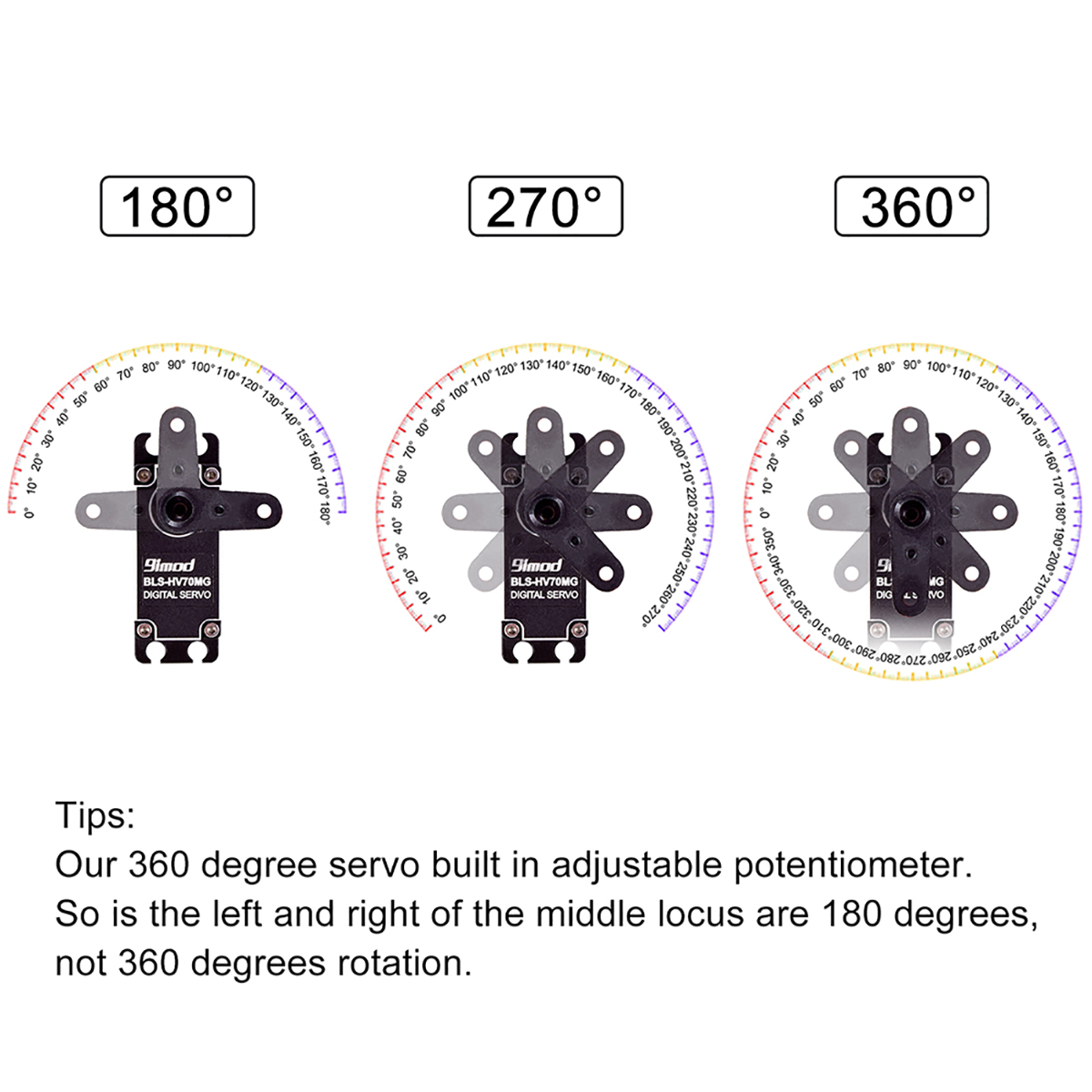

Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Brushless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Ball Bearing: 2BB (BLS-HV70MG)

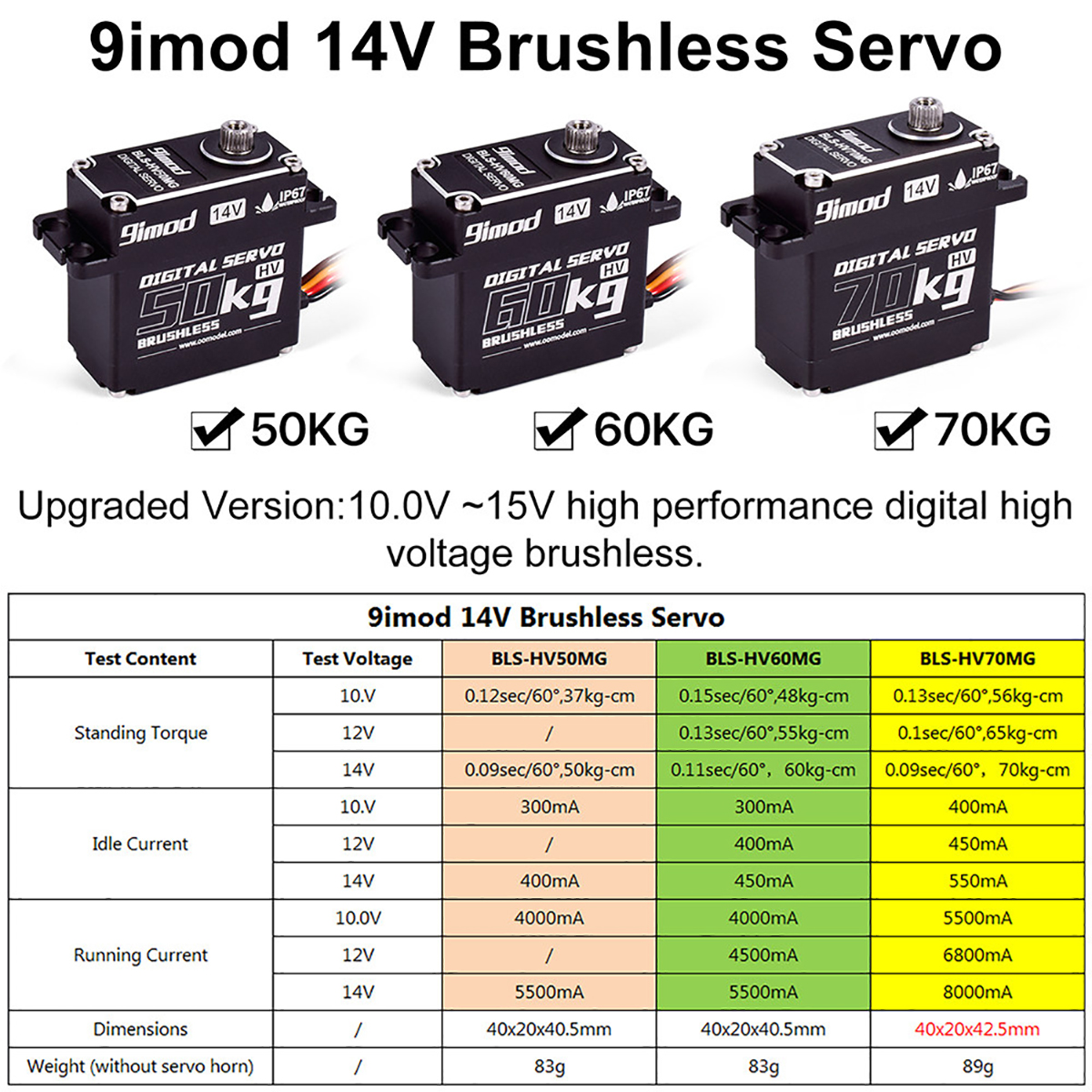

Standing Torque: 0.13sec/60°, 56kg-cm @10.0V ; 0.10sec/60°, 65kg-cm @12V ; 0.09sec/60°, 70kg-cm @14V
Idle Current: 400mA @10.0V ; 450mA @12V ; 550mA @14V
Running Current: 5500mA @10.0V ; 6800mA @12V ; 8000mA @14V

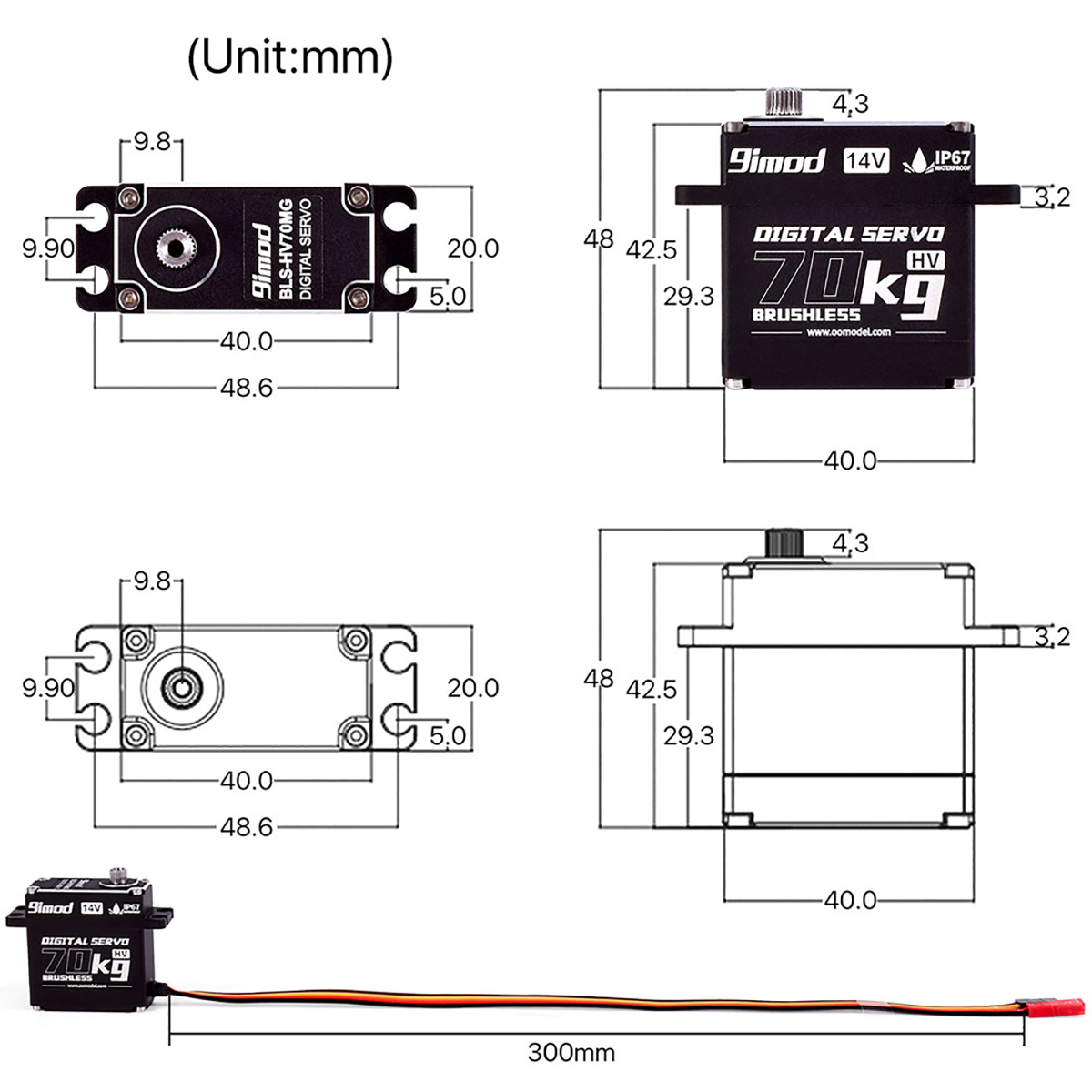

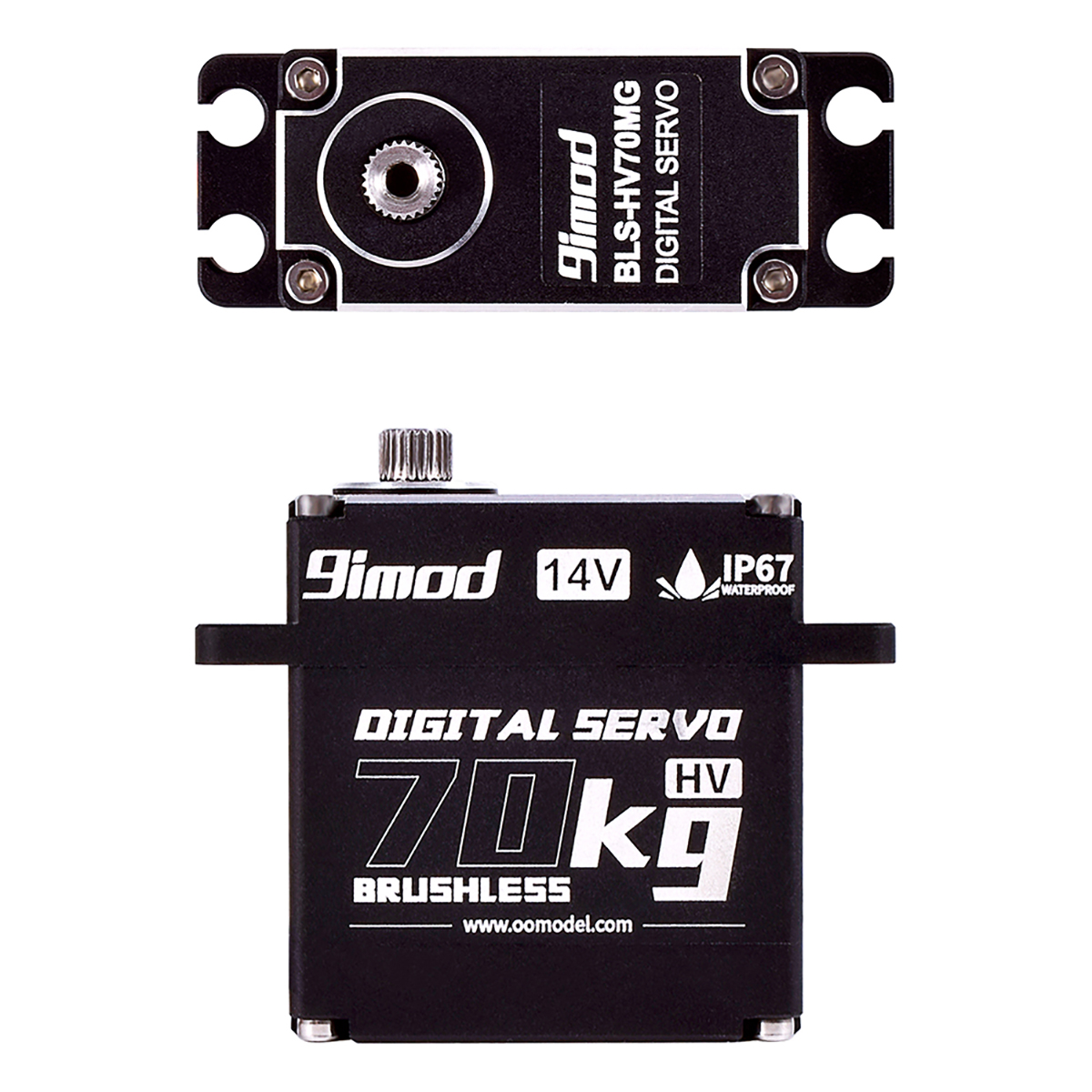

Dimensions: 40x20x42.5mm
Weight: 89g (Without Servo Horn)

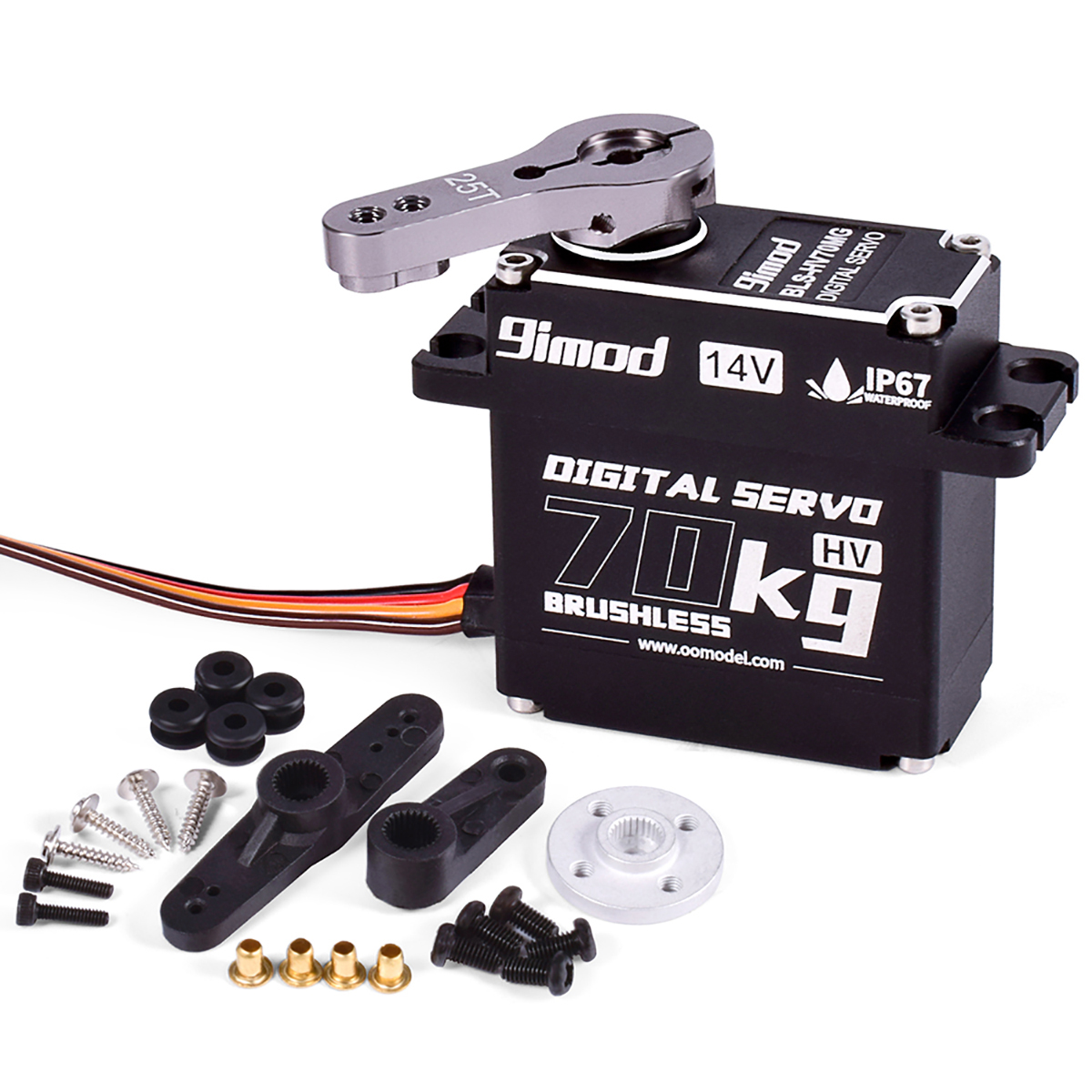

Servo x1
Servo Accessories x1
