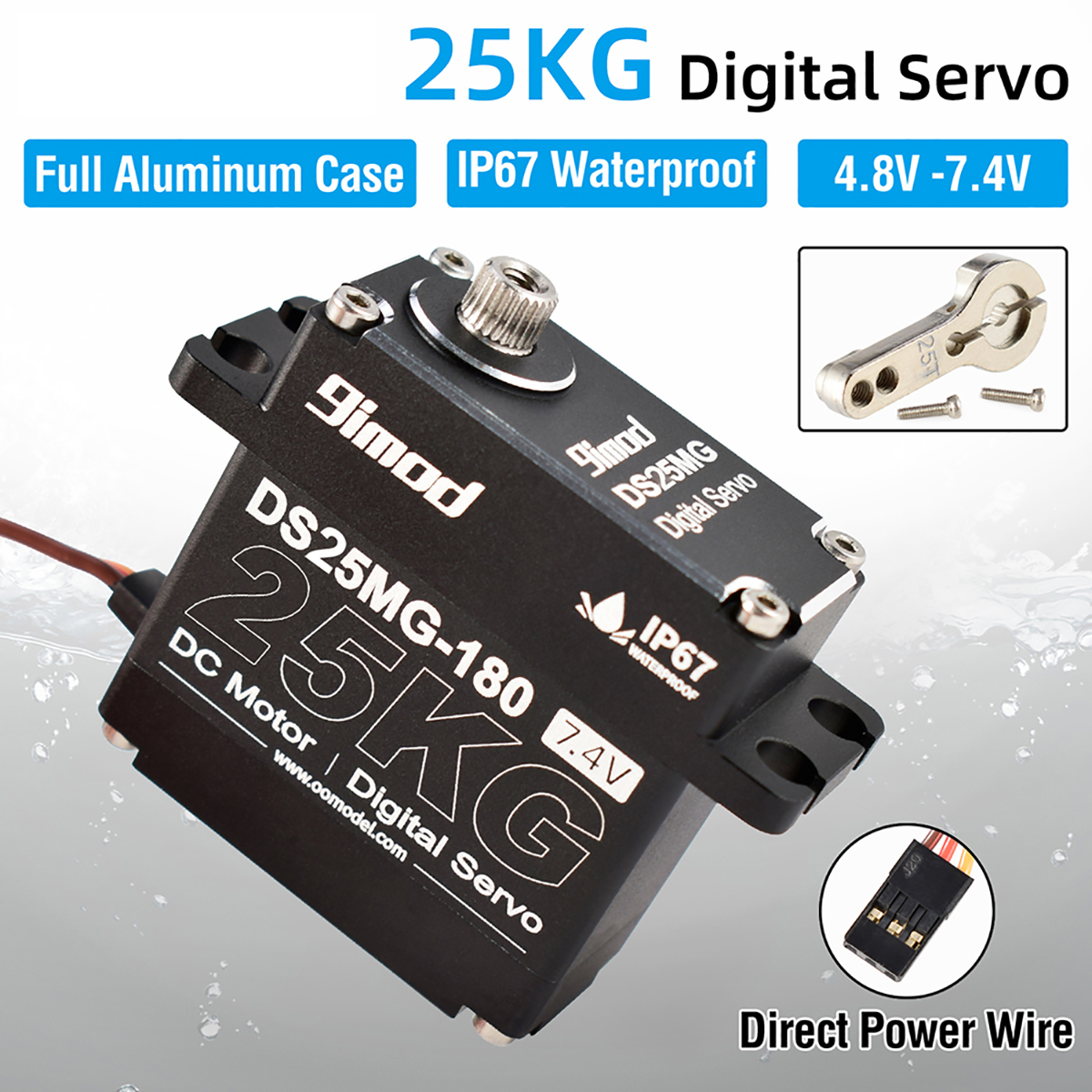

9imod DS25MG 25kg 180 Degree Metal Gear Aluminum Case IP67 Waterproof Digital Servo for RC Car Robot Boat

SKU DS25MG-180 Category Tag Brand:

9imod DS25MG 25kg 180 Degree Metal Gear Aluminum Case IP67 Waterproof Digital Servo for RC Car Robot Boat

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

The 9imod DS25MG 25KG Large torque Digital Waterproof servo,adopt DC motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range. It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Features:
4.8V -7.4V High voltage,High performance digital High Voltage .

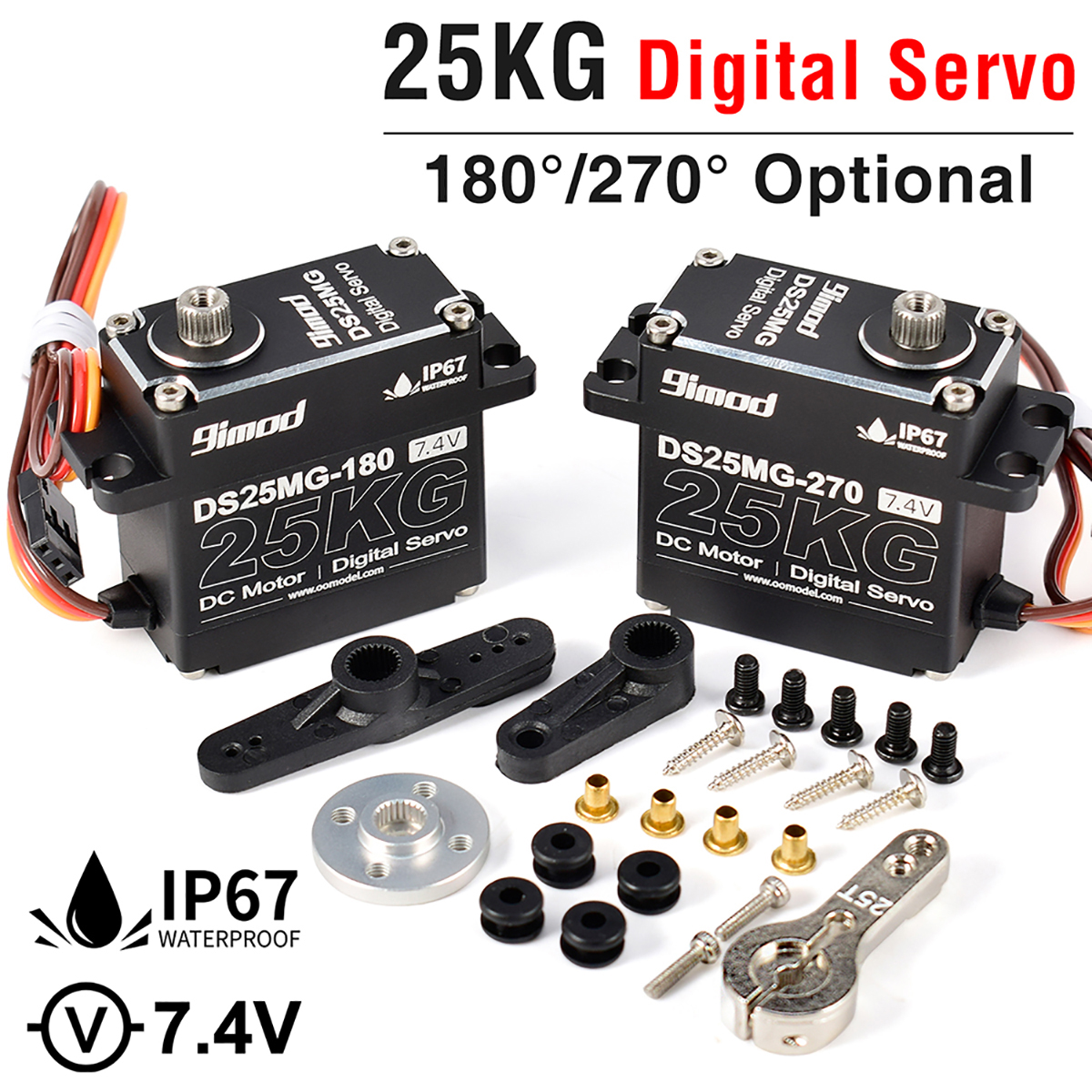

Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.

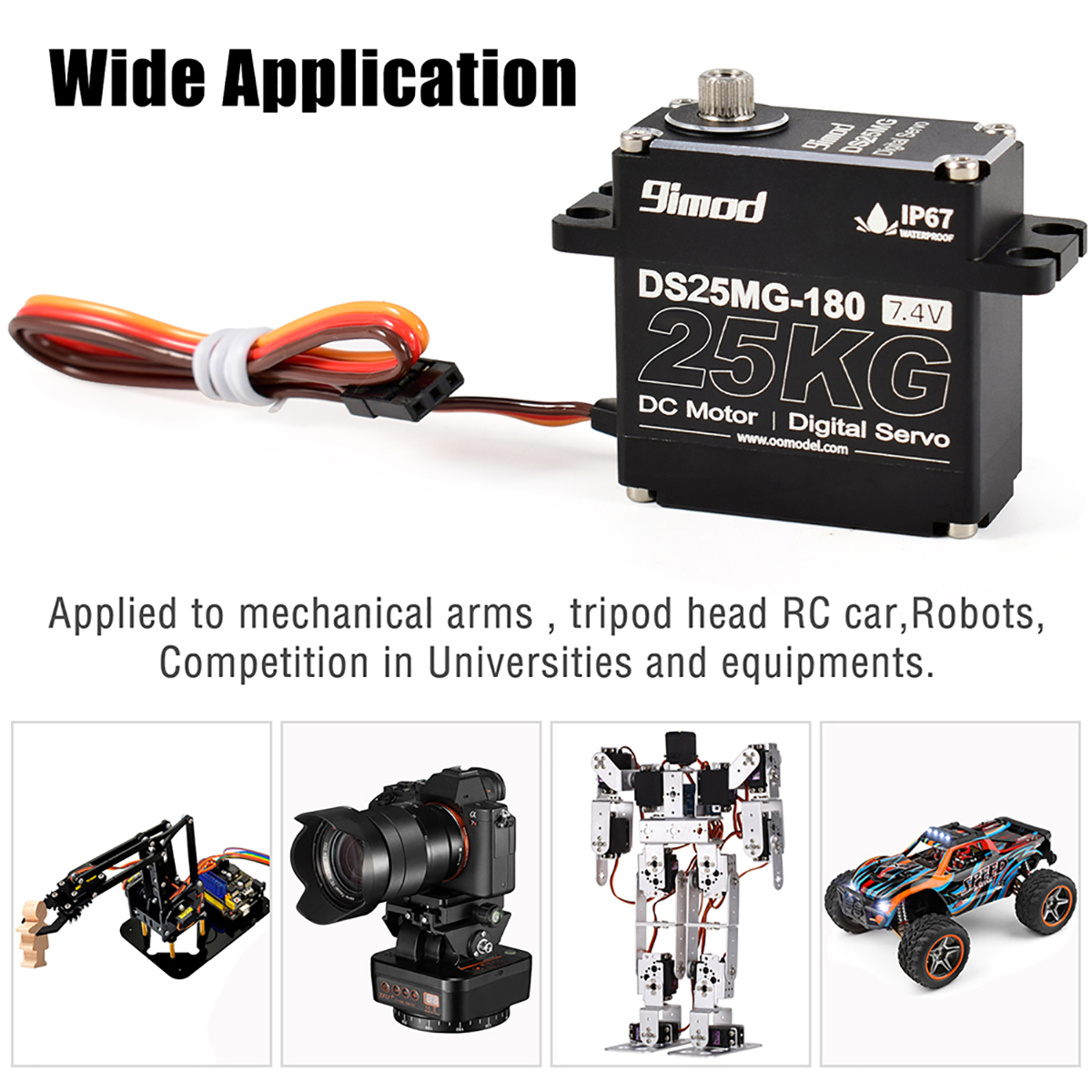

Widely Use Digital High Torque Servo:This 25kg Waterpoof Servo’s maximum torque is up to 25 kg/cm@7.4V ,Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, trx4 defender, trx 4 sport, and gen8, scx10, RC Car / Robot / Boat and other remote control models.

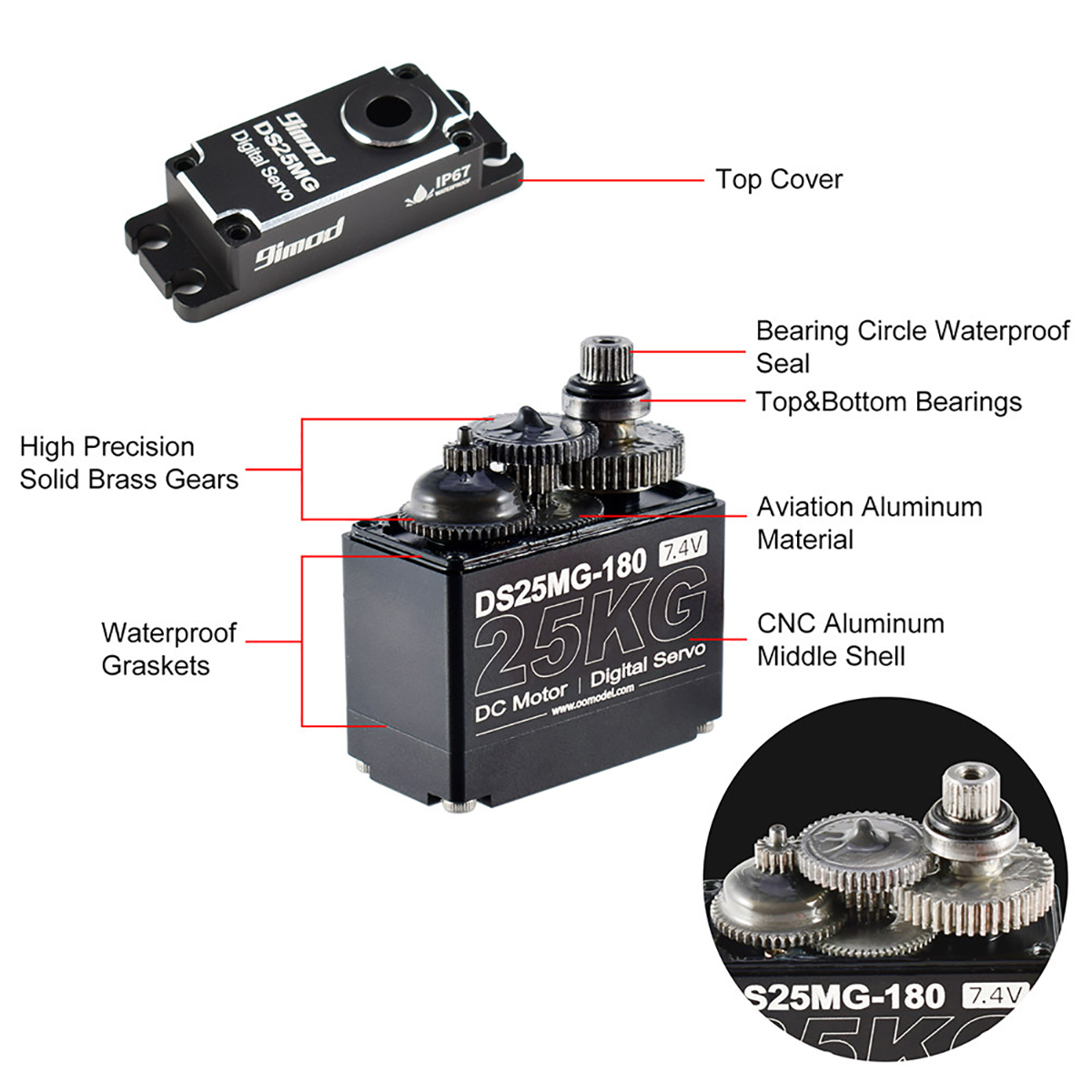

Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.
High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)

Model: DS25MG
Color: Black
Gear Material: Metal Gear
Case Material: Full Aluminum Case

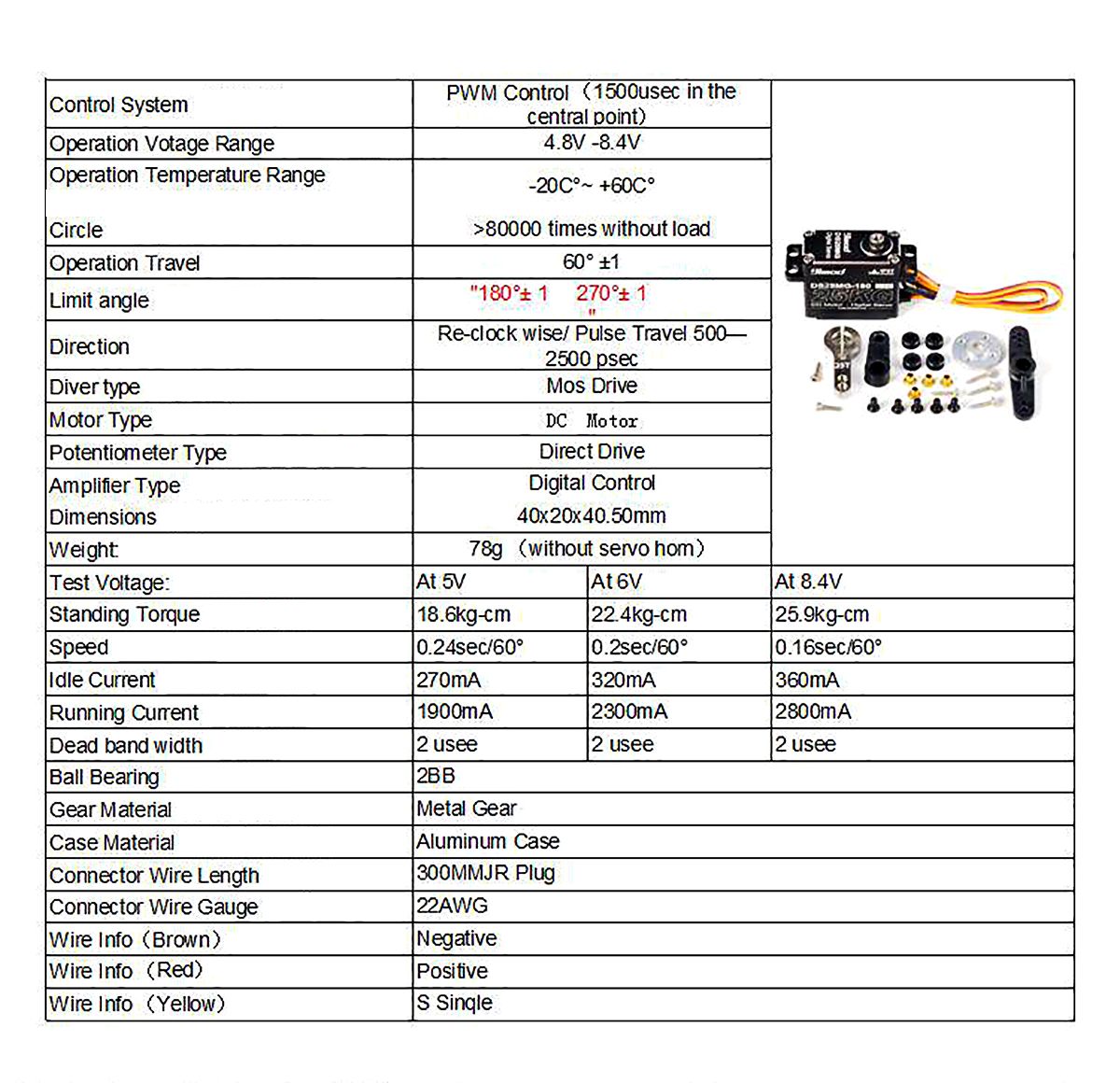

Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 4.8V ~ 7.4V
Storage Temperature Range: -30℃ ~ 80℃
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >80000 Times Without Load
Operation Travel: 60°±1
Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: DC Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Waterproof Rating: IP67

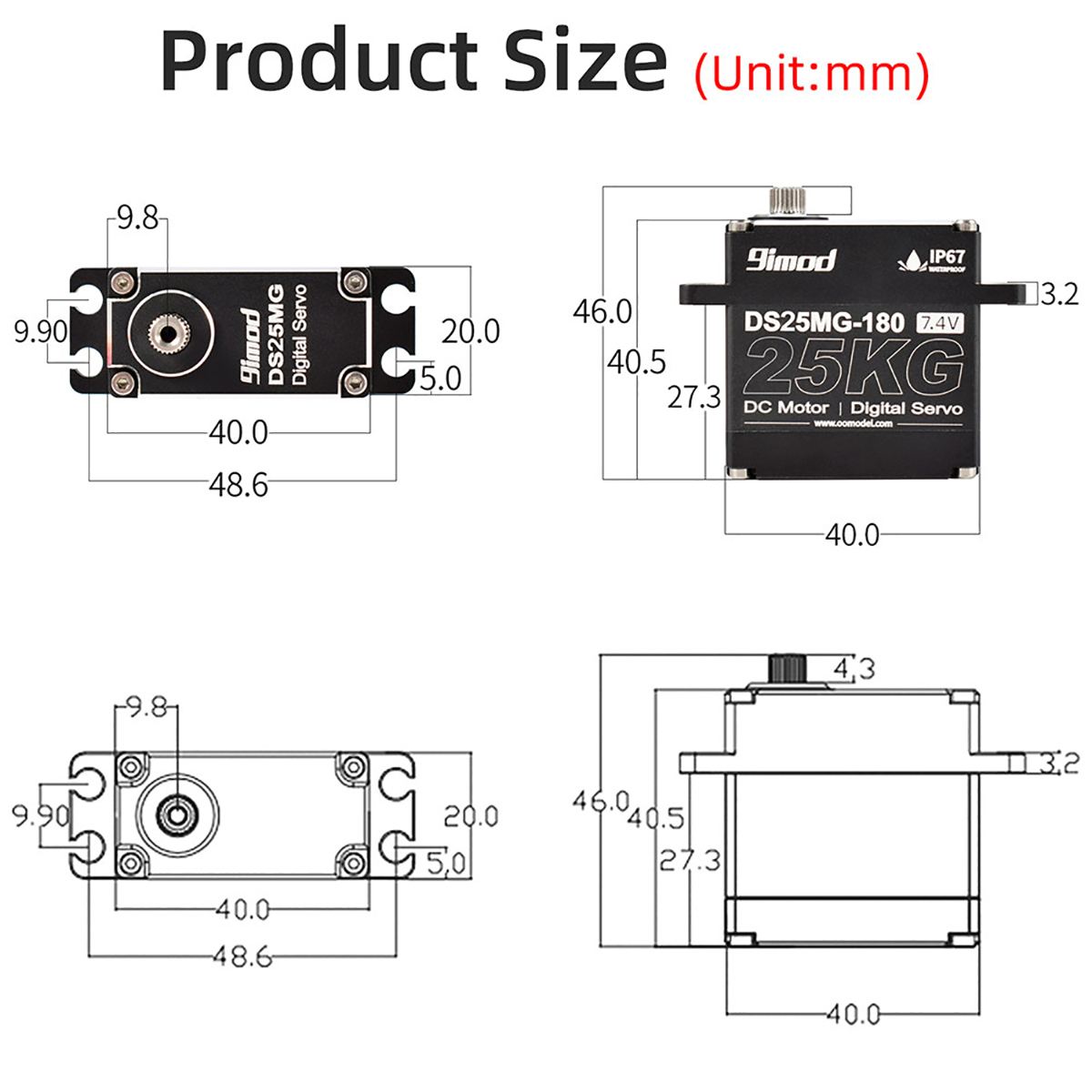

Dimensions: 40x20x40.50mm
Weight: 80g (Without Servo Horn)

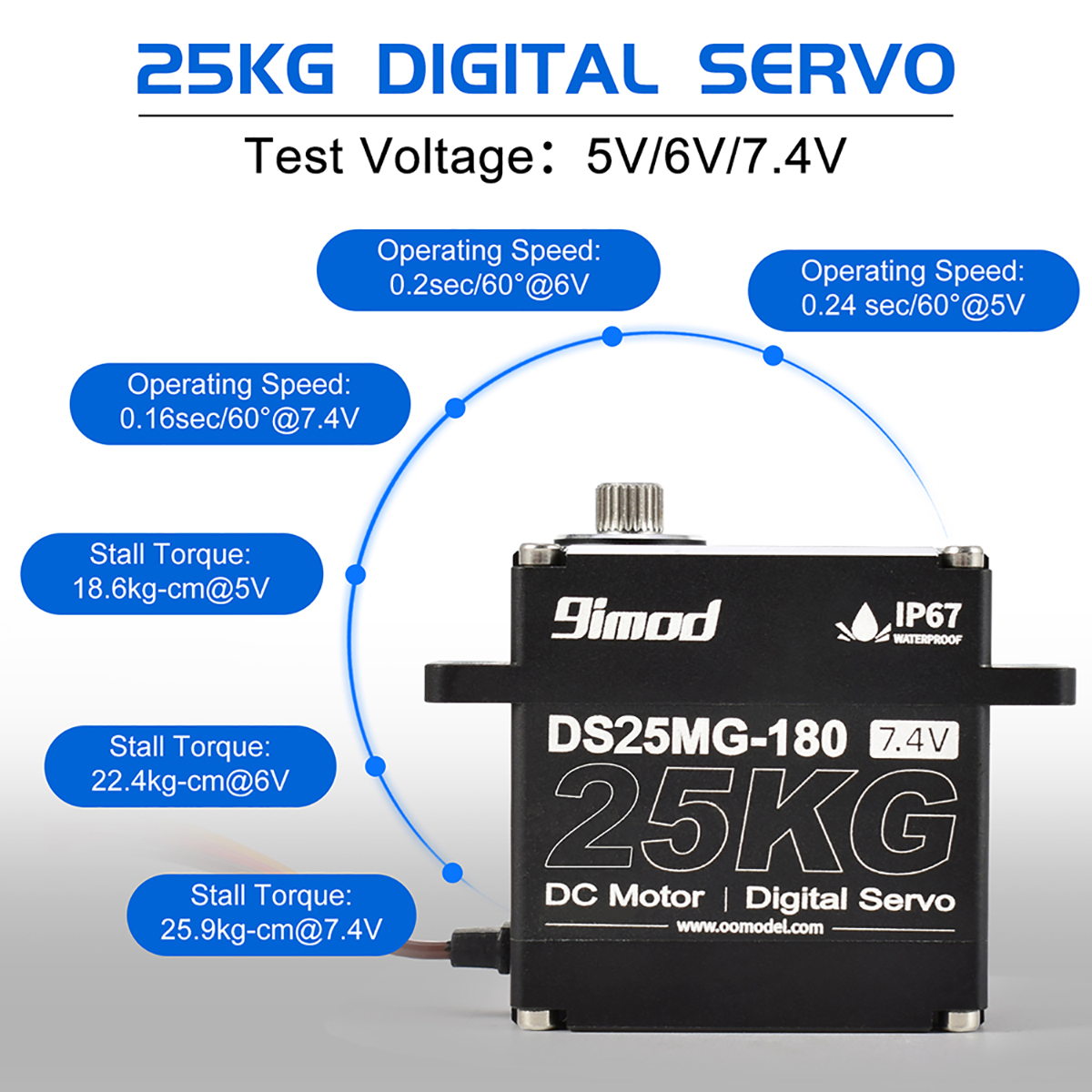

Test Voltage: 5V / 6V / 7.4V
Idle Current (At Stopped): 270mA @5V ; 320mA @6V ; 360mA @7.4V
Operating Speed (At No Load): 0.24sec/60° @5V ; 0.20sec/60° @6V ; 0.16sec/60° @7.4V
Stall Torque (At Locked): 18.6kg-cm @5V ; 22.4kg-cm @6V ; 25.9kg-cm @7.4V
Running Current: 1.9A @5V ; 2.3A @6V ; 2.8A @7.4V
Dead Band Width: 2μsec
Ball Bearing: 2BB
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG

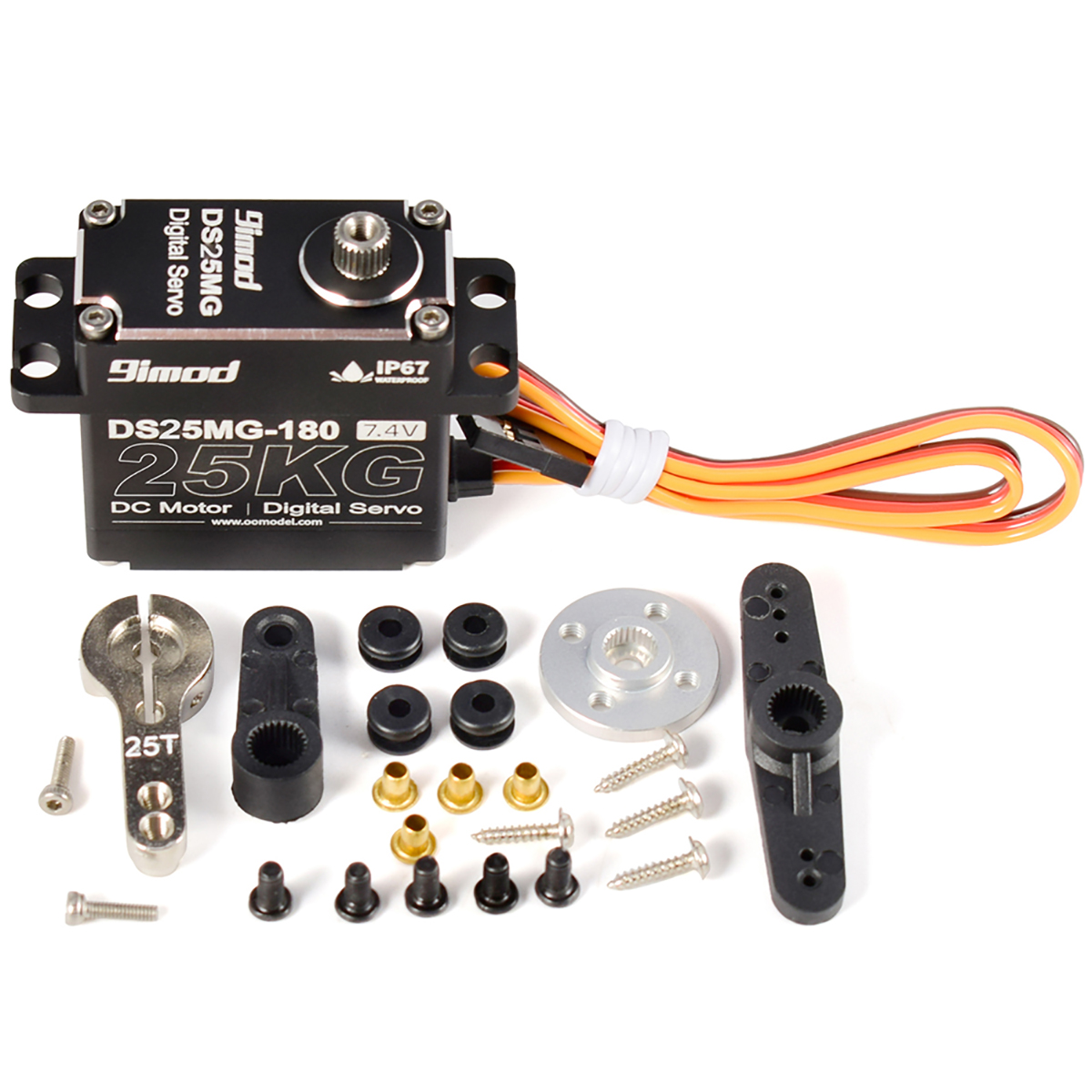

Servo x1
Servo Accessories x1
