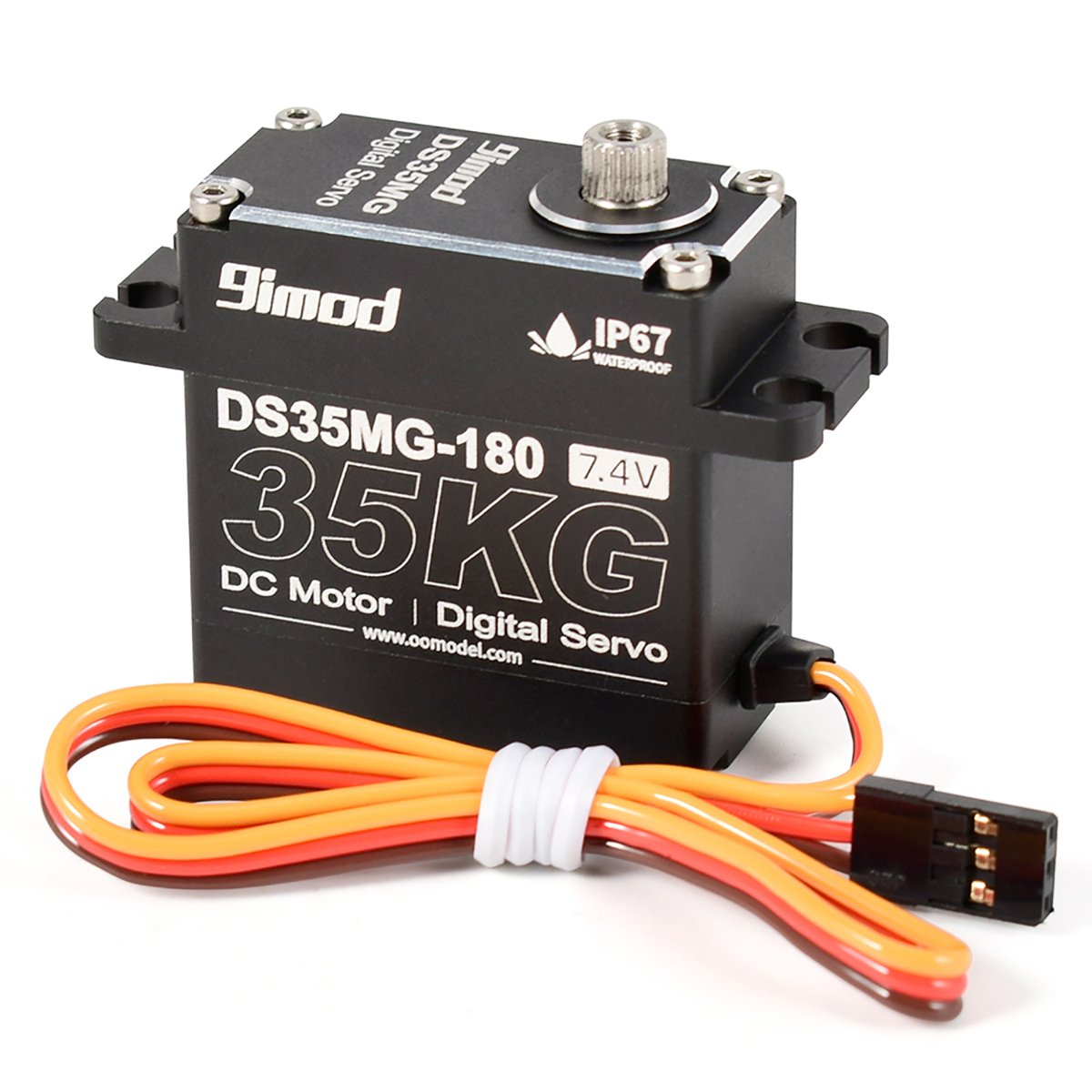

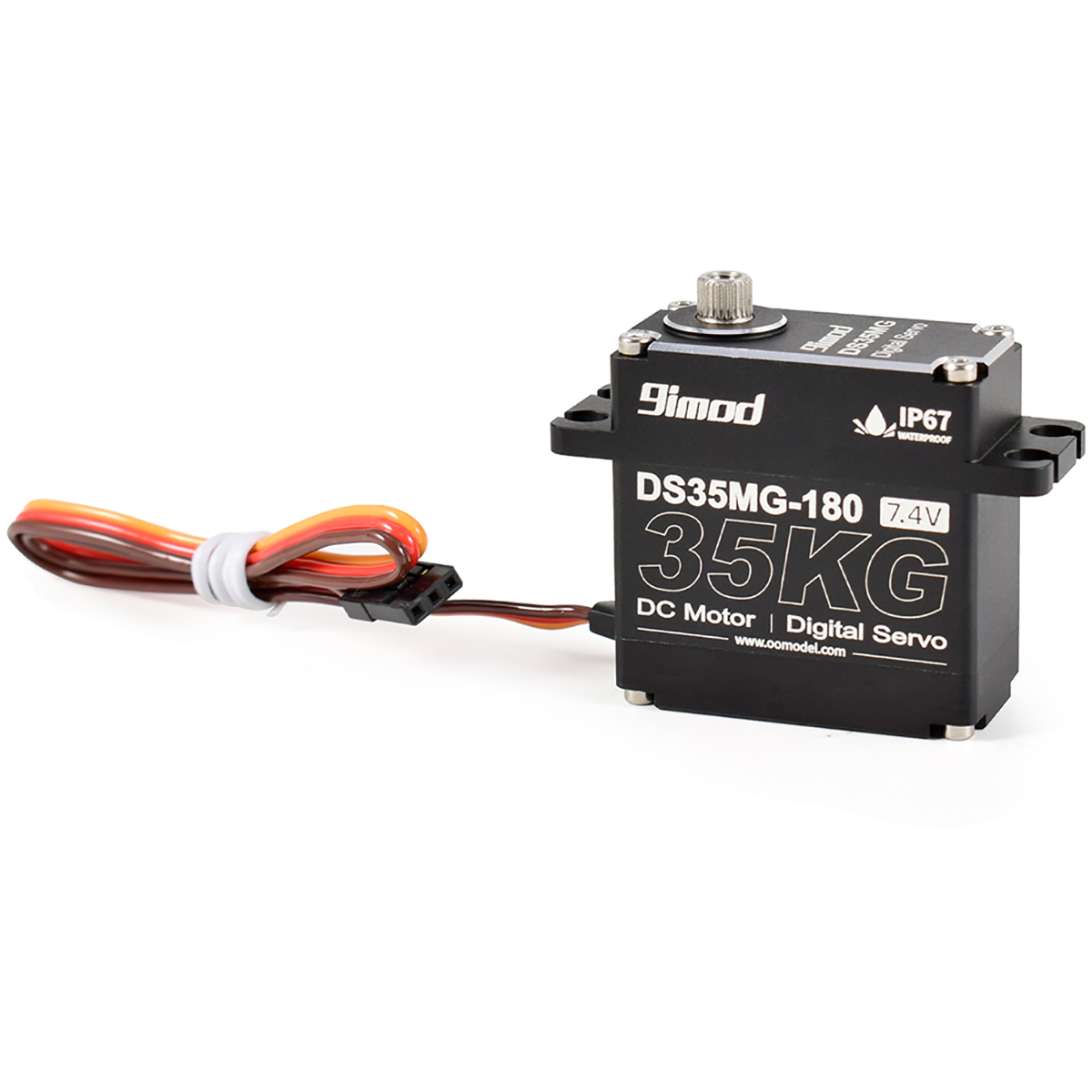

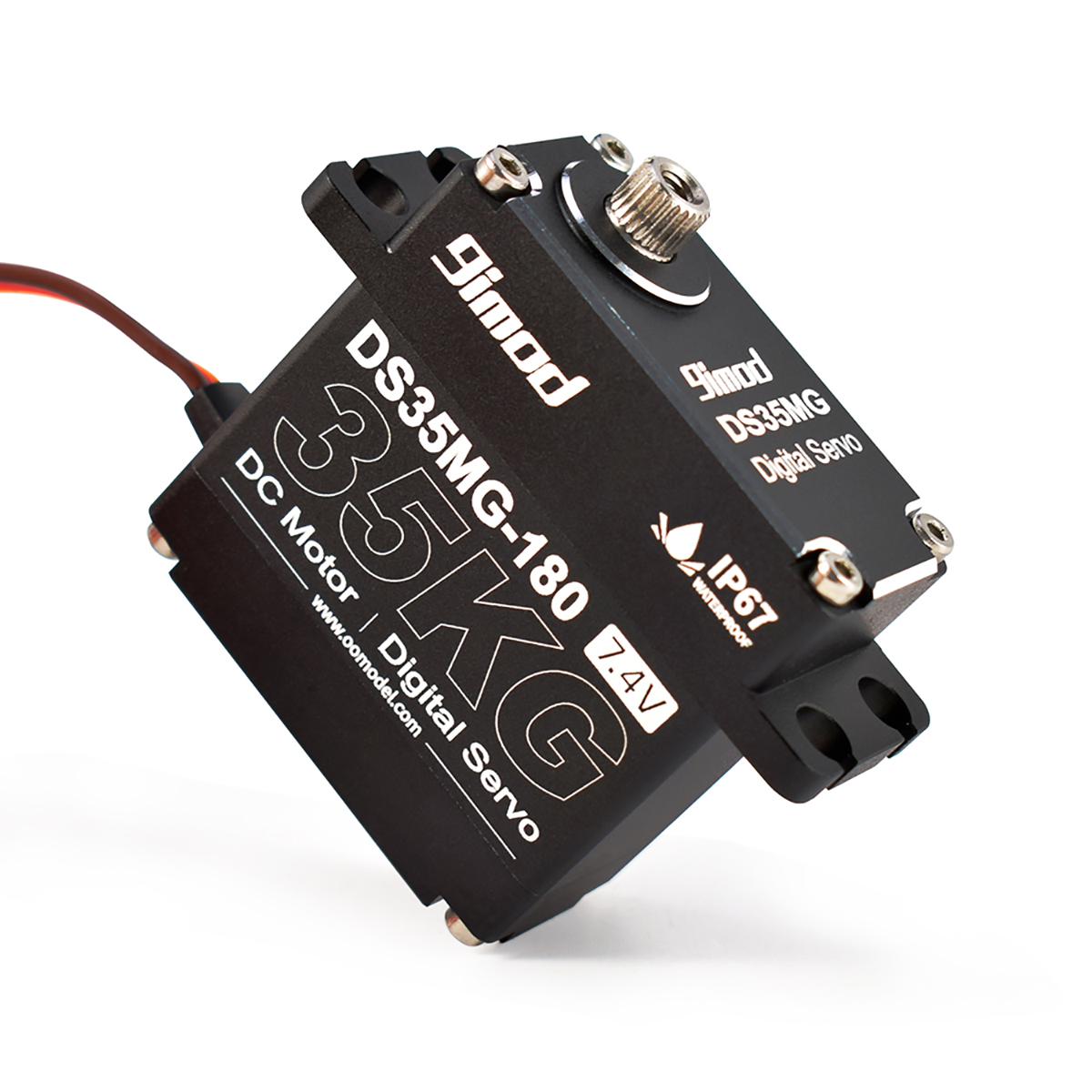

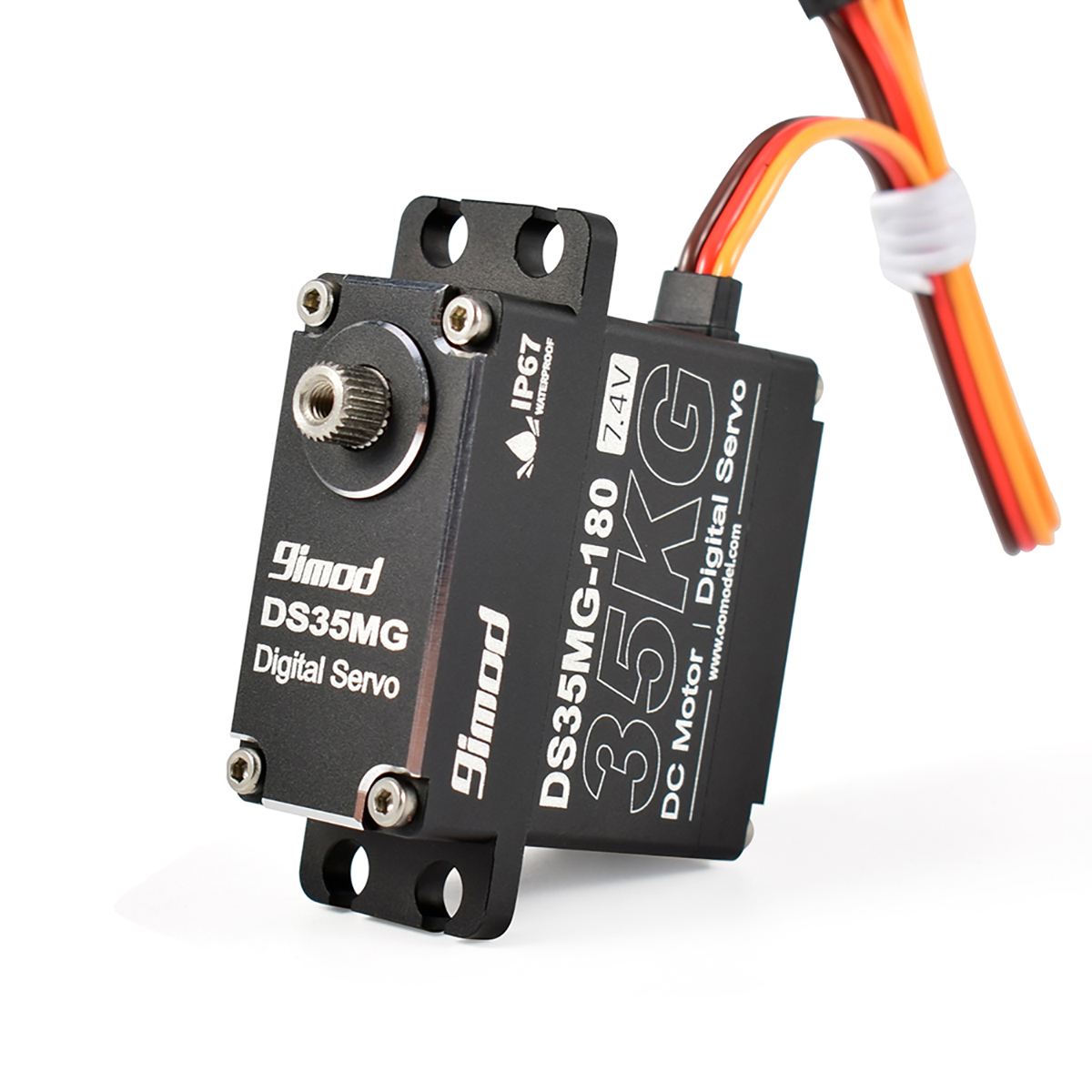

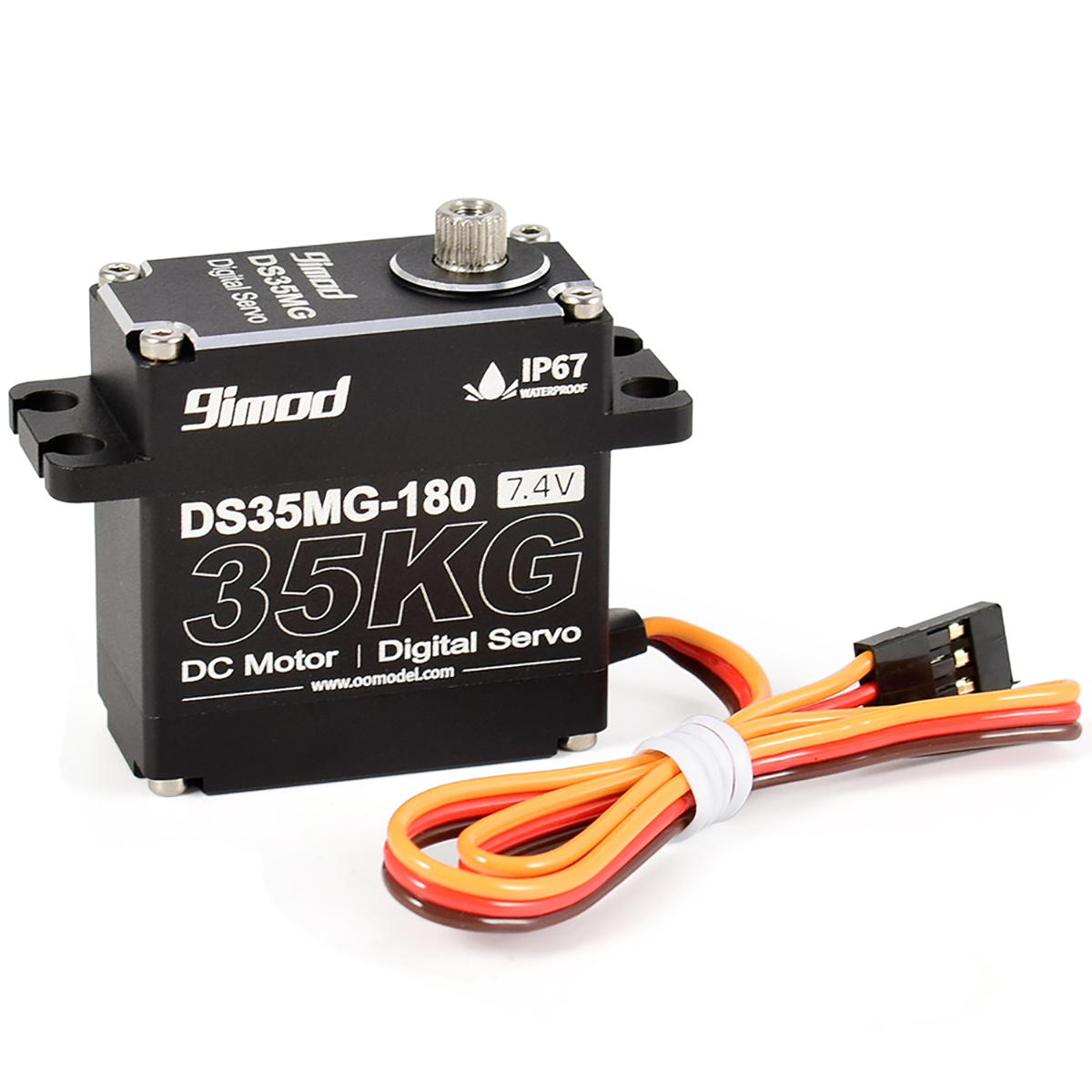

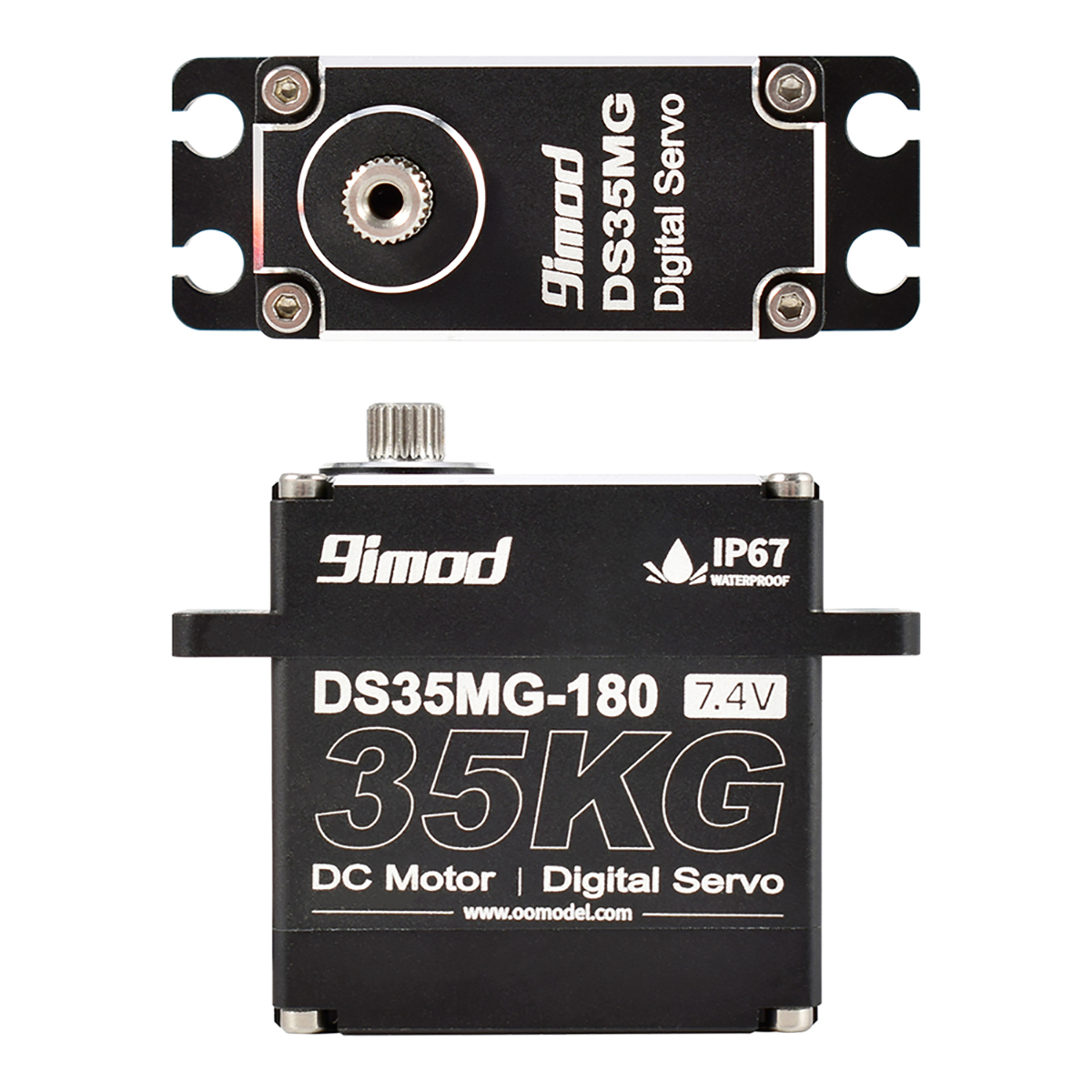

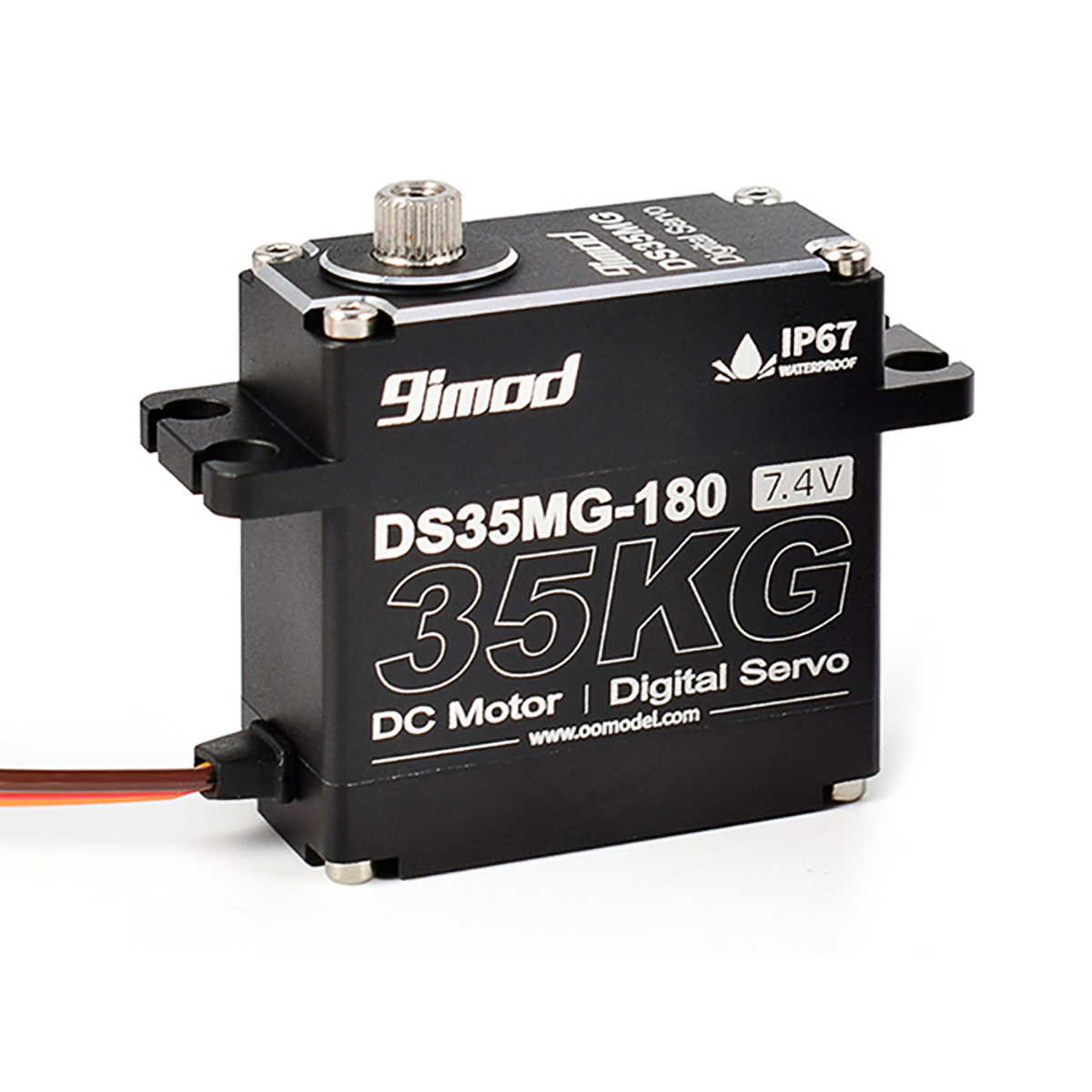

9imod DS35MG 7.4V 35kg Torque 180 Degree Metal Gear Waterproof Digital Servo for RC Car Airplane Robot

SKU DS35MG Category LX Servo and Other Servo Tag Digital Servo Brand: 9imod

9imod DS35MG 7.4V 35kg Torque 180 Degree Metal Gear Waterproof Digital Servo for RC Car Airplane Robot

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

The 9imod DS35MG 35KG Large torque Digital Waterproof servo,adopt DC motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range, It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Features:
4.8V -7.4V High voltage,High performance digital High Voltage .

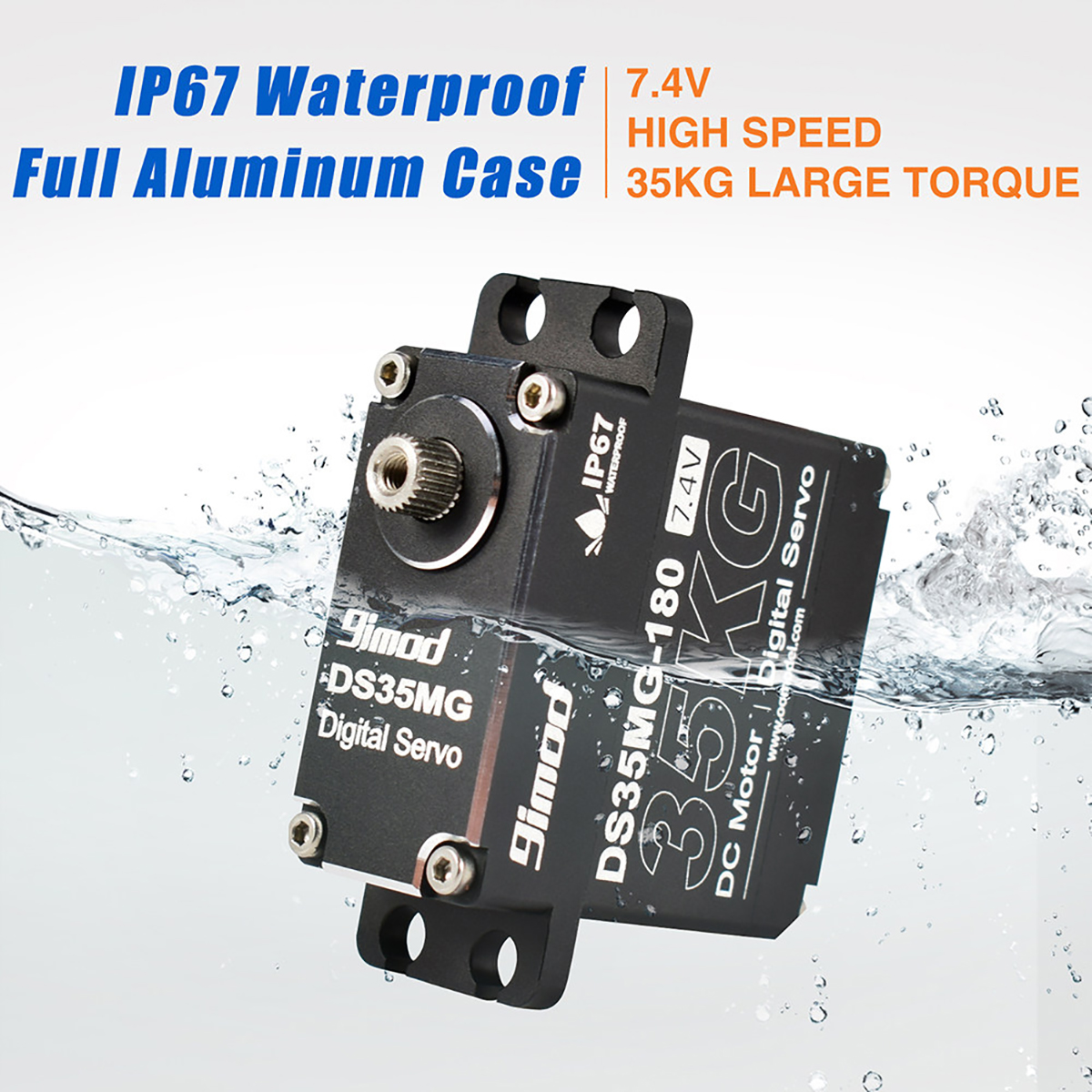

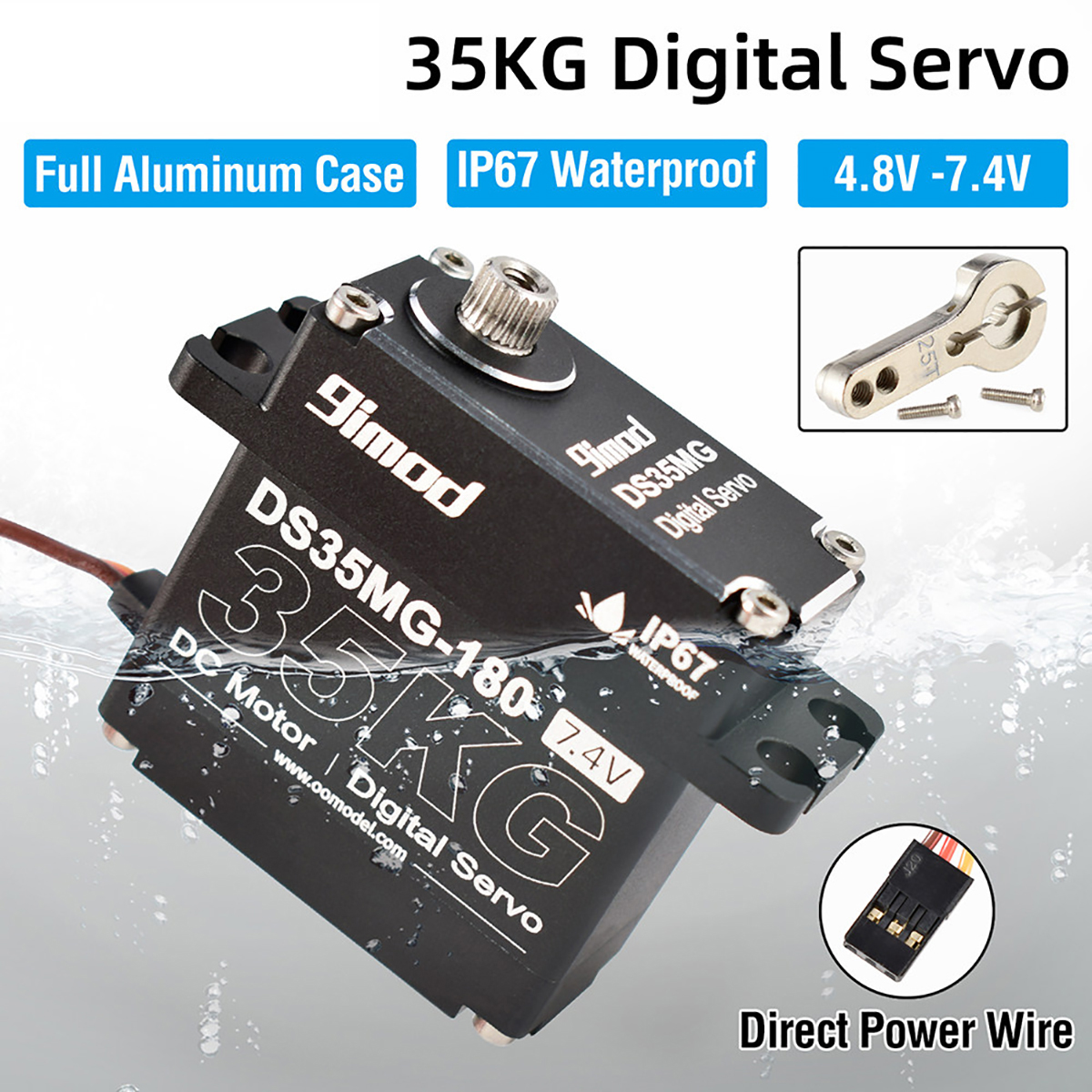

Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.

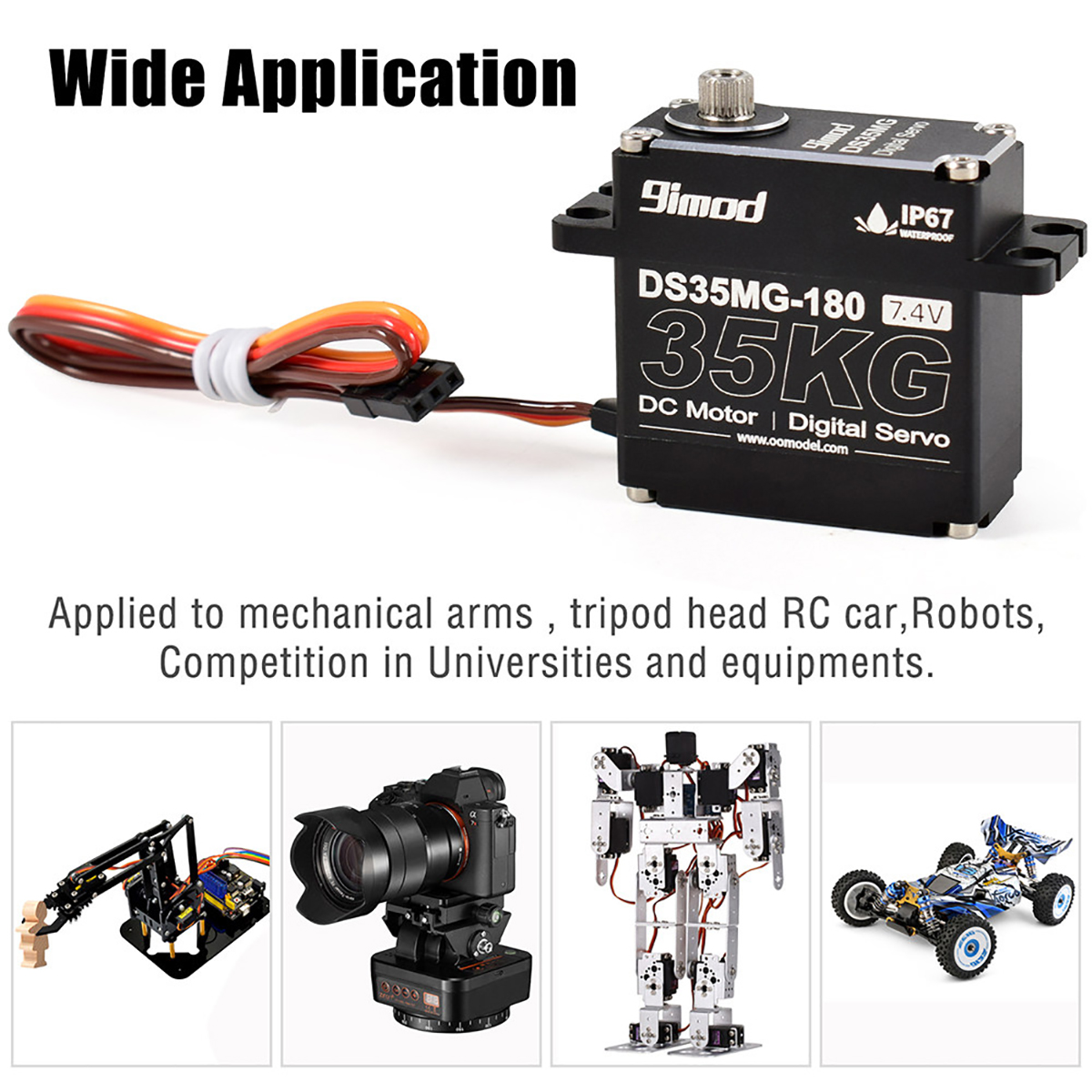

Widely Use Digital High Torque Servo：This 35kg Waterpoof Servo’s maximum torque is up to 35 kg/cm@7.4V ,Compatible with ,1/8, 1/10, 1/12 Scale Clawer Truck, scx10, RC Car / Robot / Boat and other remote control models.
Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.

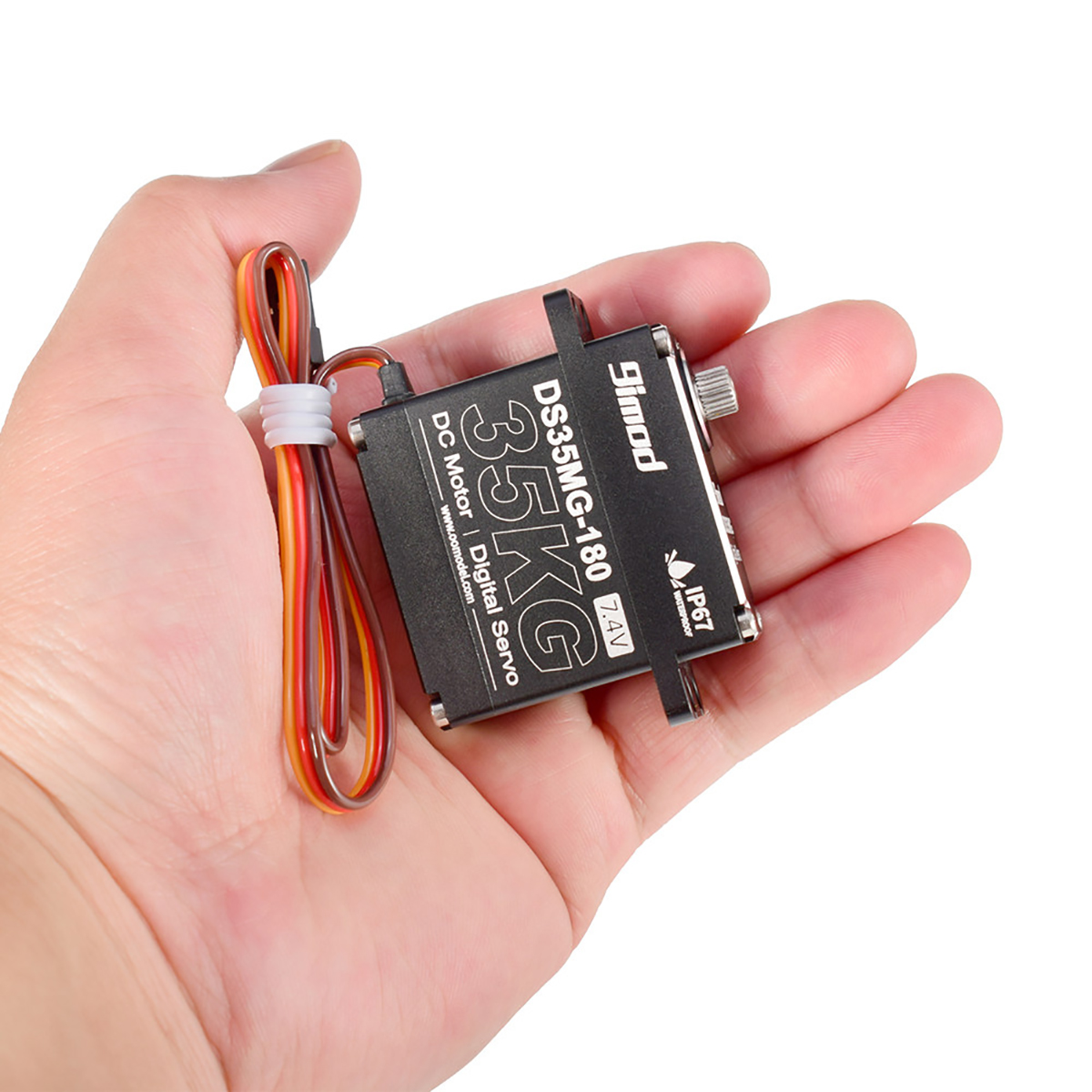

High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)

Model: DS35MG
Color: Black
Control Angle: 180°
Gear Material: Metal Gear
Case Material: Full Aluminum Case

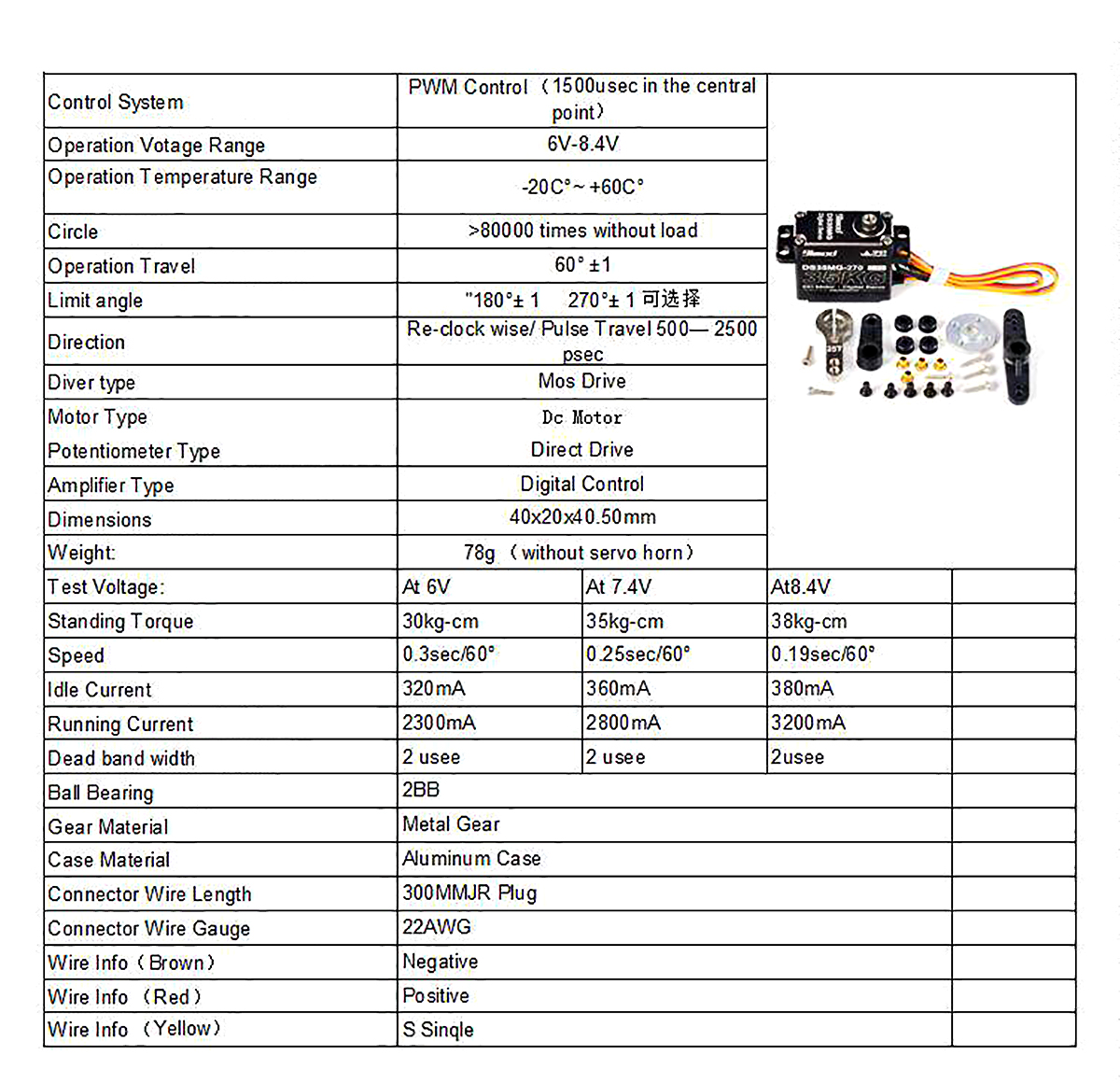

Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 4.8V ~ 7.4V
Storage Temperature Range: -30℃ ~ 80℃
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >80000 Times Without Load
Operation Travel: 60°±1
Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: DC Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Waterproof Rating: IP67

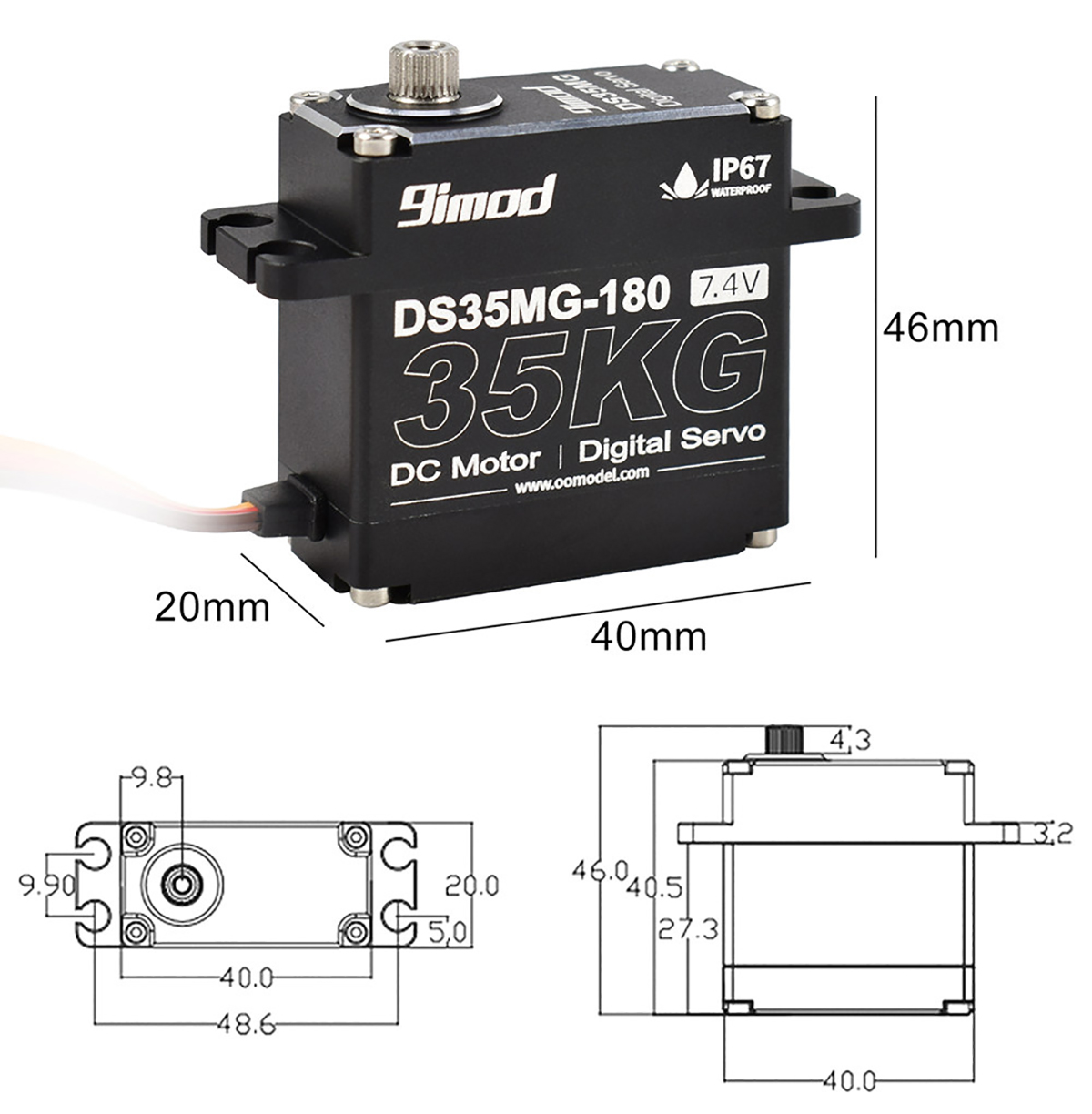

Dimensions: 40x20x40.50mm
Weight: 80g (Without Servo Horn)

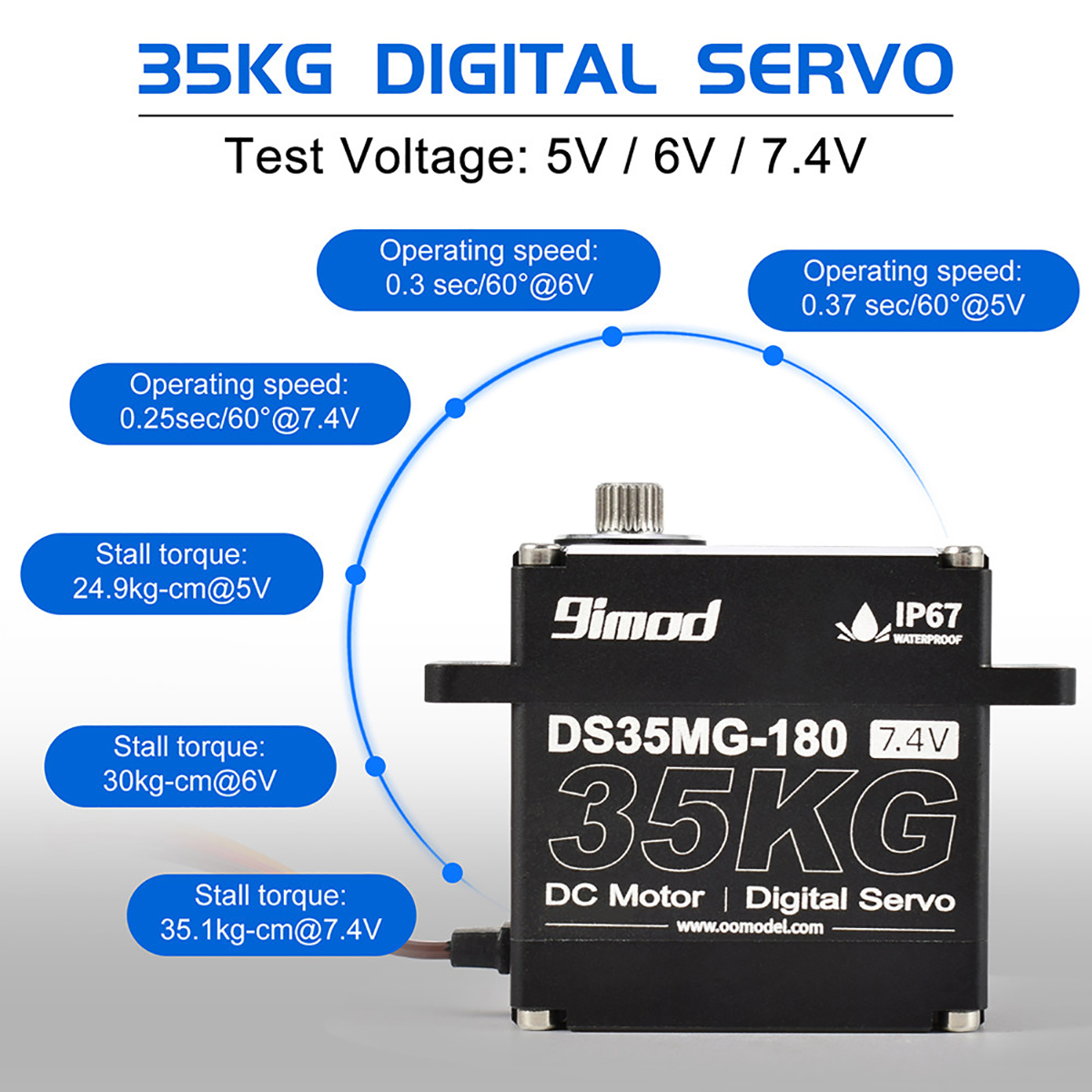

Test Voltage: 5V / 6V / 7.4V
Idle Current (At Stopped): 270mA @5V ; 320mA @6V ; 360mA @7.4V
Operating Speed (At No Load): 0.37sec/60° @5V ; 0.30sec/60° @6V ; 0.25sec/60° @7.4V
Stall Torque (At Locked): 24.9kg-cm @5V ; 30kg-cm @6V ; 35.1kg-cm @7.4V
Running Current: 1.9A @5V ; 2.3A @6V ; 2.8A @7.4V
Dead Band Width: 2μsec
Ball Bearing: 2BB
Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG
