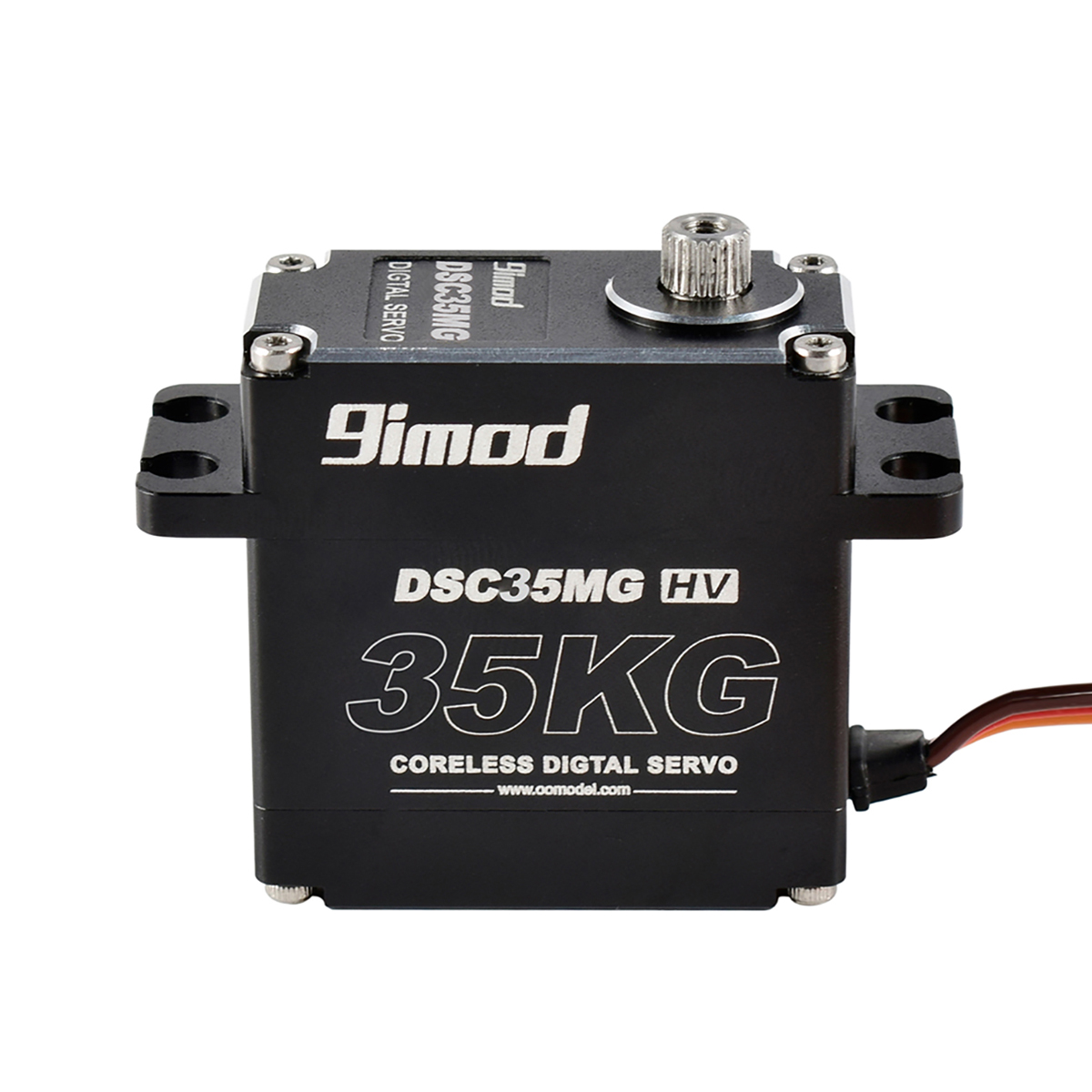

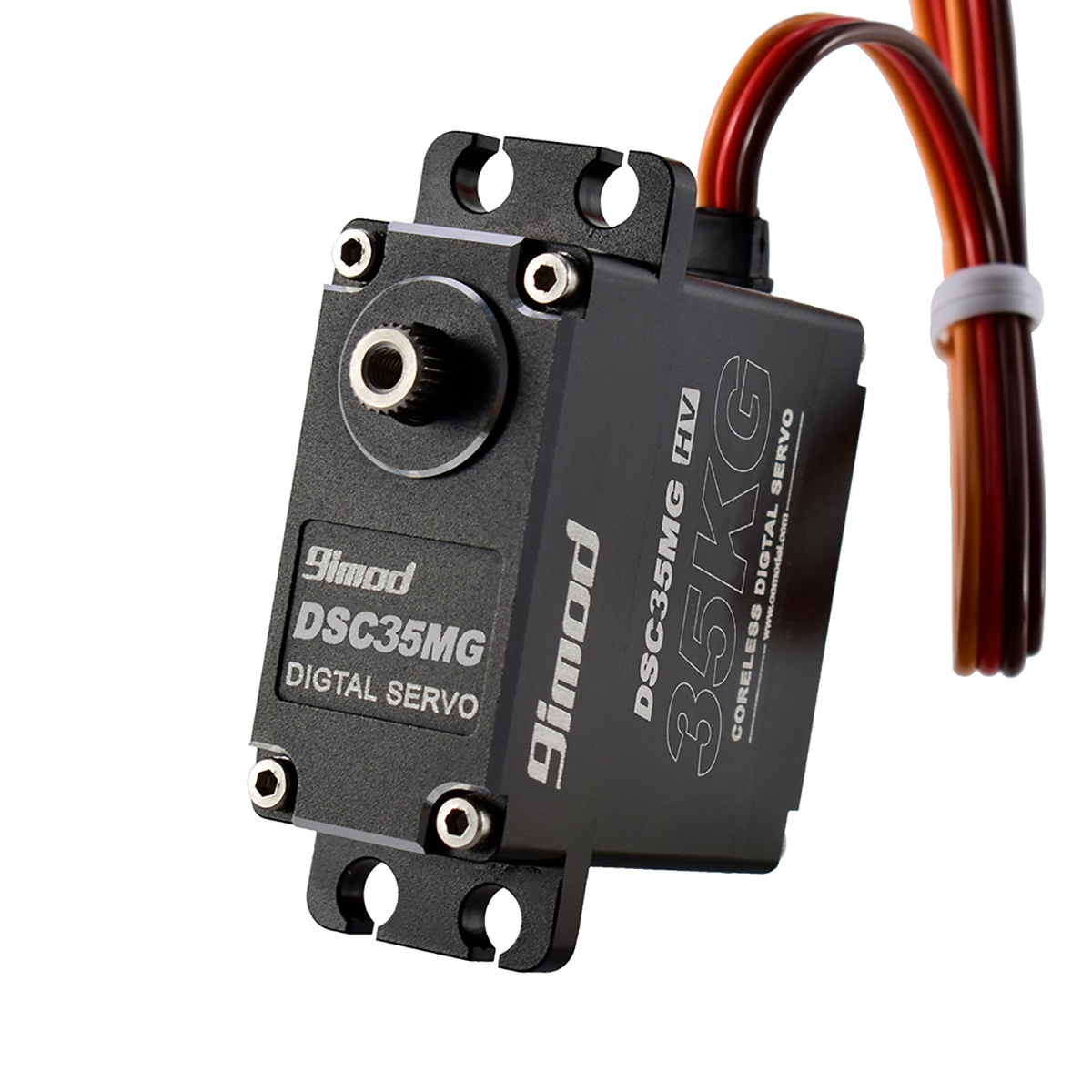

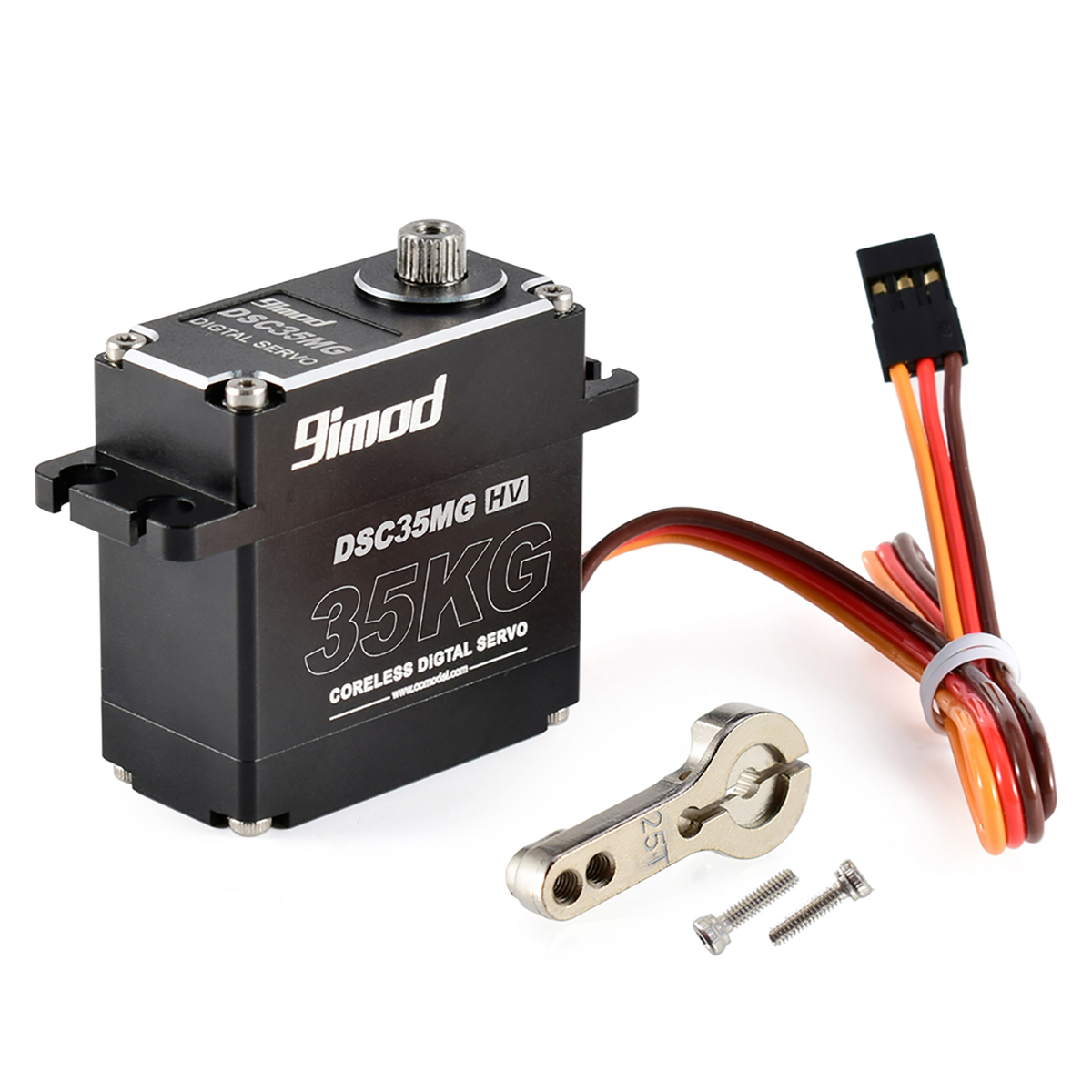

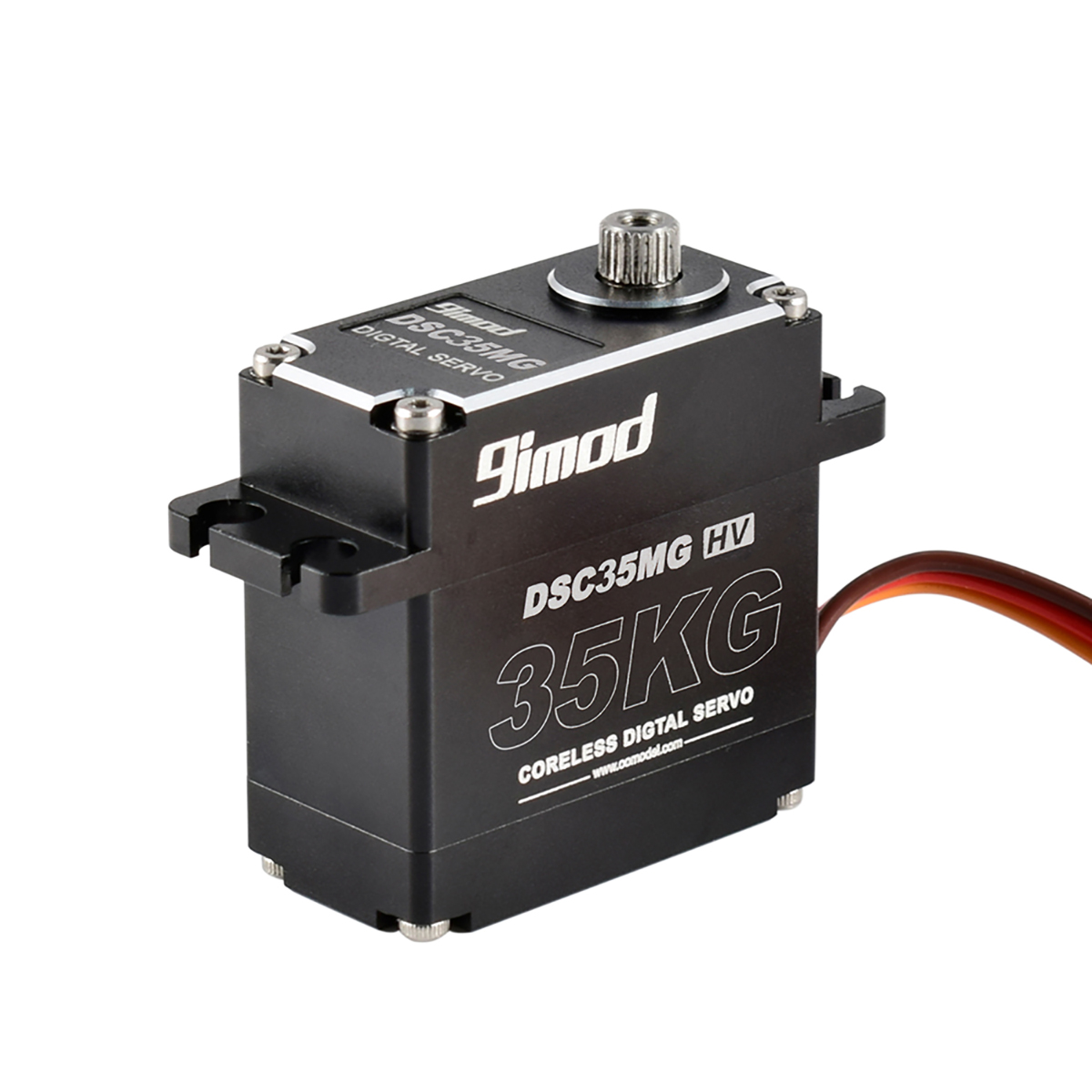

9imod DSC35MG HV 35KG Metal Gear 180 Degree Aluminum Case Coreless Waterproof Servo for RC Car Crawler Boat

SKU DSC35MG-HV-180 Category LX Servo and Other Servo Tag Digital Servo Brand: 9imod

9imod DSC35MG HV 35KG Metal Gear 180 Degree Aluminum Case Coreless Waterproof Servo for RC Car Crawler Boat

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

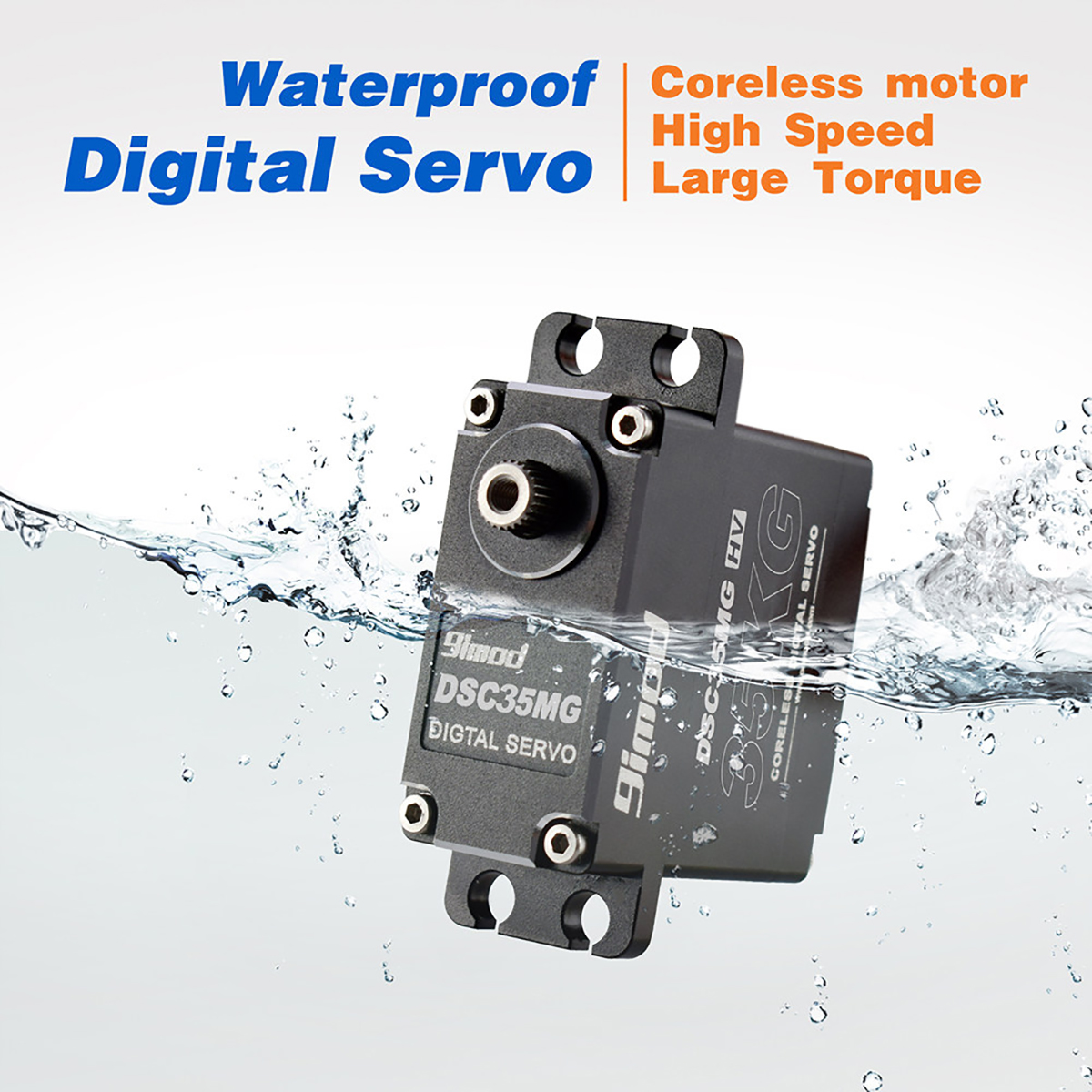

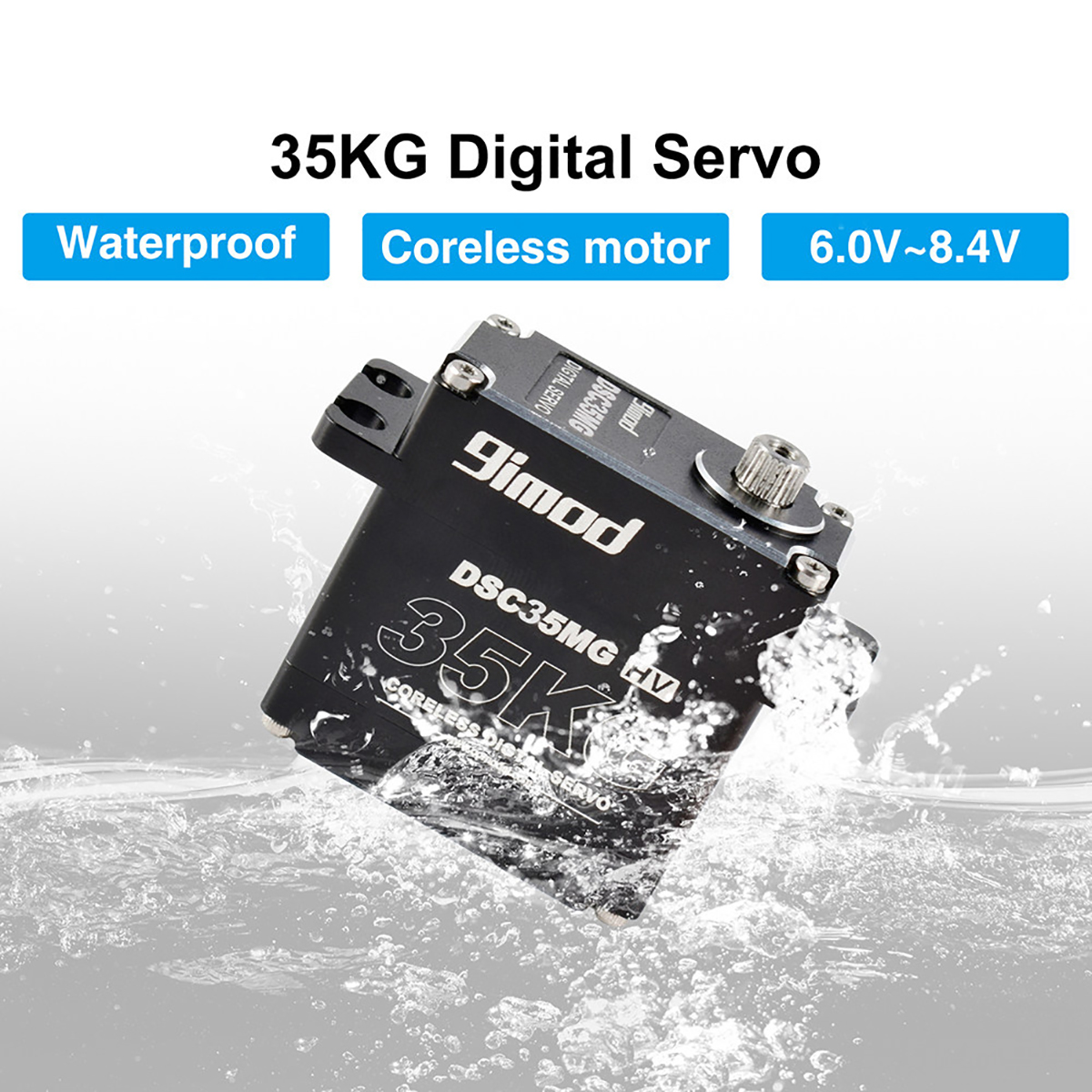

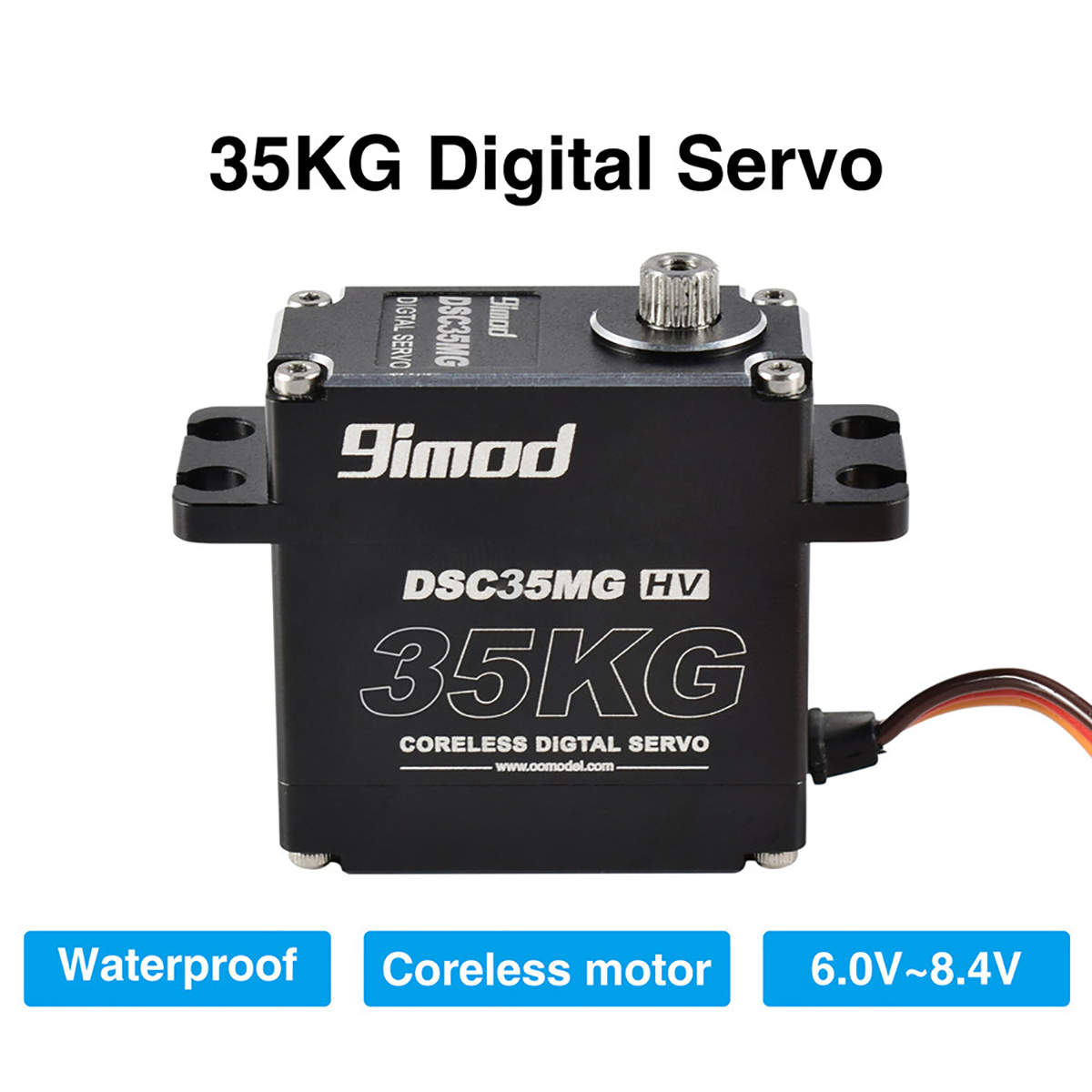

The 9imod DSC35MG Digital Waterproof servo,adopt Coreless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,
It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

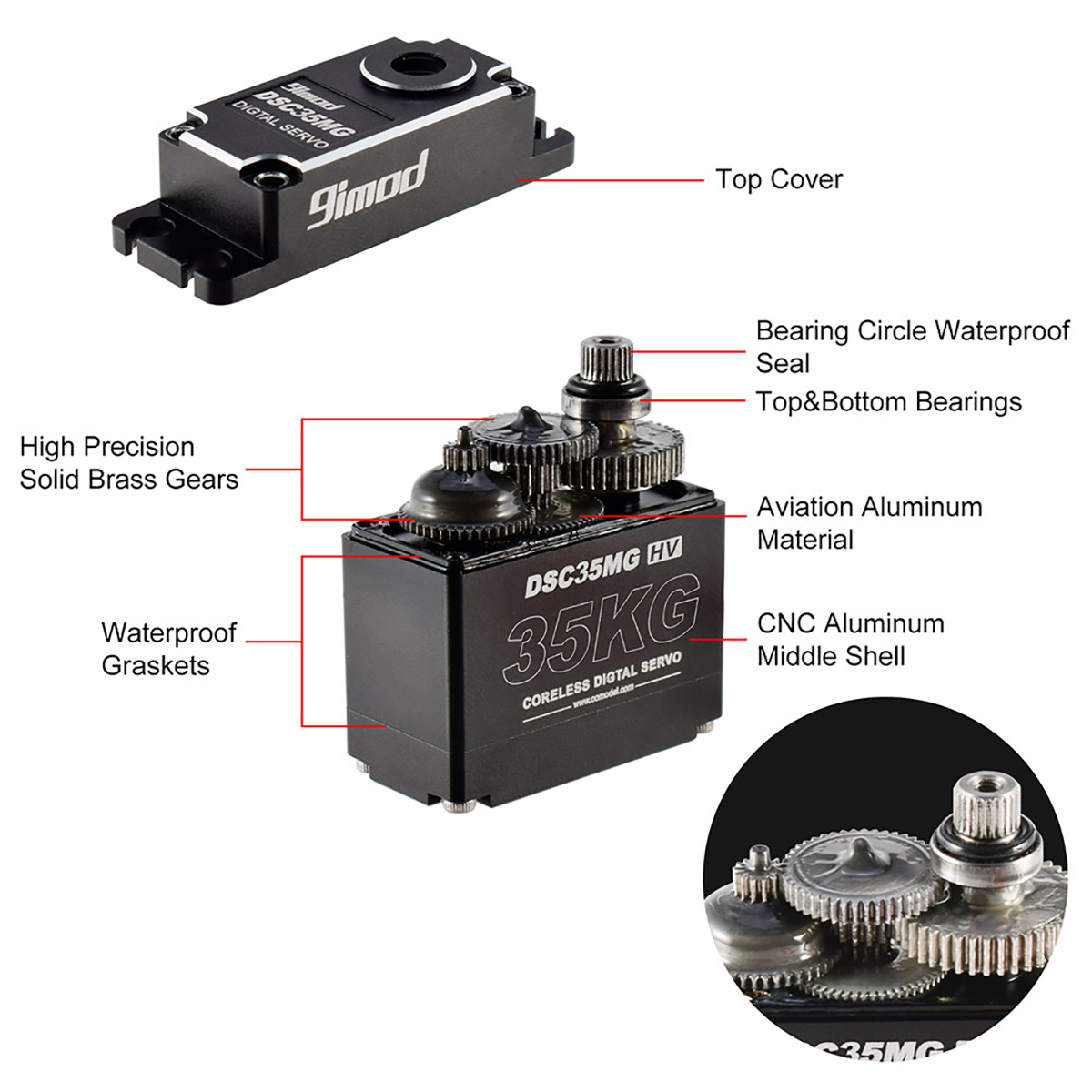

Features:
High voltage.
High performance digital High Voltage Coreless servo.

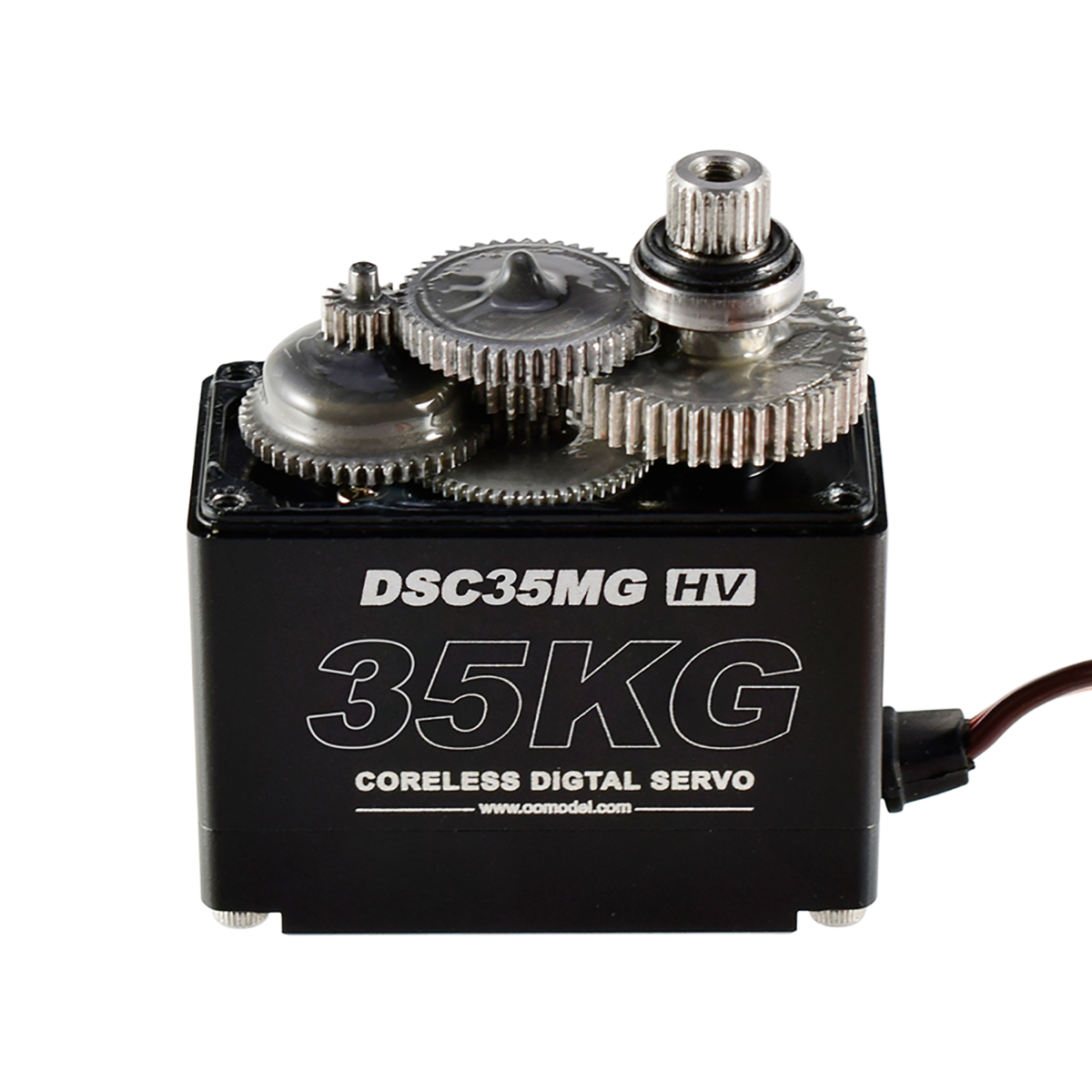

High-precision steel gears with hard anodizing.
Full CNC aluminium Shell structure.
Dual ball bearings.
Waterproof.

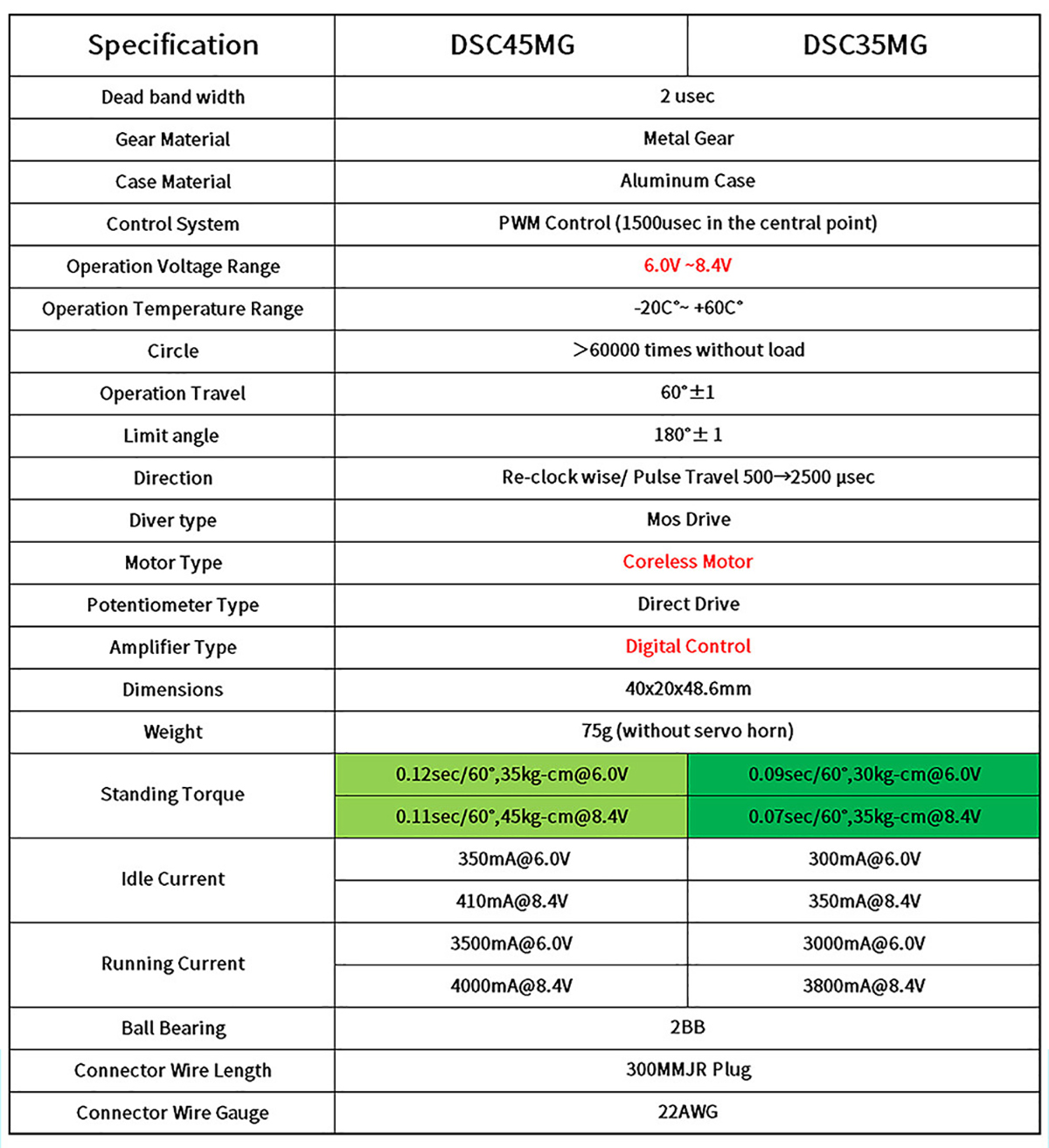

Model: DSC35MG
Color: Black
Dead Band Width: 2μsec
Gear Material: Metal Gear
Case Material: Aluminum Case
Control System: PWM Control (1500μsec In The Central Point)
Operation Voltage Range: 6.0V ~ 8.4V
Operation Temperature Range: -20℃ ~ +60℃
Cycle Life: >60000 Times Without Load
Operation Travel: 60°±1
Limit Angle: 180°±1
Direction: Re-Clockwise / Pulse Travel 500→2500μsec
Driver Type: MOS Drive
Motor Type: Coreless Motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control

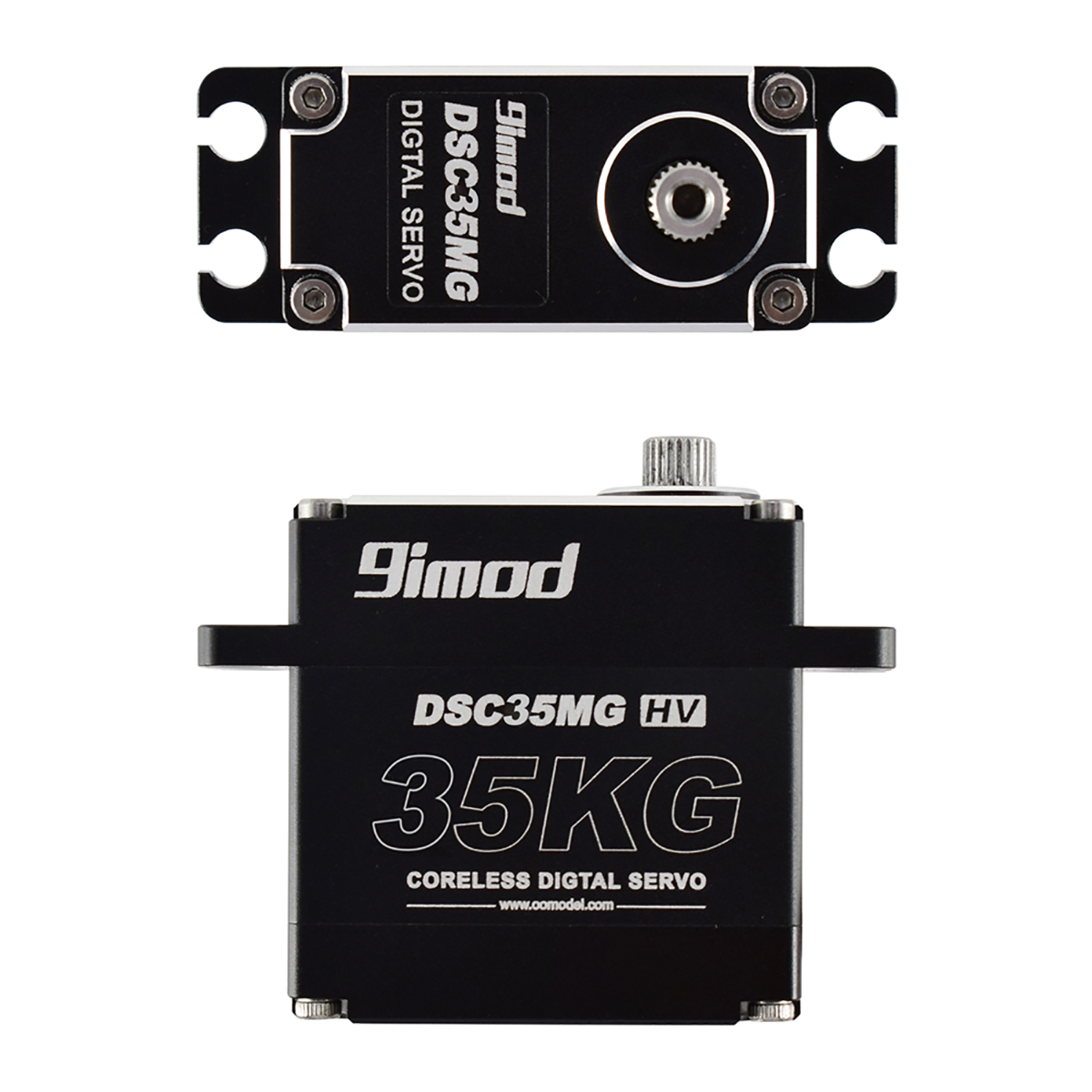

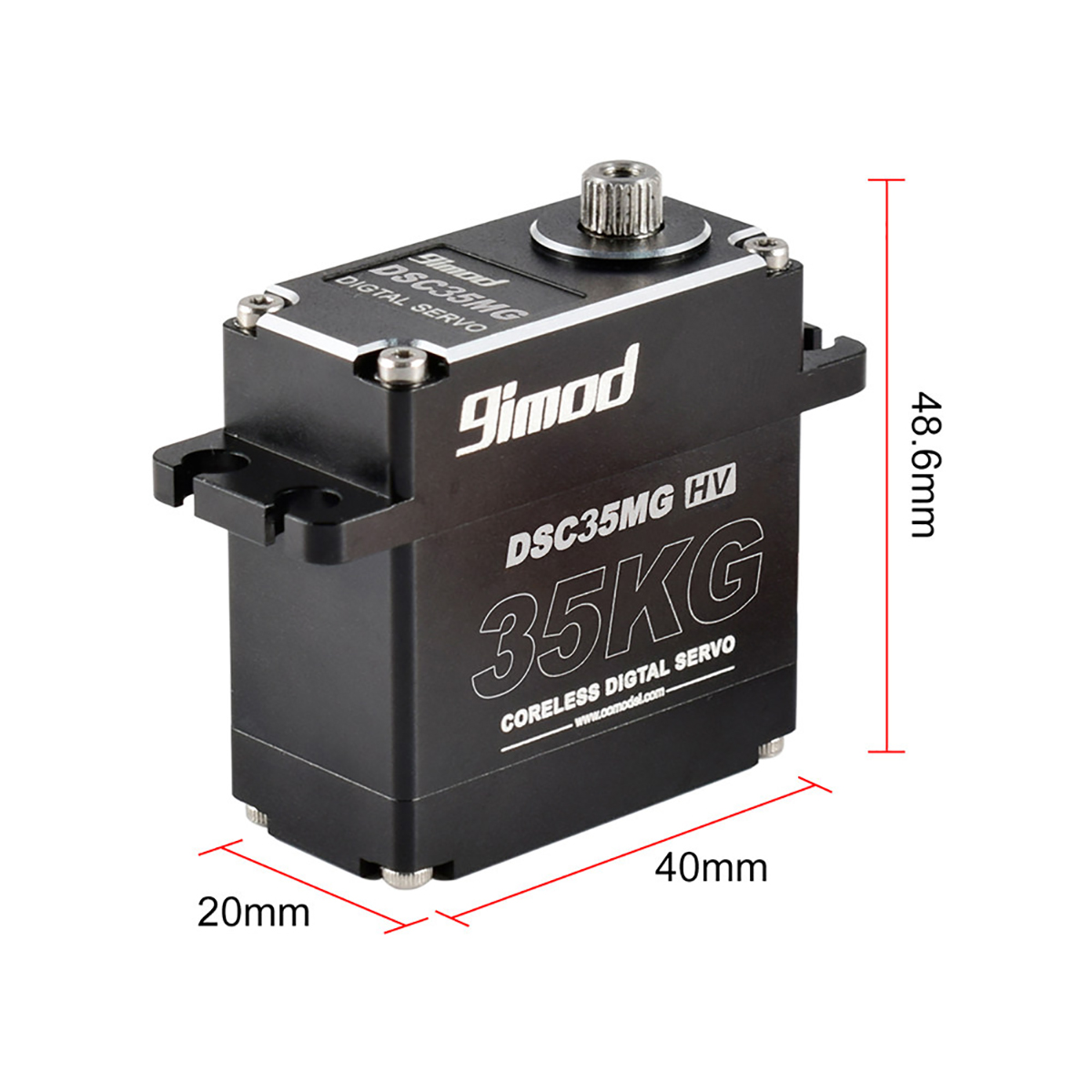

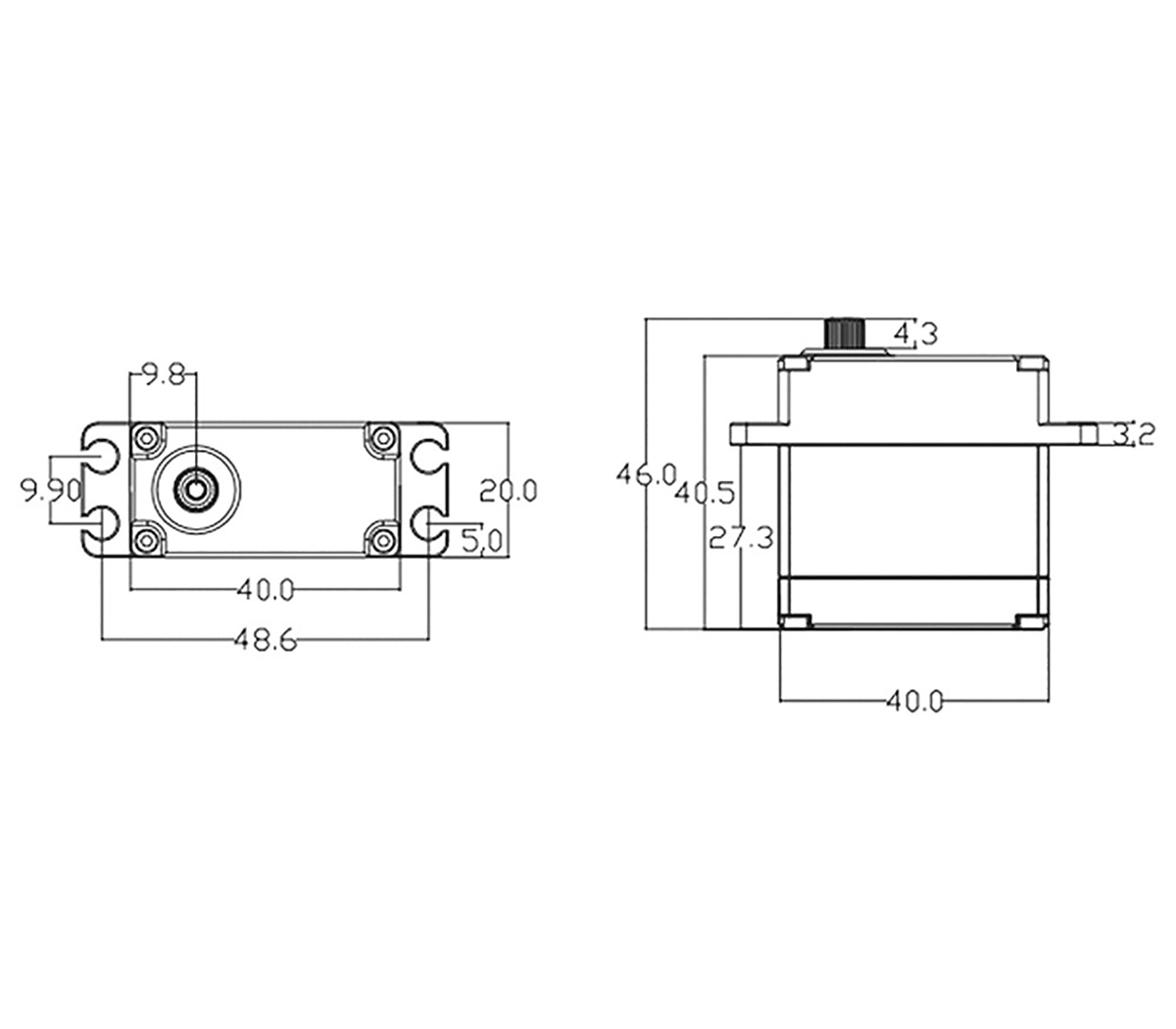

Dimensions: 40x20x48.6mm
Weight: 75g (Without Servo Horn)

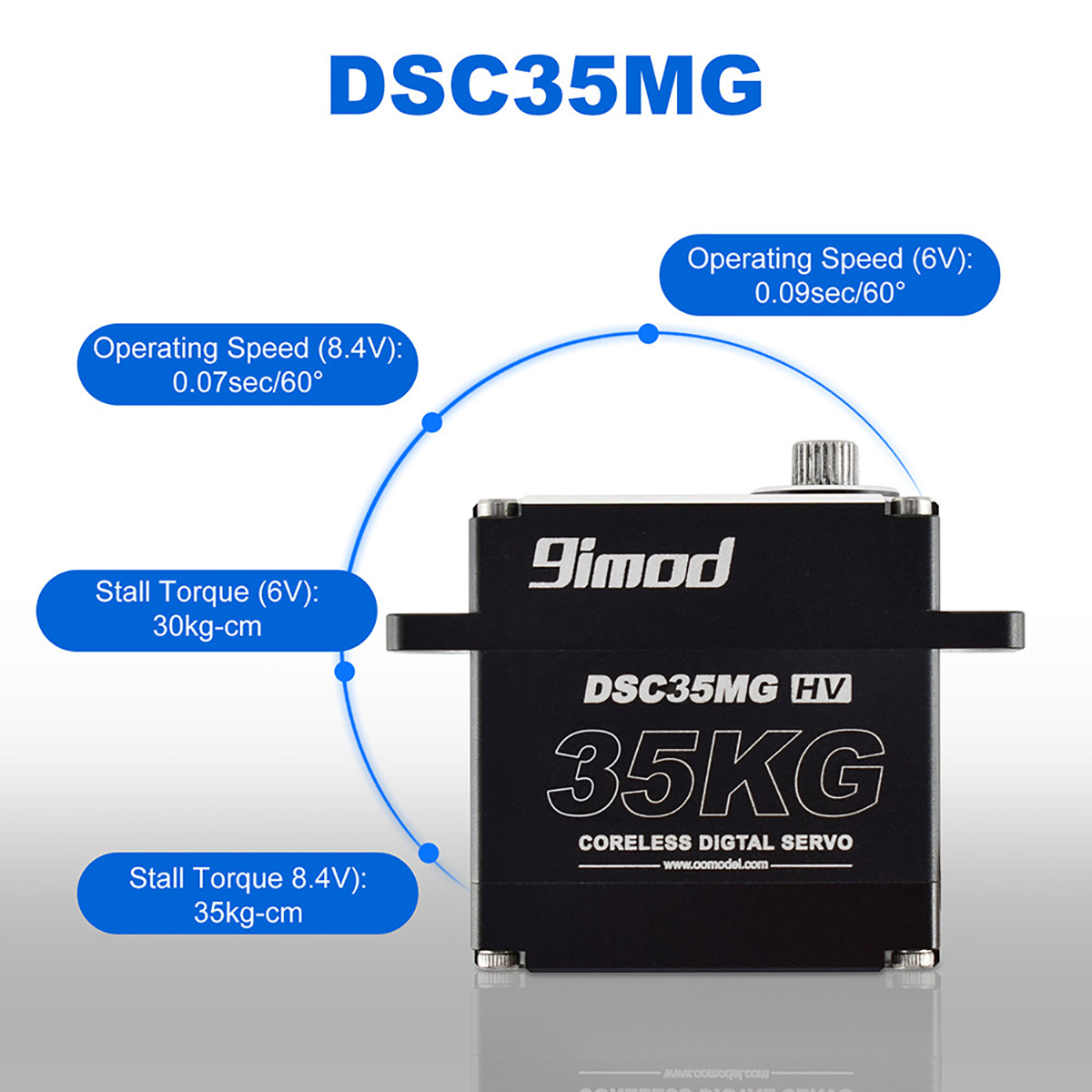

Standing Torque: 0.09sec/60°, 30kg-cm @6.0V ; 0.07sec/60°, 35kg-cm @8.4V
Idle Current: 300mA @6.0V ; 350mA @8.4V
Running Current: 3000mA @6.0V ; 3800mA @8.4V
Ball Bearing: 2BB

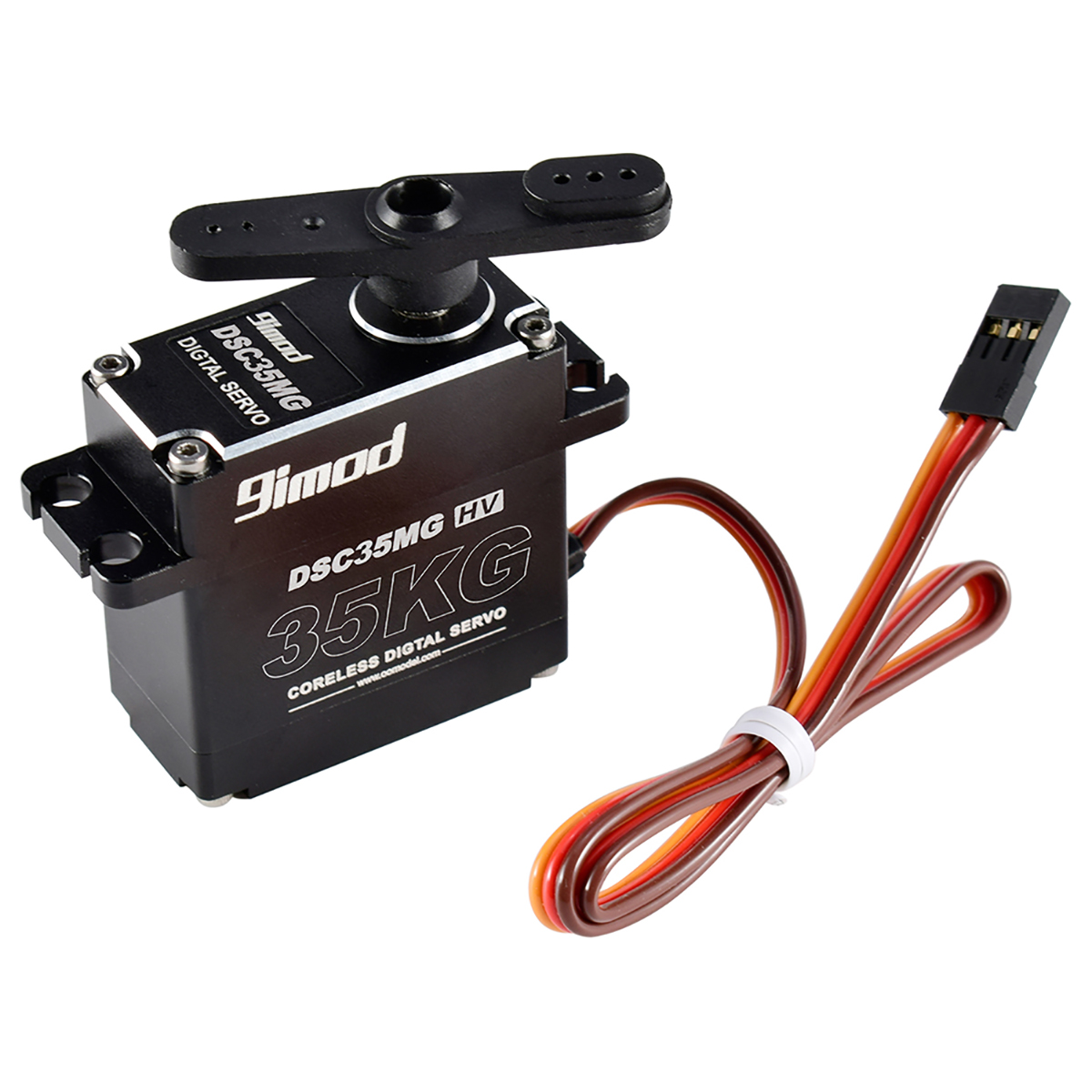

Connector Wire Length: 300mm JR Plug
Connector Wire Gauge: 22AWG
