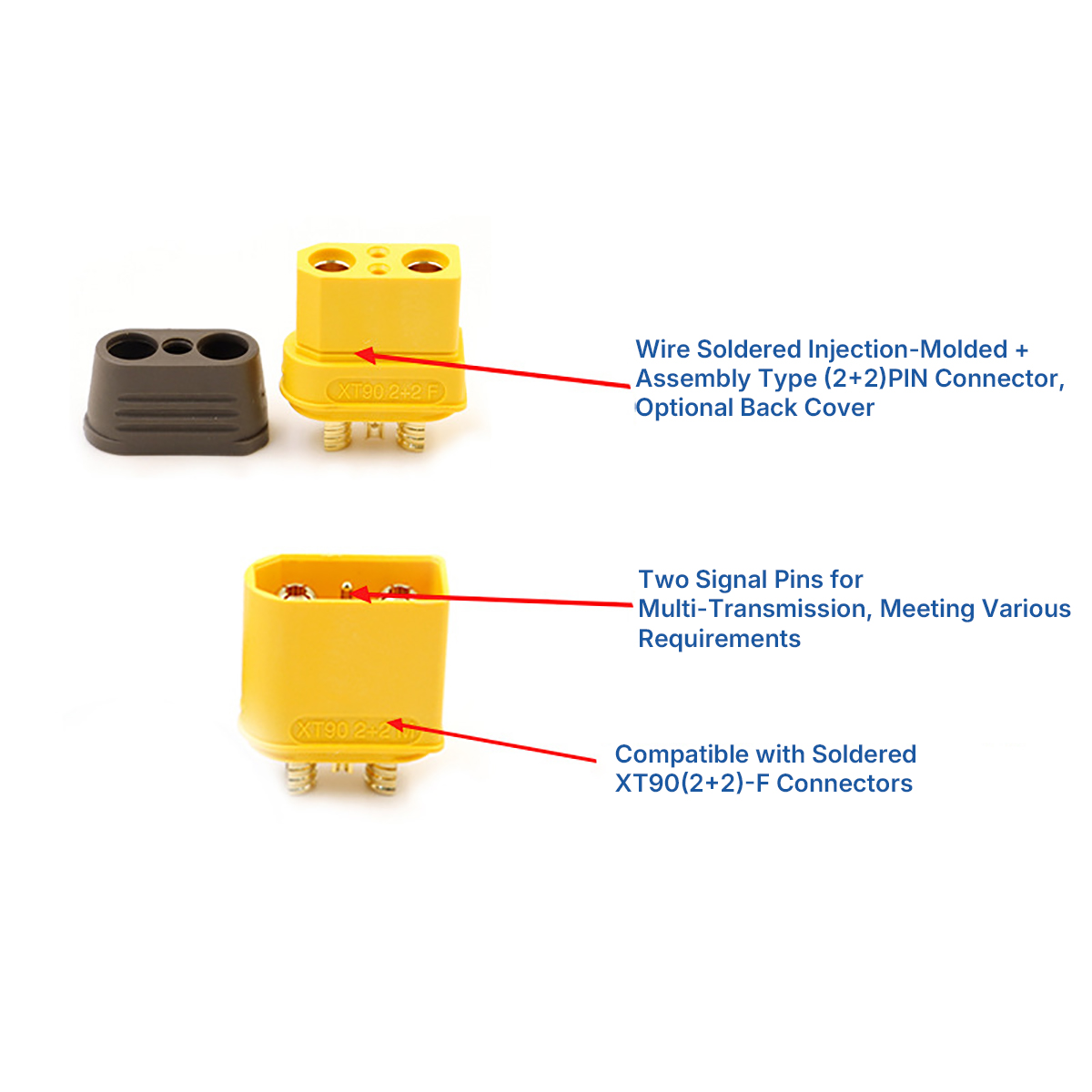

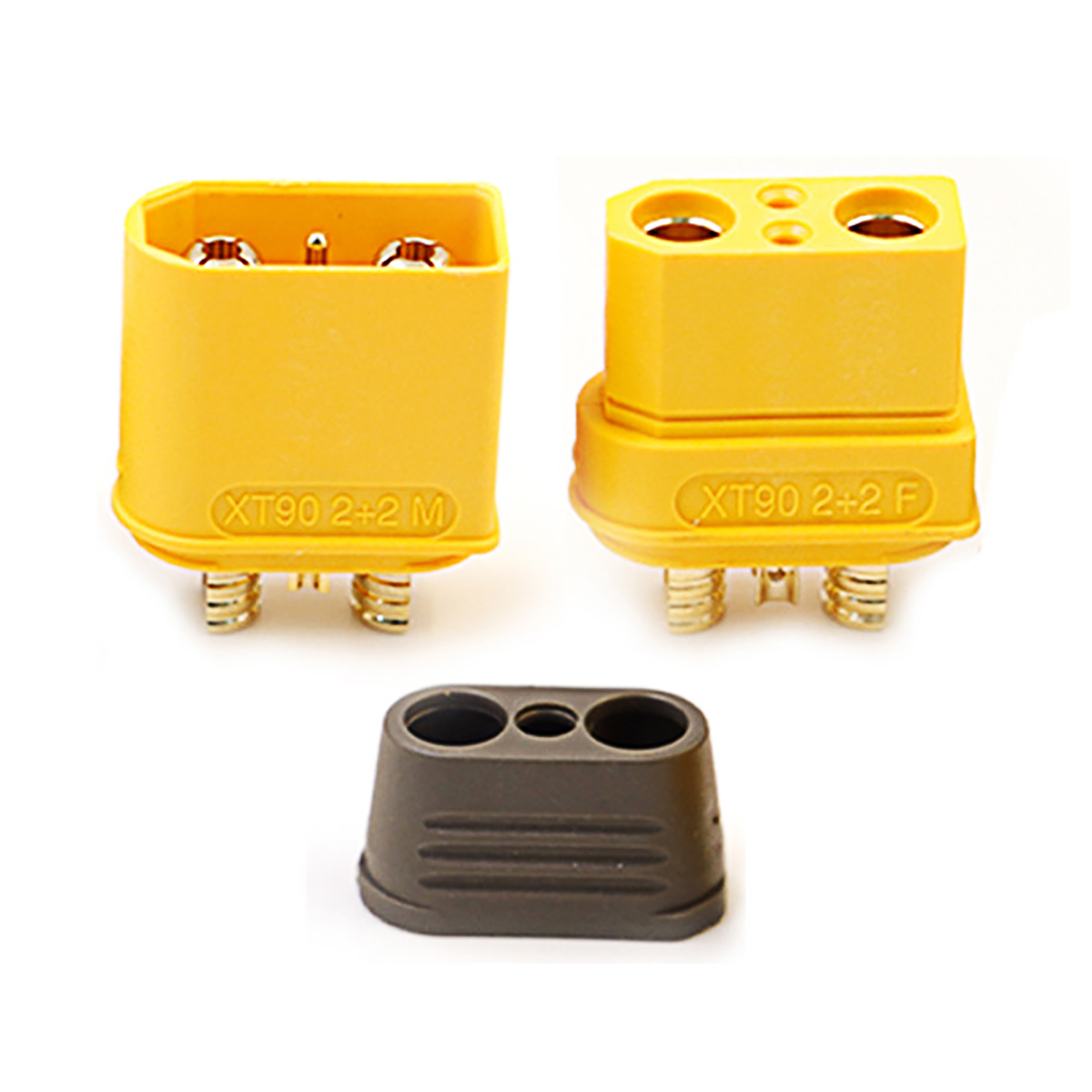

Amass XT90(2+2)-F/M Female Male Connector XT90I RC Connector Dual Signal Pin Design for RC Aircraft Drone
Amass XT90(2+2)-F/M Female Male Connector XT90I RC Connector Dual Signal Pin Design for RC Aircraft Drone
Amass XT90(2+2)-F/M Female Male Connector XT90I RC Connector Dual Signal Pin Design for RC Aircraft Drone

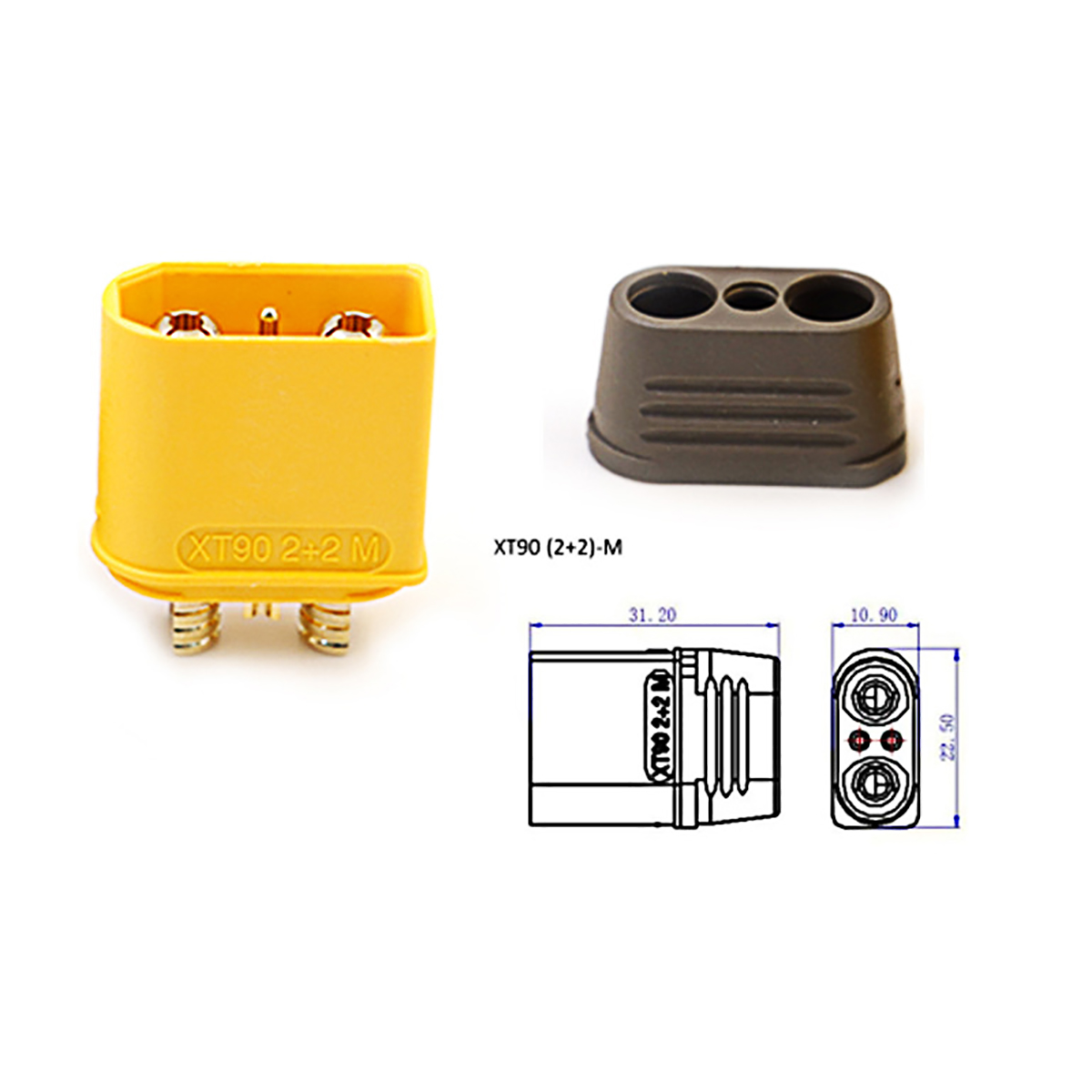

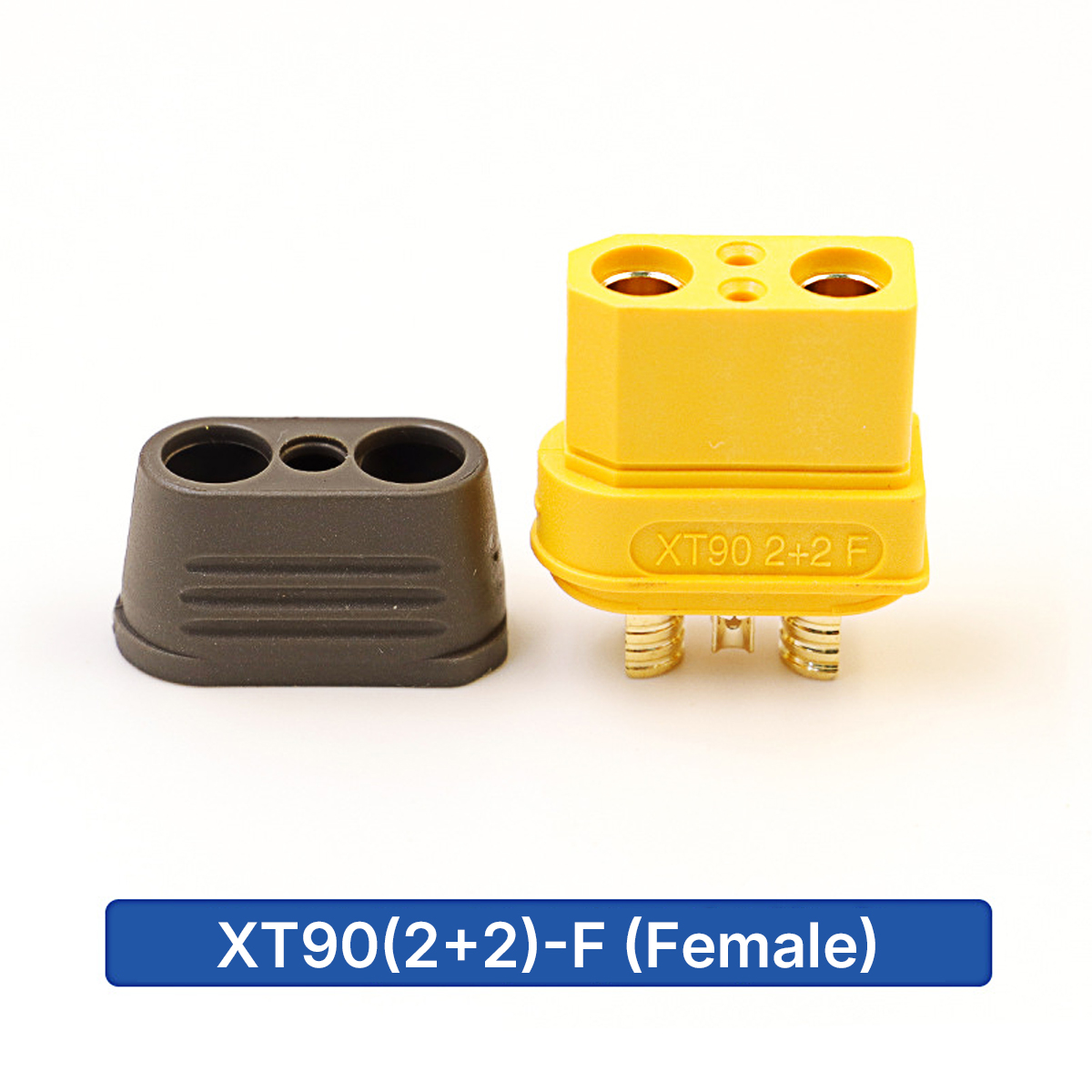

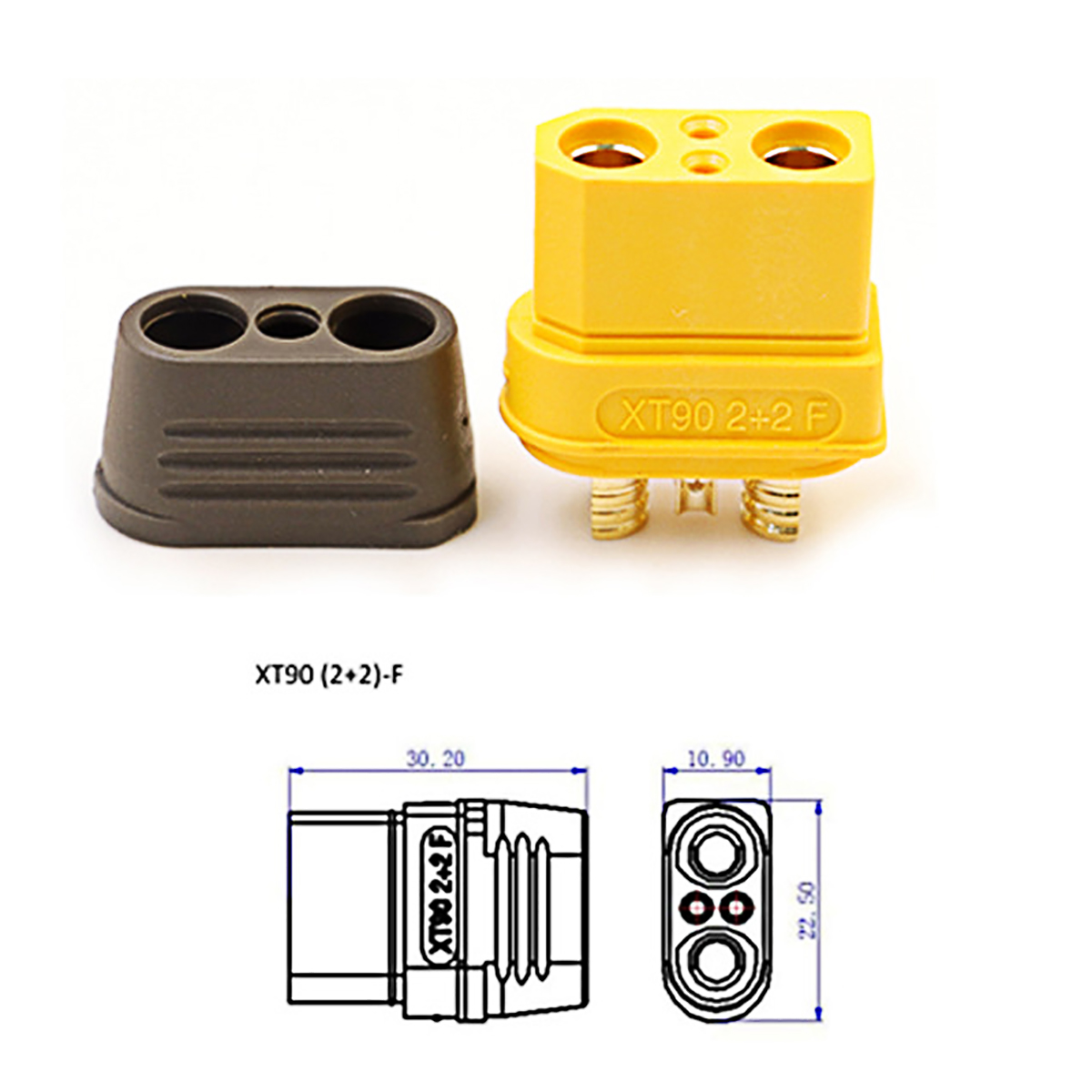

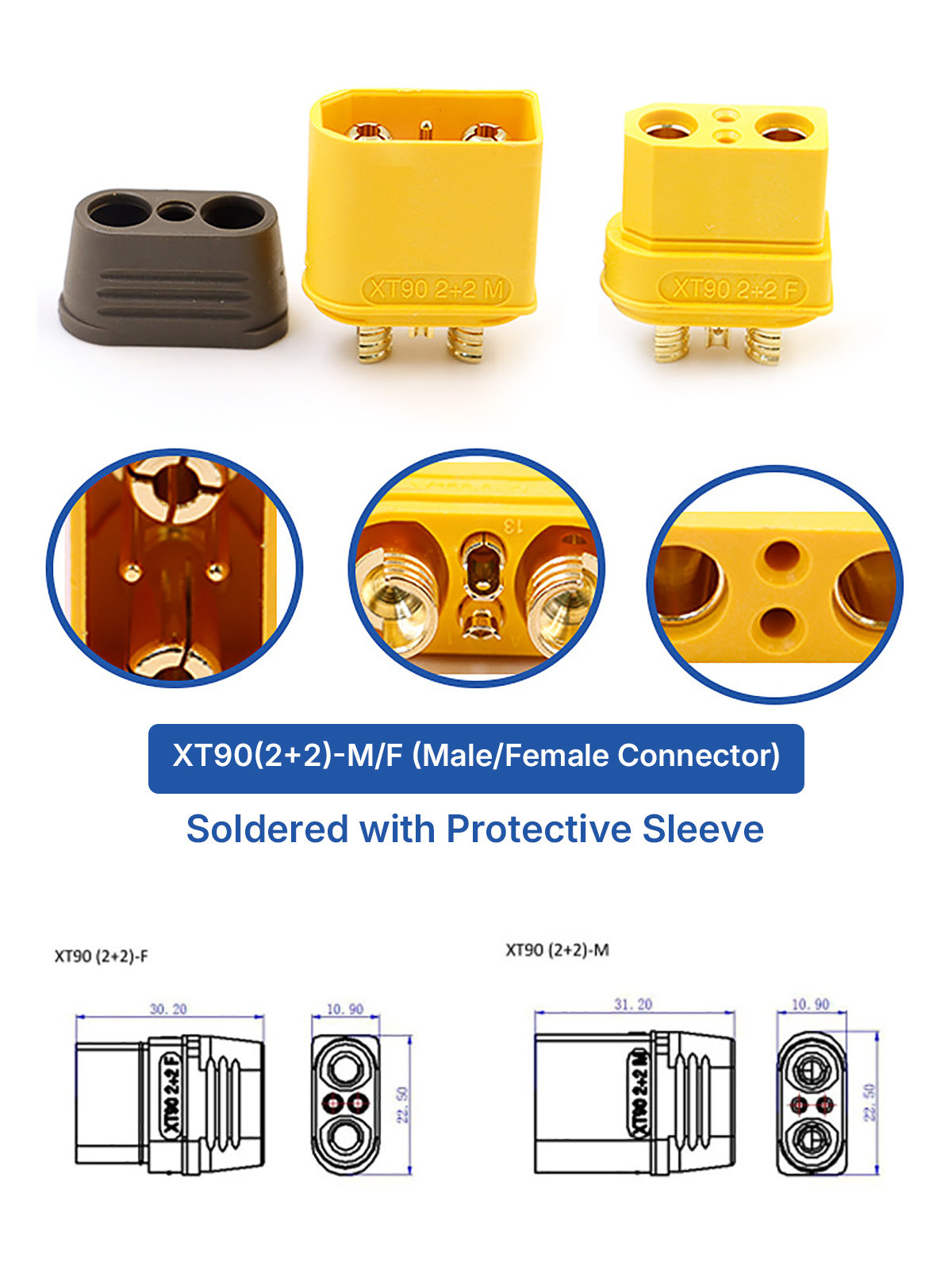

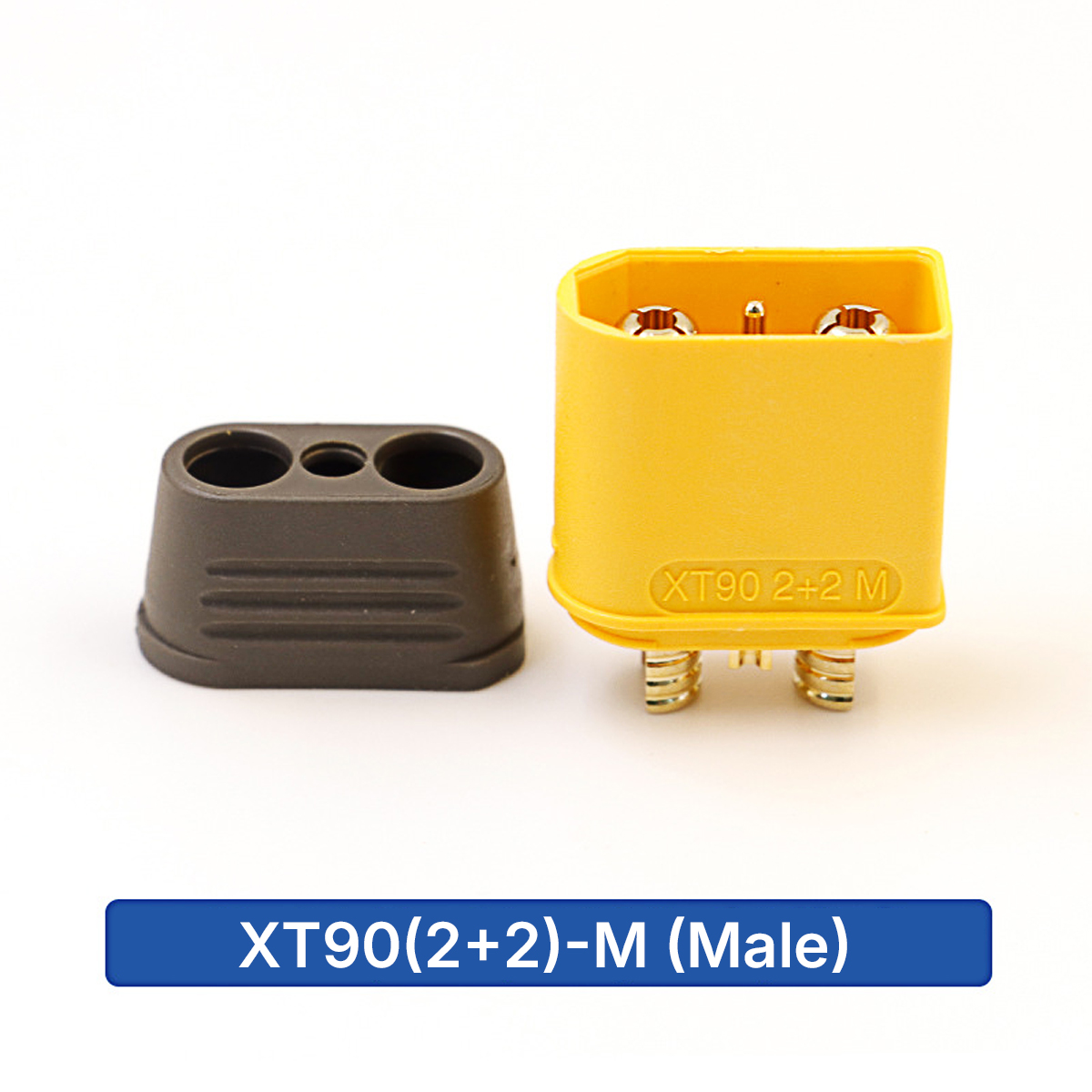

Model: XT90(2+2)-F/M

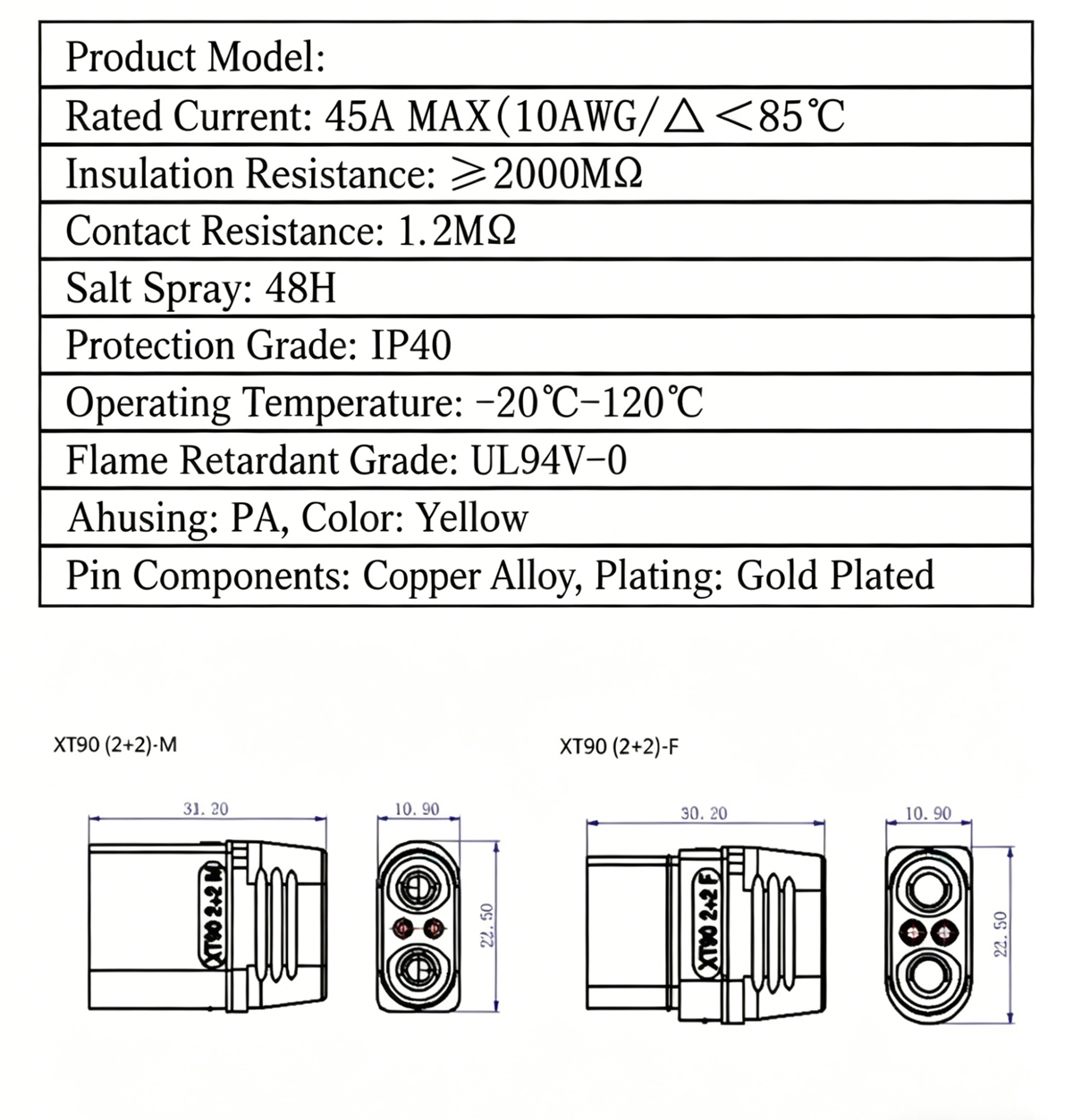

Dielectric Withstanding Voltage: 600V DC
Operating Temperature: -20~120°C
Contact Resistance: ≤1.0mΩ
Rated Current: 45A MAX (10AWG, Δ < 85°C); Signal Pin: 1A
Salt Spray Test: 48H
Insulation Resistance: ≥2000MΩ
Material: PA / Gold-Plated Brass
Service Life: 100 Cycles
Protection Class: IP40
Flame Retardant Rating: UL94 V-0

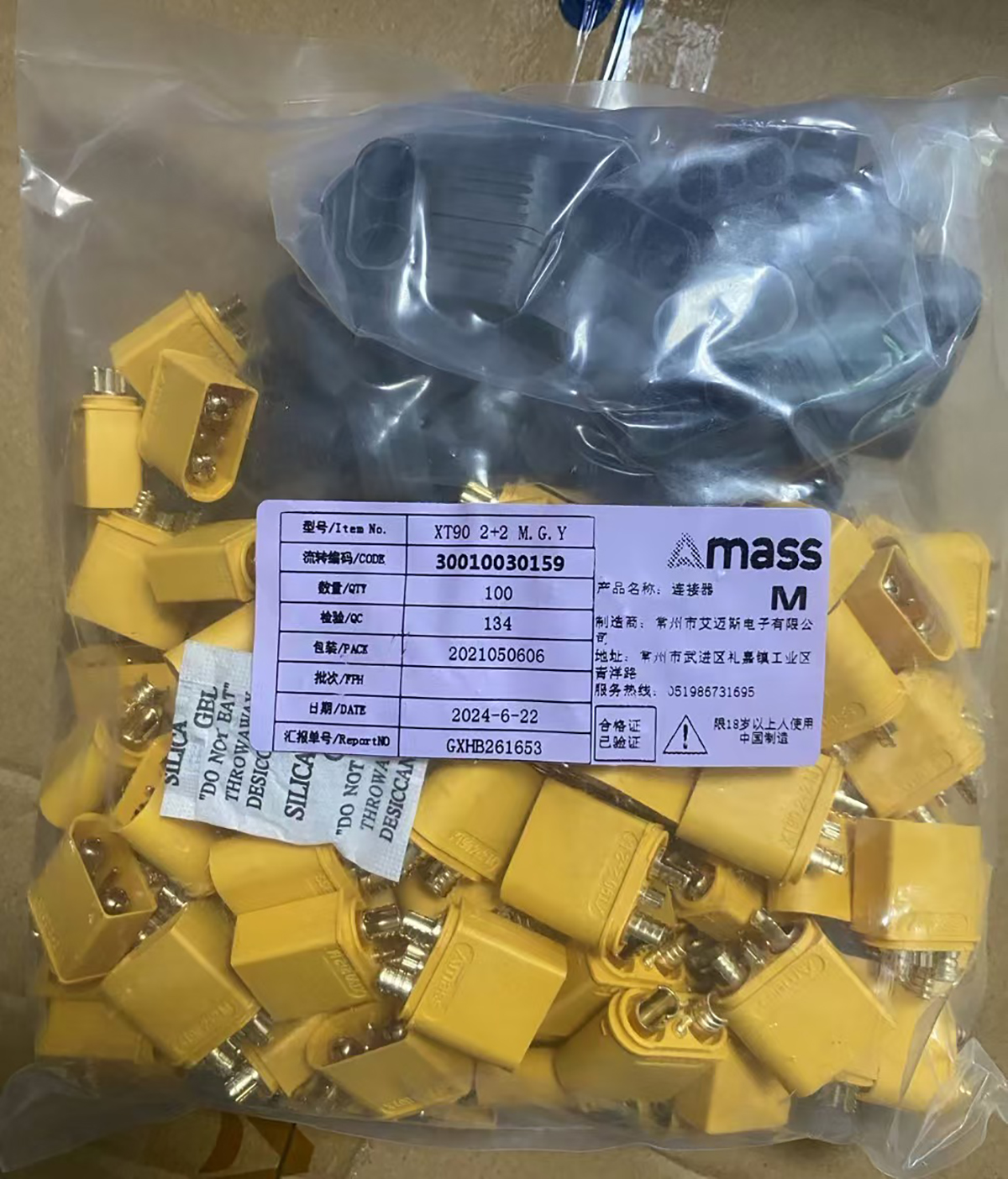

XT90 Connector x1
