Axisflying BlackBird V4 1960KV 2060KV Brushless Motor 2307 6S 5mm Shaft for 5Inch FPV Freestyle Drone

SKU AX-BBV4 Category Tag Brand:

Axisflying BlackBird V4 1960KV 2060KV Brushless Motor 2307 6S 5mm Shaft for 5Inch FPV Freestyle Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

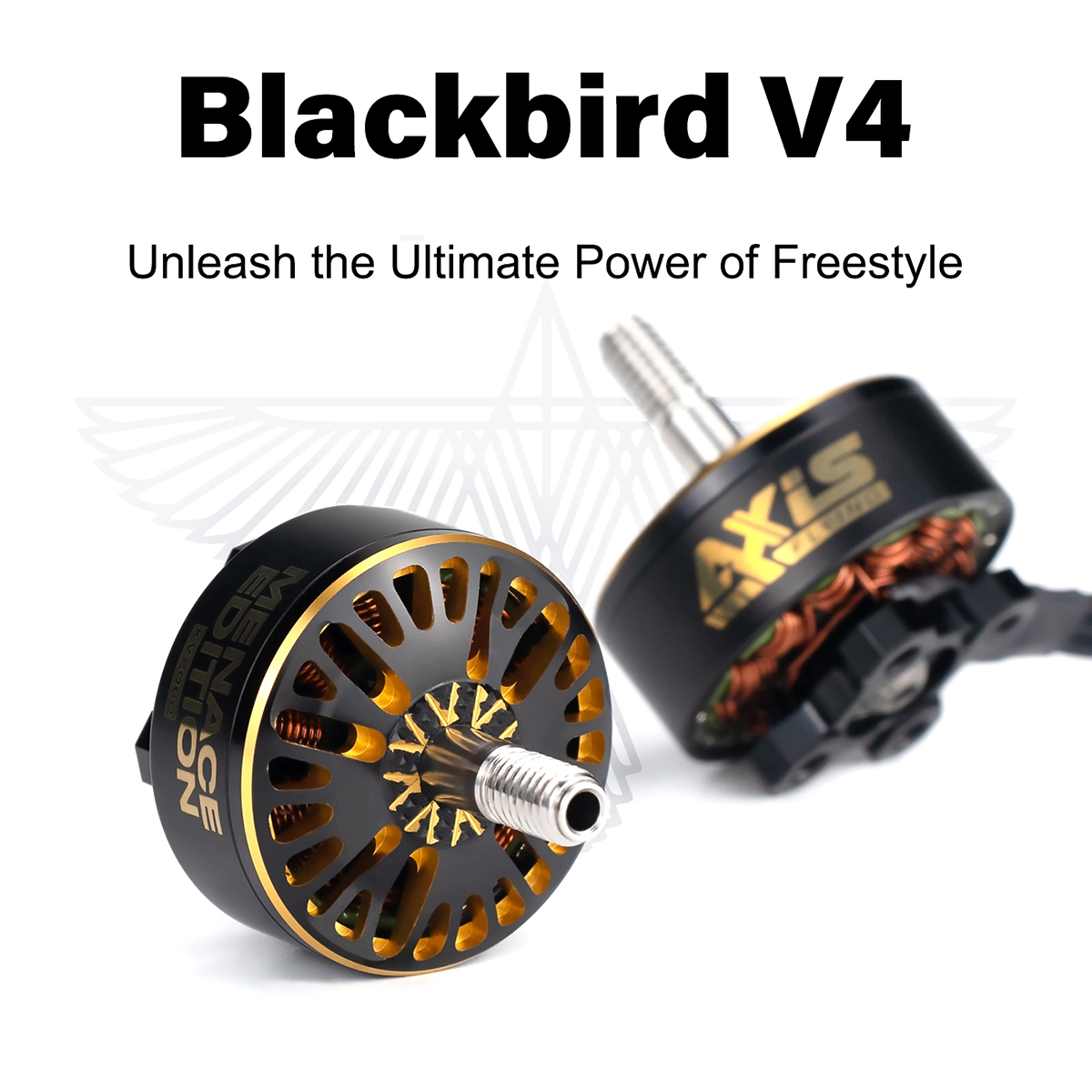

The co-branded Axisflying x BlackBird V4 2307 5-inch brushless motor is a top-quality FPV freestyle option, featuring Sbang technology. Designed for 5-inch drones, it delivers excellent power, responsiveness, and durability—ideal for dynamic aerial maneuvers, blending both brands’ expertise.

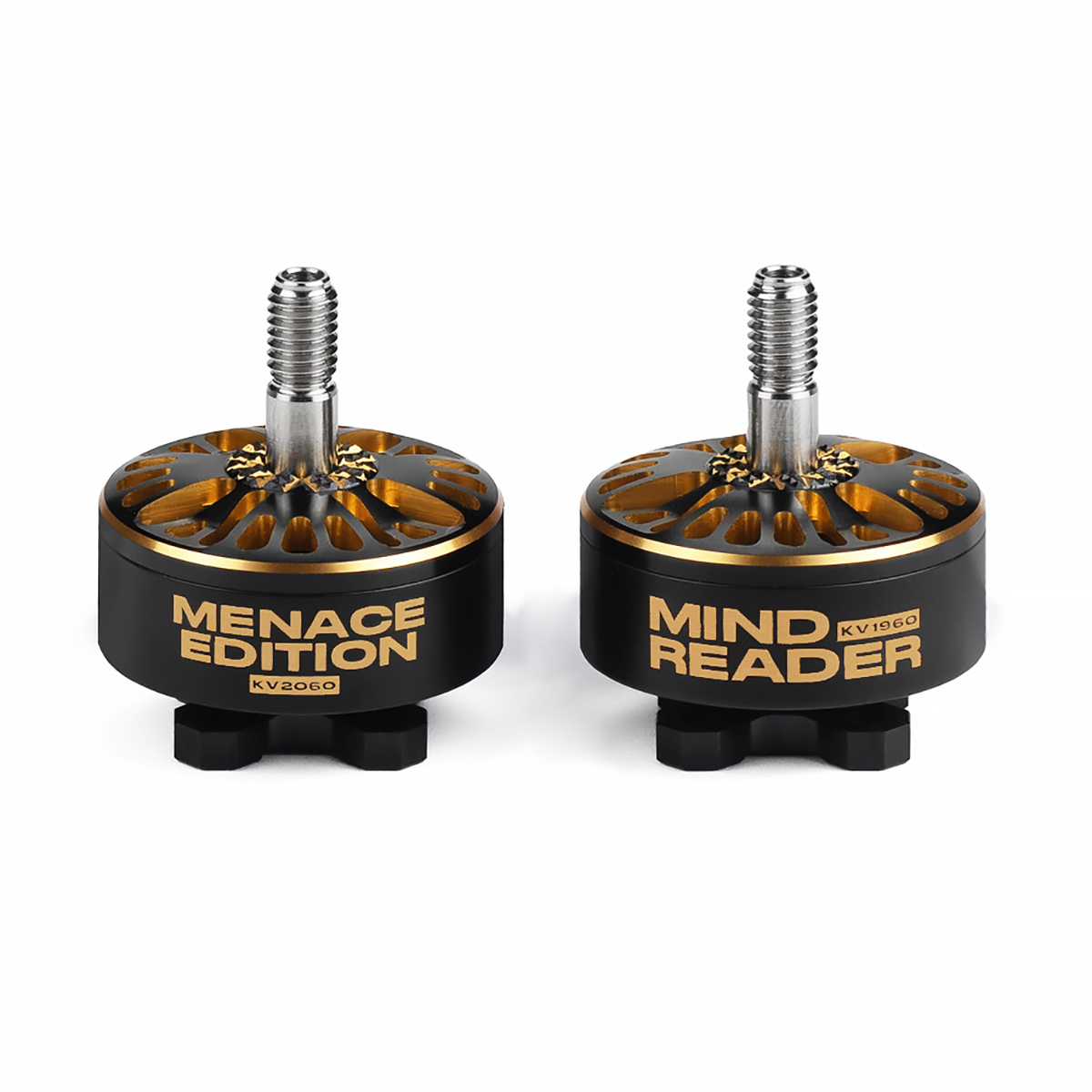

BBV4 motors released with two KVs, 2060 and 1960 for 6s. 2060 is the favorite kv for Blackbird, it is an extrem kv design for top pilots who is really forcusing on extrem freestyle movement, such like sbang. 1960 kv is easy for every freestyle pilots to tune and funfly.

Features:
Bearing Shield Technology
An IP53 rating dustproof and waterproof bearing placement design.
BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
Increased thrust effciency and say goodbye to crush motor bearings

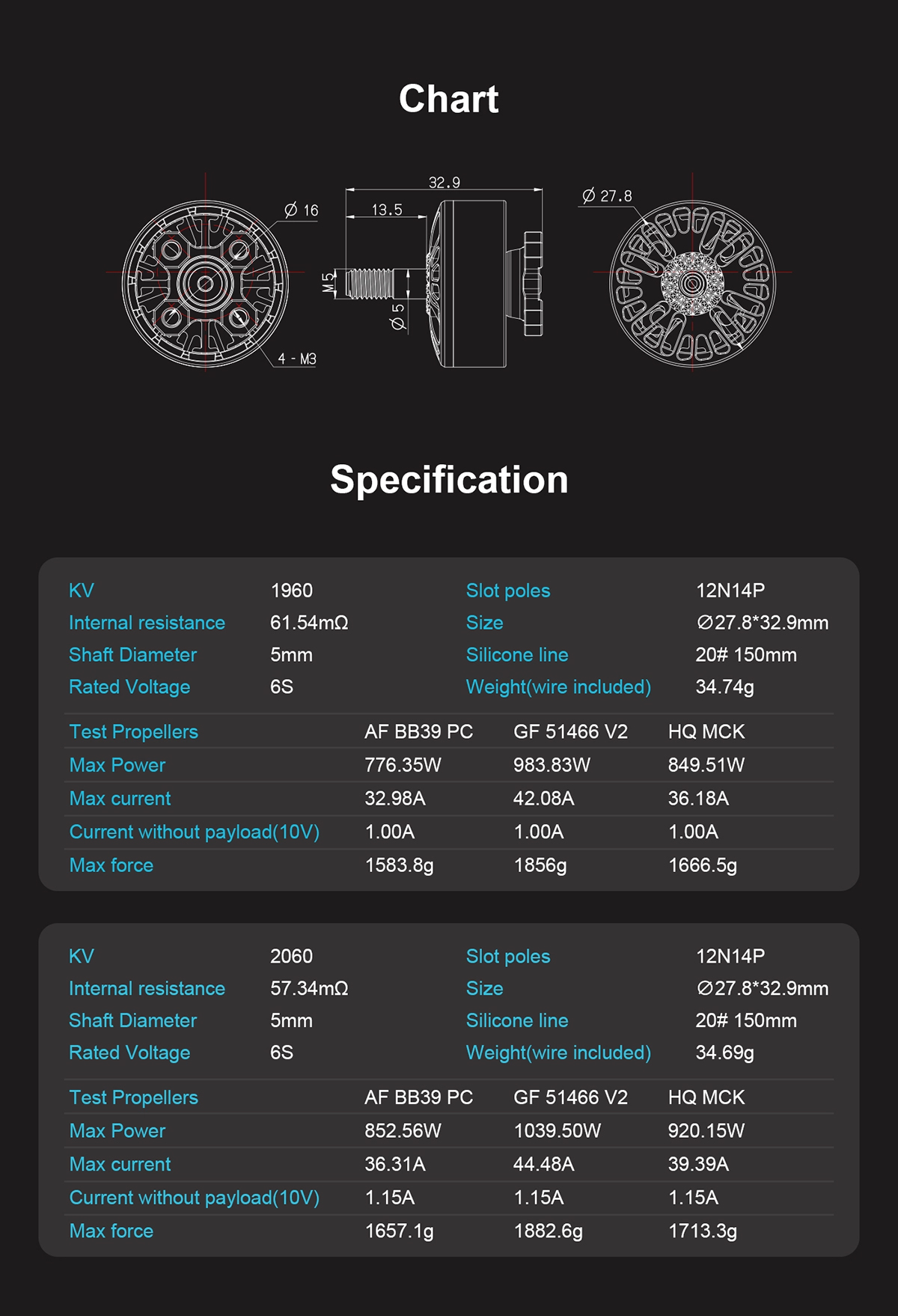

Model: Black Bird V4
KV: 1960
Internal Resistance: 61.54mΩ
Shaft Diameter: 5mm
Rated Voltage: 6S
Slot Poles: 12N14P
Size: Ø27.8*32.9mm
Silicone Line: 20# 150mm
Weight (Wire Included): 34.74g

KV: 2060
Internal Resistance: 57.34mΩ
Shaft Diameter: 5mm
Rated Voltage: 6S
Slot Poles: 12N14P
Size: Ø27.8*32.9mm
Silicone Line: 20# 150mm
Weight (Wire Included): 34.69g

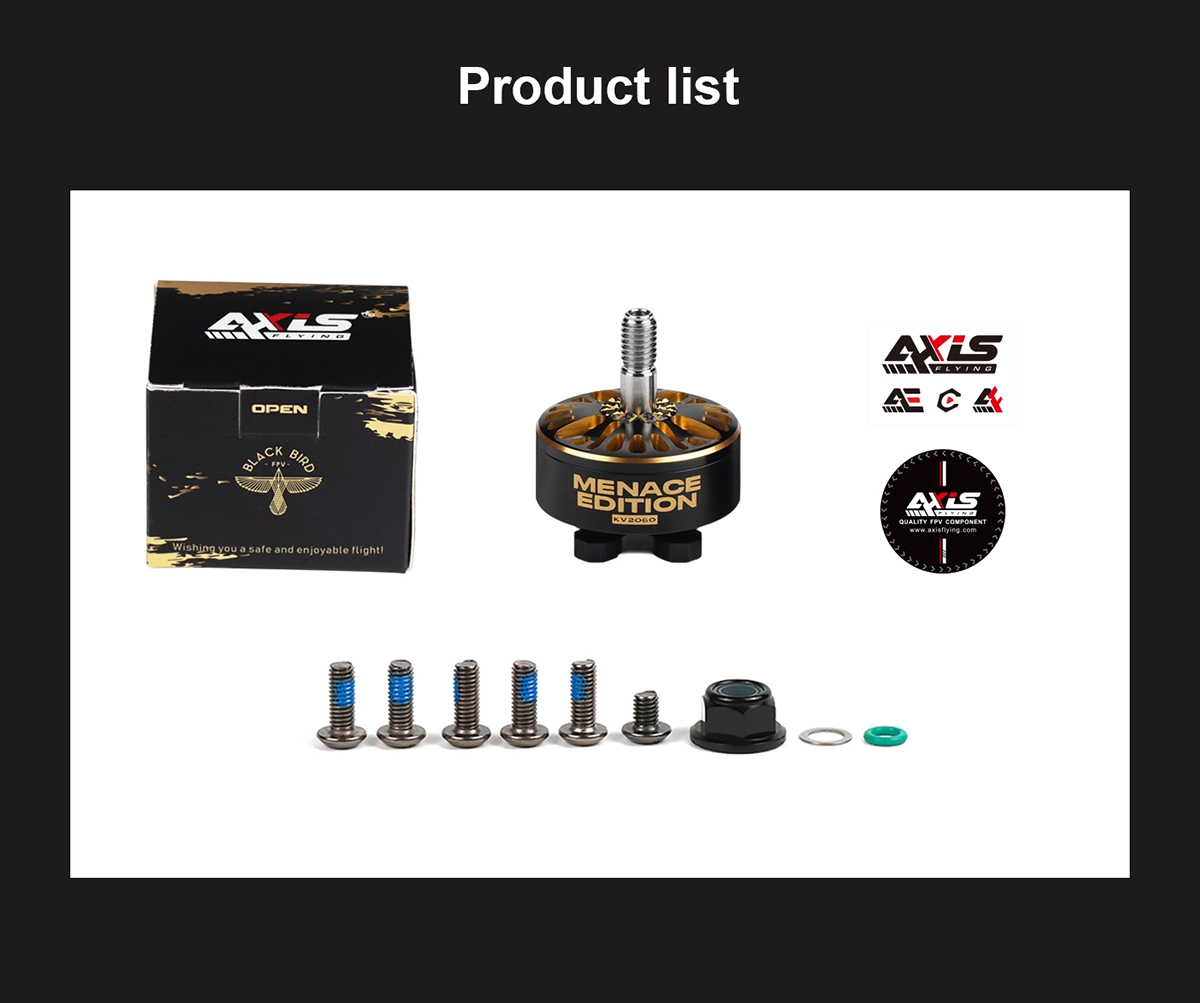

BBV4 motor x1
M3*8 screws for motor x4
M3*4 screw for lock shaft x1
M5 Flanged Nylon Insert lock x1
O-ring x1
Washers x2
