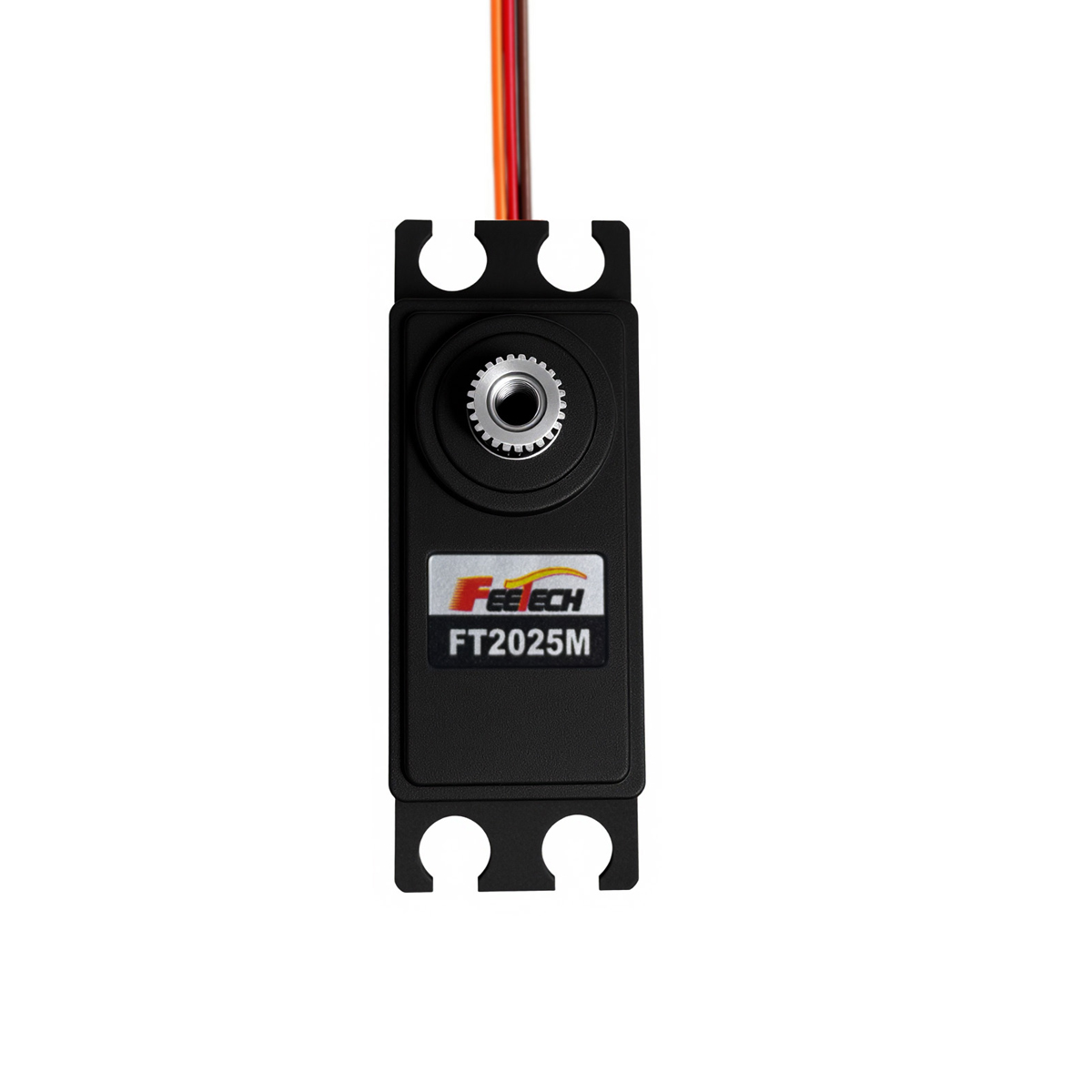

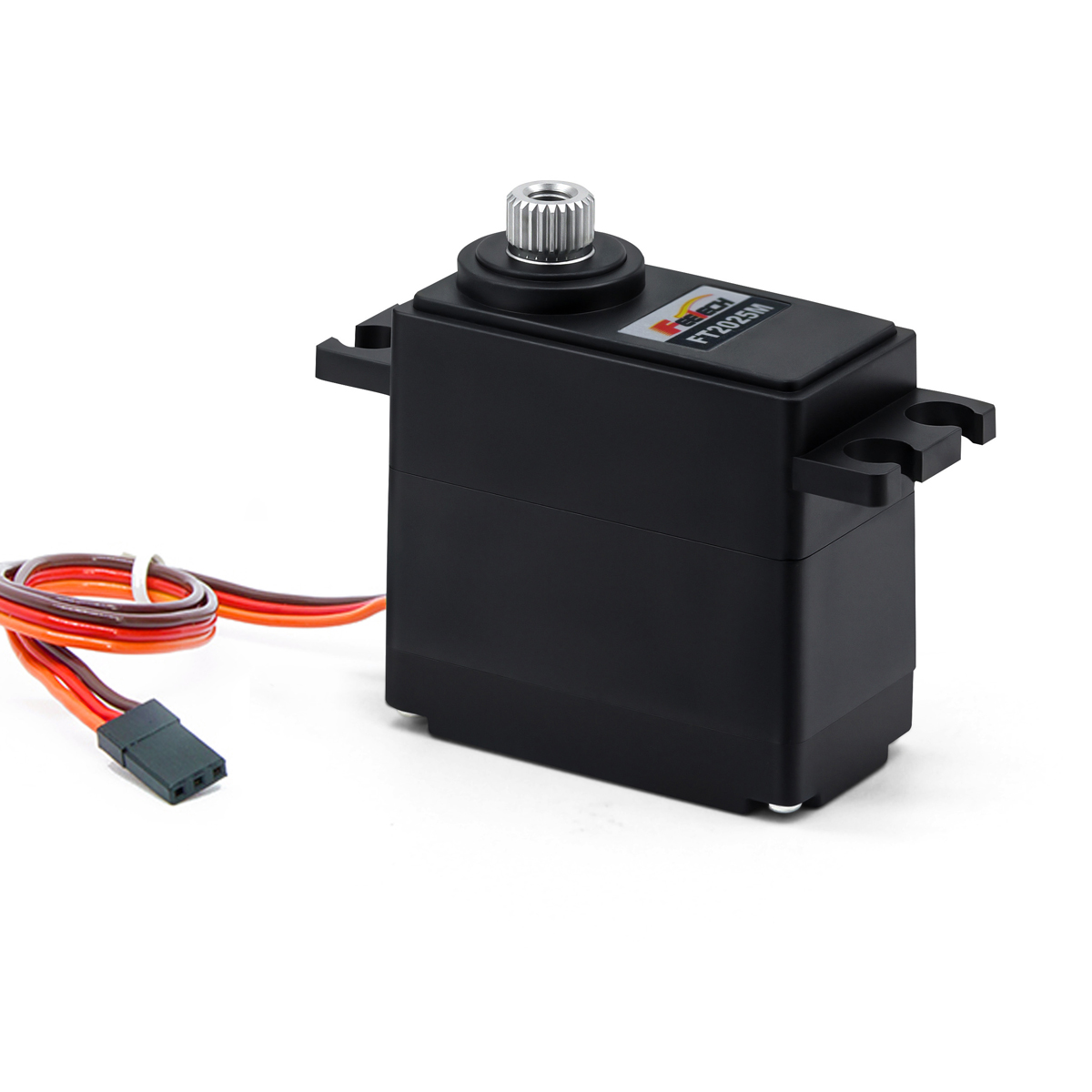

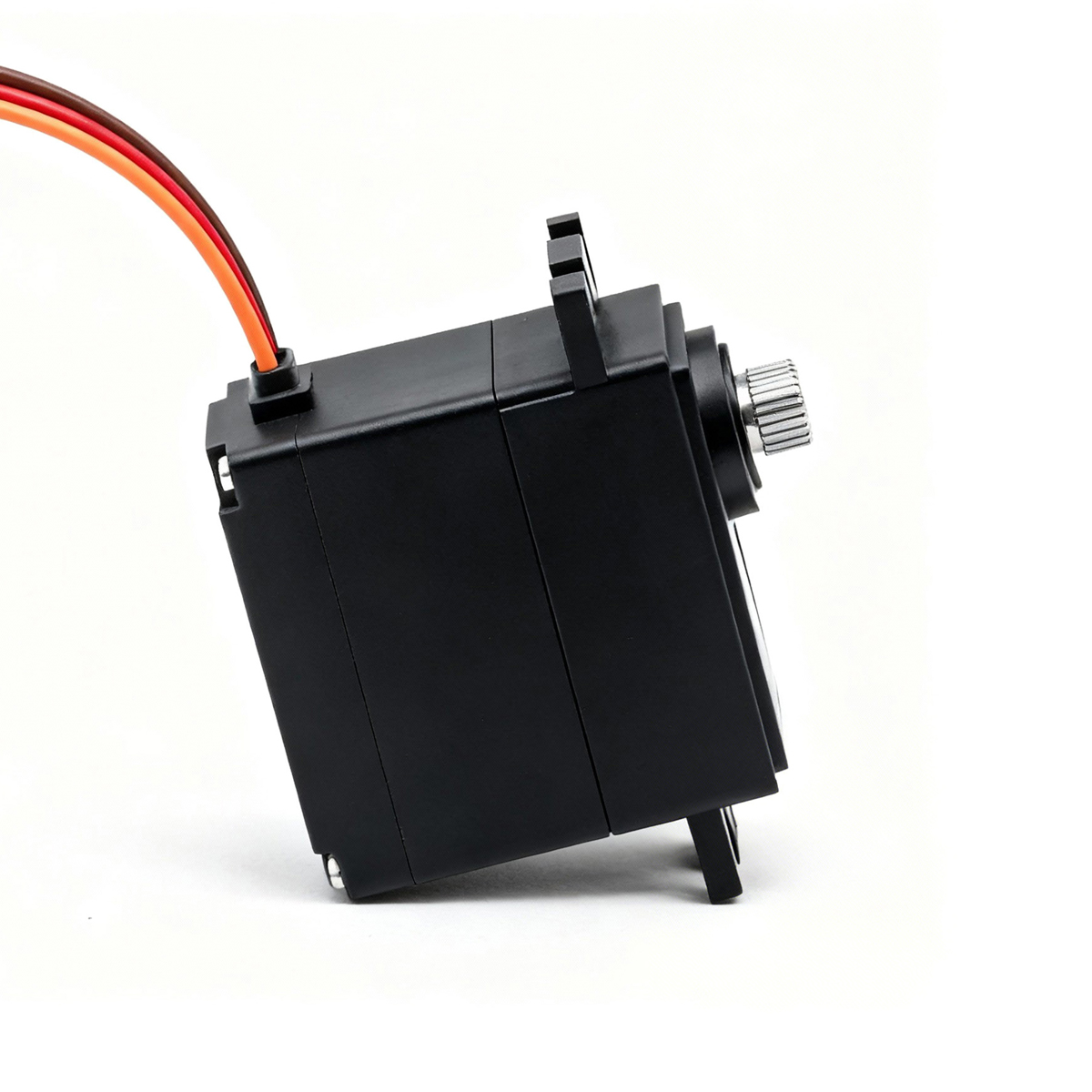

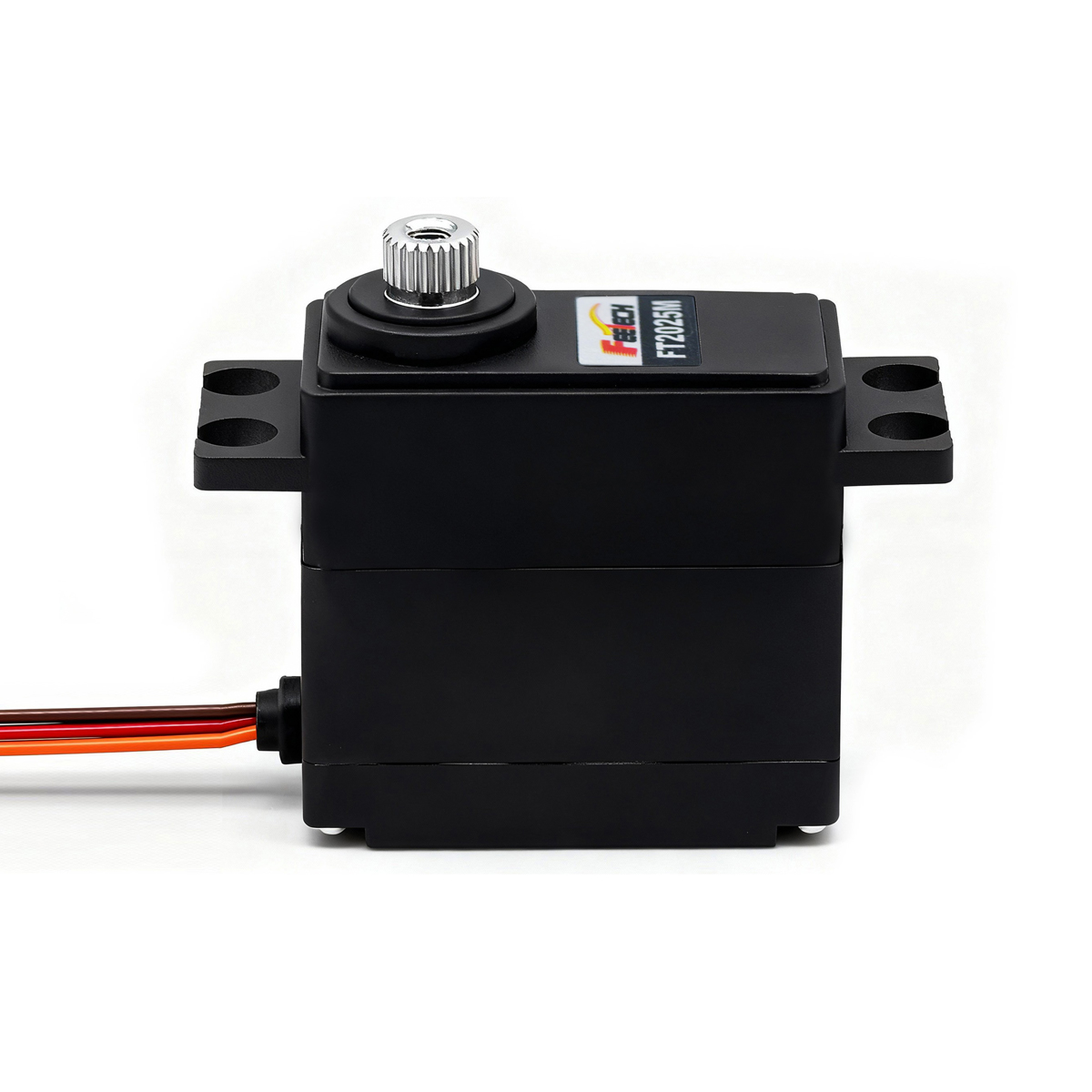

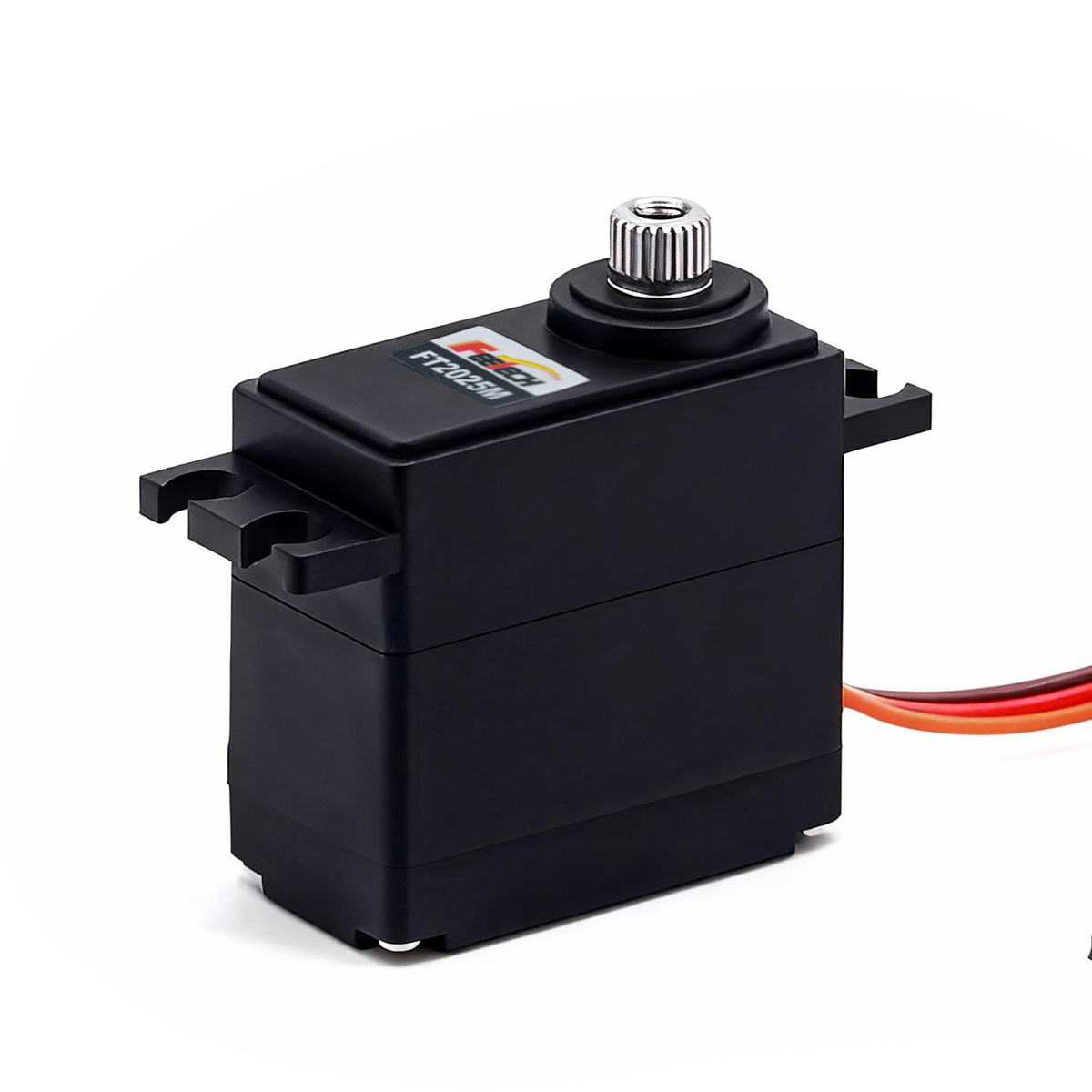

Model: FT-2025-C004
Storage Temperature Range: ‑30℃ ~ 70℃
Operating Temperature Range: ‑20℃ ~ 60℃

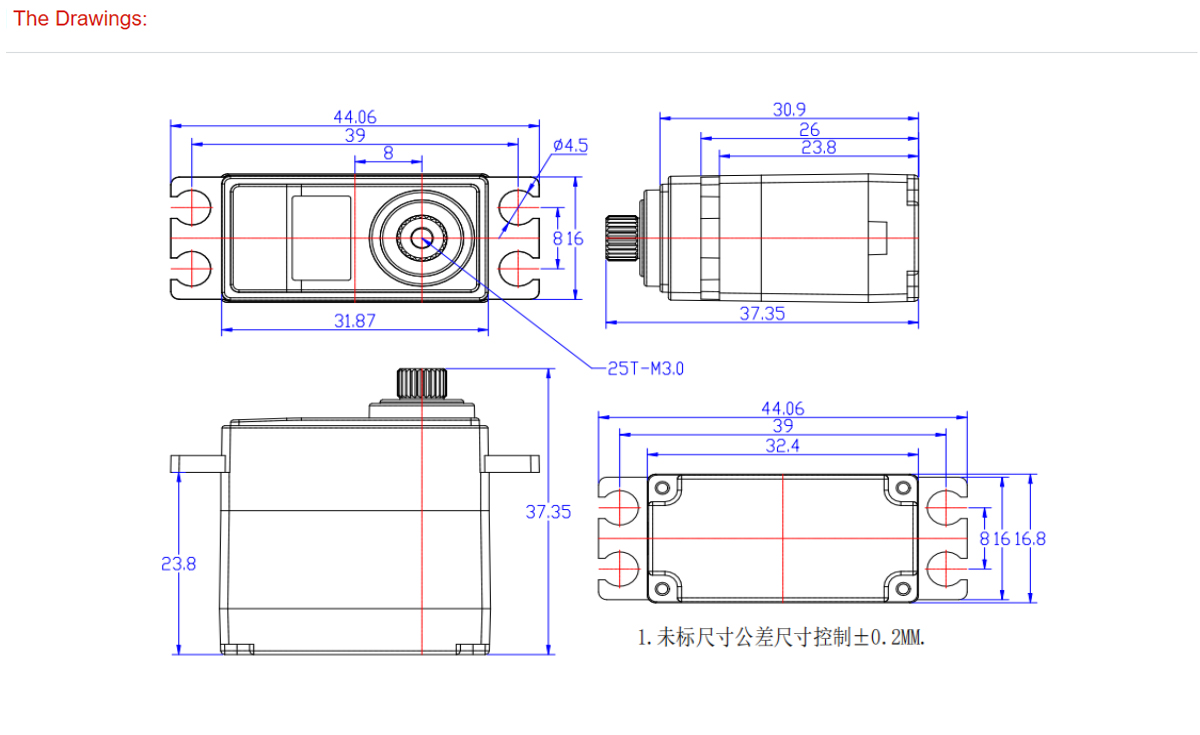

Size: 16.8*32.4*30.9mm
Weight: 26.7±1g
Gear Type: Metal
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/5.9mm
Gear Ratio: 1/361
Case: PA66+GF
Connector Wire: 25±1CM
Motor: Coreless Motor
Operating Voltage Range: 4.8V‑7.4V
Idle Current (At Stopped): 8mA@7.4V
No‑Load Speed: 0.133sec/60° (75RPM)@7.4V
Running Current(At No‑Load): 280mA@7.4V
Peak Stall Torque: 12.4kg.cm@7.4V
Rated Torque: 4.1kg.cm@7.4V
Stall Current: 1.8A@7.4V
Rated Current±10%: 600mA@7.4V
Command Signal: Pulse Width Modification
Amplifier Type: Digital Comparator
Pulse Width Range: 500~2500μsec
Stop Position: 1500μsec
Running Degree: 180°(At 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (At 1500→2500μsec)
