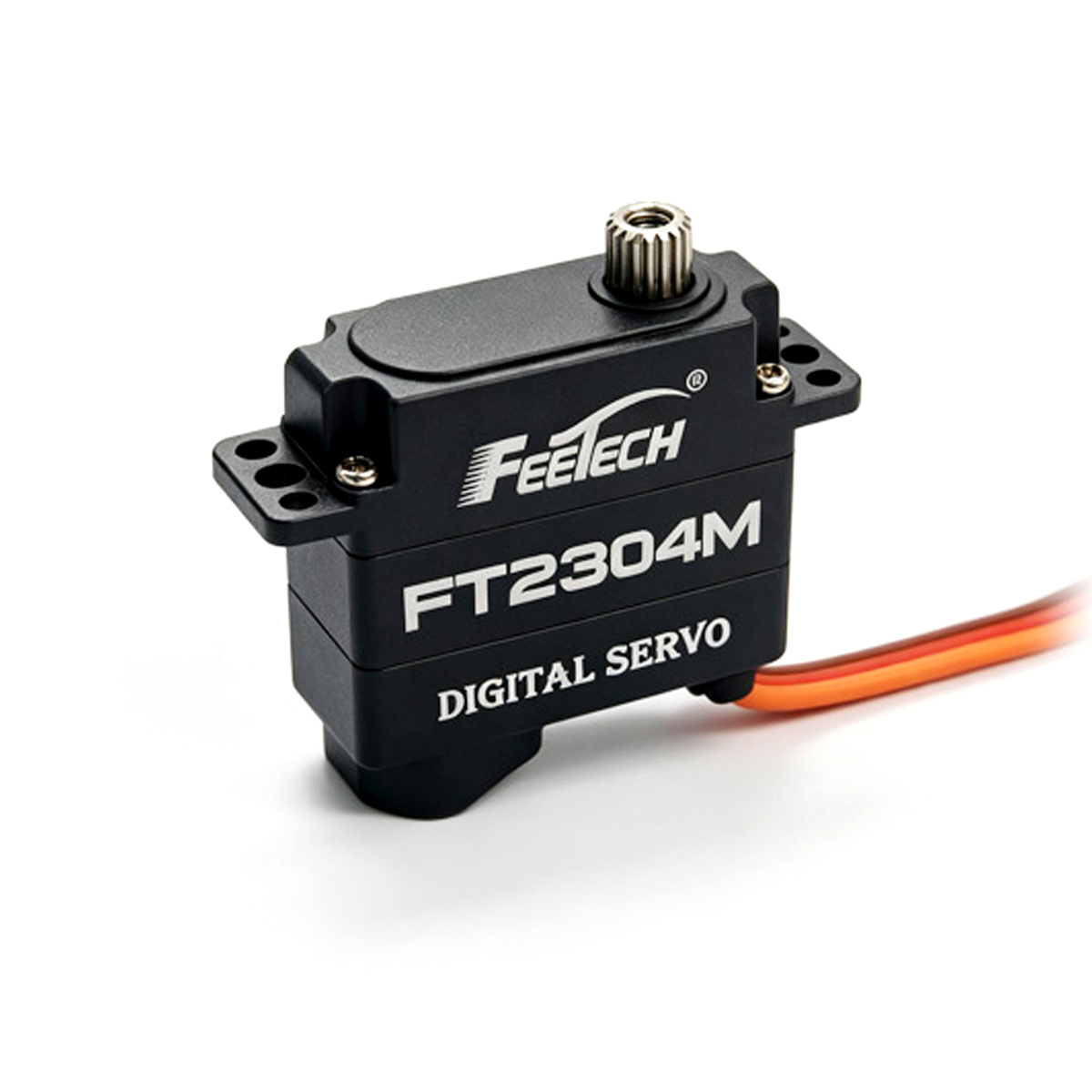

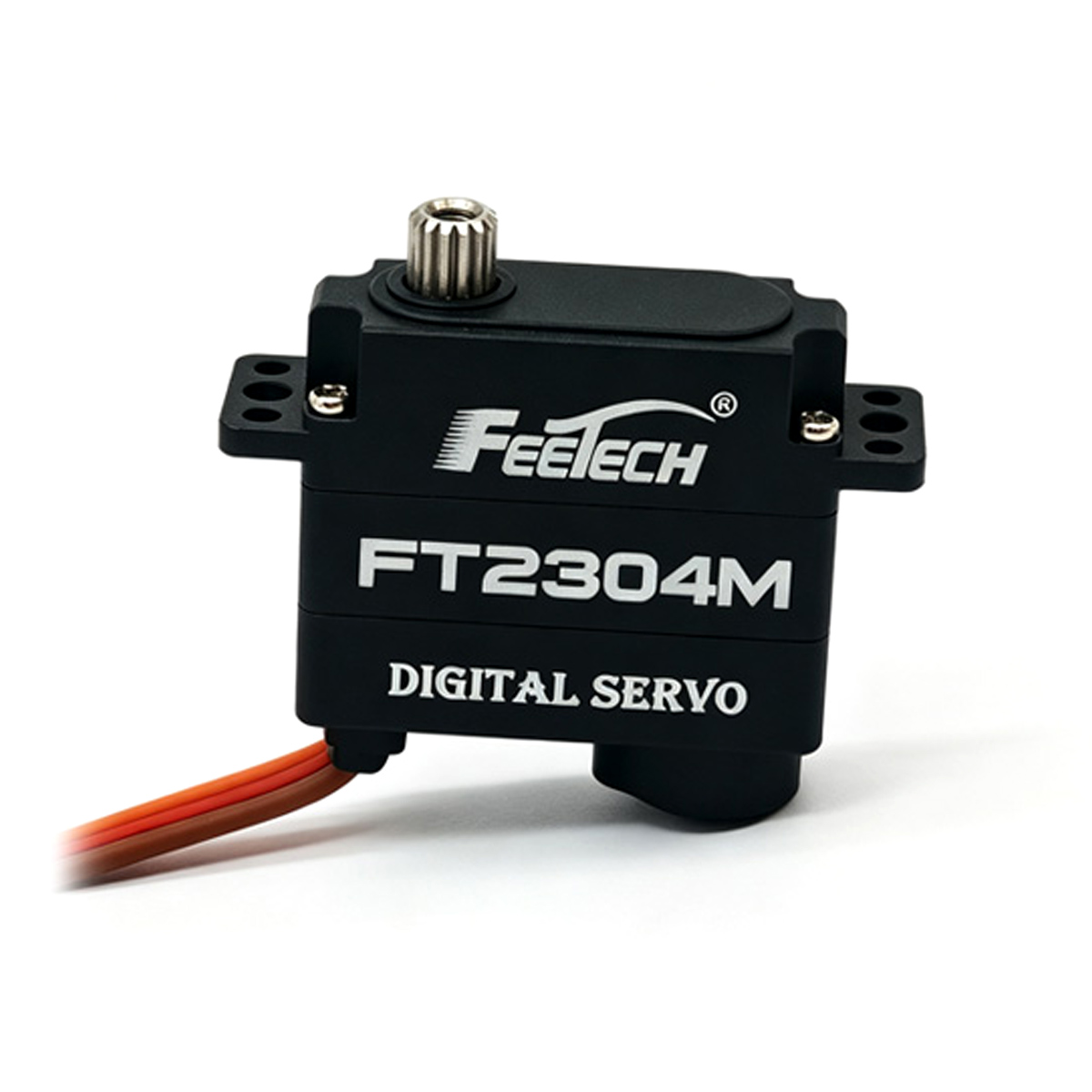

Model: FT-2304-C015
Storage Temperature Range: ‑30℃ ~ 80℃
Operating Temperature Range: ‑20℃ ~ 60℃

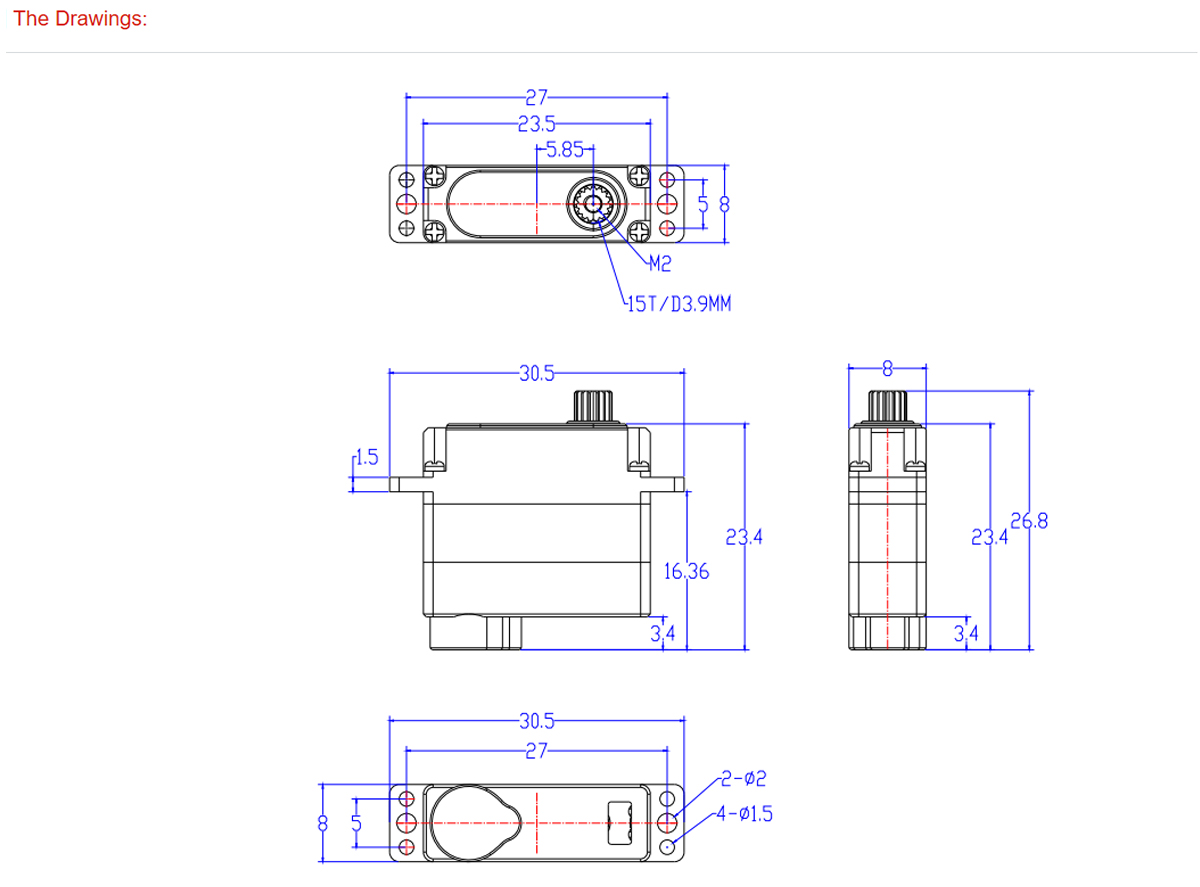

Size: 23.5*8*23.4mm
Weight: 11±1g
Gear Type: Metal Gear
Limit Angle: No Limit
Bearing: Ball Bearings

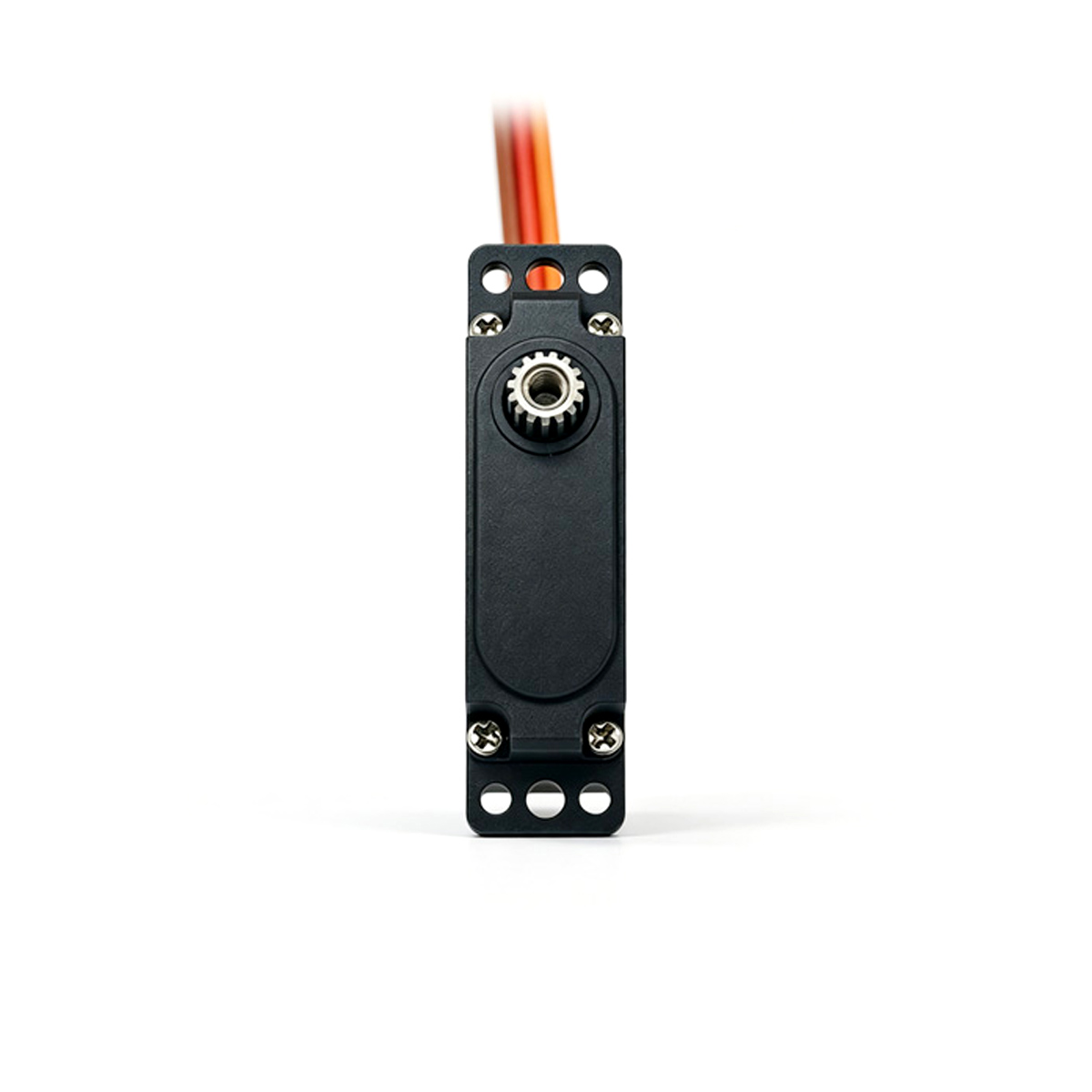

Horn Gear Spline: 15T/3.9mm
Gear Ratio: 1/293
Case: PA+Aluminum

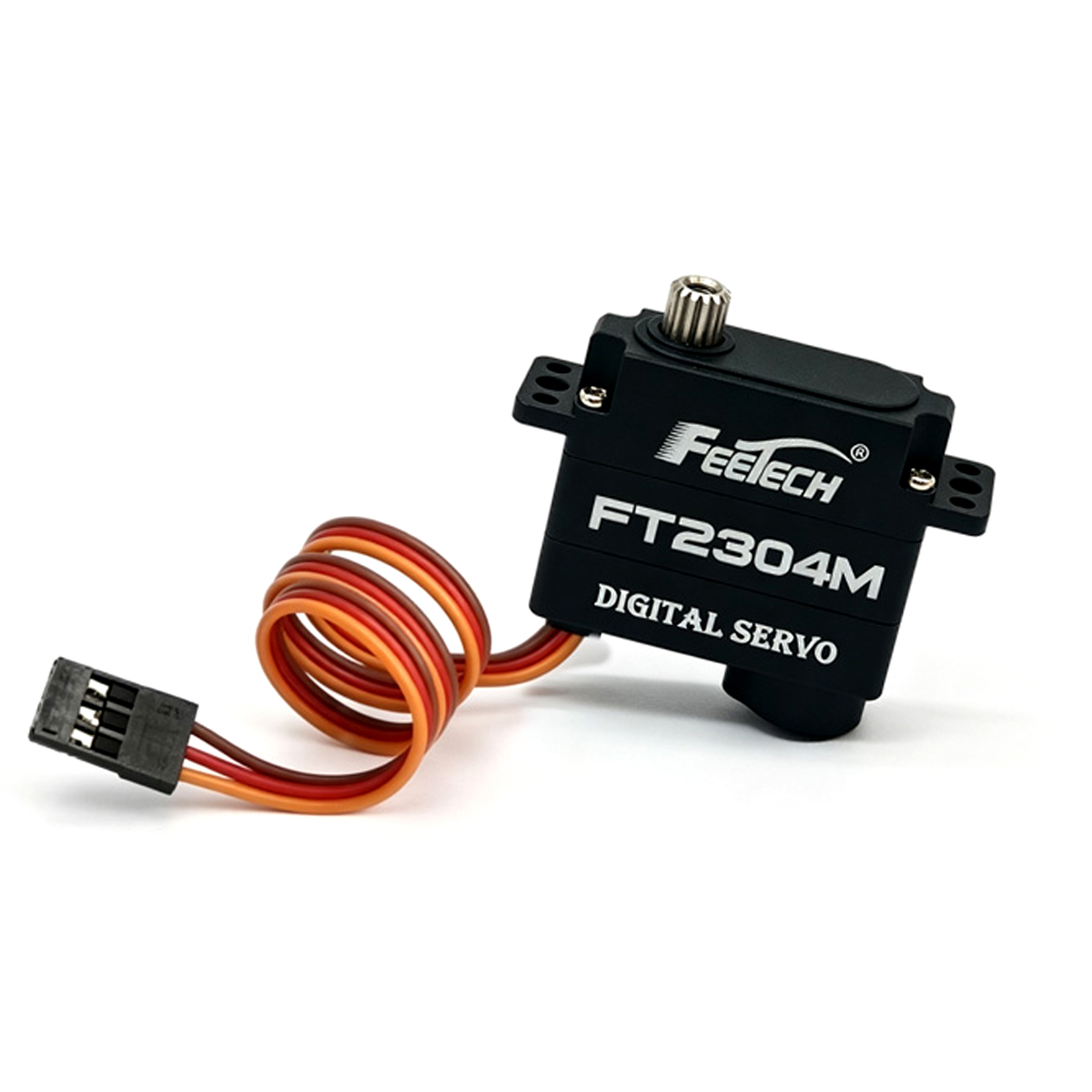

Connector Wire: 18CM
Motor: Coreless Motor
Operating Voltage Range: 3.5V‑8.4V
Idle Current (At Stopped): 10mA@6V
No‑Load Speed: 0.08sec/60°@6V
Running Current(At No‑Load): 60mA@6V
Peak Stall Torque: 3.2kg.cm@6V
Rated Torque: 1.0kg.cm@6V
Stall Current: 1.2A@6V
Command Signal: Pulse Width Modification
Amplifier Type: Digital Comparator
Pulse Width Range: 800~2200μsec
Stop Position: 1500μsec
Running Degree: 120°(At 800→2200μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (At 1500→2000μsec)
