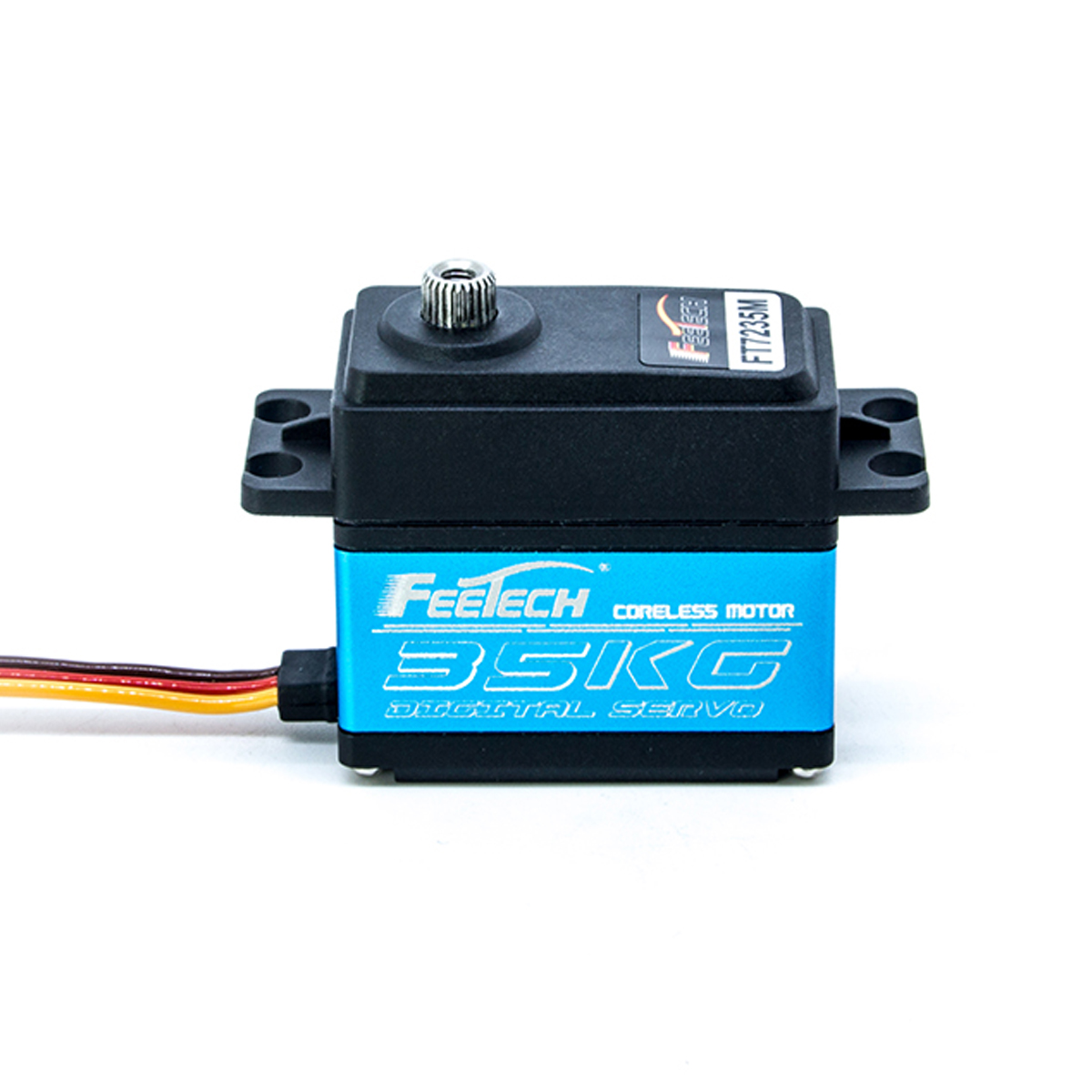

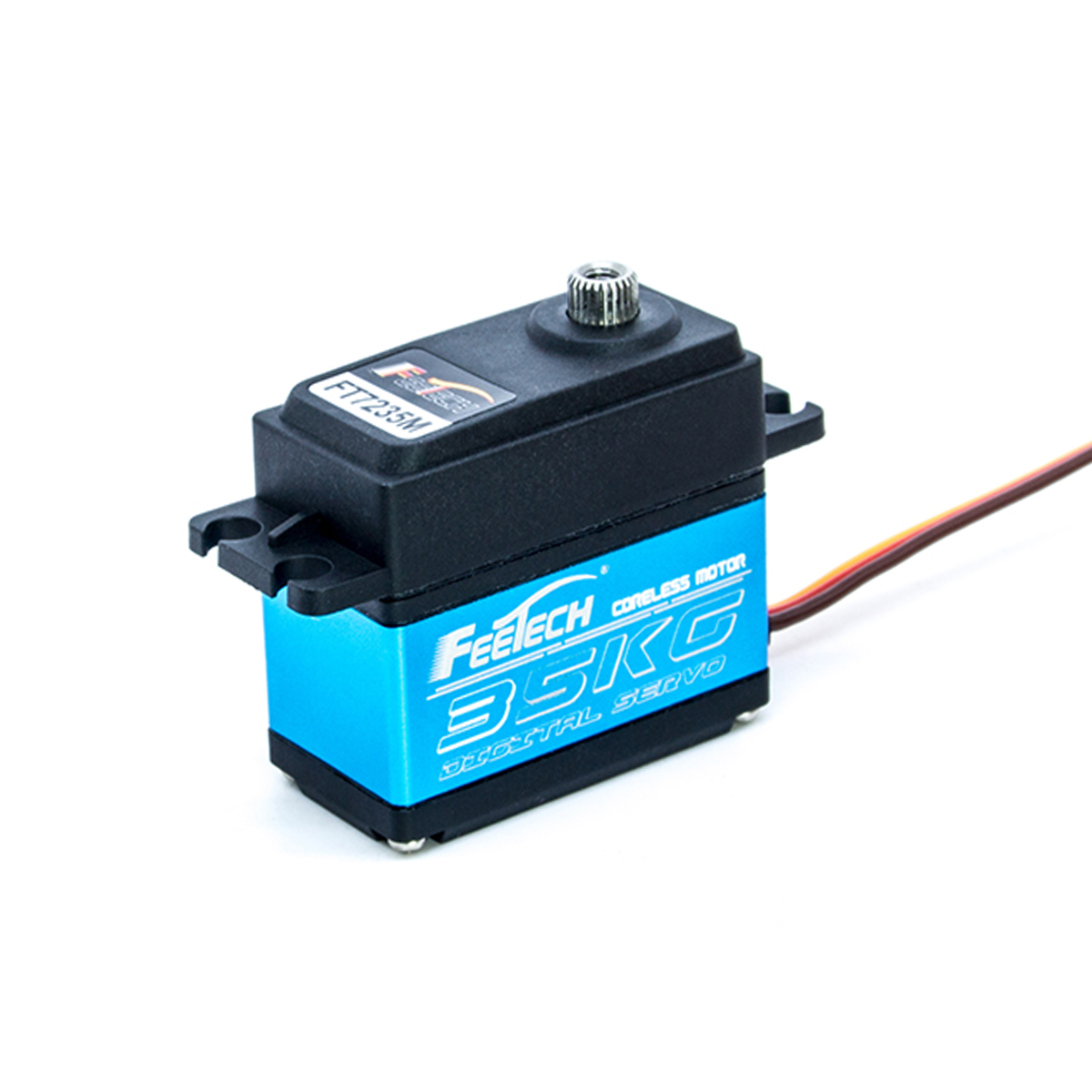

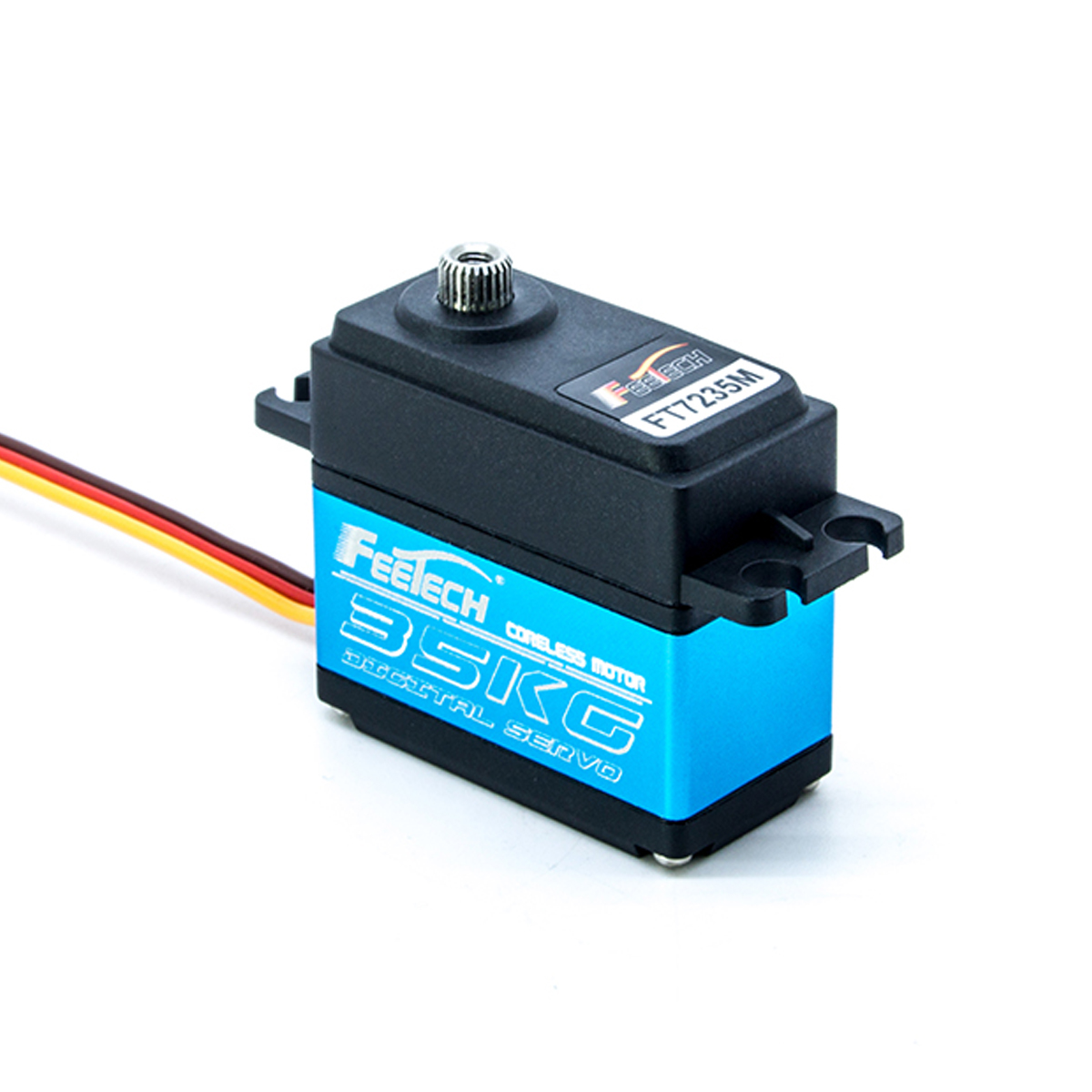

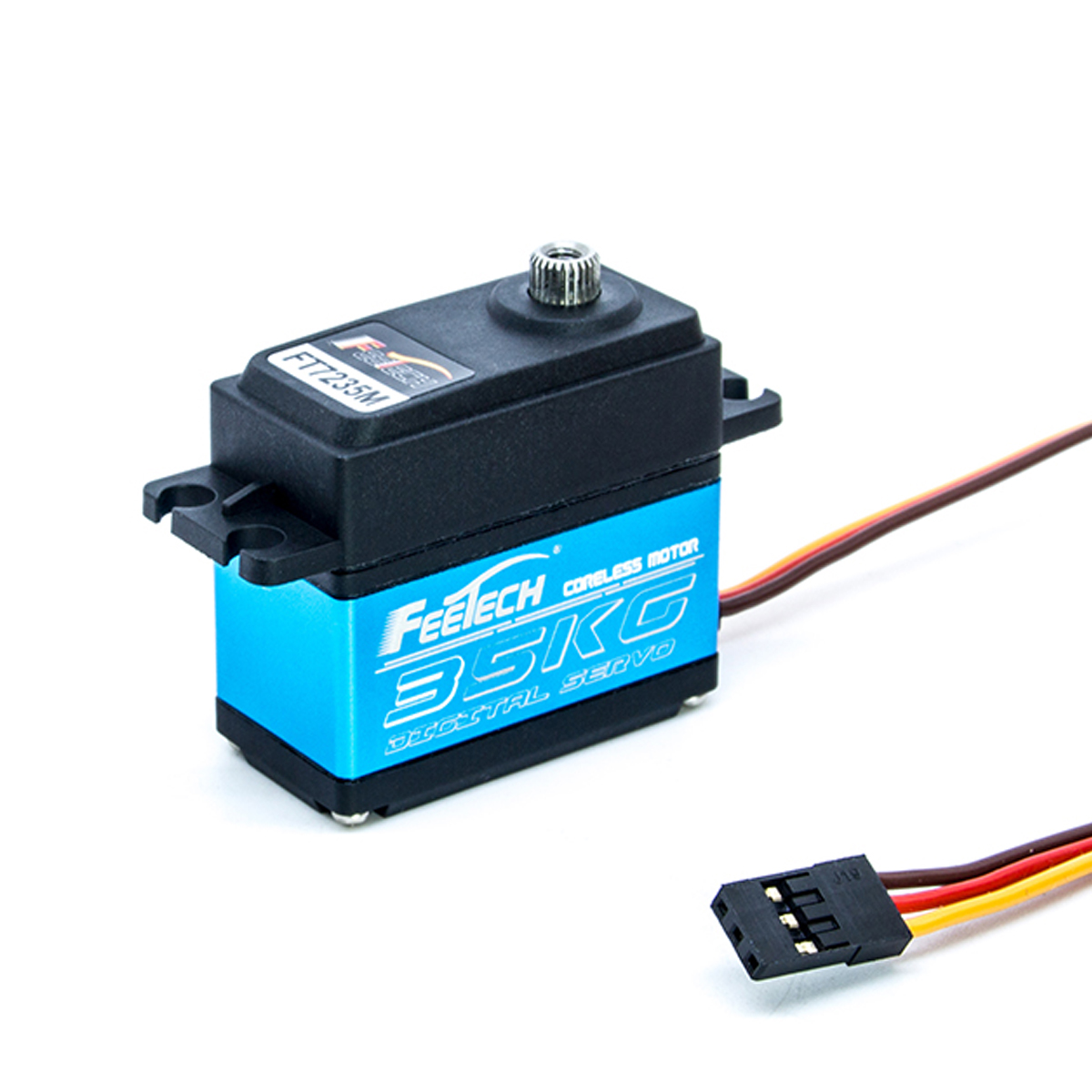

Model: FT-7235-C018
Storage Temperature Range: ‑20℃ ~ 80℃
Operating Temperature Range: ‑10℃ ~ 60℃

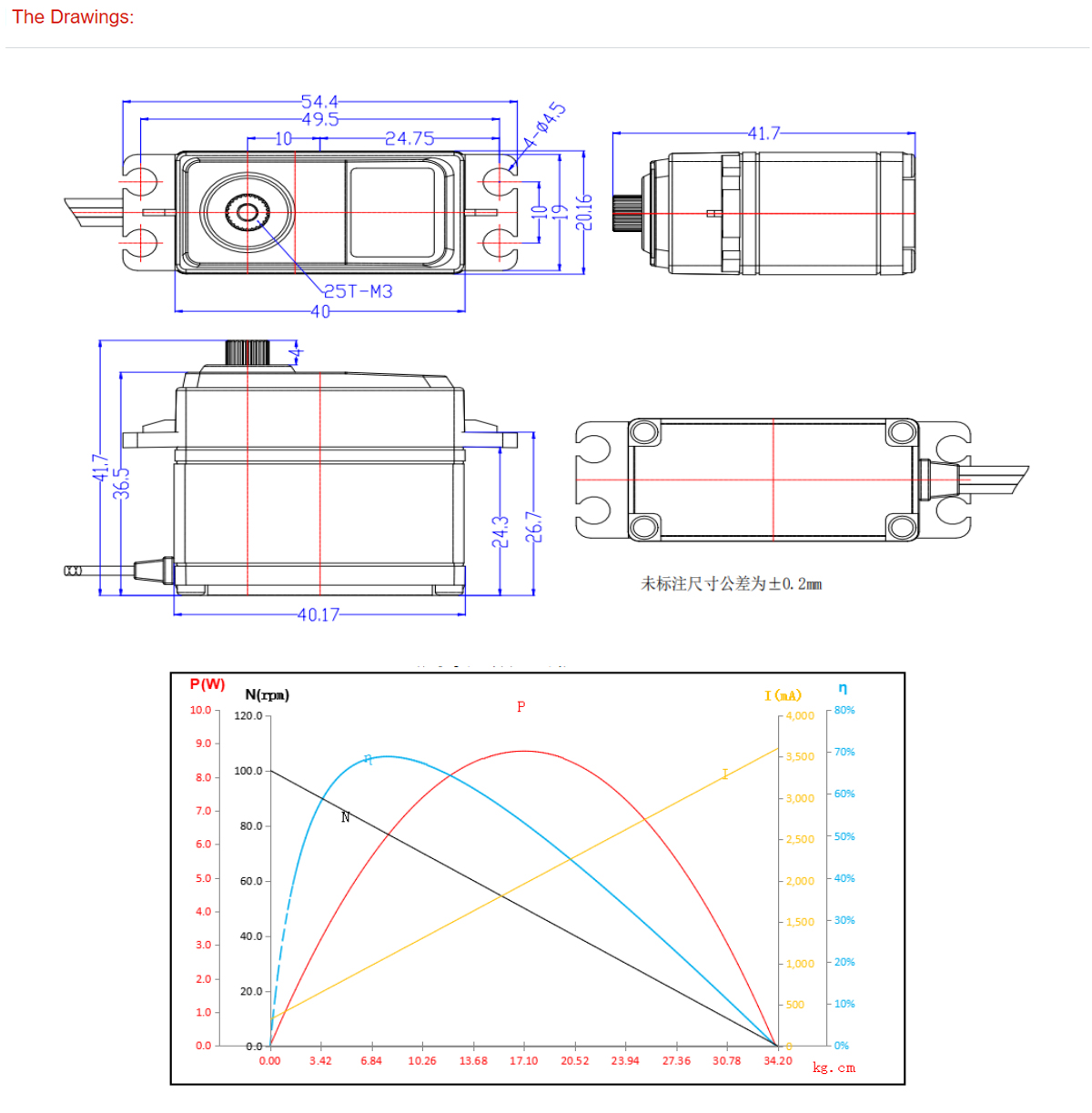

Size: 40.7*36.5*20.16mm
Weight: 64.5±1g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/5.9mm
Gear Ratio: 1/275
Case: Aluminum
Connector Wire: 30±0.5CM
Motor: Coreless Motor
Operating Voltage Range: 4‑9V
Idle Current (At Stopped): 10mA@8.4V
No‑Load Speed: 0.098sec/60°(102RPM)@8.4V
Running Current(At No‑Load): 340mA@8.4V
Peak Stall Torque: 34.2kg.cm@8.4V
Rated Torque: 11.4kg.cm@8.4V
Stall Current: 3.6A@8.4V
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500~2500μsec
Stop Position: 1500μsec
Running Degree: 180°±5°(At 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Counterclockwise (At 1500→2500μsec)
Electronic Protection: Stall 8sec
