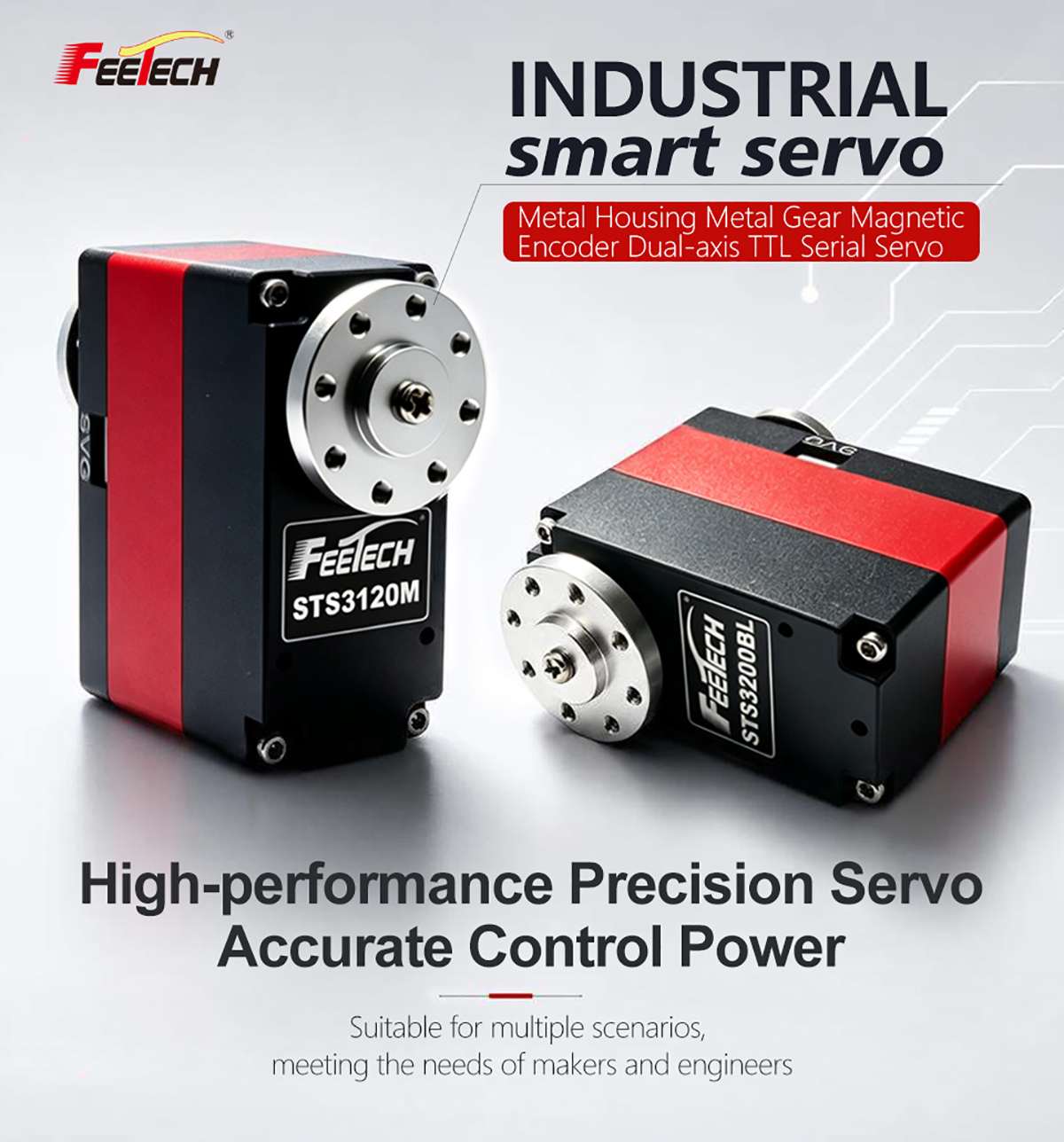

Feetech STS3200BL 12V 200kg High Torque Metal Gear Brushless Motor Magnetic Encoding Dual Axis TTL Serial Servo
Feetech STS3200BL 12V 200kg High Torque Metal Gear Brushless Motor Magnetic Encoding Dual Axis TTL Serial Servo

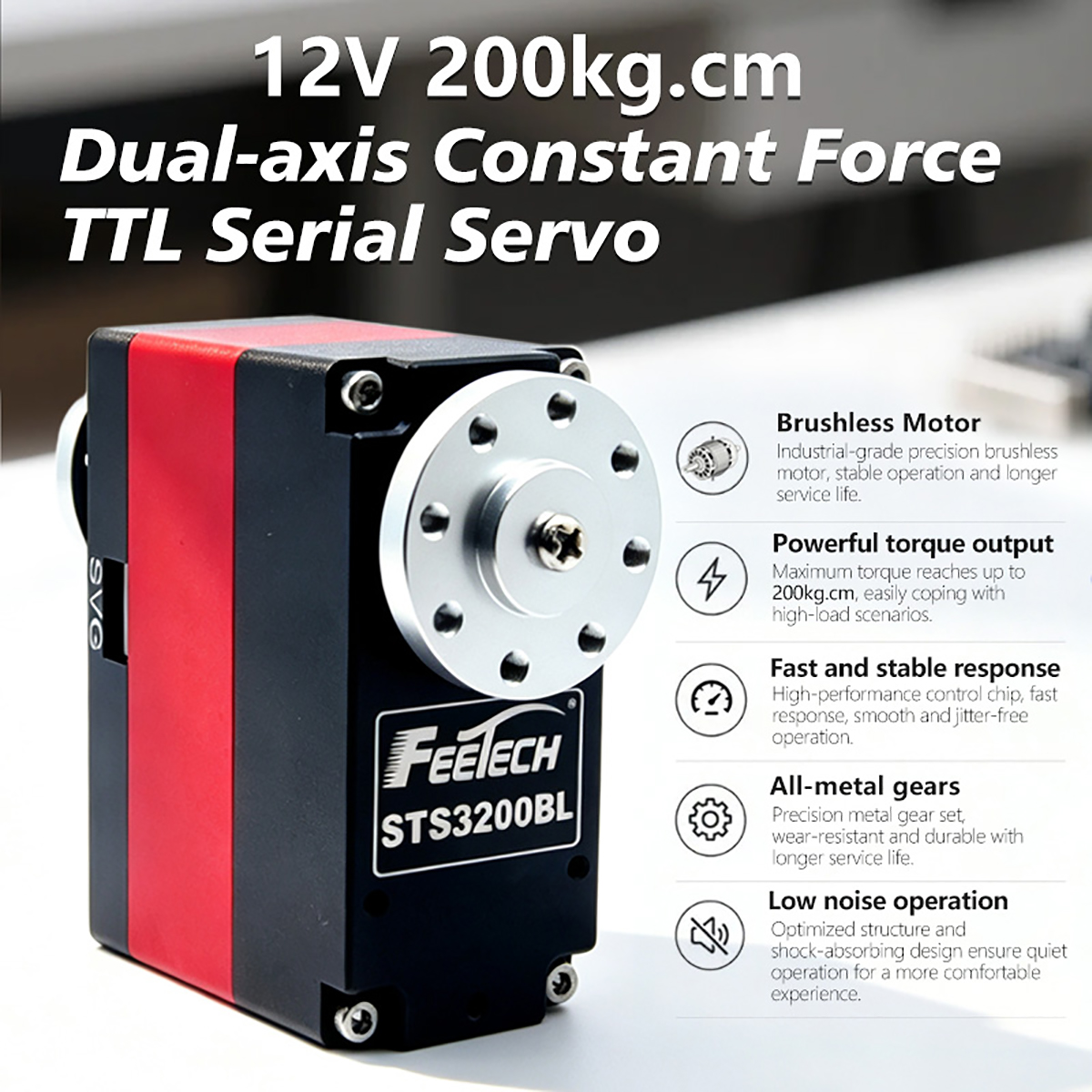

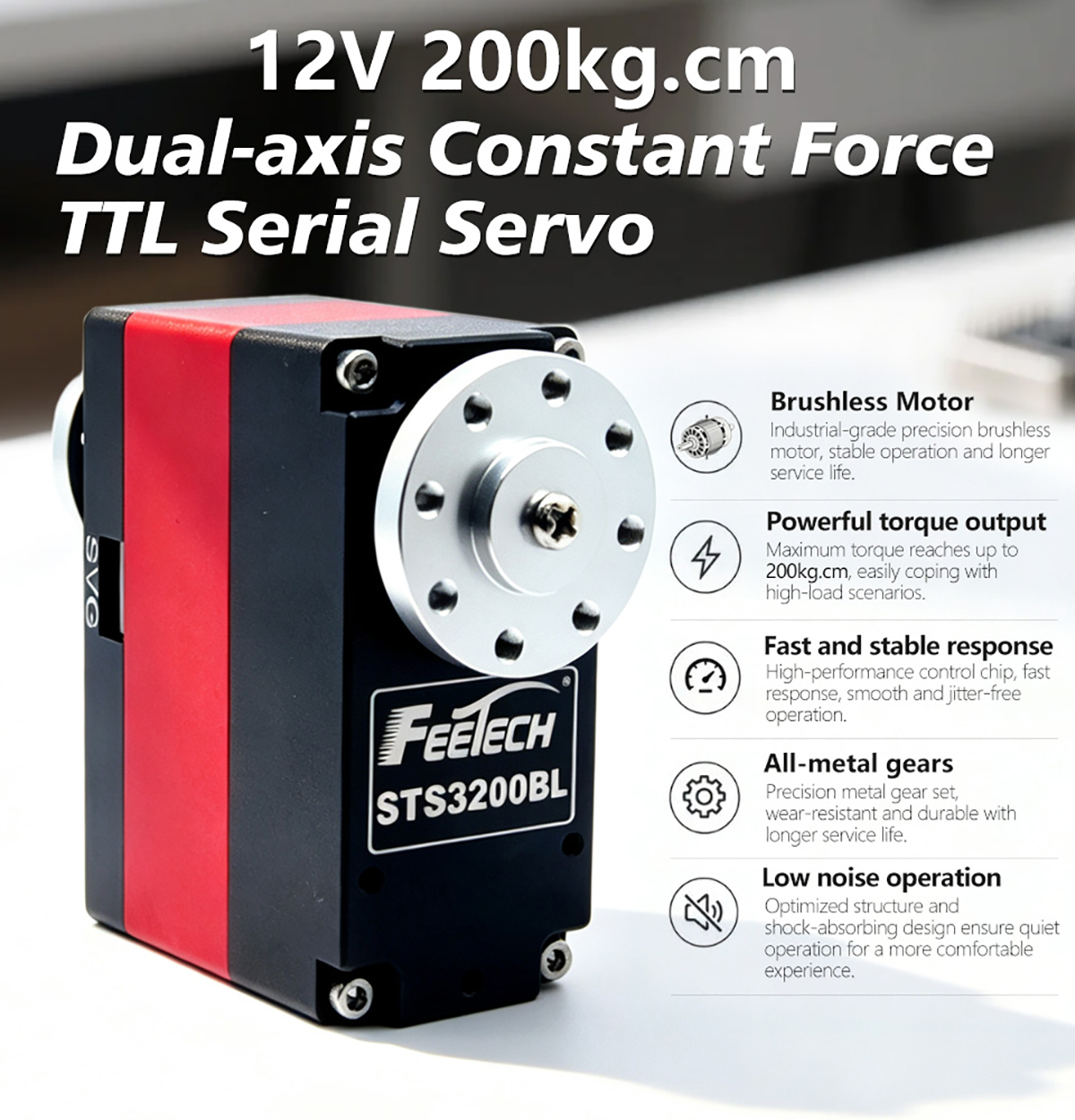

ST-3200-C001 is 12V 200kg.cm serial bus smart servo，aluminum alloy case is used、brushless Motor,metal gearbox 、Feetech self researched and developed TTL control board.The stall torque is 200kg.cm，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.

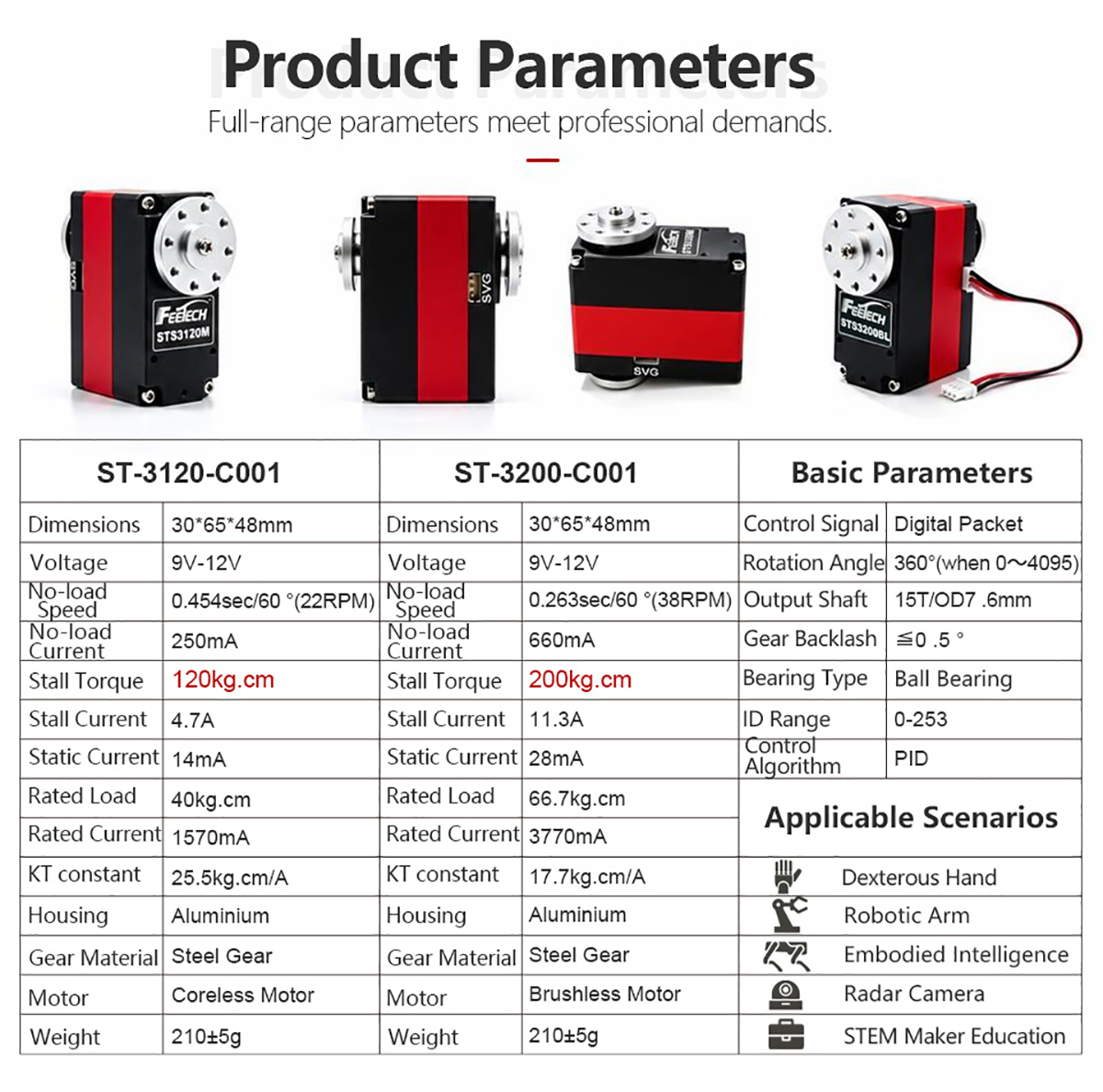

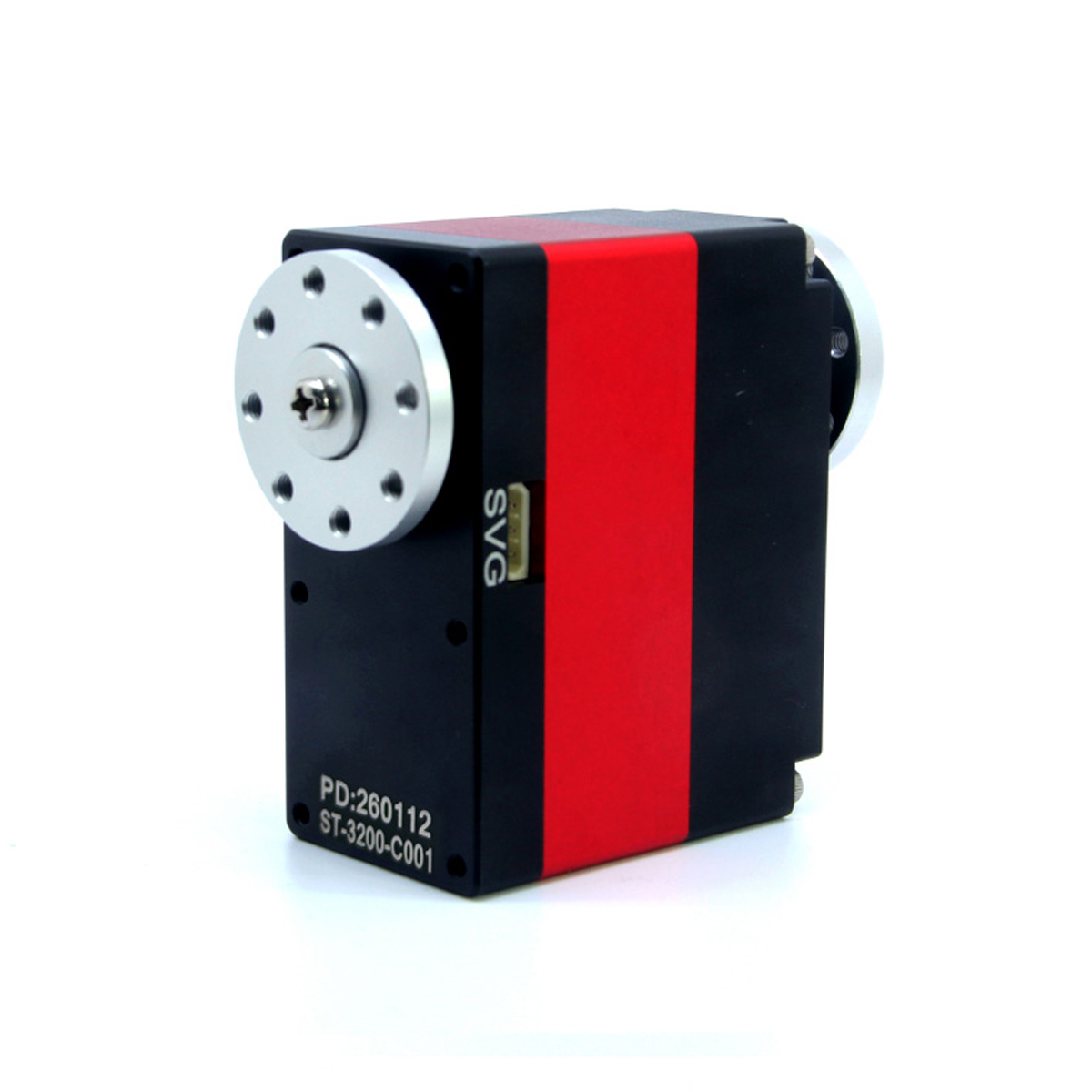

Model: ST-3200-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

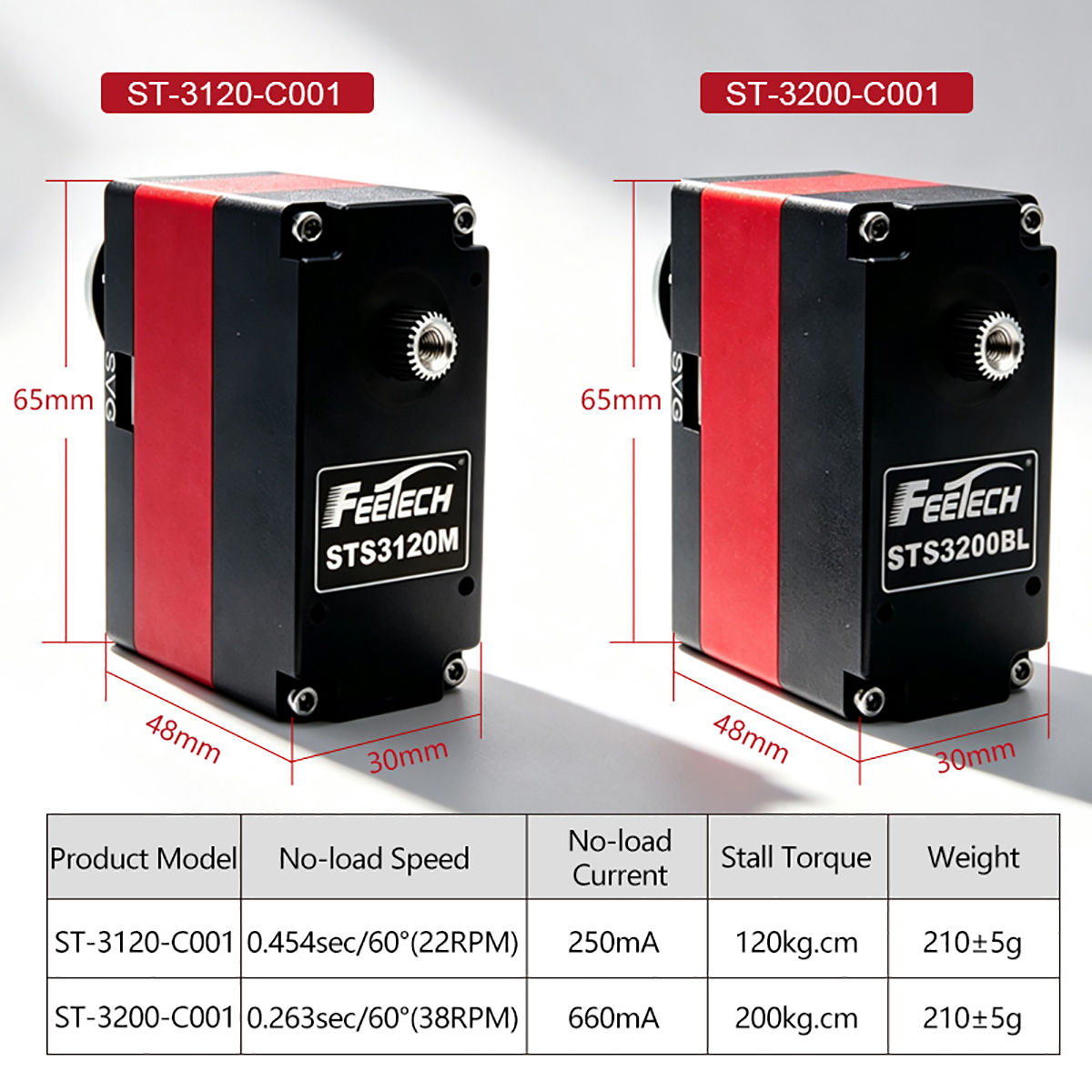

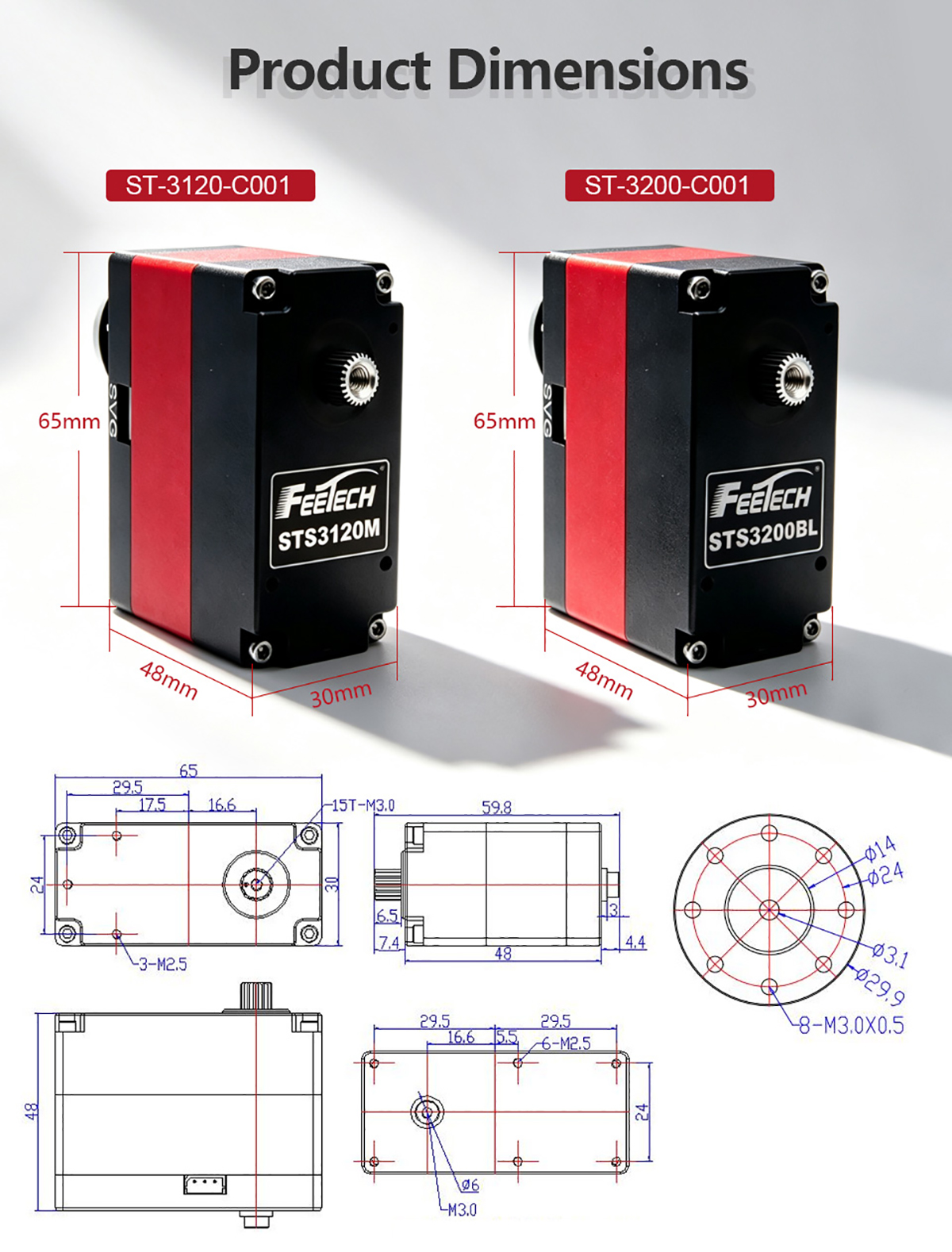

Size: 30*65*48mm
Weight: 210±5g

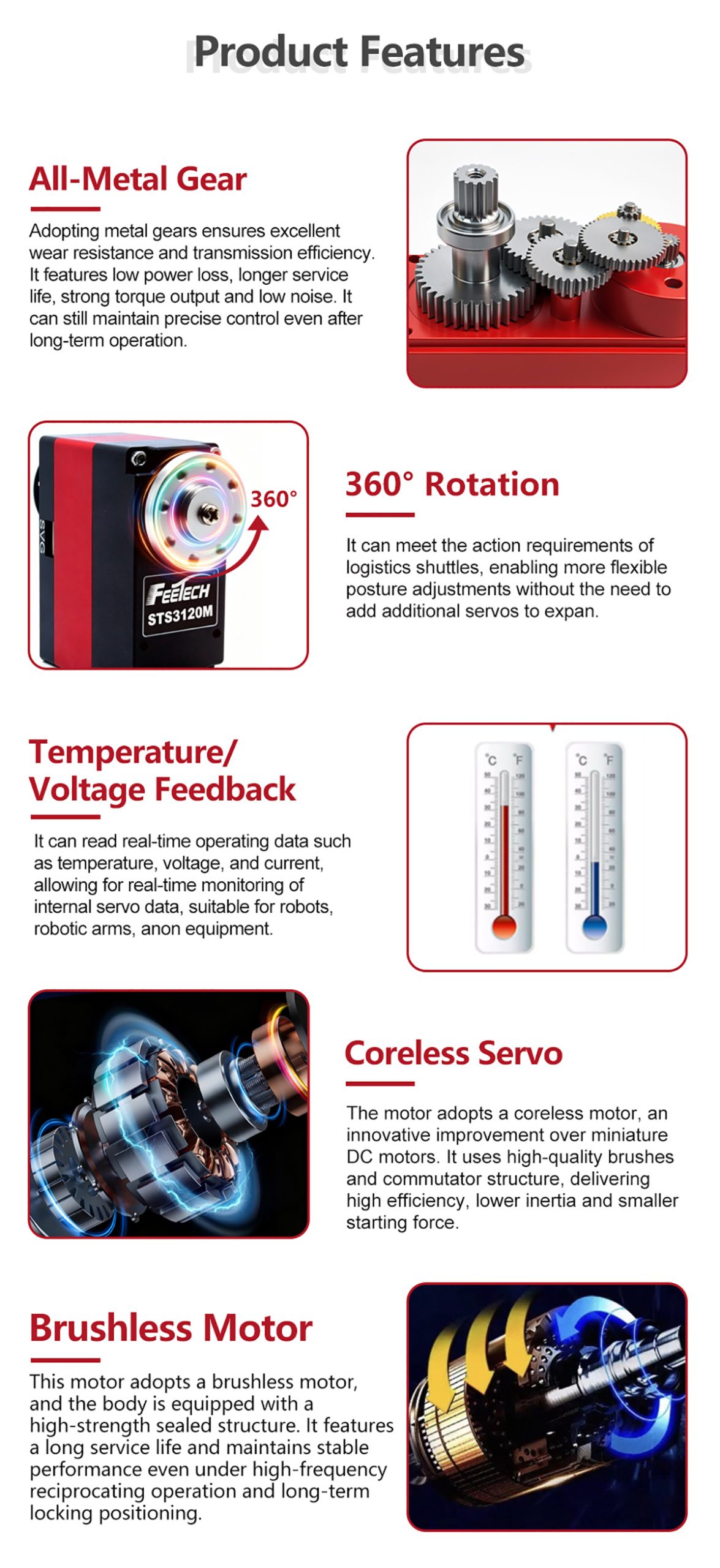

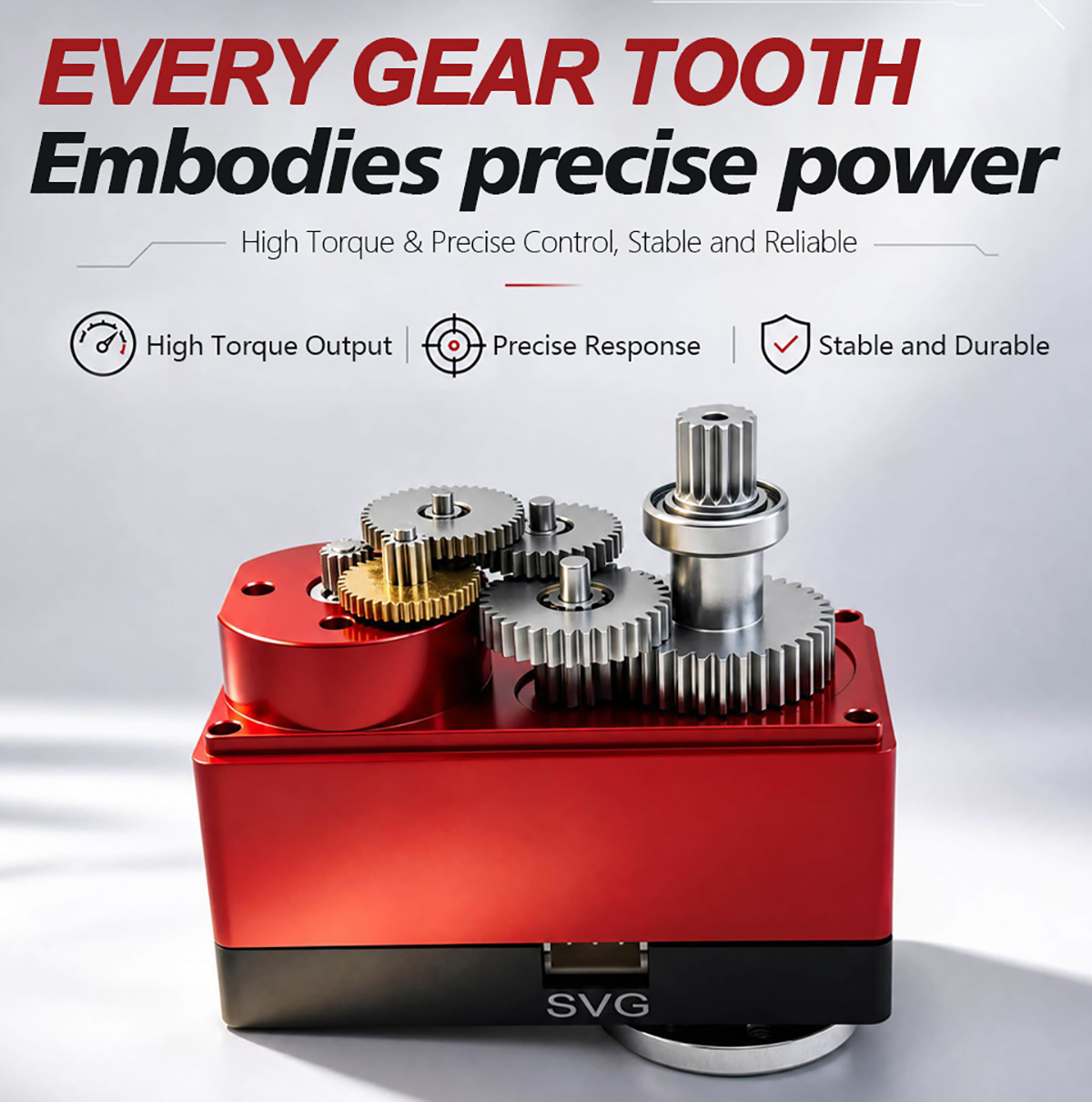

Gear Type: Steel Gear
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 15T/OD7.6mm
Rocker Backlash: 0°
Case: Aluminium
Connector Wire: 15cm
Motor: Brushless Motor
Operating Voltage Range: 9V-12V
No Load Speed: 0.263sec/60°(38RPM)@12V
No Load Running Current: 660mA@12V
Peak Stall Torque: 200kg.cm@12V
Rated Torque: 66.7kg.cm@12V
Stall Current: 11.3A@12V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication

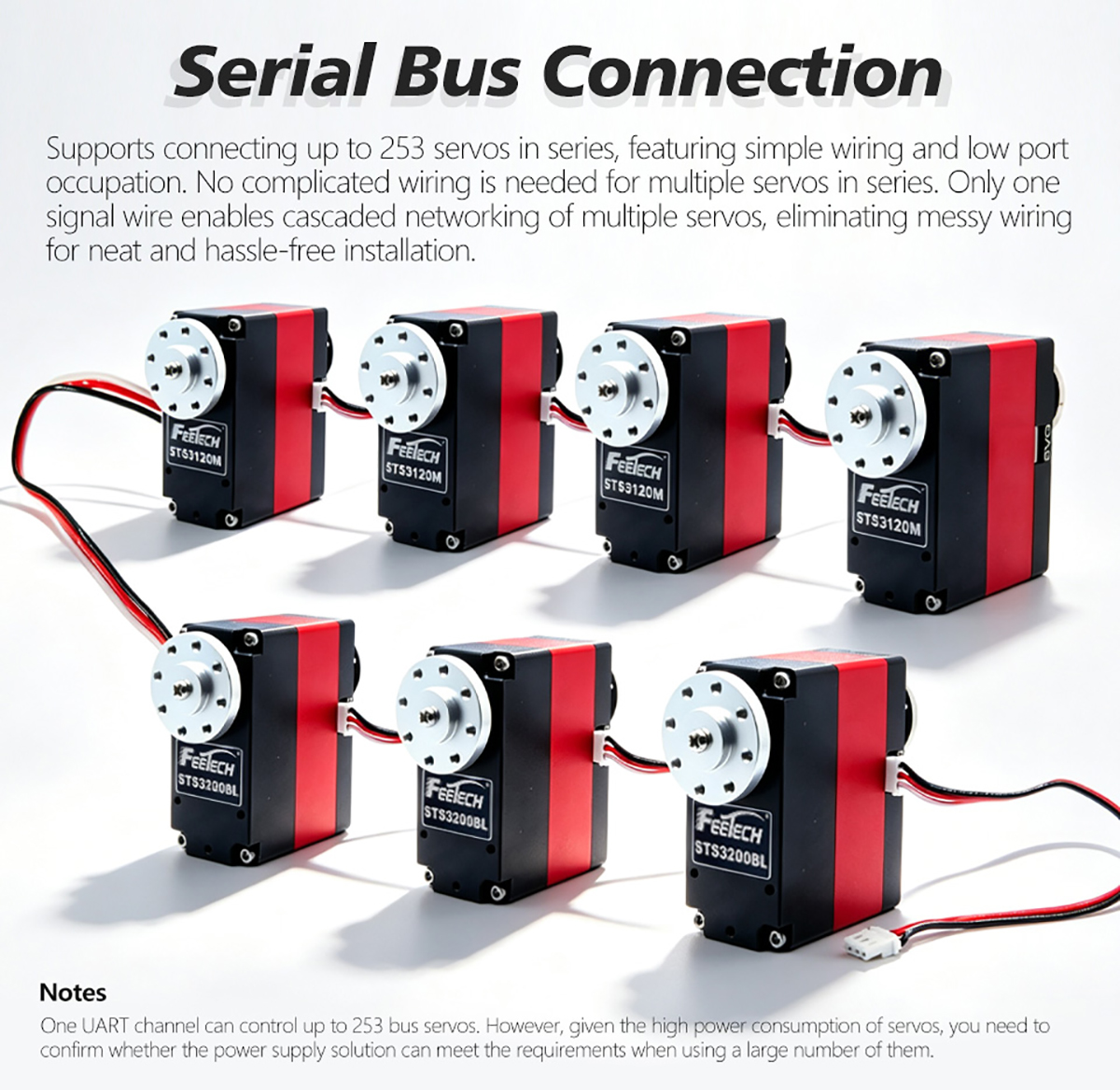

ID Range: 0-253
Baud Rate: 38400bps ~ 1Mbps

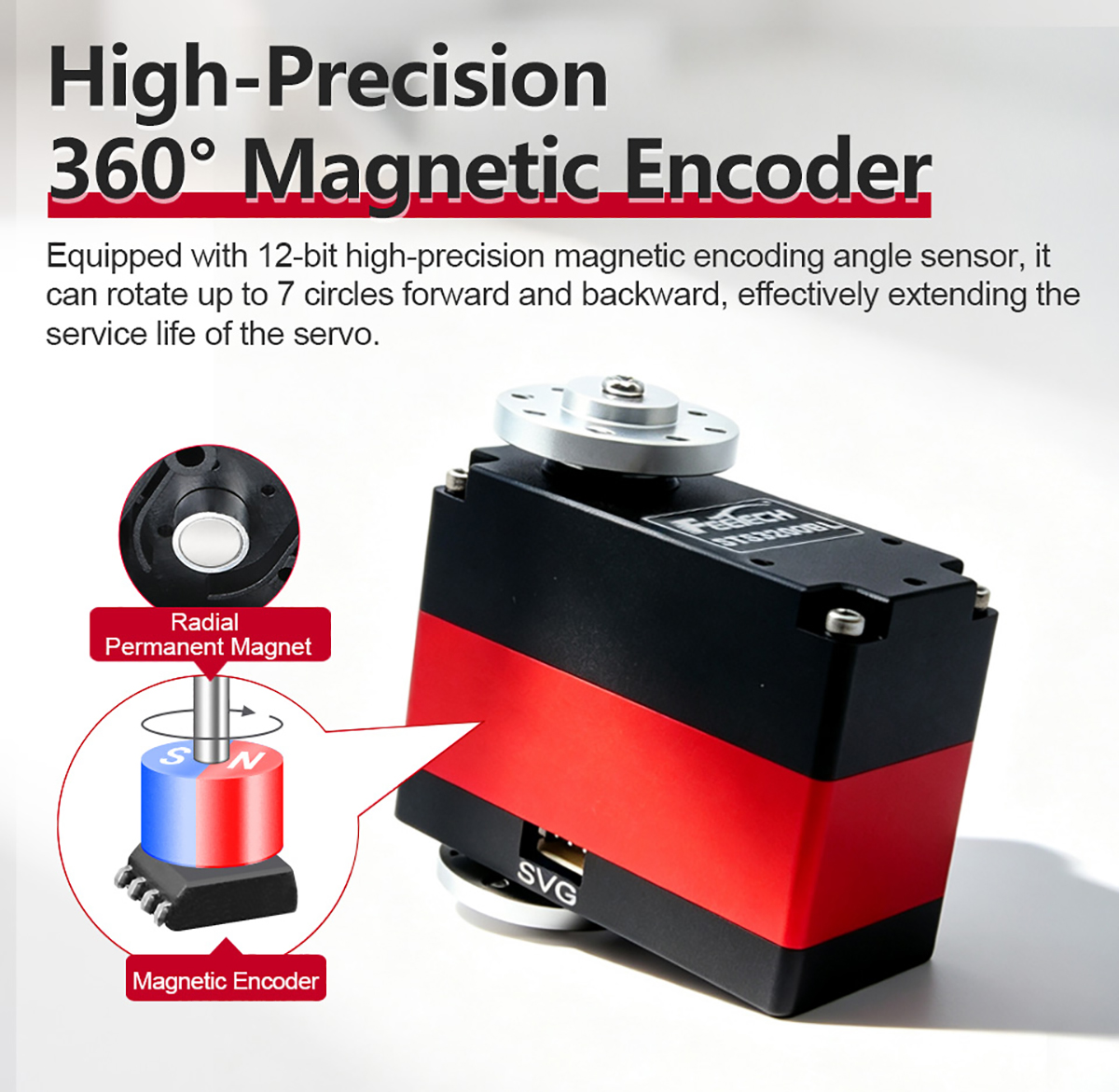

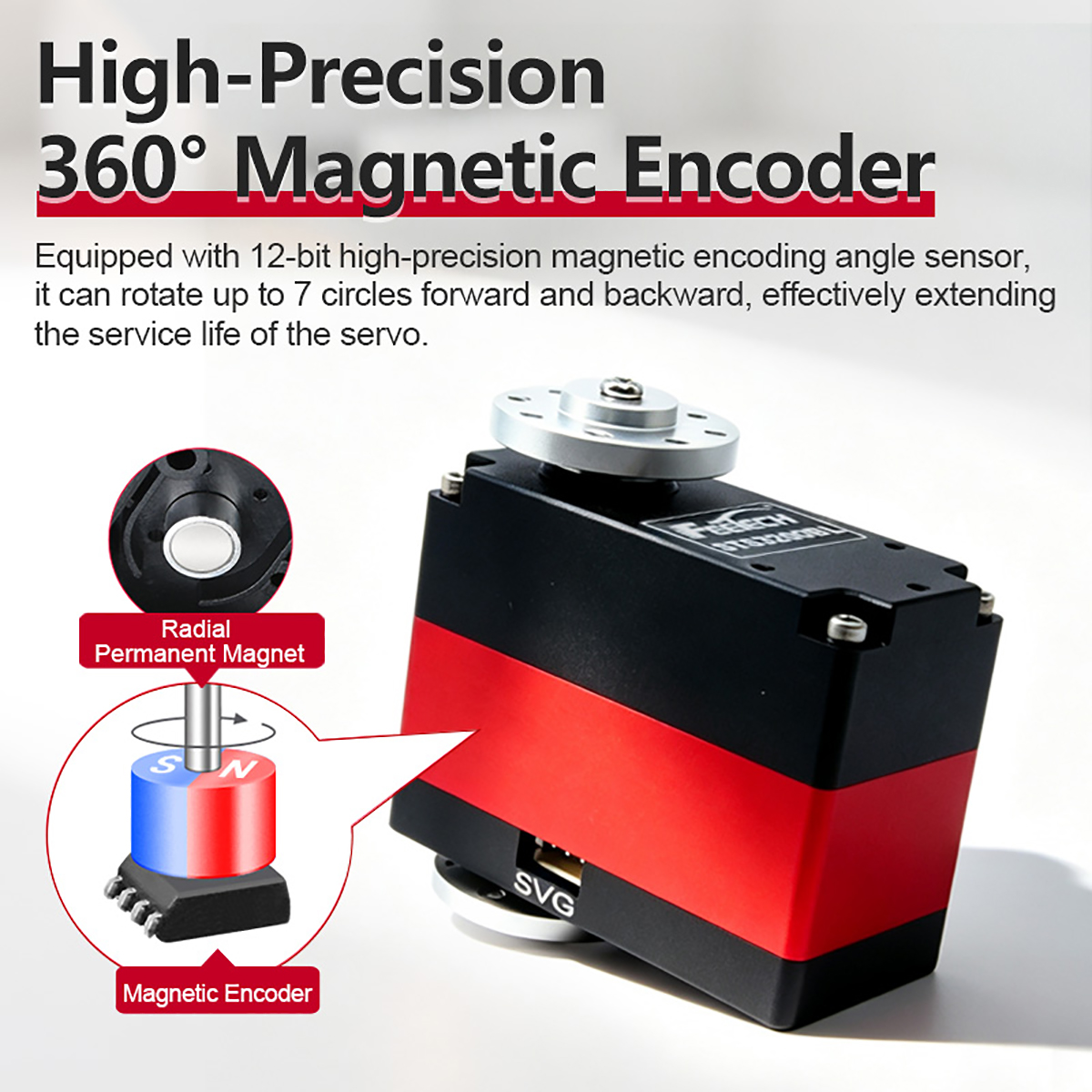

Running Degree: 360° (When 0~4096)

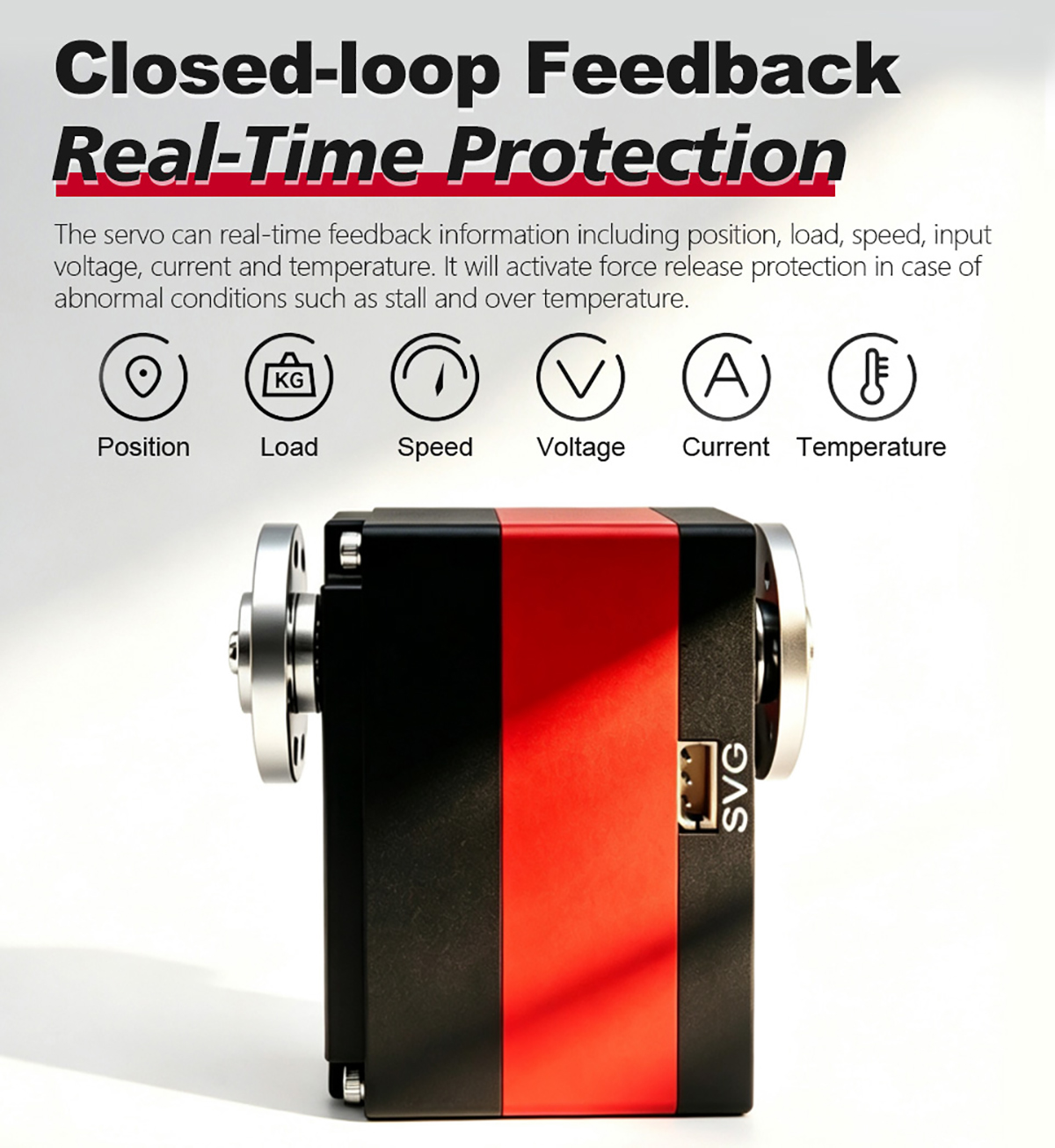

Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

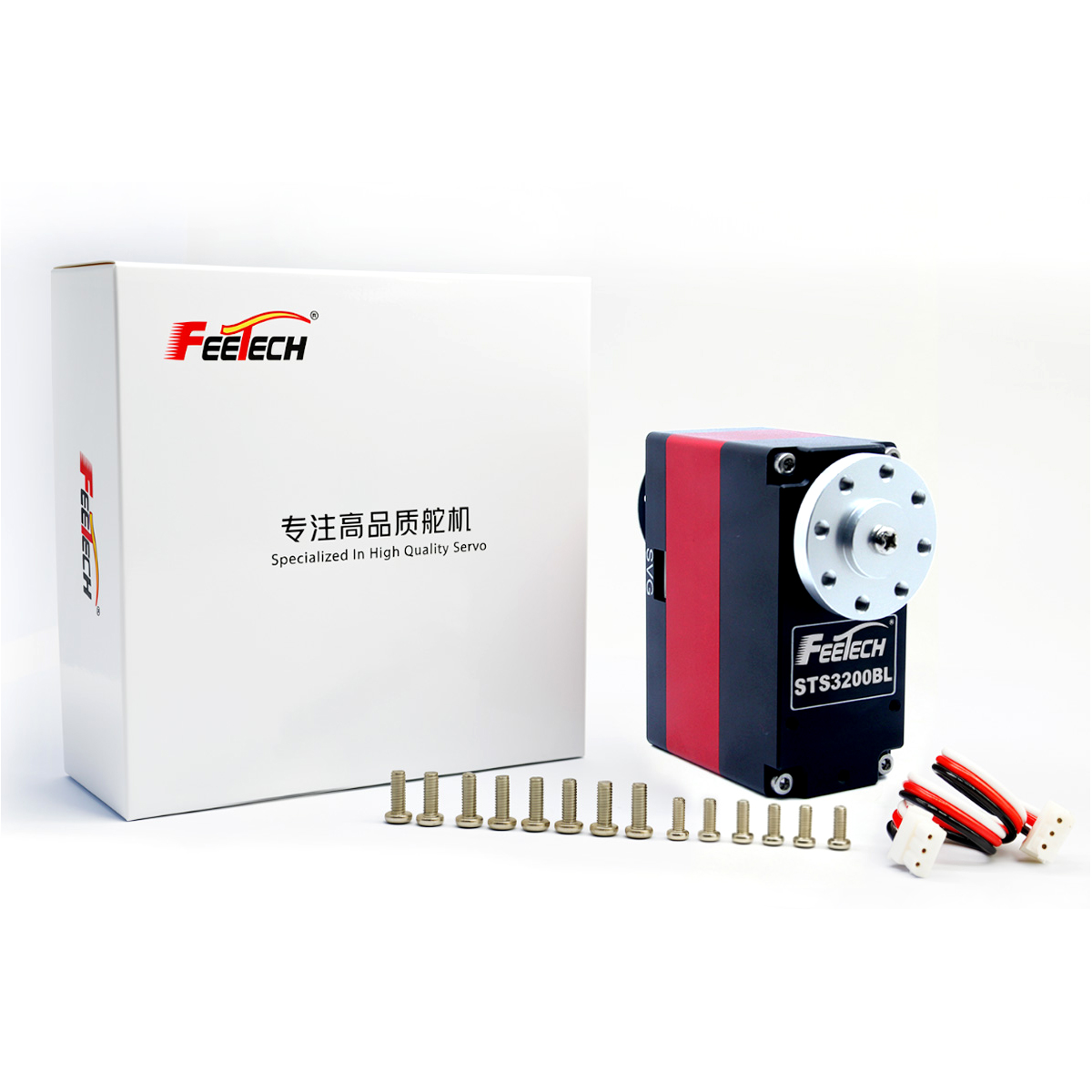

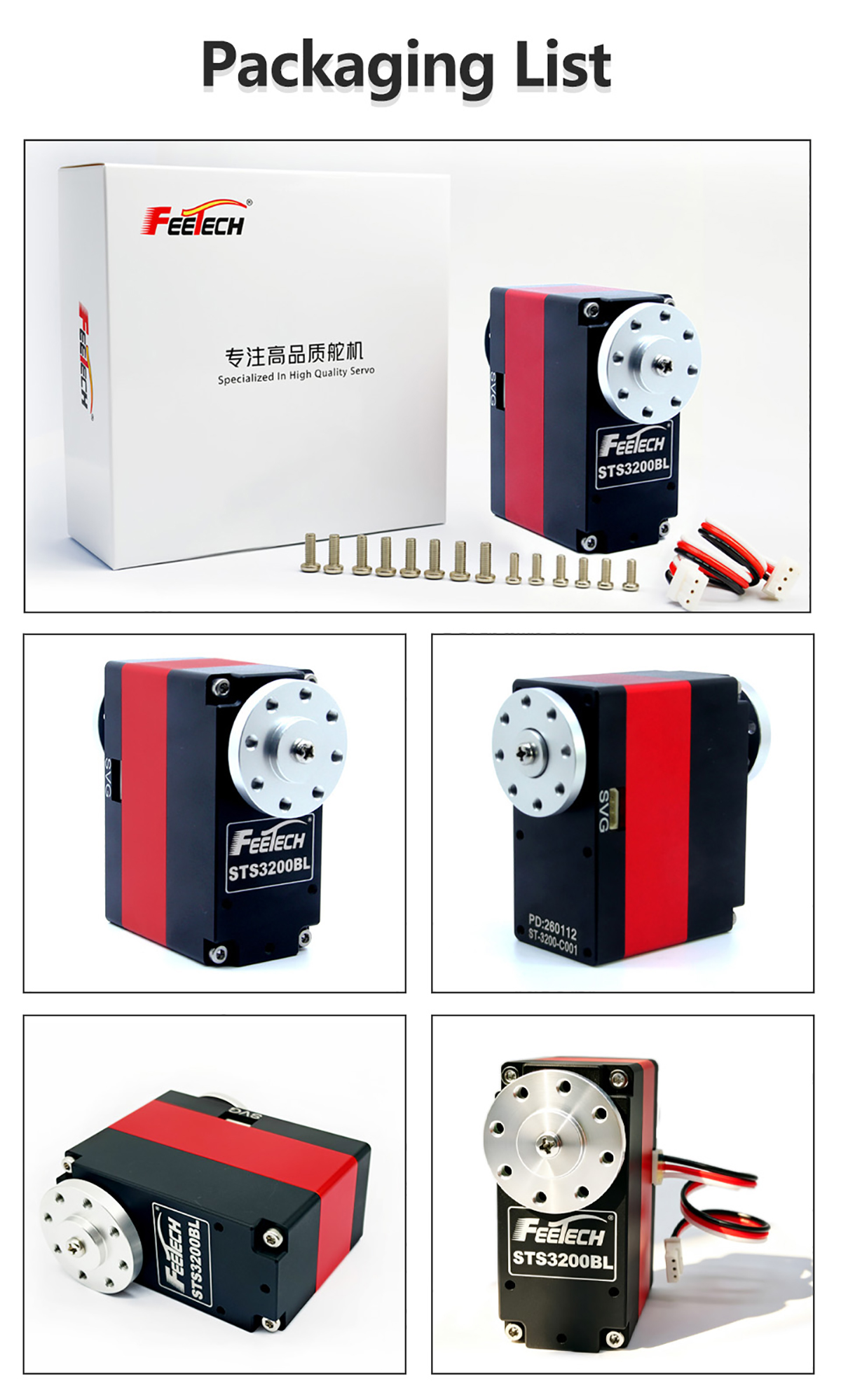

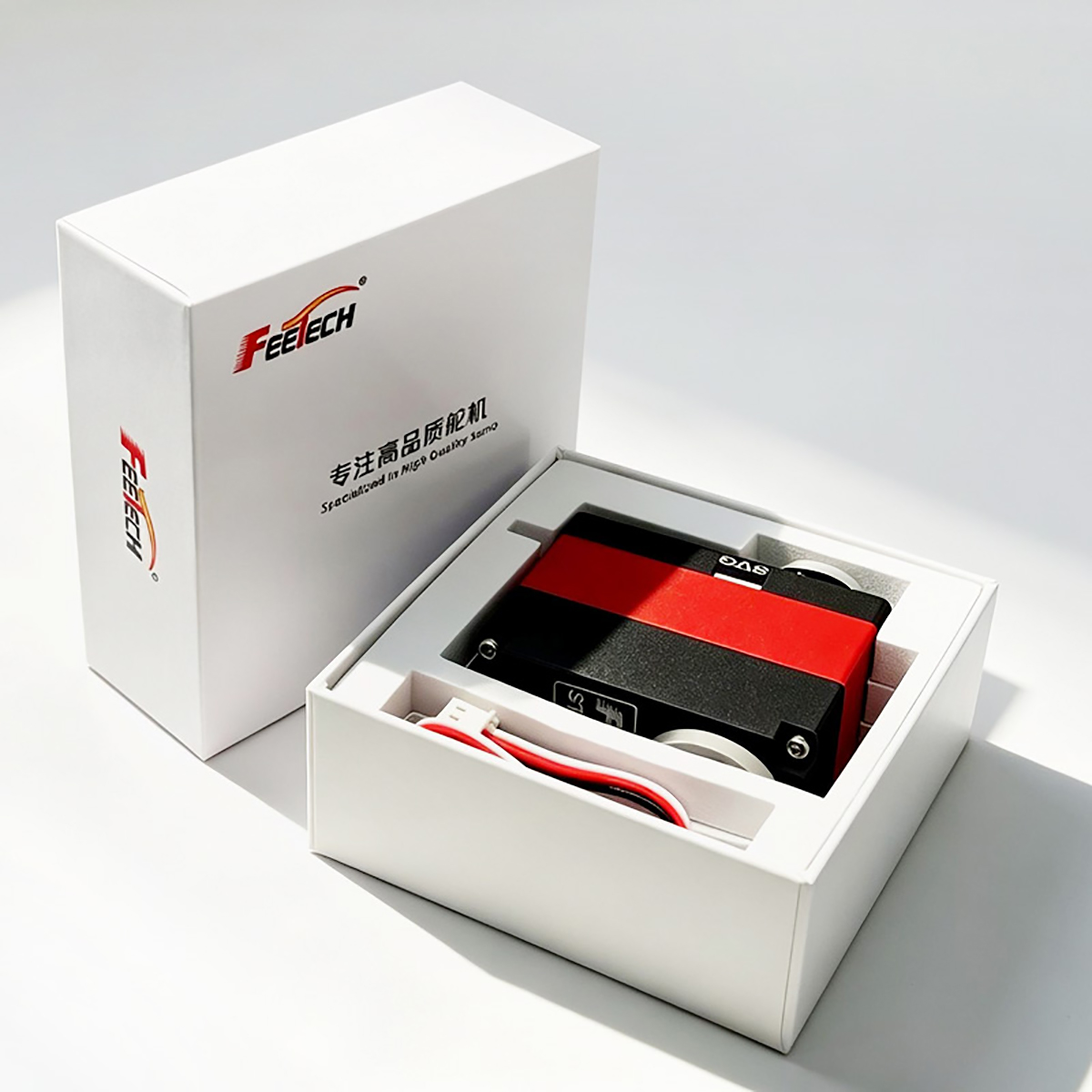

STS3200BL Servo x1
