Flipsky FSESC Mini V6.7 Pro 70A ESC Based on VESC with Aluminum Anodized Heat Sink for Surfboard Ebike
Flipsky FSESC Mini V6.7 Pro 70A ESC Based on VESC with Aluminum Anodized Heat Sink for Surfboard Ebike
Support four control modes: Current/Dutycycle/Speed /Position control mode.
Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
Model: V6.7 Pro ESC
Continuous current: 70A; instantaneous current: 200A
Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )

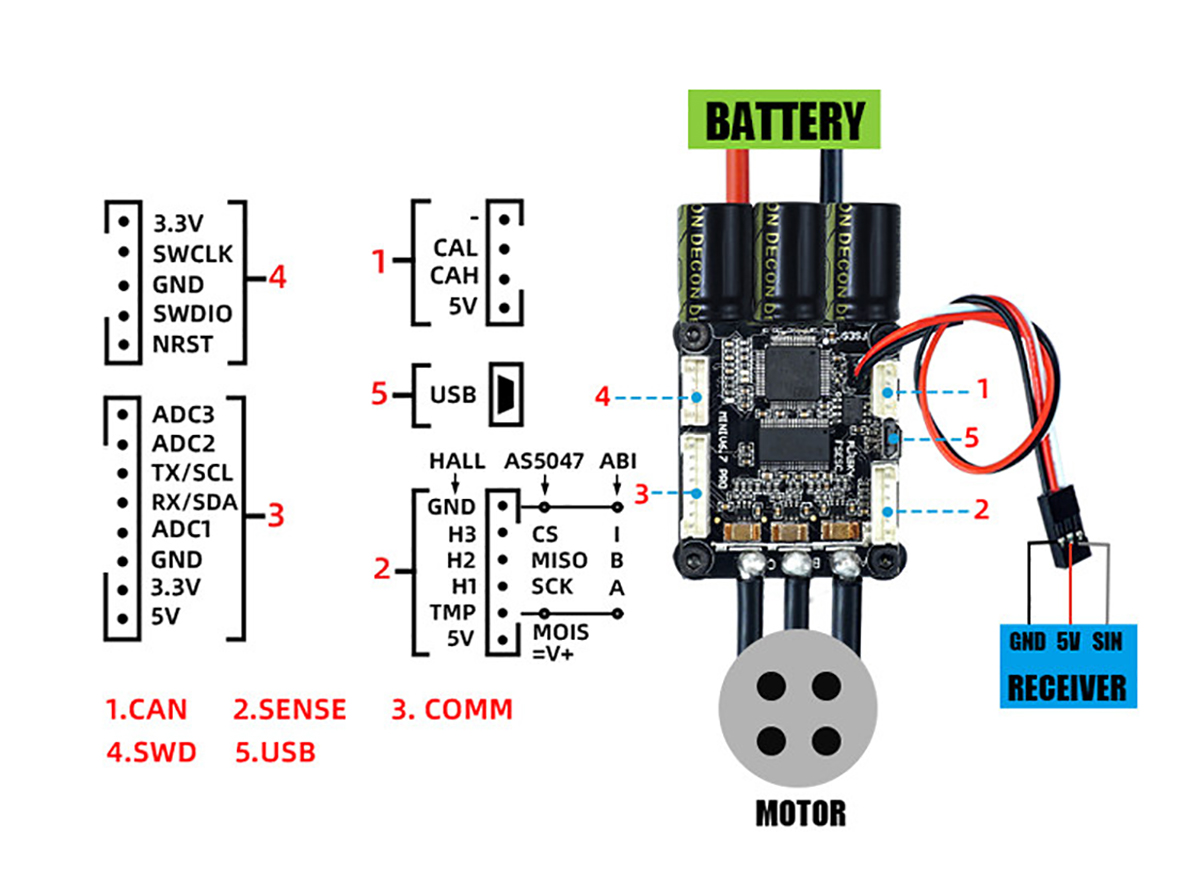

Control Interface Ports:USB,CAN,UART, SPI, IIC
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM, ADC, NRF, UART
Modes:DC, BLDC, FOC (sinusoidal)
Regenerative capacity: Yes
BEC: 5V@1A
ERPM: 150000
Programmable: Yes
Motor wire: 12AWG
Power cable:12AWG

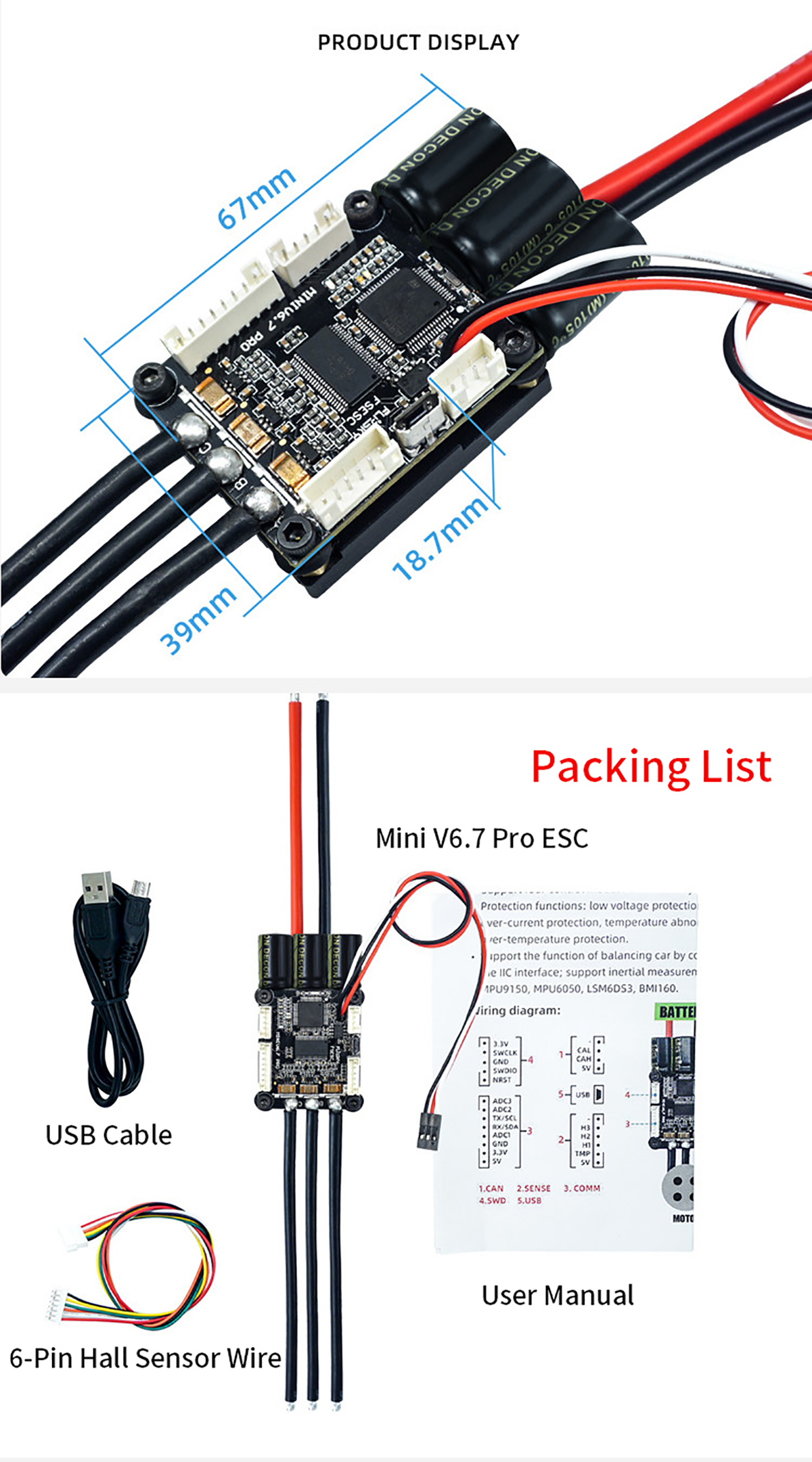

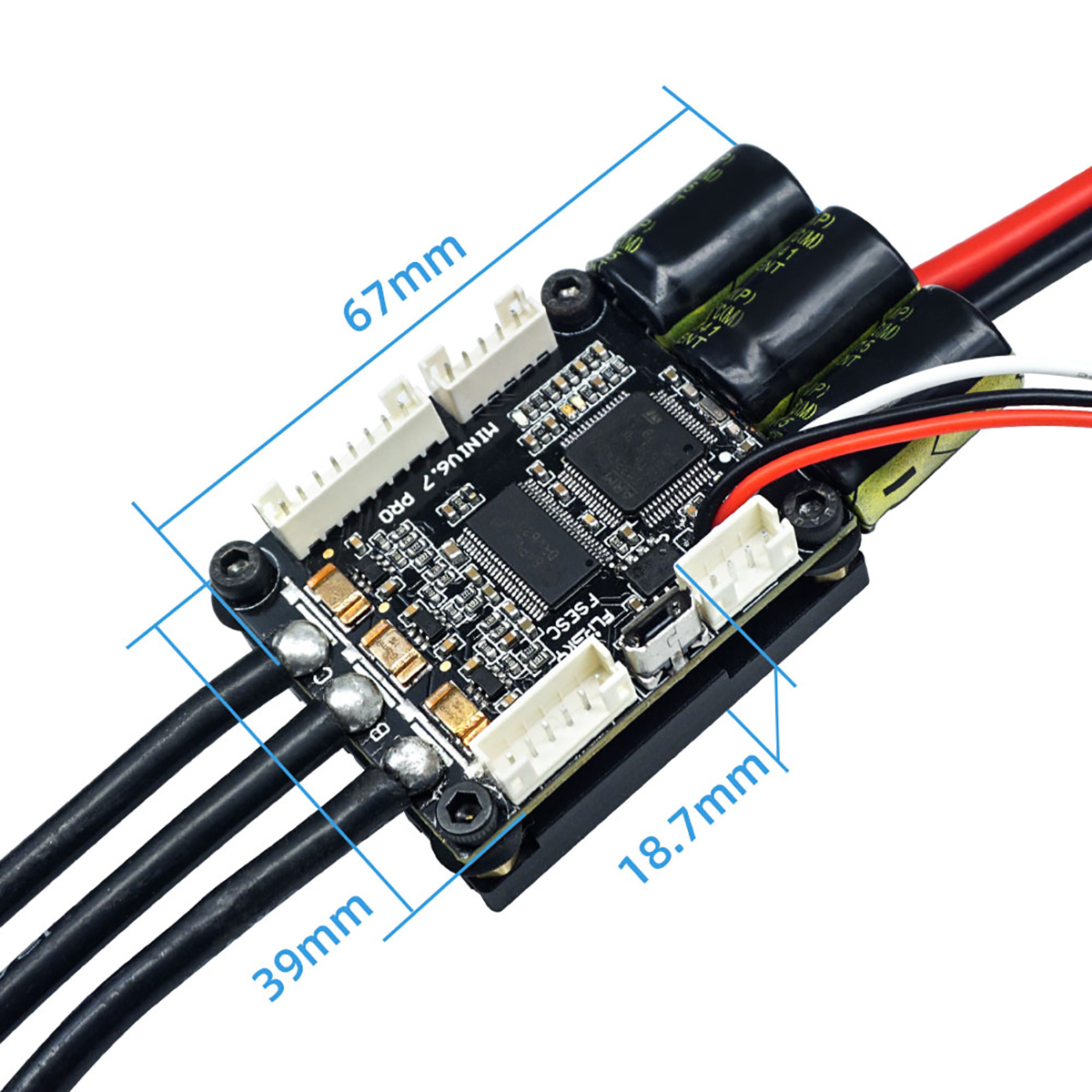

Size:67x39x18.7mm(Including heatsink)
Weight: 130g

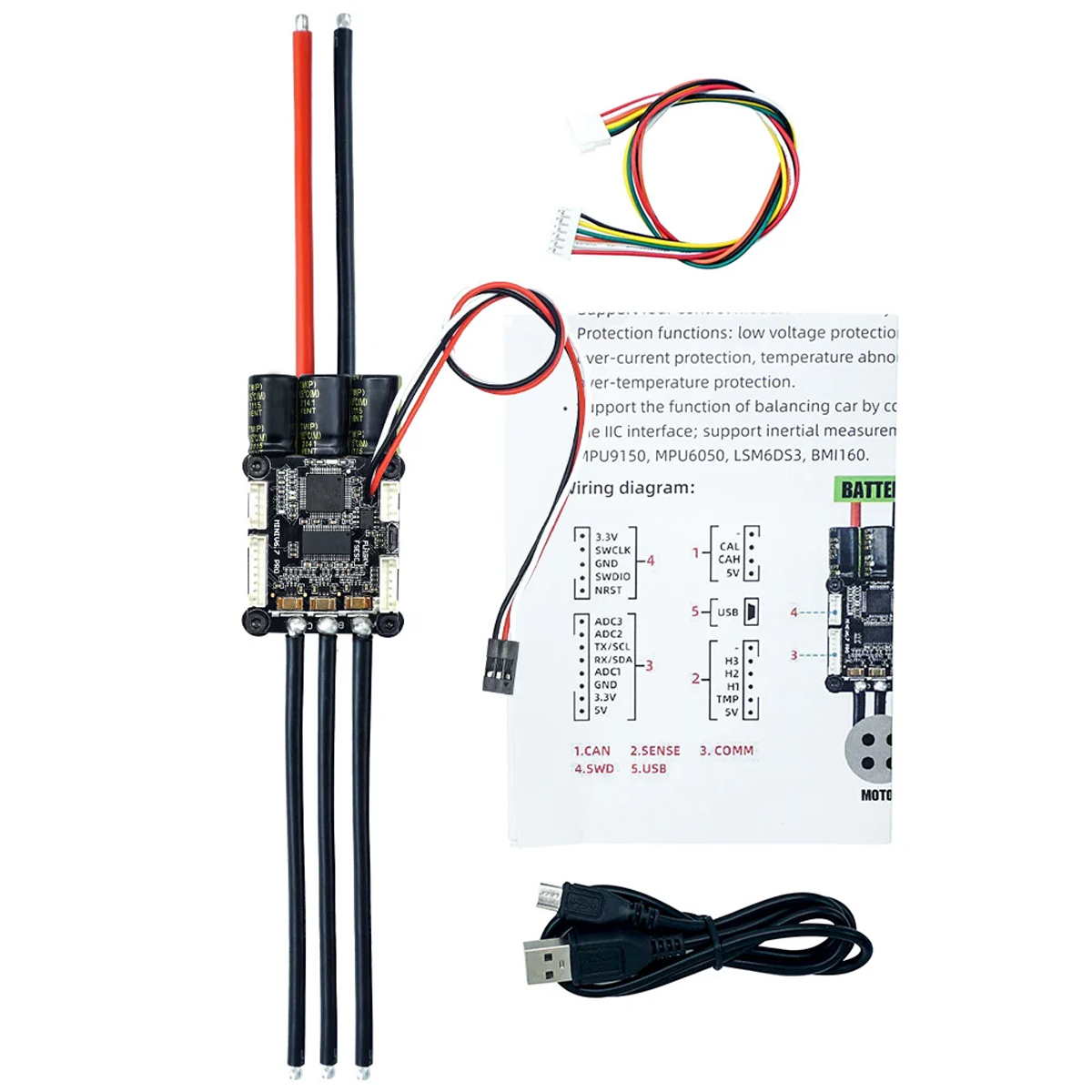

V6.7 Pro ESC x1
