Flysky FGr4D 4 Channel Receive Dual Antennas AFHDS3 Protocol Waterproof Lightweight for RC Car Boat
Flysky FGr4D 4 Channel Receive Dual Antennas AFHDS3 Protocol Waterproof Lightweight for RC Car Boat

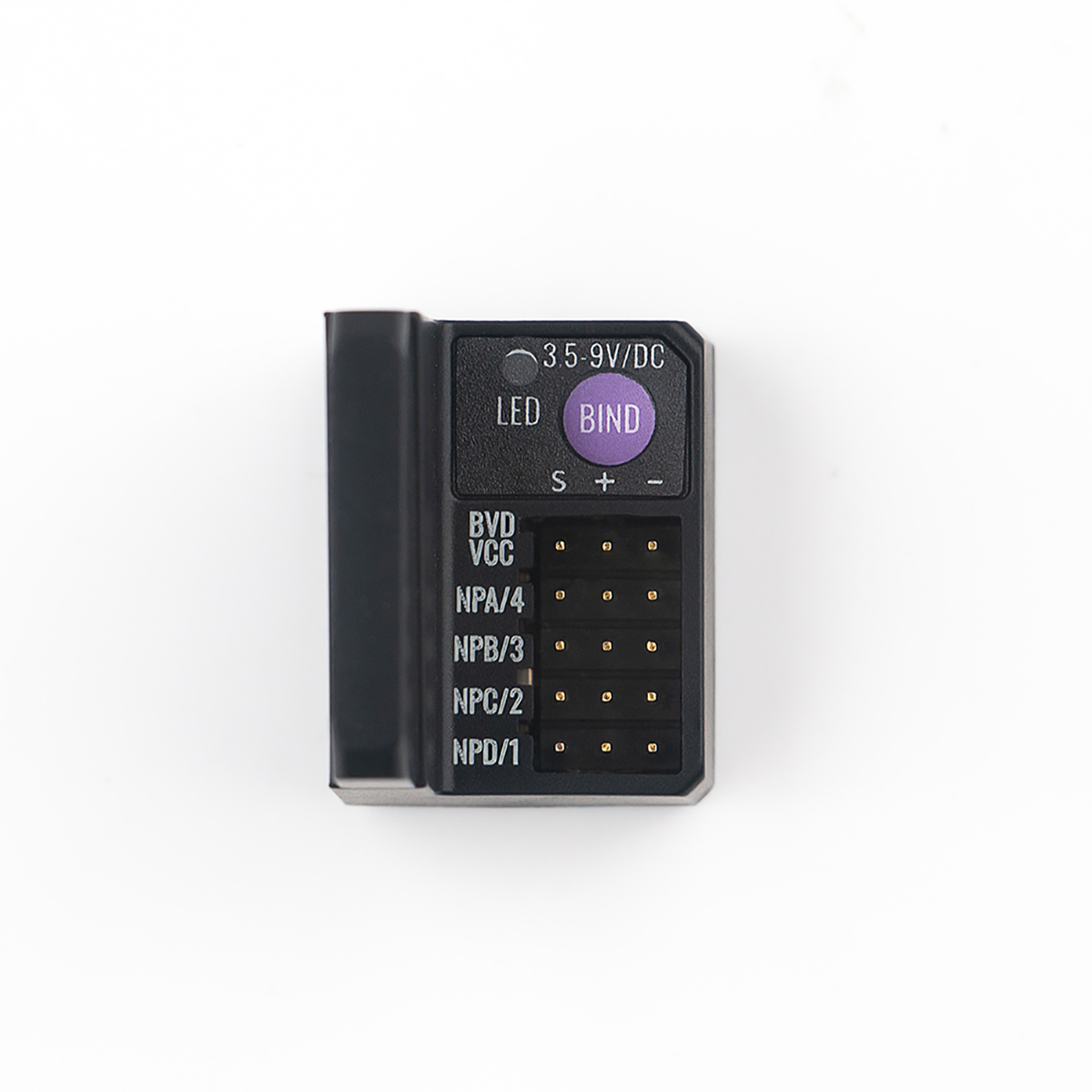

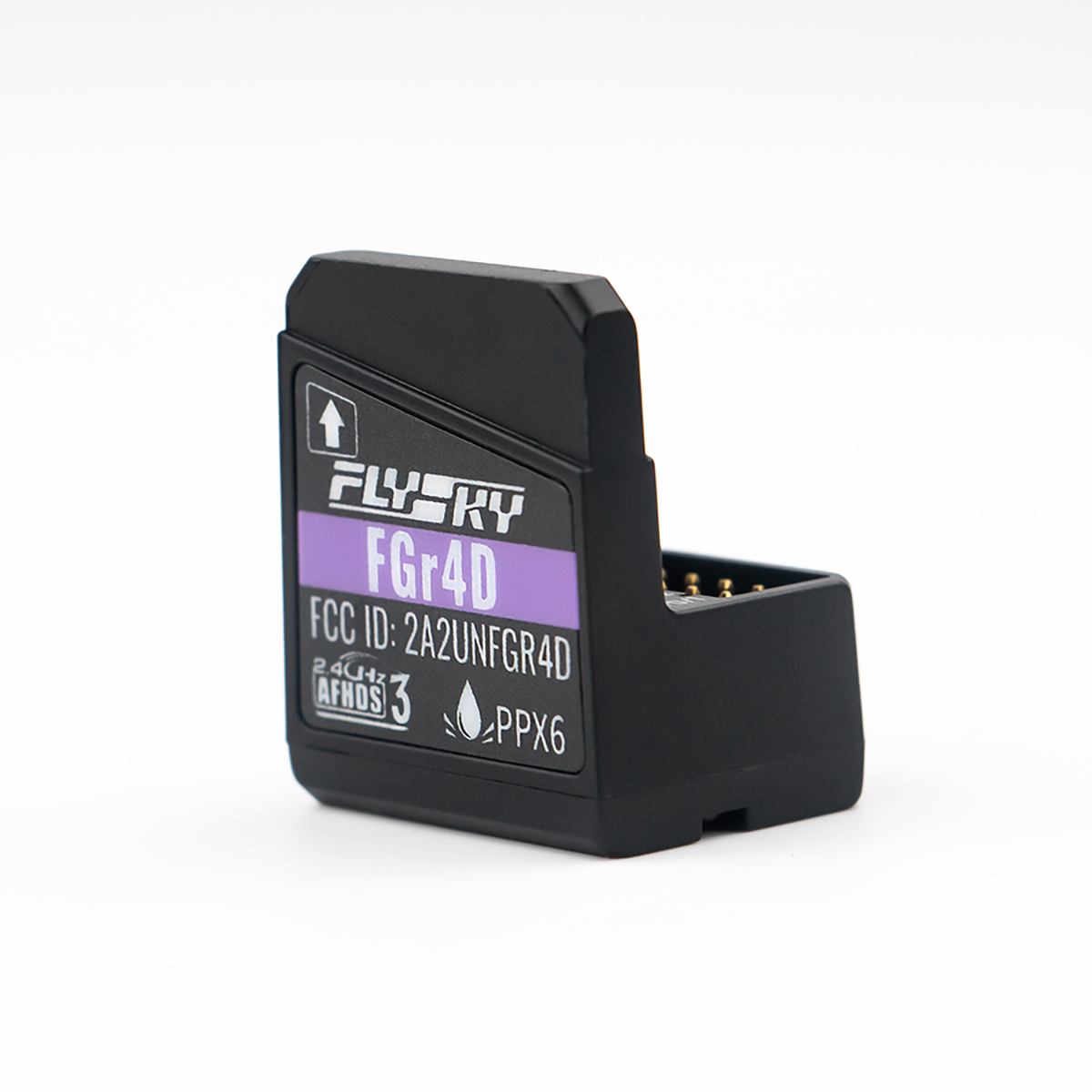

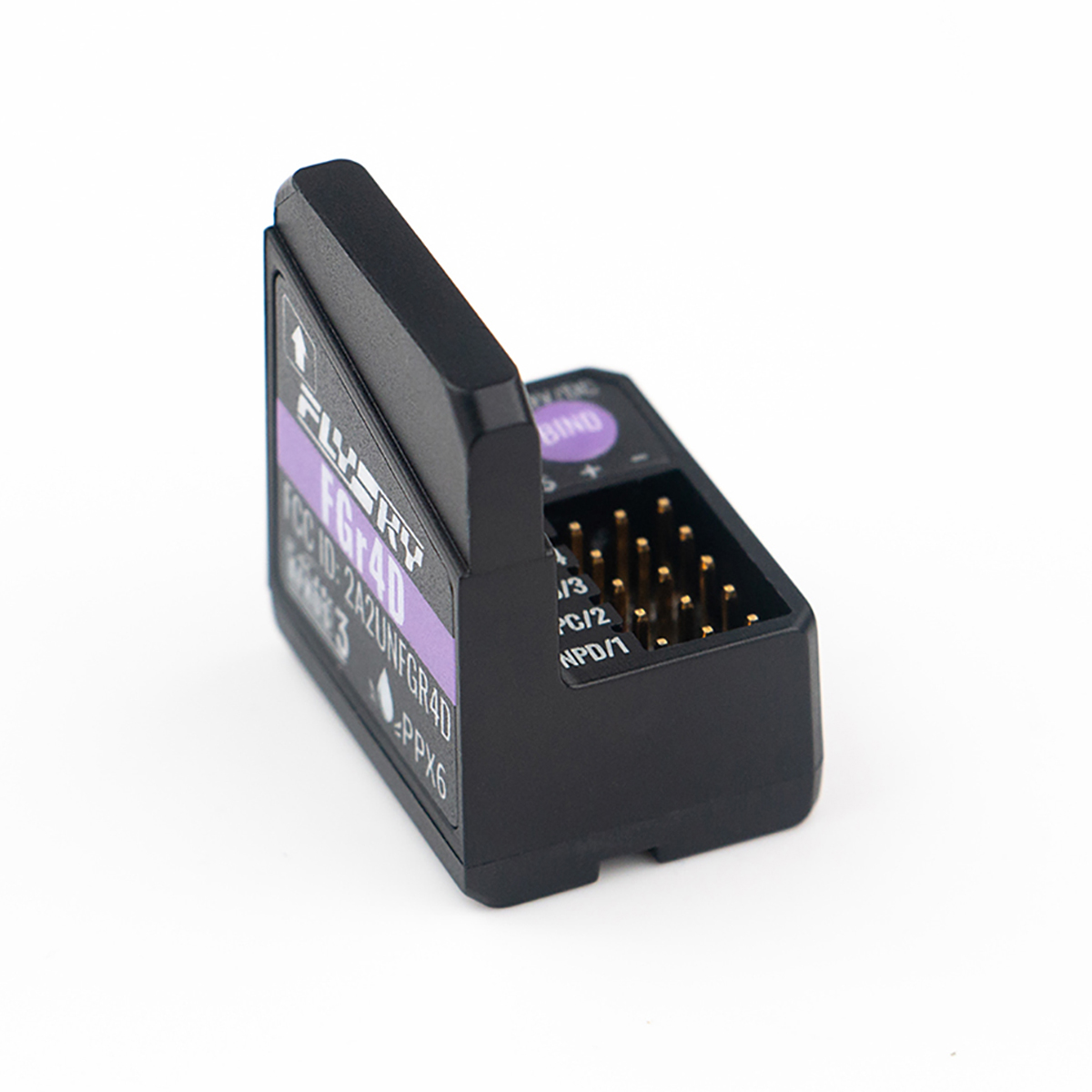

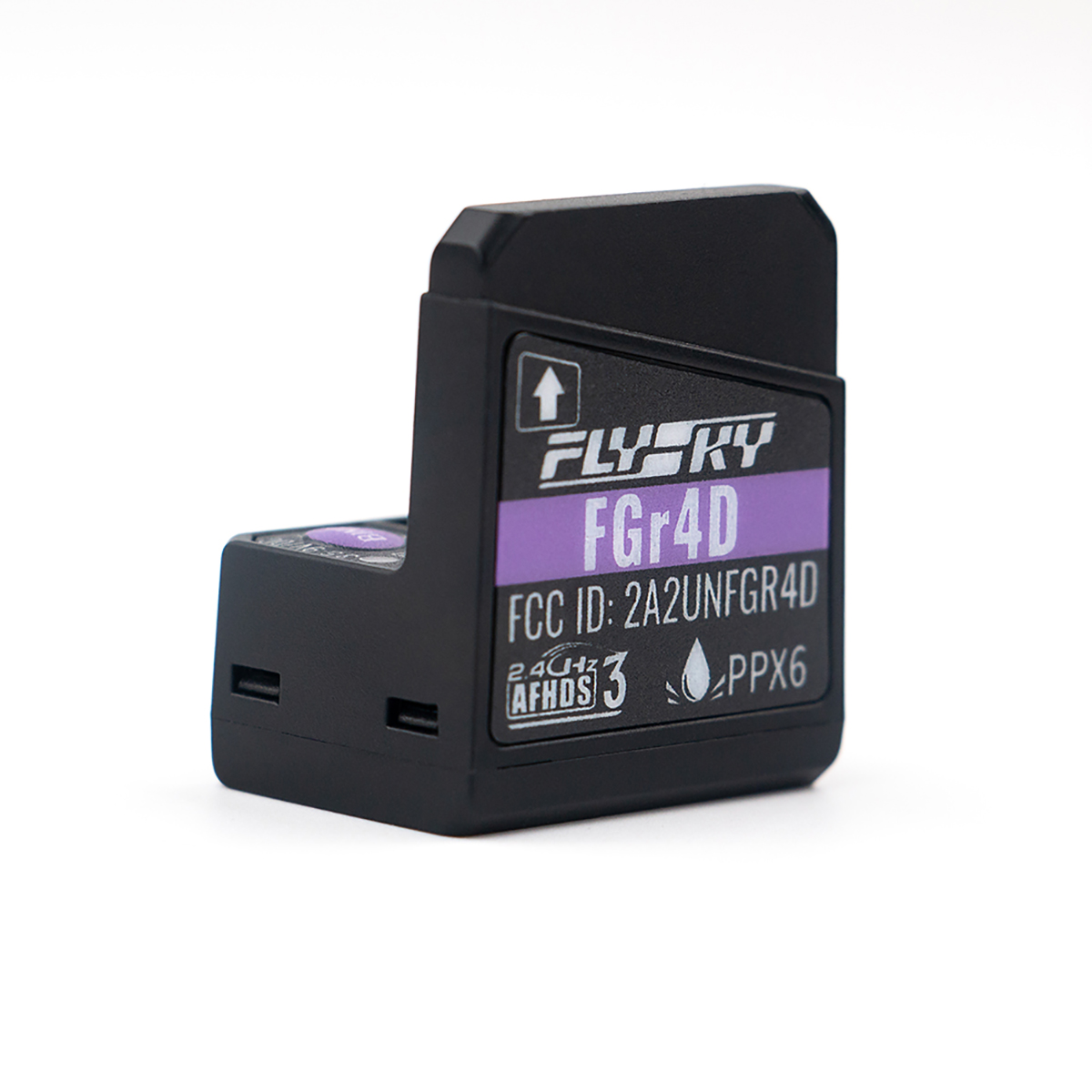

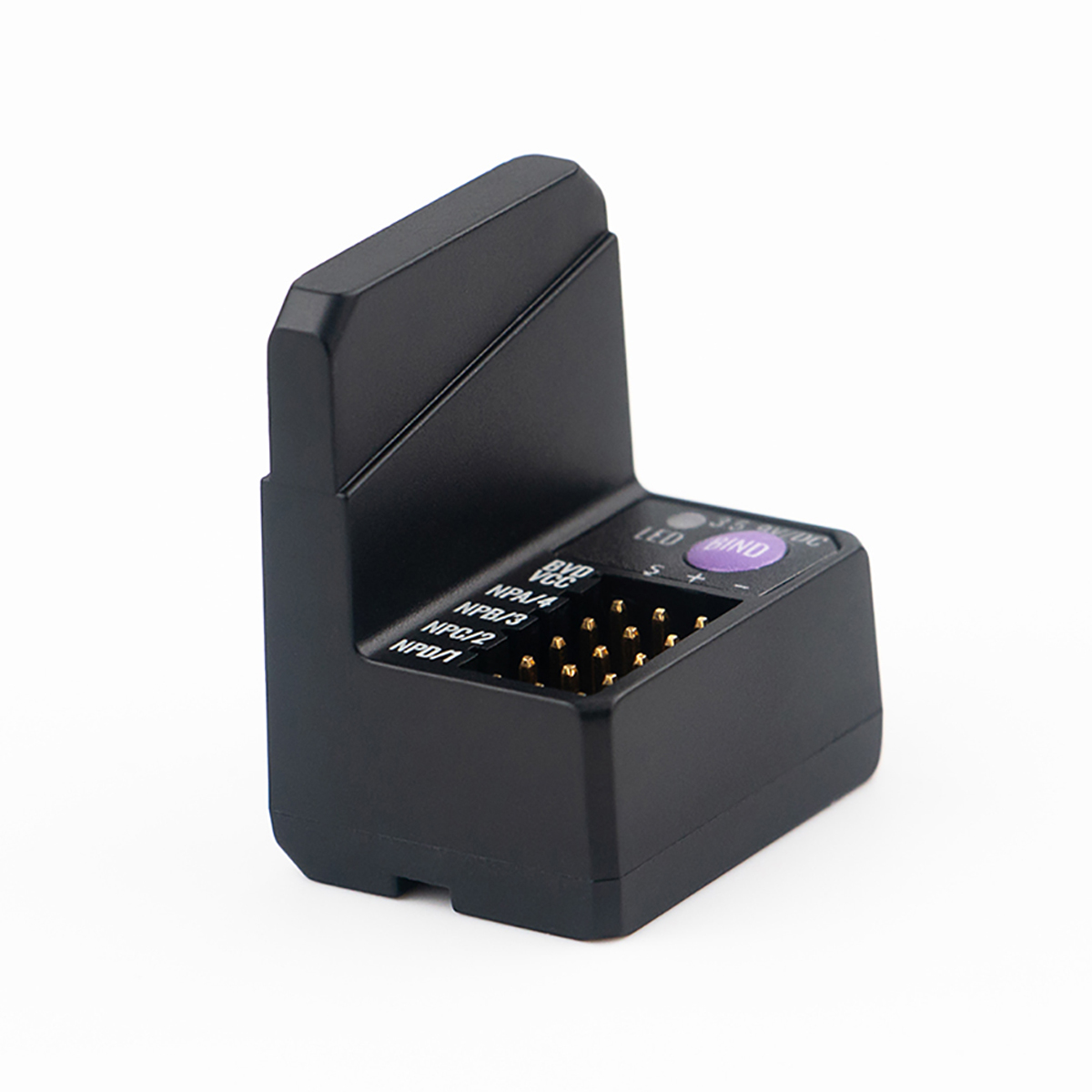

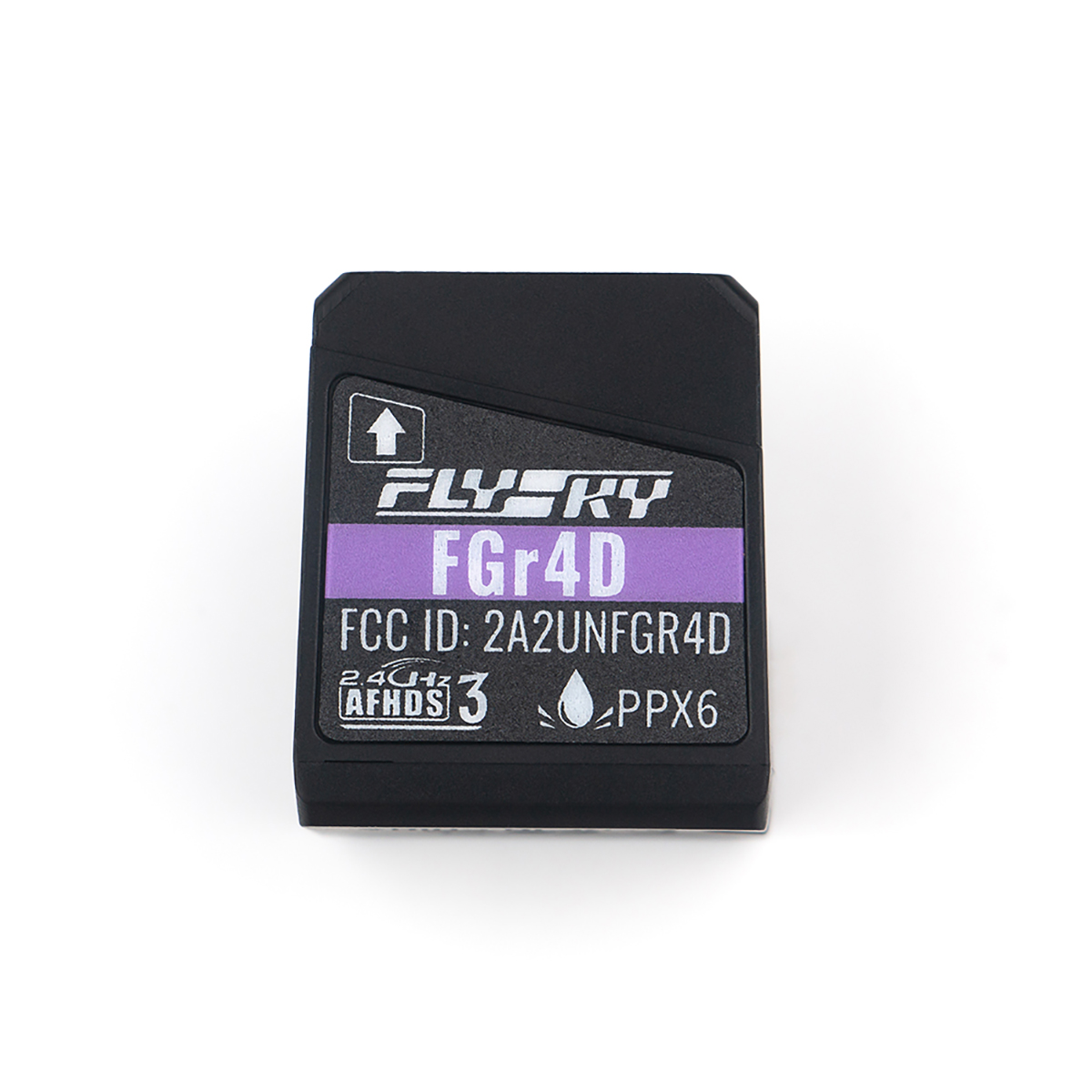

TheFGr4Disafour-channeltwo-way receiverbasedonAFHDS3(ThirdGenerationAutomatic FrequencyHoppingDigitalSystem)protocol. This receiverfeaturesdual antennas,PPX6nanowaterproof, compact andlightweightdesign.It supports 4Newportfunctioninterfaces (Newport canbe customizedwithinputoroutput signaltypes: i-BUS2/S.BUS/i-BUS/PPM).The FGr4Dcanbeusedas aPWM converter, adaptable toamodel carormodelboat.

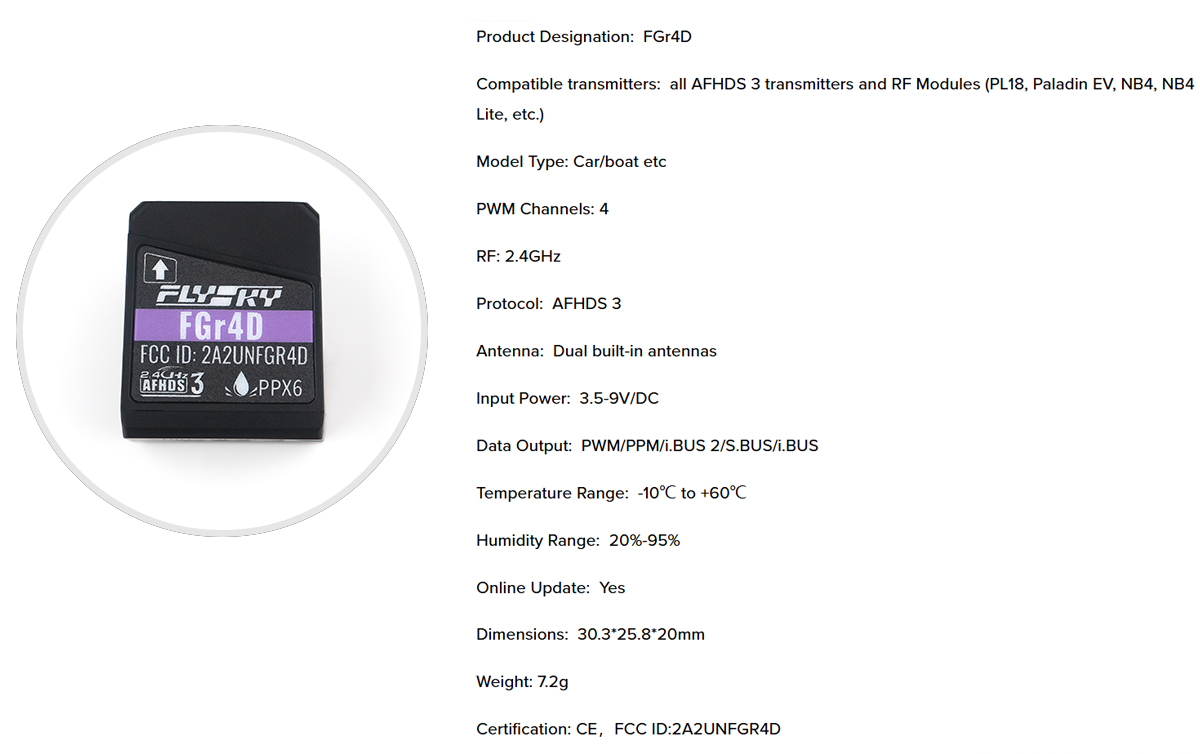

Model: FGr4D
Adaptive Transmitters: All Transmitters with AFHDS3 Protocol
Adaptive Models: Cars or Boats, ect.
PWM Channels: 4
RF: 2.4GHz ISM
Protocol: AFHDS3
Maximum Power: < 20dBm (e.i.r.p.) （EU）
Antenna: Two Bulit-in Antennas
Input Power: 3.5~9V/DC
Working Current: ≤ 50mA/5V

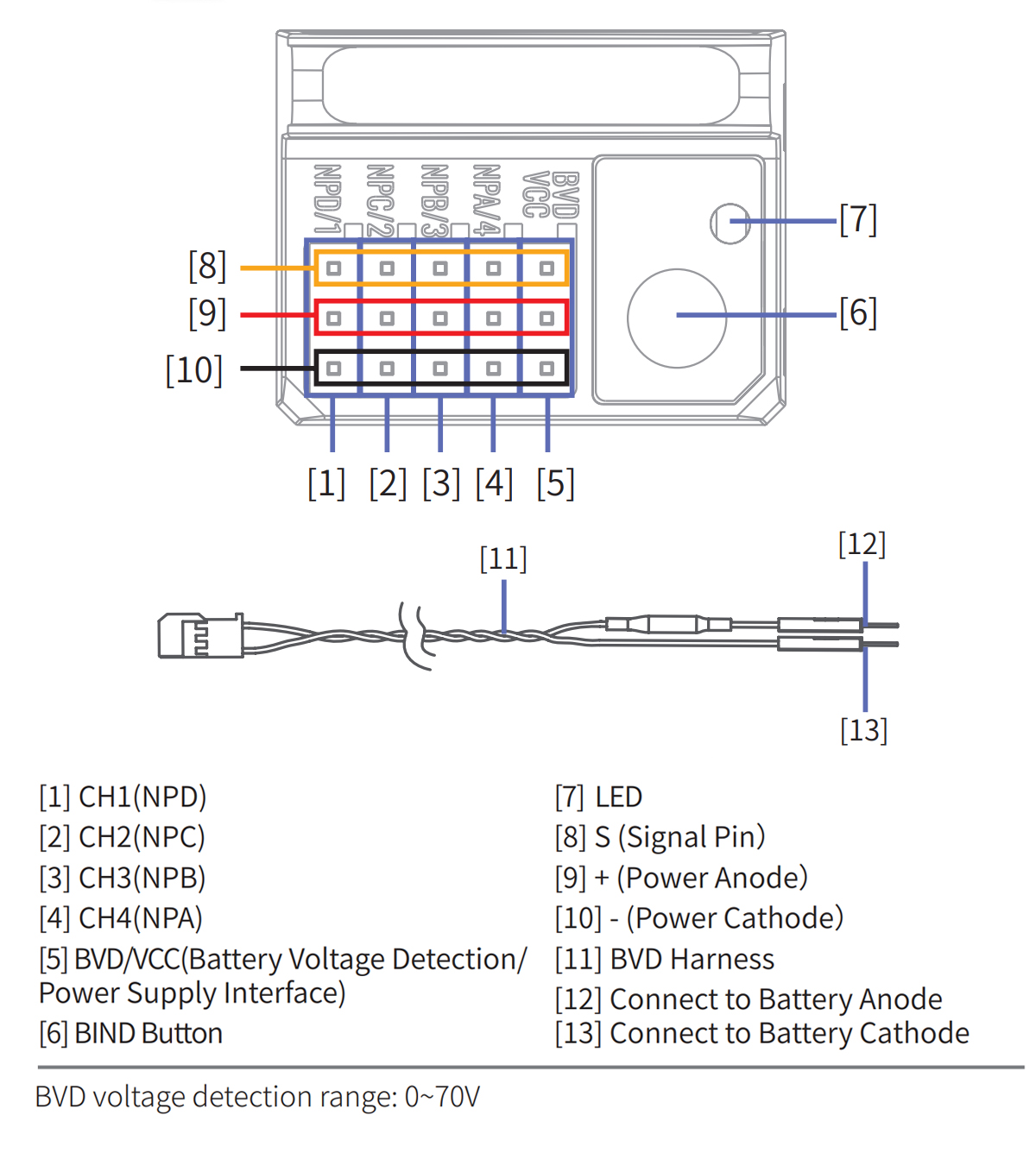

Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20%~ 95%
WaterProof: PPX6
OnlineUpdate: Yes
Dimensions: 30.3*25.8*20mm
Weight: 7.2g

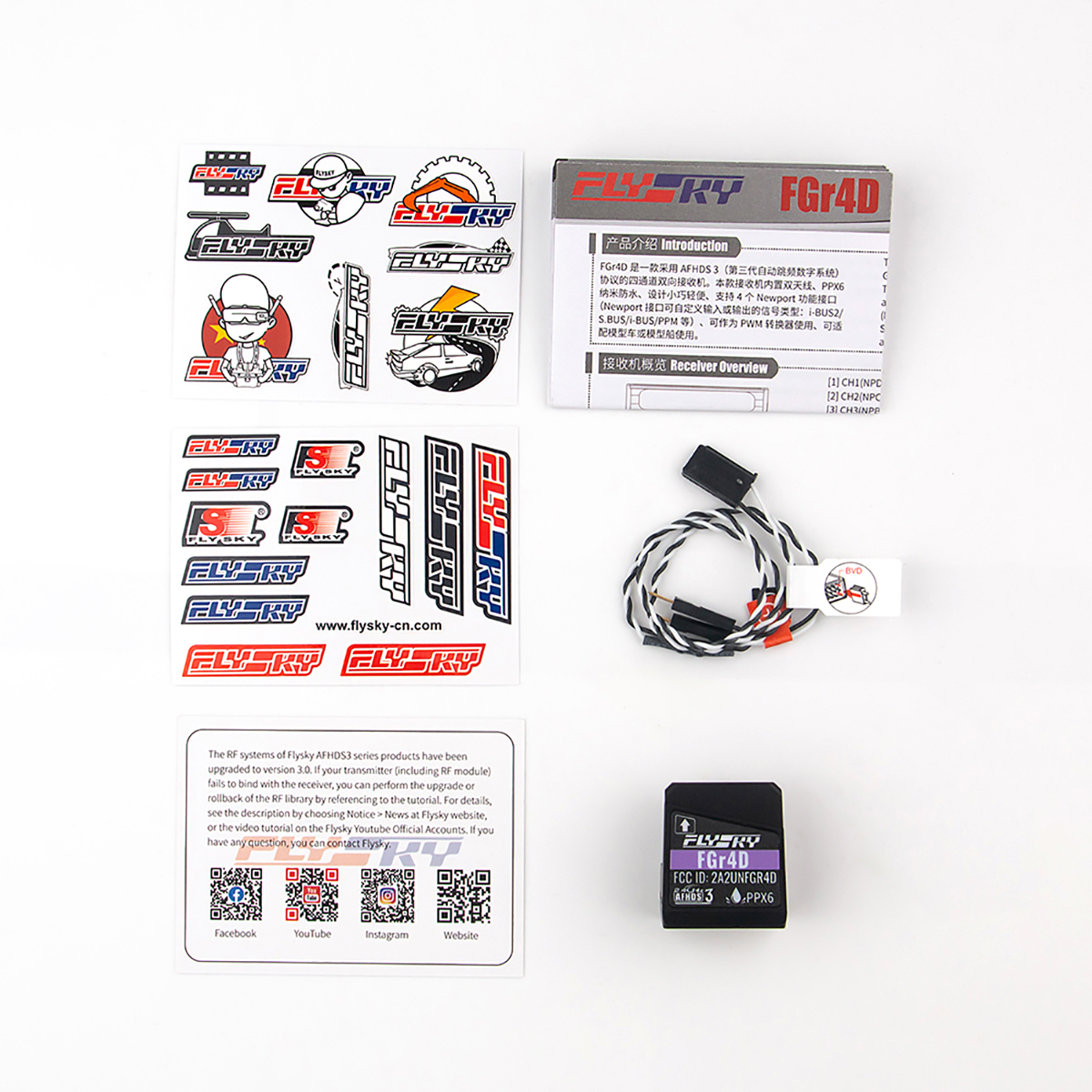

FS-FGR4D Receiver x1
