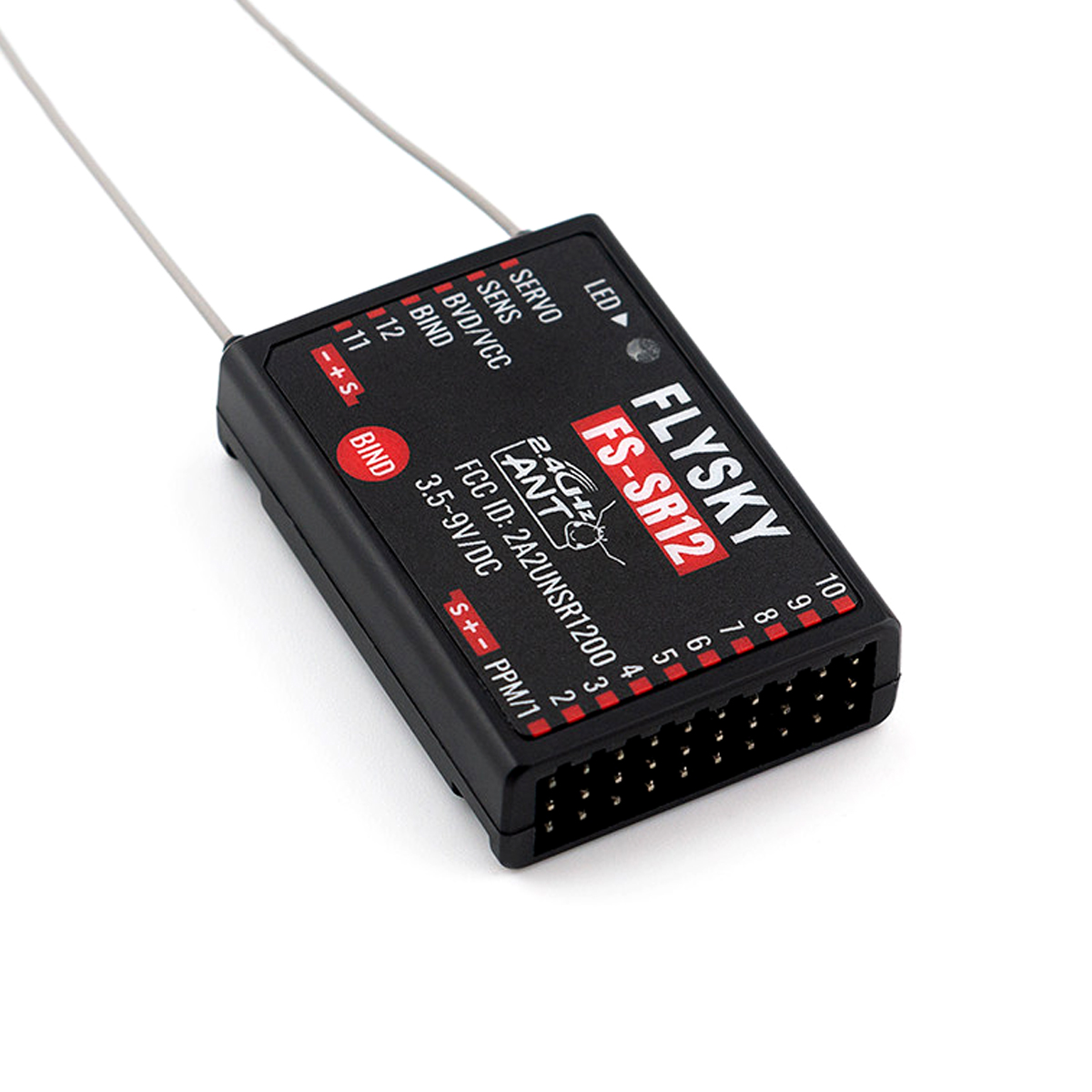

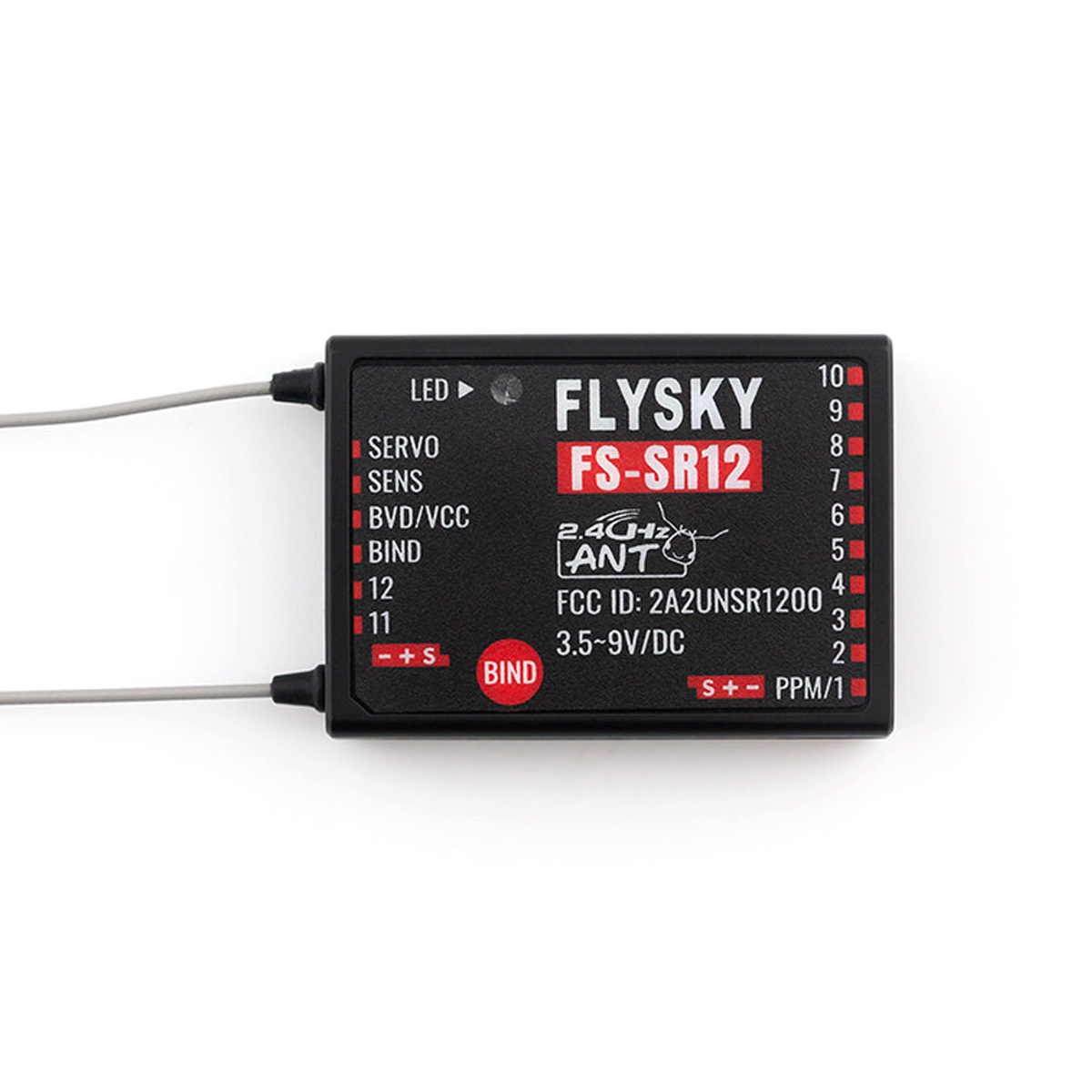

Flysky FS-SR12 12-Channel 2.4G Receiver Dual Antenna ANT Protocol for RC Fixed-Wing Aircraft Car Boat
Flysky FS-SR12 12-Channel 2.4G Receiver Dual Antenna ANT Protocol for RC Fixed-Wing Aircraft Car Boat
FS-SR12 is a receiver in compliance with the ANT protocol, supporting the output of 12 PWM channels signals. It has two antennas, supporting two-way transmission, transfer-back function and BVD function, featuring the compact design, adaption to a variety of models.

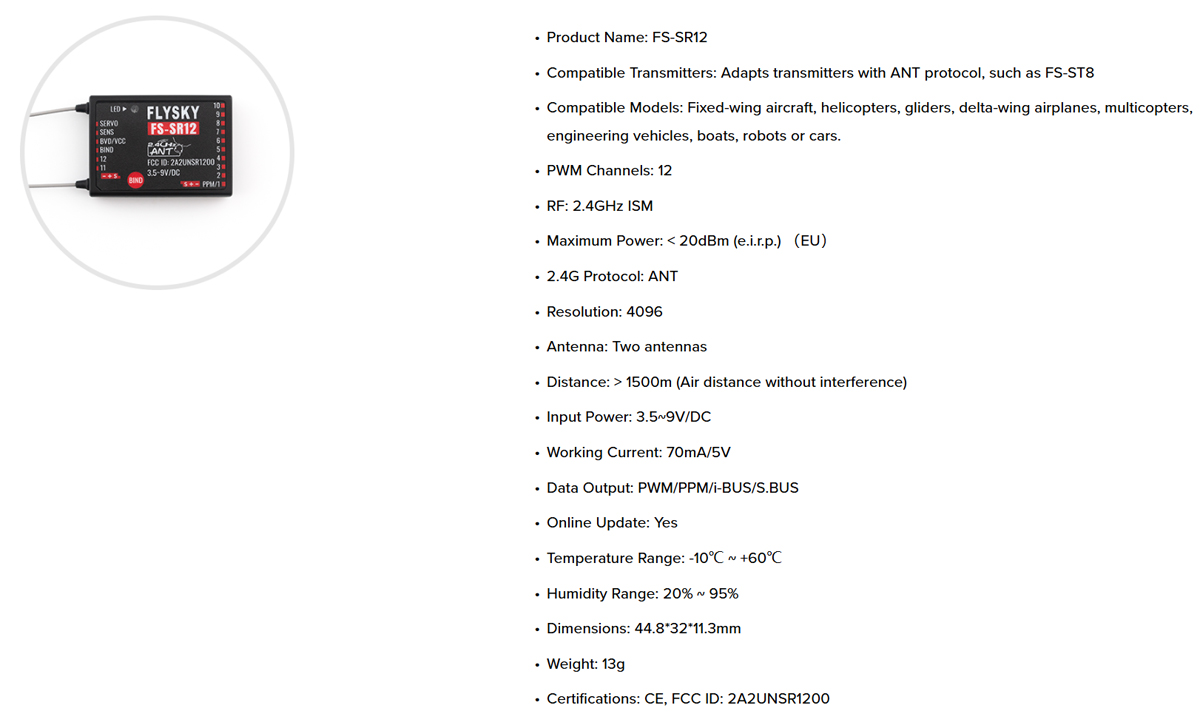

Model: FS-SR12
Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8
Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.
PWM Channels: 12
RF: 2.4GHz ISM
Maximum Power: < 20dBm (e.i.r.p.) （EU）
2.4G Protocol: ANT
Resolution: 4096
Antenna: Two antennas
Distance: > 1500m (Air distance without interference)
Input Power: 3.5~9V/DC
Working Current: 70mA/5V
Data Output: PWM/PPM/i-BUS/S.BUS
Online Update: Yes
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
Dimensions: 44.8*32*11.3mm
Weight: 13g

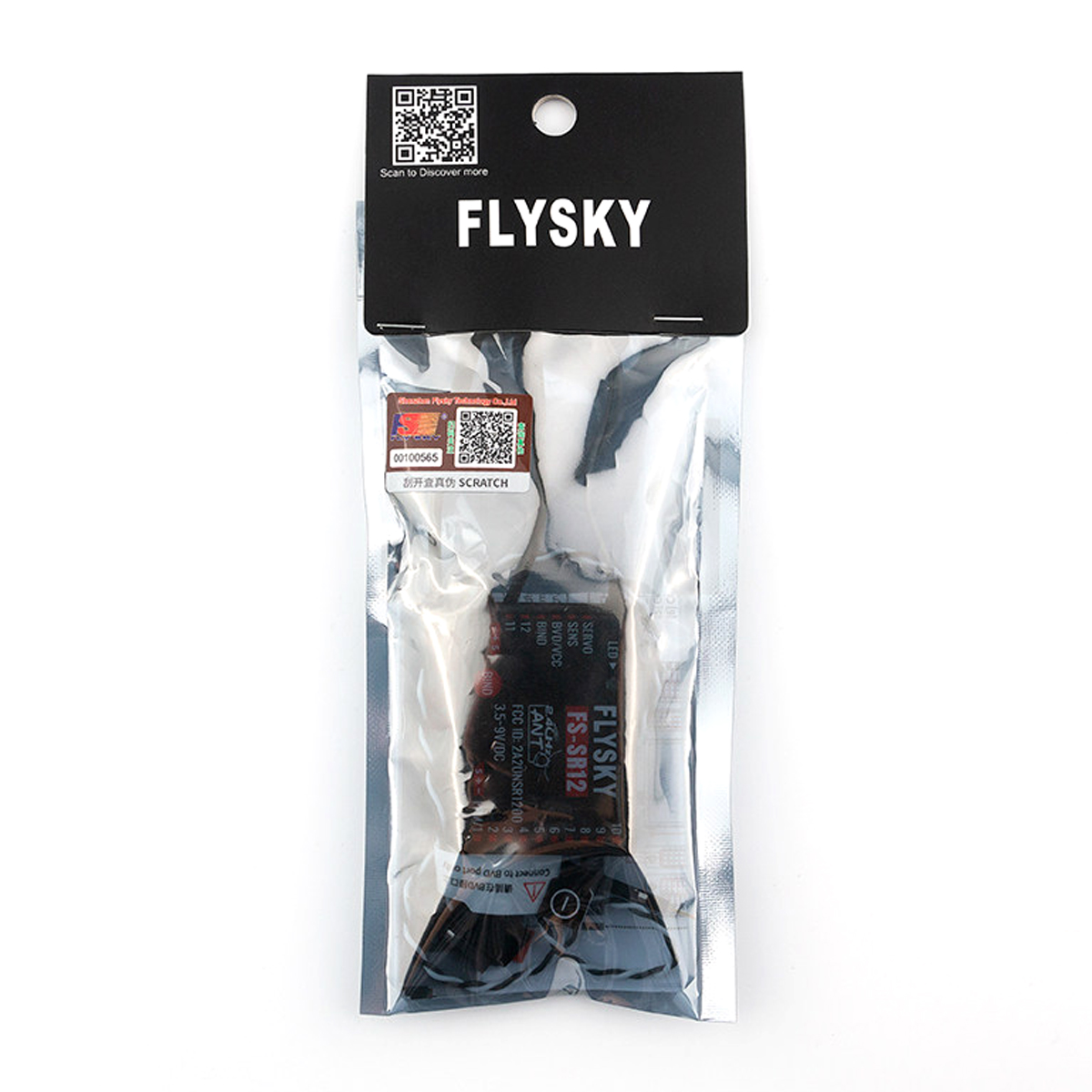

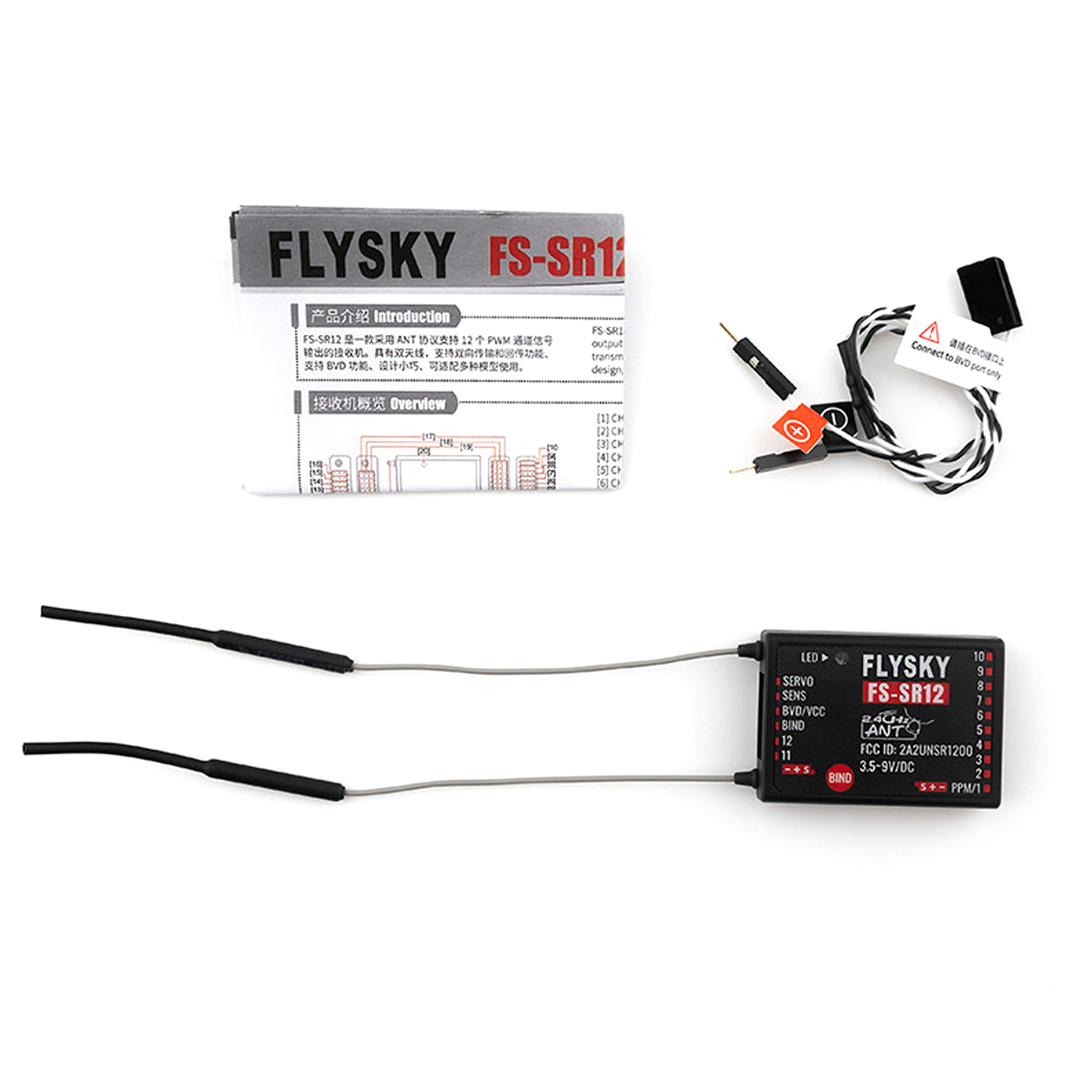

FS-SR12 Receiver x1
