Flysky INR8-8D 8-Channel AFHDS 3 Receiver Single Antenna Bidirectional Transmission for RC Crawler Truck Car


















Flysky INR8-8D 8-Channel AFHDS 3 Receiver Single Antenna Bidirectional Transmission for RC Crawler Truck Car

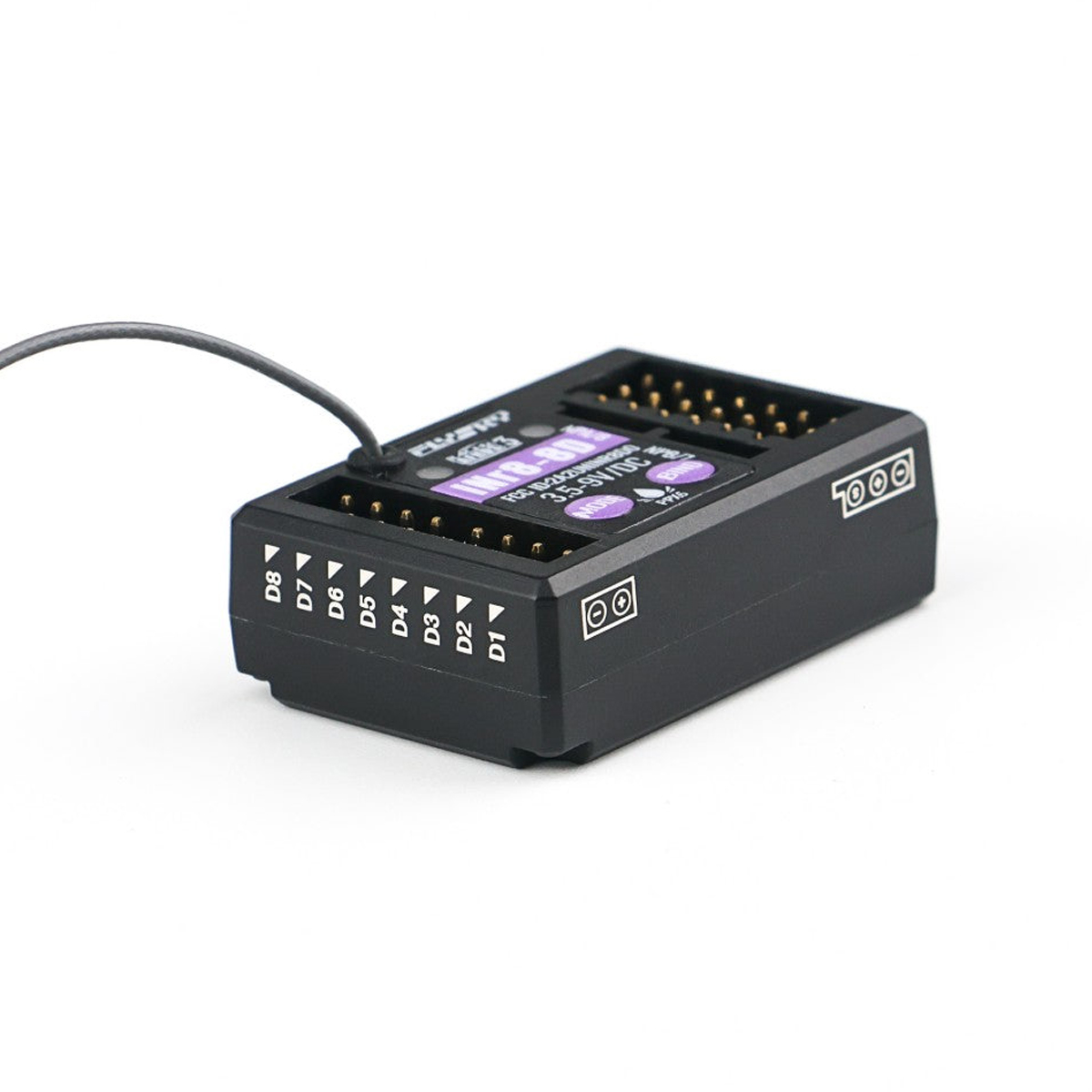

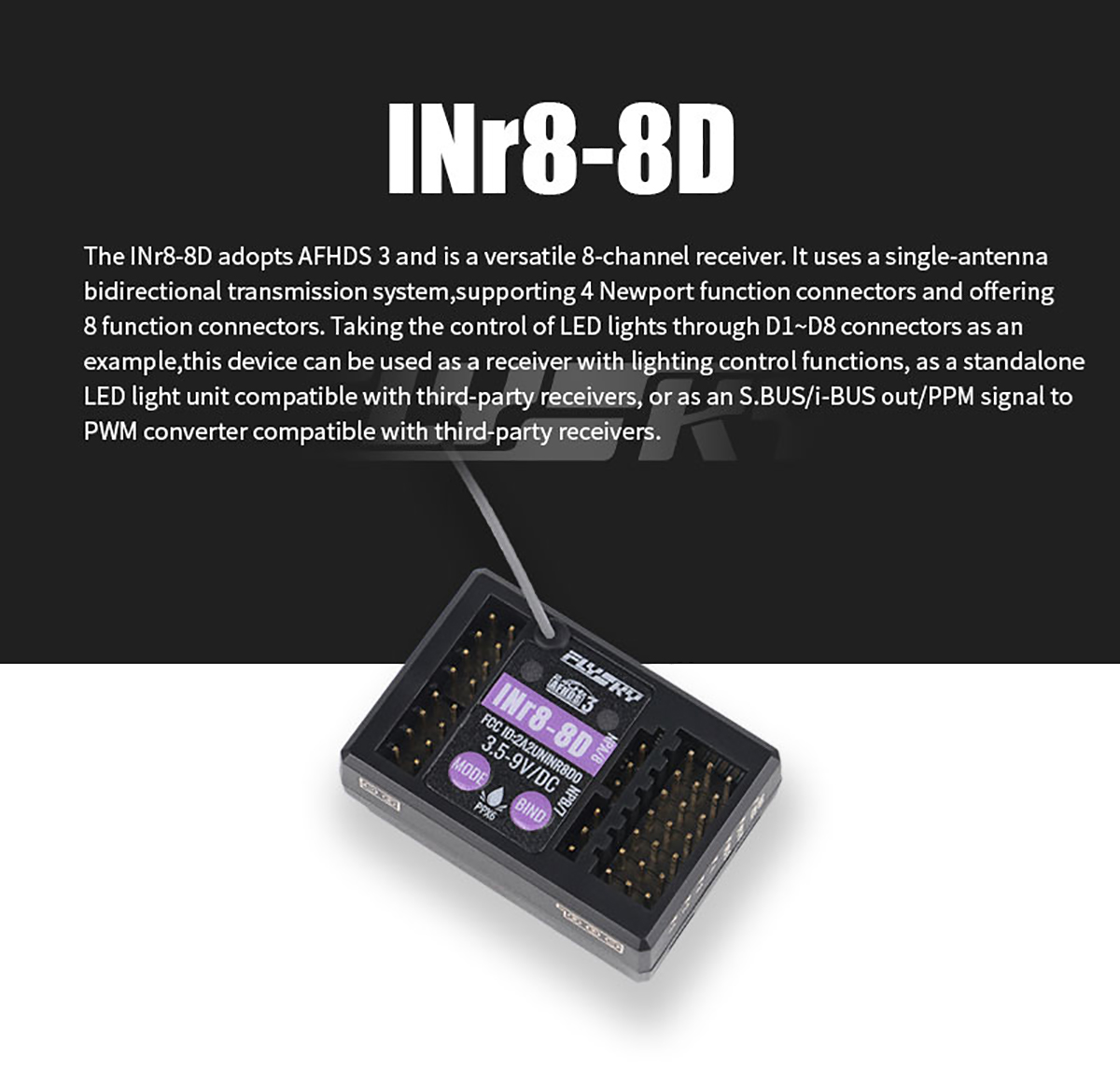

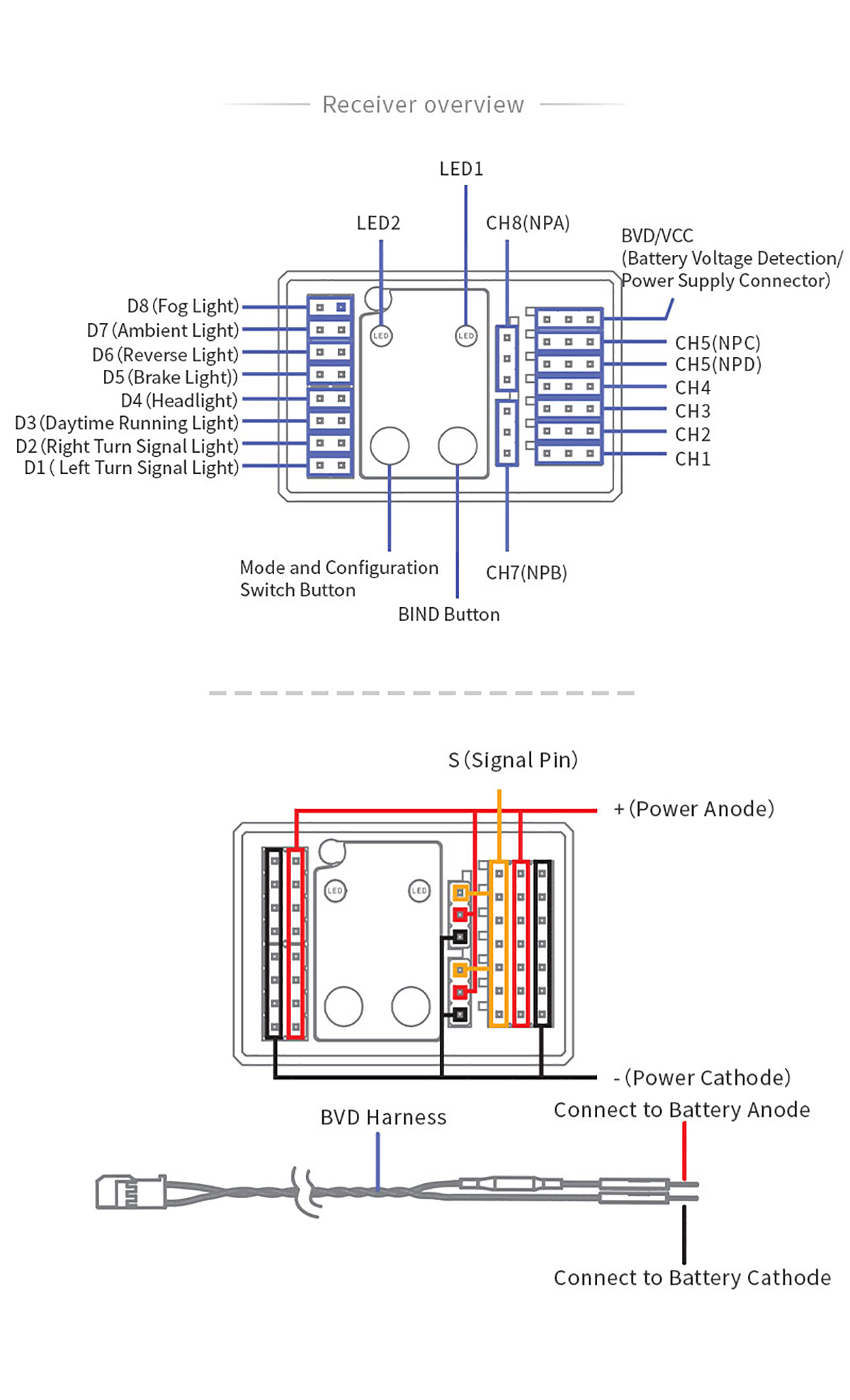

The INr8-8D adopts AFHDS 3 and is a versatile 8-channel receiver. It uses a single-antenna bidirectional transmission system,supporting 4 Newport function connectors and offering 8 function connectors. Taking the control of LED lights through D1~D8 connectors as an example,this device can be used as a receiver with lighting control functions, as a standalone LED light unit compatible with third-party receivers, or as an S.BUS/i-BUS out/PPM signal to PWM converter compatible with third-party receivers.

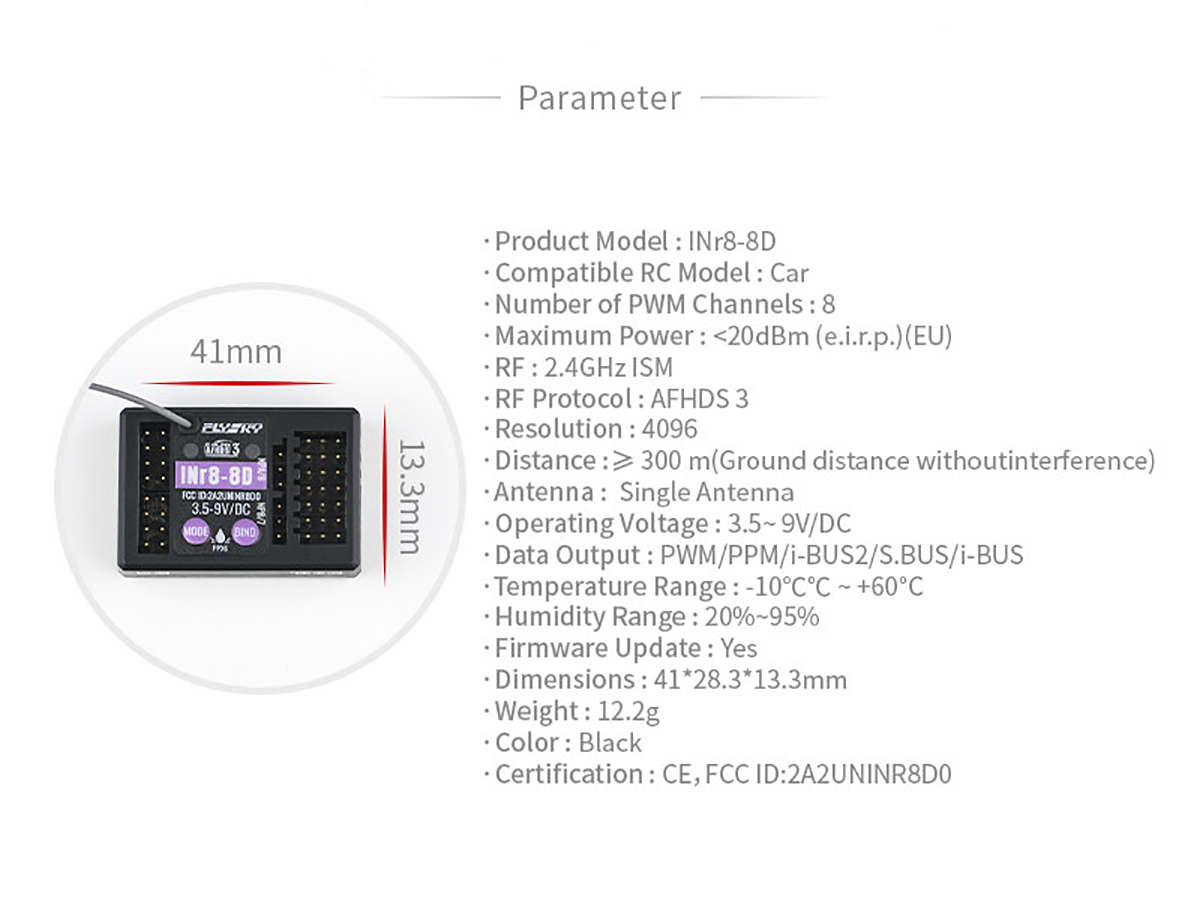

Model: INr8-8D
Resolution: 4096
Distance: ≥300m (Ground distance without interference)

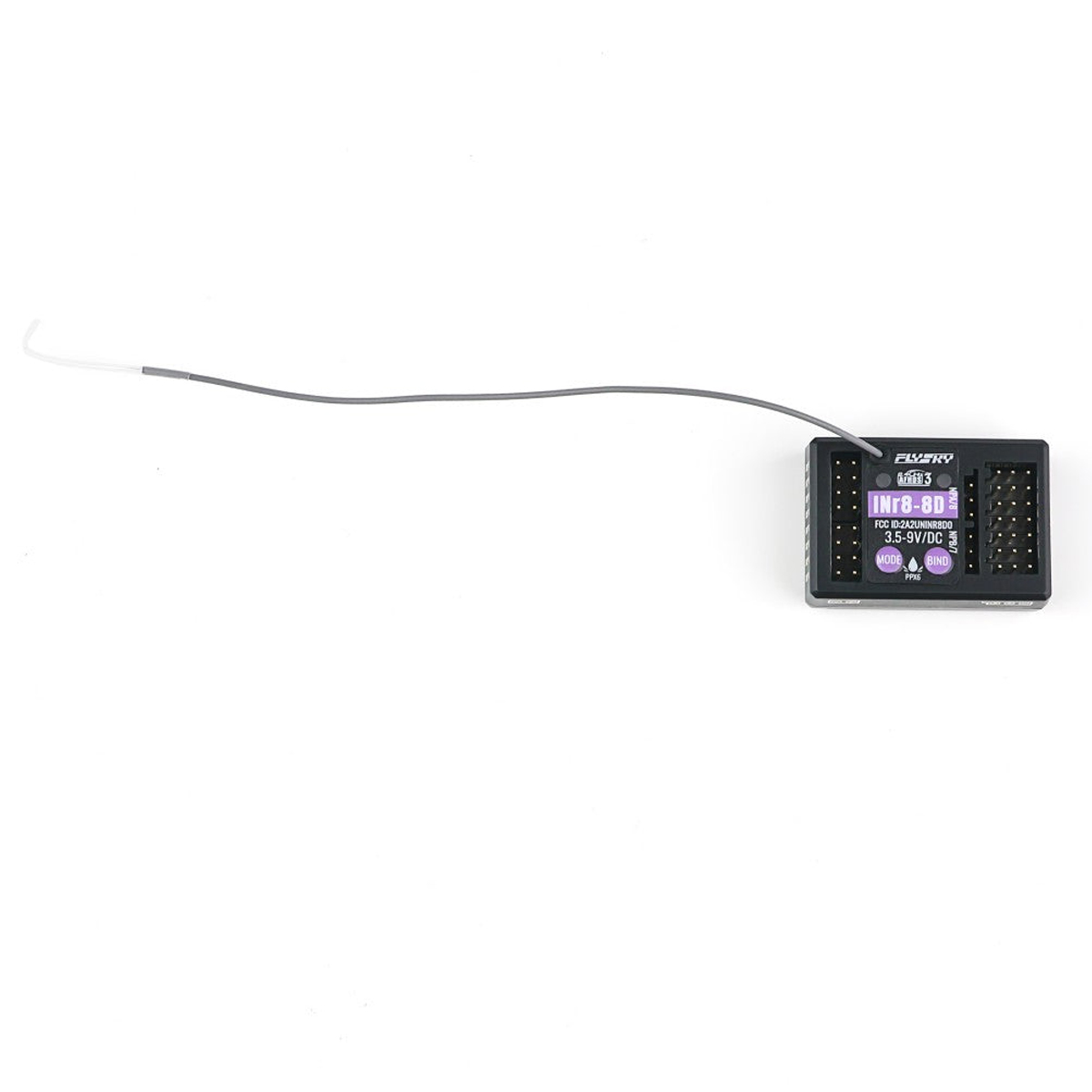

Antenna: Single Antenna
Operating Voltage: 3.5 ~ 9V /DC
Compatible RC Model: Car
Number of PWM Channels: 8
Maximum Power: <20dBm (e.i.r.p.) (EU)
RF: 2.4GHz ISM
RF Protocol: AFHDS 3
Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature Range: -10℃ ~+60℃
Humidity Range: 20%~95%
Firmware Update: Yes
Dimensions: 41*28.3*13.3mm
Weight: 12.2g
Color: Black

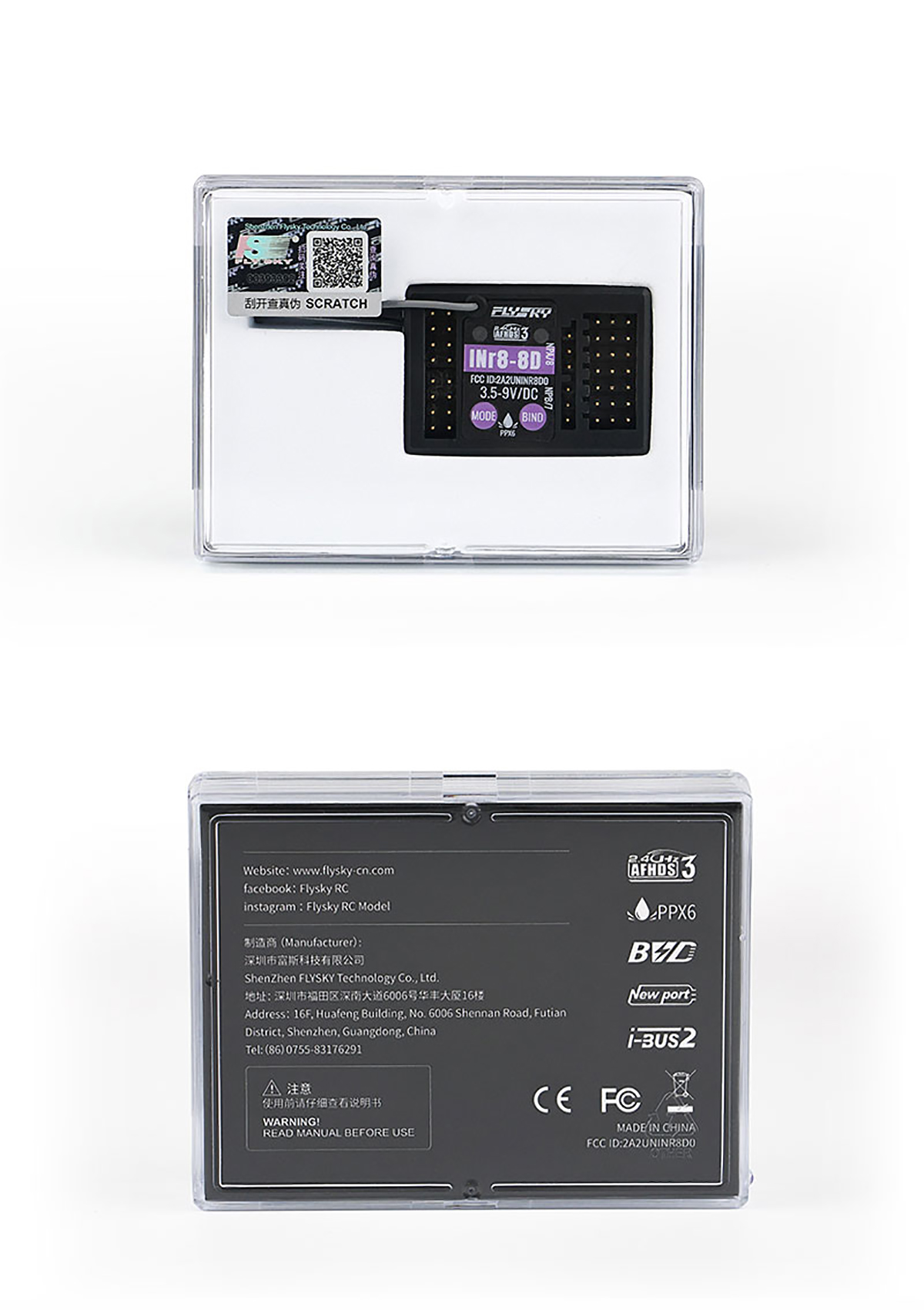

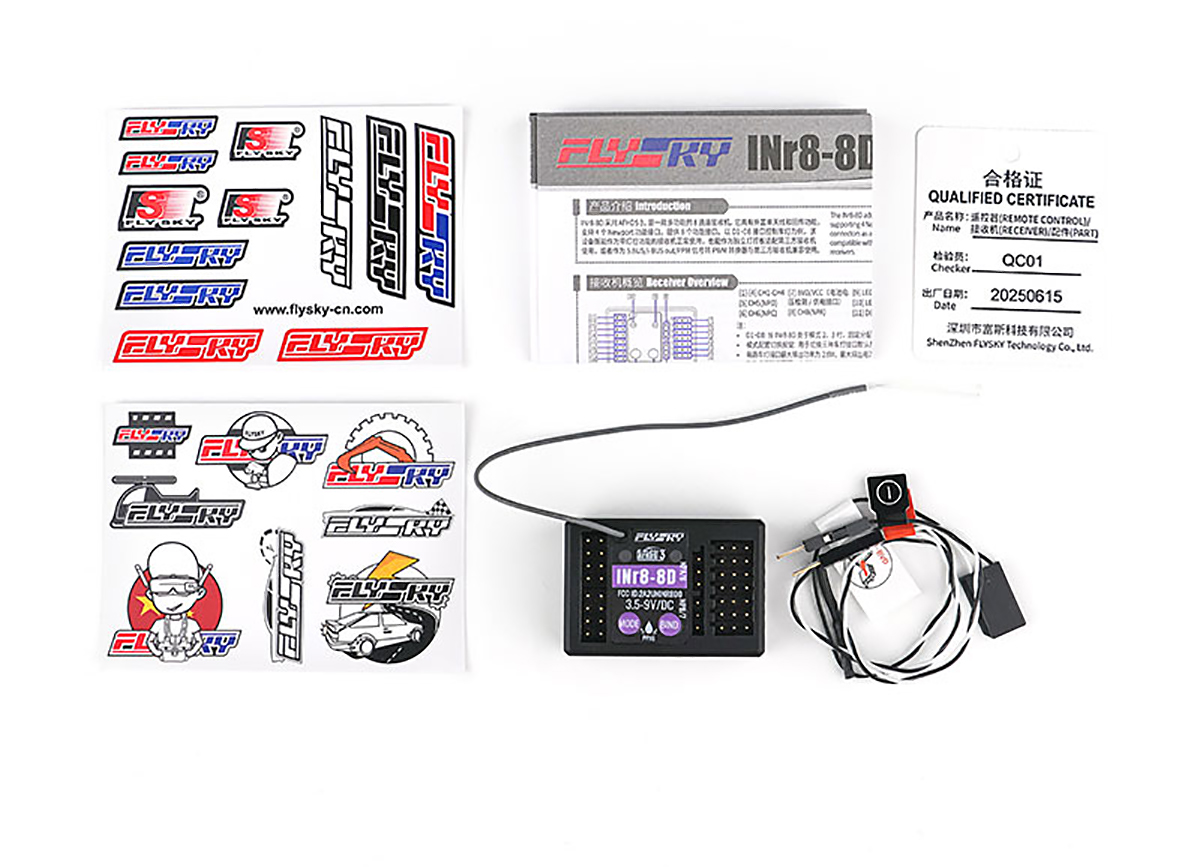

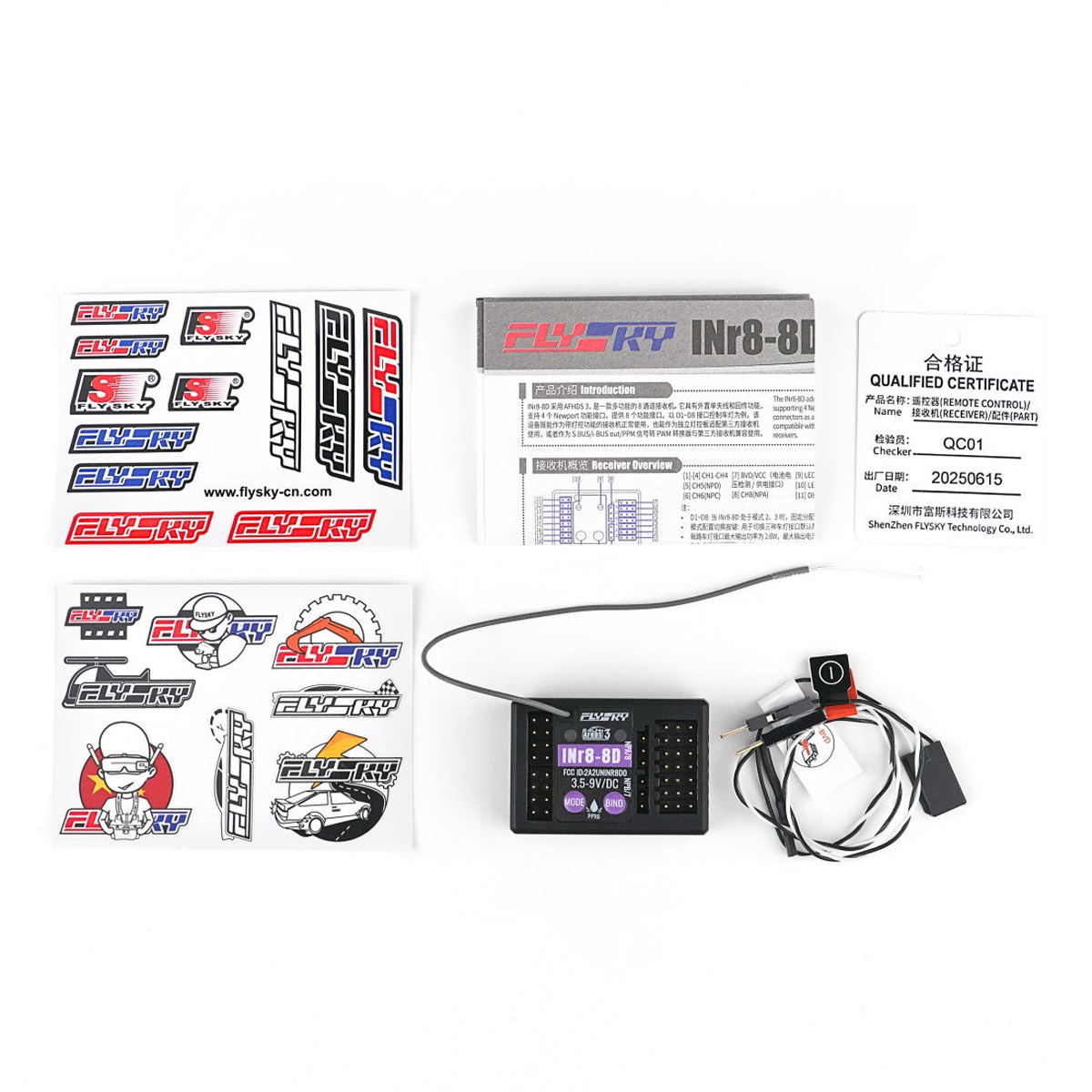

INr8-8D Receiver x1
