FrSky TD R10 2.4GHz 900MHz Dual Frequency Receiver 10CH PWM Channel Receiver For Remote Control Airplane Helicopter Drone
FrSky TD R10 2.4GHz 900MHz Dual Frequency Receiver 10CH PWM Channel Receiver For Remote Control Airplane Helicopter Drone
* Simultaneous working dual-band TD mode
* Triple antenna design for multi-directional coverage
* Black Box function
* Built-in voltage sensor
* 4ms Race Mode with Telemetry
* Long control range (up to 50KM – 100KM)
* Over-The-Air (OTA) FW update
* Supply current range（every single port）
◦ Instantaneous current:5A
◦ Continuous current:3A
* 10 Configurable Channel Ports
◦ CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
◦ CP2-10: PWM / SBUS Out / FBUS / S.Port
* Frequency: 2.4GHz & 900MHz

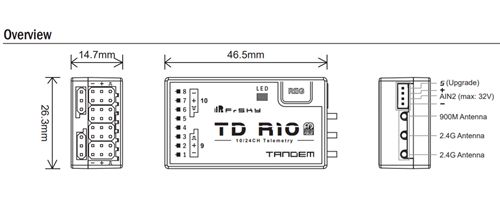

* Dimension: 46.5*26.3*14.7mm (L*W*H)
* Weight: 16.6g
* Operating Voltage: 3.5-10v DC
* Operating Current: ≤180mA@5V
* Compatibility: Tandem series transmitter & TD protocol capable RF module
* Triple 2.4G/900M Antenna
◦ 2* External 2.4G antenna (IPEX1)
◦ 1* External 900M antenna (IPEX1)
FrSky TD R10 Receiver x 1
