Hawkeye HD Video Transmission System 720P FPV Goggles with Air Unit Low Latency 5CH 5.8GHz Band 10KM Transmission
Hawkeye HD Video Transmission System 720P FPV Goggles with Air Unit Low Latency 5CH 5.8GHz Band 10KM Transmission
The Hawkeye HD Video Transmission System is a high-resolution, low-latency video link solution built for real-time and long-range flight. The system consists of FPV goggles, a camera module, and a video transmission module. It delivers high-resolution, high-frame-rate video transmission with 1280×720p/60fps H.265 encoding
Model: HD Video Transmission System

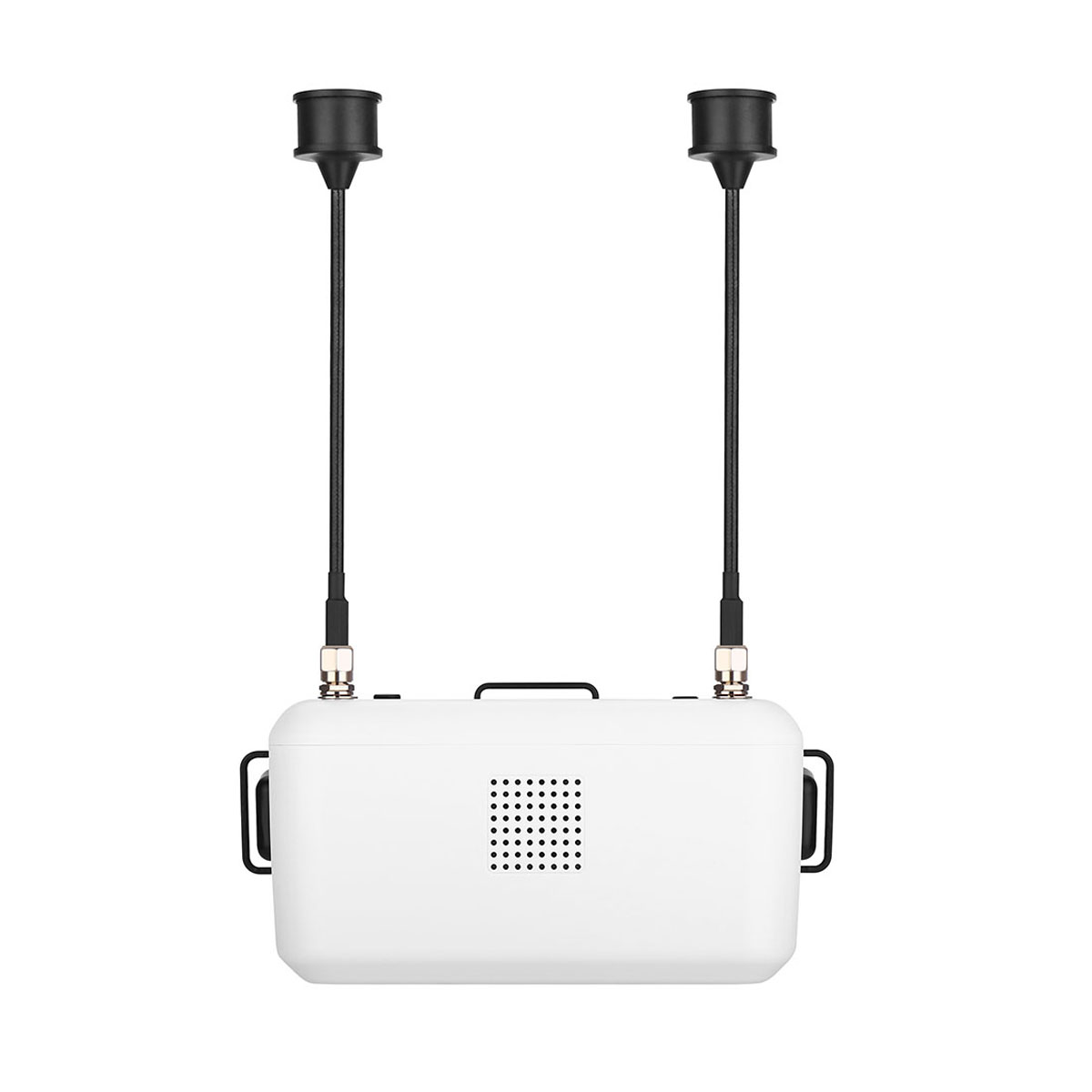

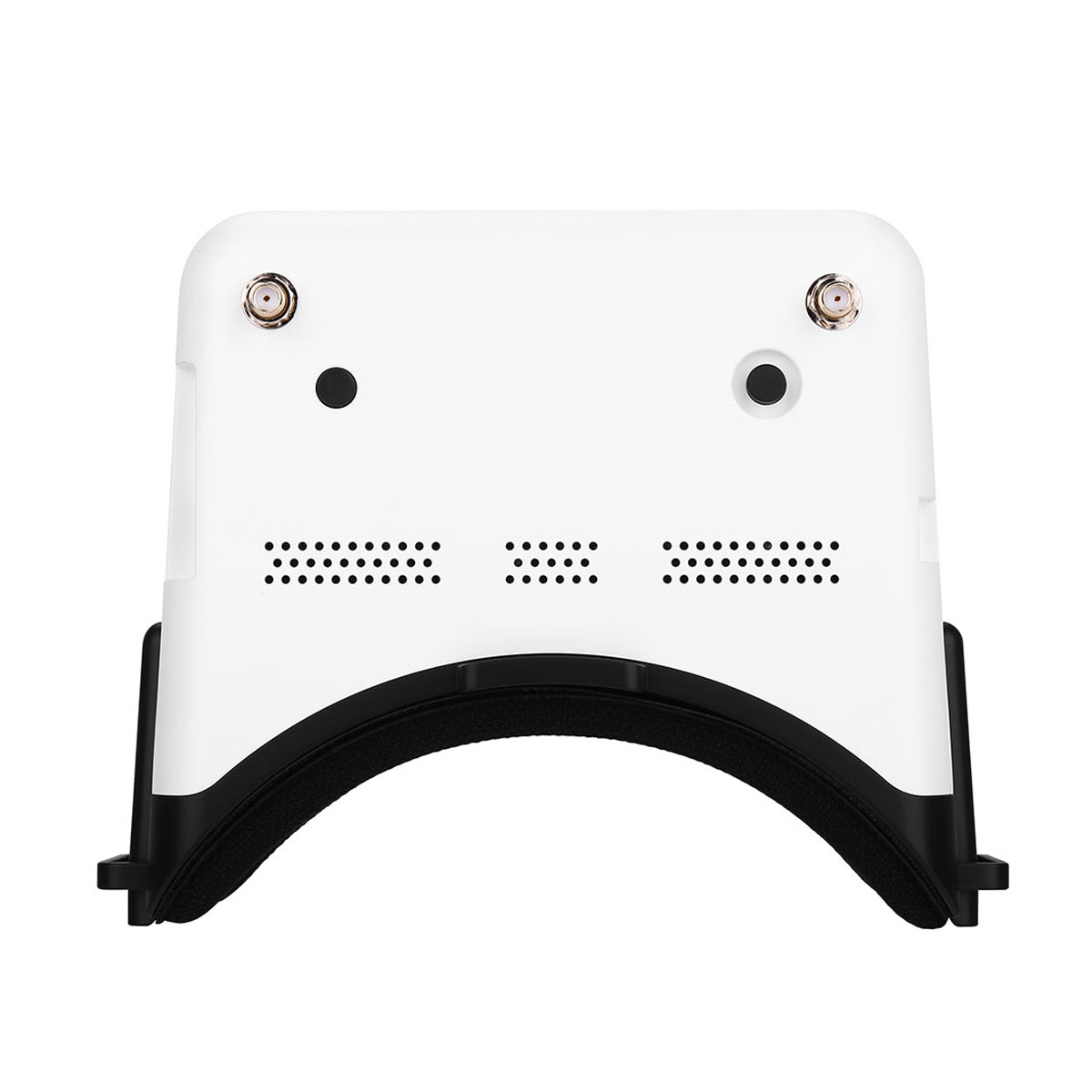

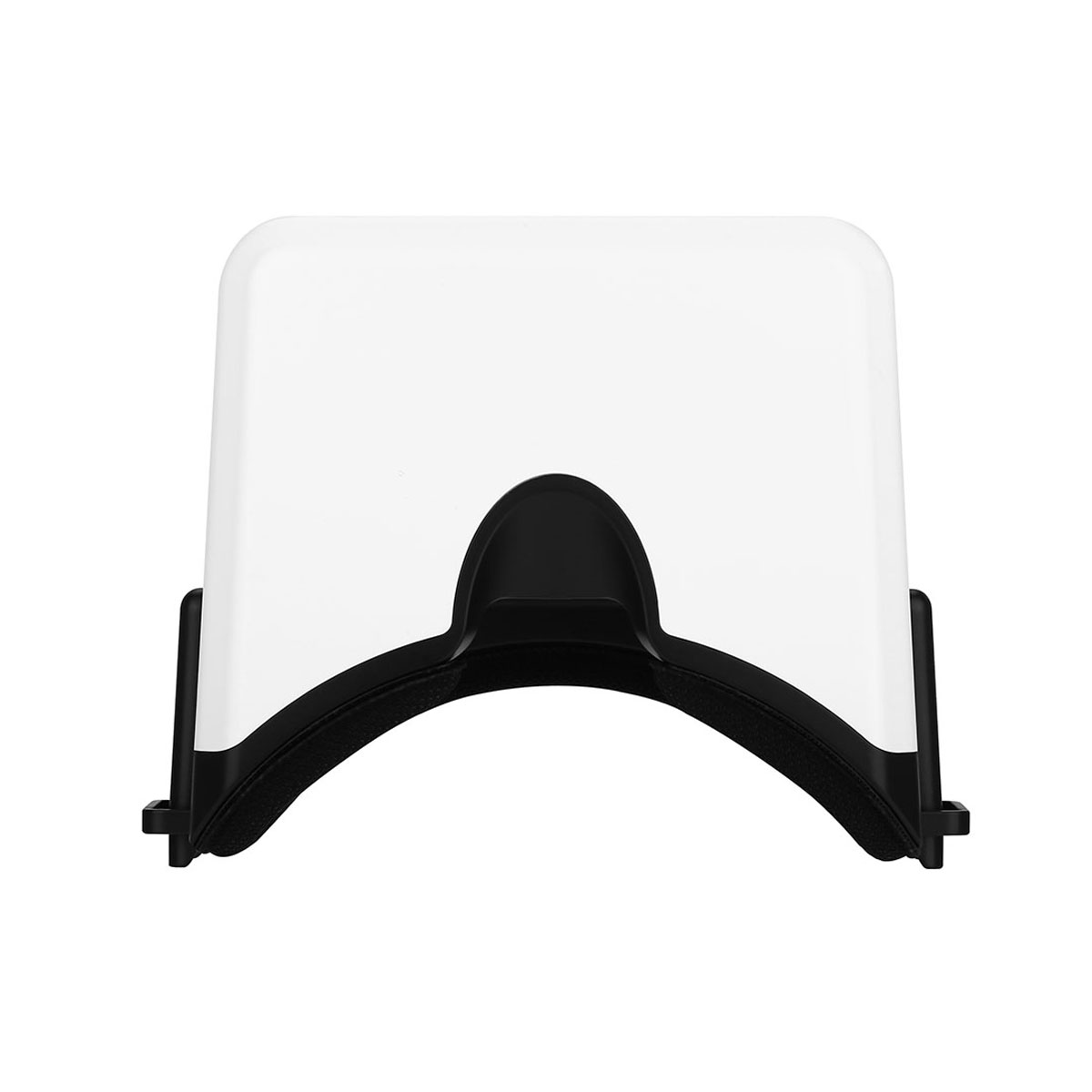

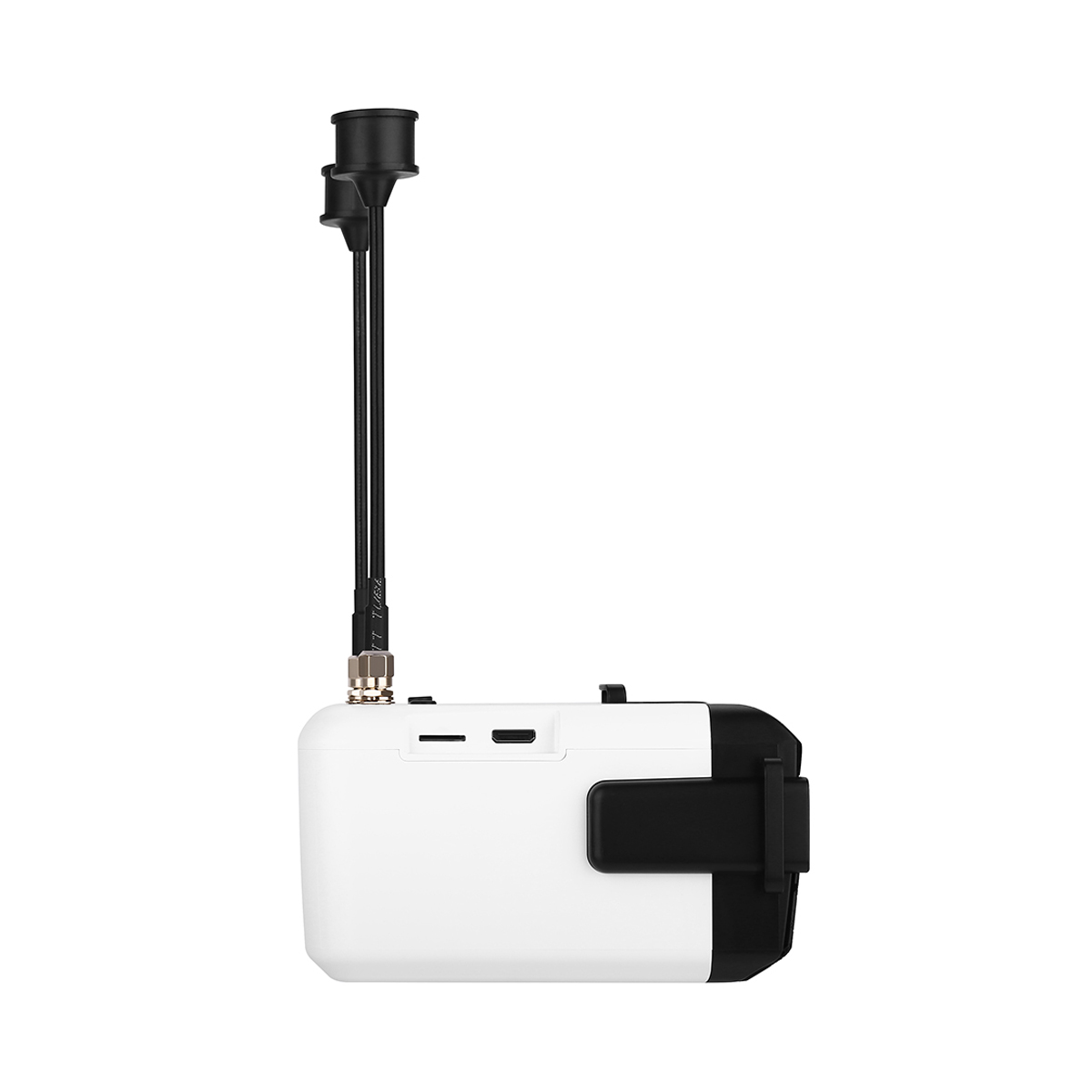

HD Goggles
Weight Approx: 350g（Antennas not include）
Dimension: 153mm *123mm * 71mm
Power: 7.4-26.4V( 2-6S )
Power: connector 4530
Operating Temperature: -20 ℃ to 40℃
Antenna port: SMA-Female
Screen: LCD
Resolution: 1280×720@60fps

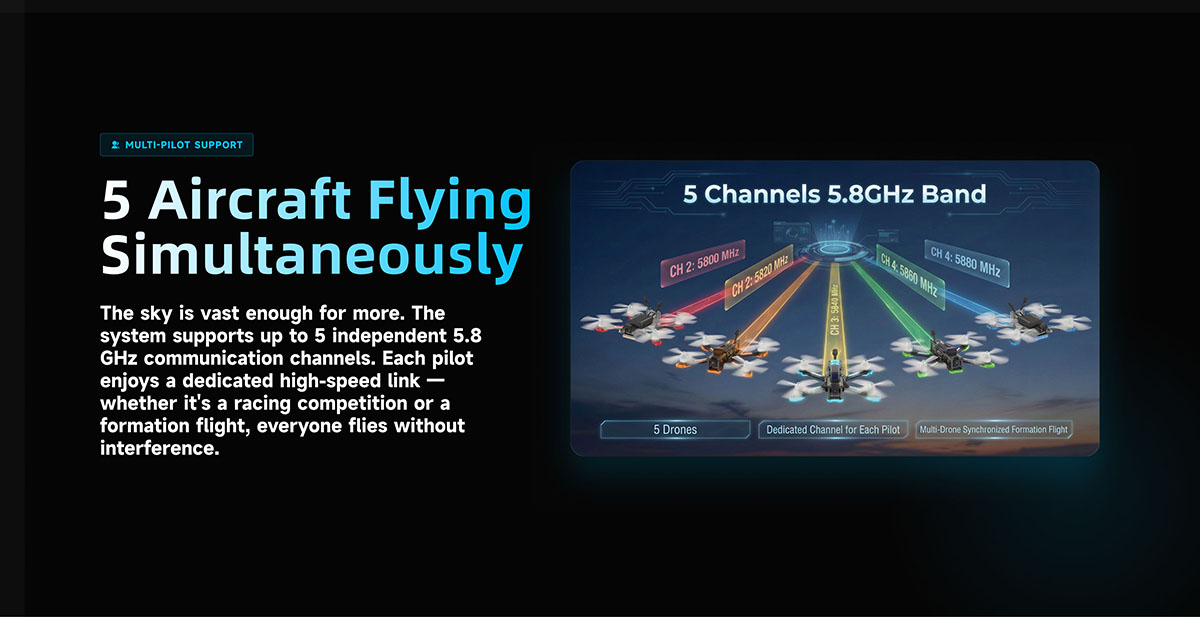

Channels: 5
FOV: 75°
Video format: MP4
SD Card: Micro SD, 64G Max

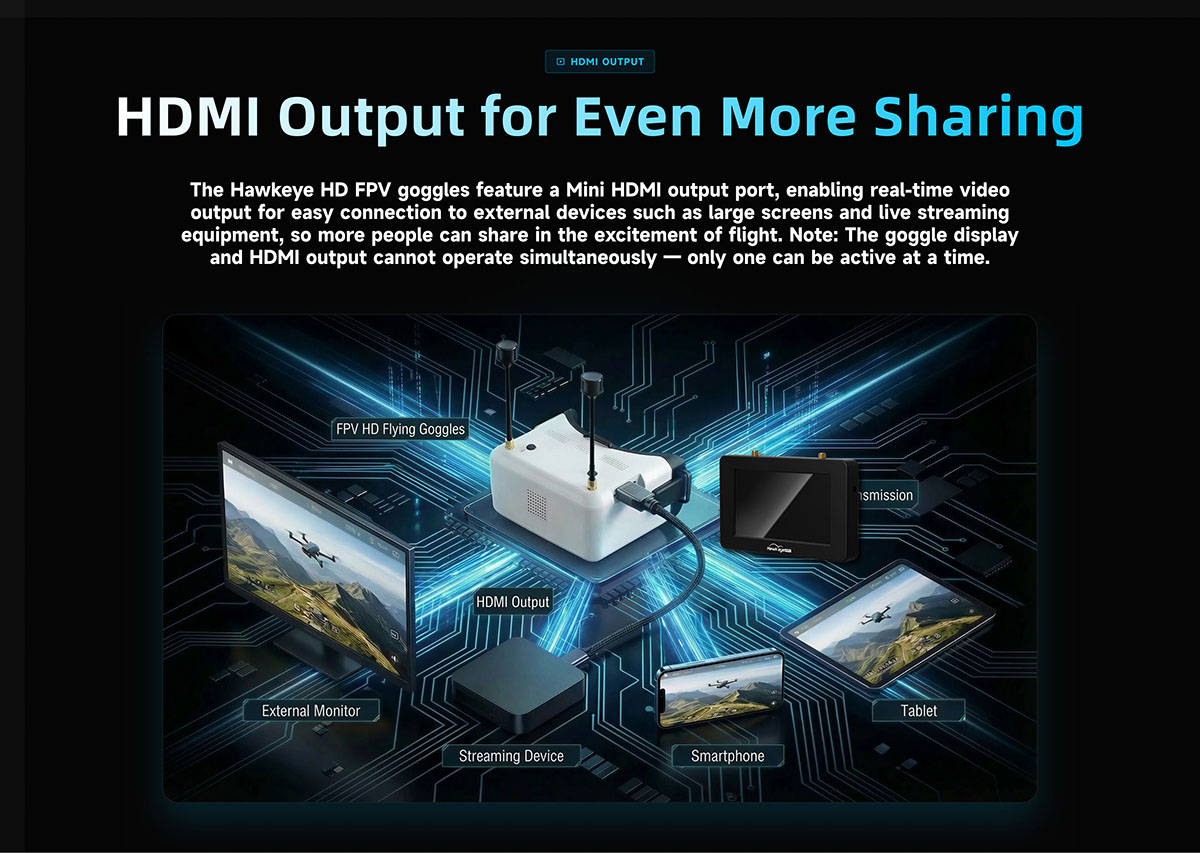

HDMI out: Mini HDMI@1080P60FPS

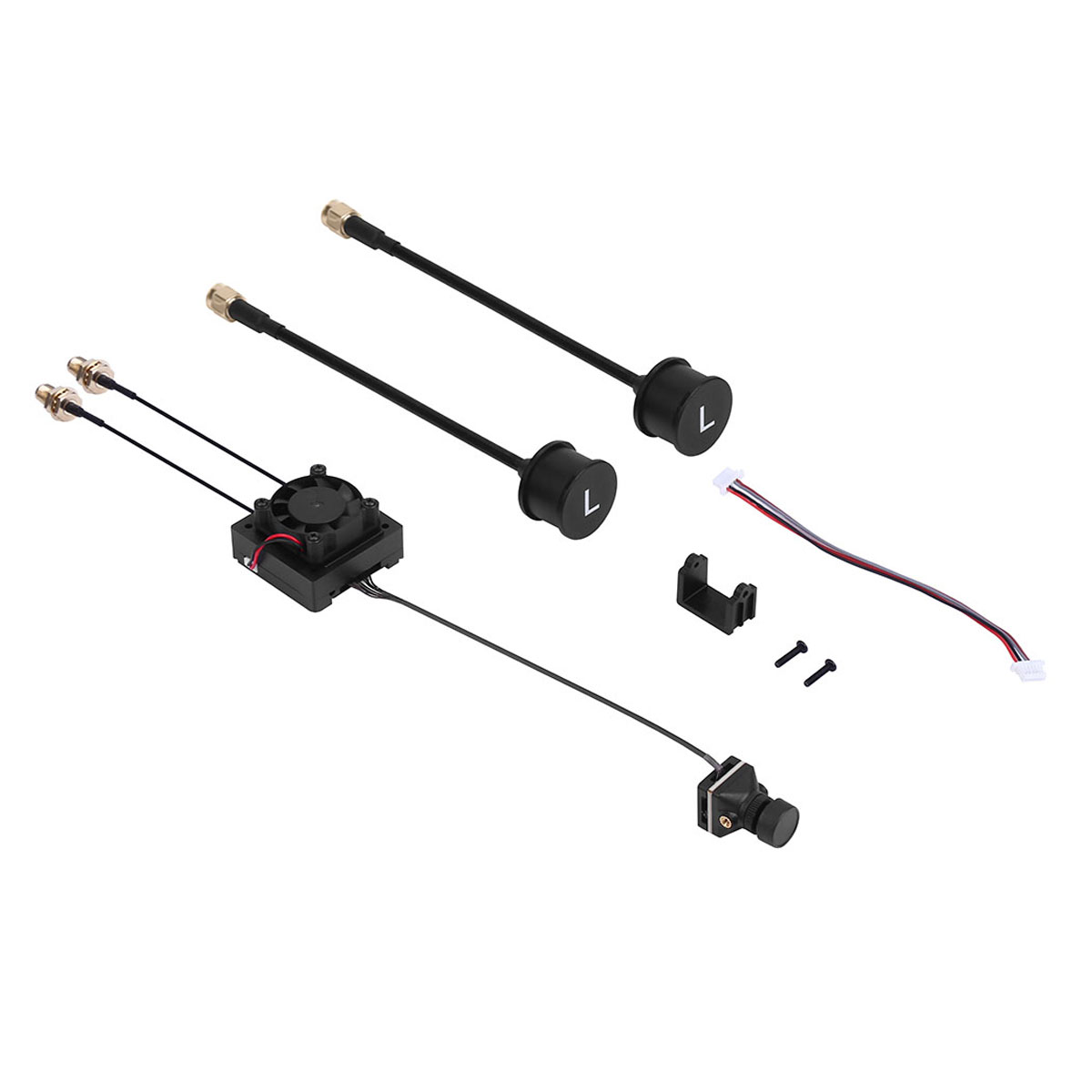

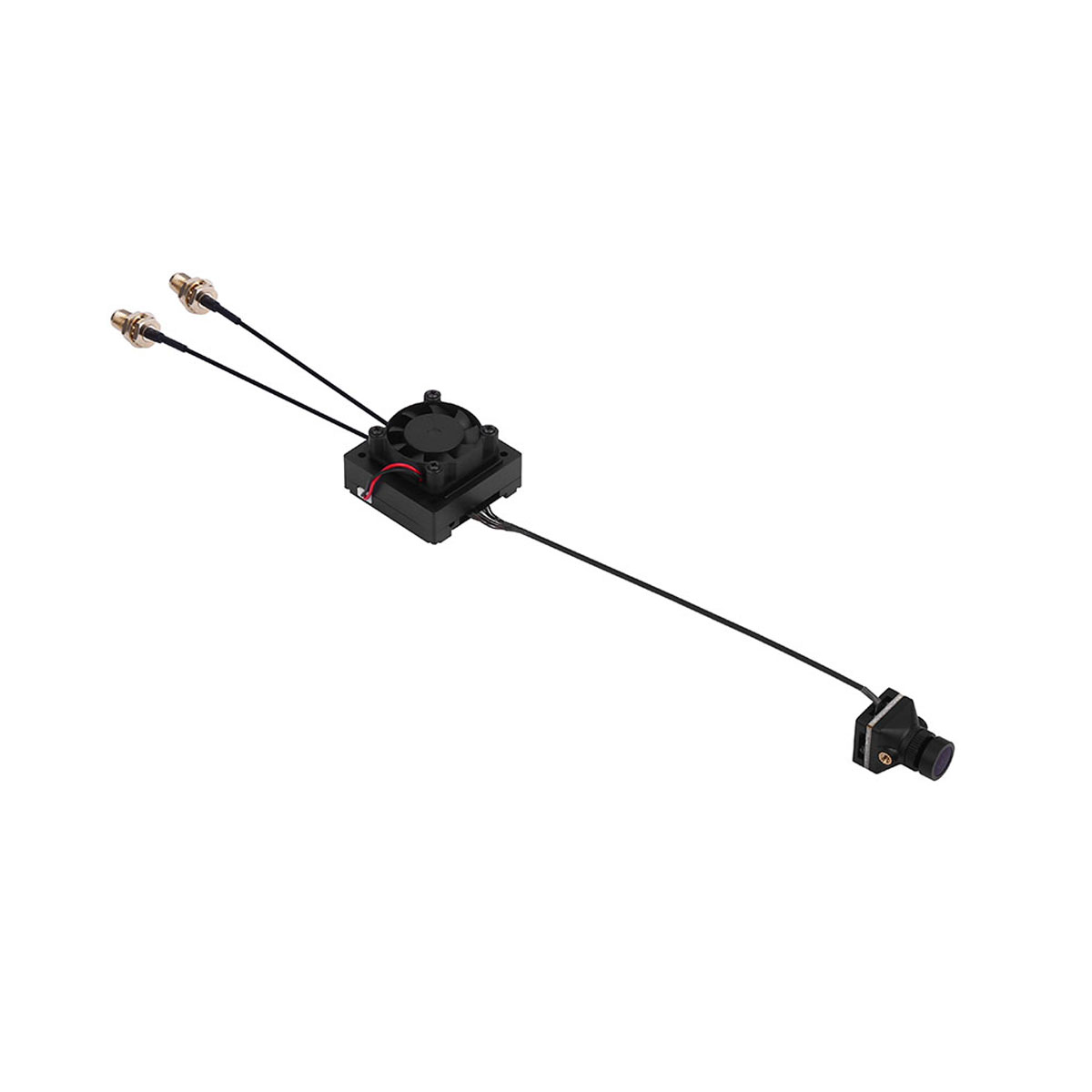

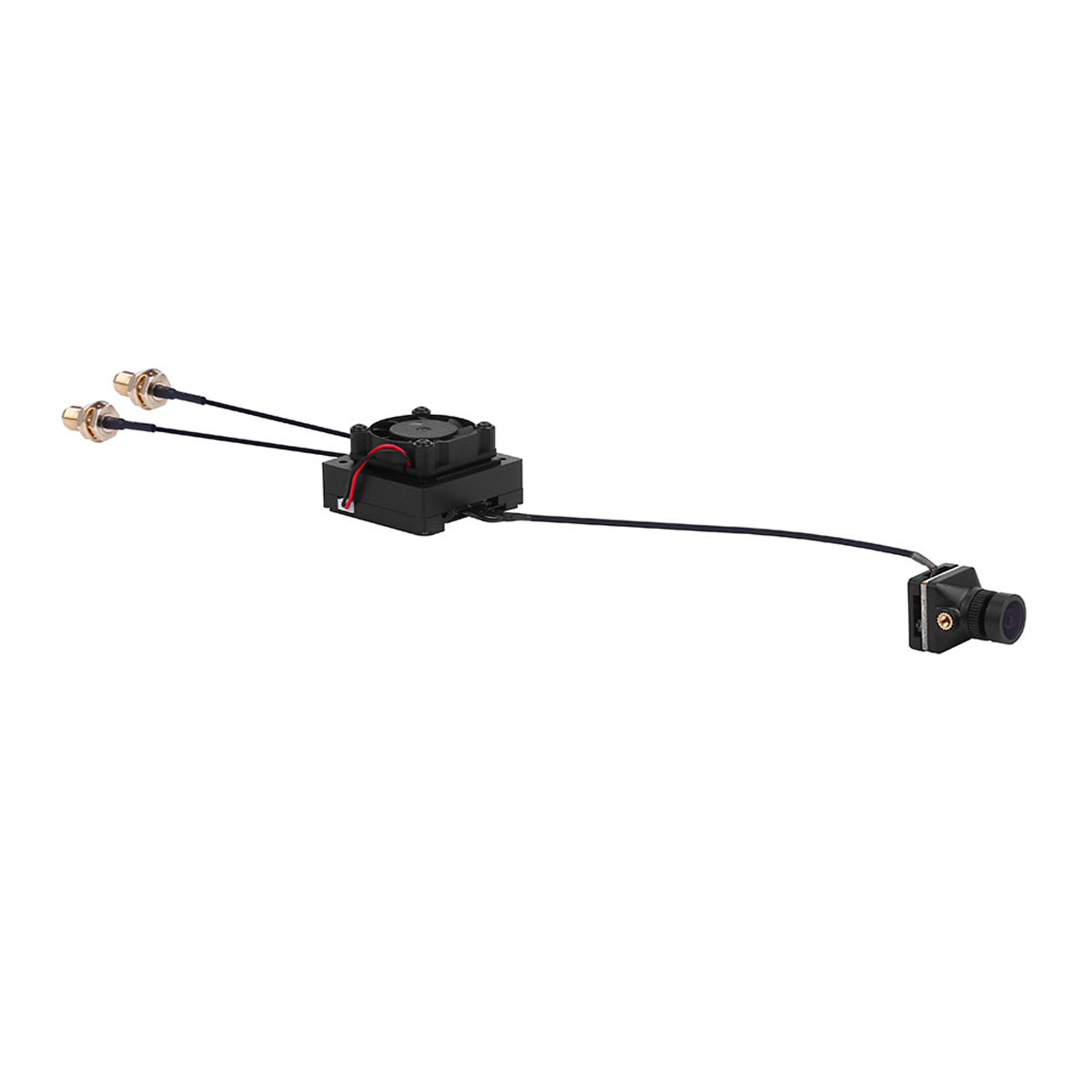

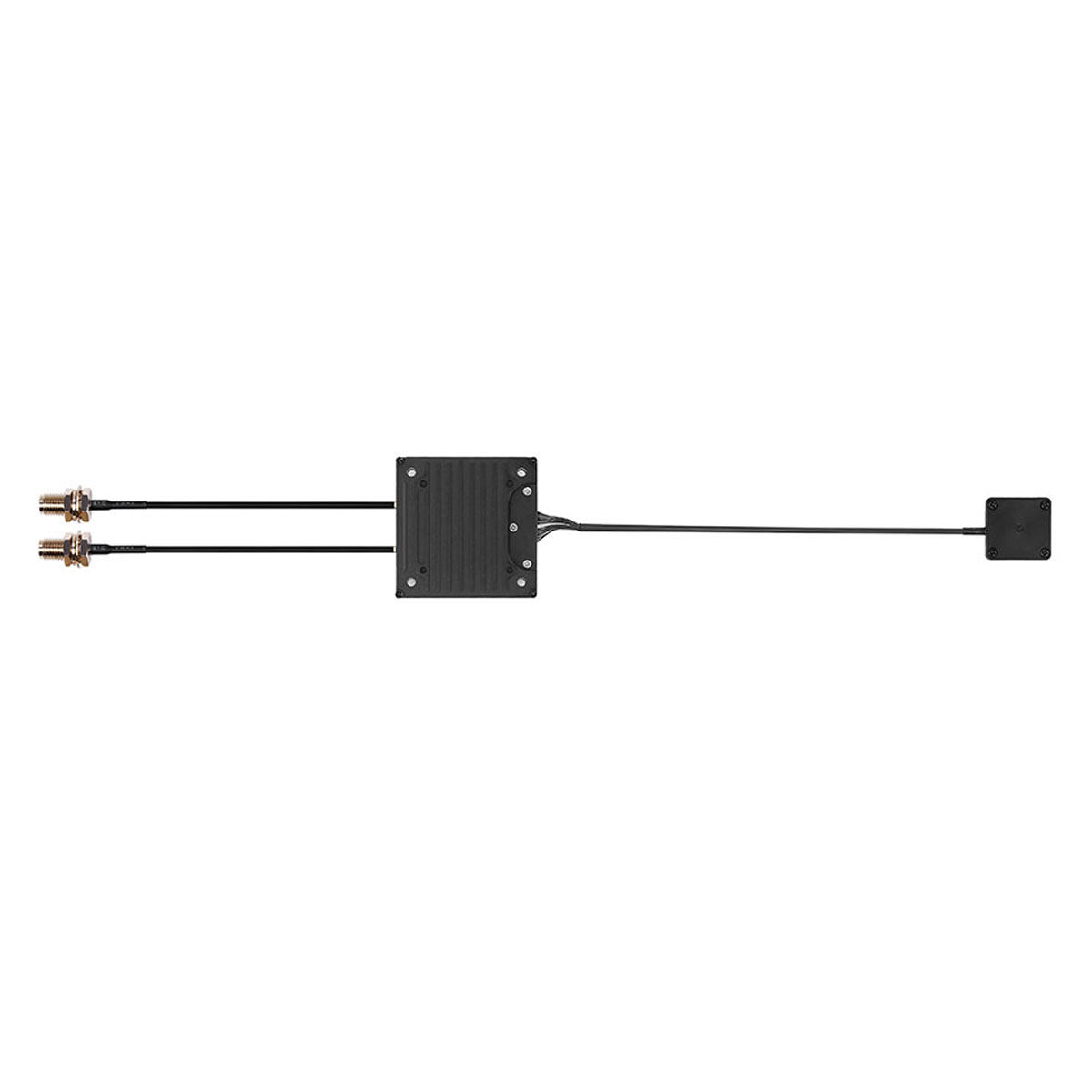

Air Unit
Weight: Approx. 32g(including camera)
Dimensions: 32.8*32.8*13mm
Coaxial Cable Length: 135±2mm
Input Voltage: 7.4–26.4 V
Operating Temperature: -10°C to 40°C
Flight Controller Compatibility: BetaFlight version 4.3.0 or later
Video Transmission
Operating Frequency: 5.725 – 5.850 GHz (Frequency bands and availability vary by region. Please comply with local regulations.)
Transmission Power (5.8 GHz):
<30dBm*2(FCC)
<14dBm*2(CE)
<30dBm*2(SRRC)
Low Latency Performance:
When used with Hawkeye HD Goggles:
720p/60fps video transmission latency as low as 35ms
Measured in open, interference-free environments. Latency may vary depending
on the device and conditions.
Maximum Transmission Range:
Paired with Hawkeye HD Goggles and 11dB flat antenna:
Up to 10 km (FCC)
Measured in open, unobstructed, interference-free conditions.
Live Video Quality: 720p @ 60fps
Transmission Bandwidth: Up to 20MHz

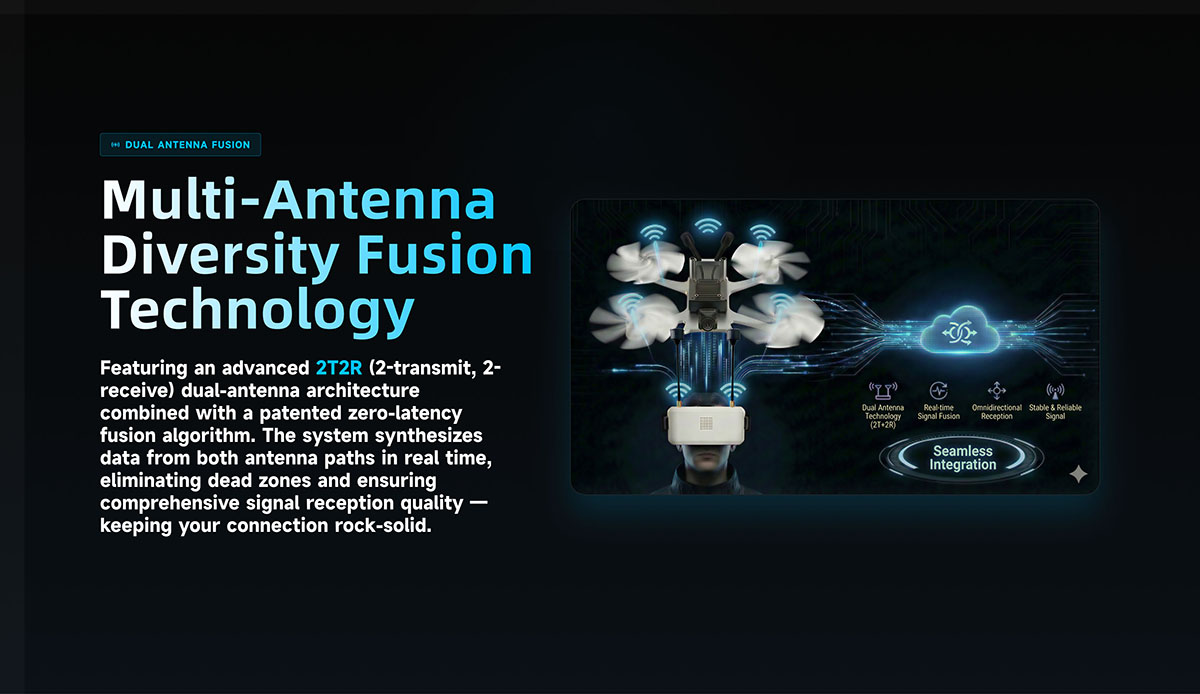

Antenna Configuration: Dual antennas (2T2R–two transmit, two receive)
Camera
Image Sensor: 1/2.8″ CMOS sensor
Lens Options: FOV 140° / 155°(selectable)
Video Format: MP4

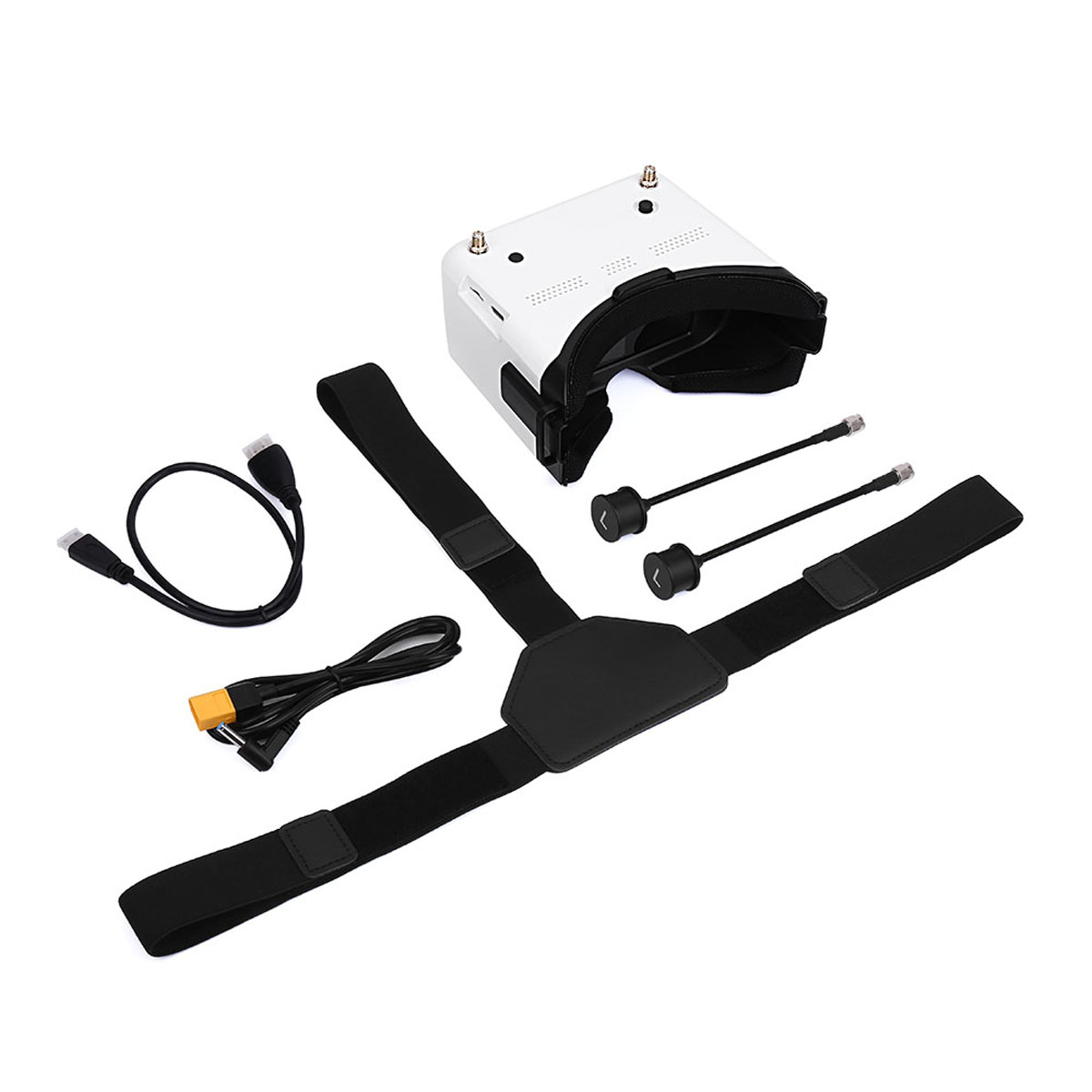

FPV Goggles x1
Air Unit x1
