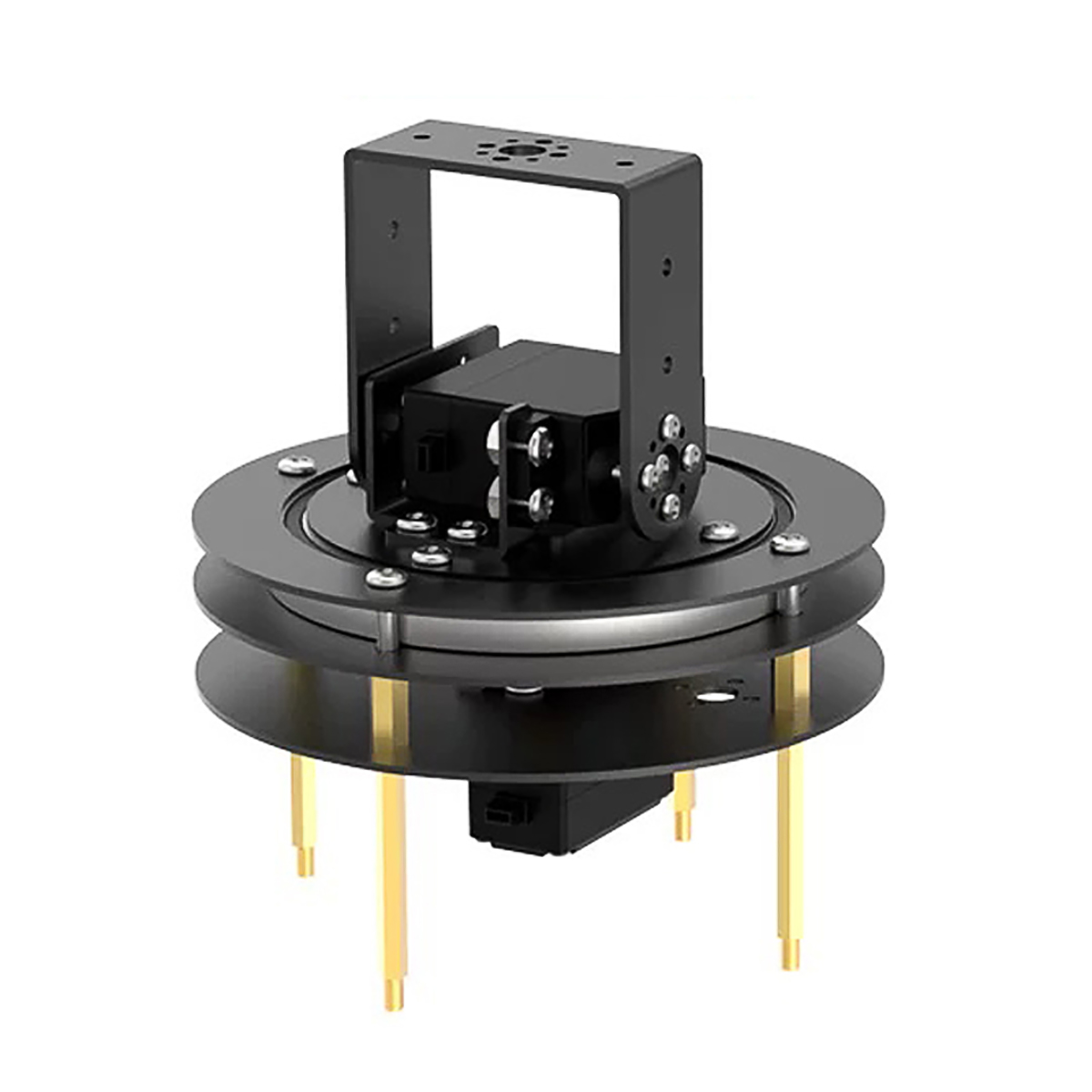

Hiwonder Circular Rotation Servo Gimbal with LD-1501MG 180 Degree Digital Servo for Building Robot Robotic Arms

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

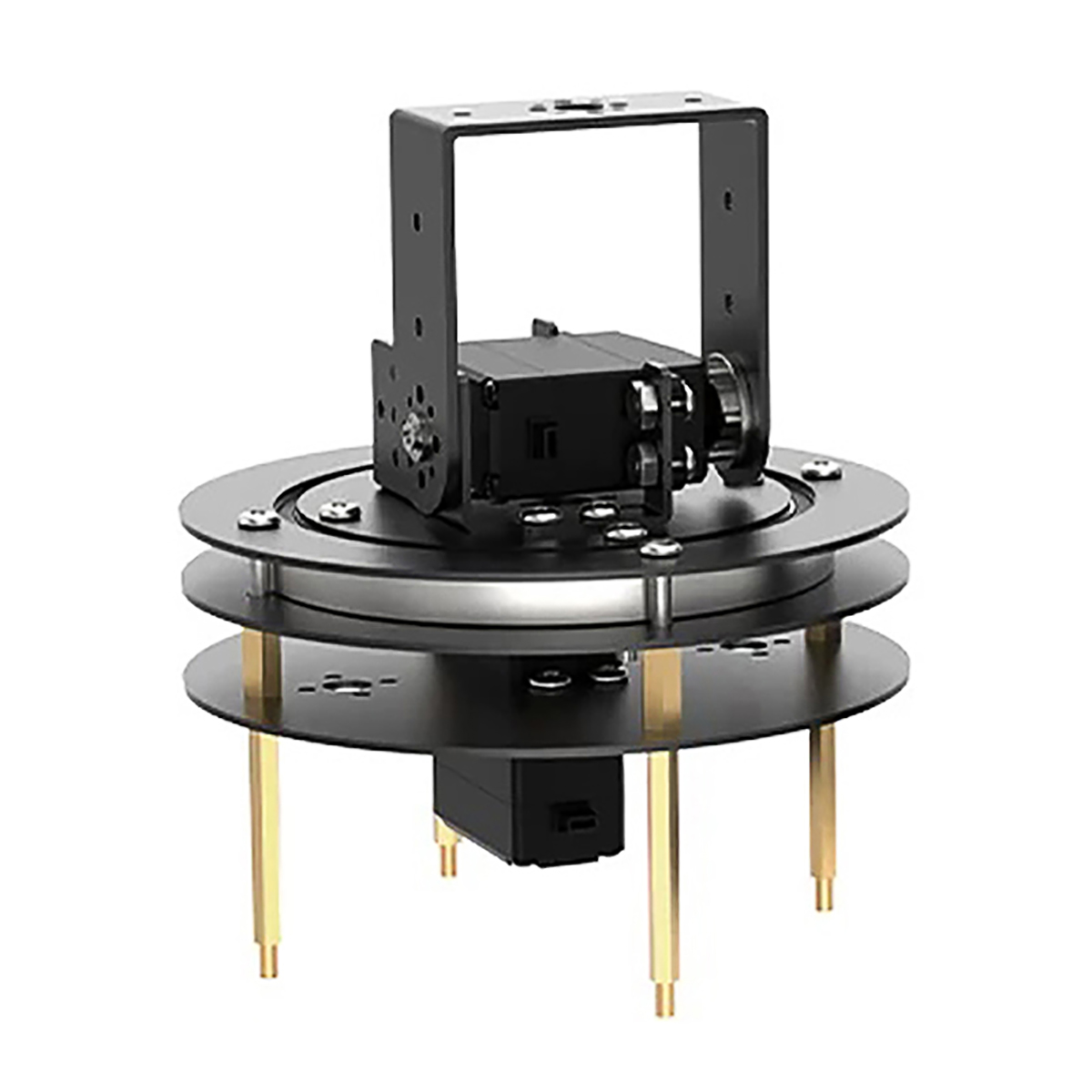

Great Build Quality: The bracket is made of hard aluminum alloy material, with a large round bearing and a copper column, it can rotate smoothly, and it is more sturdy and durable!

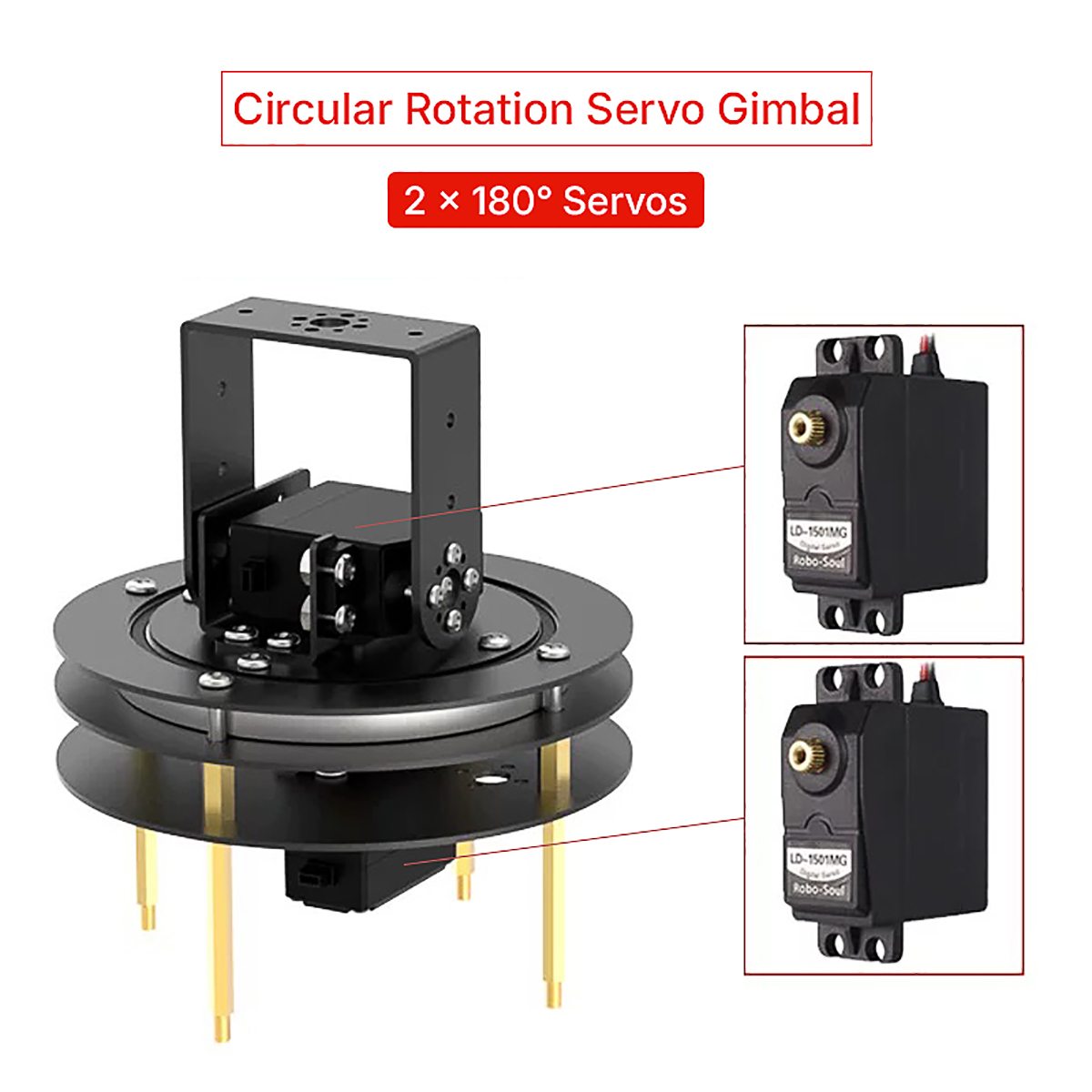

Digital Servos: Equipped with 2 LD-1501MG digital servos specially designed for robots. Faster speeds, higher torque and better holding capability than analog servos.

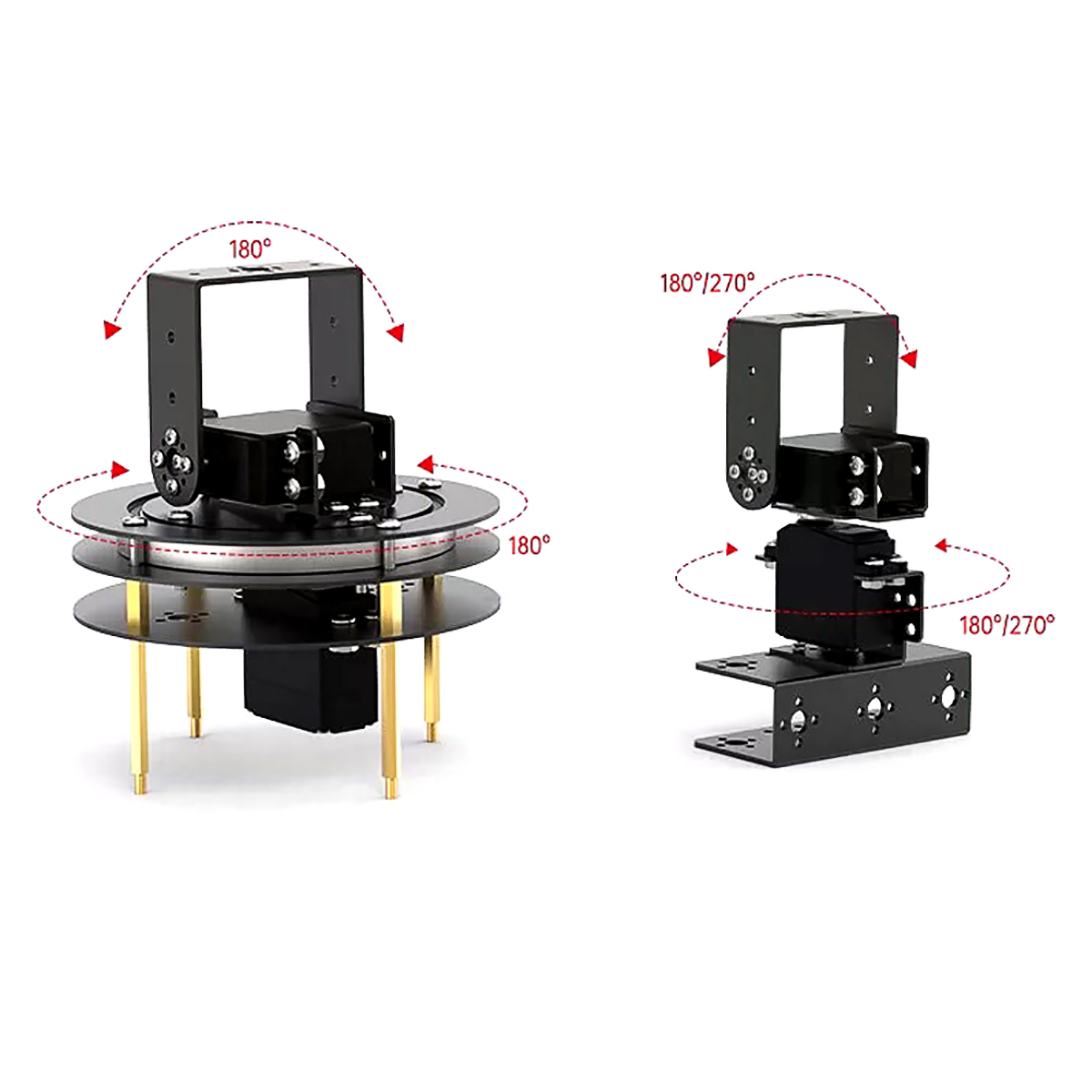

Move Freely: Smooth 180-degree horizontal and vertical rotation to give your robot arm broader moving space and your camera a wider vision.
Applications: Robotics projects for Arduino, Raspberry Pi and micro:bit, PTZ cameras, and other hand and robot project.

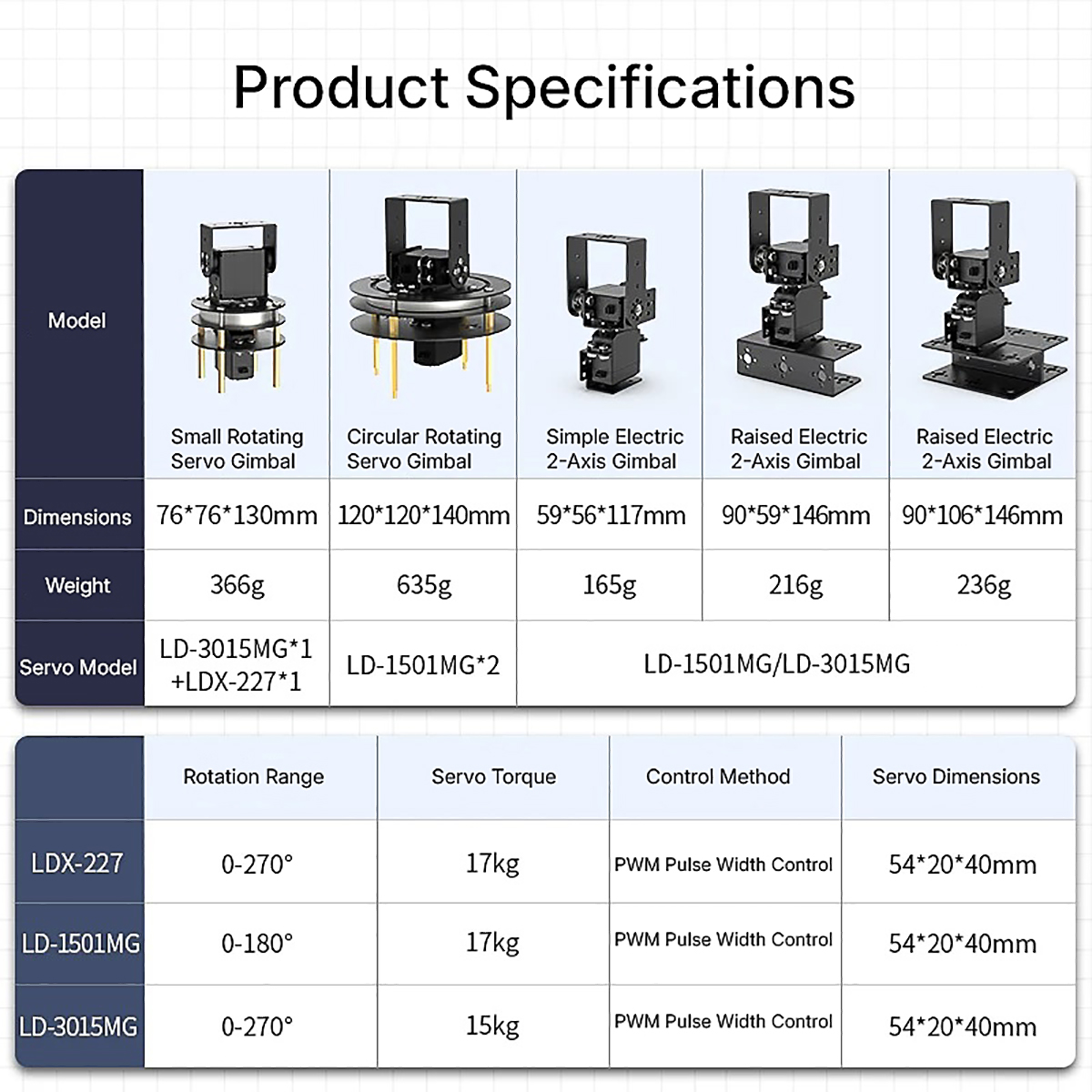

Model: Circular Rotation Servo Gimbal
Dimensions: 120*120*140mm
Weight: 635g

LD-1501MG Metal Digital Servo
Operating Angle: 0~180°
Working Voltage: 6-8.4V
Stall Torque: 15kg.cm @6.5V; 17kg.cm @7.4V
Operating Speed: 0.16sec/60° @7.4V
No-load Current: 100mA
Stall Current: 2.4A~3A
Control Mode: PWM Pulse Width Control
Gear Type: Metal Gear
Servo Precision: 0.3°
PWM Pulse Width Range: 500~2500us (corresponding to 0-180°)
Dimensions: 54*20*40mm
Weight: 61g

Circular Rotation Servo Gimbal with Digital Servo x1
