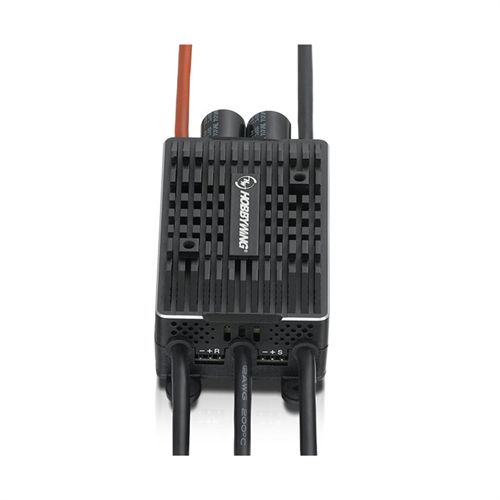

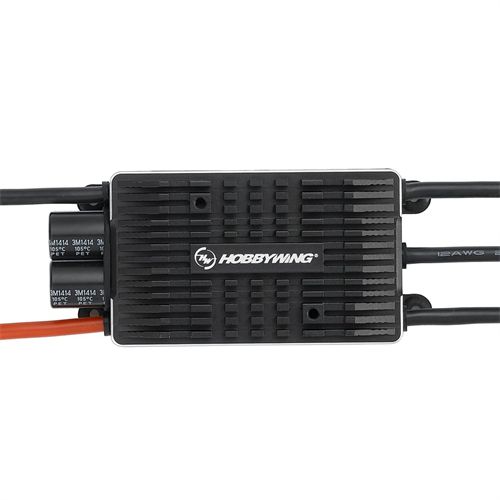

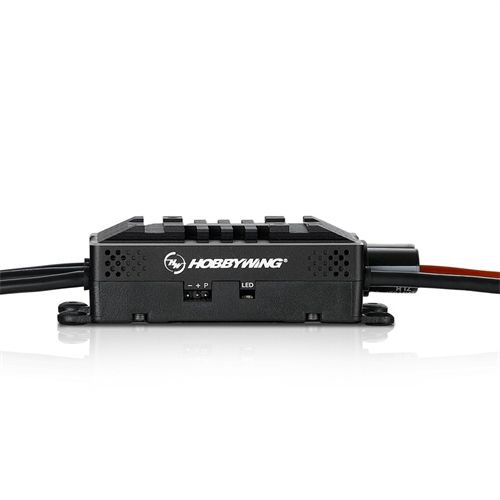

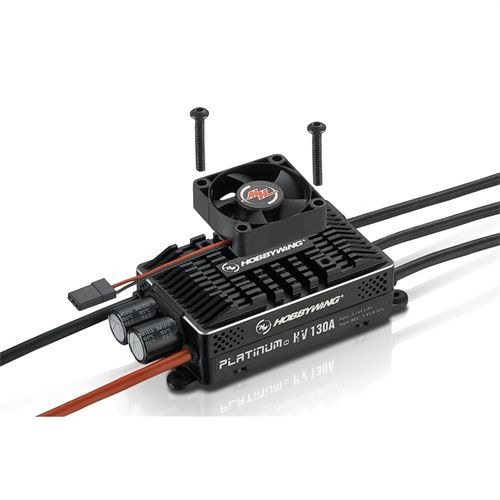

Product Name：Platinum HV 130A V4
Product Number：30209200
Type
– Brushed/Brushless：BL
– High Voltage/Regular：High Voltage
Specifications
– Cont./Peak Current：130A/160A
– Input Voltage：6-14S LiPo
– BEC Output：Switch Mode:5-8V,10A
Wires & Connectors
– Input Wires：Red-12AWG-150mm*1/Black-12AWG-150mm*1
– Output Wires：Black-12AWG-100mm*3
– Input Connectors：No
– Output Connecotors：No
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
– Transmitter：Not Supported
– LED Program Card：Not Supported
– LED Program Box：Not Supported
– LCD Program Box：Supported
– WiFi Module：Supported
– OTA Programmer：Supported
– Program Port：Separate Program Port
Firmware Upgrade：Supported
Size：101.0×45.5×27.0mm
Weight：169g
Applications：550-600 Class Heli (Main Blade: 550-690mm)
.90-.140 Class Fixed-wing Airplane, 2m FAIF3A & 3D
EDF (with Diameter≦105mm)
