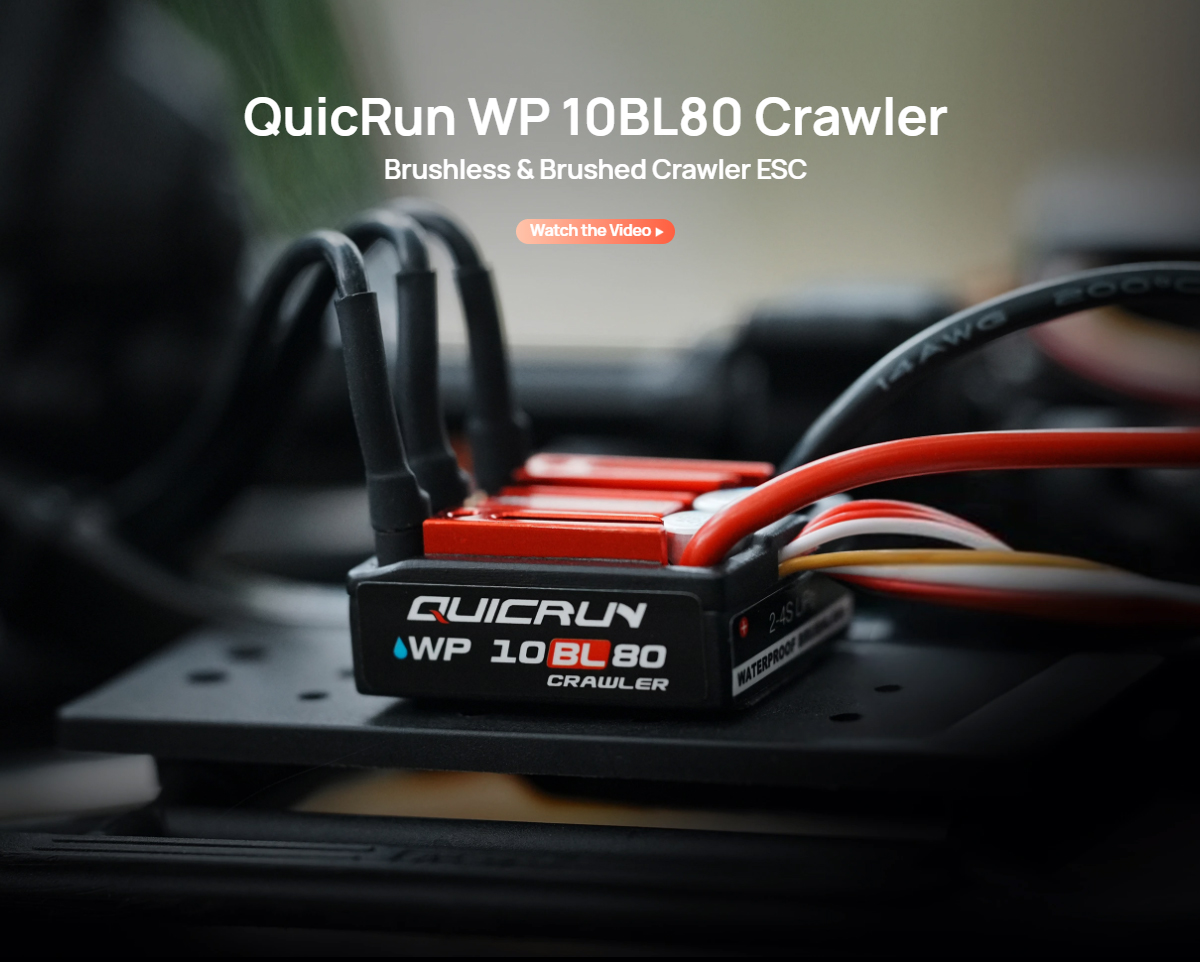

Hobbywing QuicRun WP 10BL80 Crawler Brushless Sensorless ESC 4S/80A High Performance for 1/10th RC Car
Hobbywing QuicRun WP 10BL80 Crawler Brushless Sensorless ESC 4S/80A High Performance for 1/10th RC Car

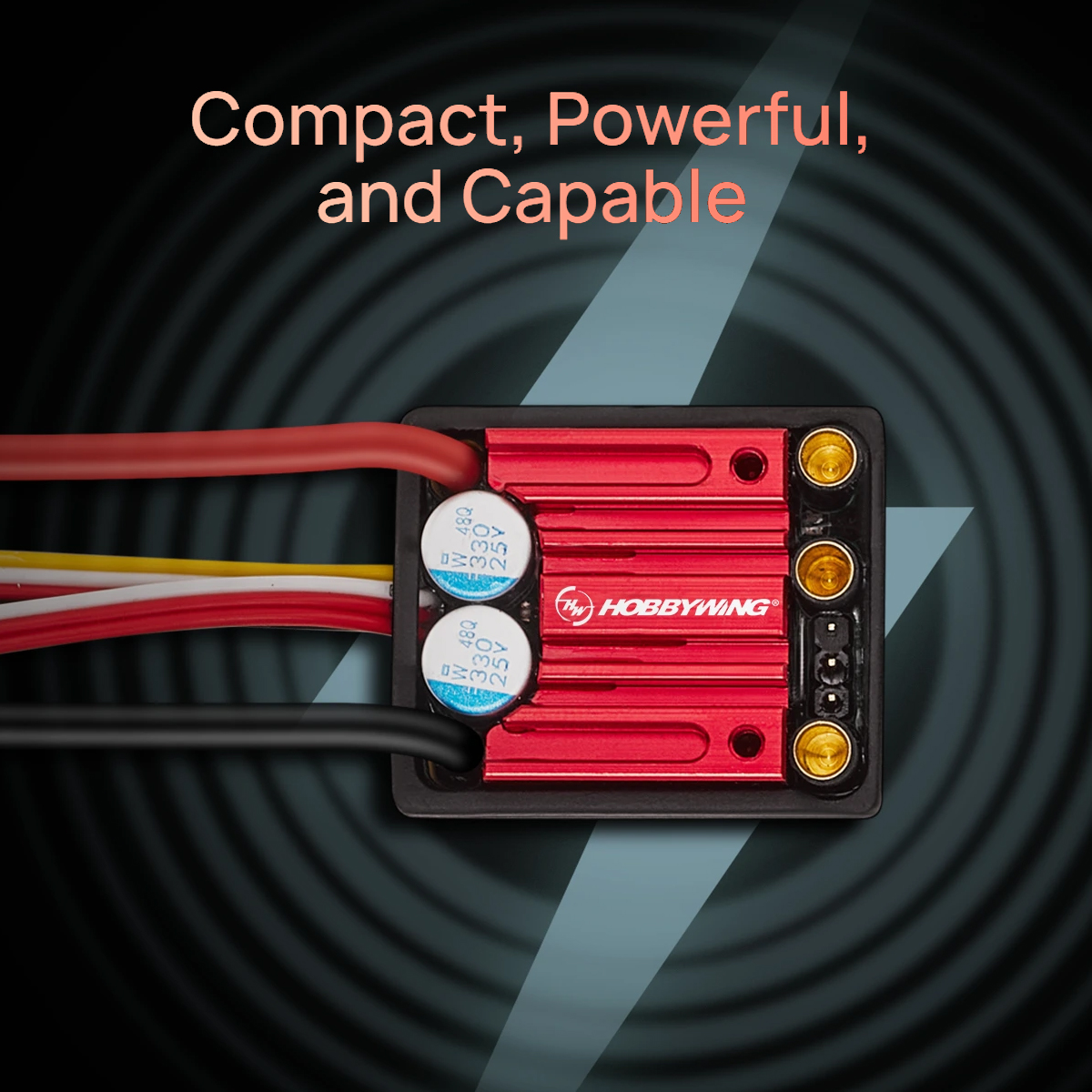

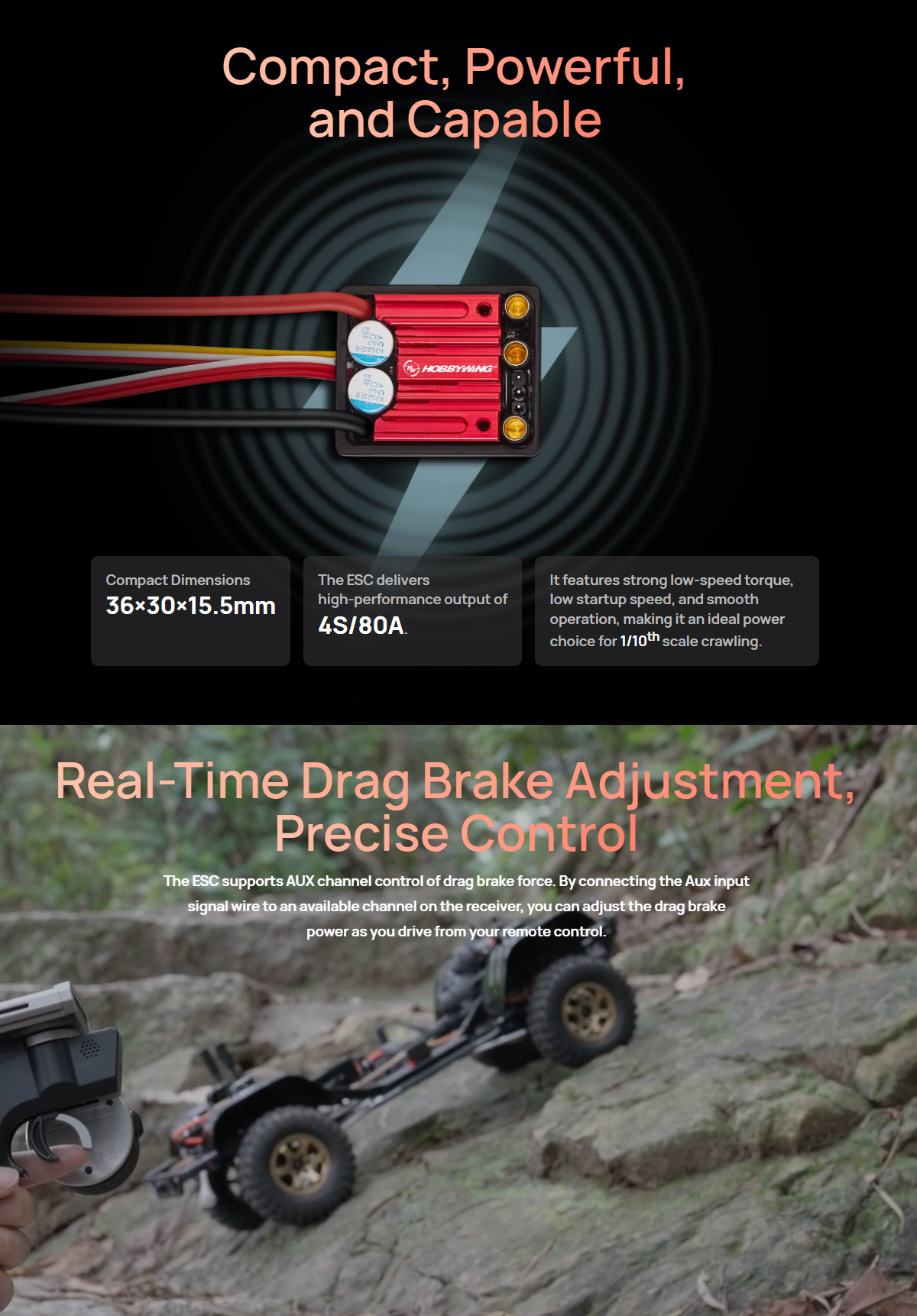

Compact, Powerful and Capable
Compact Dimensions 36×30×15.5mm.The ESC delivers high-performance output of 4S/80A.It features strong low-speed torque, low startup speed, and smooth operation, making it an ideal power choice for 1/10th scale crawling.
Real-Time Drag Brake Adjustment, Precise Control
The ESC supports AUX channel control of drag brake force. By connecting the Aux input signal wire to an available channel on the receiver, you can adjust the drag brake power as you drive from your remote control.

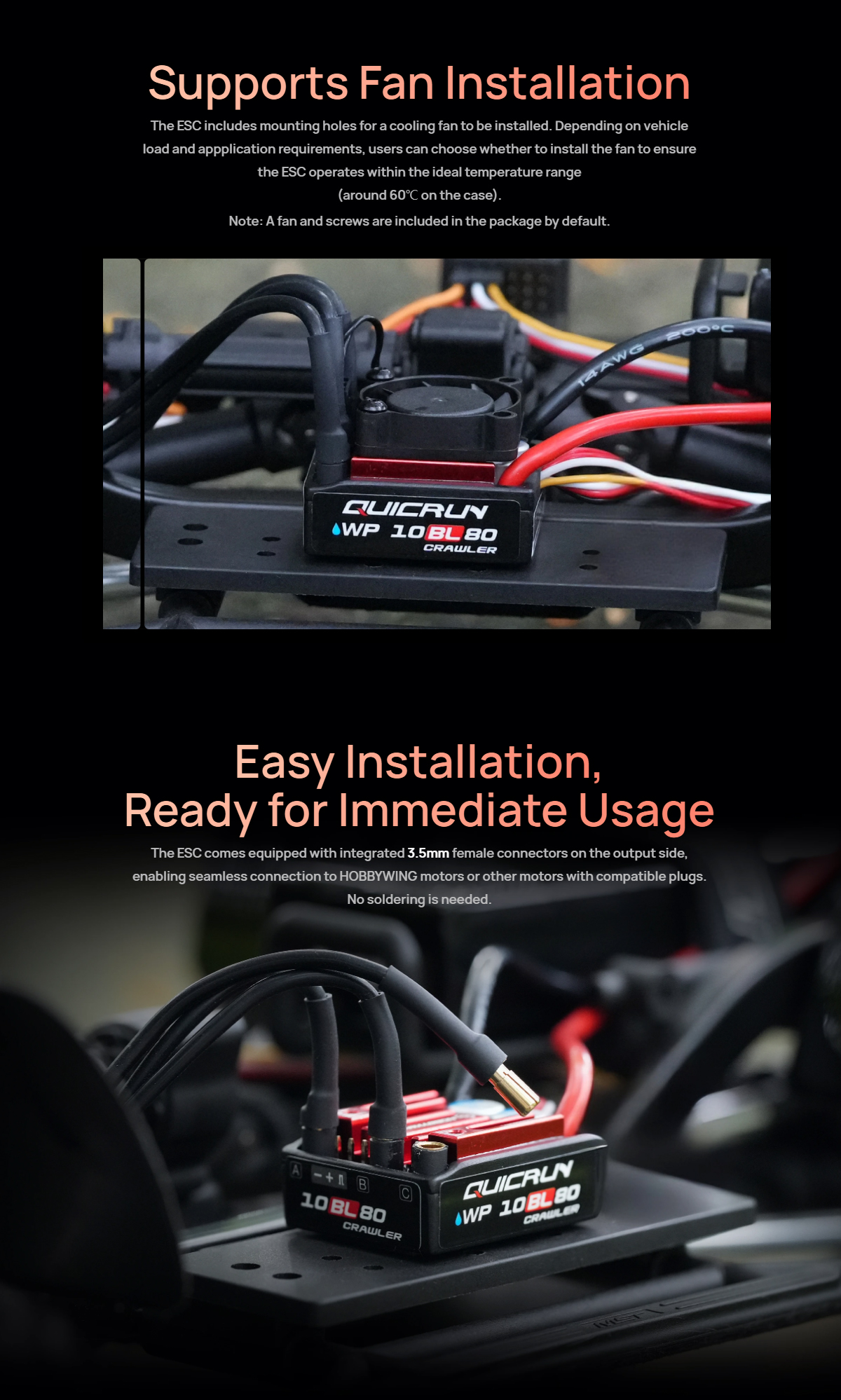

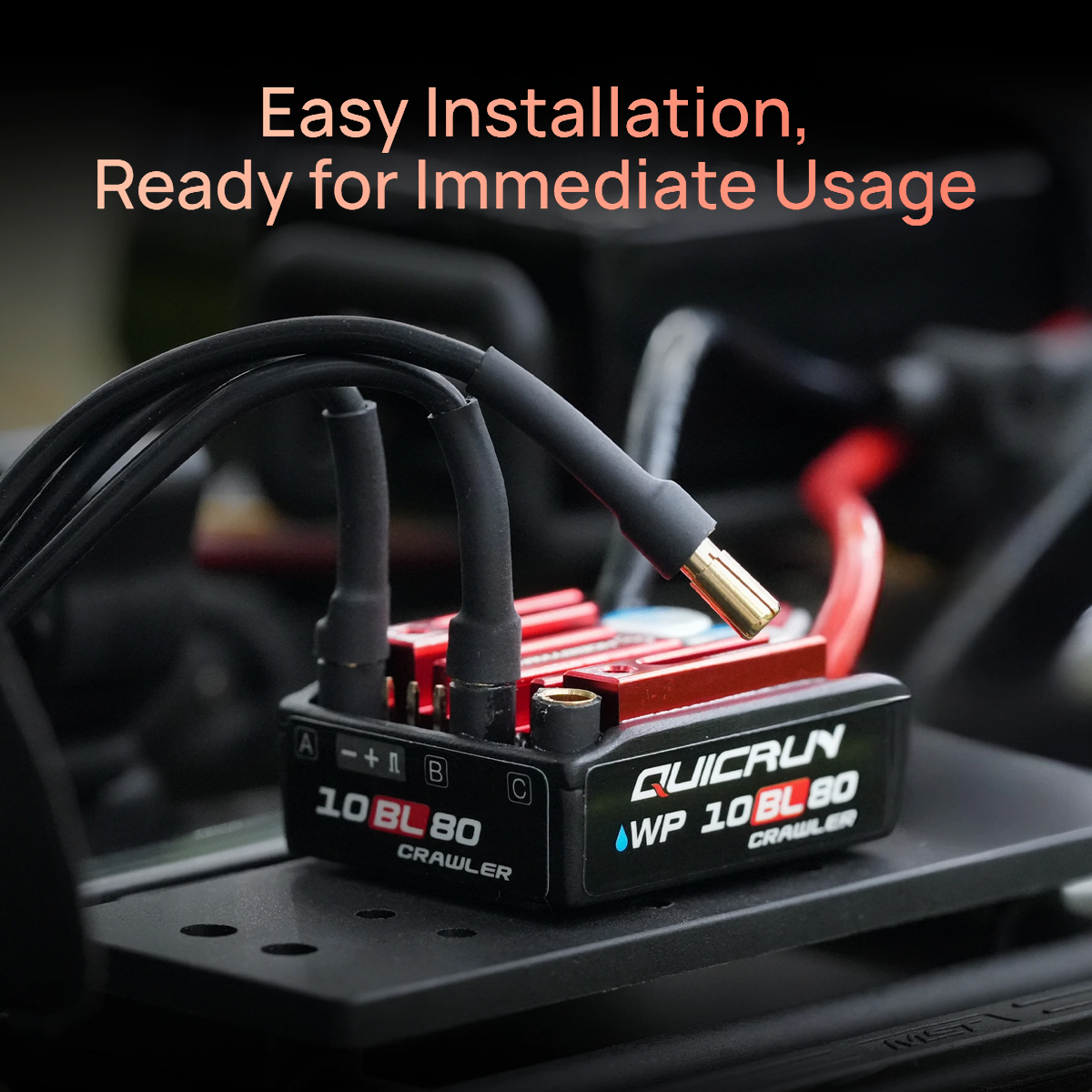

Easy Installation, Ready for Immediate Usage
The ESC comes equipped with integrated 3.5mm female connectors on the output side, enabling seamless connection to HOBBYWING motors or other motors with compatible plugs. No soldering is needed.

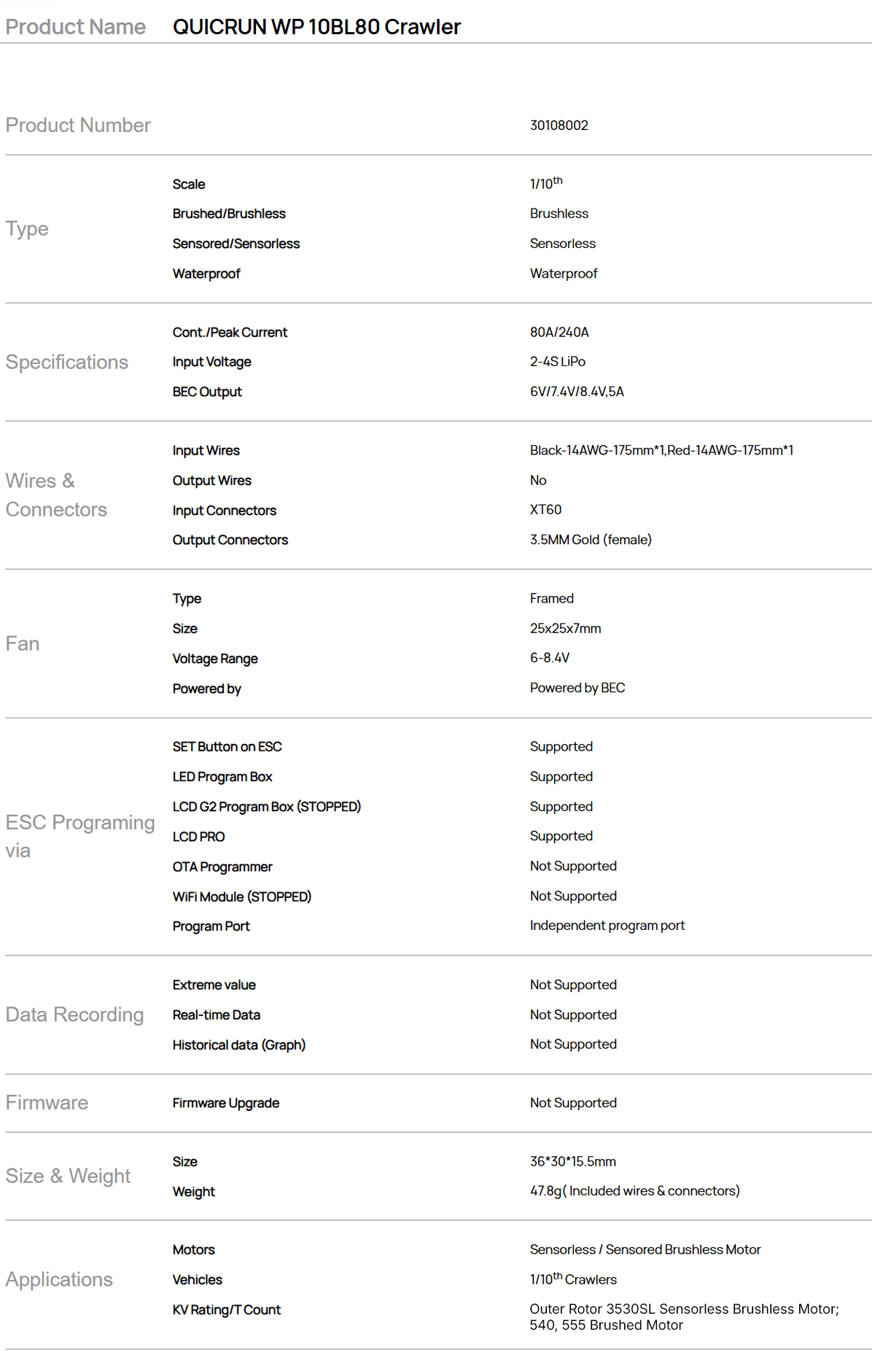

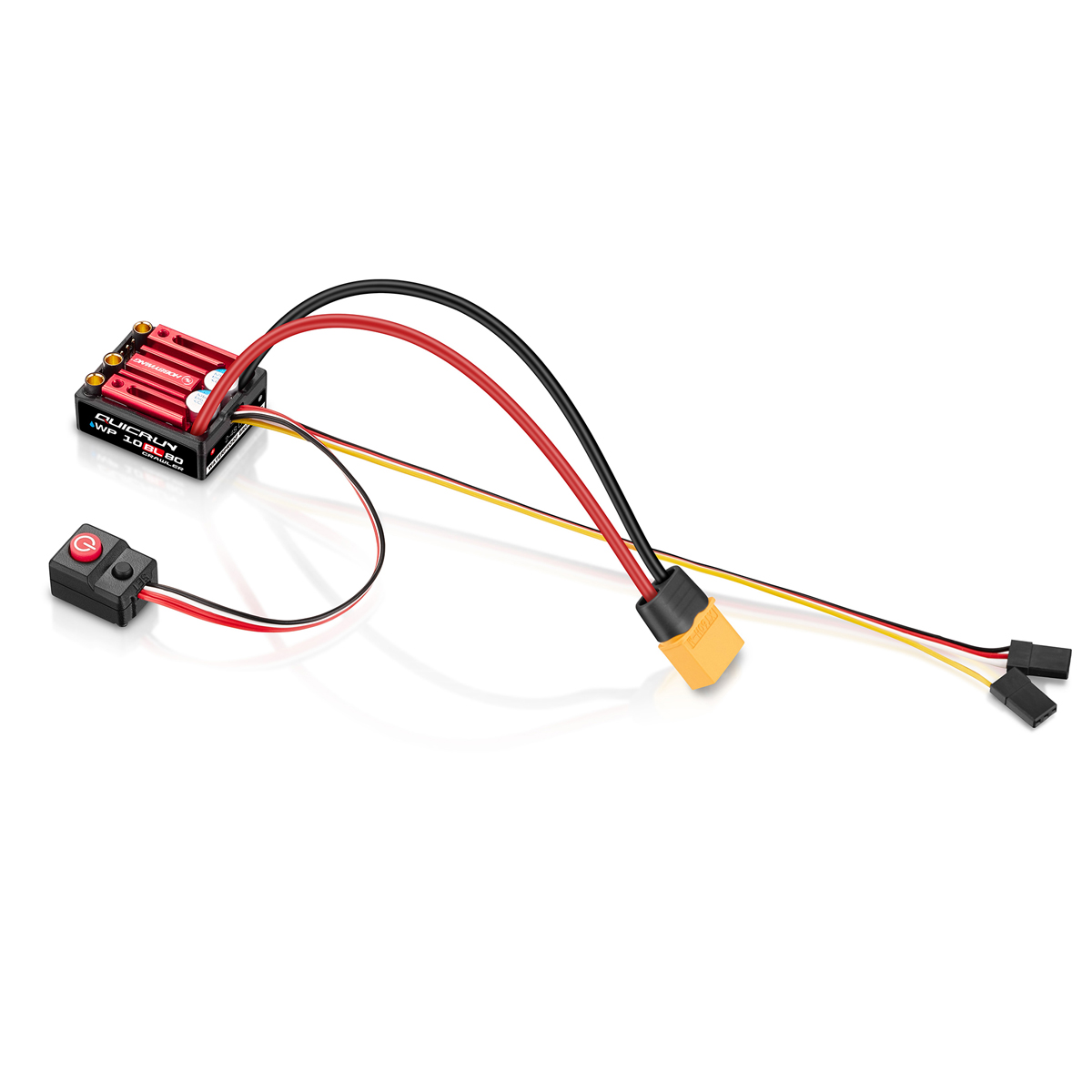

Model: QuicRun WP 10BL80 Crawler
Product Number: 30108002
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 80A/240A
Input Voltage: 2-4S LiPo

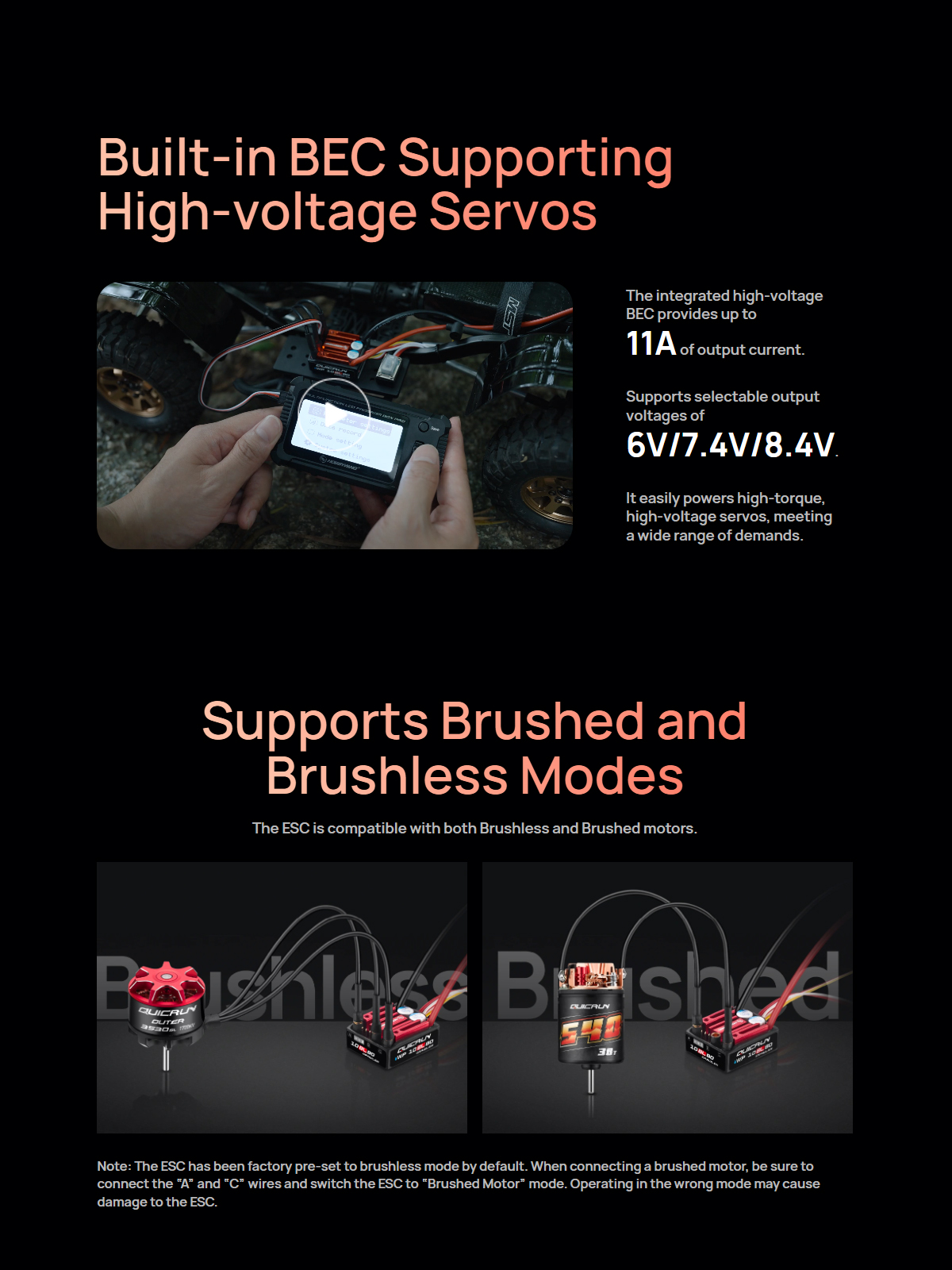

BEC Output: 6V/7.4V/8.4V,5A
Input Wires: Black-14AWG-175mm*1,Red-14AWG-175mm*1
Output Wires: No
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
Type: Framed
Fan Size: 25x25x7mm
Voltage Range: 6-8.4V
Powered by: Powered by BEC
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box (STOPPED): Supported
LCD PRO: Supported
OTA Programmer: Not Supported
WiFi Module (STOPPED): Not Supported
Program Port: Independent Program Port
Extreme Value: Not Supported
Real-time Data: Not Supported
Historical Data (Graph): Not Supported
Firmware Upgrade: Not Supported
Size: 36*30*15.5mm
Weight: 47.8g(Included Wires & Connectors)
Motor: Sensorless / Sensored Brushless Motor
Applicable Vehicles: 1/10th Crawlers

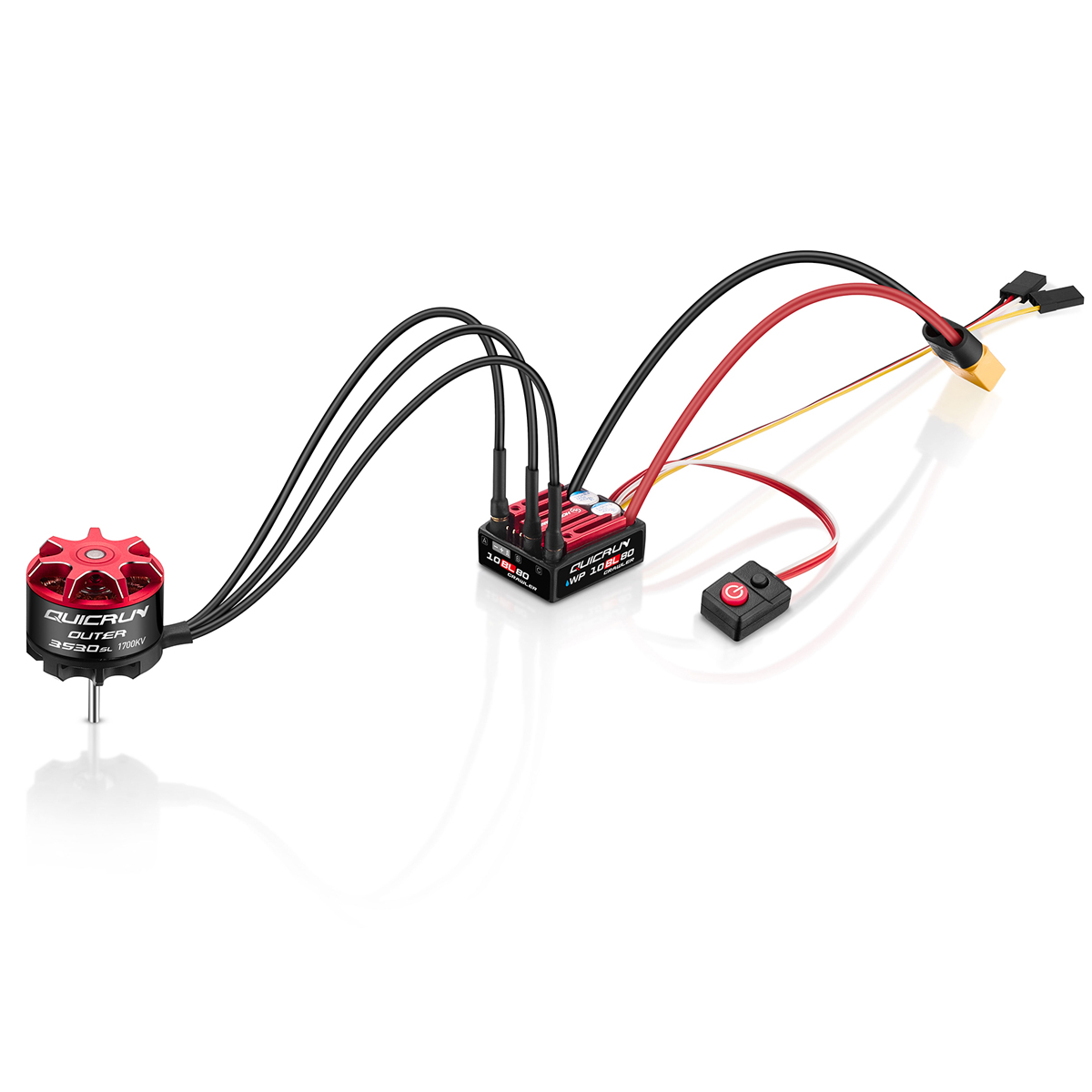

KV Rating/T Count: Outer Rotor 3530SL Sensorless Brushless Motor; 540, 555 Brushed Motor
QuicRun WP 10BL80 Crawler ESC x1
