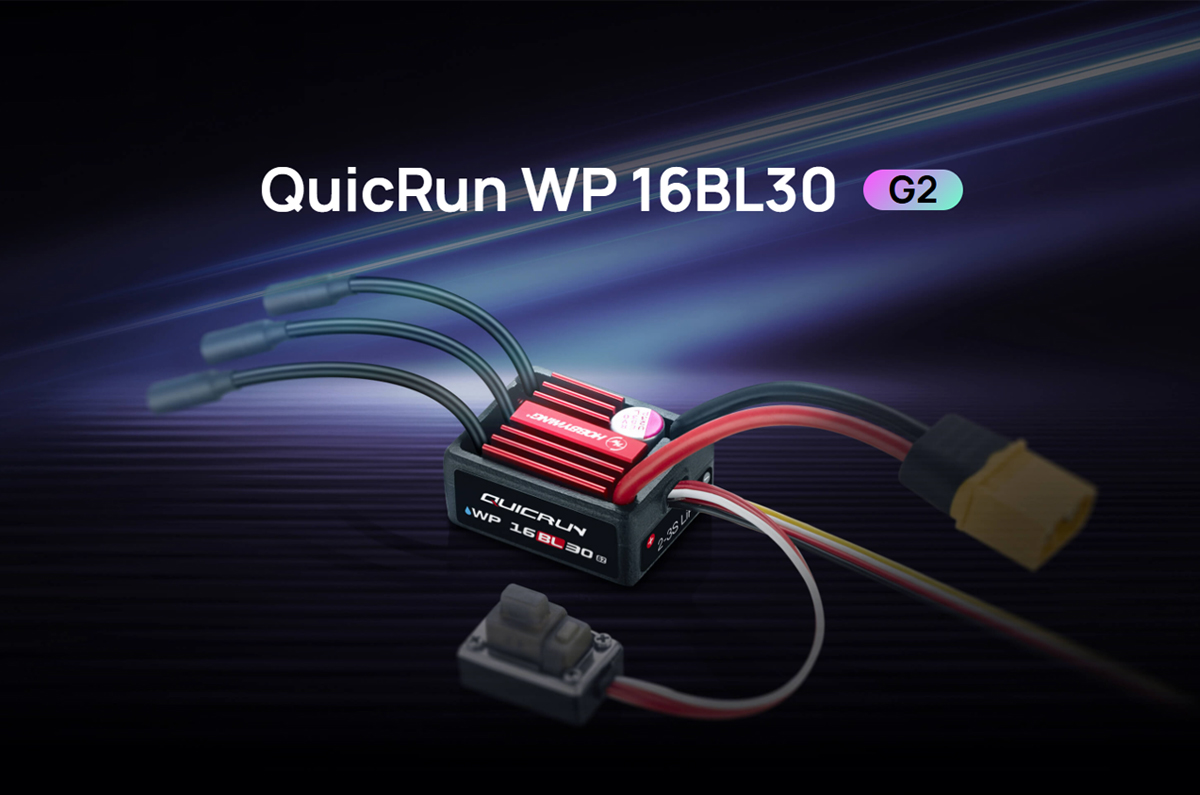

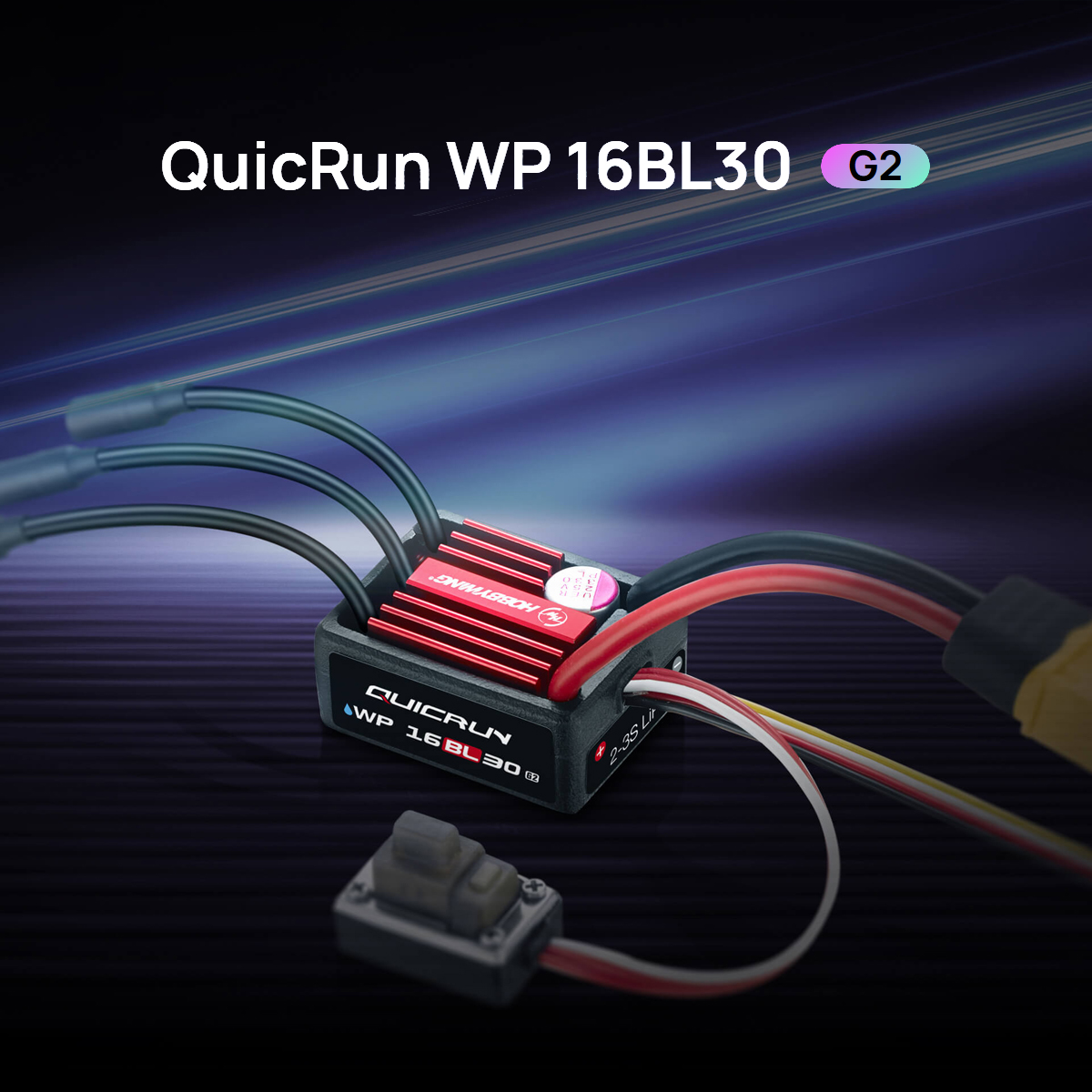

Hobbywing QuicRun WP 16BL30 G2 Brushless ESC for 1/16 1/18 RC On-Road Car Short Course Truck Monster Vehicles
Hobbywing QuicRun WP 16BL30 G2 Brushless ESC for 1/16 1/18 RC On-Road Car Short Course Truck Monster Vehicles

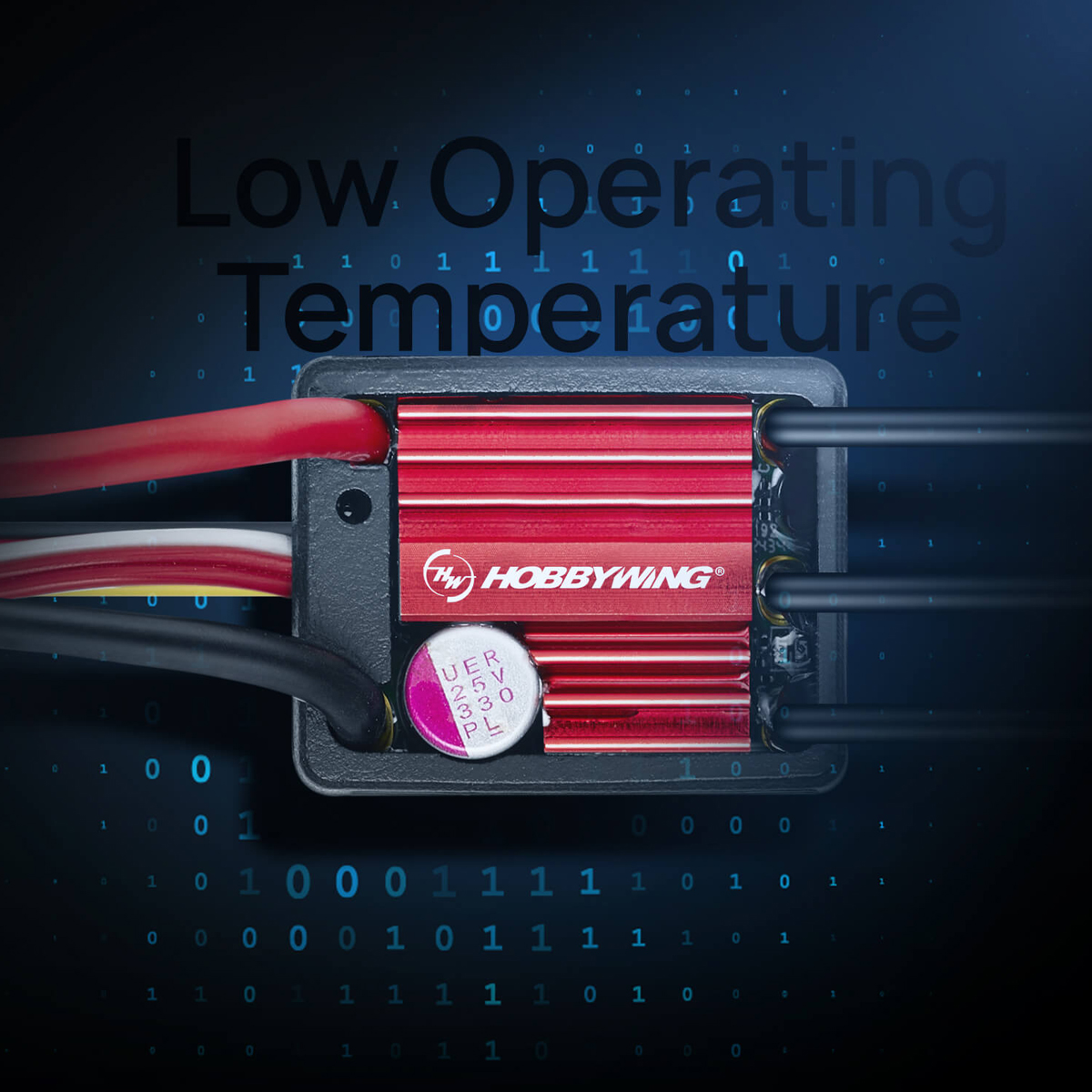

Intelligent Freewheelinfor Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology,delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

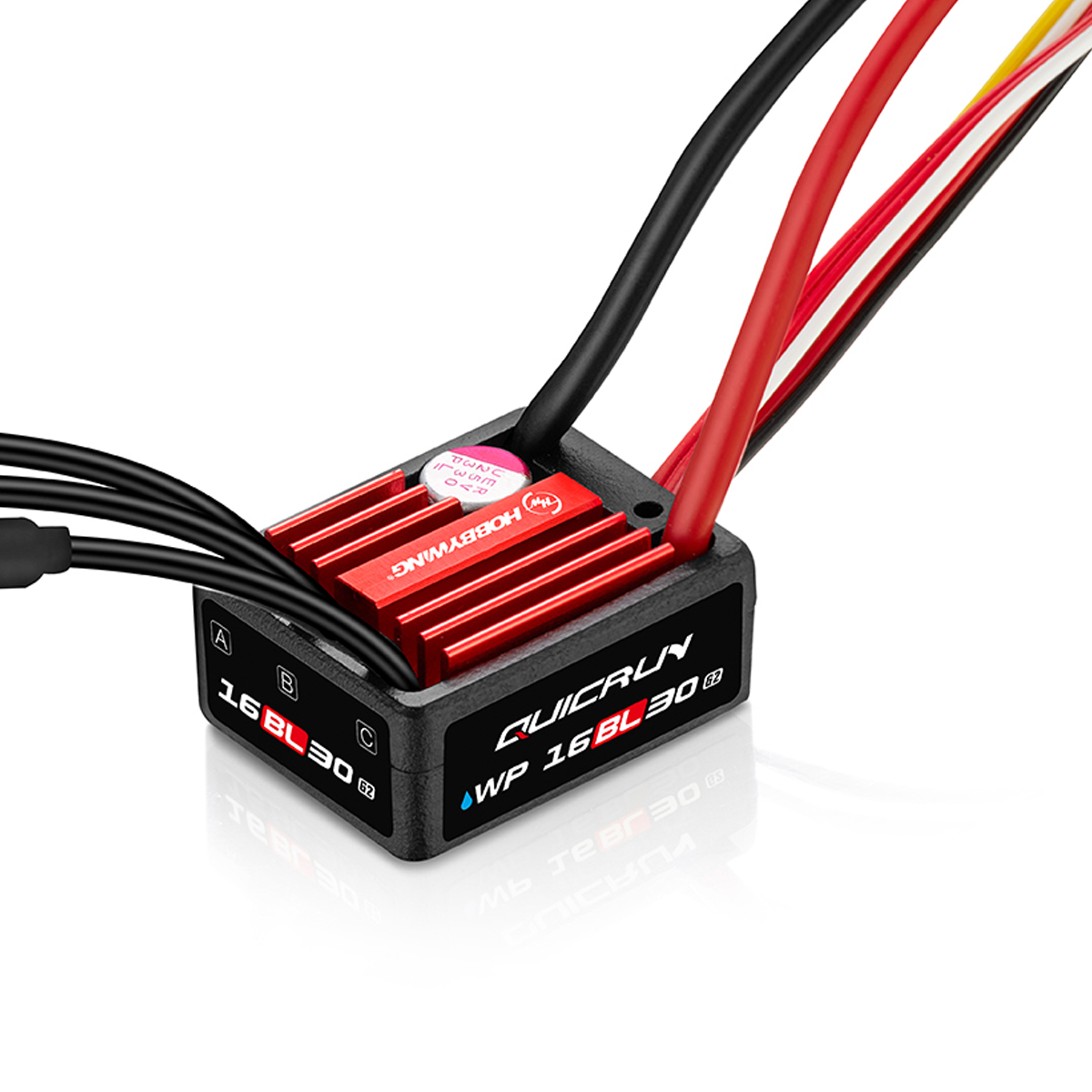

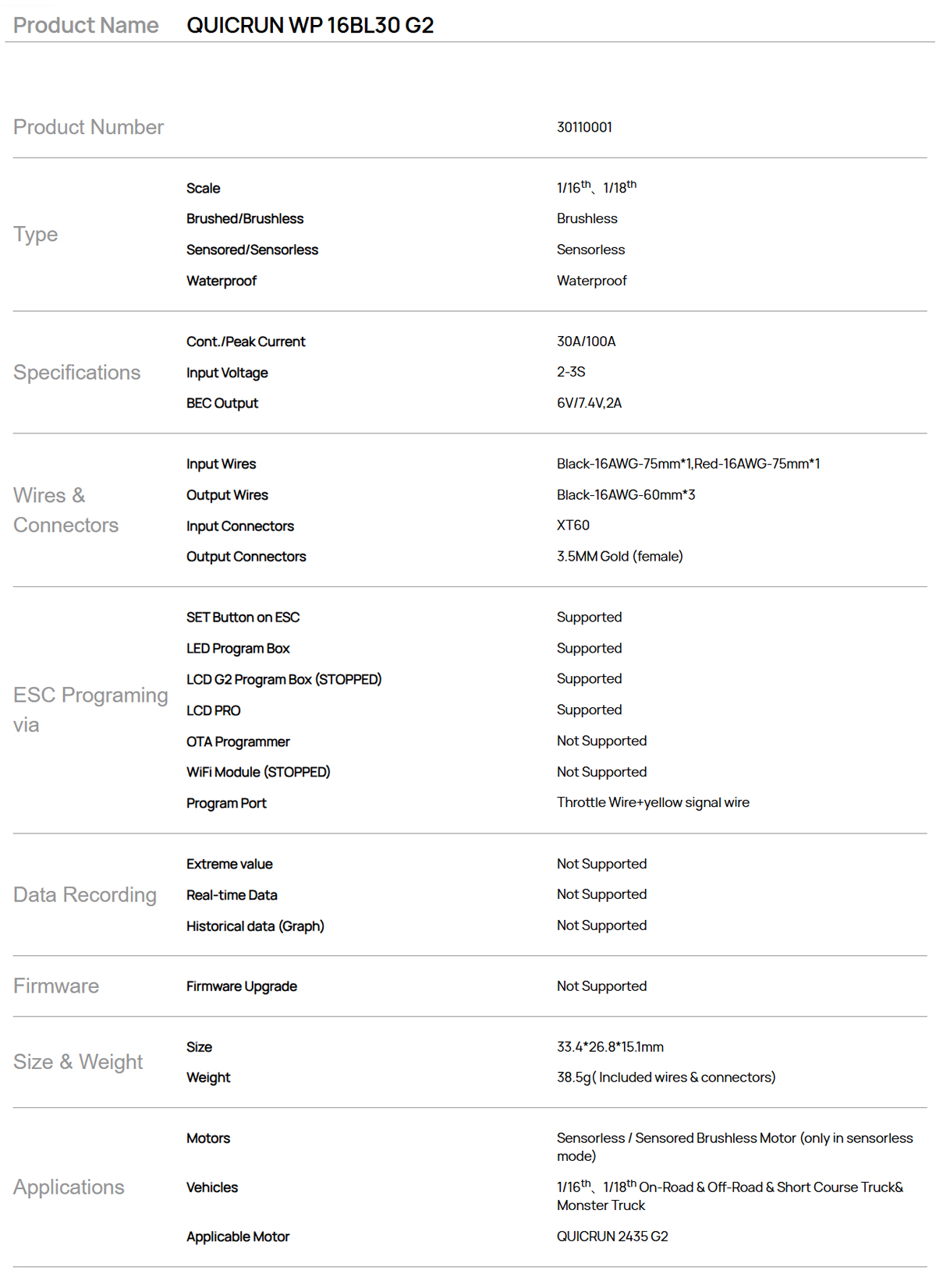

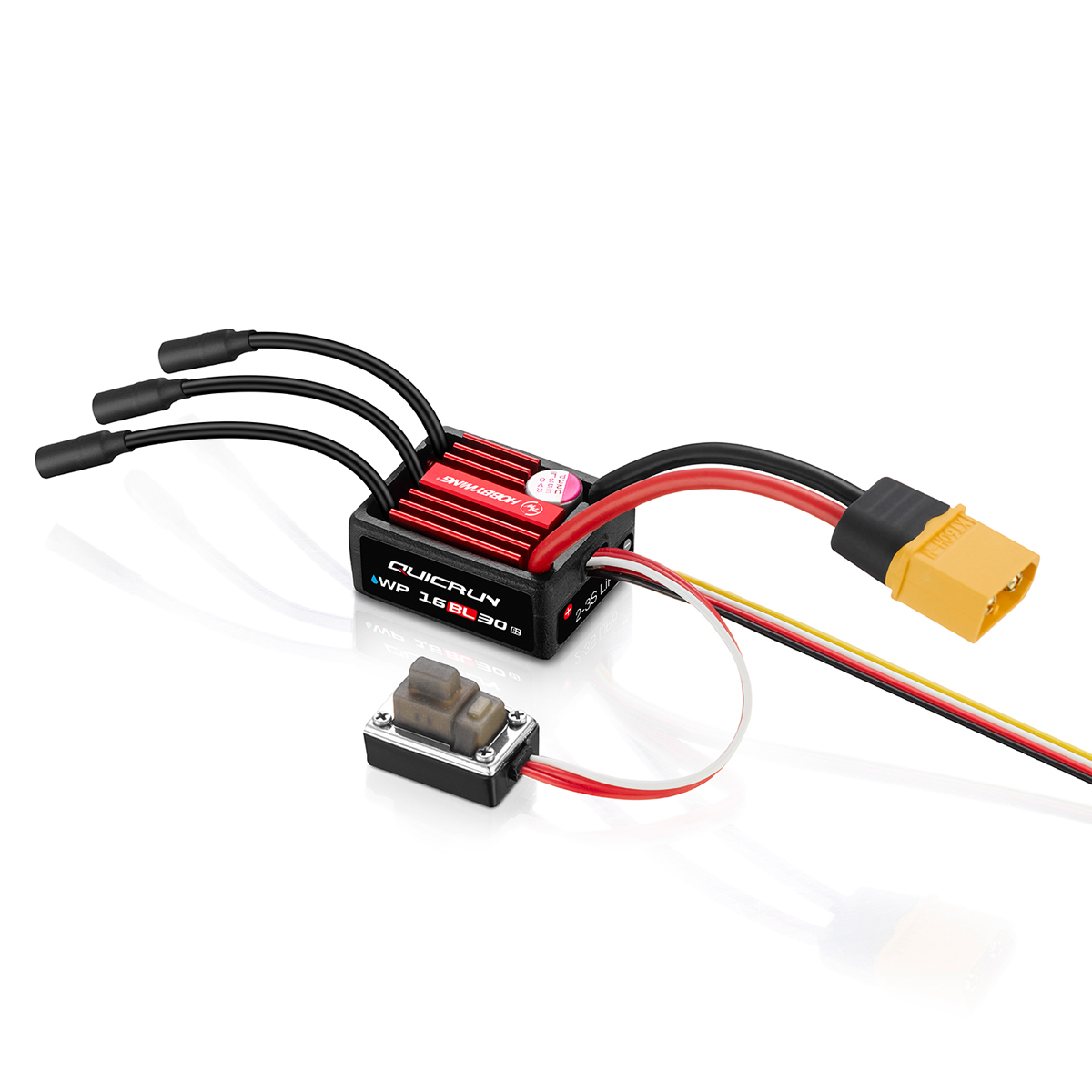

Model: QuicRun WP 16BL30 G2
Product Number: 30110001
Scale: 1/16th、1/18th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S
BEC Output: 6V/7.4V,2A

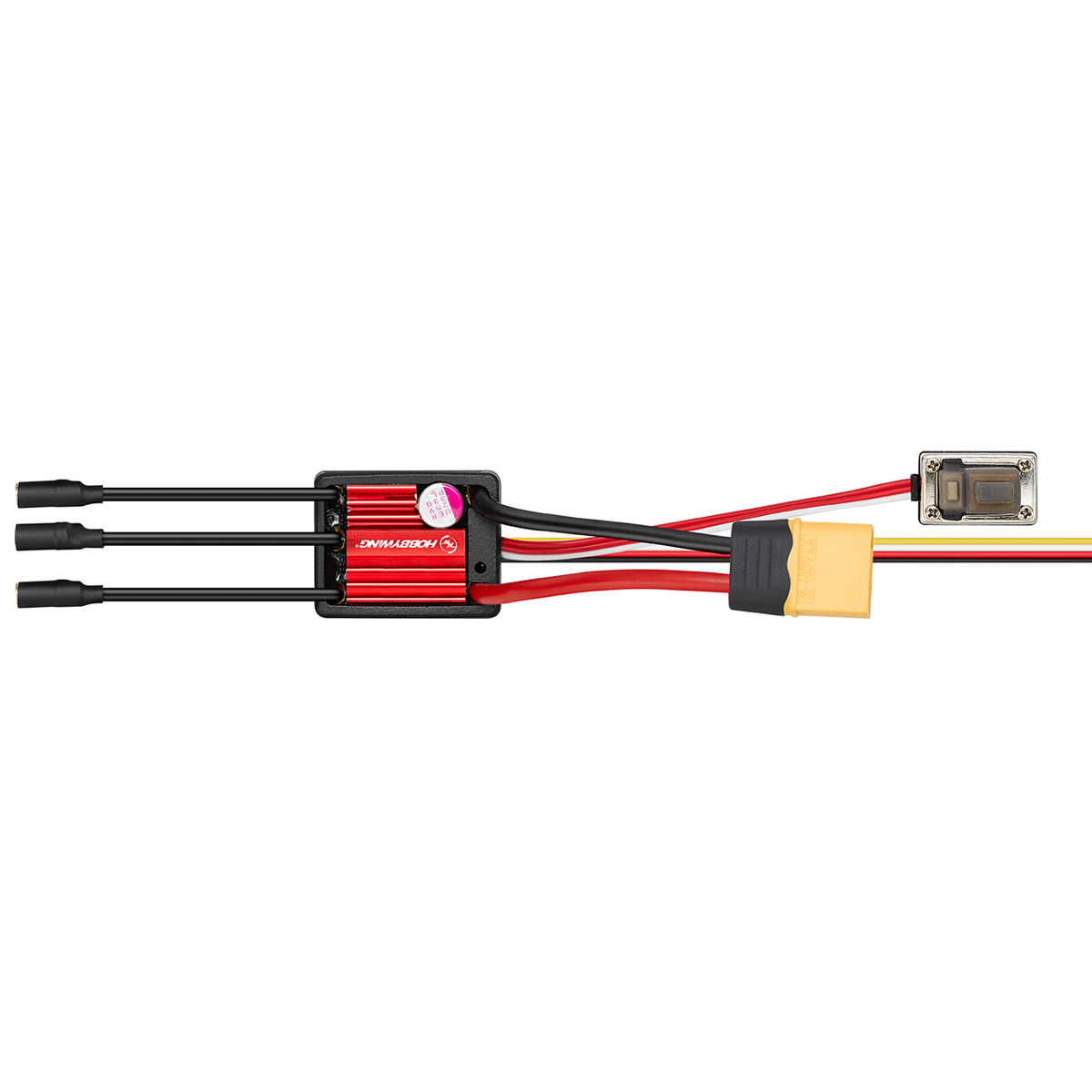

Input Wires: Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Wires: Black-16AWG-60mm*3
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box (STOPPED): Supported
LCD PRO: Supported
OTA Programmer: Not Supported
WiFi Module (STOPPED): Not Supported
Program Port: Throttle Wire+yellow signal wire
Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported
Firmware Upgrade: Not Supported

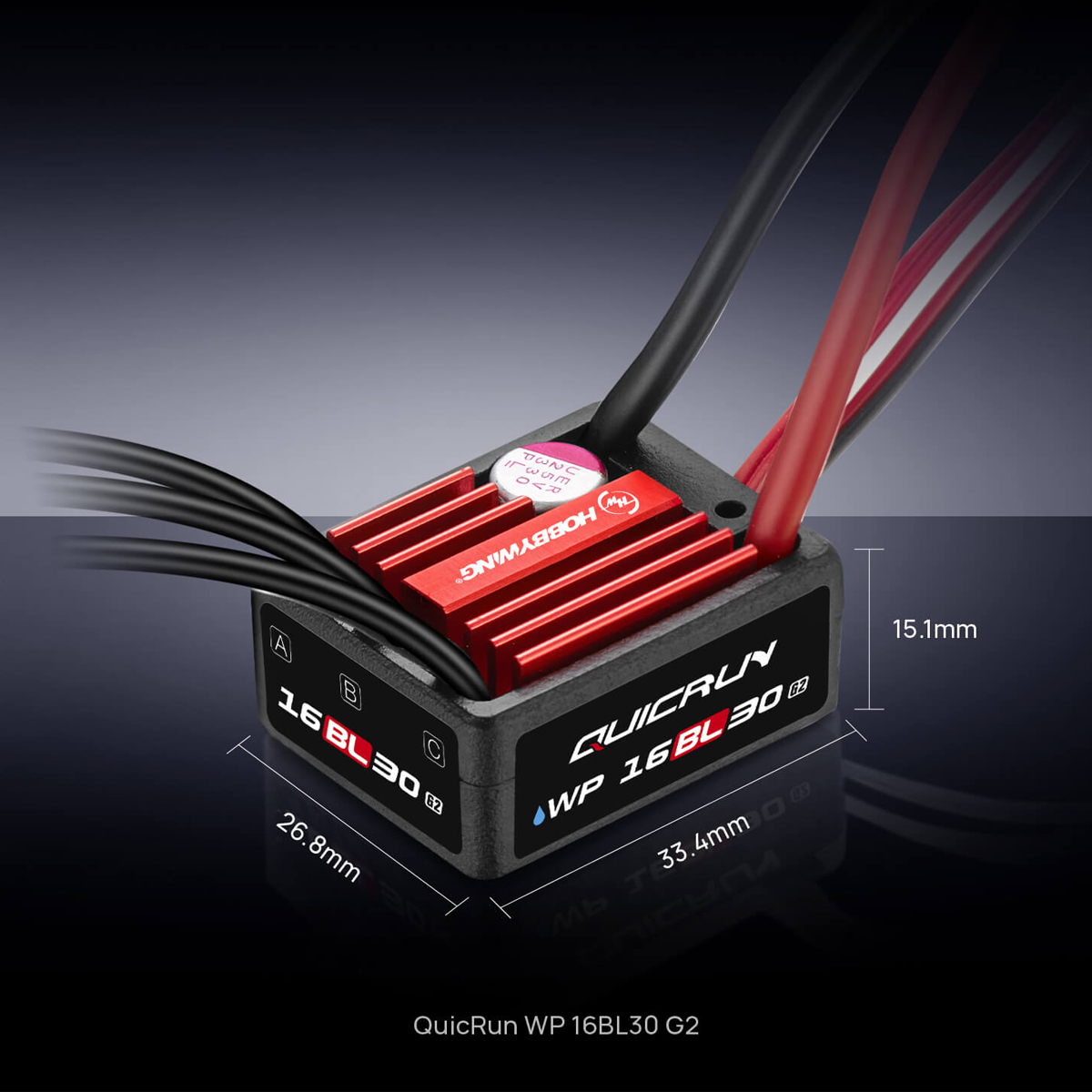

Size: 33.4*26.8*15.1mm
Weight: 38.5g( Included wires & connectors)
Motor: Sensorless / Sensored Brushless Motor (only in sensorless mode)
Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck& Monster Truck

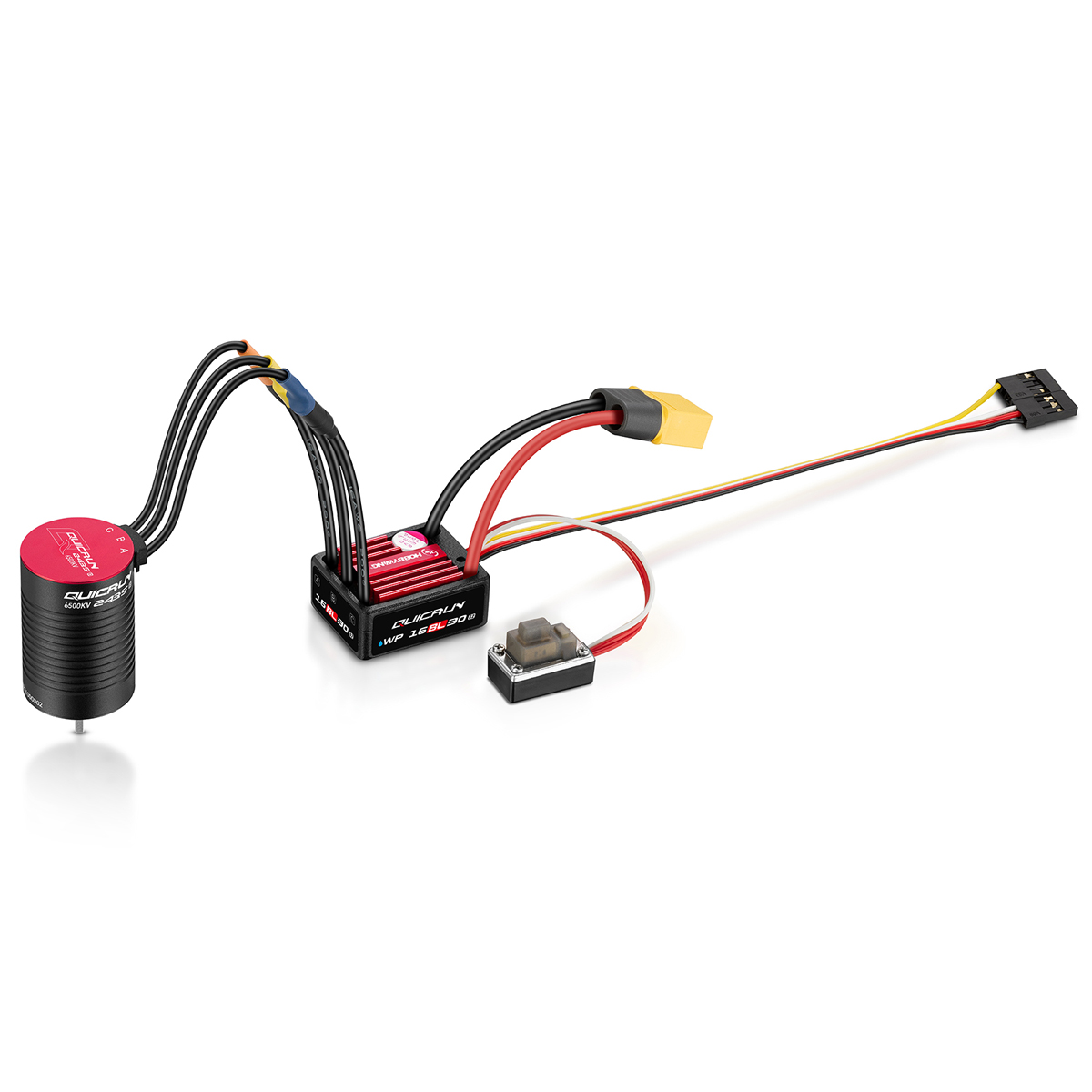

Applicable Motor: QUICRUN 2435 G2
QuicRun WP 16BL30 G2 ESC x1
