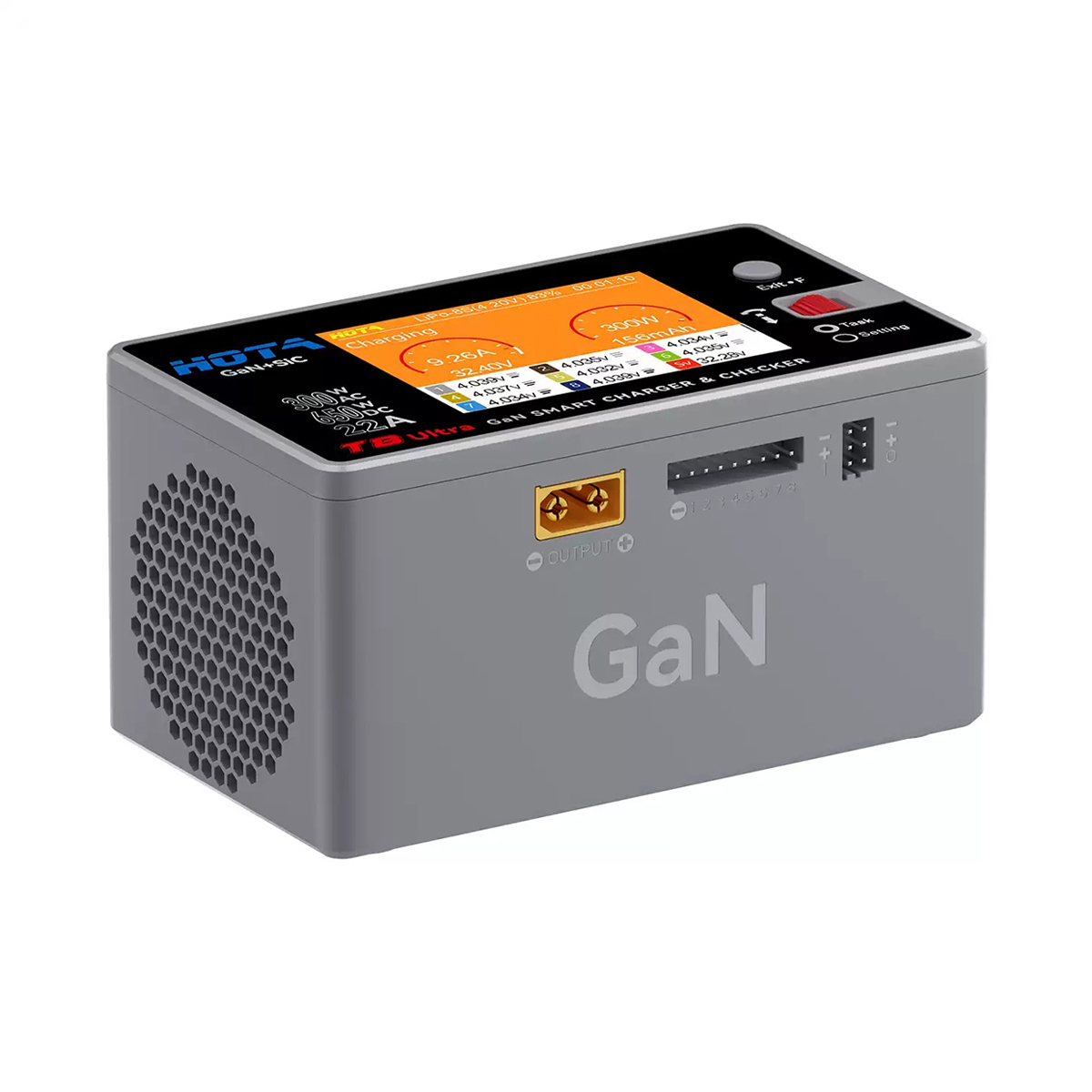

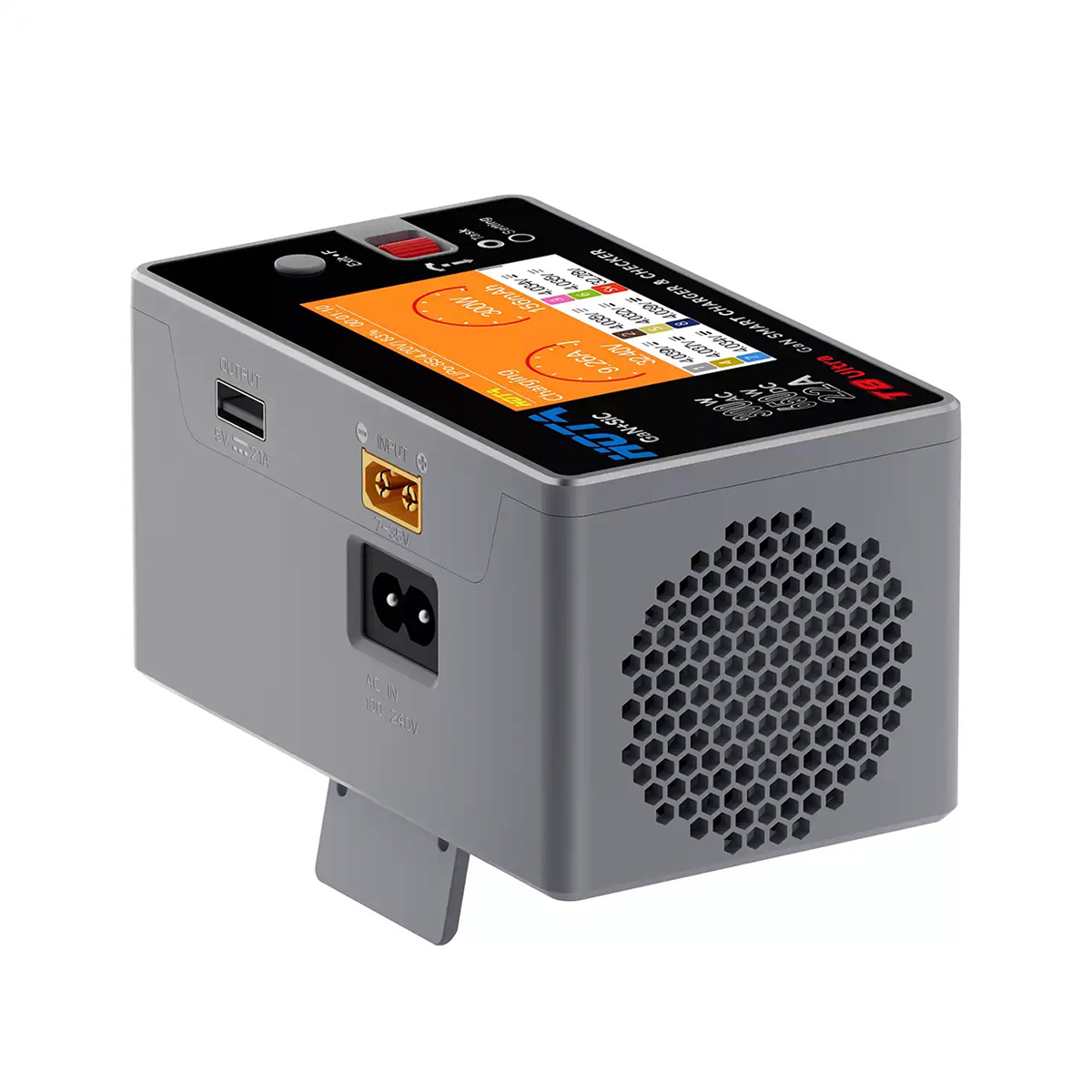

HOTA T8 Ultra GaN 8S Smart Balance Charge AC 300W DC 650W for LiPo LiHV LiFe NiMH Battery RC Drone Car Airplane
HOTA T8 Ultra GaN 8S Smart Balance Charge AC 300W DC 650W for LiPo LiHV LiFe NiMH Battery RC Drone Car Airplane
HOTA T8 Ultra GaN 8S Smart Balance Charge AC 300W DC 650W for LiPo LiHV LiFe NiMH Battery RC Drone Car Airplane

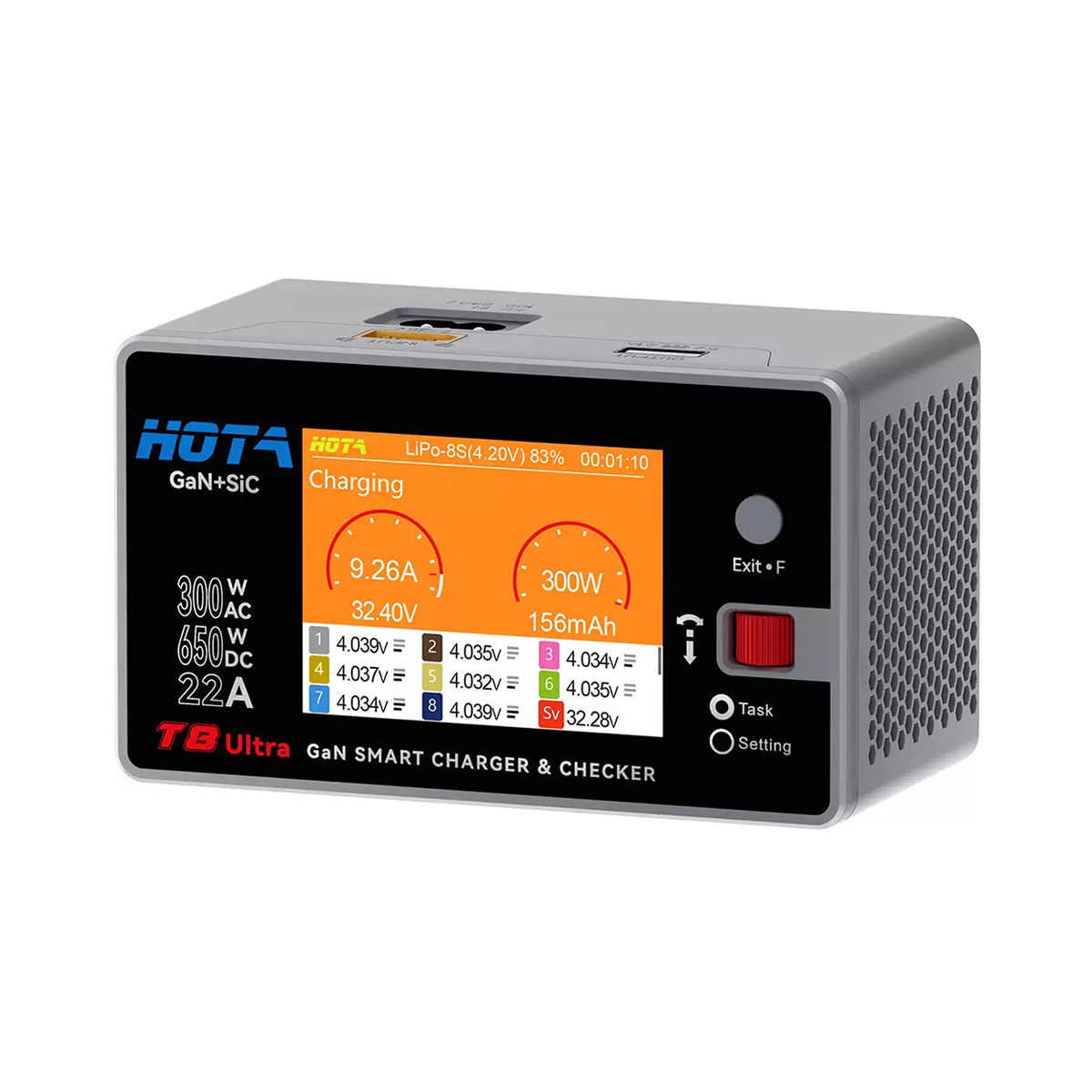

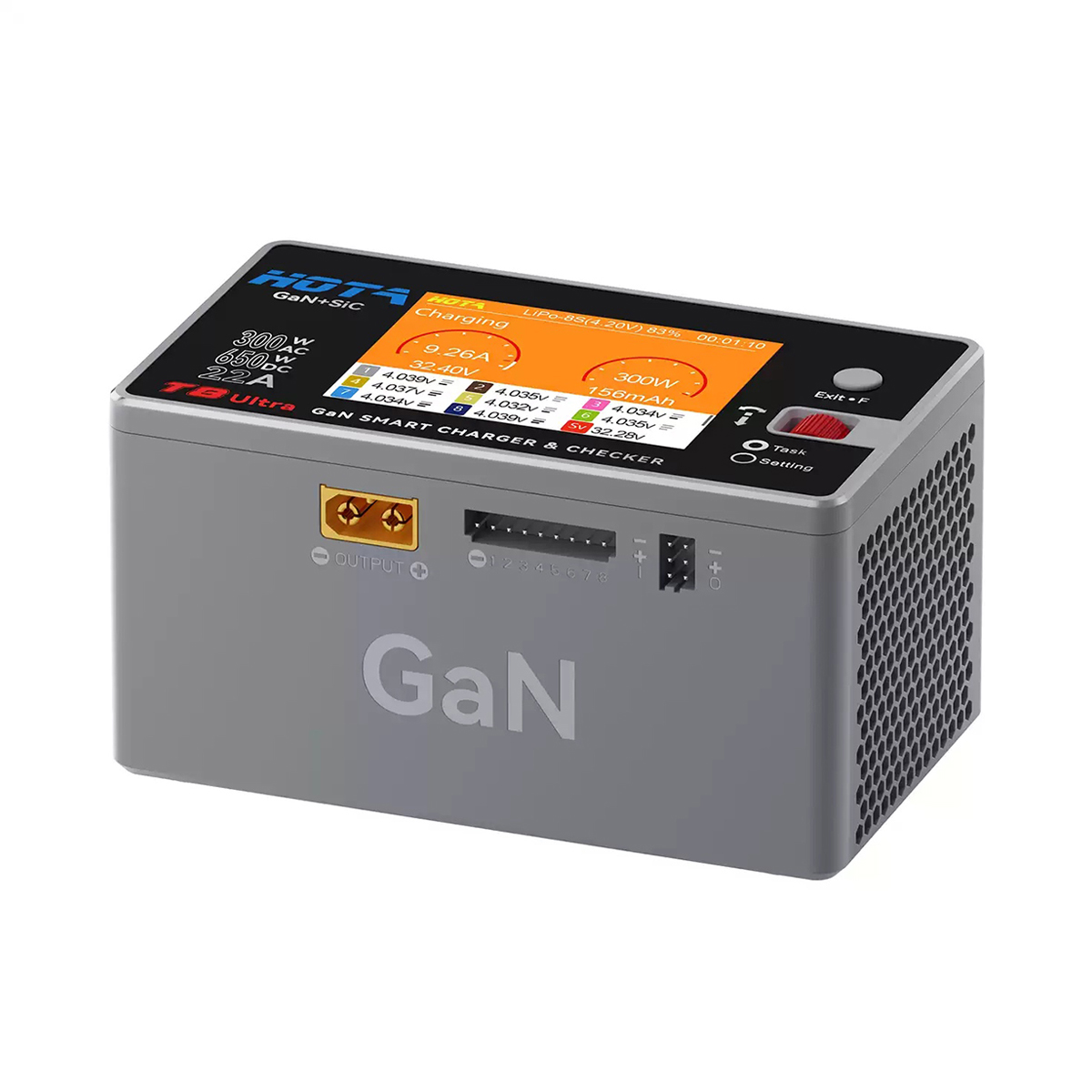

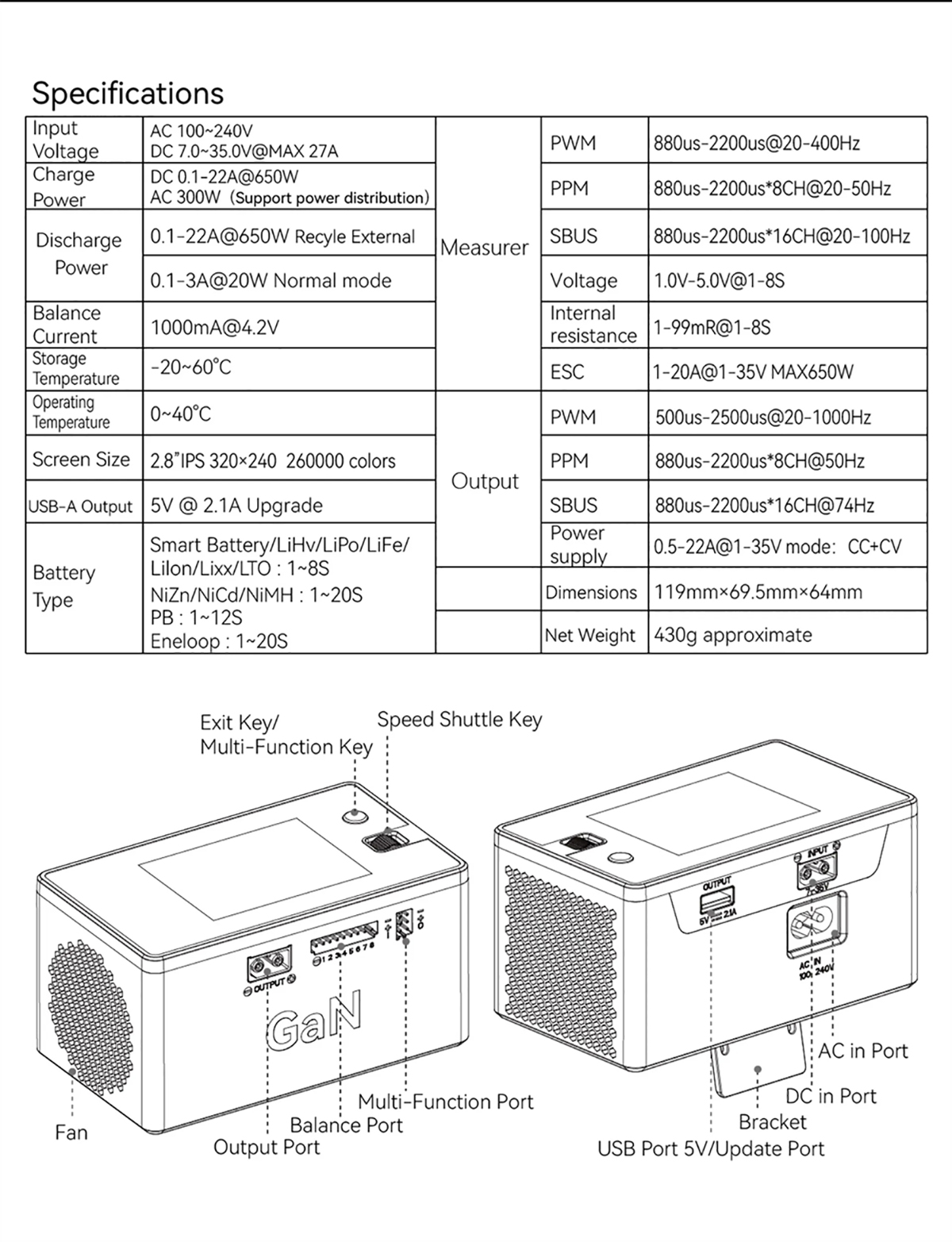

Model: T8 Ultra
Input Voltage: AC 100~240V ; DC 7.0~35.0V@MAX 27A
Charge Power: DC 0.1-22A@650W ; AC 300W (Support power distribution)
Discharge Power: 0.1-22A@650W Recyle External ; 0.1-3A@20W Normal mode
Balance Current: 1000mA@4.2V
Storage Temperature: -20~60℃
Operating Temperature: 0~40℃

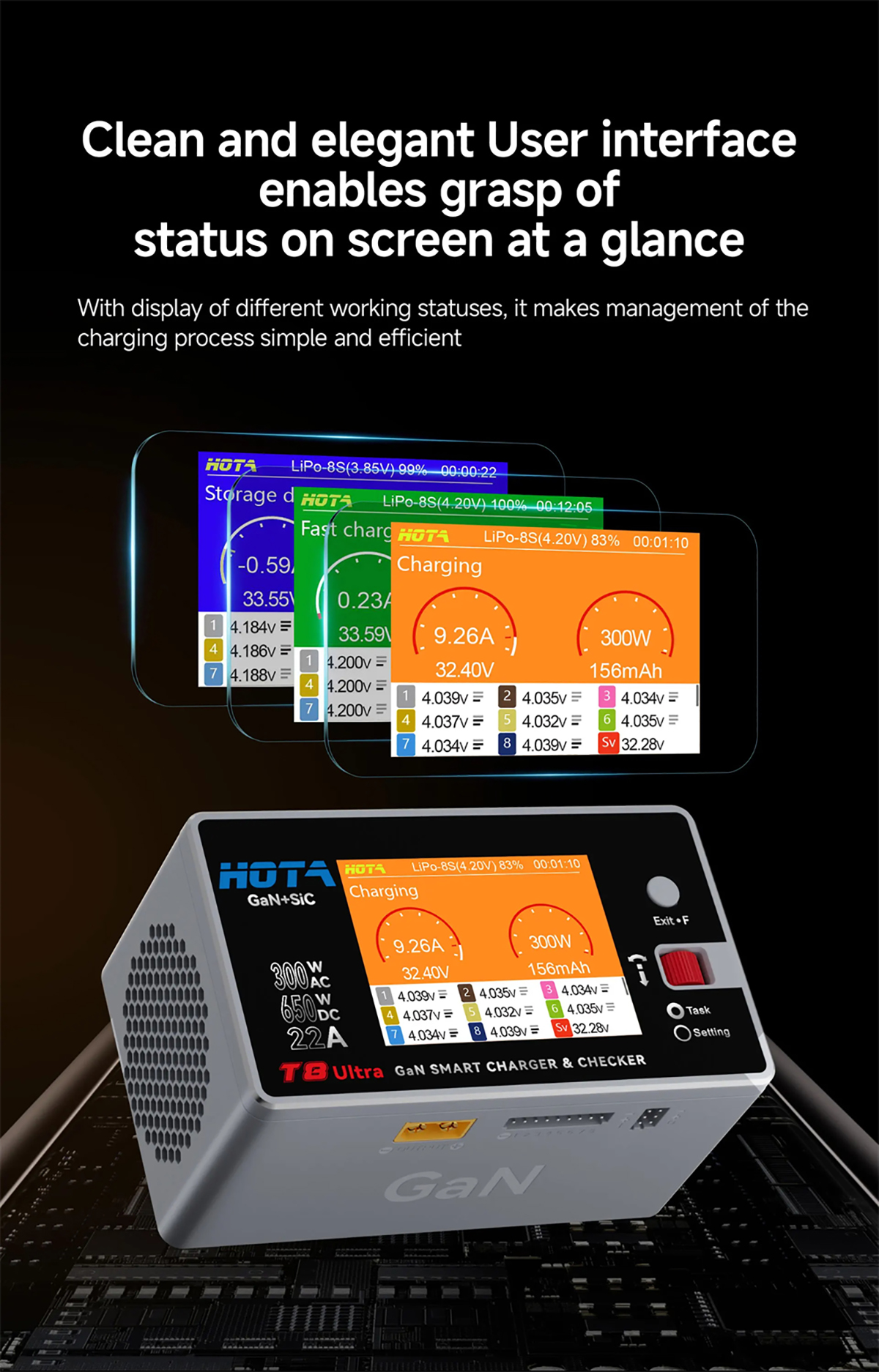

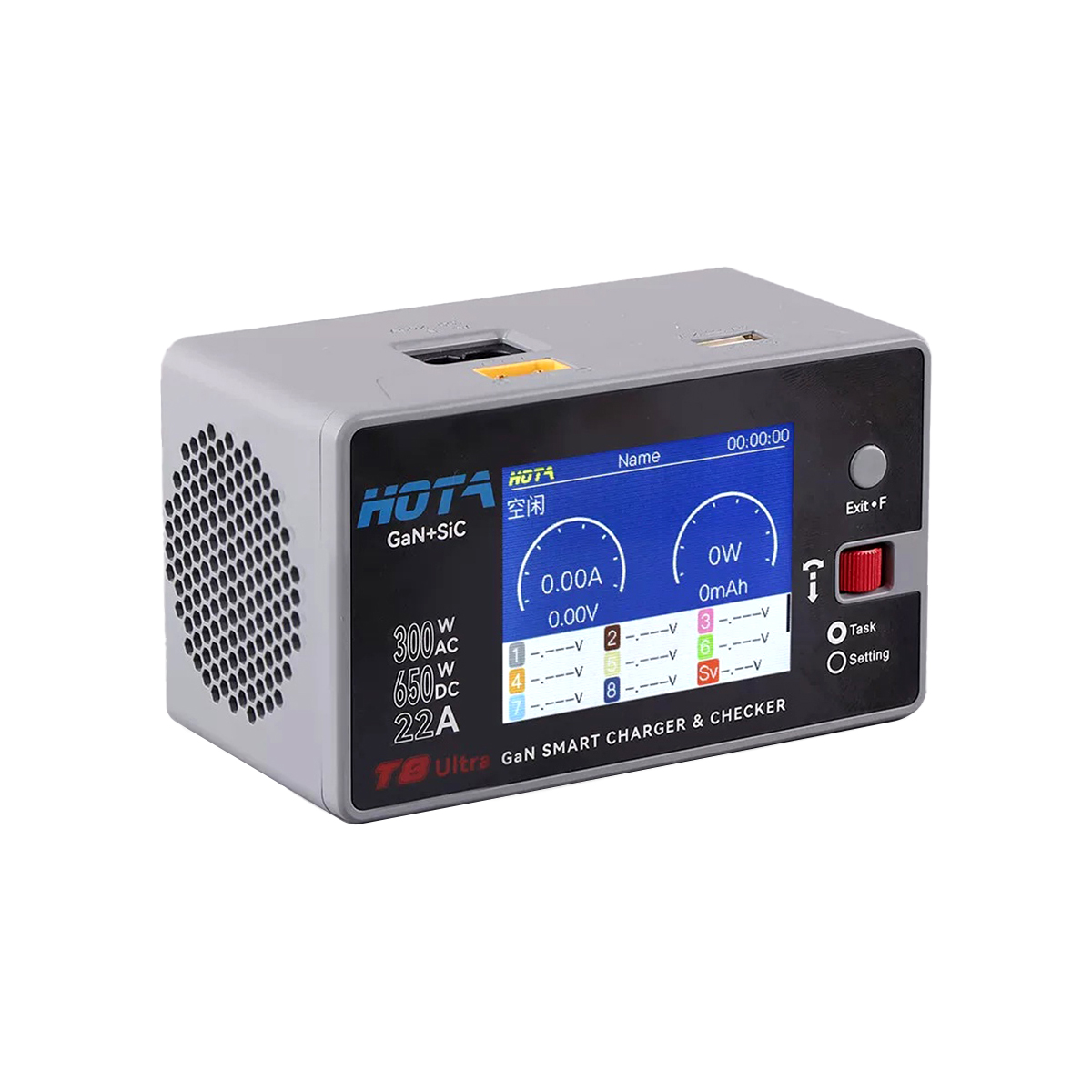

Screen Size: 2.8″ IPS 320×240 260,000 colors
USB-A Output: 5V @ 2.1A Upgrade
Battery Type:
Smart Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO : 1~8S
NiZn/NiCd/NiMH : 1~20S
PB: 1~12S
Eneloop: 1~20S
Measurer
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us*8CH@20-50Hz
SBUS: 880us-2200us*16CH@20-100Hz
Voltage: 1.0V-5.0V@1-8S
Internal resistance: 1-99mR@1-8S
ESC: 1-20A@1-35V MAX650W
Output
PWM: 500us-2500us@20-1000Hz
PPM: 880us-2200us*8CH@50Hz
SBUS: 880us-2200us*16CH@74Hz
Power Supply: 0.5-22A@1-35V mode:CC+CV

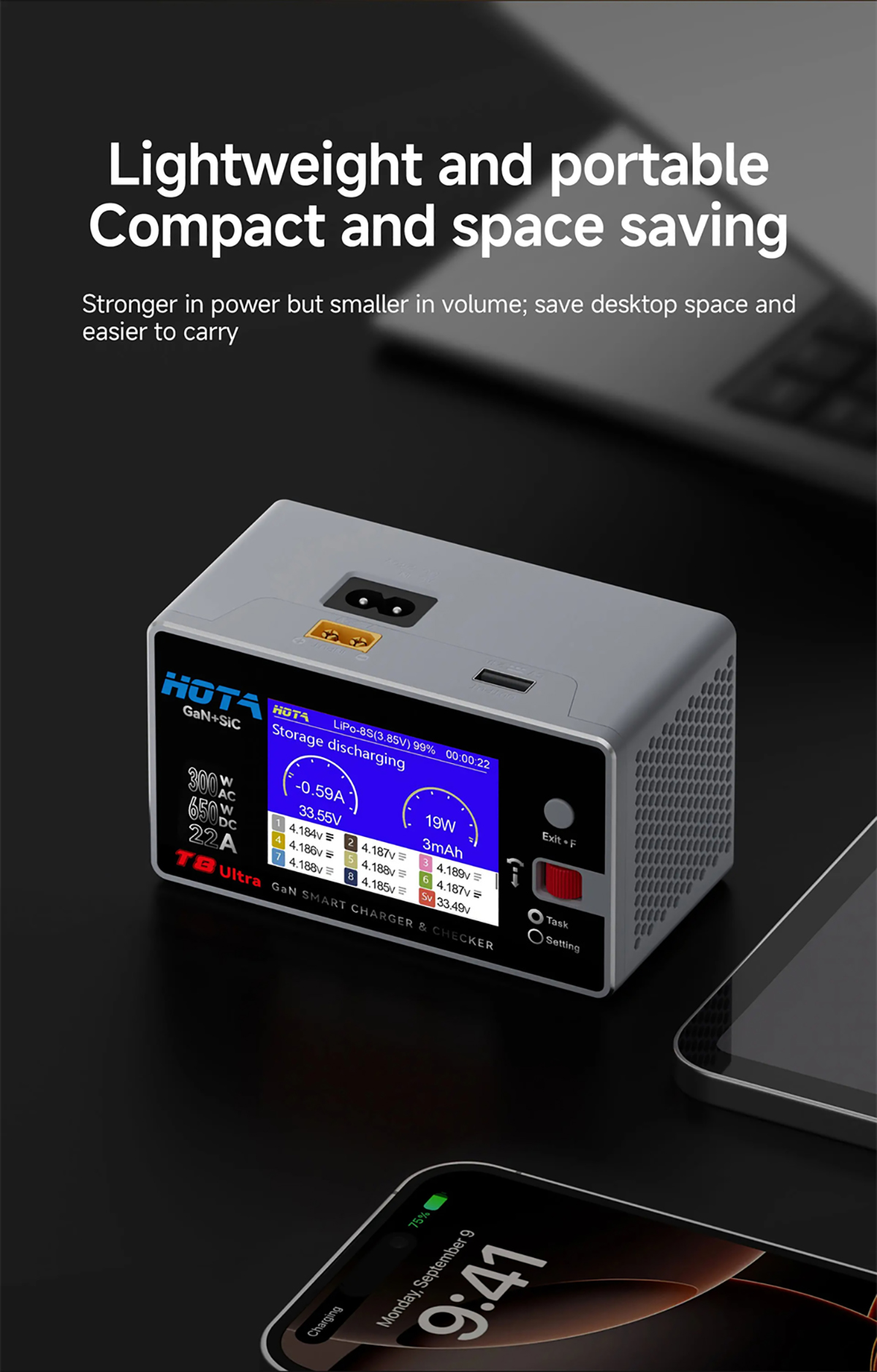

Dimensions: 119mmx69.5mmx64mm
Net Weight: Approx.430g
T8 Ultra Smart Charger x1
