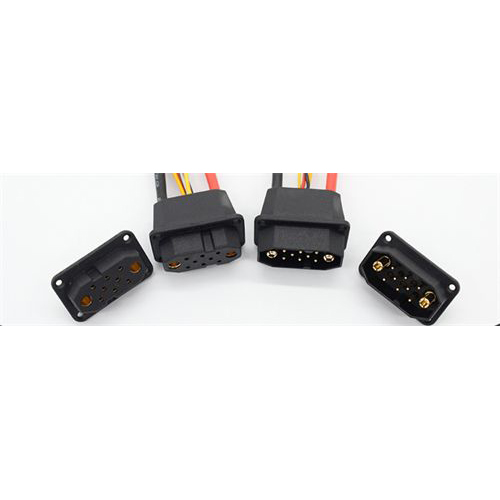

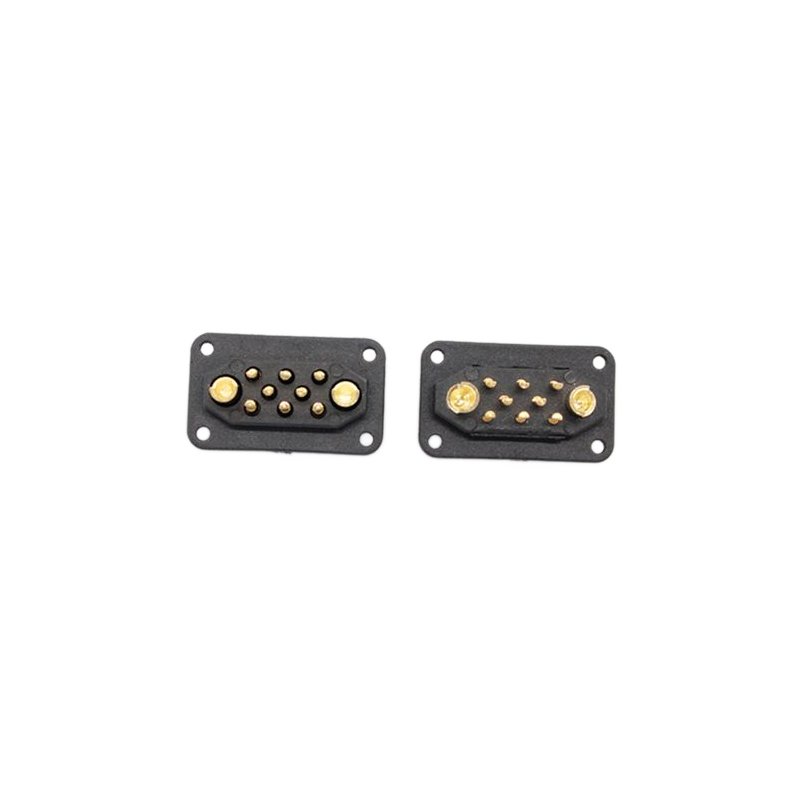

Product Model: HY-2+8P
Product Color: Black
Metal Material: Brass Gold Plated
Insulating Material: PA
Instantaneous Current: Big: 60A; Small: 7A
Rated Current: Big: 30A; Small: 5A
Rated Voltage: DC500V
Contact Resistance: 0.3mΩ
Operating Temperature: -20°C to 120°C
Flame Retardant Level: UL94V0
Recommended Usage Times: 1000 times
Recommended Wire Gauge: Big: 12AWG; Small: 20AWG
1 × HY-2+8P male and female complete set
