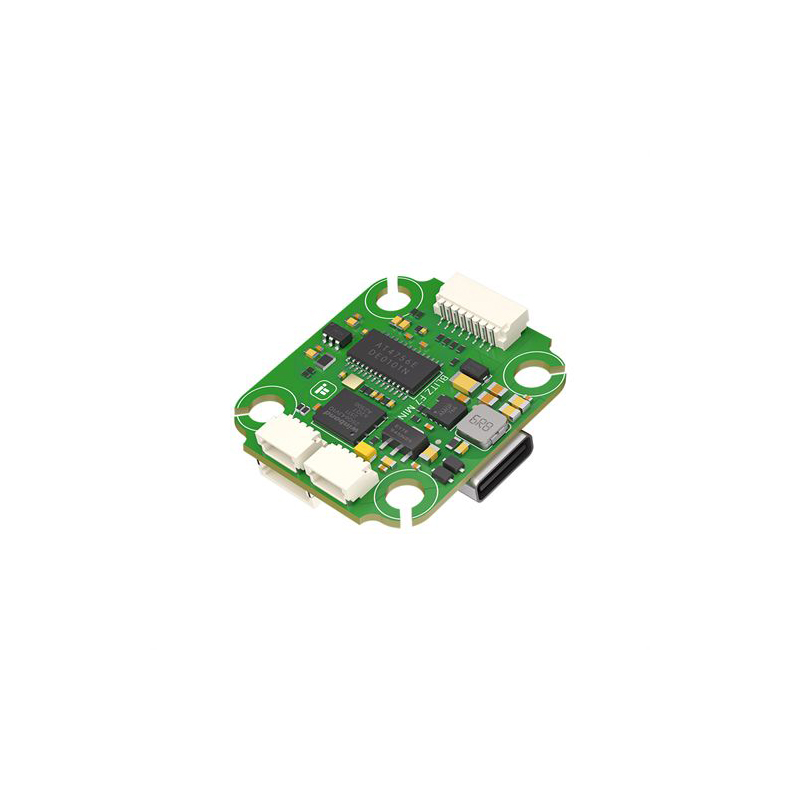

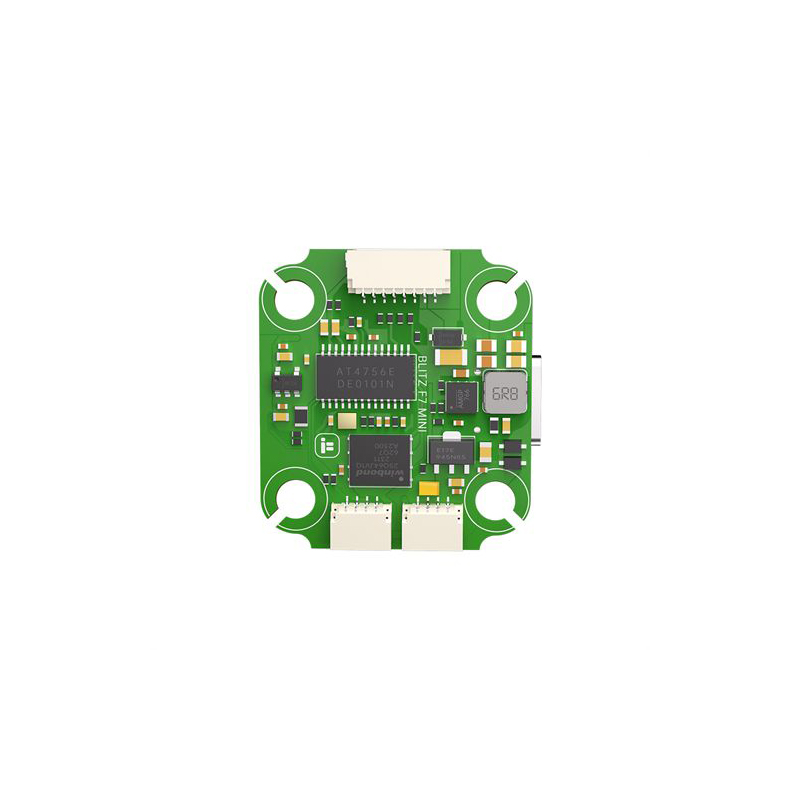

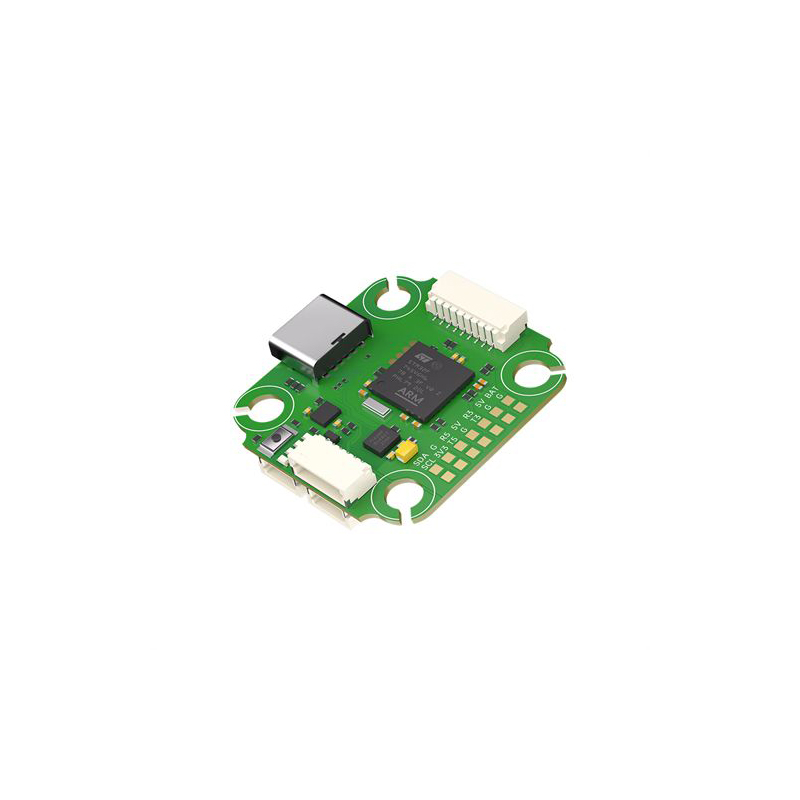

iFlight New BLITZ Mini F745 STM32F745 Flight Controller with Ardupilot Betaflight firmware for FPV Racing Freestyle Long Range
iFlight New BLITZ Mini F745 STM32F745 Flight Controller with Ardupilot Betaflight firmware for FPV Racing Freestyle Long Range
*Improved circuit design, better components, and lower electrical noise!
*Support Betaflight, INAV, Ardupilot firmware
*FC indicator LEDs for visual debugging
*DJI HD VTX Connector (Plug-and-Play / No soldering required)
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl
1 x BLITZ Mini F745 Flight Controller
