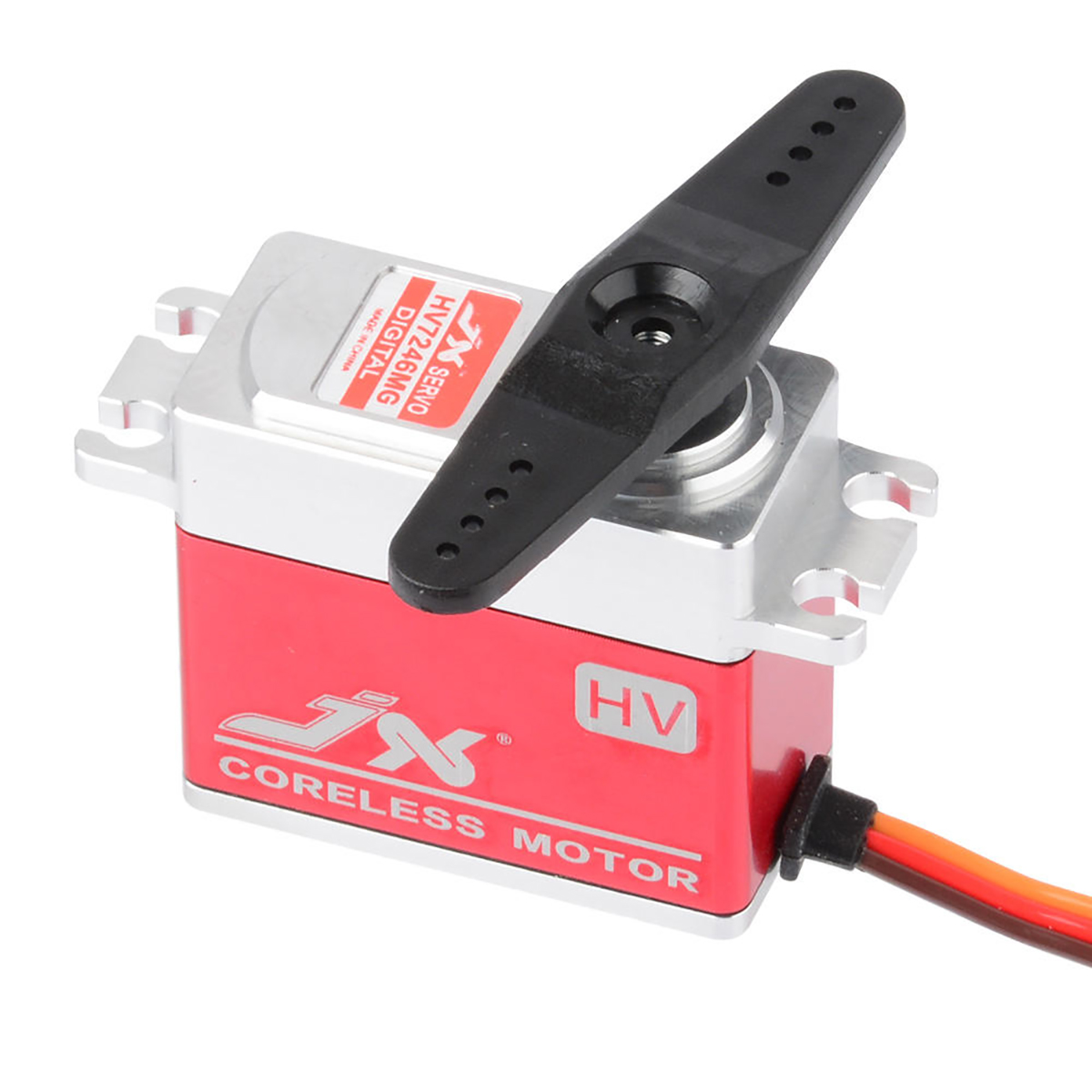

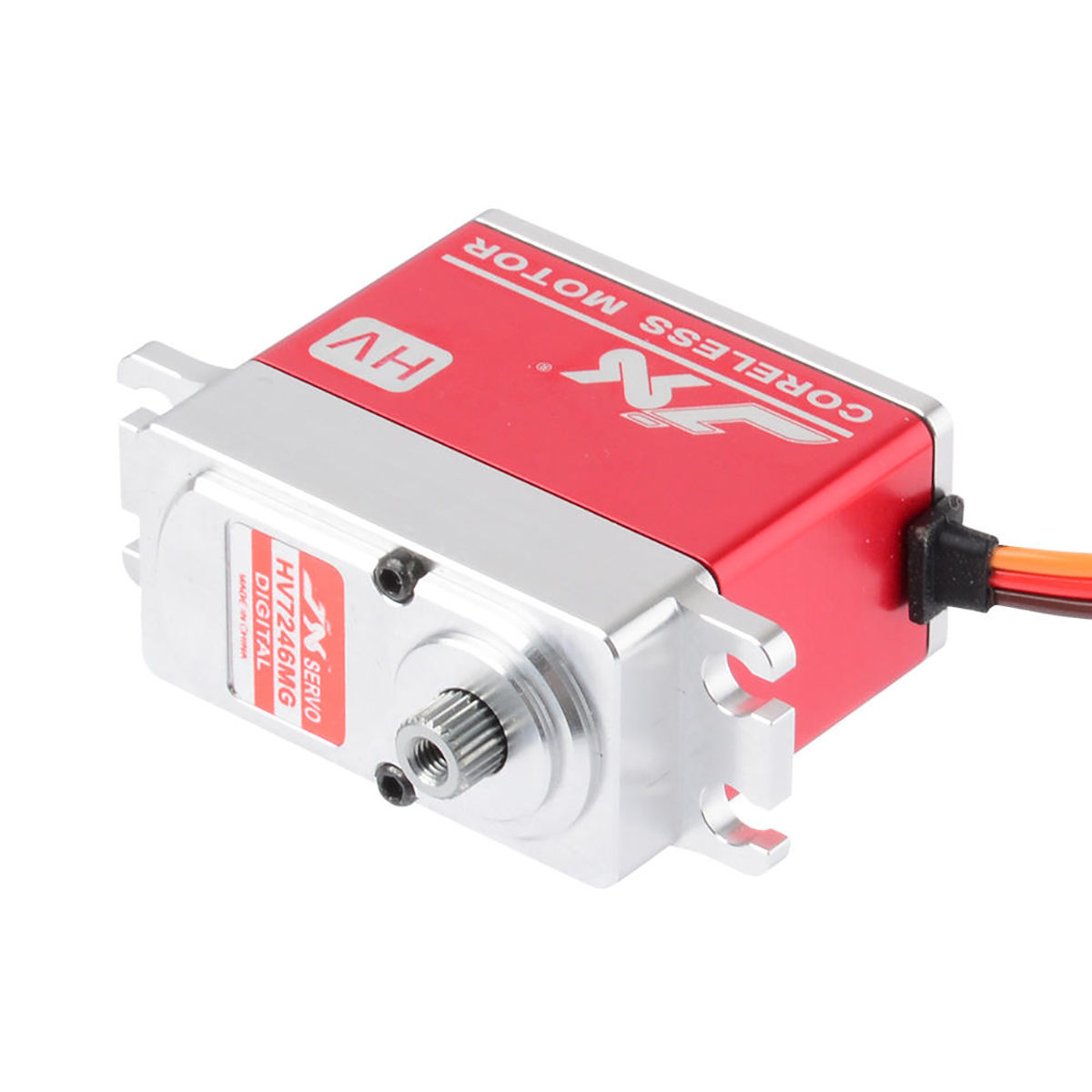

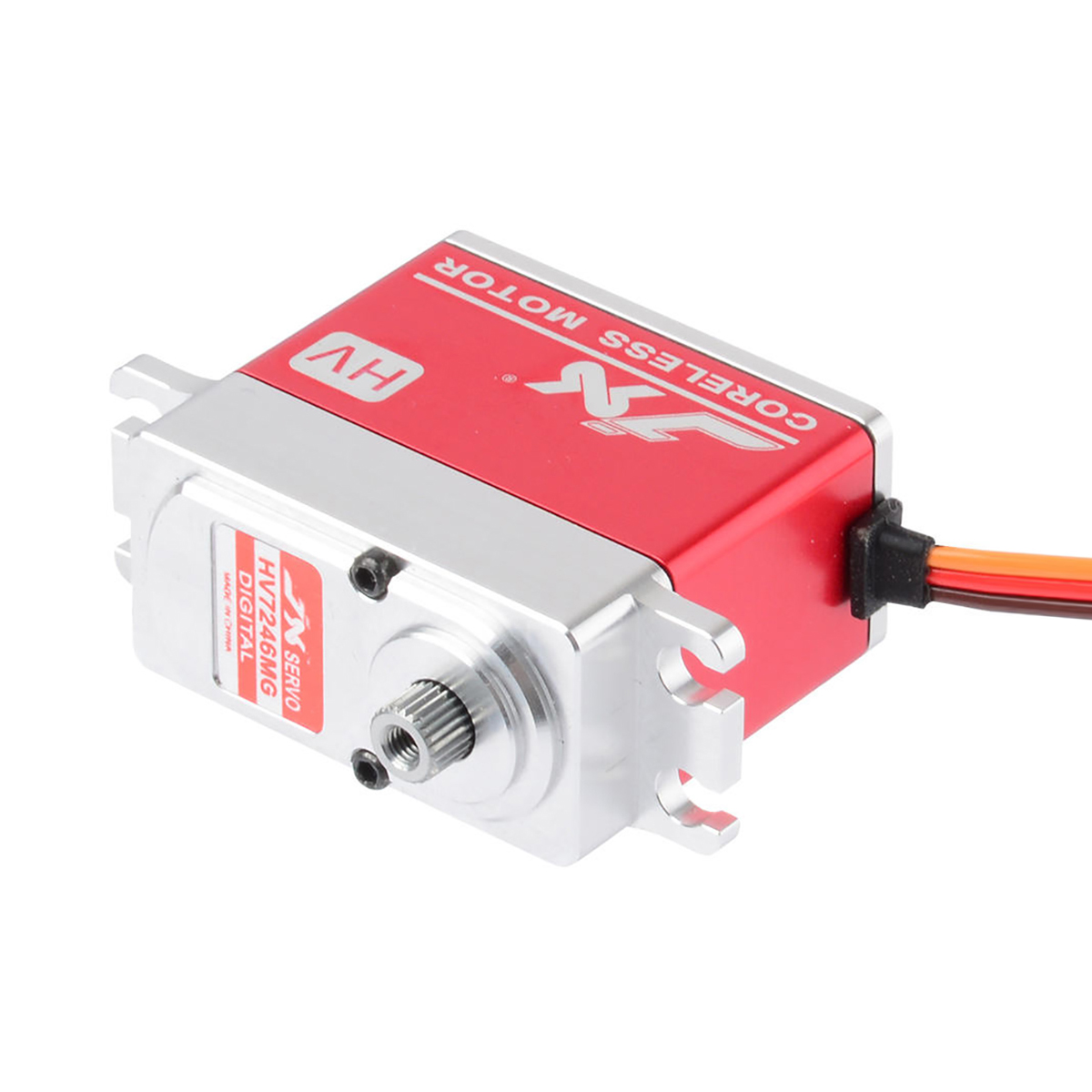

JX Servo PDI-HV7246MG 46kg Metal Gear Full CNC Aluminium Shell Coreless Motor Digital Servo for RC Drift Car Airplane
JX Servo PDI-HV7246MG 46kg Metal Gear Full CNC Aluminium Shell Coreless Motor Digital Servo for RC Drift Car Airplane
High Performance High Voltage Digital Coreless Standard Servo
High Precision Aluminum Gear With Hard Anodizing Treatment

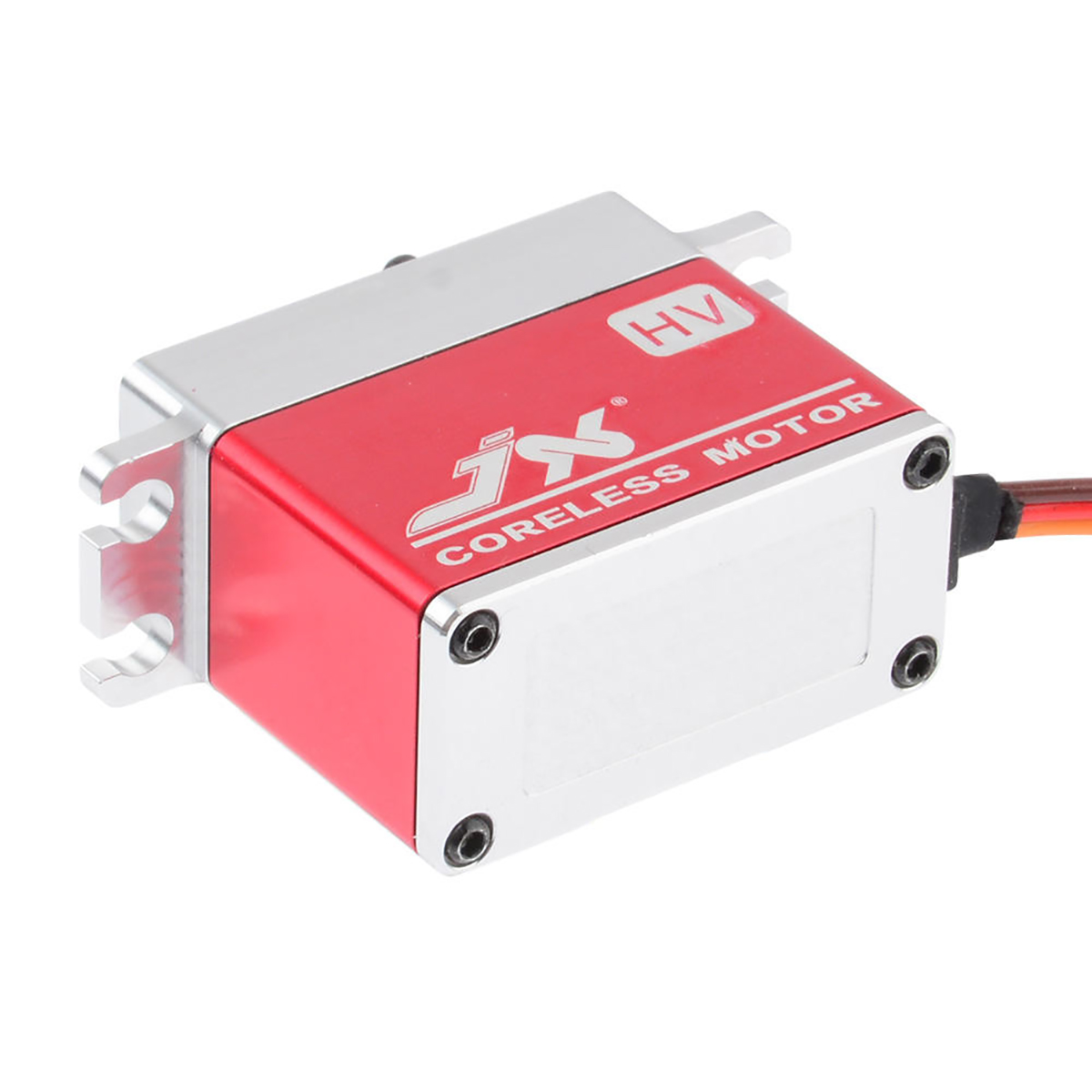

Full Cnc Machined Housing
Dual Ball Bearings
Model: PDI-HV7246MG
Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6.0V): 38.6kg.cm
Stall Torque (8.4V): 47.8kg.cm

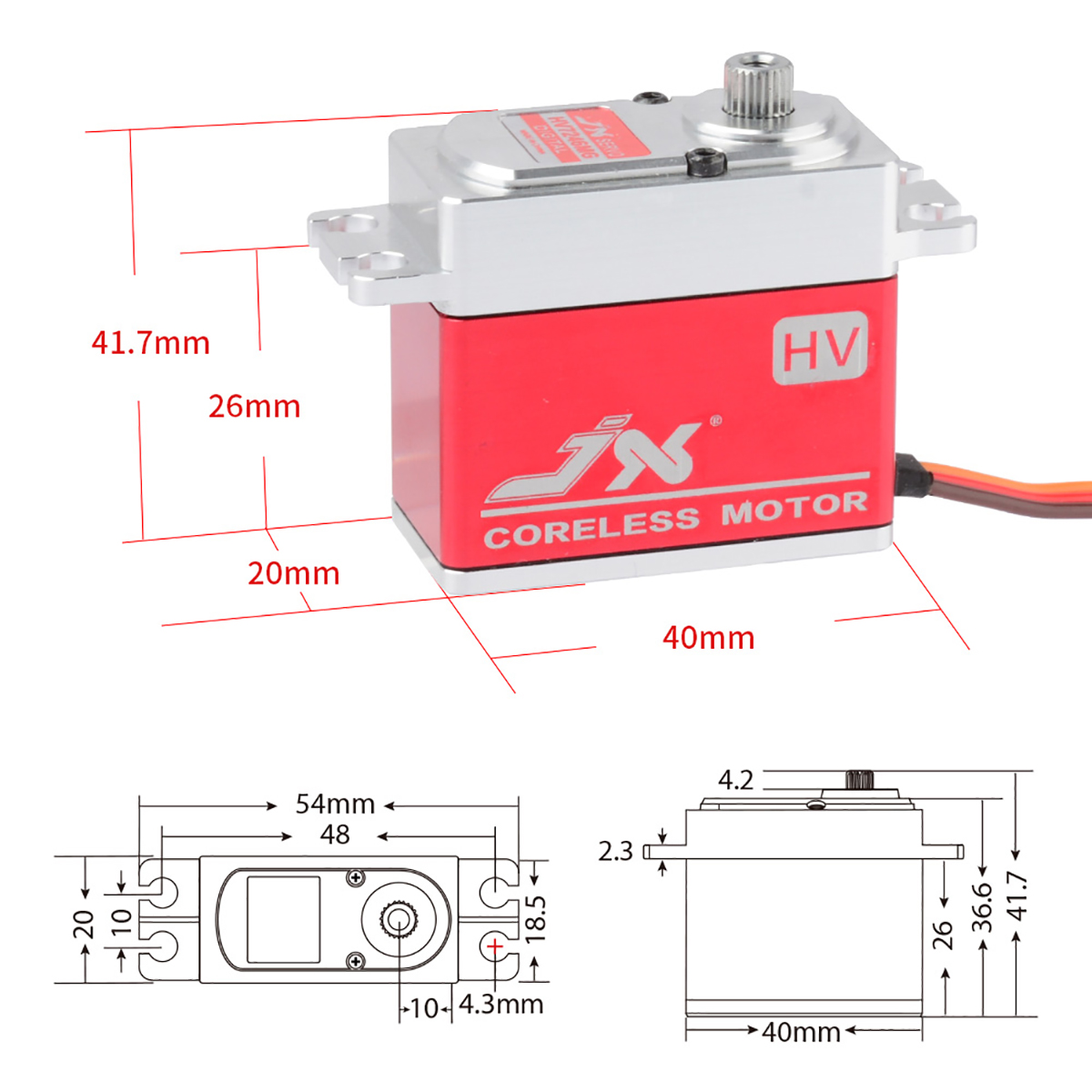

Dimensions:40.5X20.5X36mm
Weight: 72g (2.54oz)

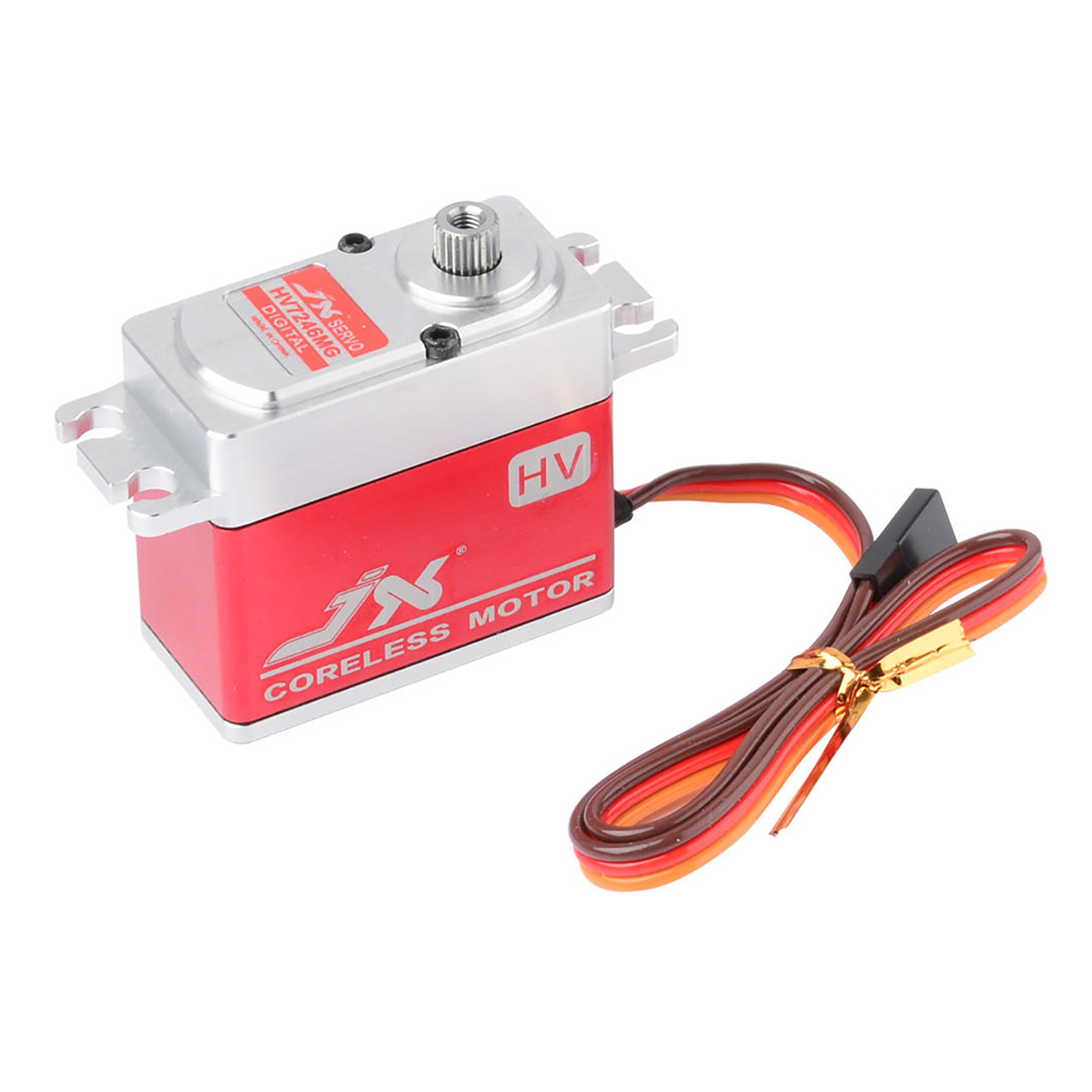

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2B

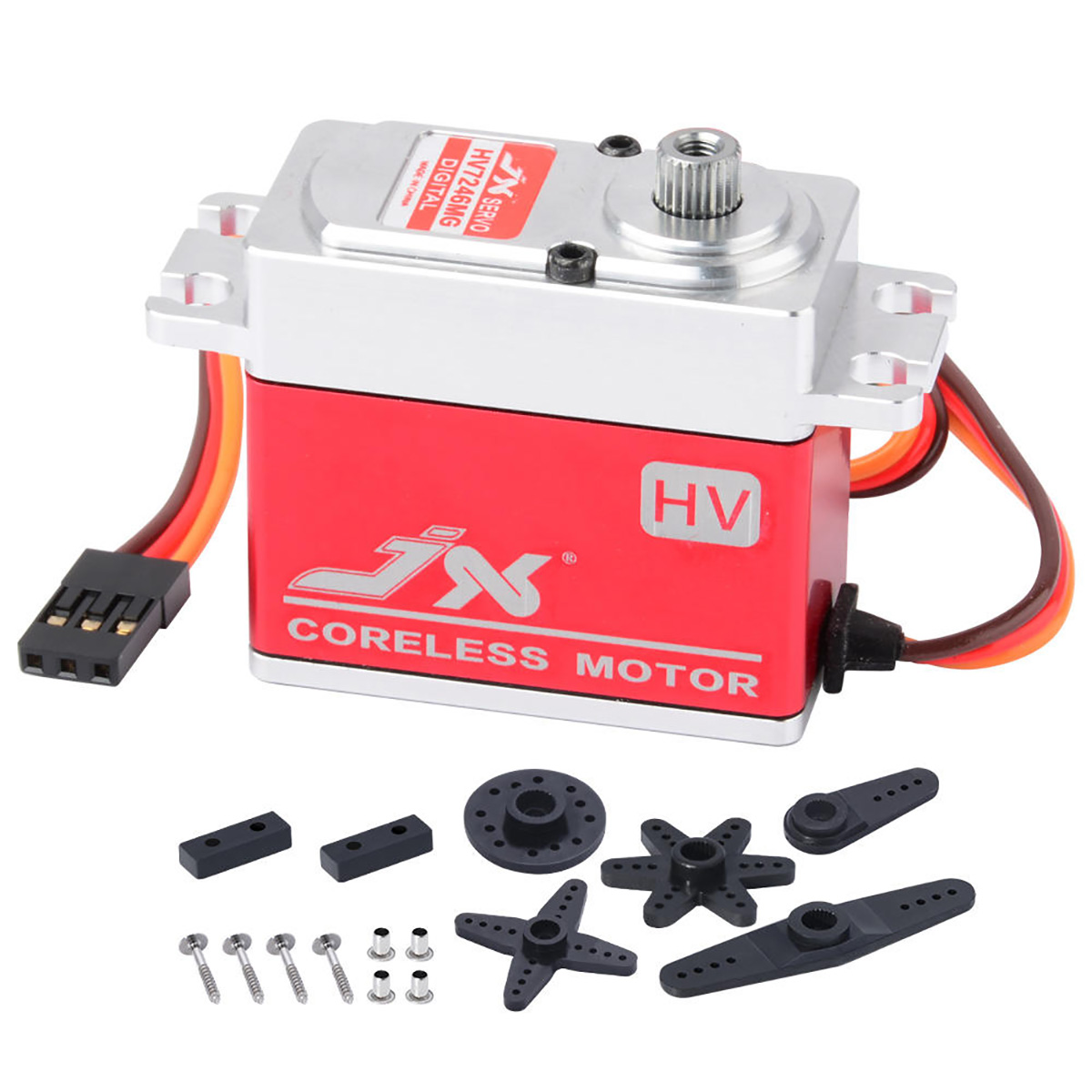

PDI-HV7246MG Servo x1
