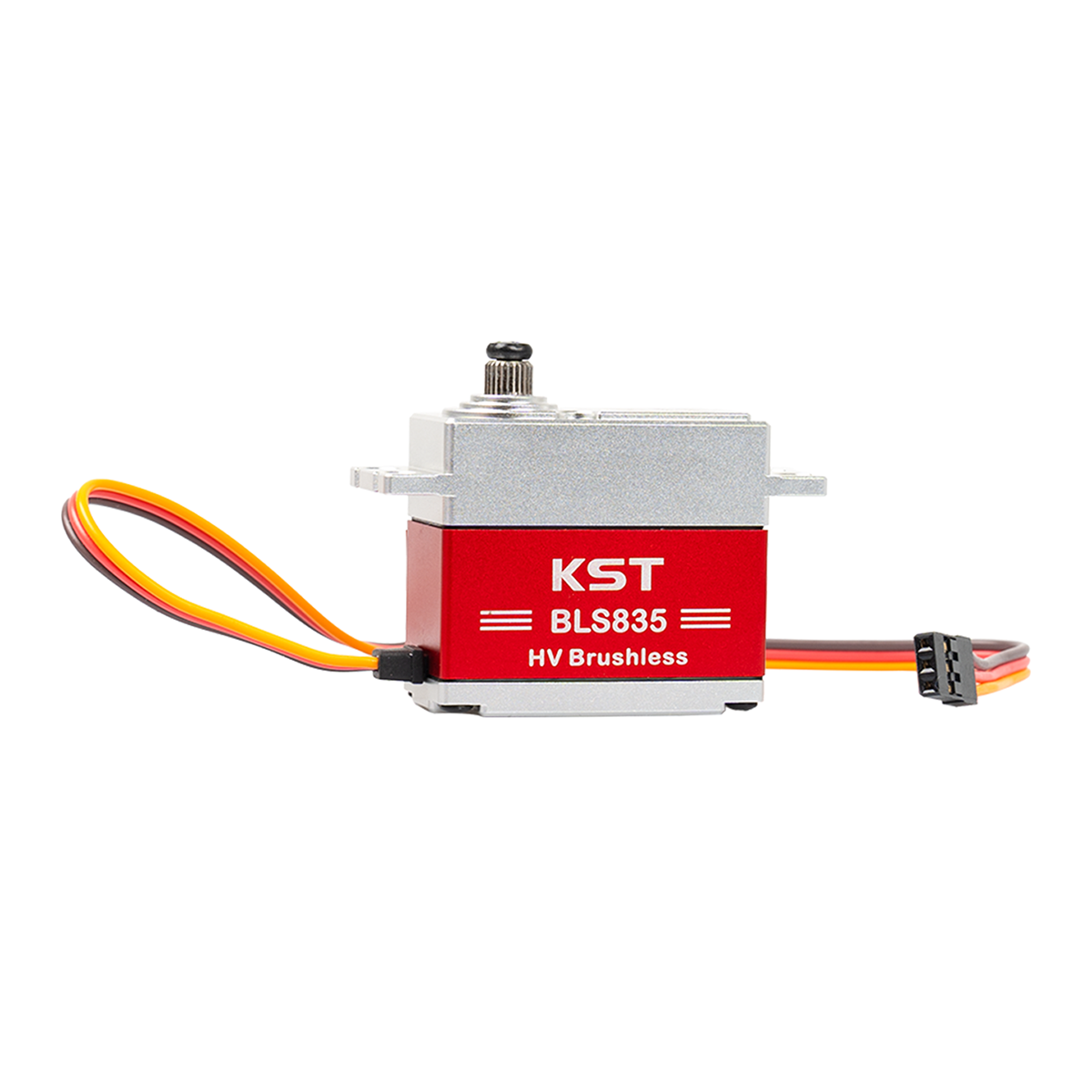

KST BLS835 Metal Gear Brushless Motor Digital Servo 45.0Kgf.cm 0.13sec/60° for RC Car Helicopter Airplane

SKU KST-BLS835MG Category Tag Brand:

KST BLS835 Metal Gear Brushless Motor Digital Servo 45.0Kgf.cm 0.13sec/60° for RC Car Helicopter Airplane

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

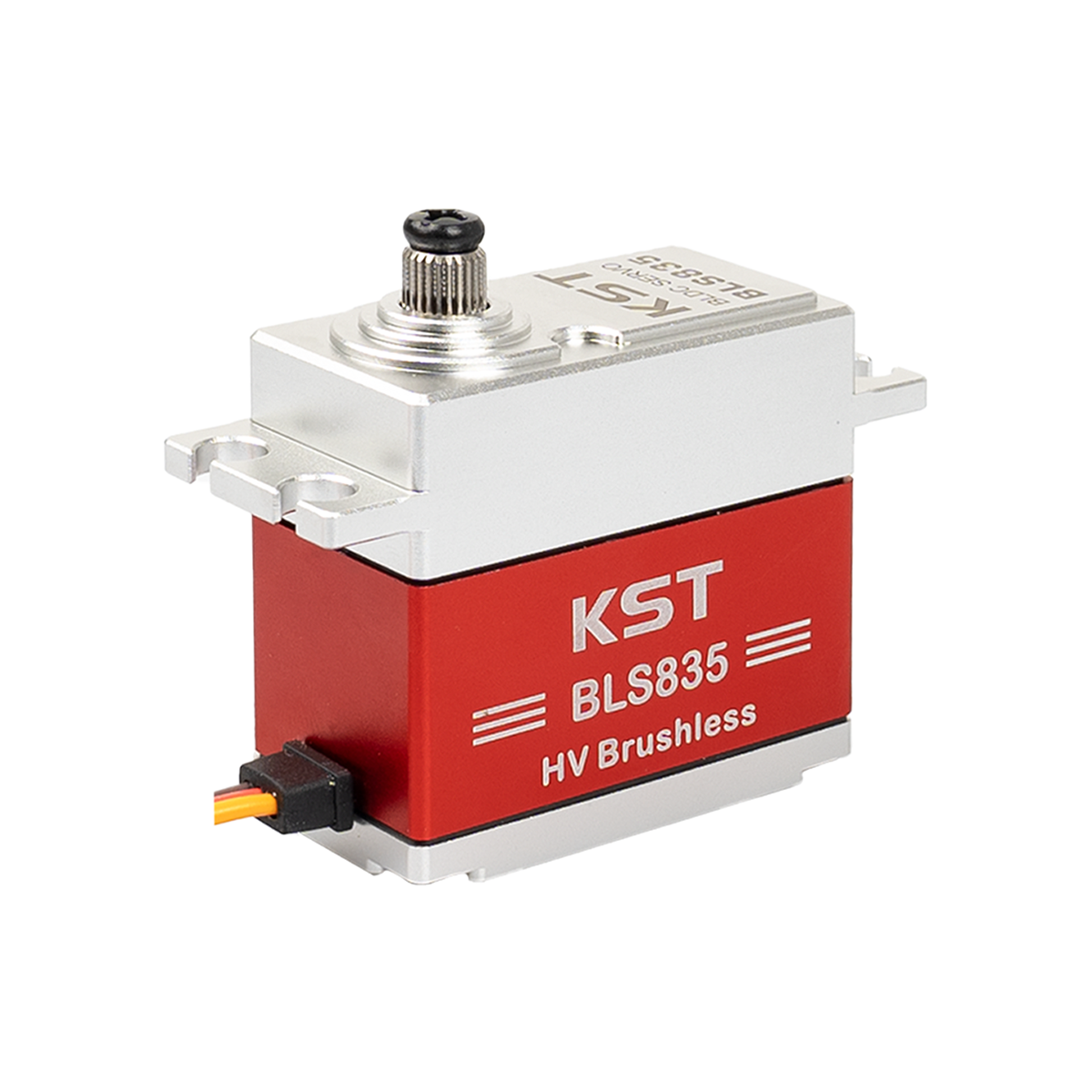

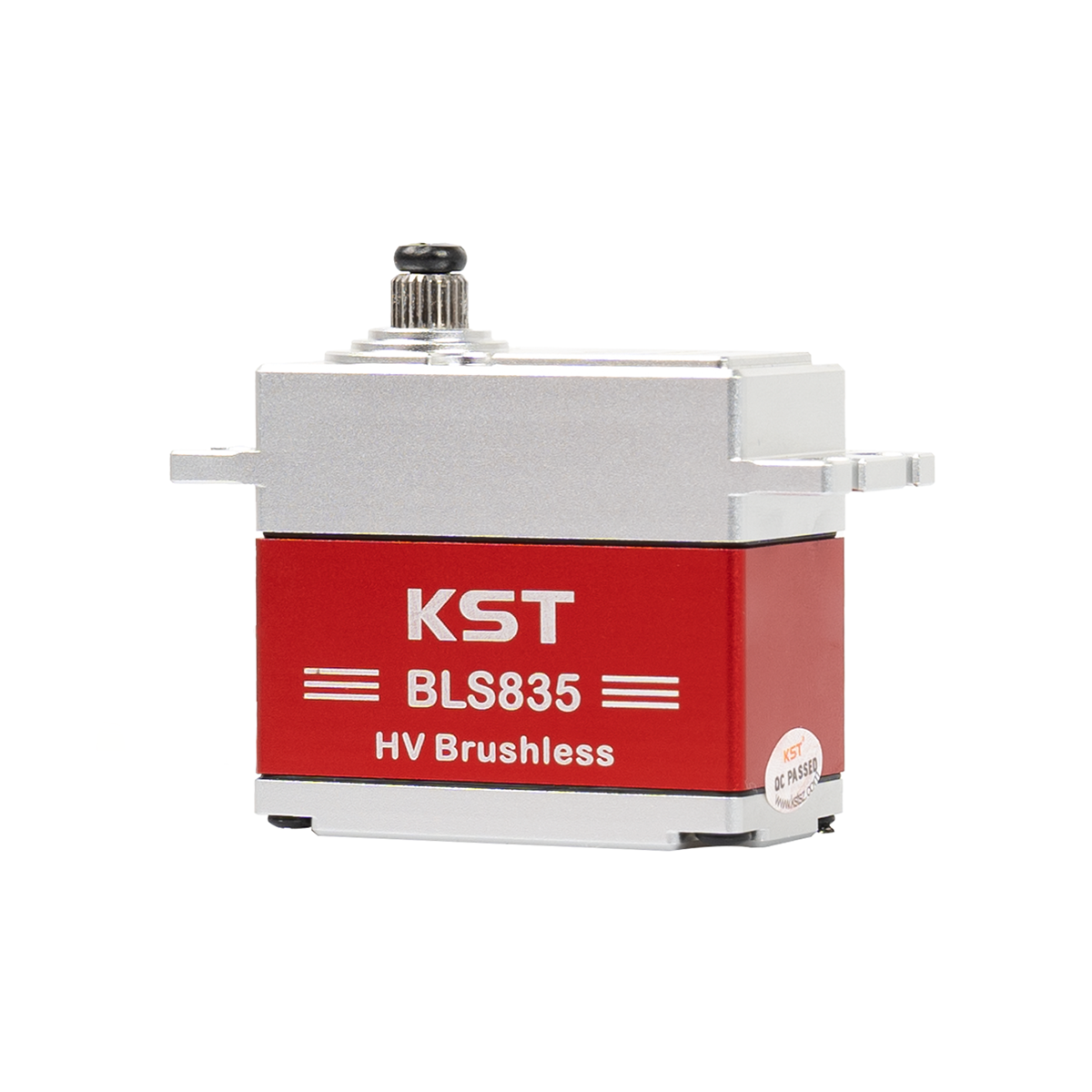

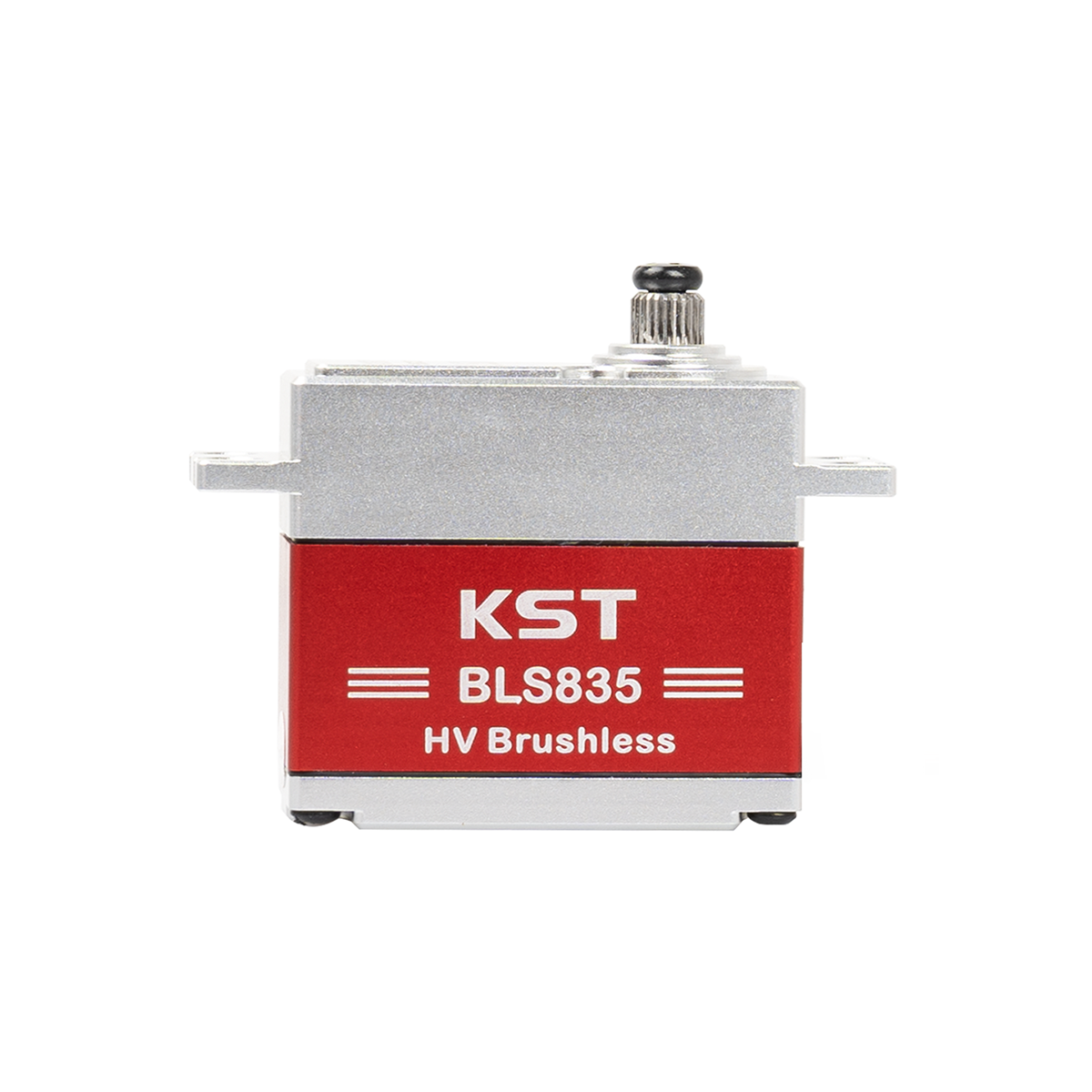

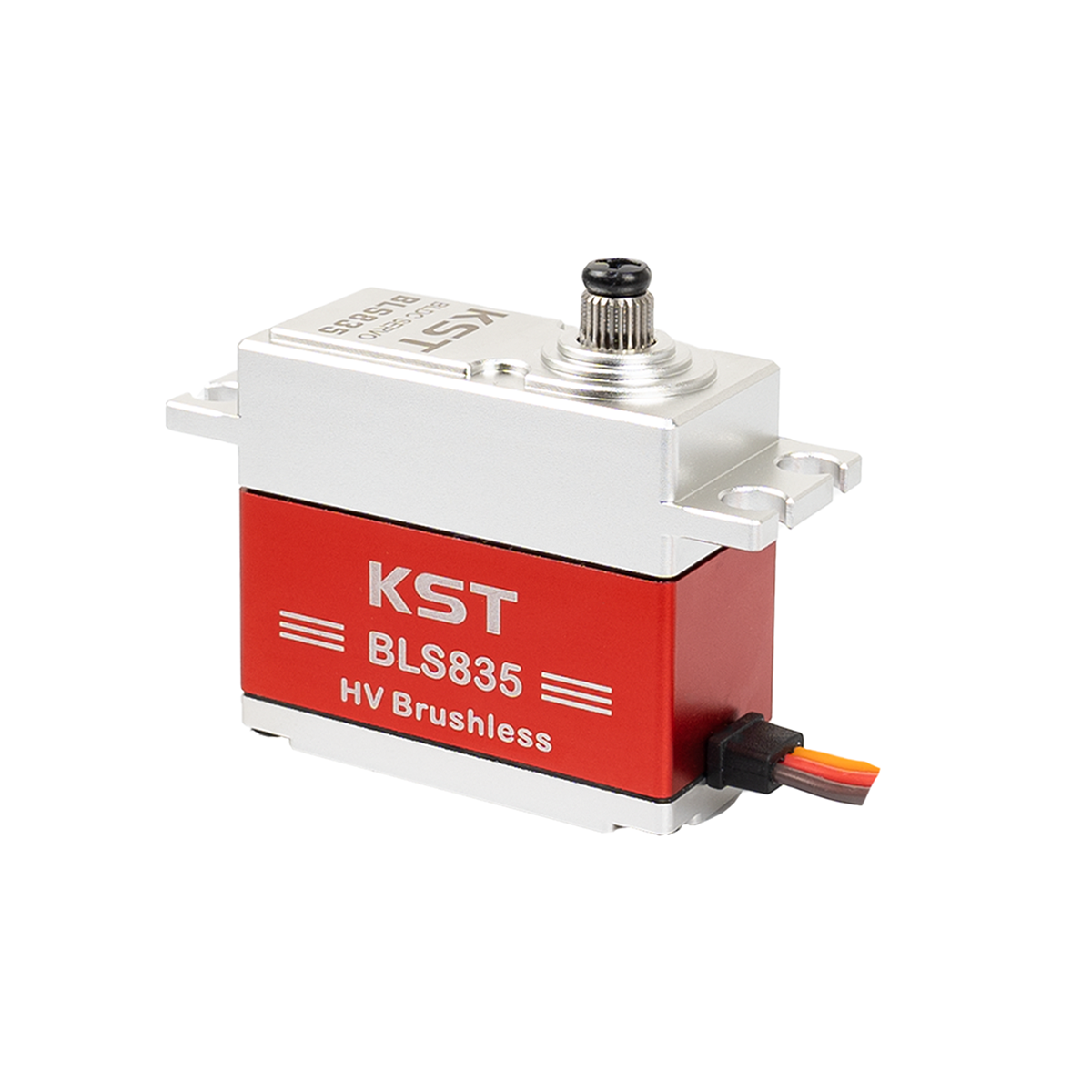

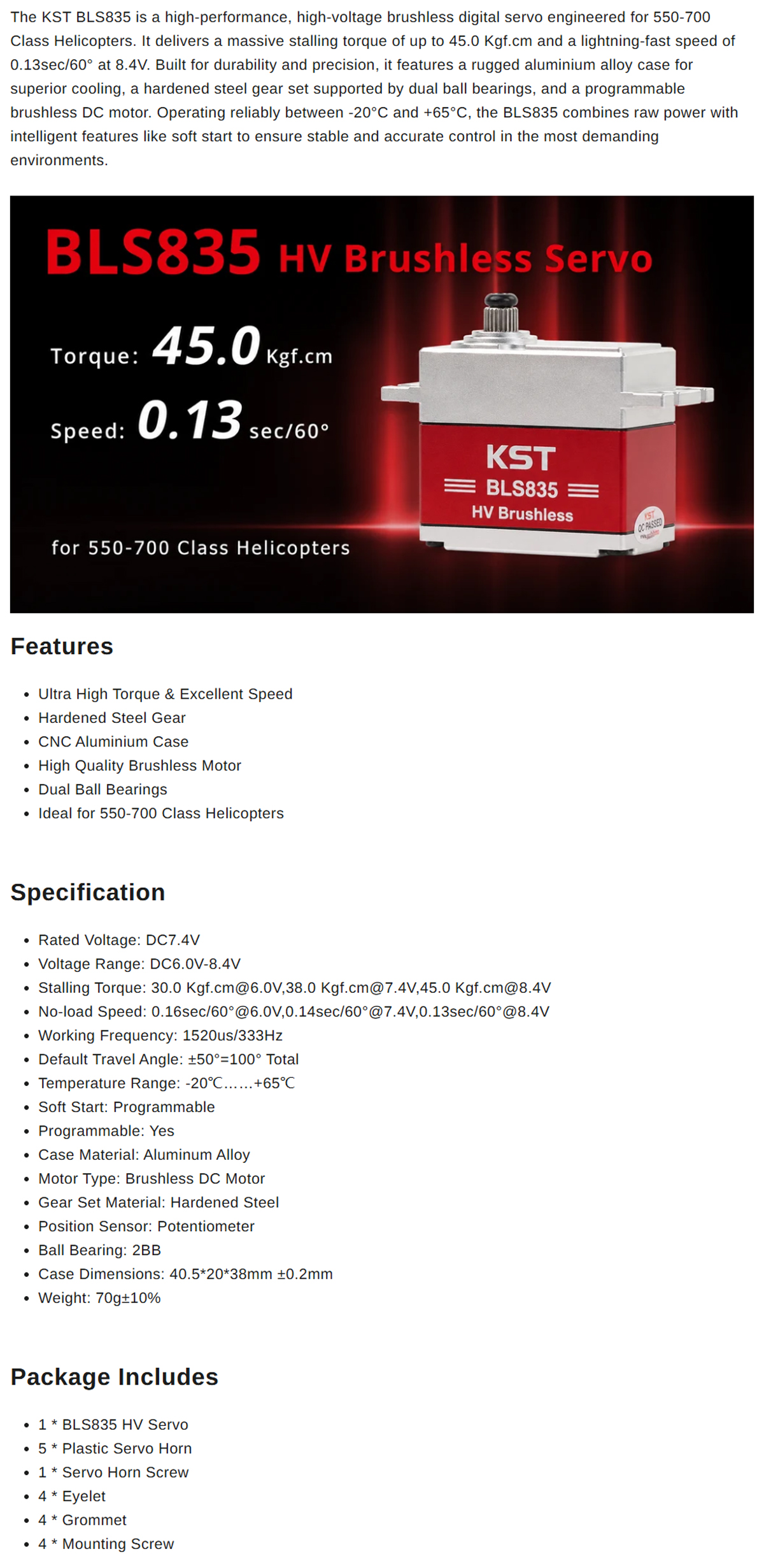

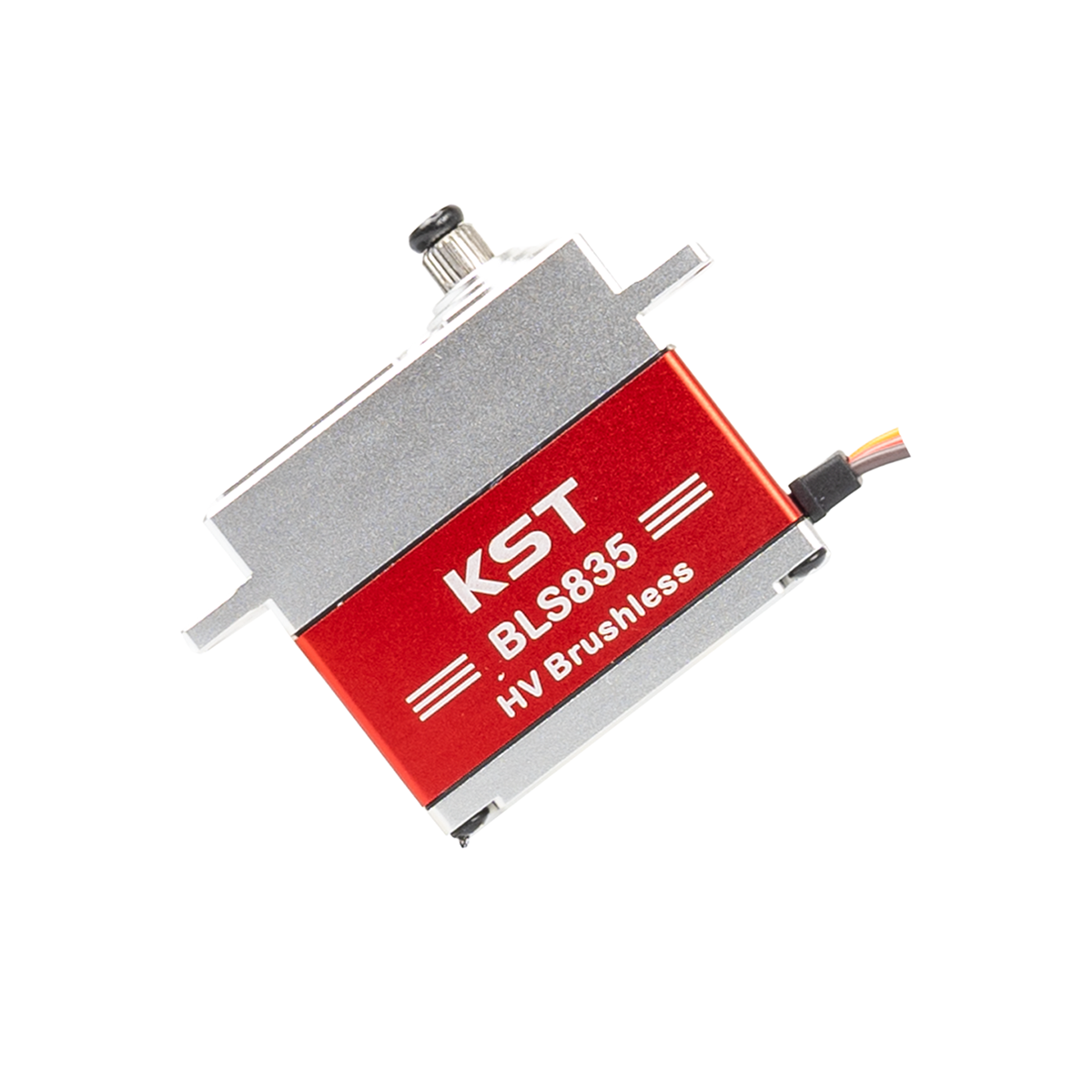

The KST BLS835 is a high-performance, high-voltage brushless digital servo engineered for 550-700 Class Helicopters. It delivers a massive stalling torque of up to 45.0 Kgf.cm and a lightning-fast speed of 0.13sec/60° at 8.4V. Built for durability and precision, it features a rugged aluminium alloy case for superior cooling, a hardened steel gear set supported by dual ball bearings, and a programmable brushless DC motor. Operating reliably between -20°C and +65°C, the BLS835 combines raw power with intelligent features like soft start to ensure stable and accurate control in the most demanding environments.

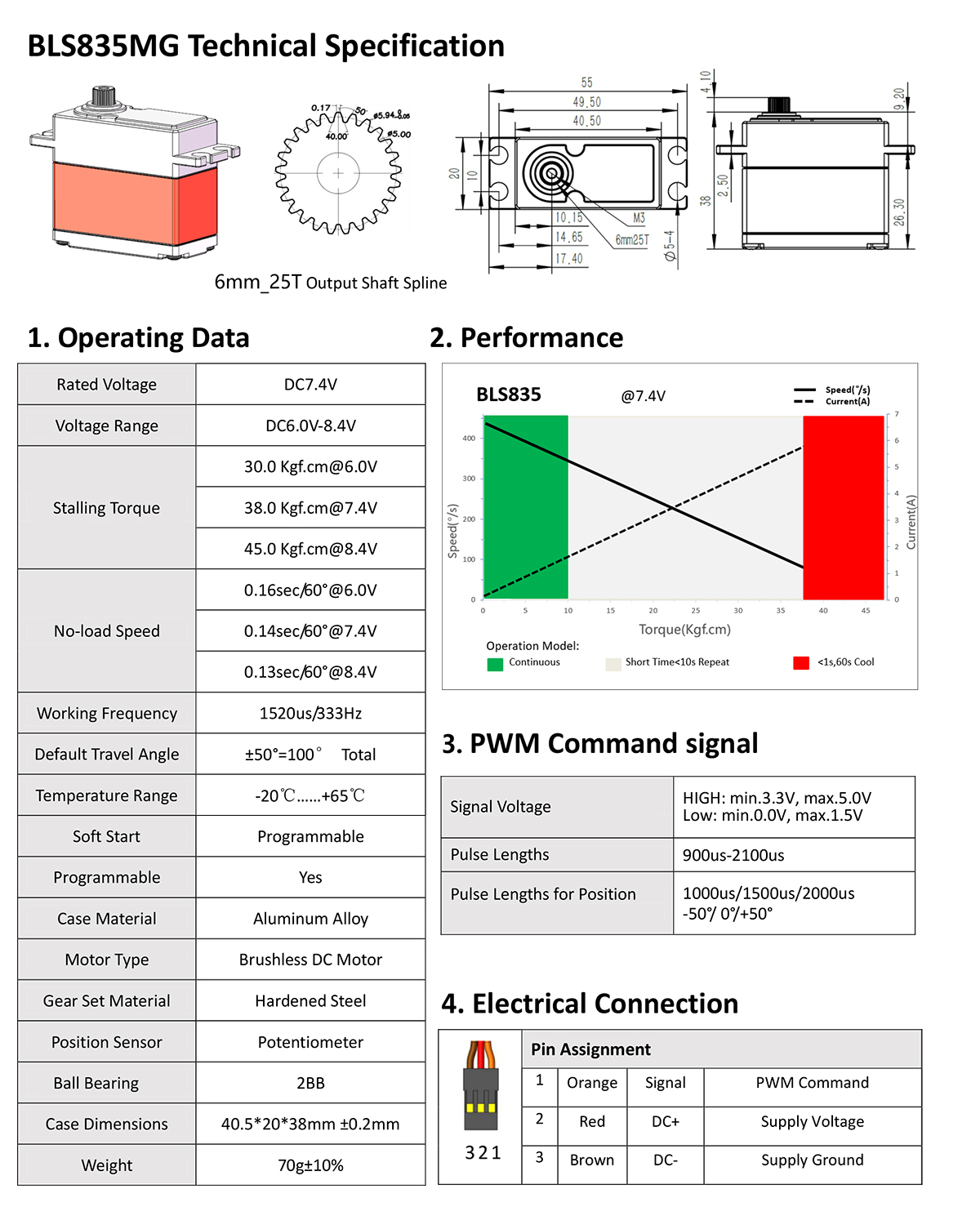

Model: BLS835MG
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque: 30.0 Kgf.cm@6.0V,38.0 Kgf.cm@7.4V,45.0 Kgf.cm@8.4V
No-load Speed: 0.16sec/60°@6.0V,0.14sec/60°@7.4V,0.13sec/60°@8.4V
Working Frequency: 1520us/333Hz

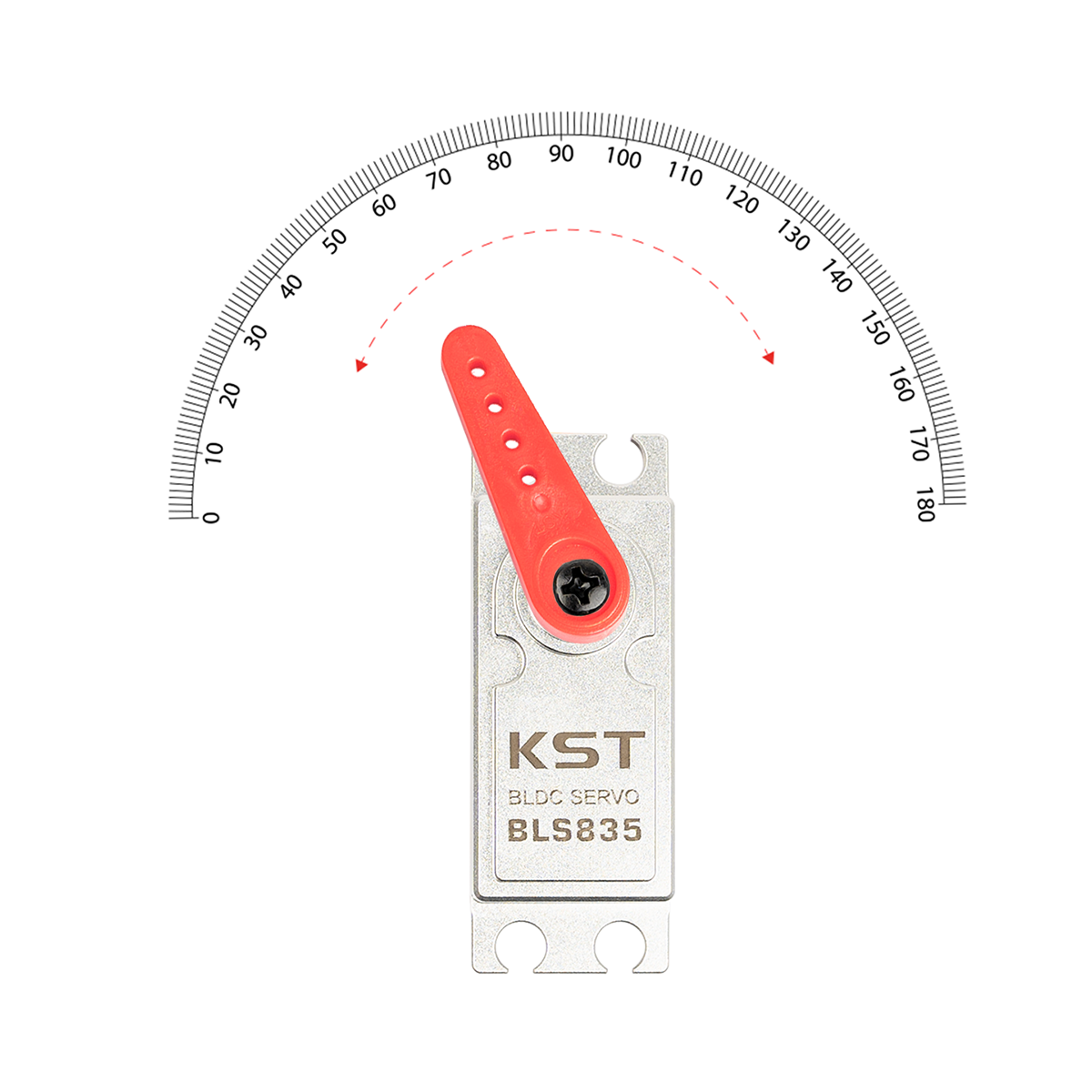

Default Travel Angle: ±50°=100° Total
Temperature Range: -20℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions: 40.5*20*38mm ±0.2mm
Weight: 70g±10%

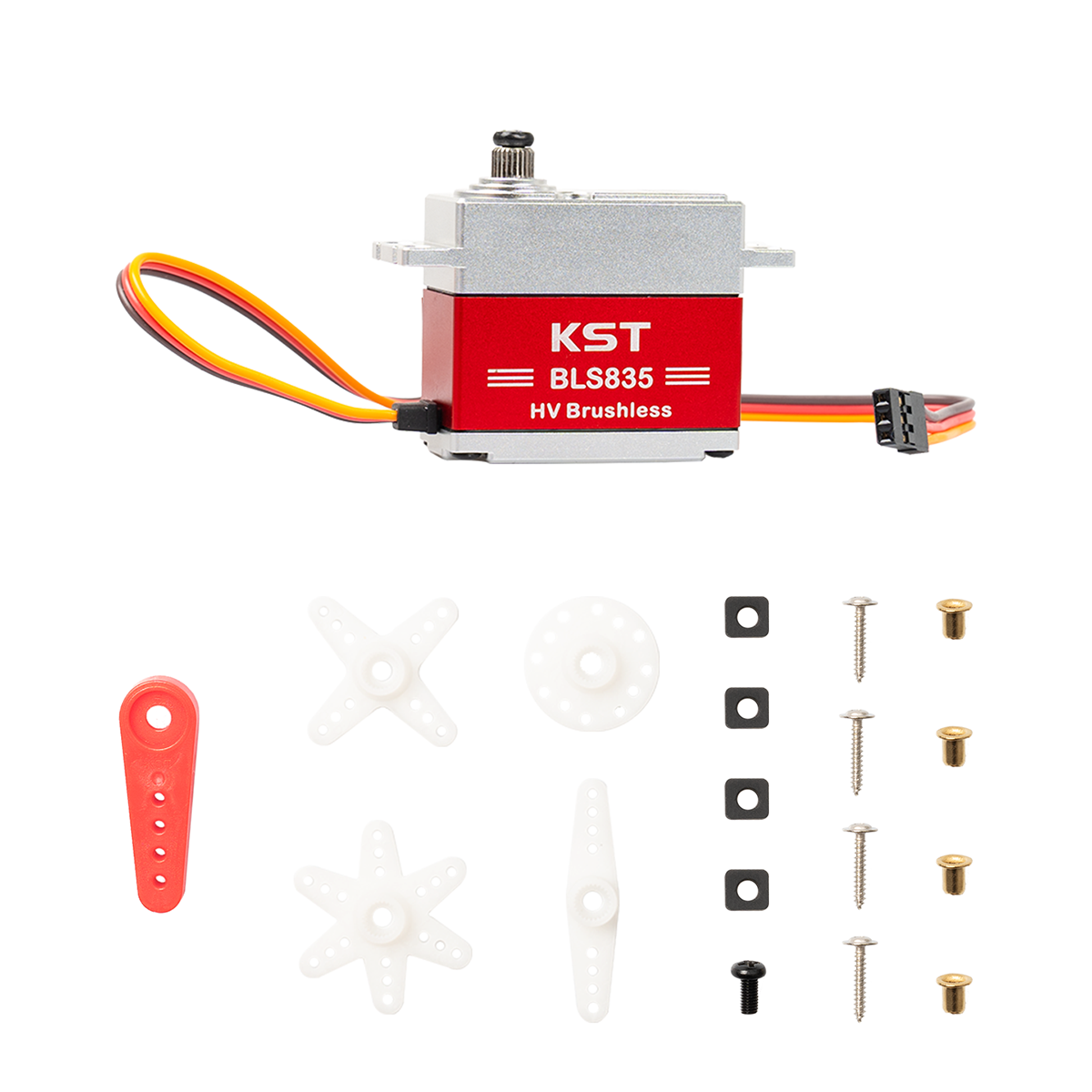

BLS835 HV Servo x1
Plastic Servo Horn x5
Servo Horn Screw x1
Eyelet x4
Grommet x4
Mounting Screw x4
