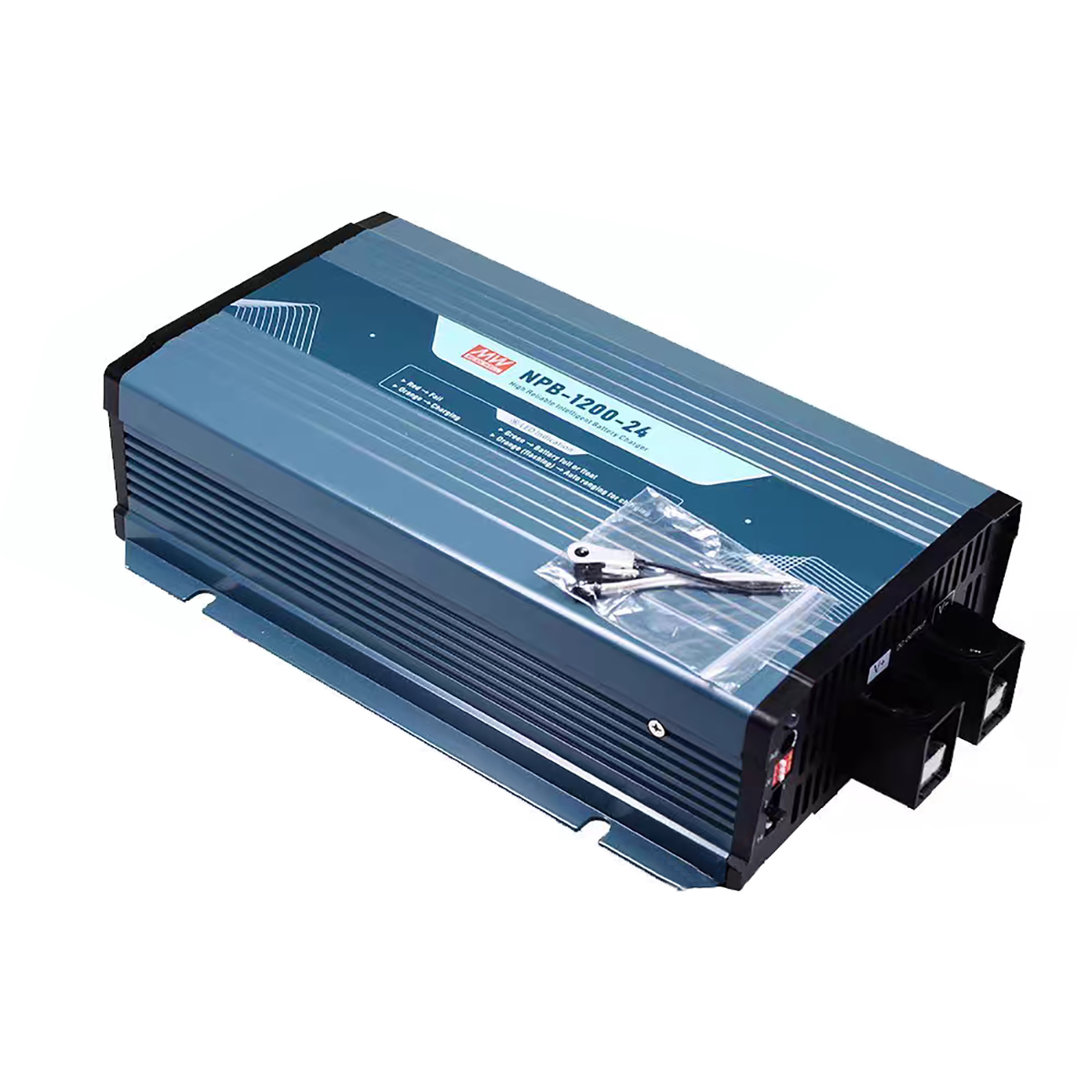

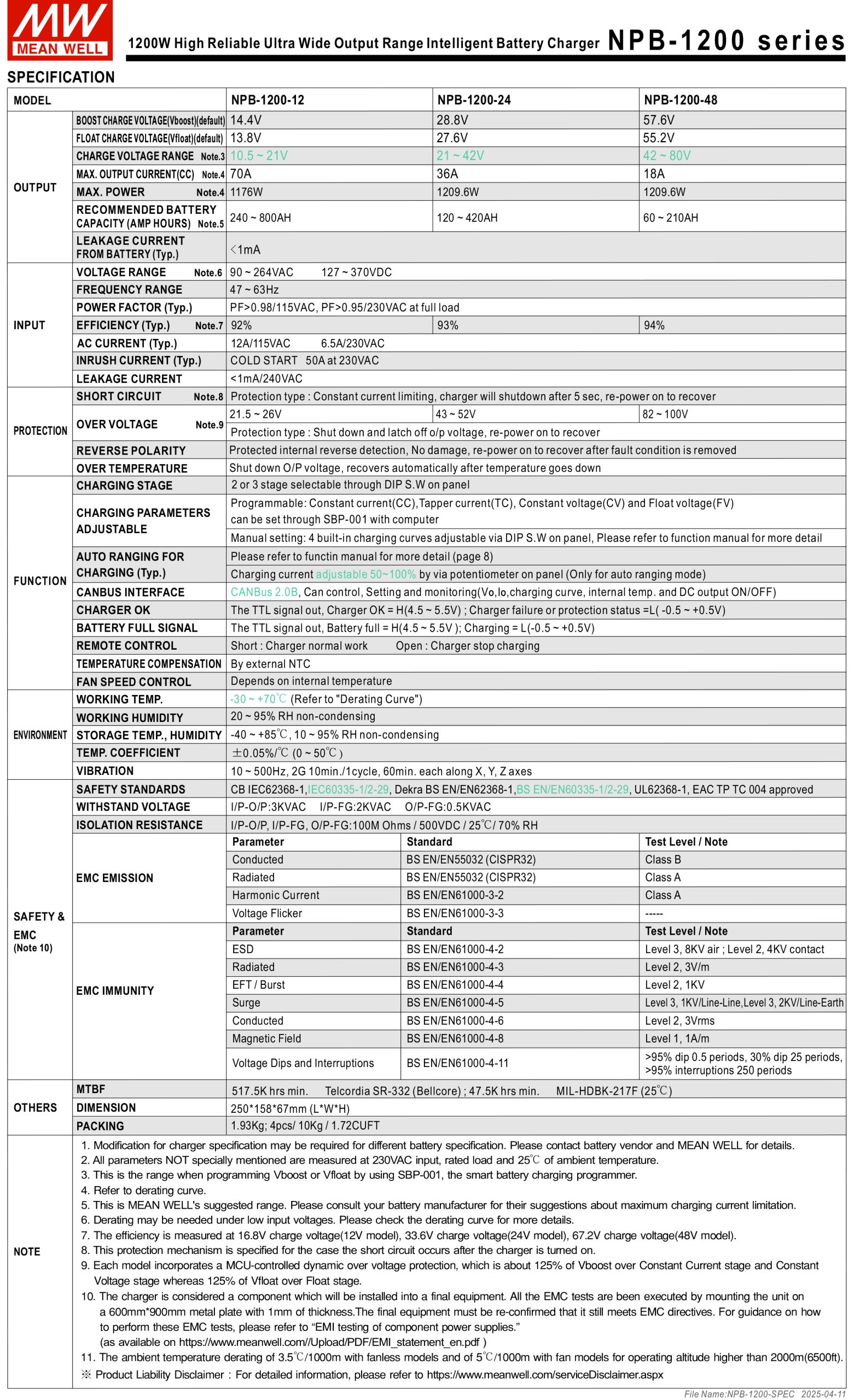

Model: NPB-1200-24

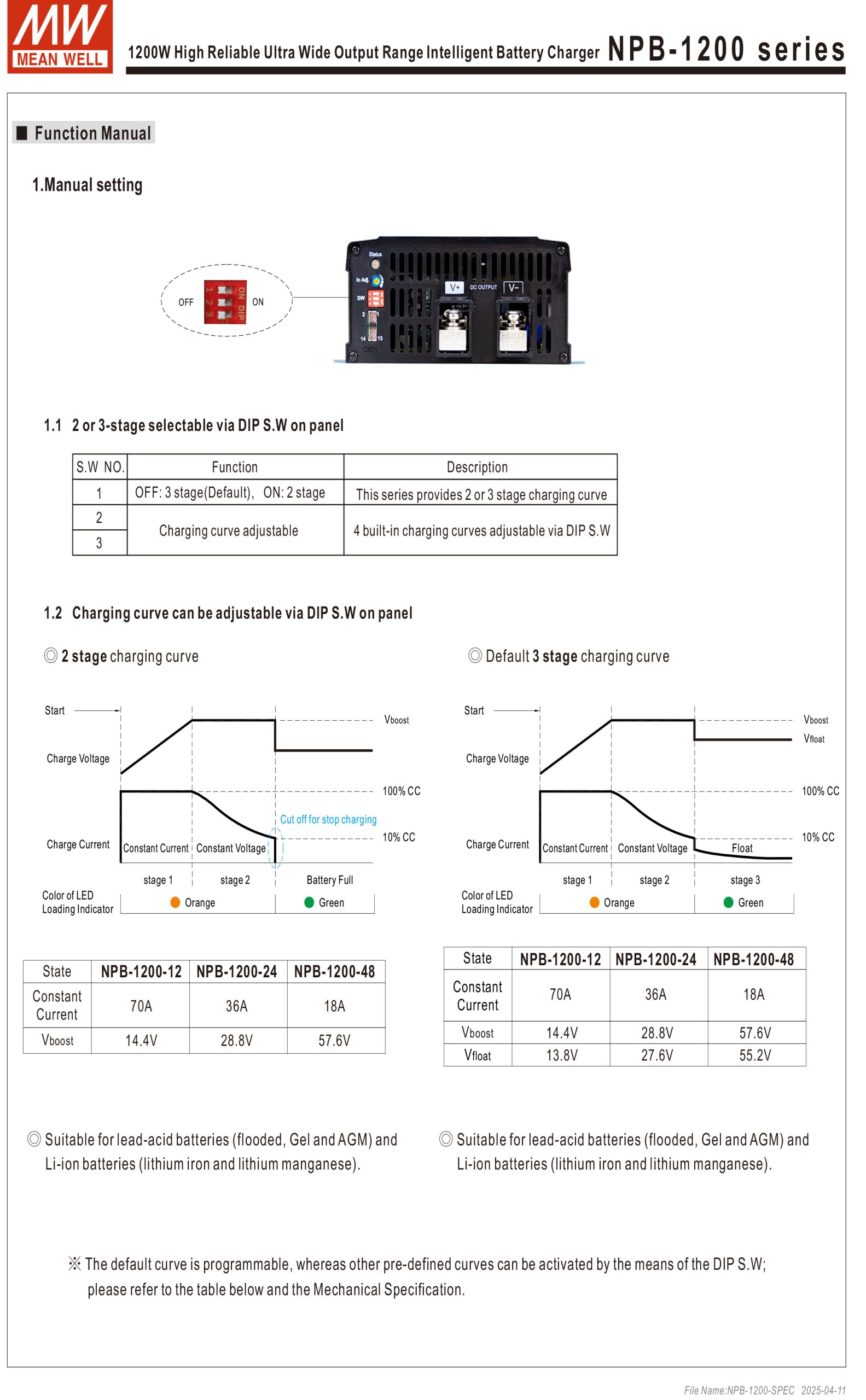

Boost Charge Voltage(Vboost)(Default): 28.8V
Float Charge Voltage(Vfloat)(Default): 27.6V
Charge Voltage Range: 21 ~ 42V
Max. Output Current(CC): 36A
Max. Power: 1209.6W
Recommended Battery Capacity (Amp Hours): 120 ~ 420AH
Leakage Current From Battery (Typ.): <1mA
Voltage Range: 90 ~ 264VAC , 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
Efficiency (Typ.): 93%
AC Current (Typ.): 12A/115VAC , 6.5A/230VAC
Inrush Current (Typ.): COLD START 50A at 230VAC
Leakage Current: <1mA/240VAC

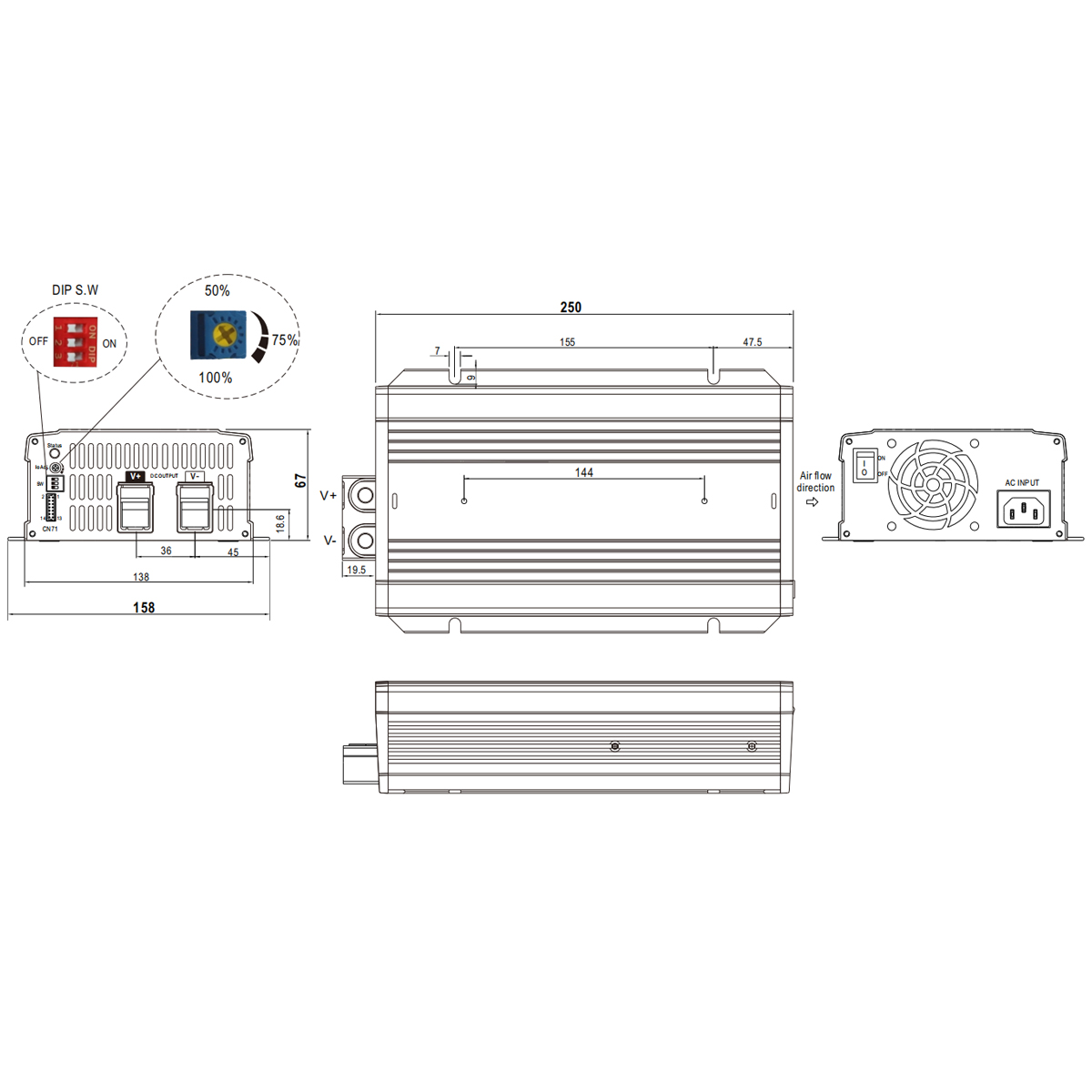

Dimension: 250*158*67mm (L*W*H)
Packing: 1.93Kg; 4pcs / 10Kg / 1.72CUFT
