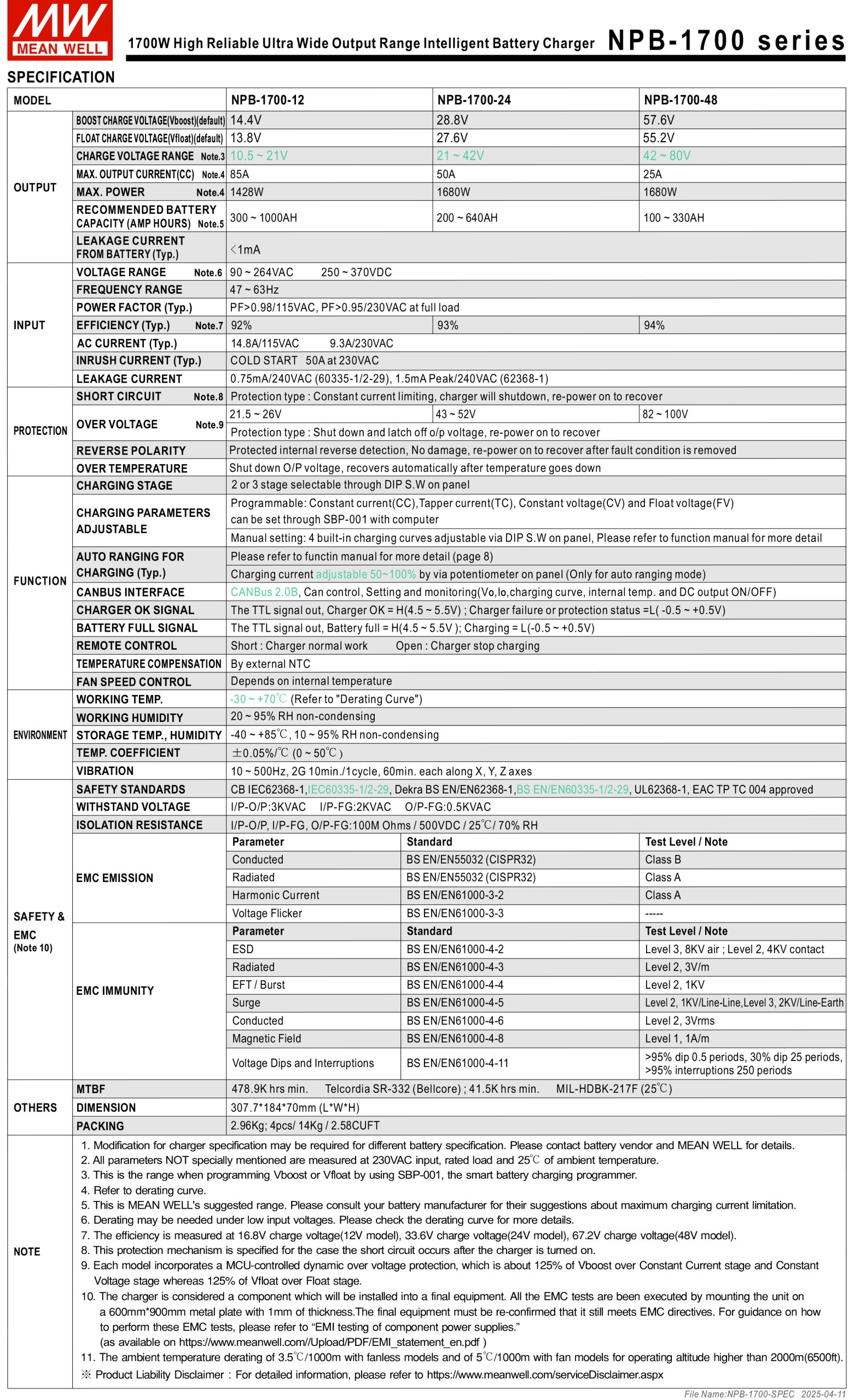

Model: NPB-1700-48

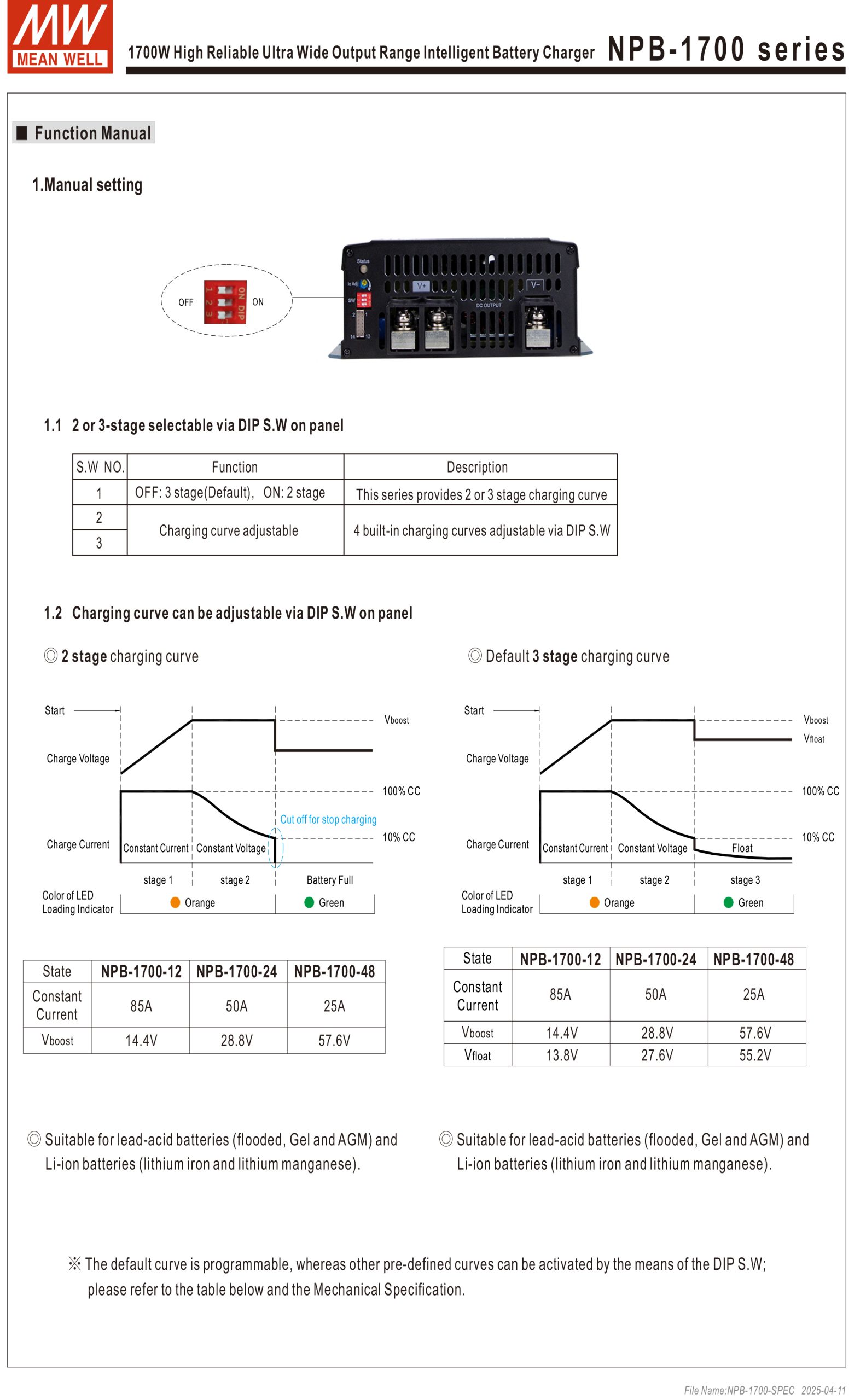

Boost Charge Voltage(Vboost)(Default): 57.6V
Float Charge Voltage(Vfloat)(Default): 55.2V
Charge Voltage Range: 42 ~ 80V
Max. Output Current(CC): 25A
Max. Power: 1680W
Recommended Battery Capacity (Amp Hours): 100 ~ 330AH
Leakage Current From Battery (Typ.): <1mA
Voltage Range: 90 ~ 264VAC , 250 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
Efficiency (Typ.): 94%
AC Current (Typ.): 14.8A/115VAC , 9.3A/230VAC
Inrush Current (Typ.): COLD START 50A at 230VAC
Leakage Current: 0.75mA/240VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)

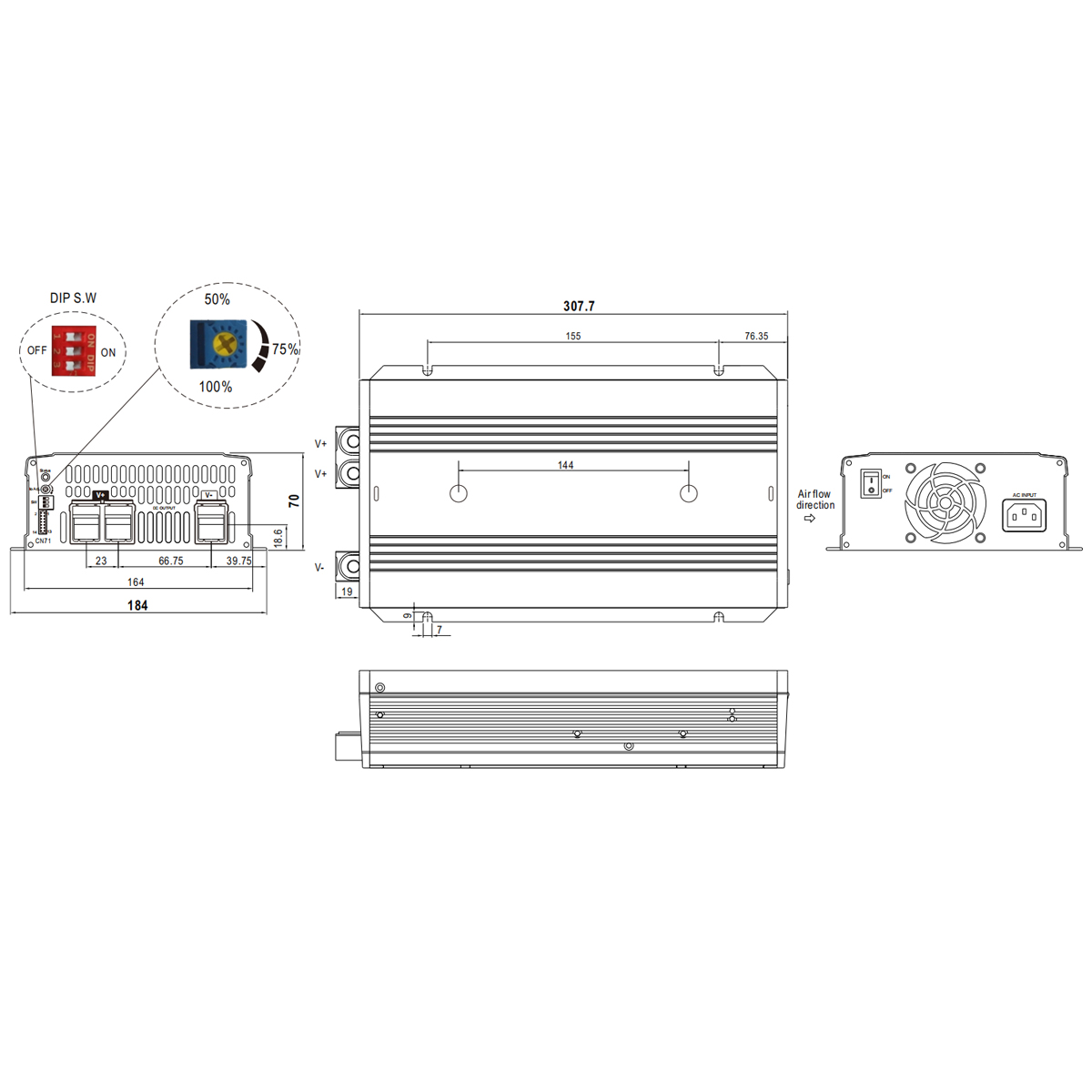

Dimension: 307.7*184*70mm (L*W*H)
Packing: 2.96Kg; 4pcs / 14Kg / 2.58CUFT
