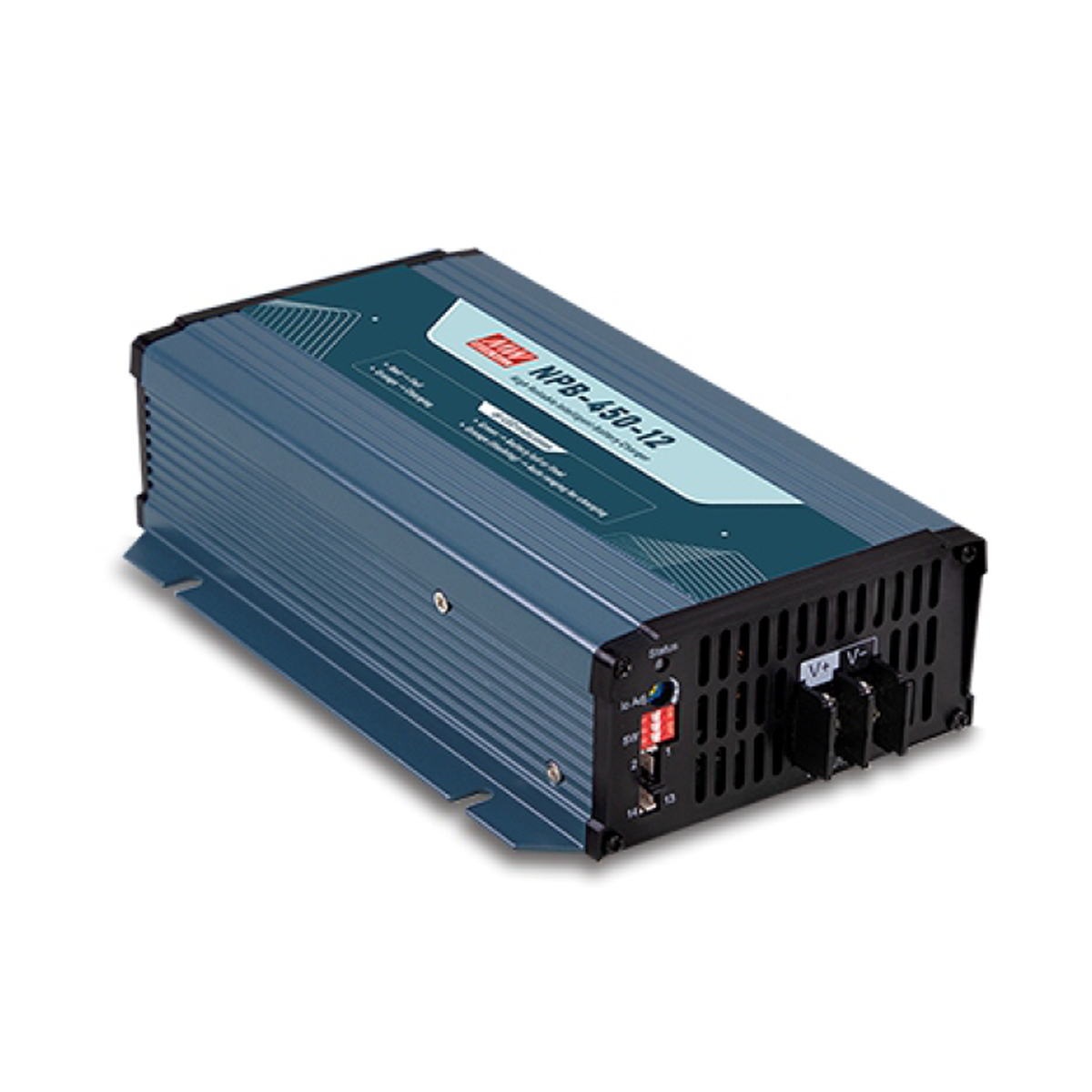

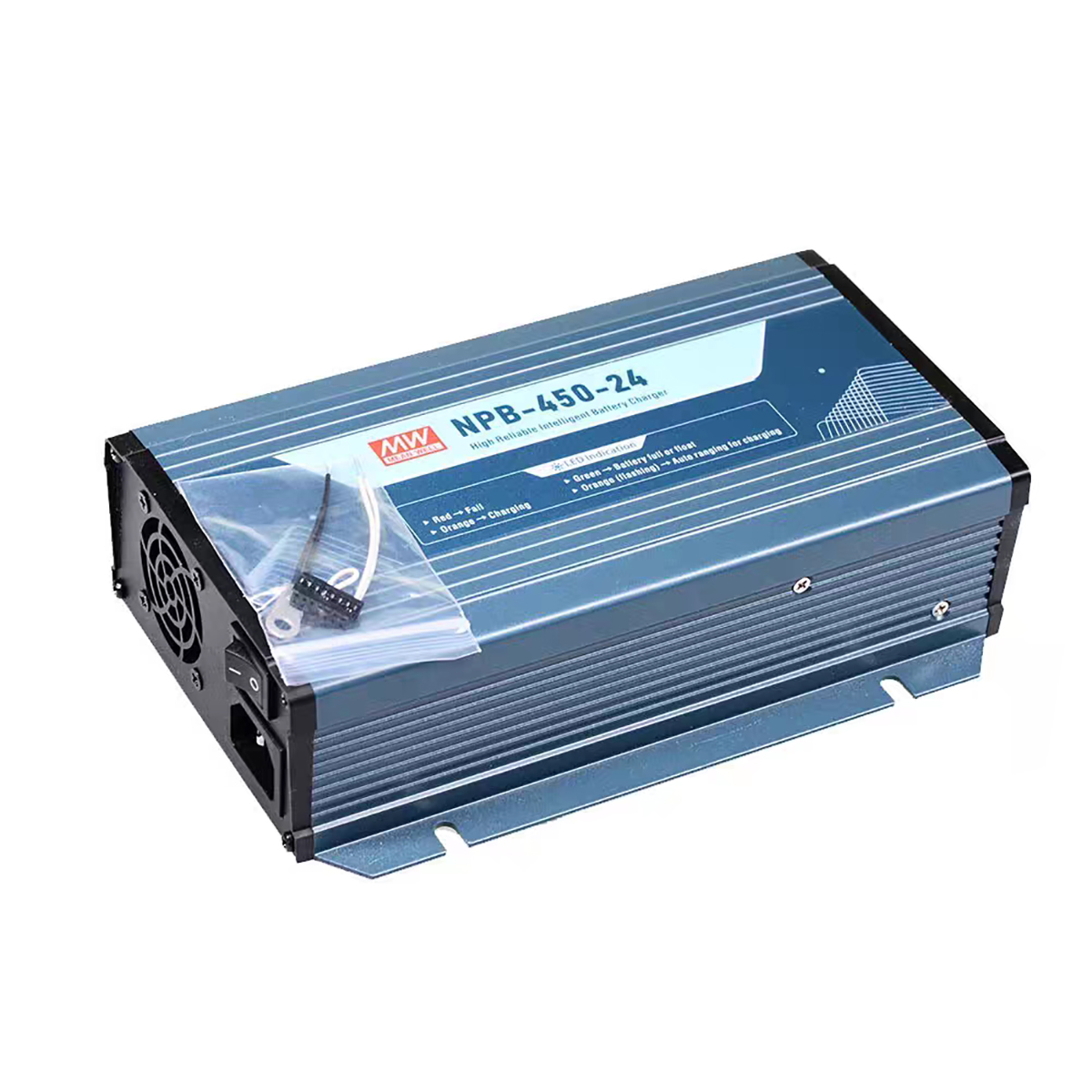

Mean Well NPB Series 450W NPB-450-12 Intelligent Battery Charger Ultra Wide Output Range for AGV Robot
Mean Well NPB Series 450W NPB-450-12 Intelligent Battery Charger Ultra Wide Output Range for AGV Robot

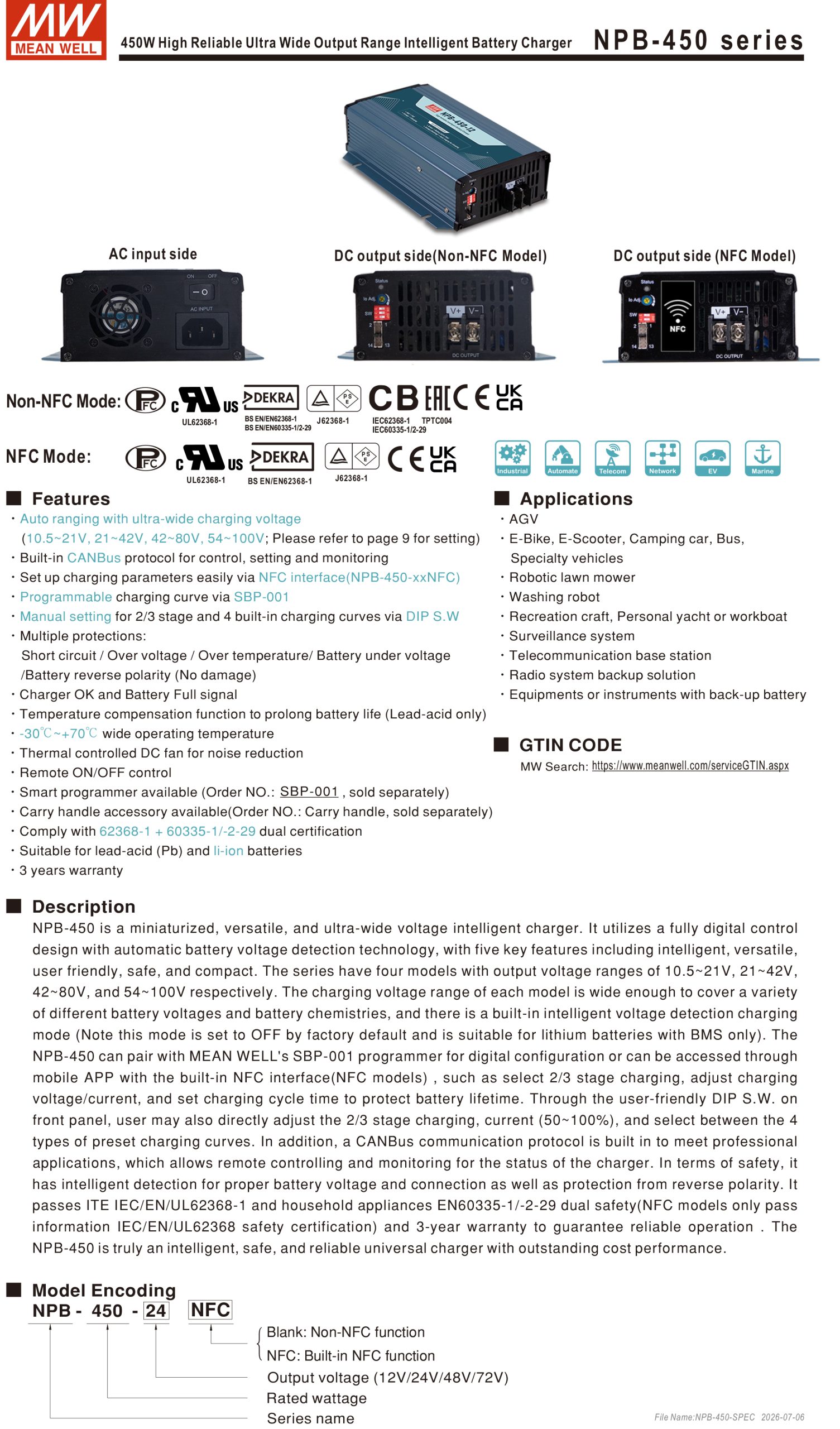

Intelligent general type highly reliable and wide output range charger
Ultra wide charging range
Built-in CANbus protocol

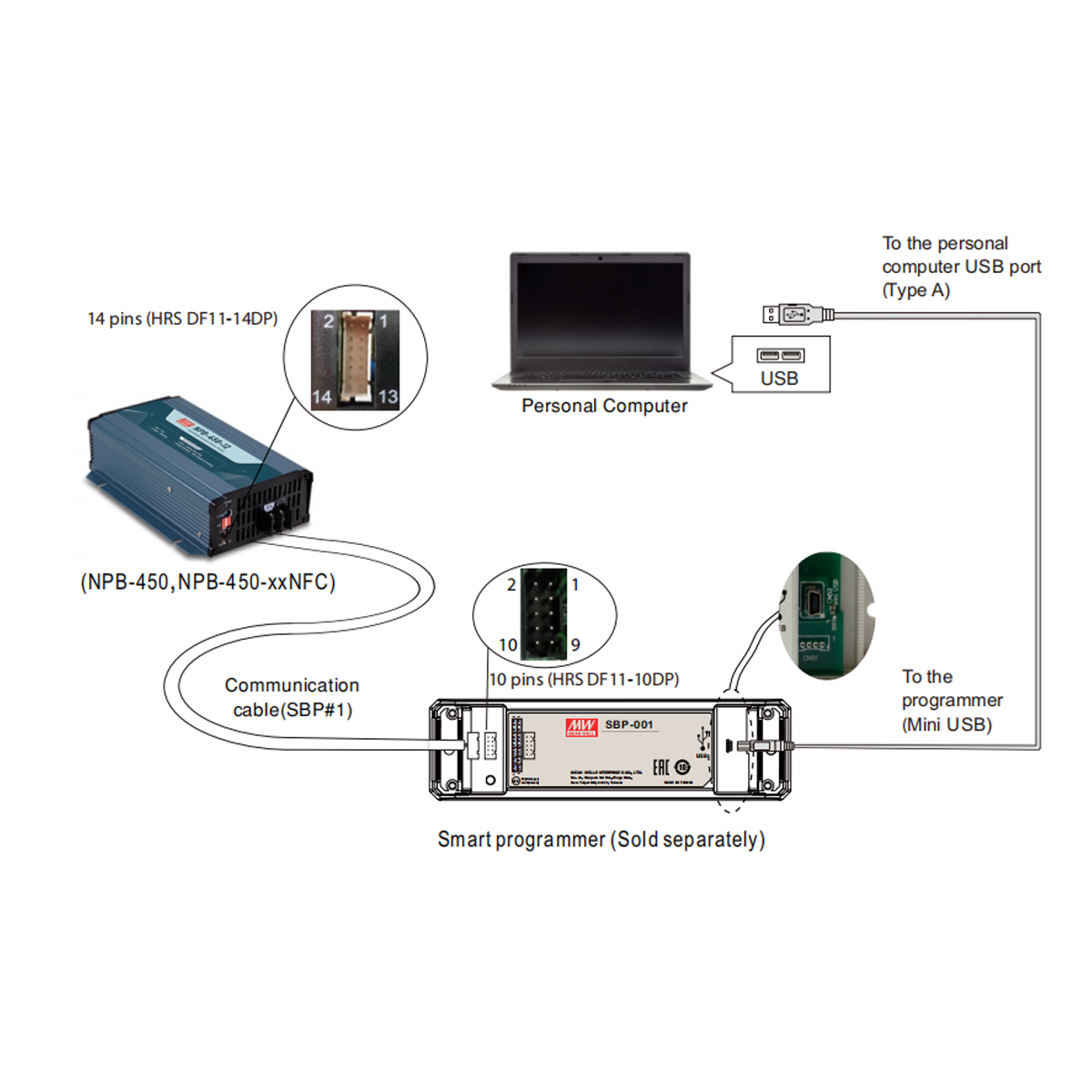

Charging voltage, charging current and timeout can be programmed through SBP-001

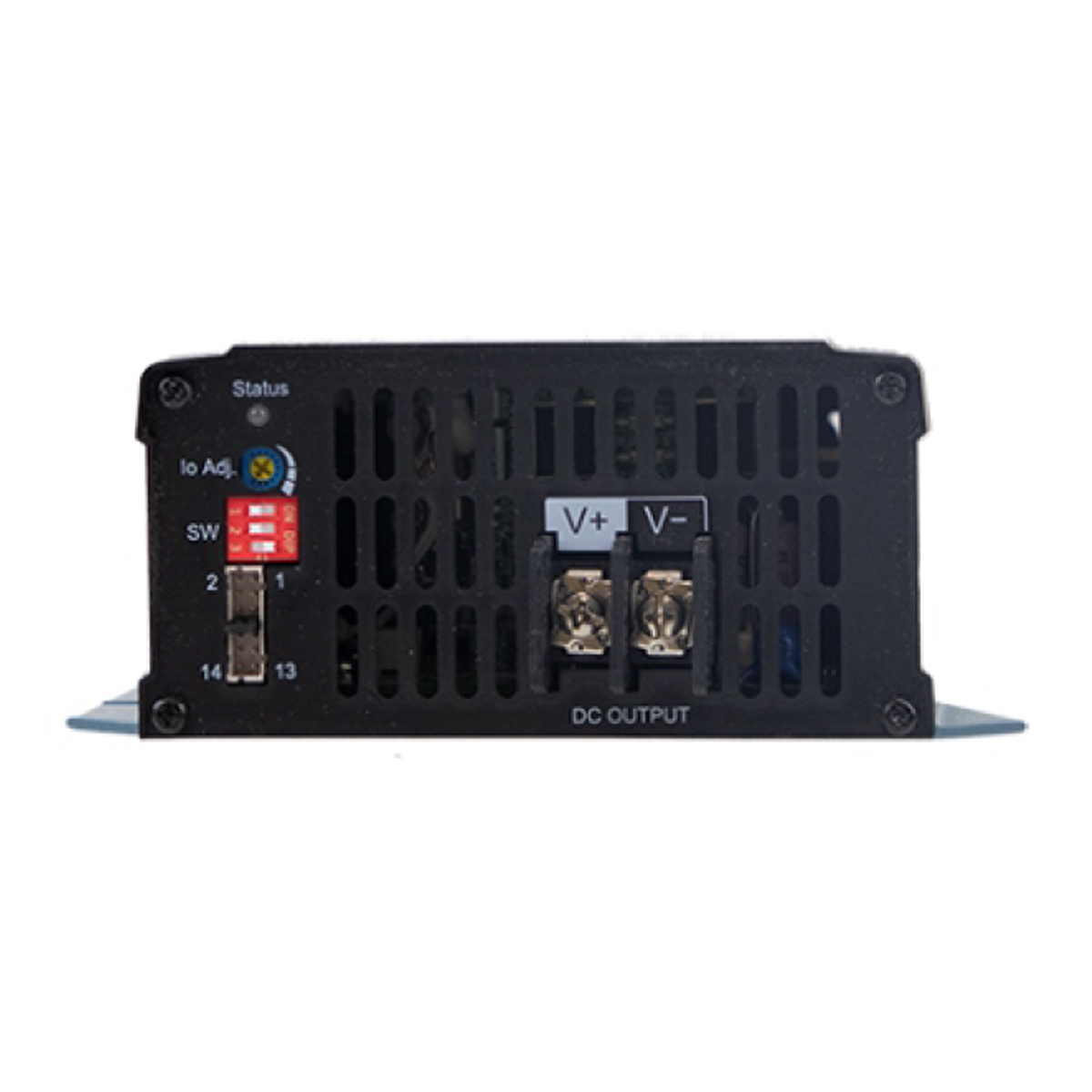

Charging current adjustable through panel (50~100% of rated current)
4 default charging curves can be selected through DIP switch on panel
2 or 3 stage charging can be adjusted through DIP switch on panel
NTC for temperature compensation (ENC series)
Implement temperature controlled low noise fan

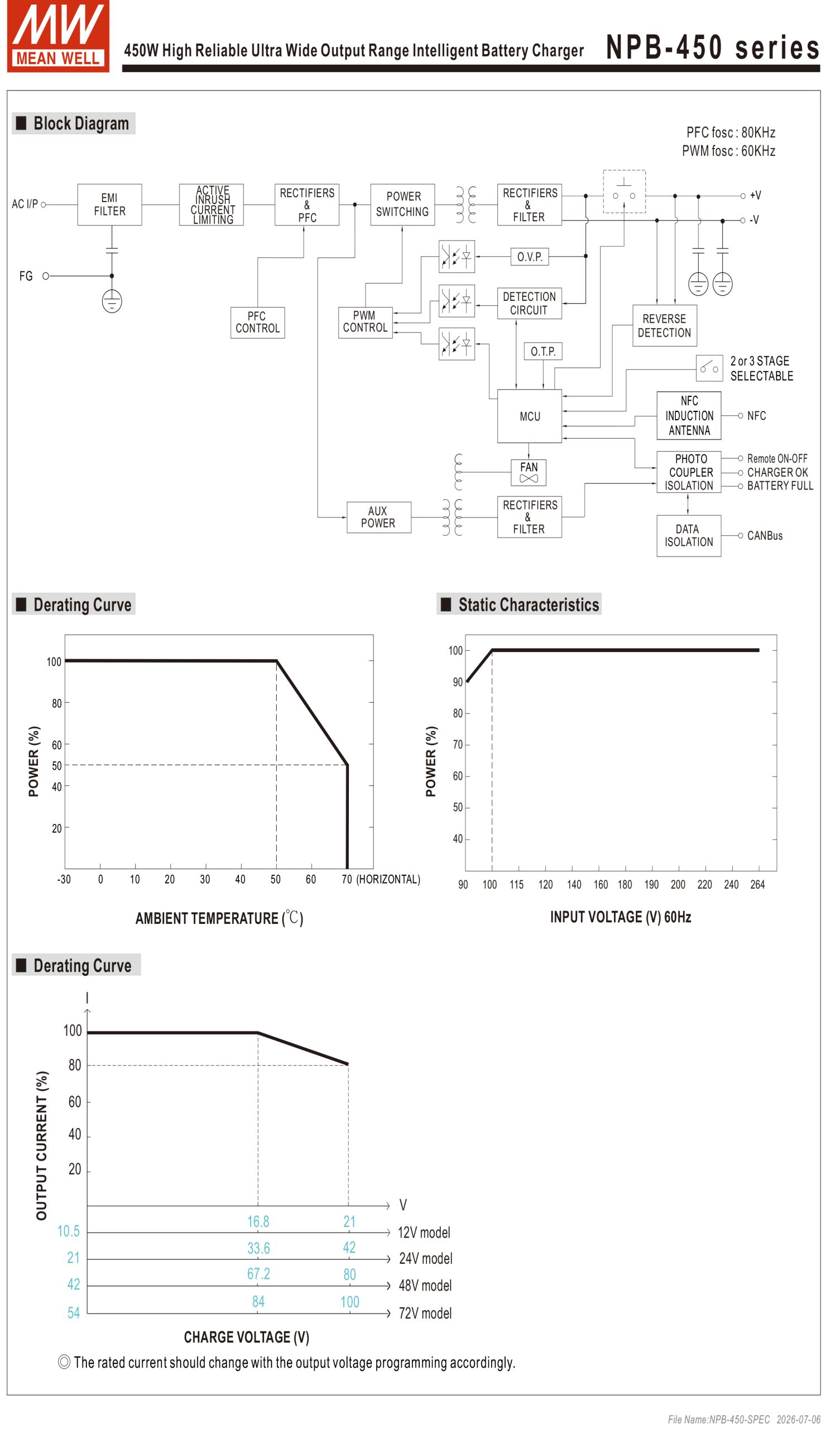

Auto derating when over temperature
-30 ~+70oC wide operating temperature, minimized environmental limitations
Suitable for lead-acid and lithium batteries

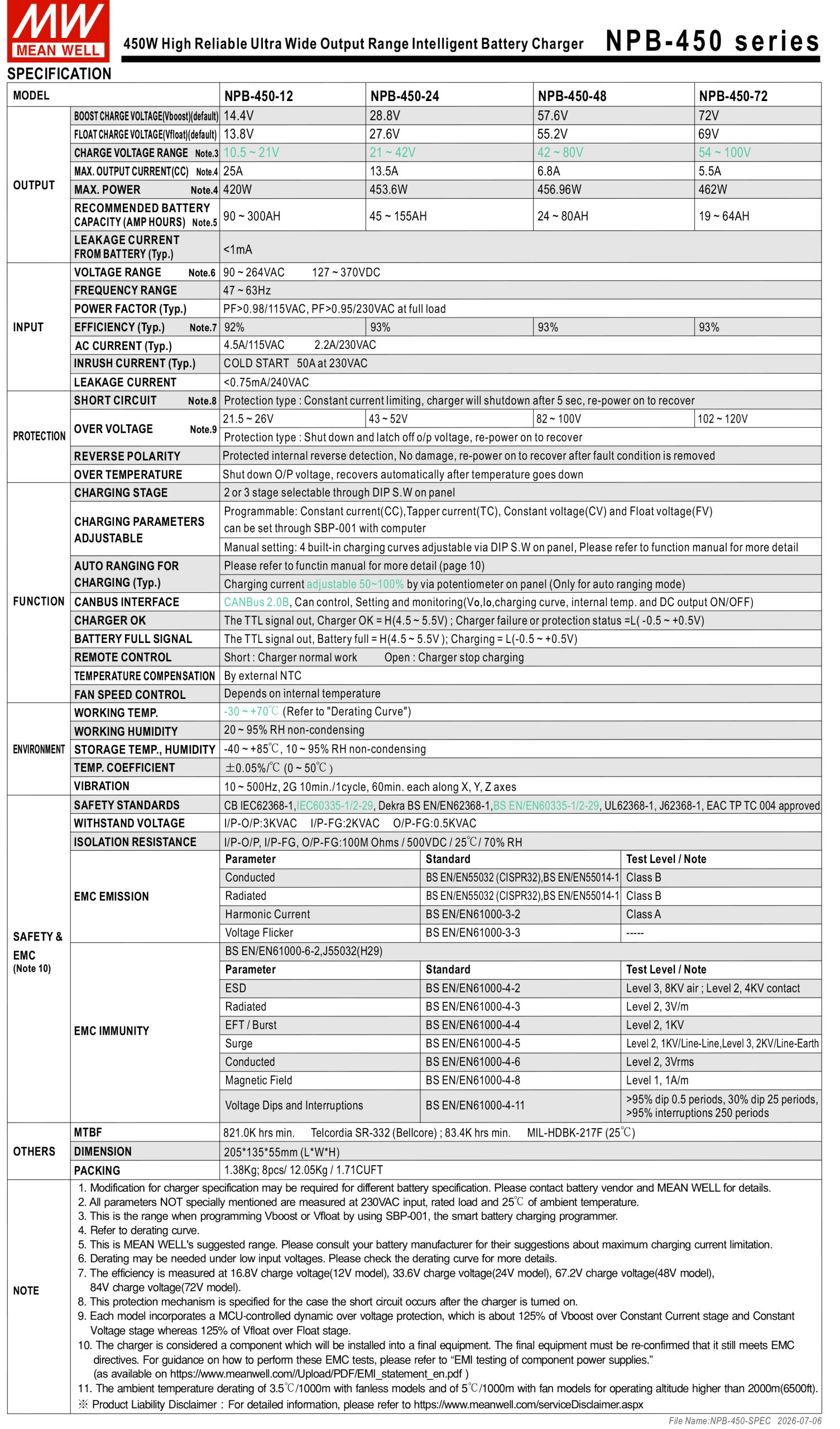

Model: NPB-450-12
Boost Charge Voltage(Vboost)(Default): 14.4V
Float Charge Voltage(Vfloat)(Default): 13.8V
Charge Voltage Range: 10.5 ~ 21V
Max. Output Current(CC): 25A
Max. Power: 420W
Recommended Battery Capacity (Amp Hours): 90 ~ 300AH
Leakage Current From Battery (Typ.): <1mA

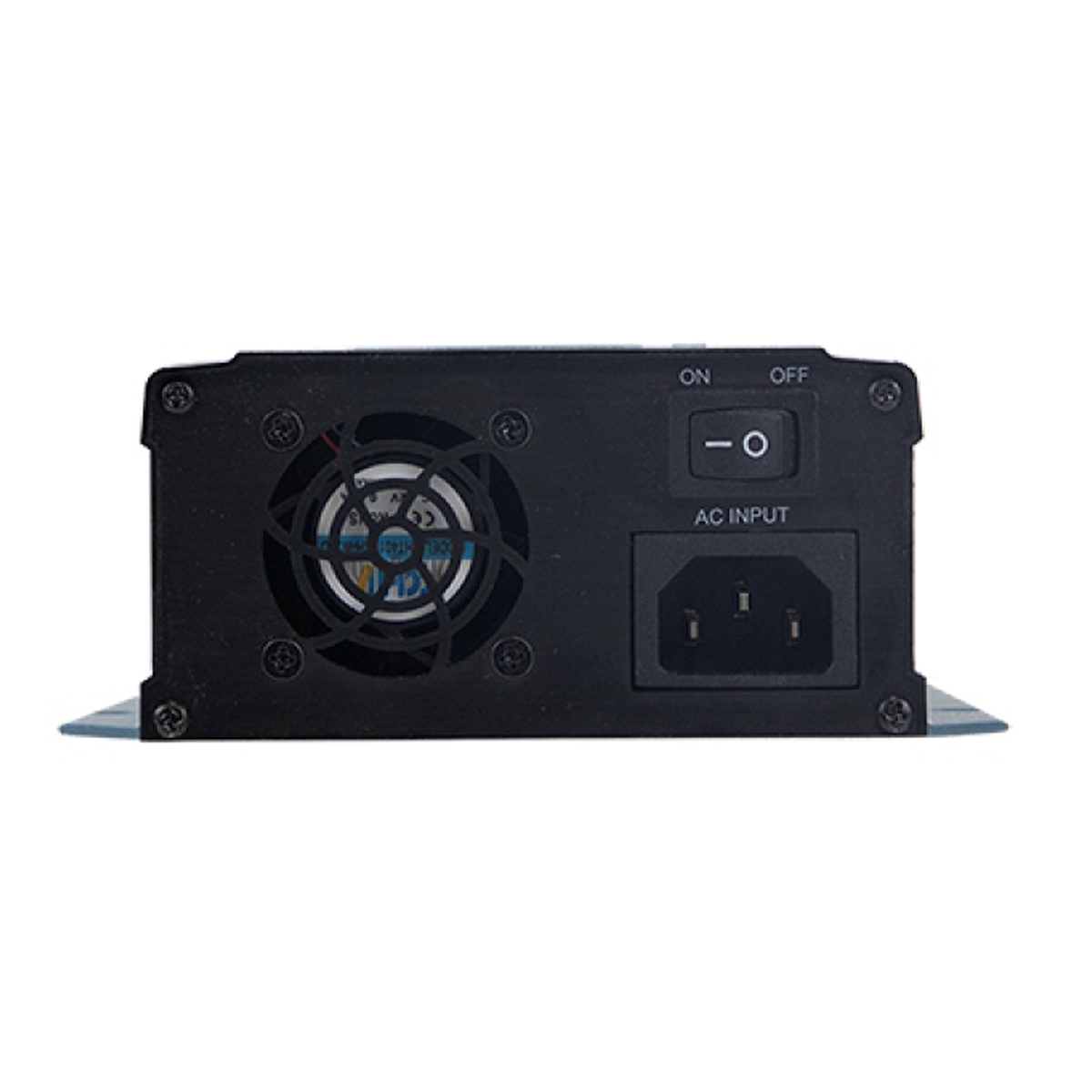

Voltage Range: 90 ~ 264VAC, 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
Efficiency (Typ.): 92%
AC Current (Typ.): 4.5A/115VAC, 2.2A/230VAC
Inrush Current (Typ.): Cold Start 50A at 230VAC
Leakage Current: <0.75mA/240VAC

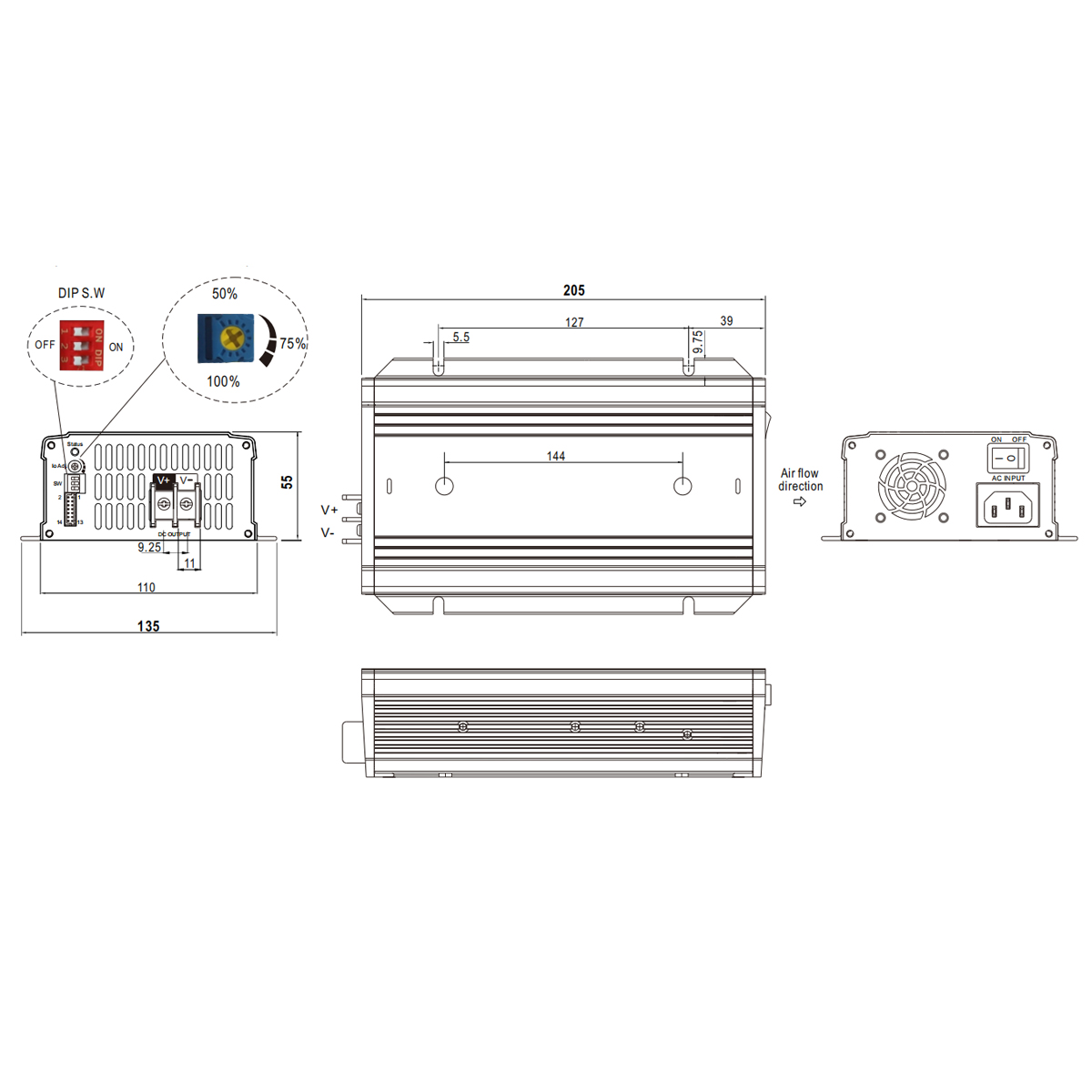

Dimension: 205*135*55mm (L*W*H)
Packing: 1.38Kg; 8pcs / 12.05Kg / 1.71CUFT
NPB-450-12 Battery Charger x1
