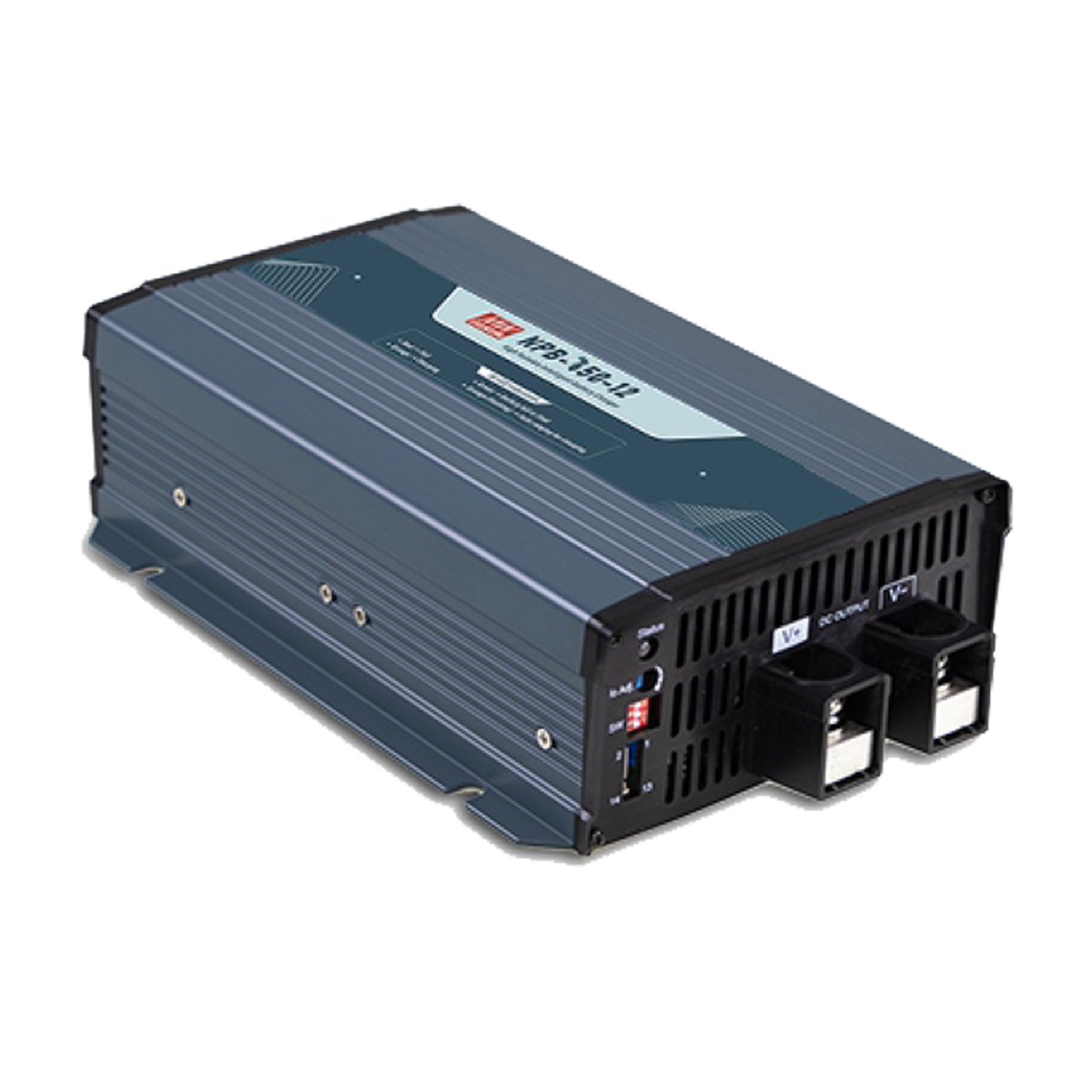

Mean Well NPB Series 750W NPB-750-24 Intelligent Battery Charger Ultra Wide Output Range for E-Bike Robot Boat
Mean Well NPB Series 750W NPB-750-24 Intelligent Battery Charger Ultra Wide Output Range for E-Bike Robot Boat

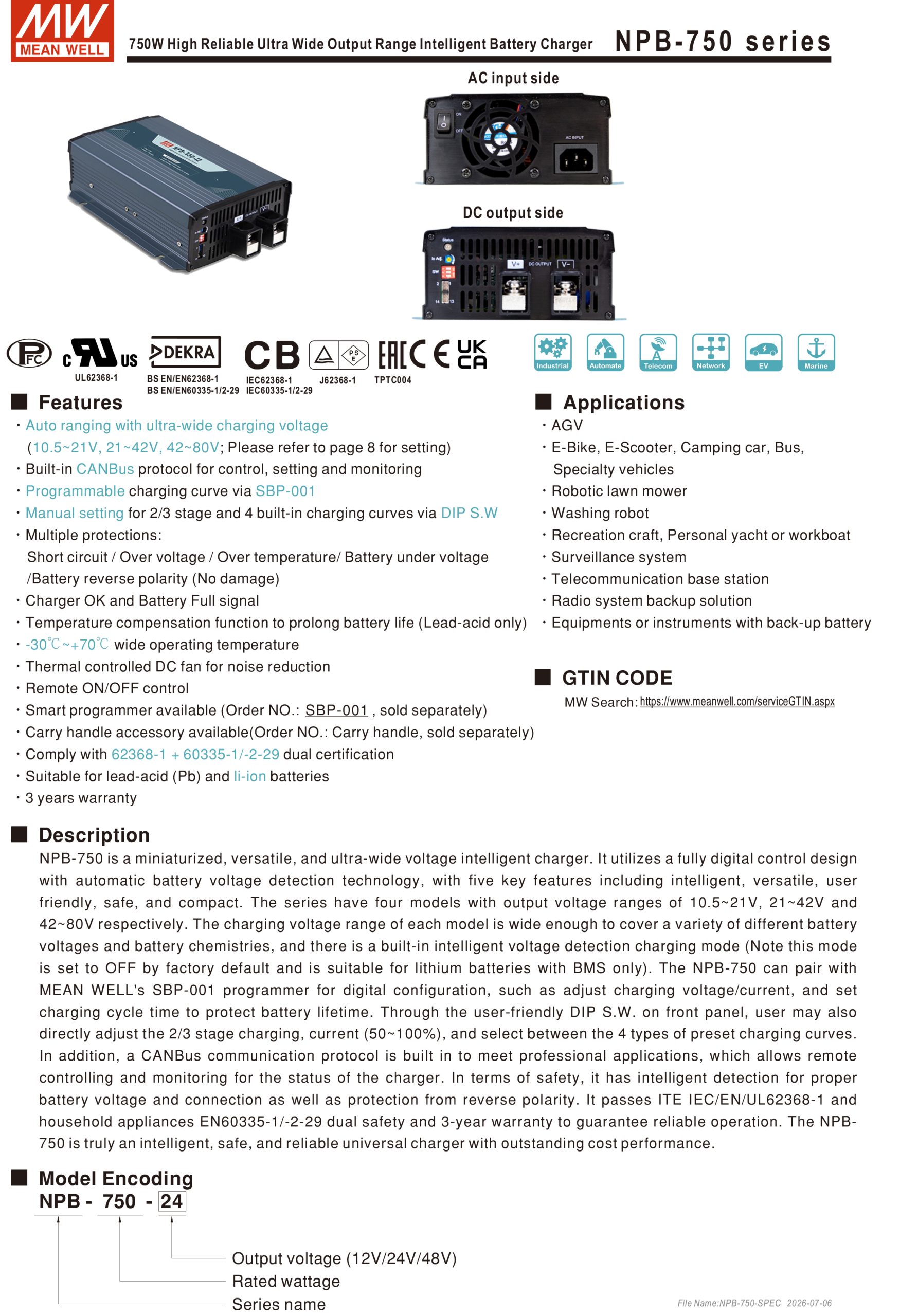

Intelligent general type highly reliable and wide output range charger
Ultra wide charging range
Built-in CANbus protocol

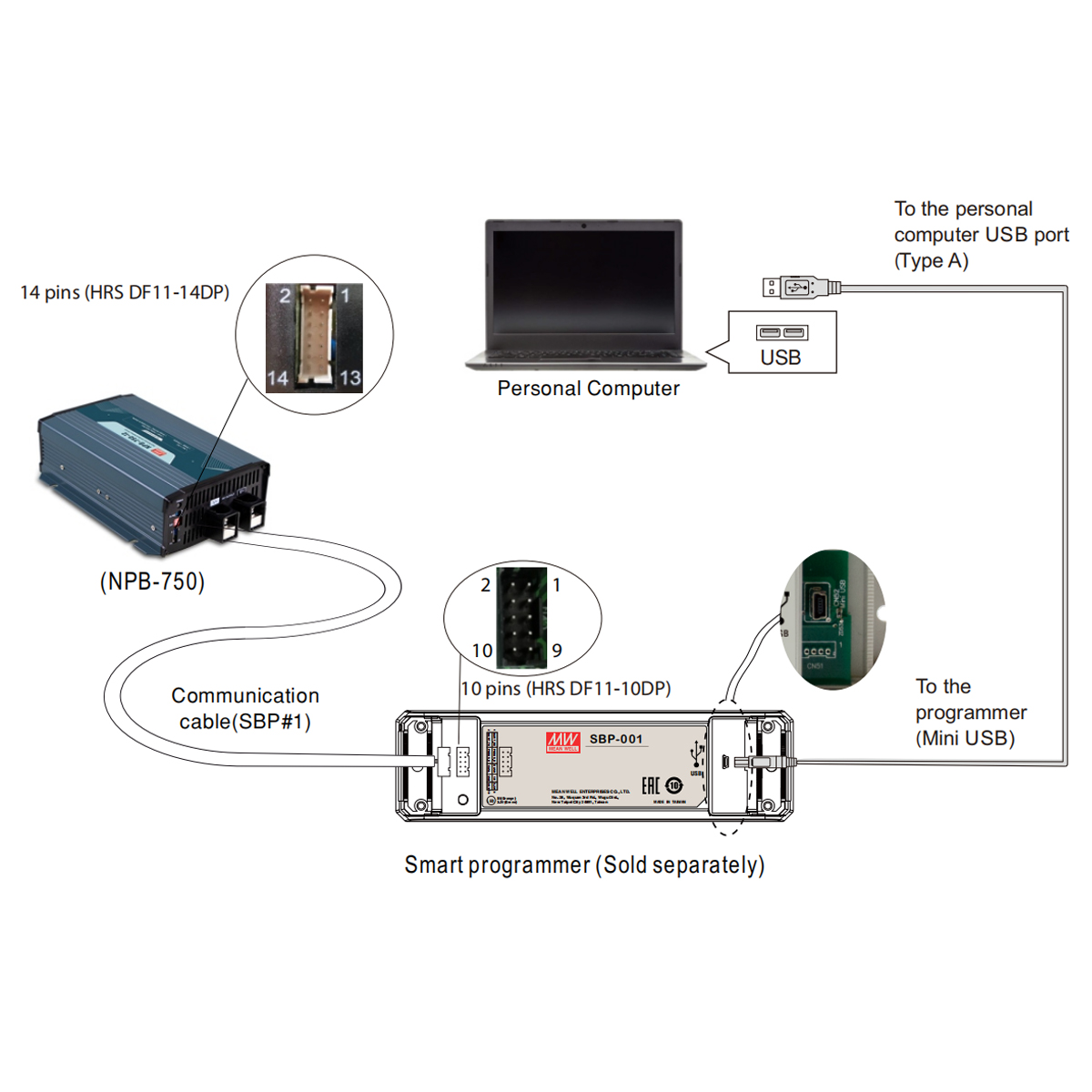

Charging voltage, charging current and timeout can be programmed through SBP-001

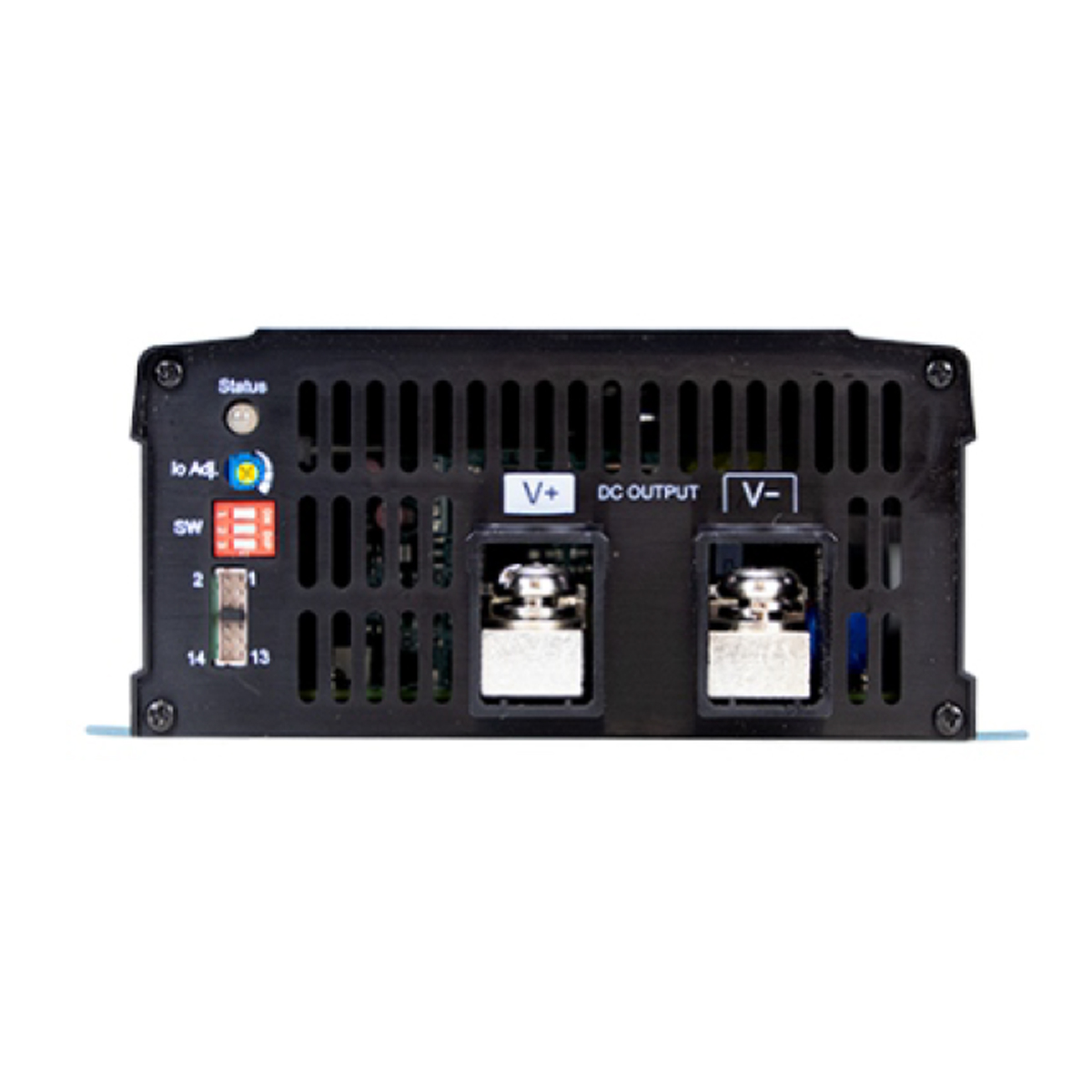

Charging current adjustable through panel (50~100% of rated current)

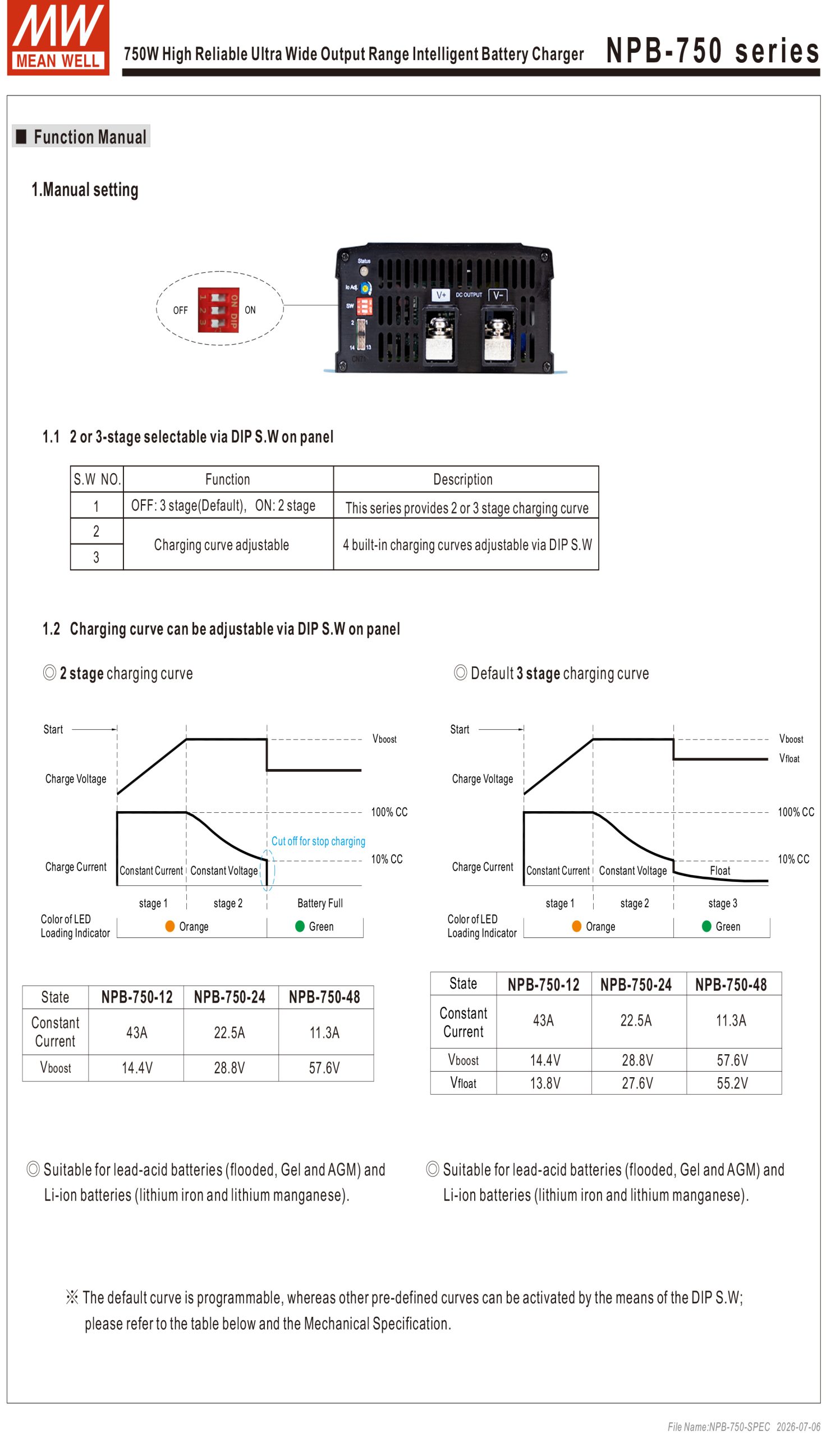

4 default charging curves can be selected through DIP switch on panel
2 or 3 stage charging can be adjusted through DIP switch on panel
NTC for temperature compensation (ENC series)
Implement temperature controlled low noise fan
Auto derating when over temperature
-30 ~+70oC wide operating temperature, minimized environmental limitations
Suitable for lead-acid and lithium batteries

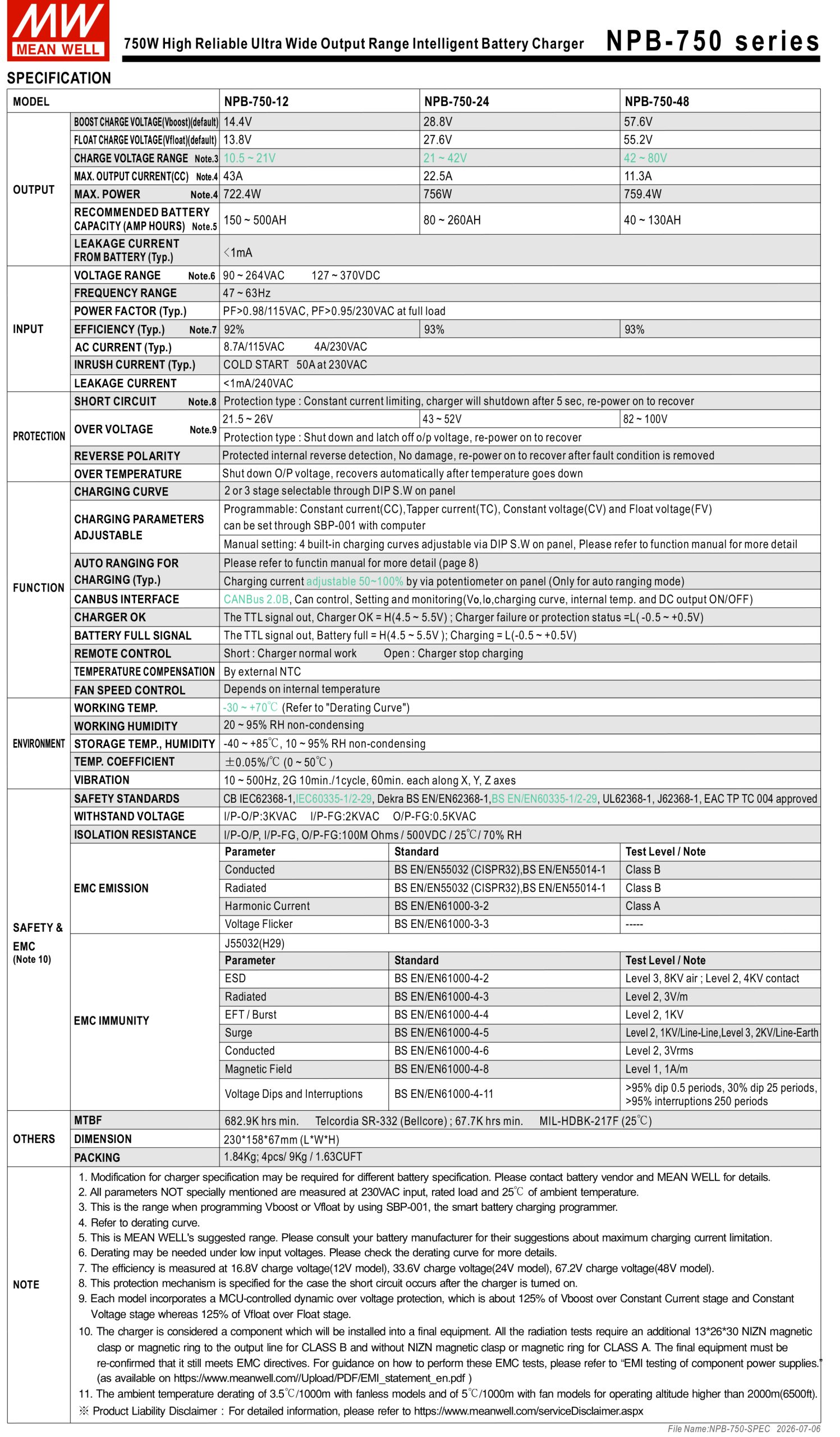

Model: NPB-750-24
Boost Charge Voltage(Vboost)(Default): 28.8V
Float Charge Voltage(Vfloat)(Default): 27.6V
Charge Voltage Range: 21 ~ 42V
Max. Output Current(CC): 22.5A
Max. Power: 756W
Recommended Battery Capacity (Amp Hours): 80 ~ 260AH
Leakage Current From Battery (Typ.): <1mA
Voltage Range: 90 ~ 264VAC , 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
Efficiency (Typ.): 93%
AC Current (Typ.): 8.7A/115VAC , 4A/230VAC
Inrush Current (Typ.): COLD START 50A at 230VAC
Leakage Current: <1mA/240VAC

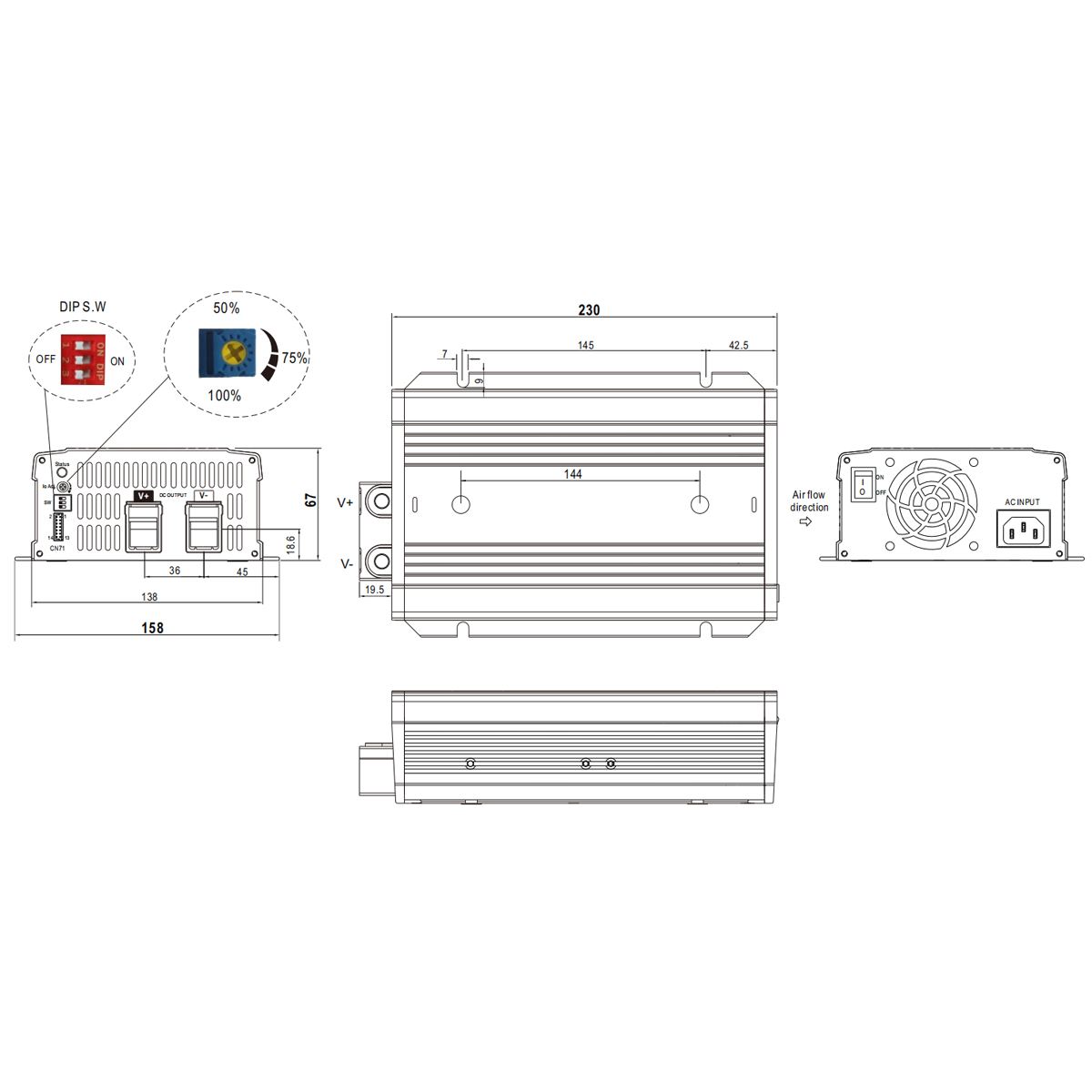

Dimension: 230*158*67mm (L*W*H)
Packing: 1.84Kg; 4pcs / 9Kg / 1.63CUFT
NPB-450-12 Battery Charger x1
