NSK-10D NSK-10DJ 10kg Robot Quick Changer Automatic Quick Change Disc for Multi-Joint Manipulator End Effector Fixture
NSK-10D NSK-10DJ 10kg Robot Quick Changer Automatic Quick Change Disc for Multi-Joint Manipulator End Effector Fixture
This product is precision-machined by an imported 5-axis machining center. The machining accuracy reaches 0.005mm. The surface is treated with hard anodizing, featuring uniform color, no scratches, no burrs, smooth operation and no abnormal noise.

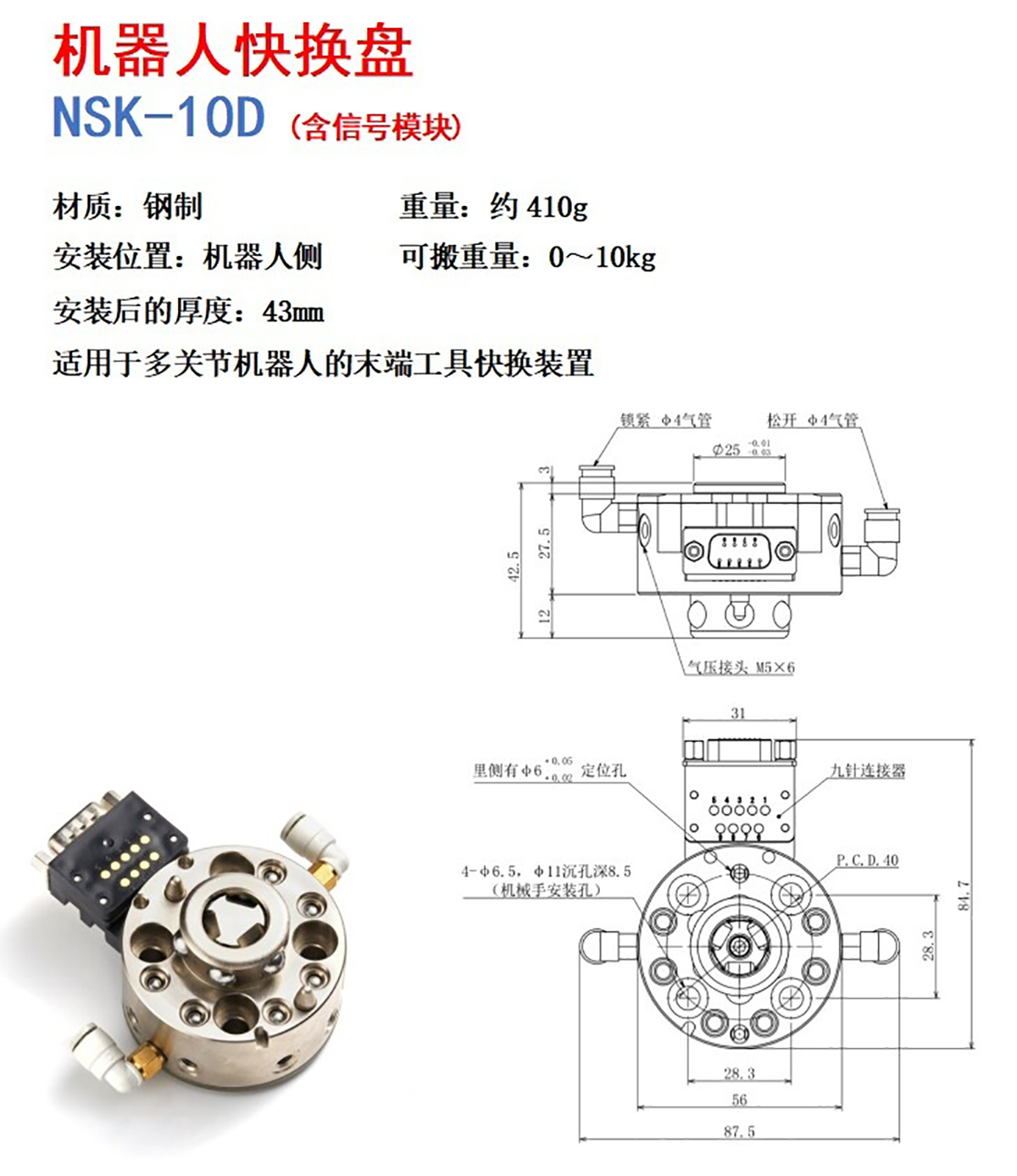

Model: NSK-10D With Signal Module
Material: Steel
Weight: Approx. 410g
Mounting Position: Robot Side
Rated Load Capacity: 0~10kg
Installed Thickness: 43mm
Application: End Effector Quick Changer for Multi-joint Robots

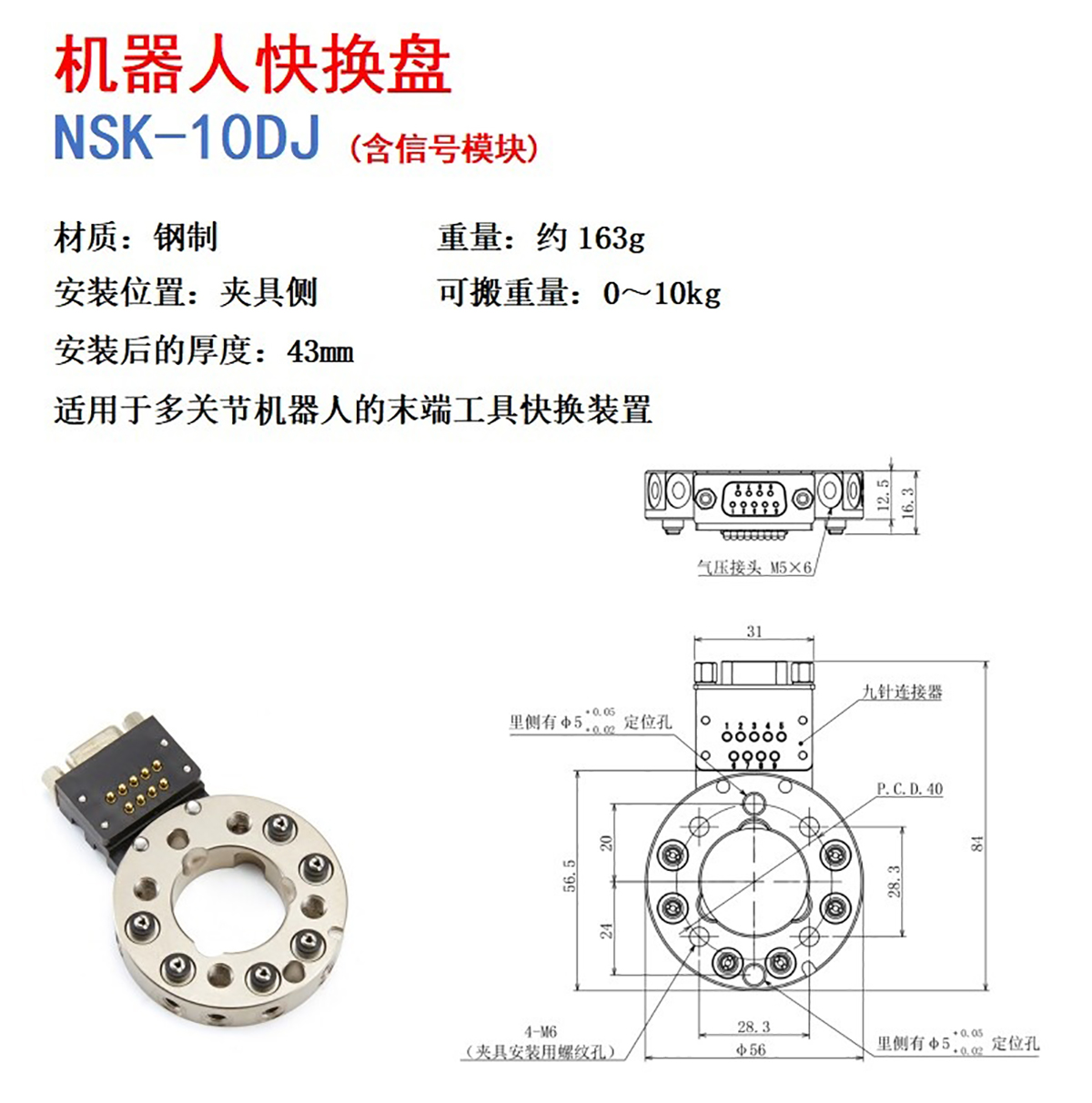

Model: NSK-10DJ With Signal Module
Material: Steel
Weight: Approx. 163g
Mounting Position: Tool Side
Rated Load Capacity: 0~10kg
Installed Thickness: 43mm
Application: End Effector Quick Changer for Multi-joint Robots

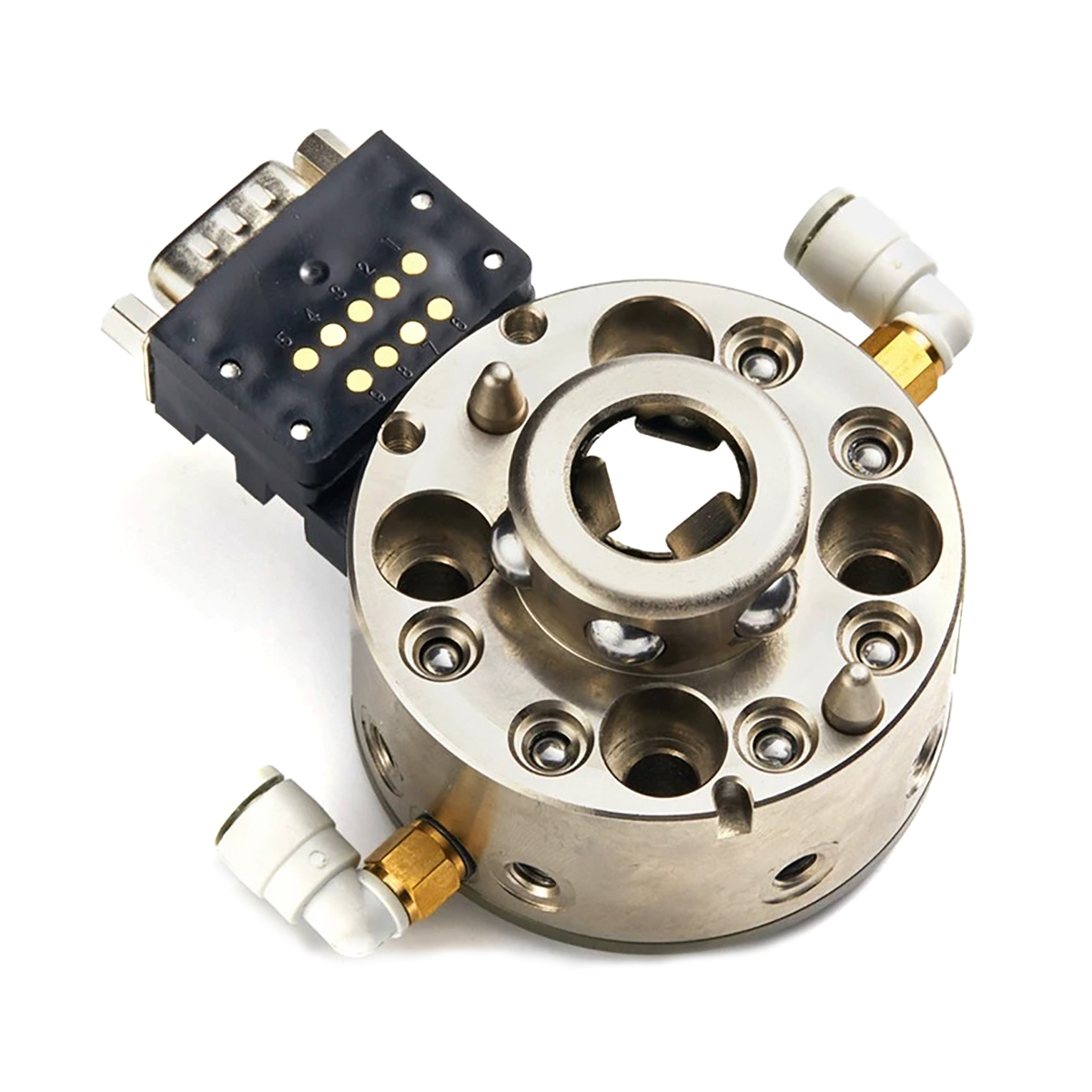

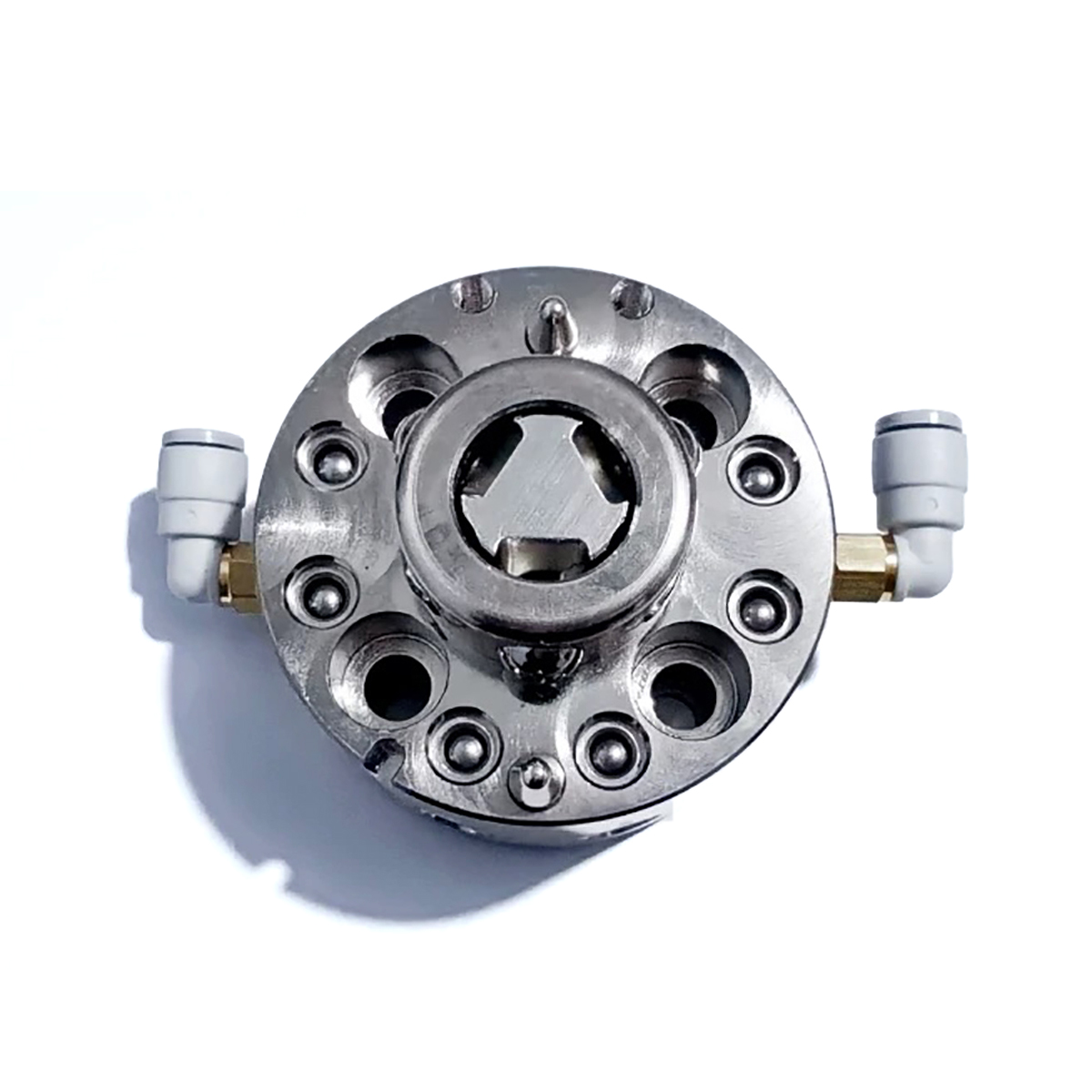

NSK-10D
Robot Side NSK-10D With 9Pin Signal Module

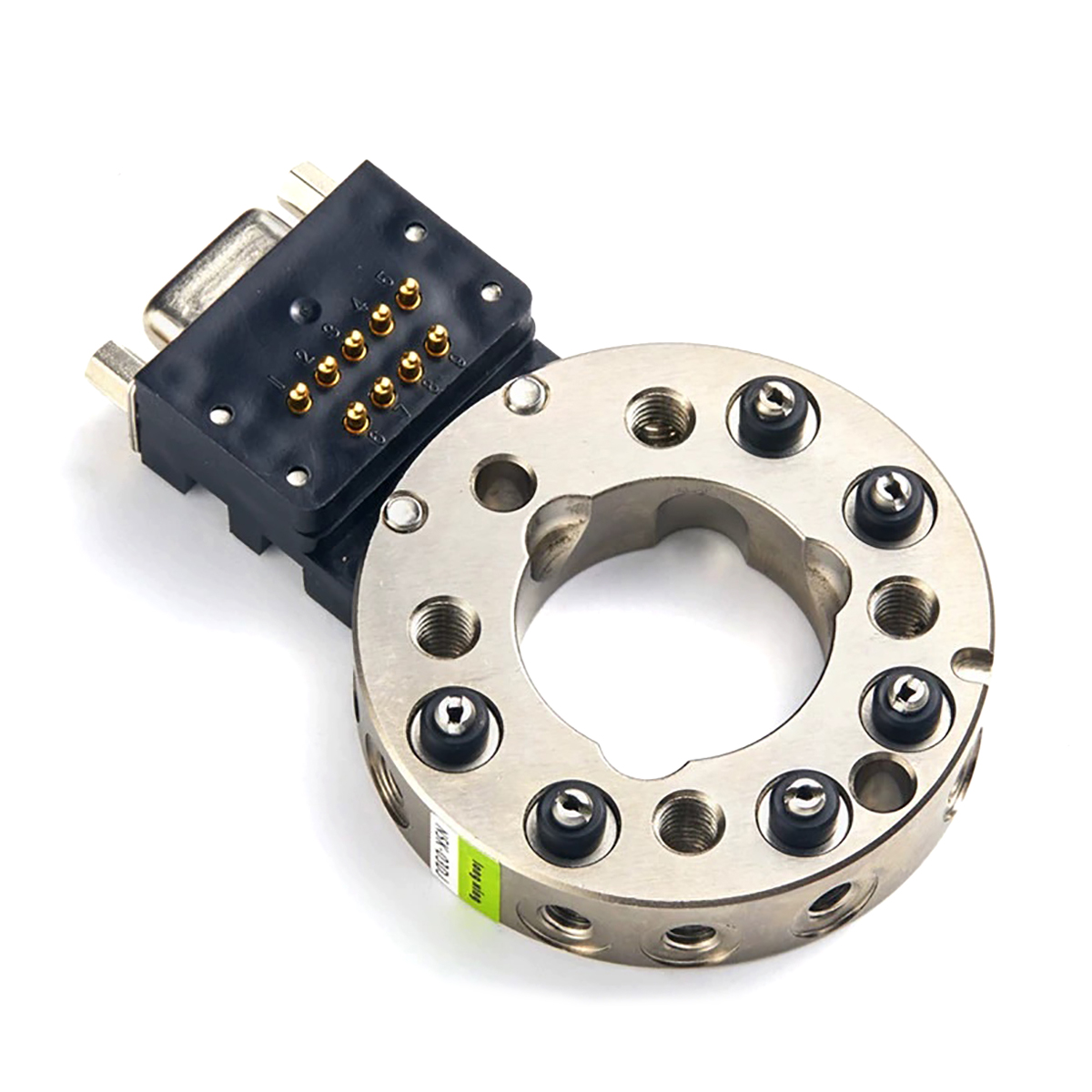

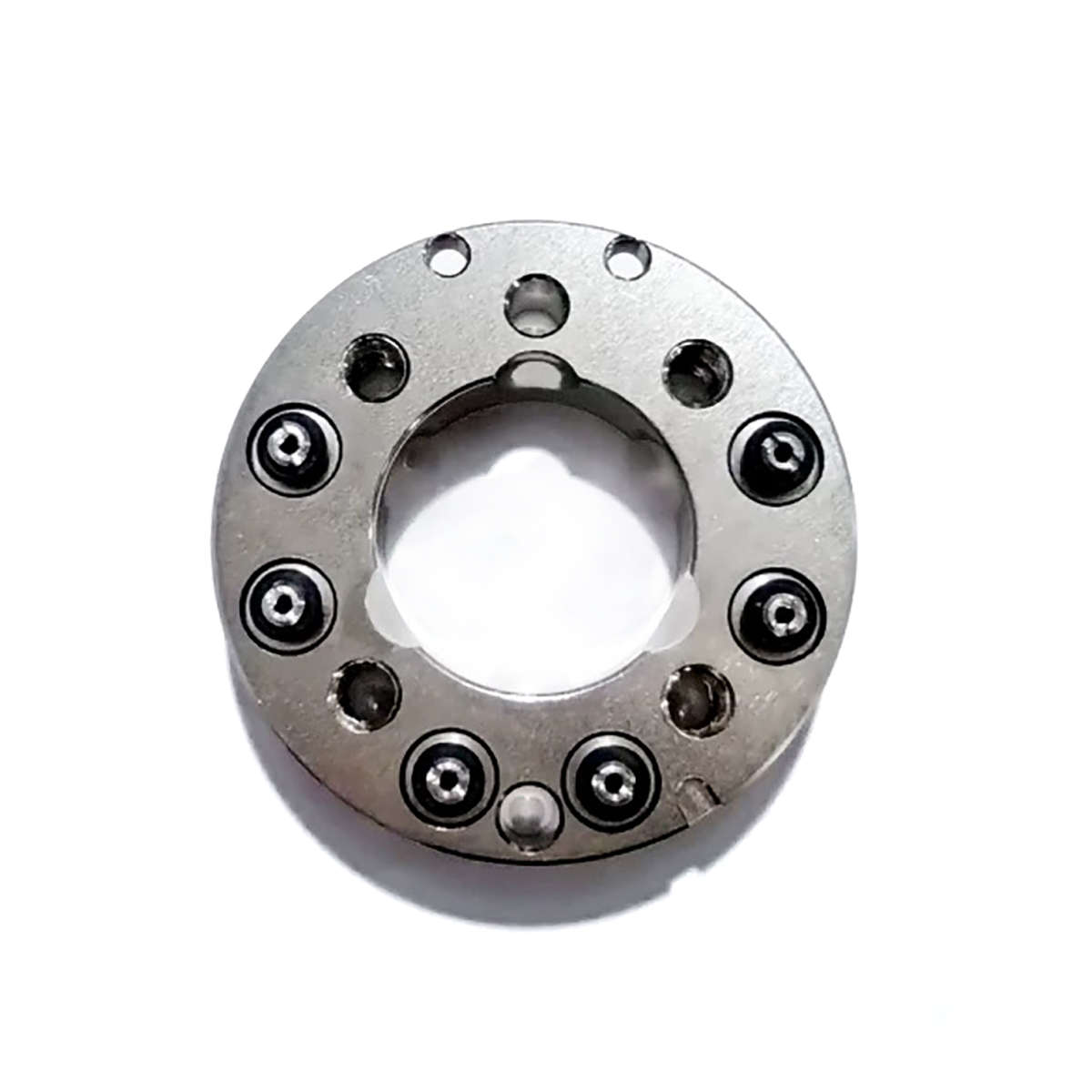

NSK-10DJ
Tool Side NSK-10DJ With 9Pin Signal Module
