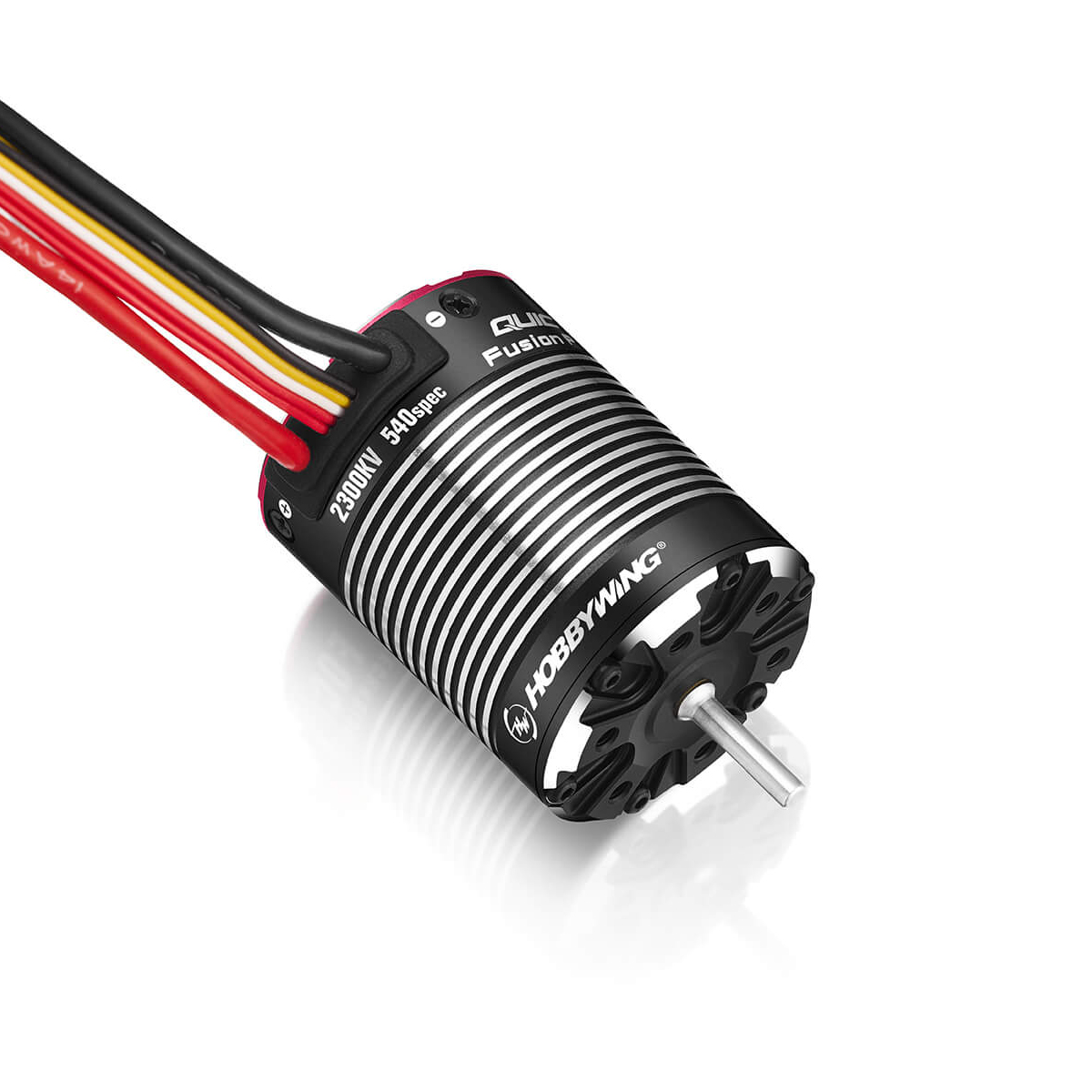

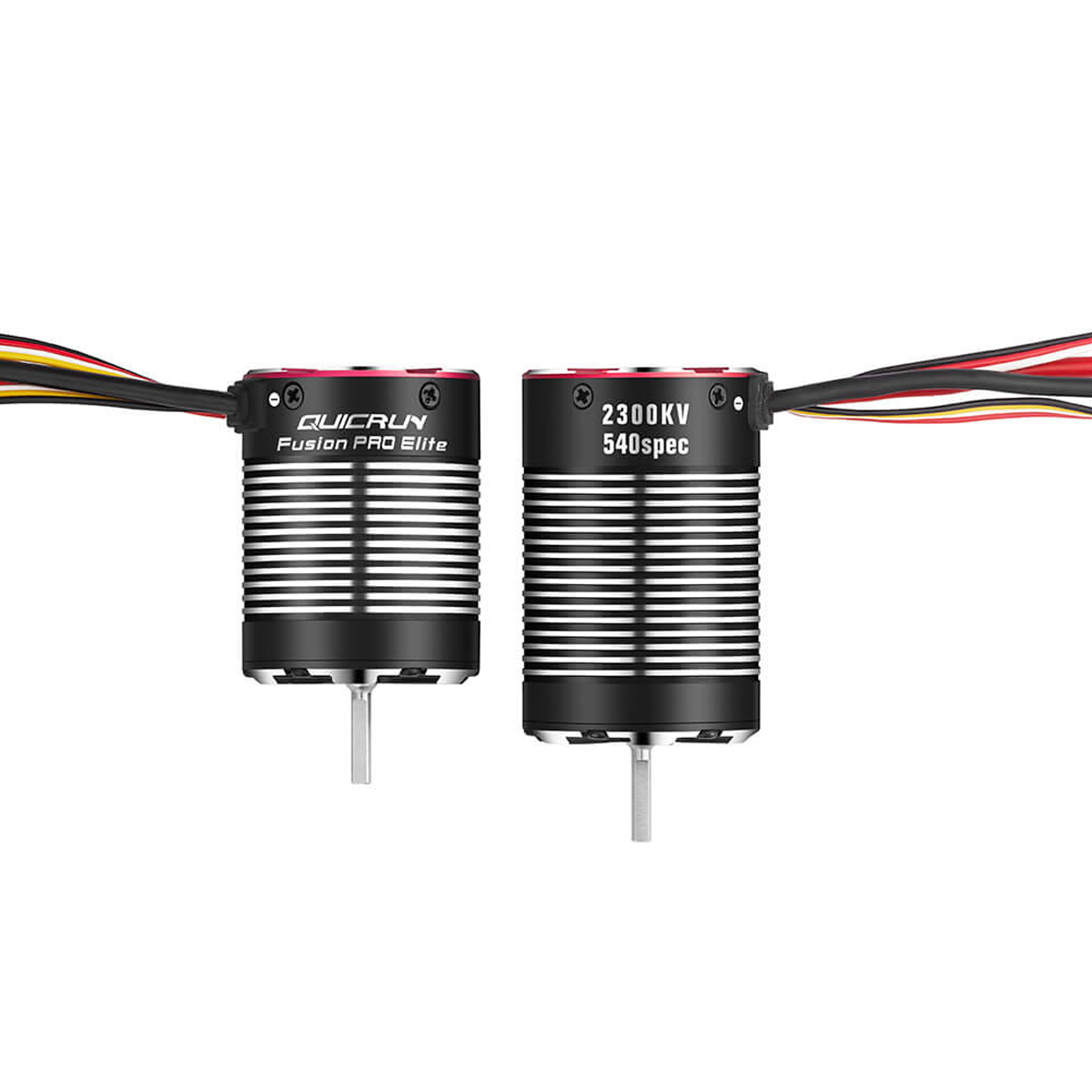

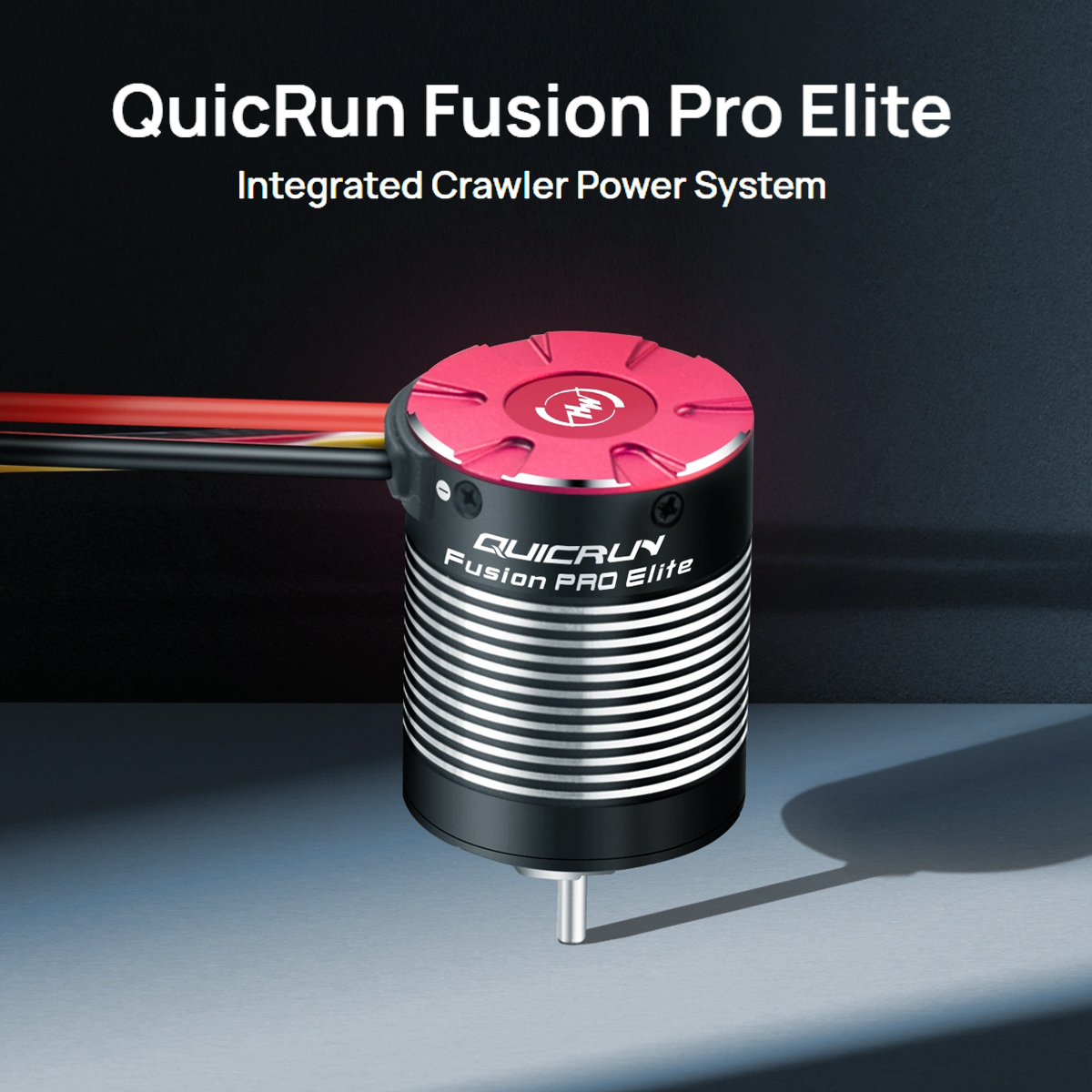

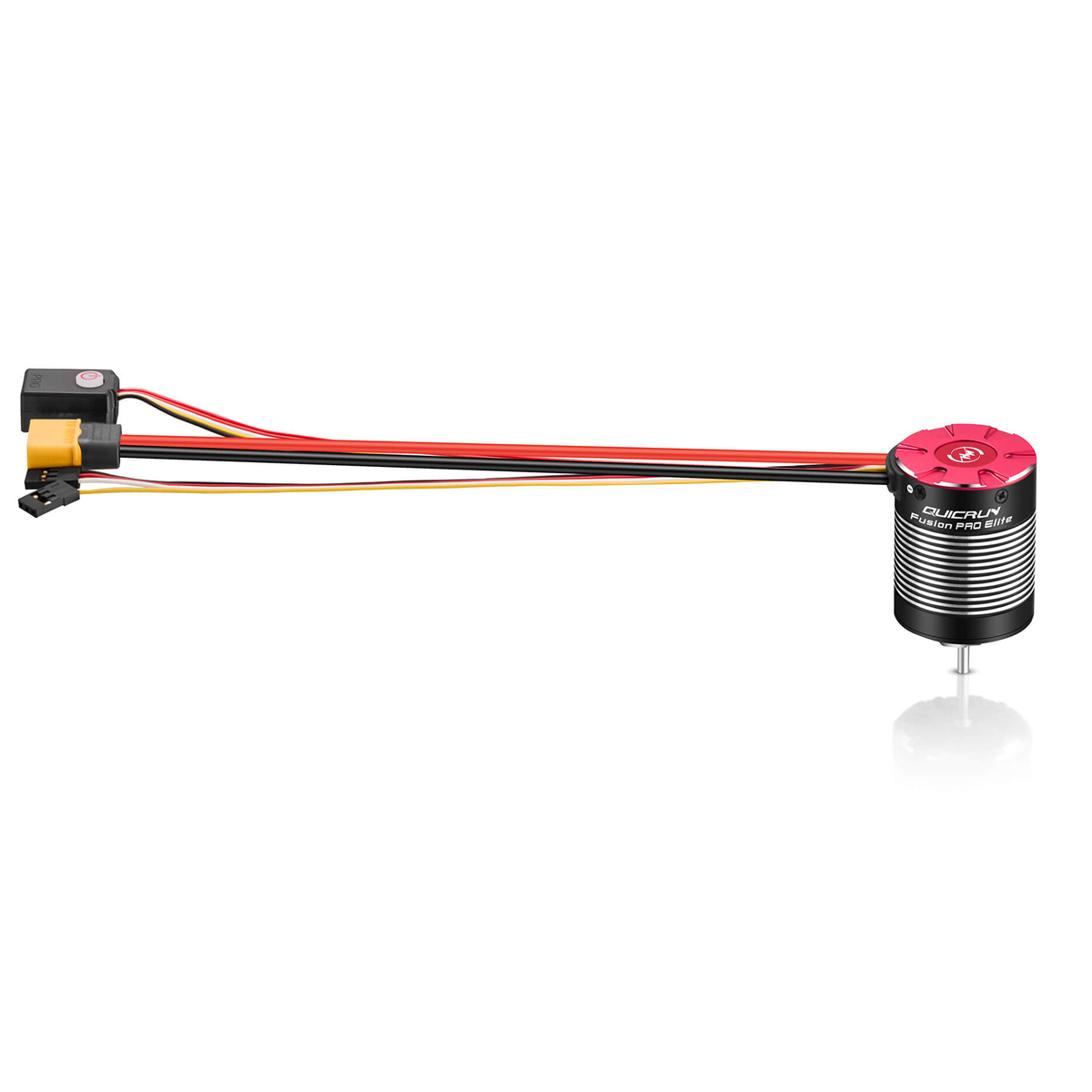

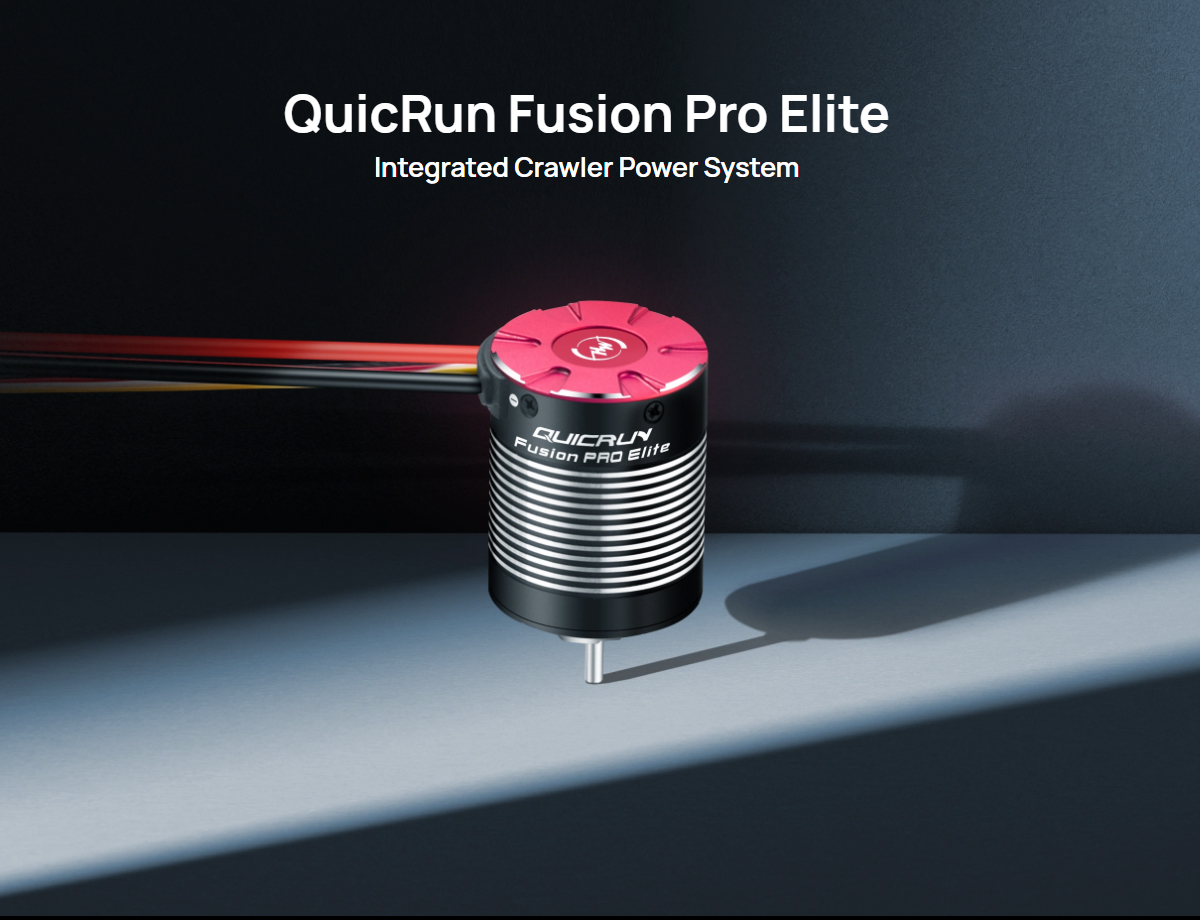

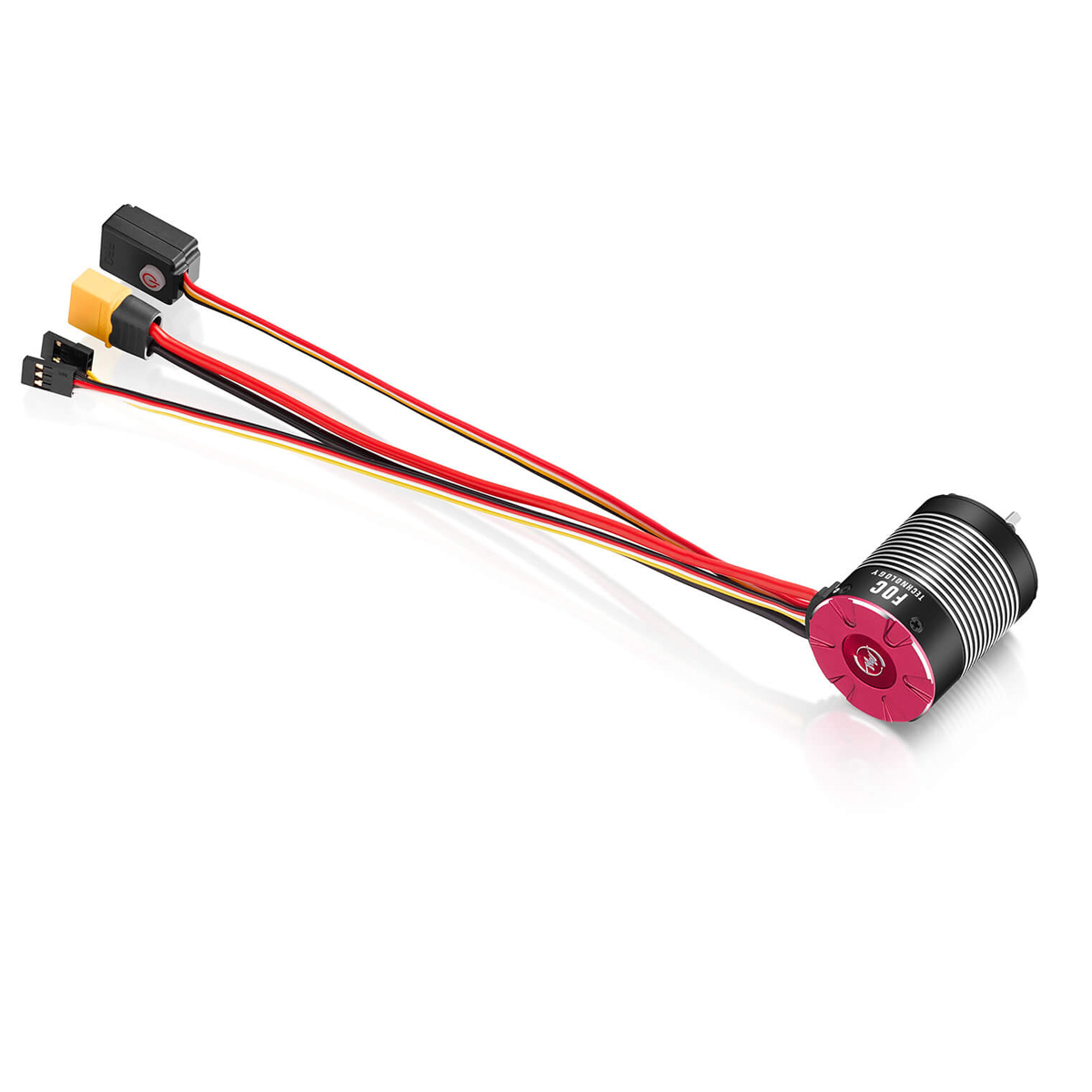

Hobbywing QuicRun Fusion Pro Elite Integrated Crawler Power System 2300KV 2-in-1 Brushless Motor ESC Built-in 10A BEC

SKU FUSION-PRO-ELITE Category Tags , Brand:

Hobbywing QuicRun Fusion Pro Elite Integrated Crawler Power System 2300KV 2-in-1 Brushless Motor ESC Built-in 10A BEC

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Compact yet Powerful

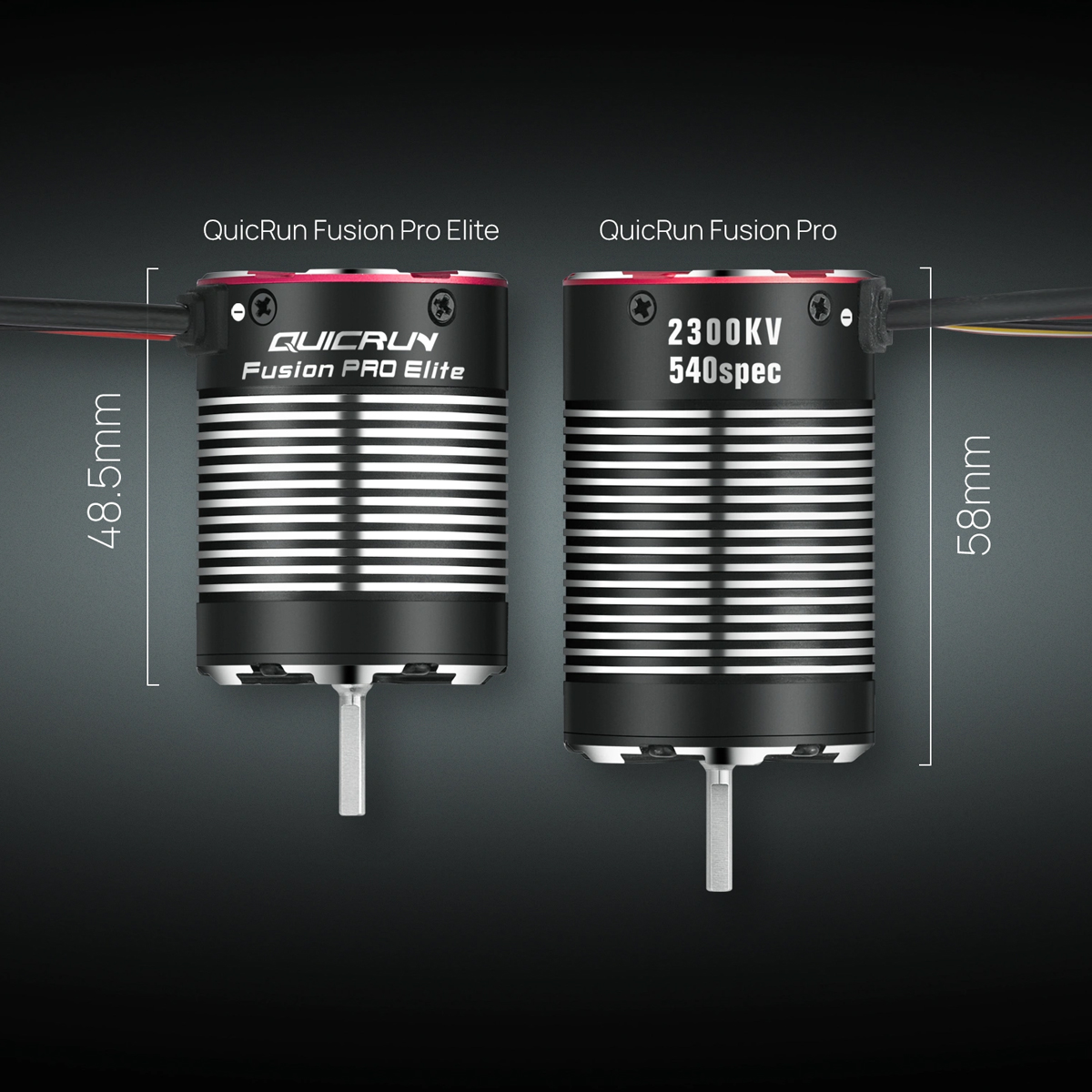

Fits nearly all 1/10th scale vehicles on the market. This ultra compact 2-in-1 motor and ESC allows for super clean installation and wiring. Featuring an ultra-short integrated design with a length of just 48.5mm, the motor is 9.5mm shorter than the Pro Standard version.

FOC Drive, QuietPowerful Torque with Excellent Linearity
The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed torque and smoother performance than conventional sensored systems. It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.

Closed loop, Intelligent Torque Control for Precise Throttle Matching and Amazing Control
The ESC features an intelligent torque output and speed closed-loop control system that automatically adapts to changing terrain conditions. The ESC increases output torque to overcome obstacles when encountering resistance. On descents, it reduces torque output and stablizes vehicle speed, making driving remarkably simply.

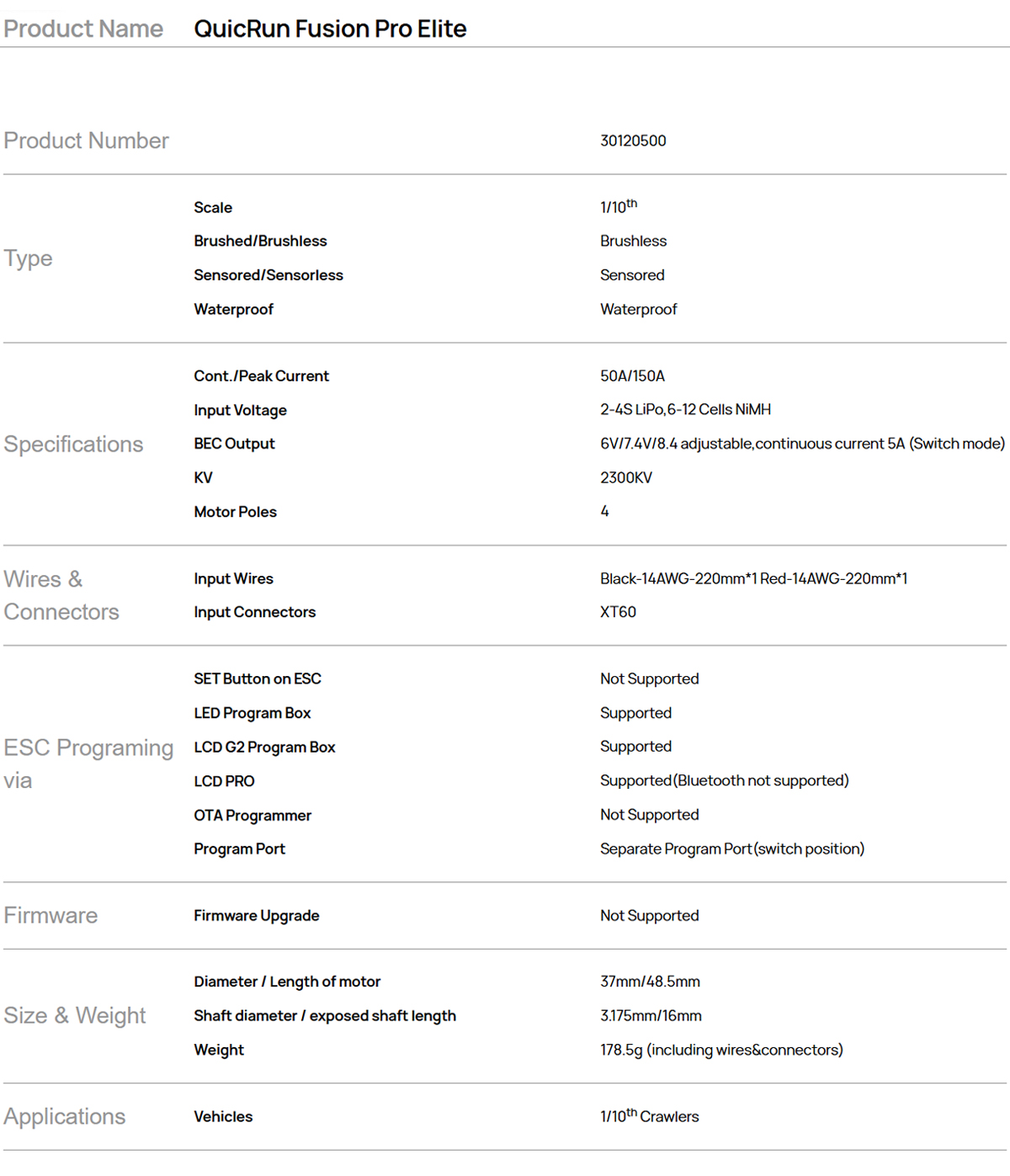

Model: QuicRun Fusion Pro Elite
Product Number: 30120500
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored

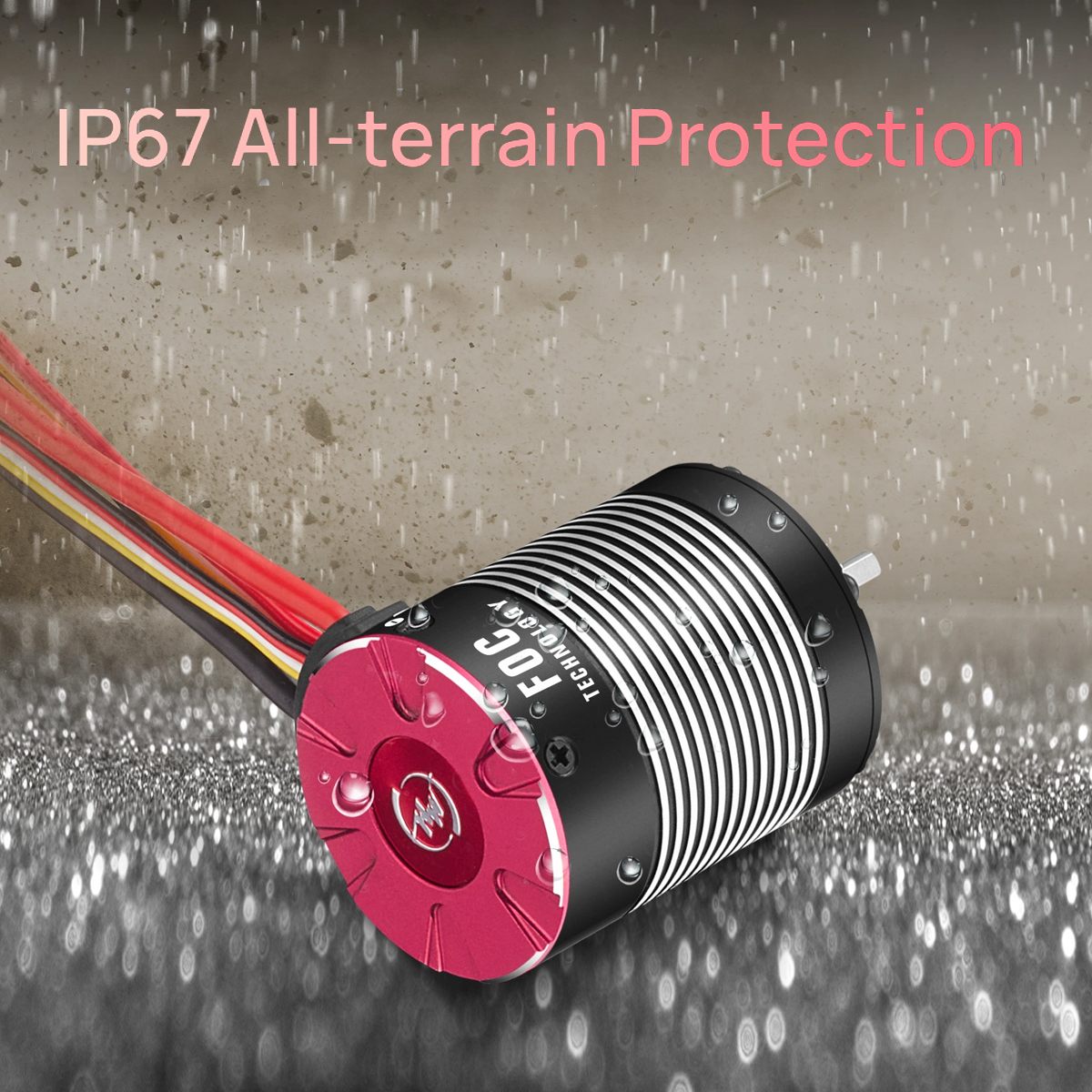

Waterproof: Waterproof
Cont./Peak Current: 50A/150A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4 Adjustable, Continuous Current 5A (Switch Mode)
KV: 2300KV
Motor Poles: 4
Input Wires: Black-14AWG-220mm*1 Red-14AWG-220mm*1
Input Connectors: XT60
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Separate Program Port (Switch Position)
Firmware Upgrade: Not Supported
Diameter / Length of Motor: 37mm/48.5mm
Shaft Diameter / Exposed Shaft Length: 3.175mm/16mm
Weight: 178.5g (Including Wires & Connectors)
Applicable Vehicles: 1/10th Crawlers

QuicRun Fusion Pro Elite x1
