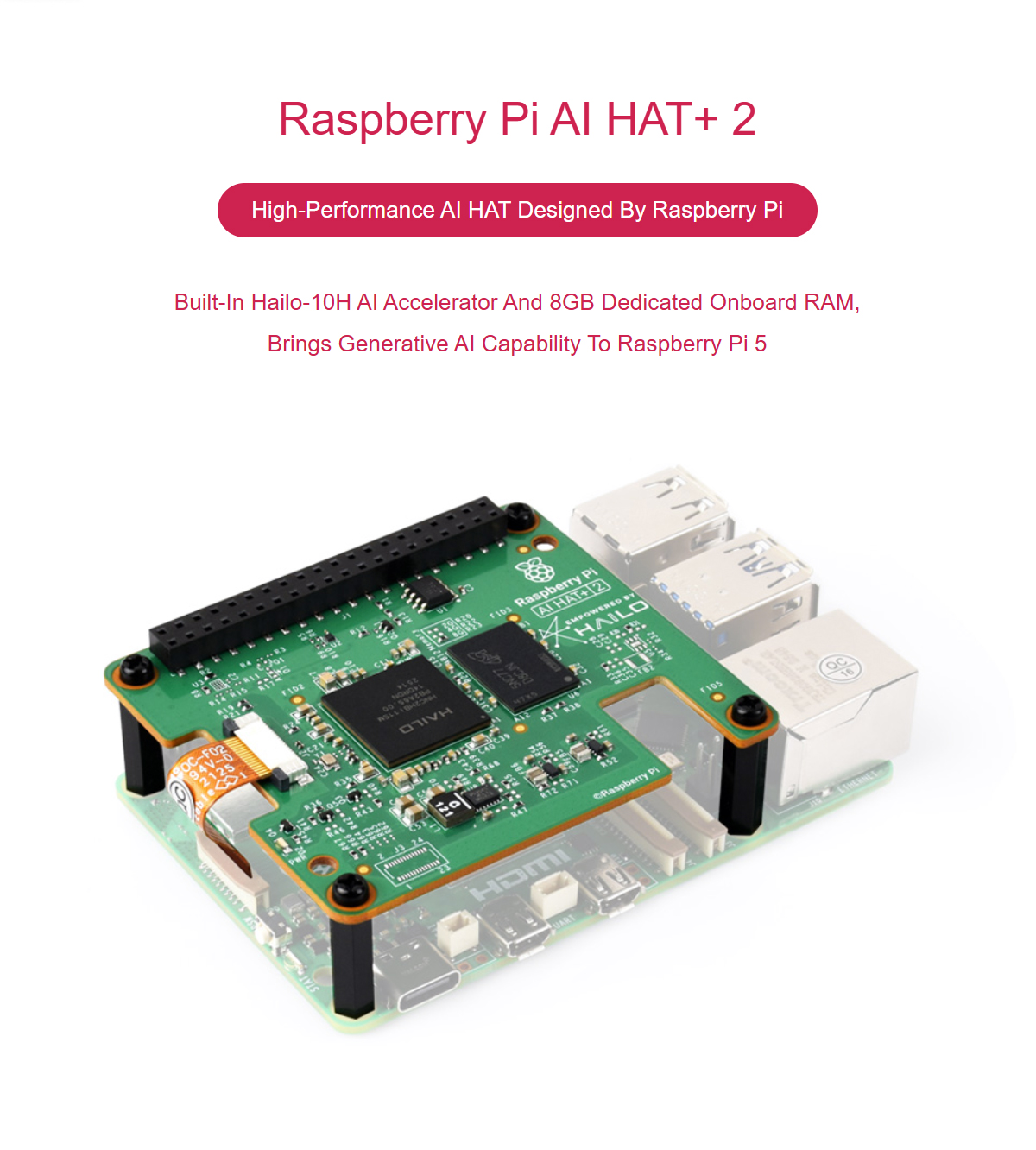

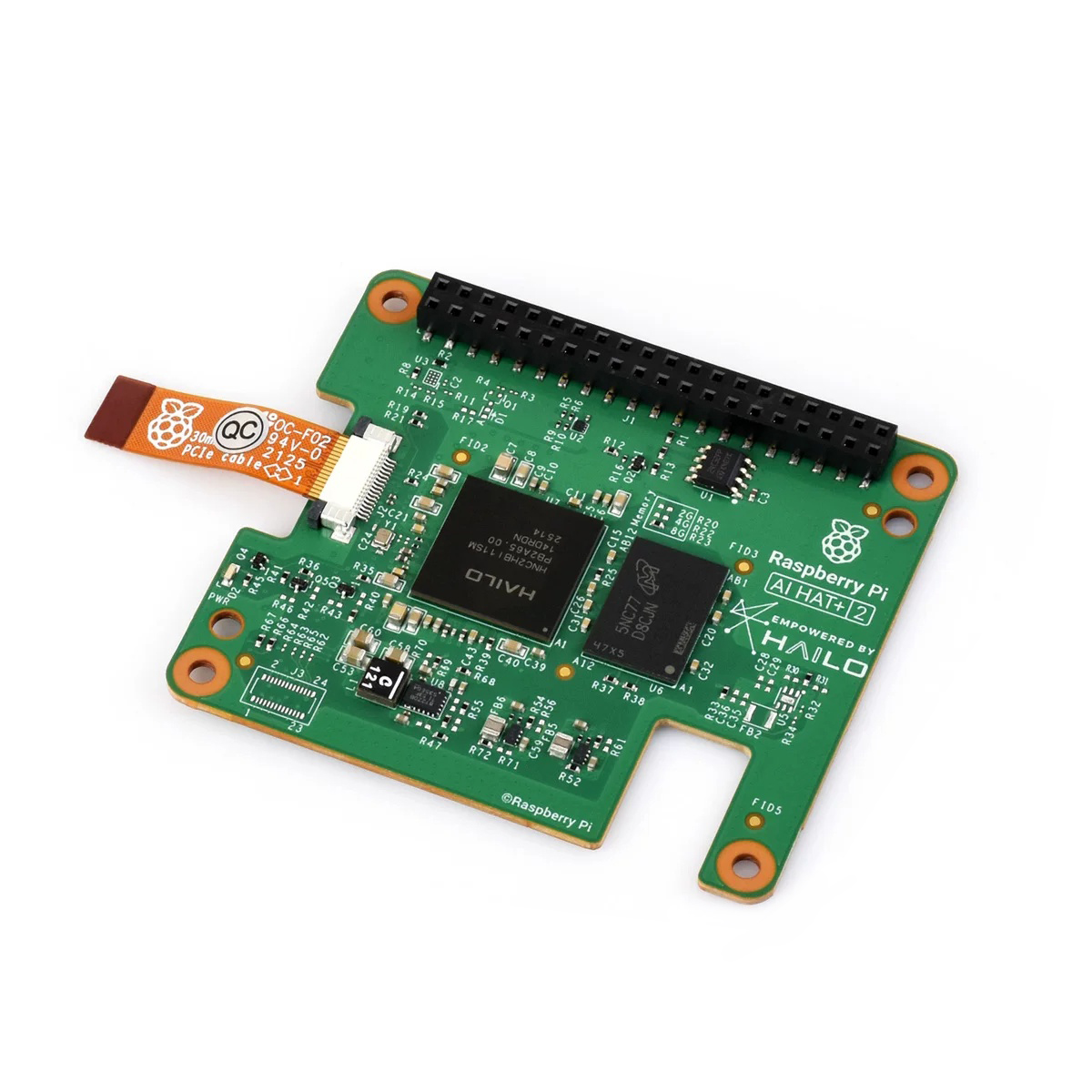

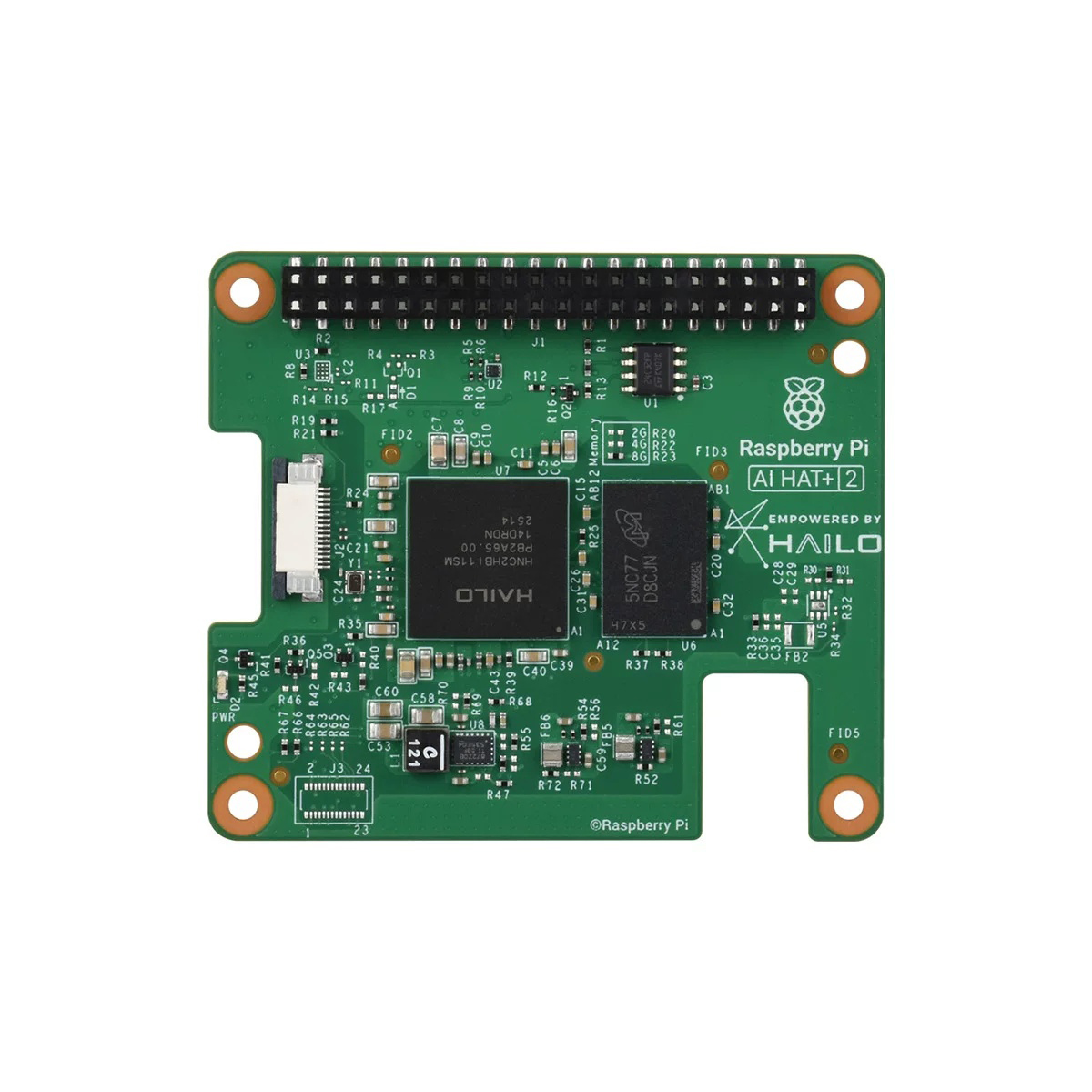

Raspberry Pi AI HAT+ 2 Hailo-10H AI Accelerator 40 TOPS 8GB Onboard RAM With Heatsink for Raspberry Pi 5
Raspberry Pi AI HAT+ 2 Hailo-10H AI Accelerator 40 TOPS 8GB Onboard RAM With Heatsink for Raspberry Pi 5

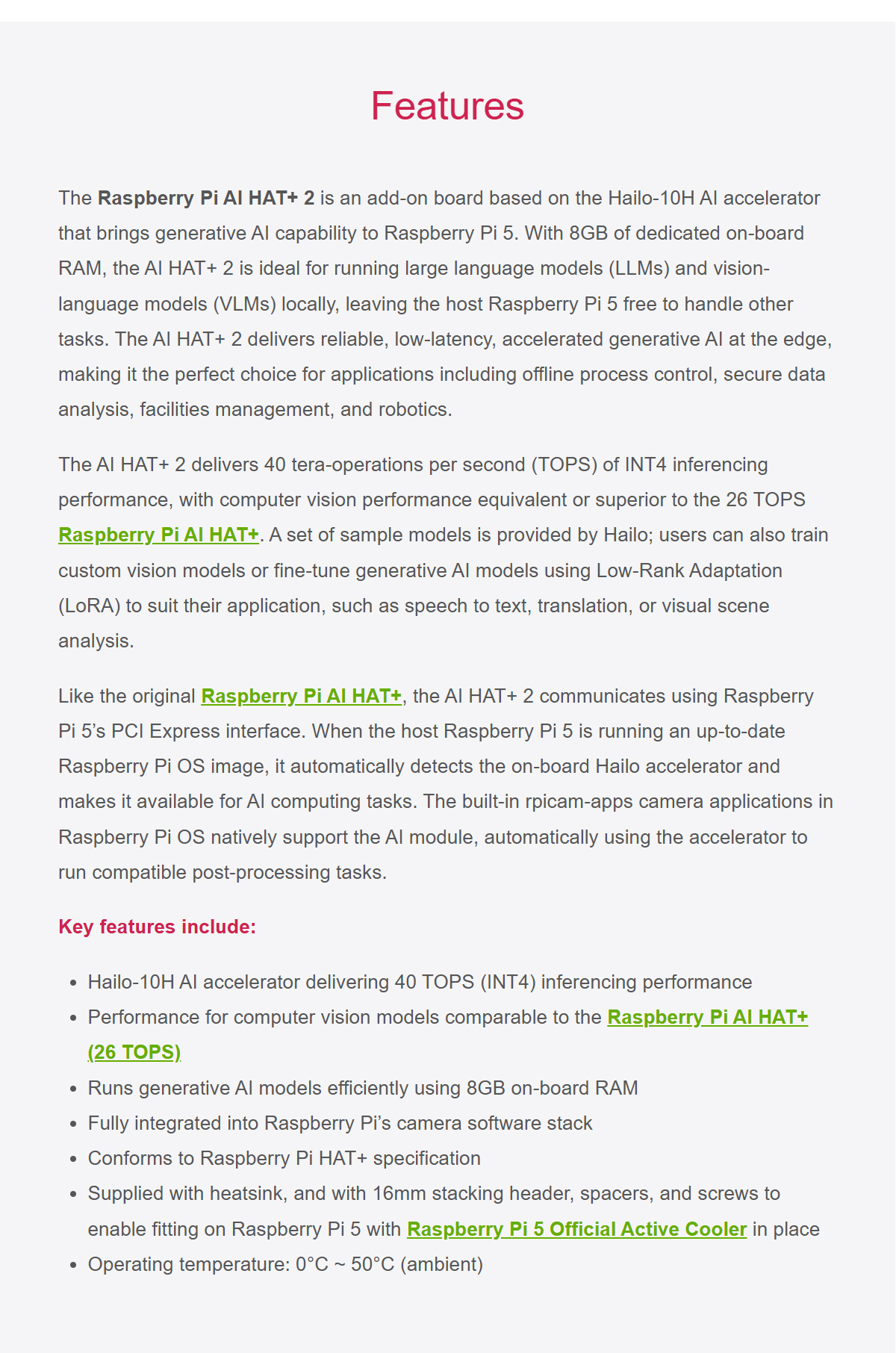

Hailo-10H AI accelerator delivering 40 TOPS (INT4) inferencing performance
Performance for computer vision models comparable to the Raspberry Pi AI HAT+ (26 TOPS)

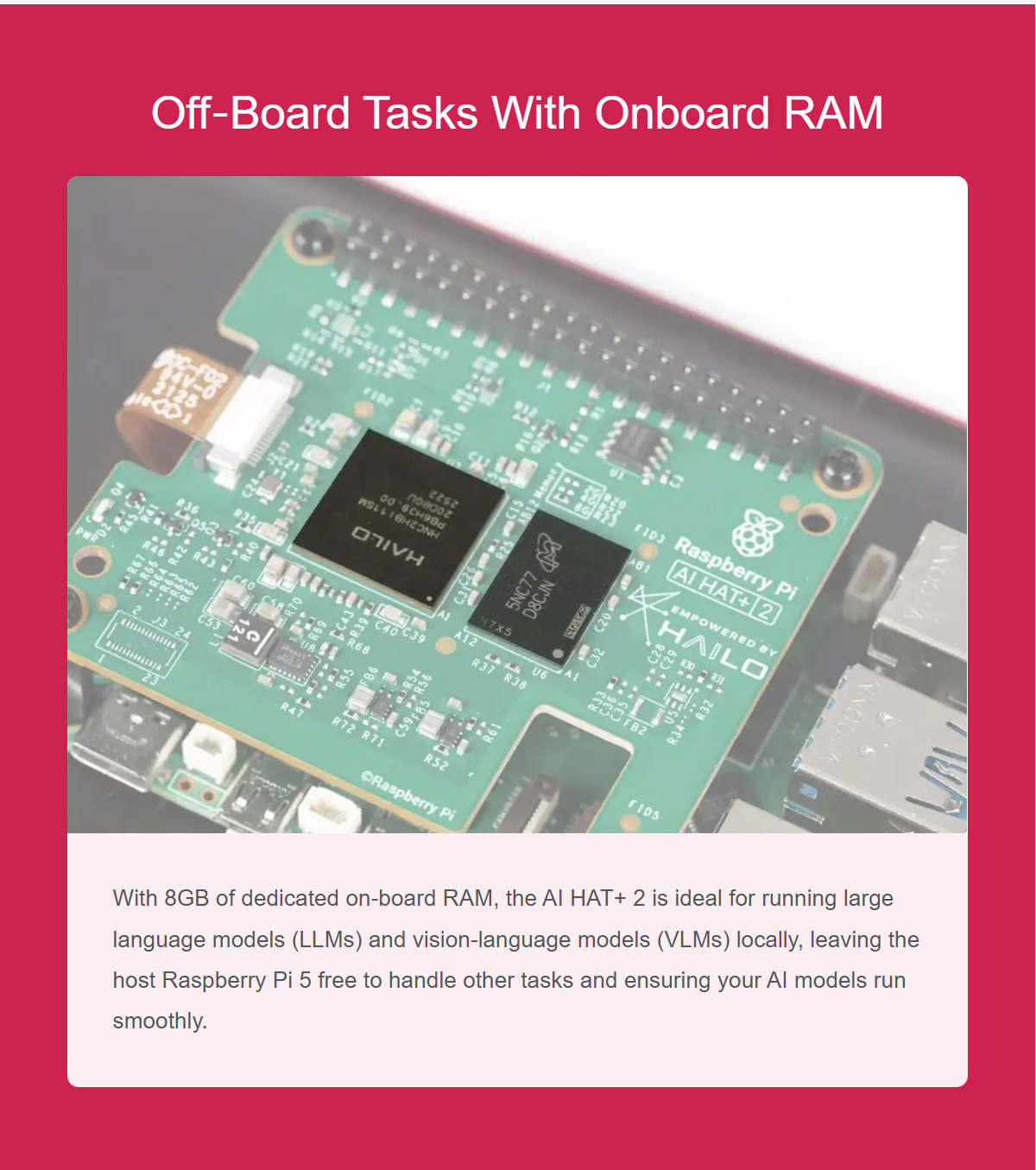

Runs generative AI models efficiently using 8GB on-board RAM
Fully integrated into Raspberry Pi’s camera software stack
Conforms to Raspberry Pi HAT+ specification

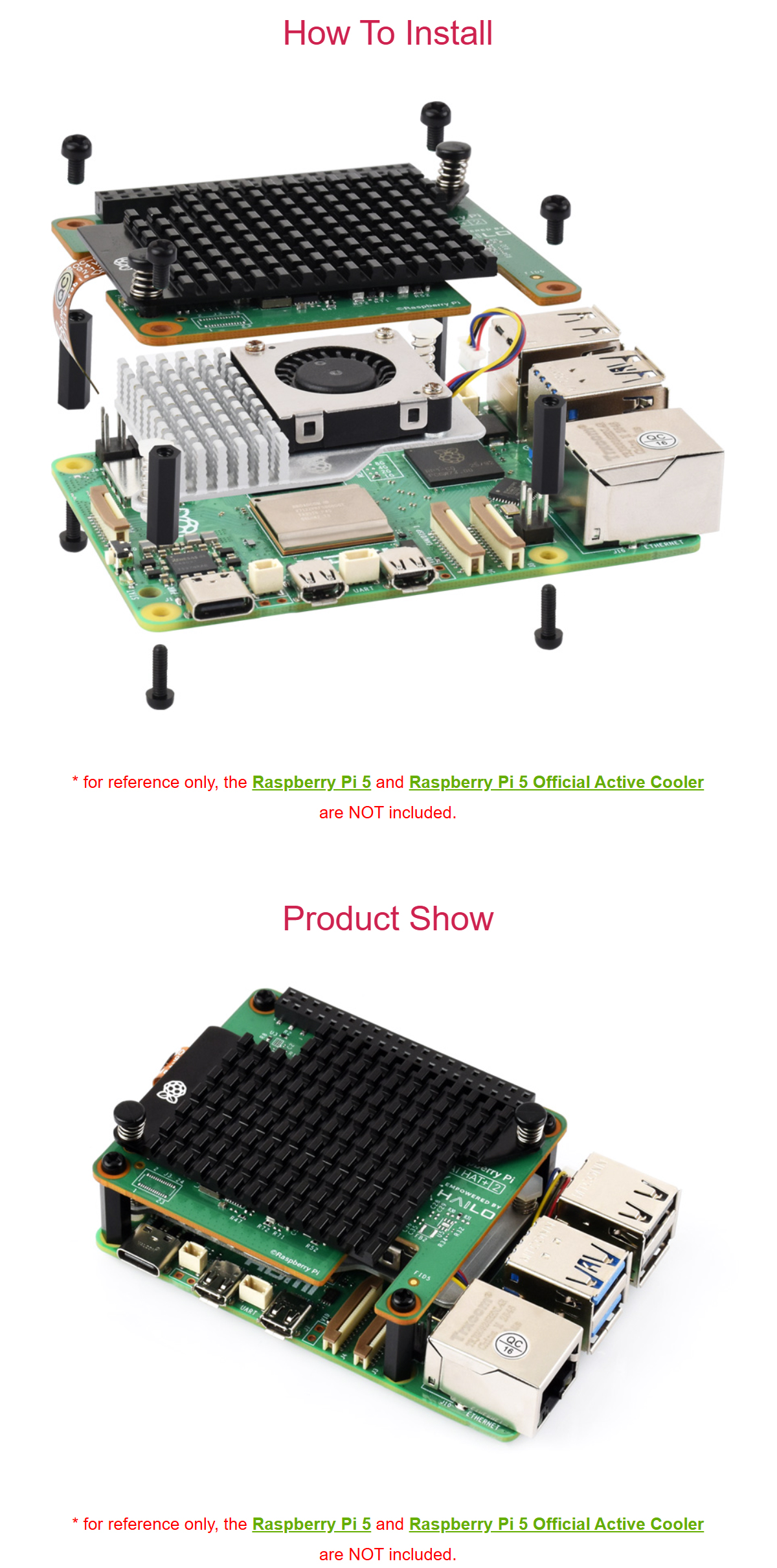

Supplied with heatsink, and with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi 5 Official Active Cooler in place
Operating temperature: 0°C ~ 50°C (ambient)

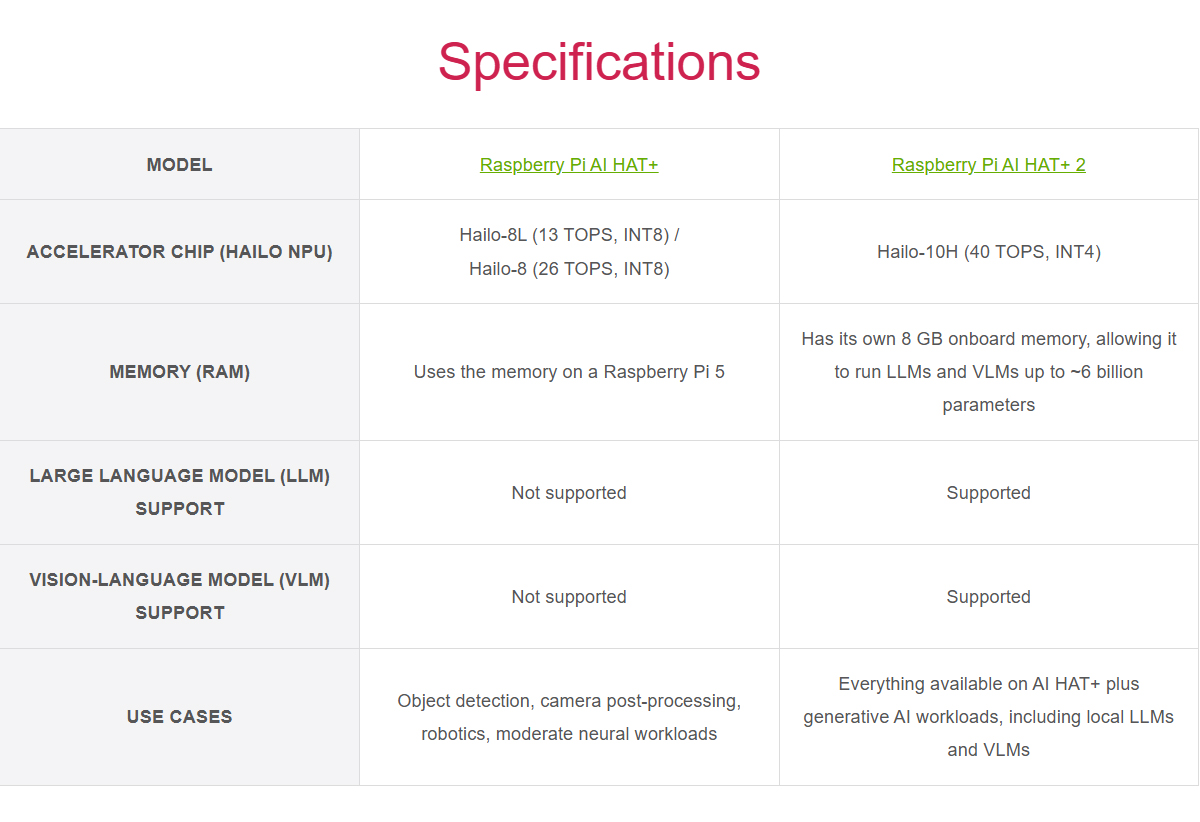

Model: Raspberry Pi AI HAT+ 2
SKU: 33785
Weight: 50g
Accelerator chip (Hailo NPU): Hailo-10H (40 TOPS, INT4)
Memory (RAM): Has its own 8 GB onboard memory, allowing it to run LLMs and VLMs up to ~6 billion parameters
Large Language Model (LLM) support: Supported
Vision-Language Model (VLM) support: Supported
Use cases: Everything available on AI HAT+ plus generative AI workloads, including local LLMs and VLMs

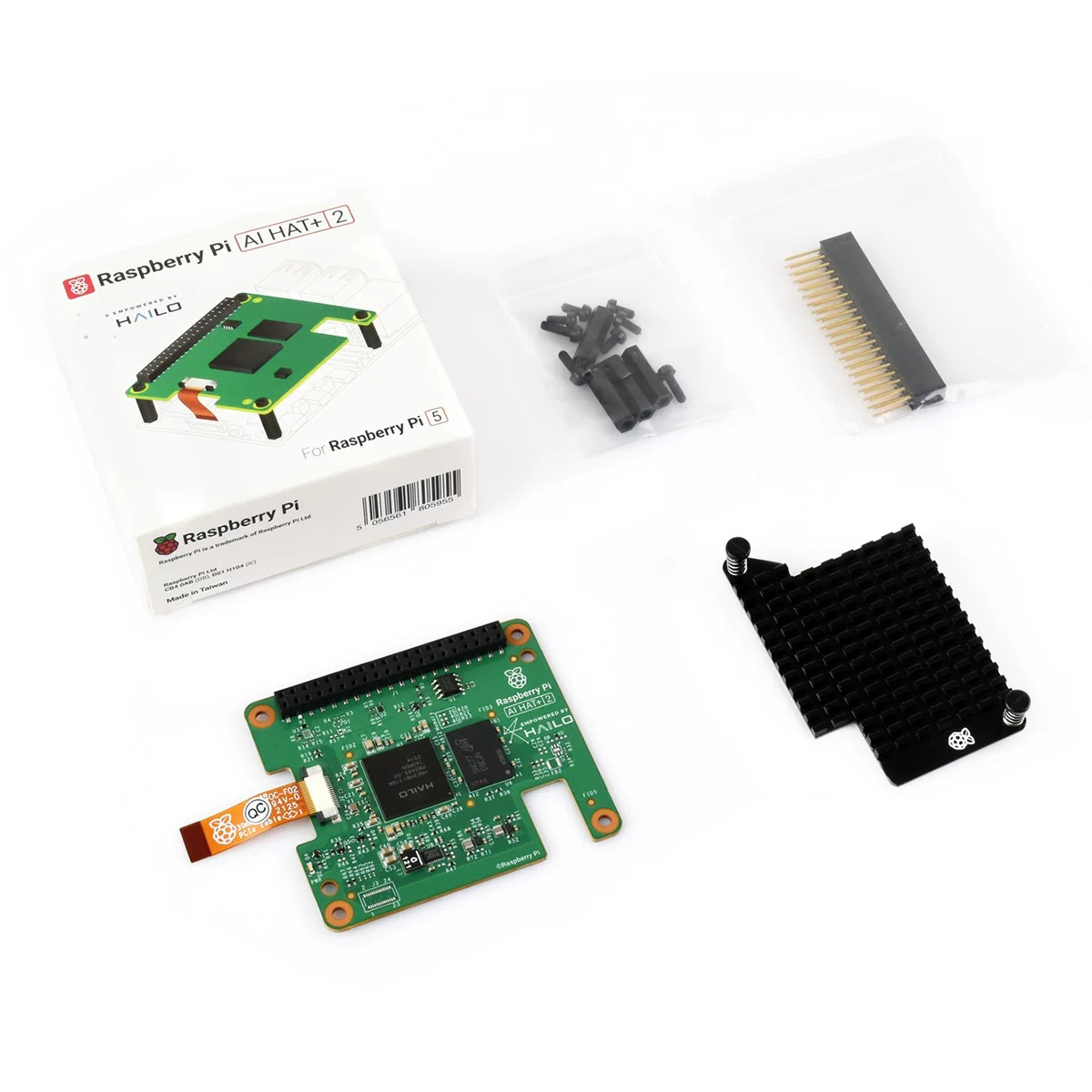

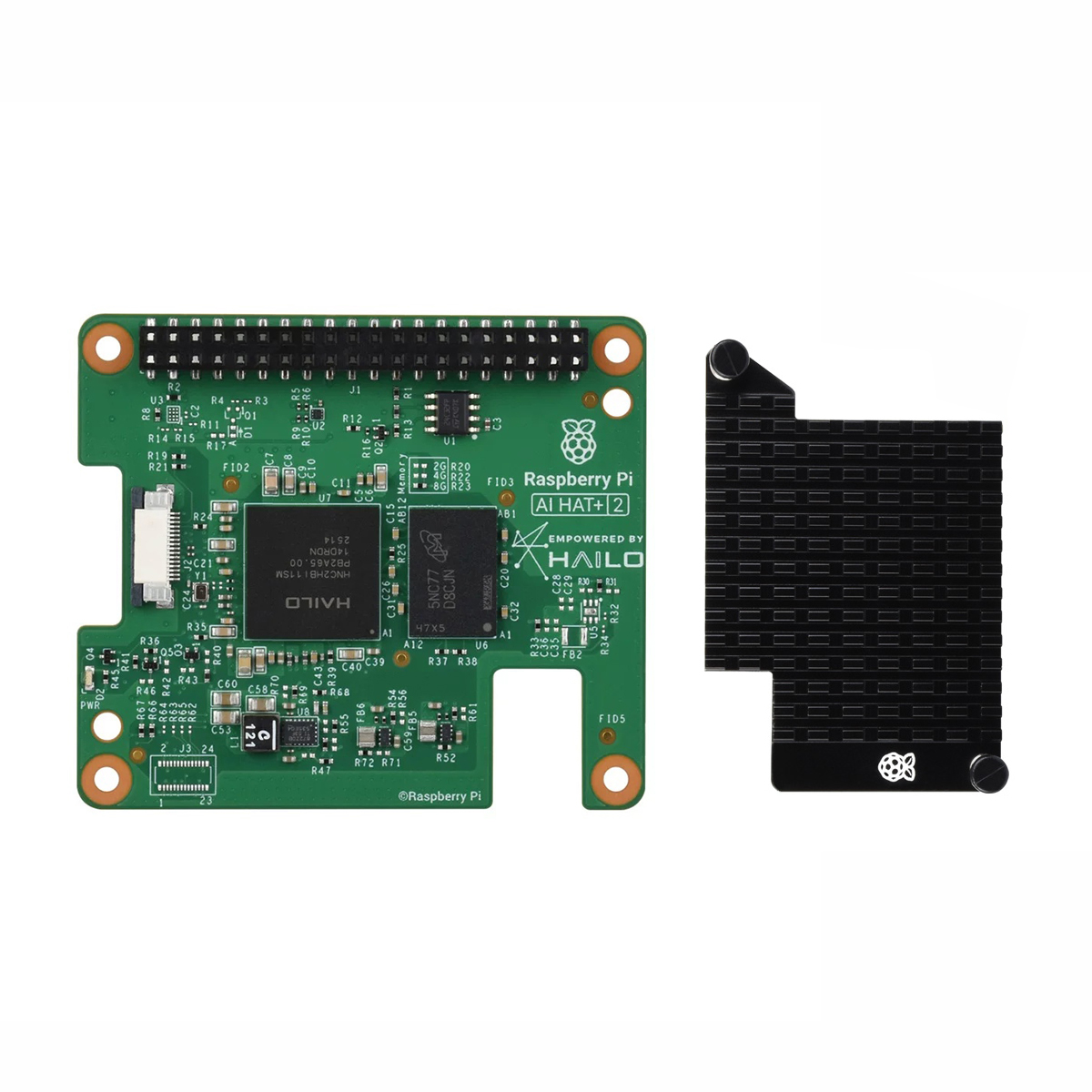

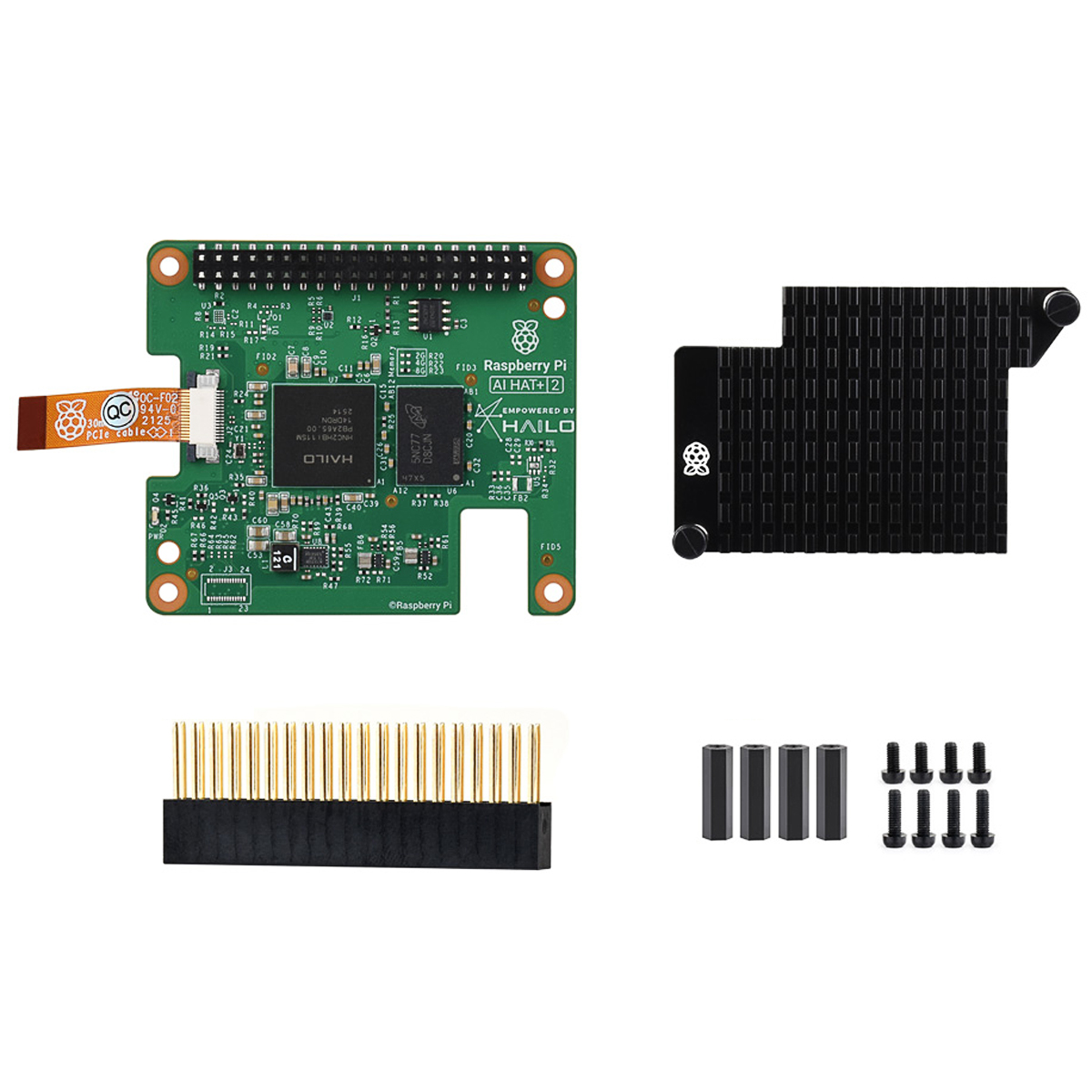

Raspberry Pi AI HAT+ 2 x1
Raspberry Pi 5 Official Heatsink x1
16mm stacking header x1
Screws pack x1
