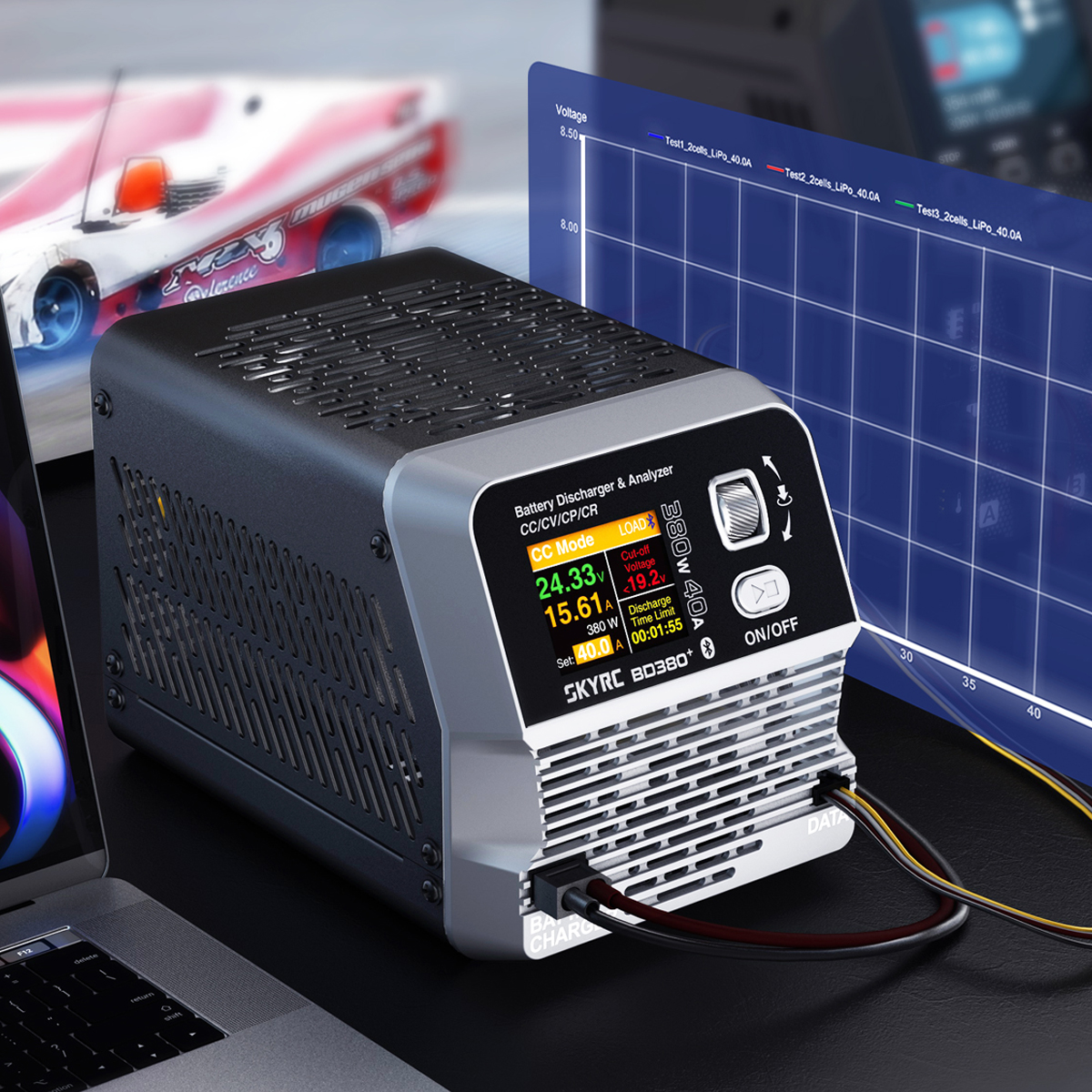

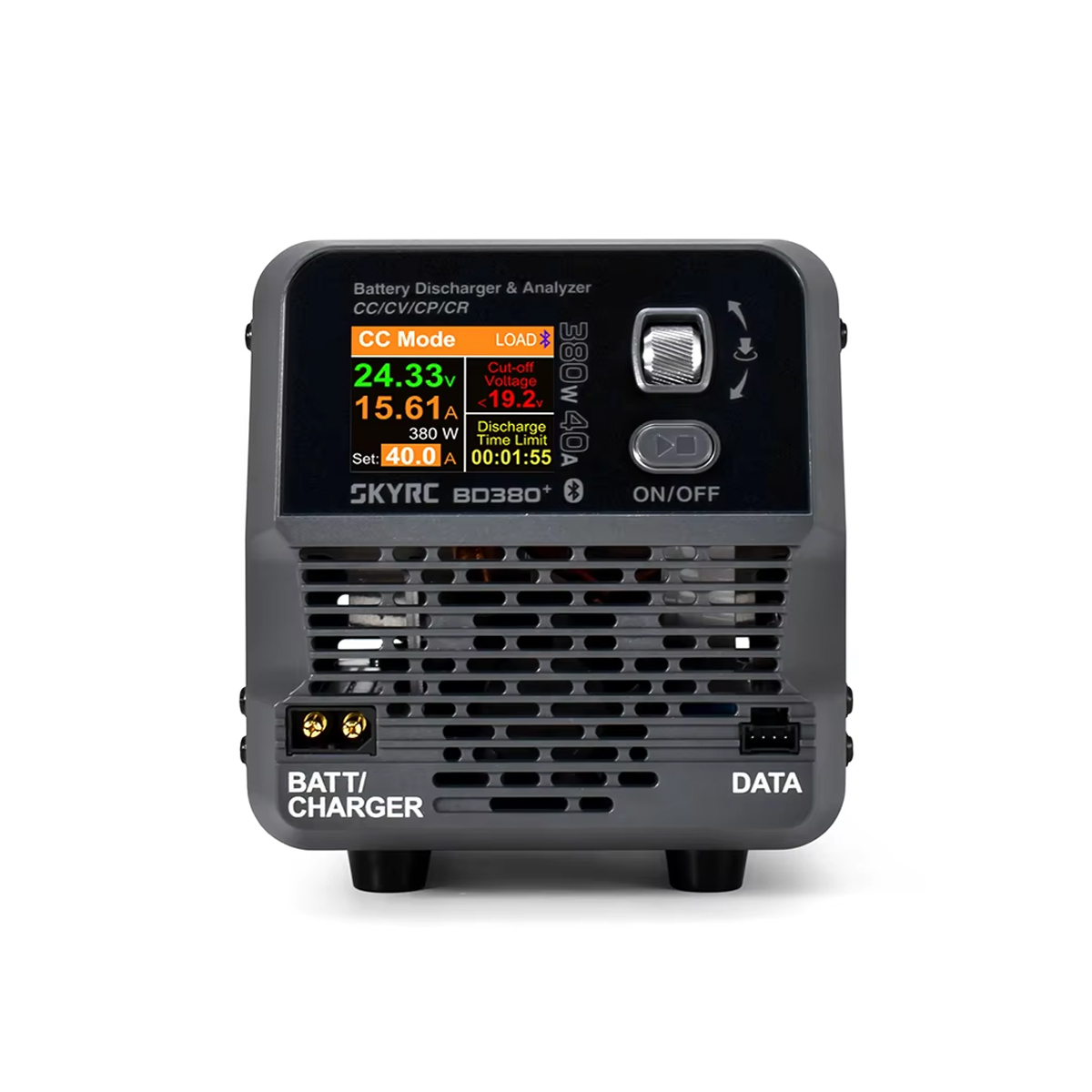

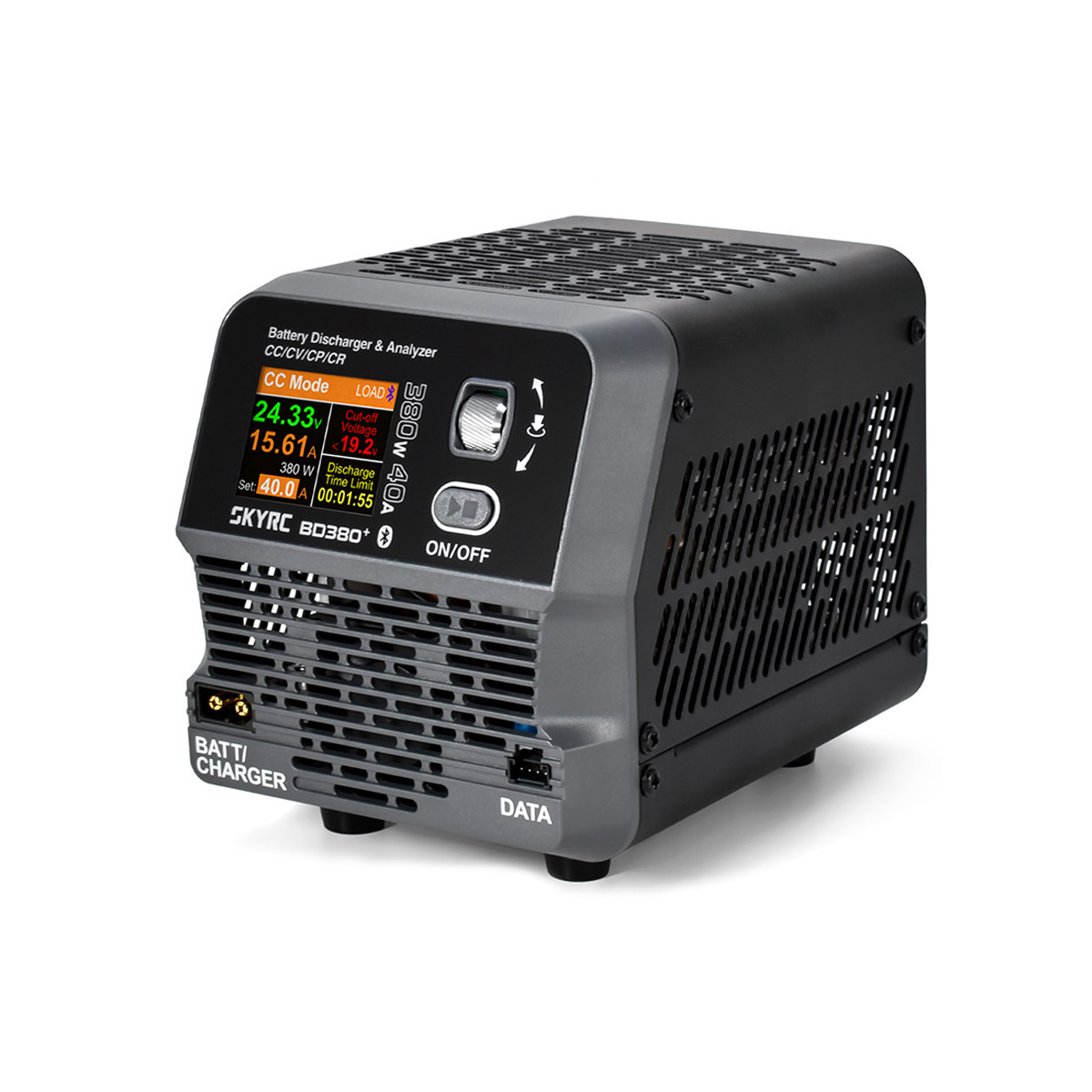

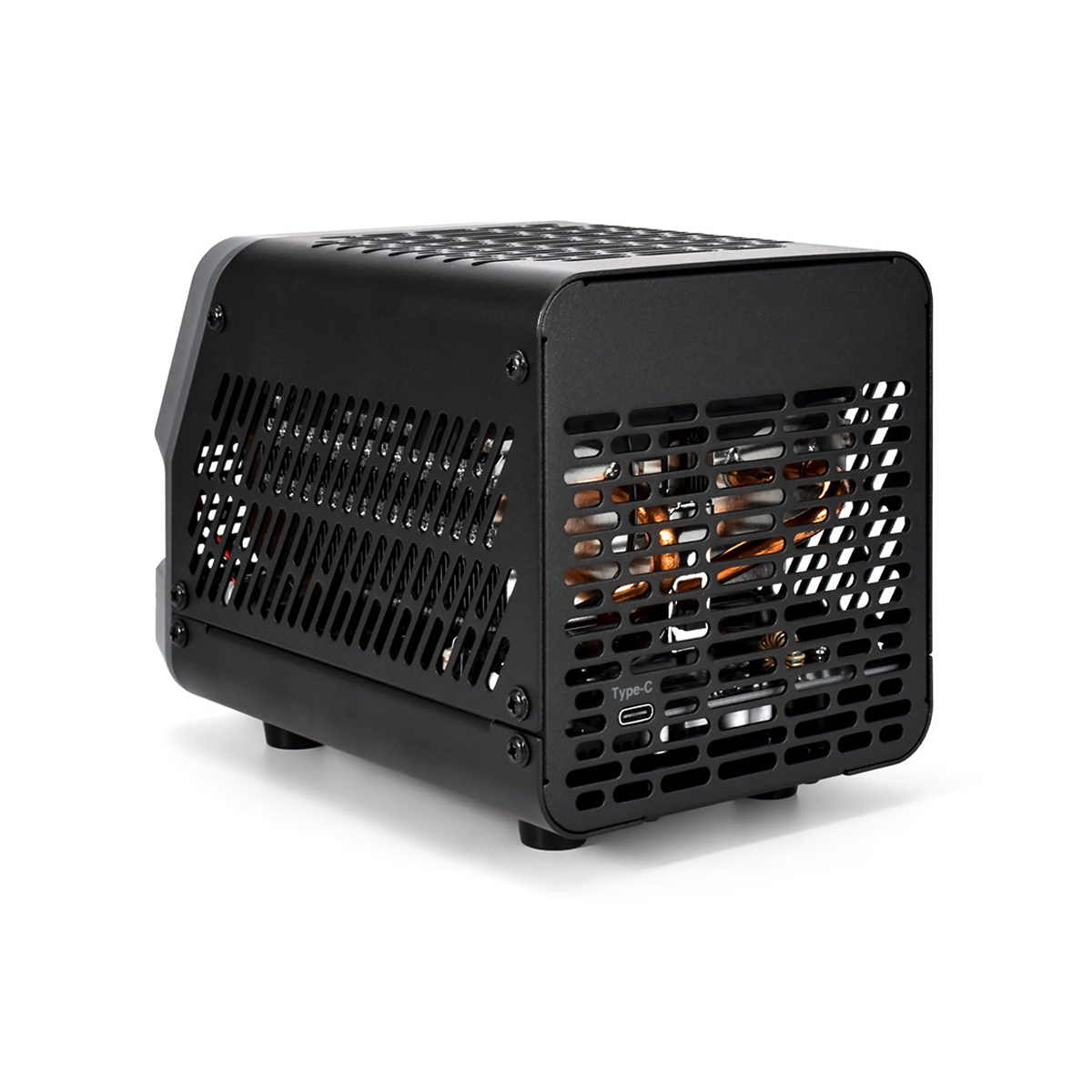

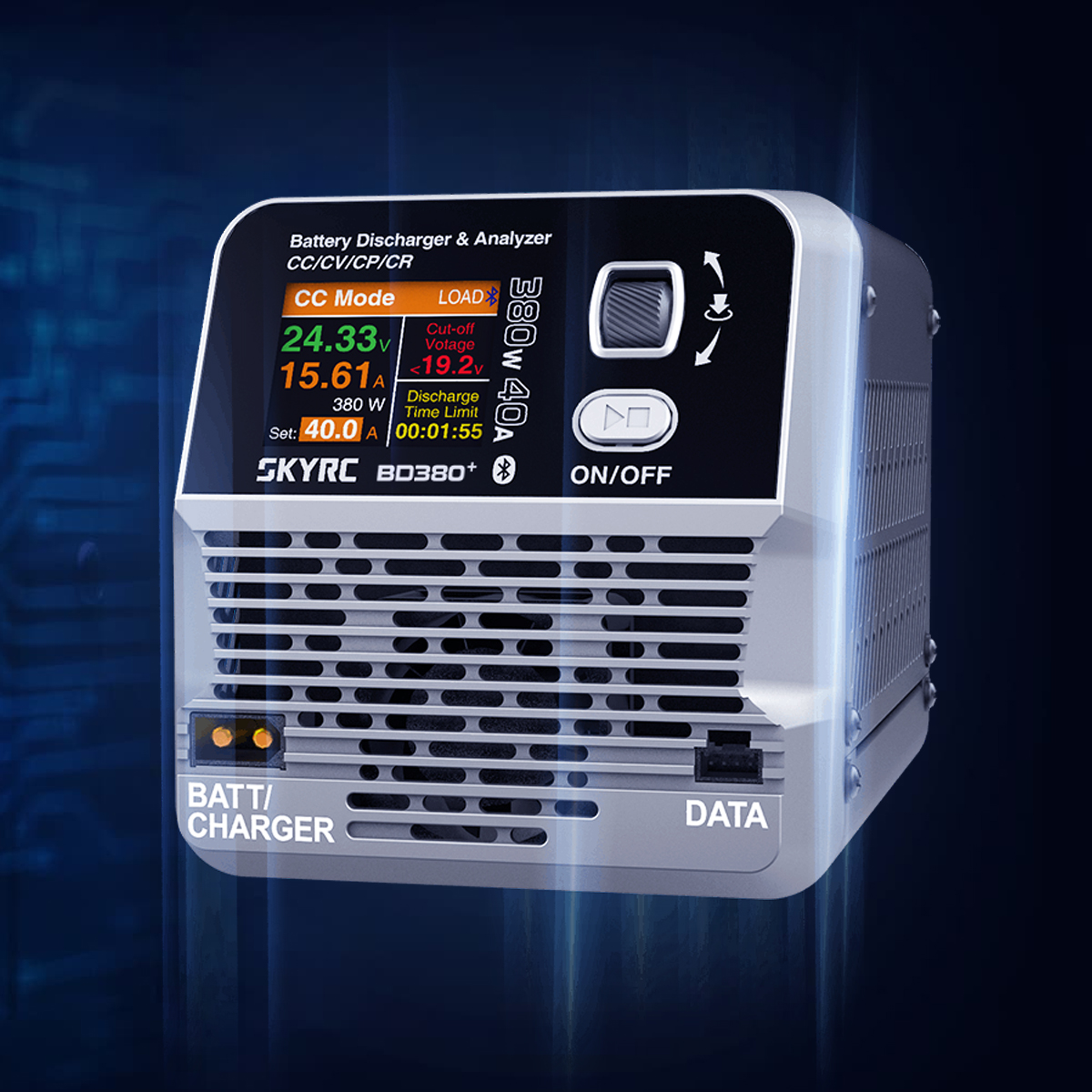

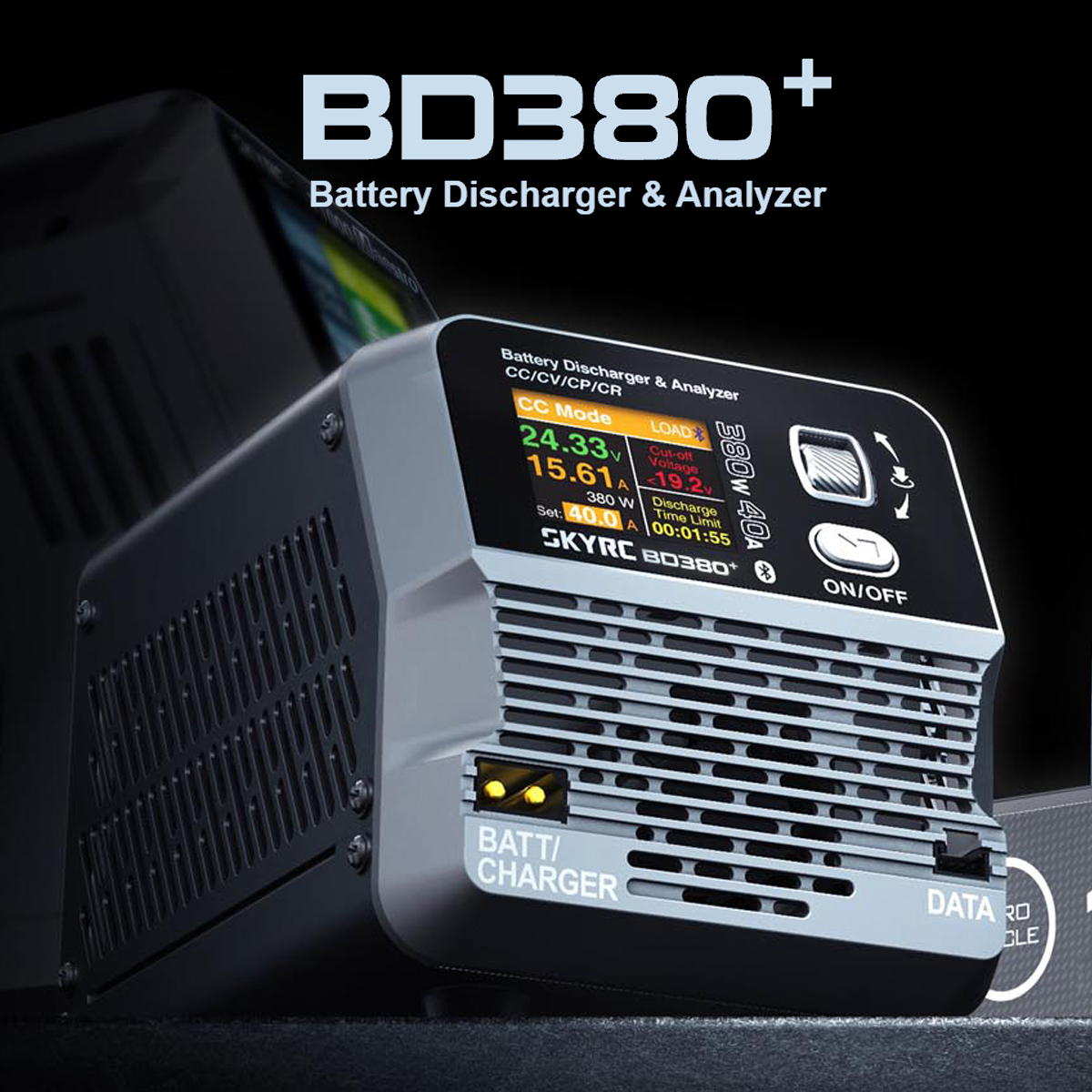

SKYRC BD380+ Battery Discharger Analyzer 380W 40A 40V Four Modes CC/CP/CR/CV for RC Model

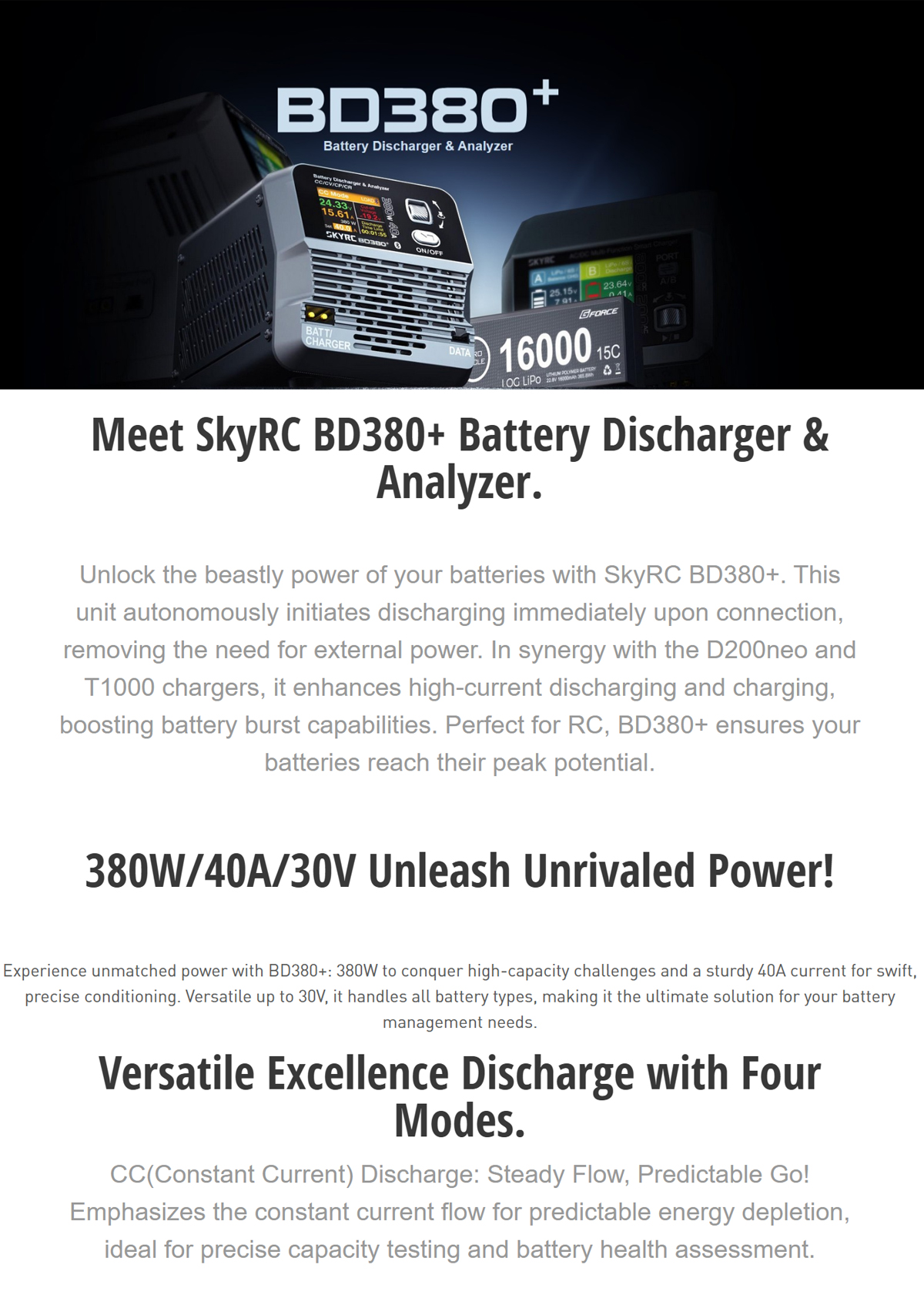

Unlock the beastly power of your batteries with SkyRC BD380+. This unit autonomously initiates discharging immediately upon connection, removing the need for external power. In synergy with the D200neo and T1000 chargers, it enhances high-current discharging and charging, boosting battery burst capabilities. Perfect for RC, BD380+ ensures your batteries reach their peak potential.

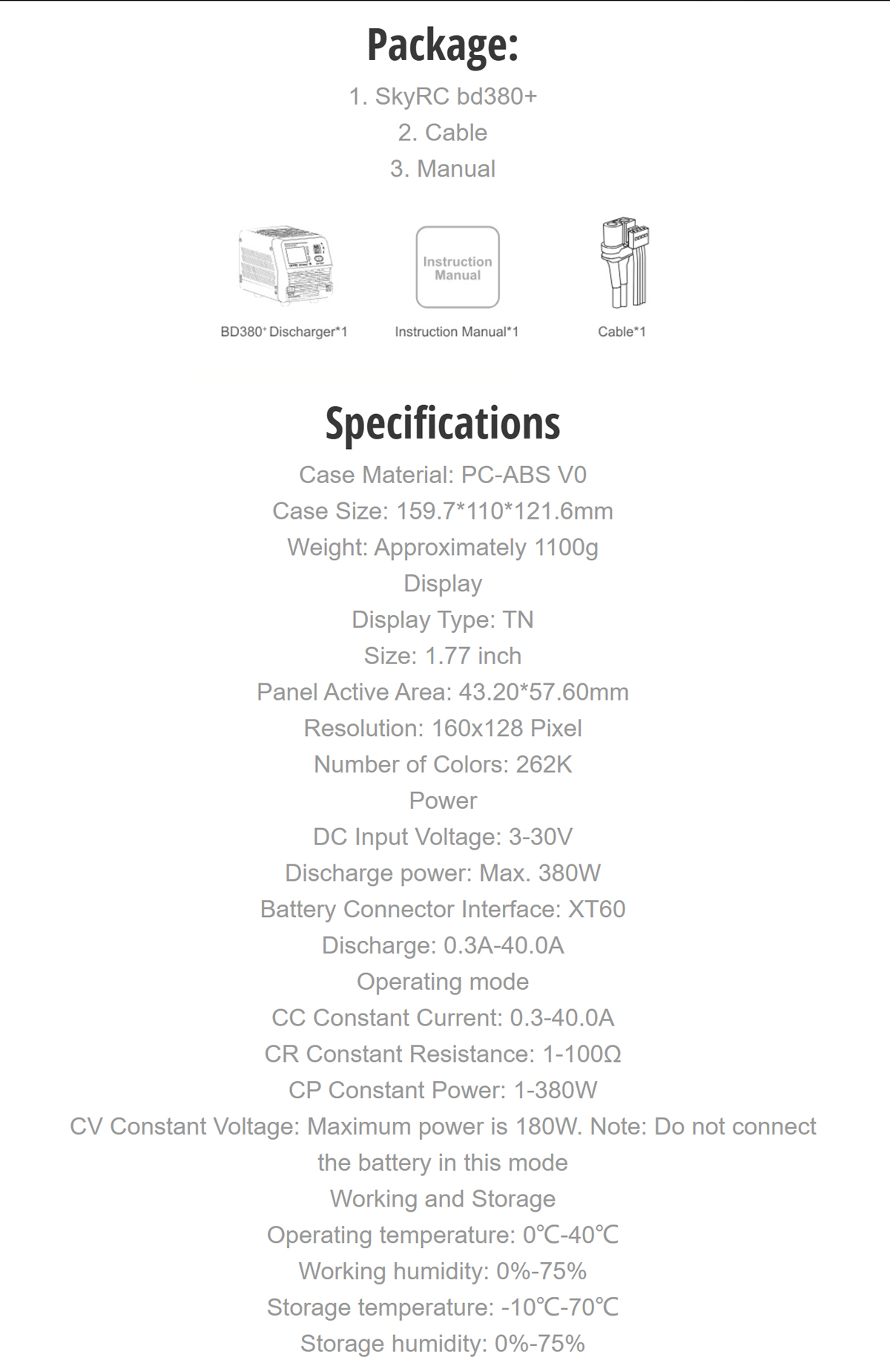

Model: BD380+
Case Material: PC-ABS V0
Case Size: 159.7*110*121.6mm
Weight: Approximately 1100g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 43.20*57.60mm
Resolution: 160×128 Pixel
Number of Colors: 262K
Power
DC Input Voltage: 3-30V
Discharge power: Max. 380W
Battery Connector Interface: XT60
Discharge: 0.3A-40.0A
Operating mode
CC Constant Current: 0.3-40.0A
CR Constant Resistance: 1-100Ω
CP Constant Power: 1-380W
CV Constant Voltage: Maximum power is 180W. Note: Do not connect the battery in this mode
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%
SkyRC BD380+ Discharger x1
Cable x1
Manual x1
