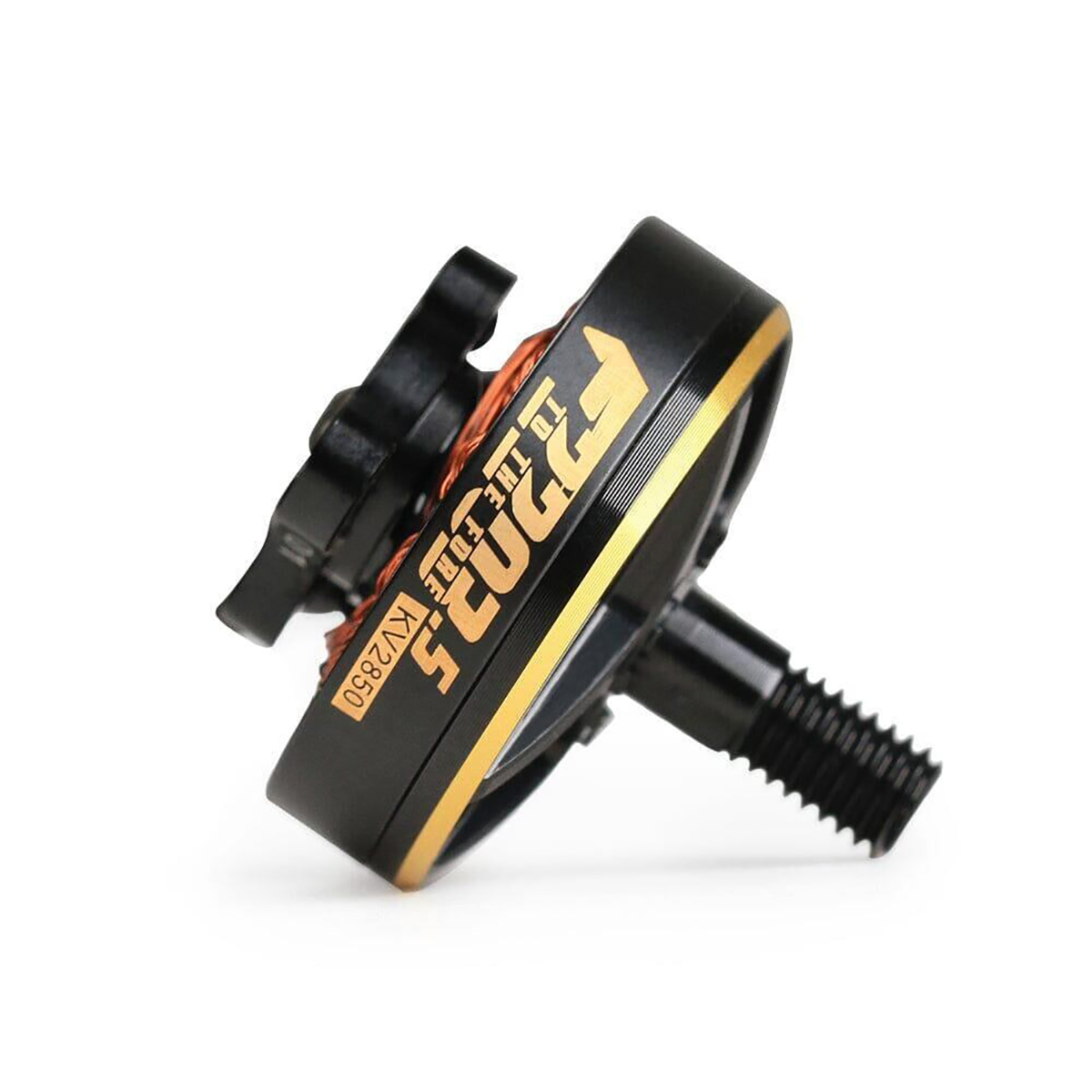

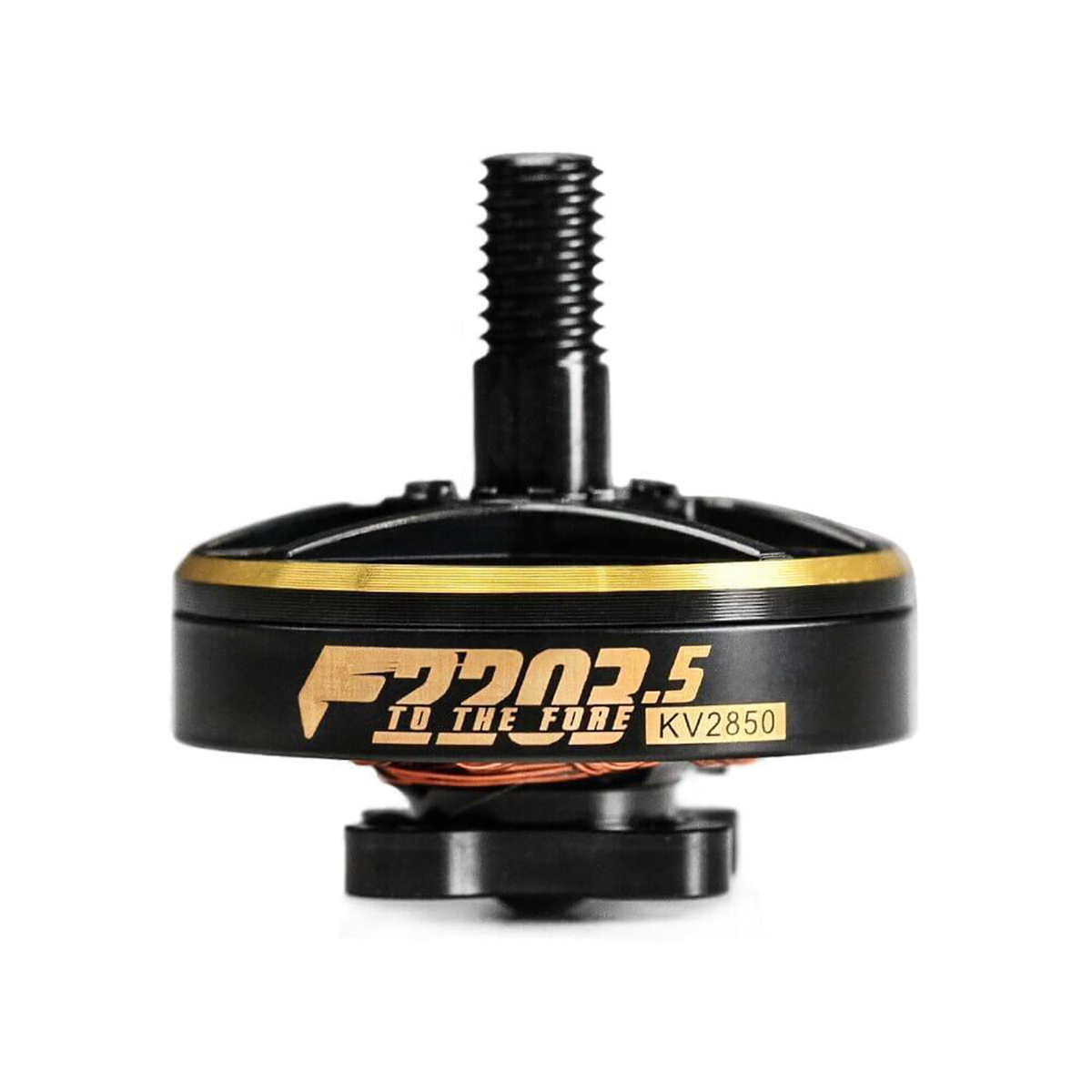

T-Hobby F2203.5 1500KV 2850KV 3550KV 3-6S Brushless Motor for FPV Racing Drone Small Quadcopter
T-Hobby F2203.5 1500KV 2850KV 3550KV 3-6S Brushless Motor for FPV Racing Drone Small Quadcopter
Get better thrust and better coolingwith the TMOTOR F2203.5 1500KV/2850KV/3550KV Motor!
The F2203.5 motors come in a new and sleek design.
And are made with premium components to give your multirotor visibility and speed in the game!

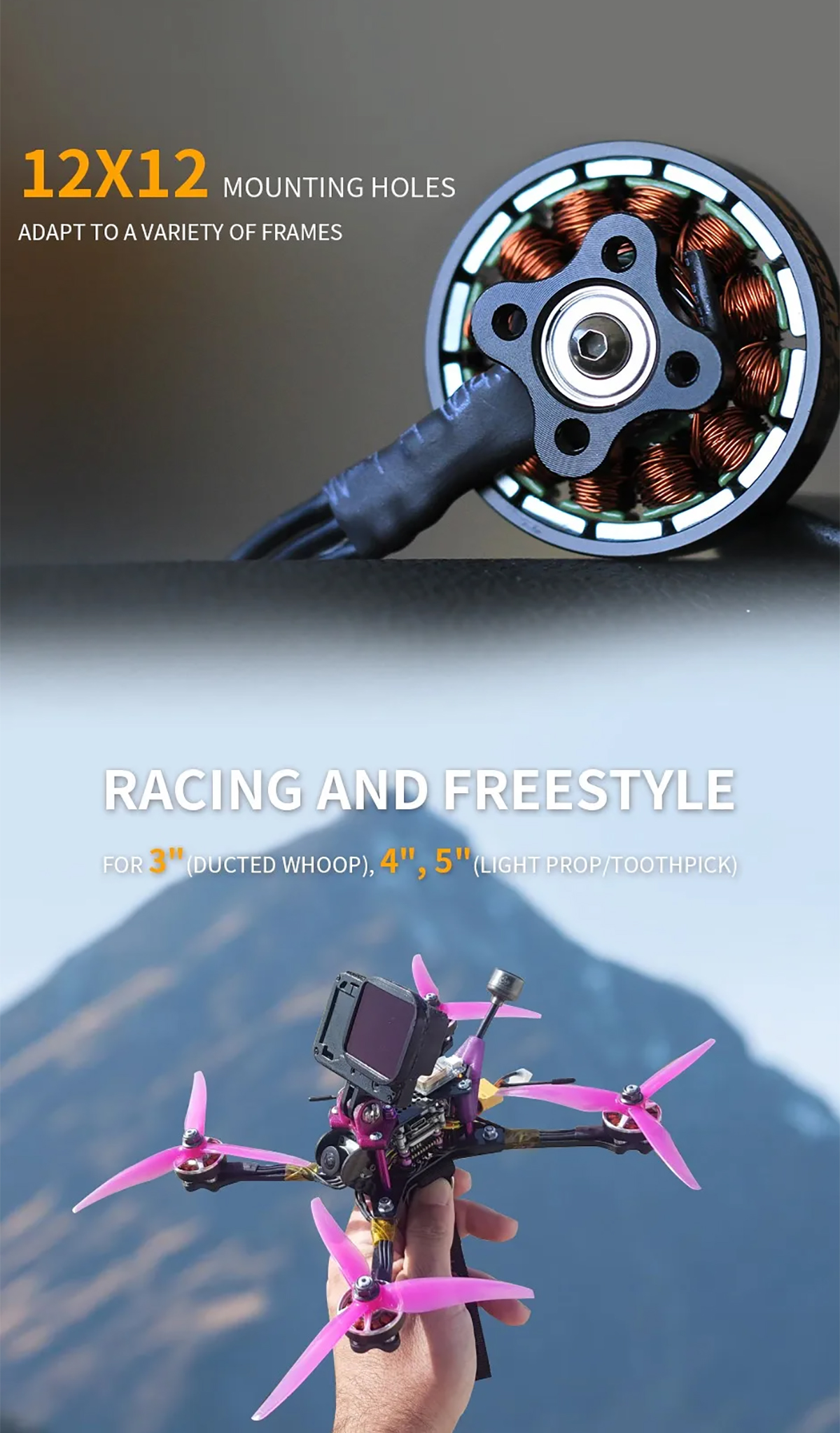

Great for freestyle and racing drones,like 3 inch cinewhoops and 4-5 inch toothpick builds!
Features:

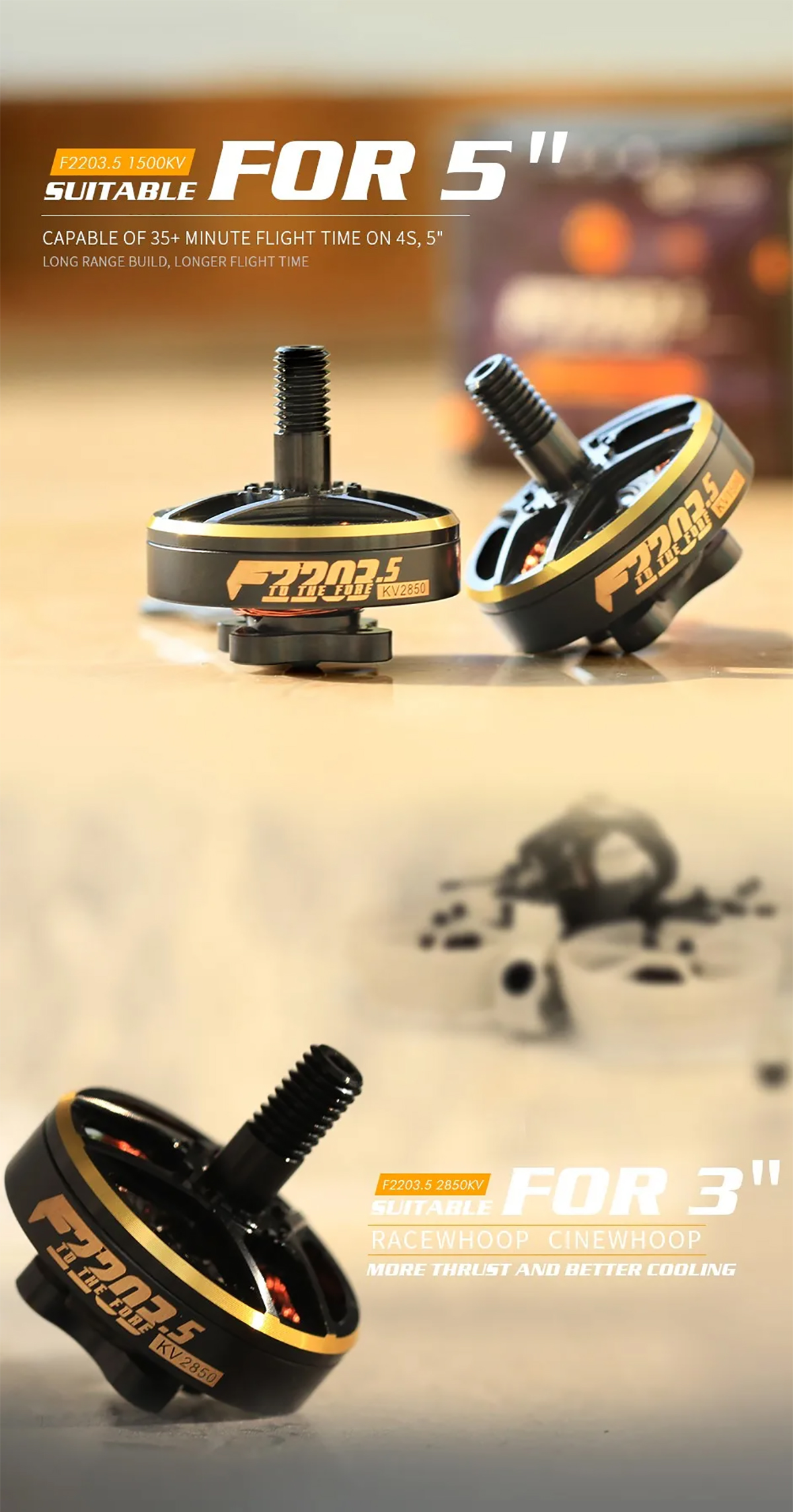

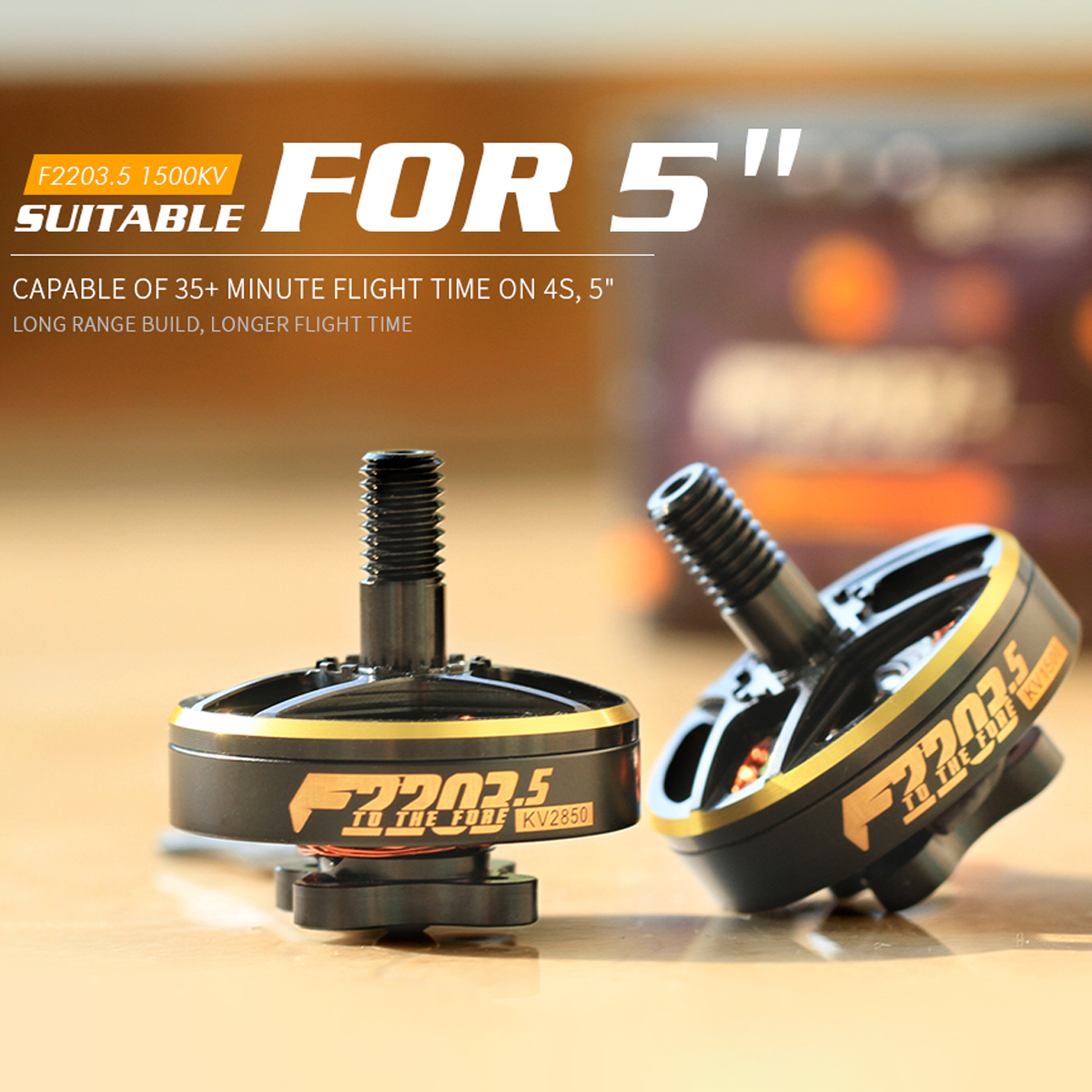

1500KV suitable for 5″ long range build, longer flight time

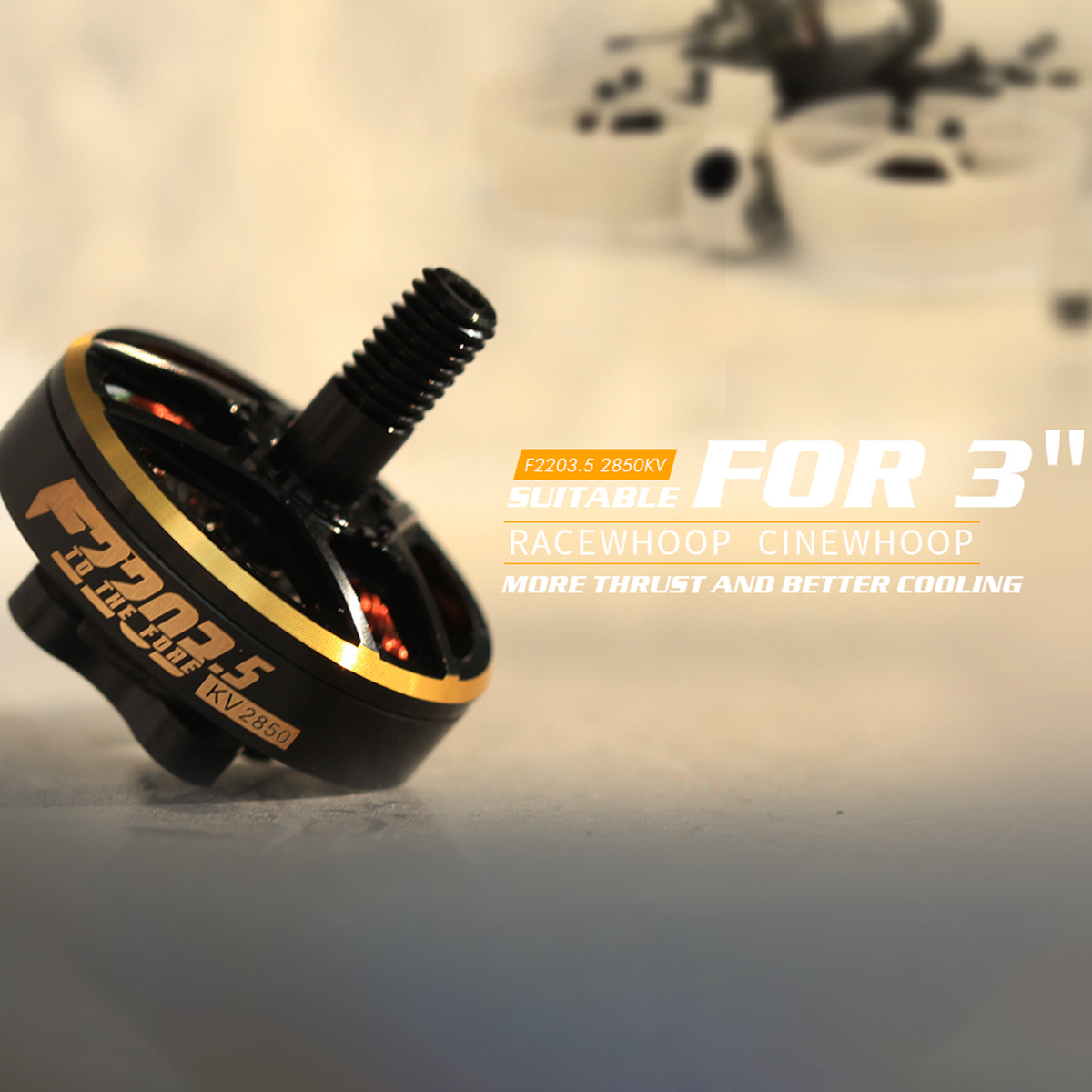

2850KV suitable for 3″ Cinewhoop/Racewhoop
More thrust and better cooling

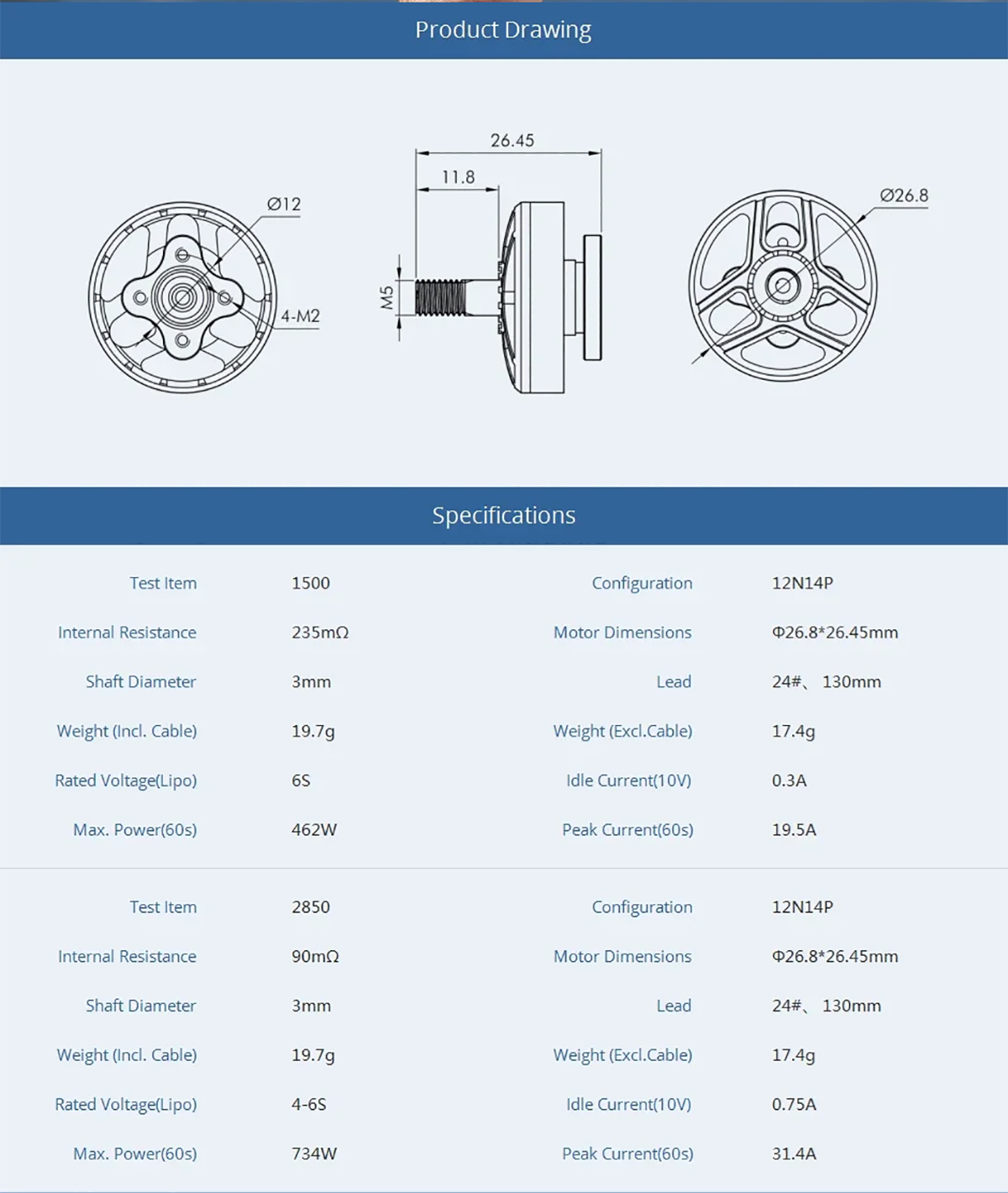

Model: F2203.5 1500KV
Configuration: 12N14P
Internal Resistance: 235mΩ
Motor Dimensions: Φ26.8*26.45mm
Shaft Diameter: 3mm
Lead: 24#, 130mm
Weight (Incl. Cable): 19.7g
Weight (Excl. Cable): 17.4g
Rated Voltage (Lipo): 6S
Idle Current (10V): 0.3A
Max. Power (60s): 462W
Peak Current (60s): 19.5A
Model: F2203.5 2850KV
Configuration: 12N14P
Internal Resistance: 90mΩ
Motor Dimensions: Φ26.8*26.45mm
Shaft Diameter: 3mm
Lead: 24#, 130mm
Weight (Incl. Cable): 19.7g
Weight (Excl. Cable): 17.4g
Rated Voltage (Lipo): 4-6S
Idle Current (10V): 0.75A
Max. Power (60s): 734W
Peak Current (60s): 31.4A
Model: F2203.5 3550KV
Configuration: 12N14P
Internal Resistance: 76mΩ
Motor Dimensions: Φ26.8*26.45mm
Shaft Diameter: 3mm
Lead: 24#, 130mm
Weight (Incl. Cable): 19.5g
Weight (Excl. Cable): 17.2g
Rated Voltage (Lipo): 3-4S
Idle Current (8V): 1.29A
Max. Power (60s): 412W
Peak Current (60s): 26.8A

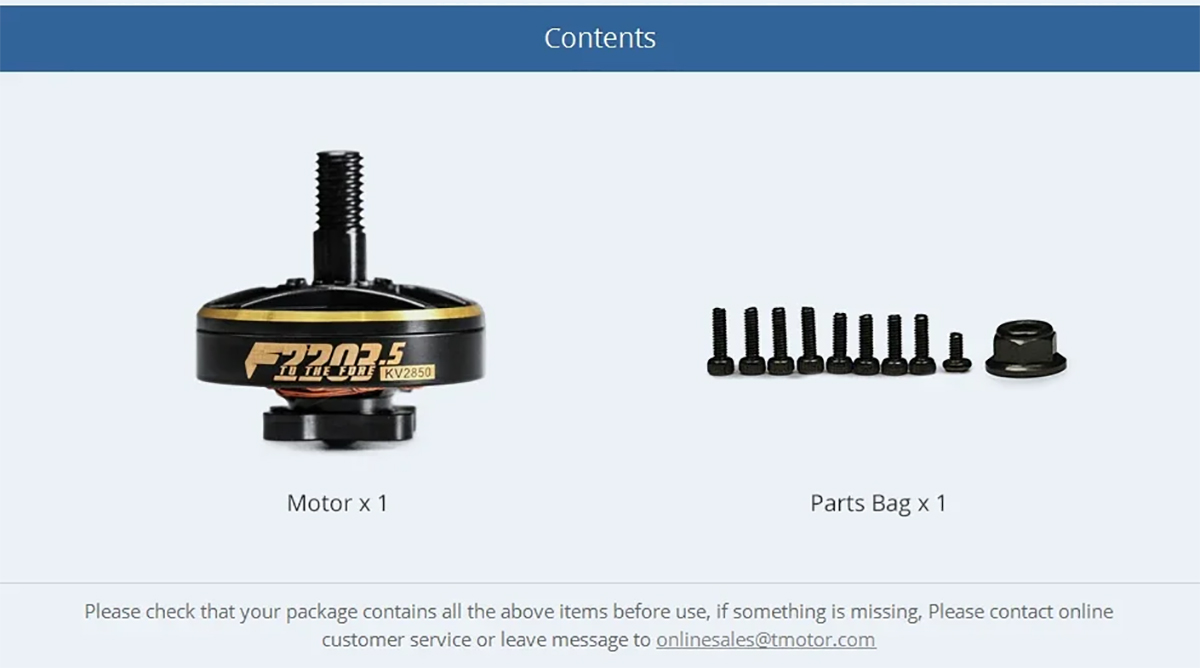

Motor x1

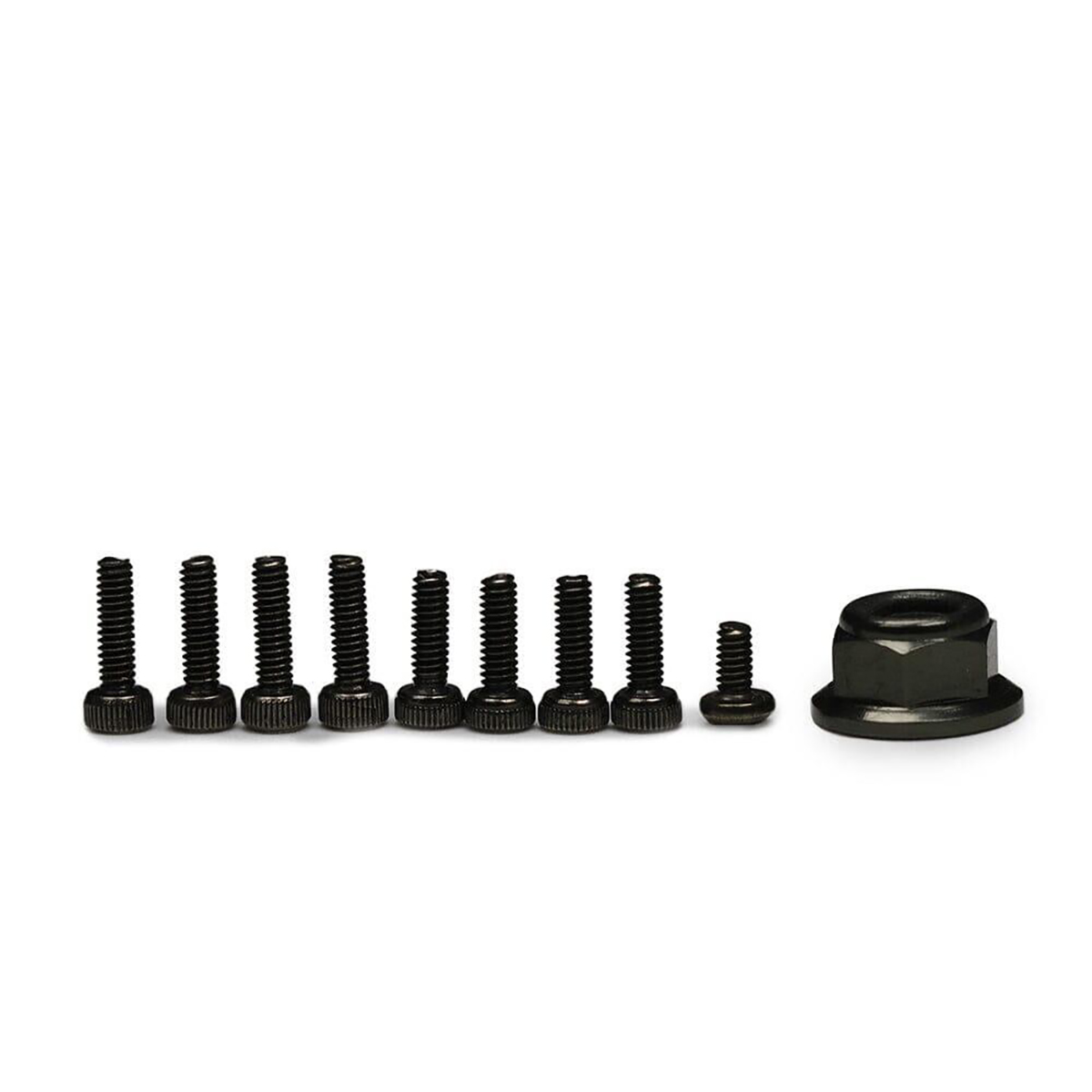

Parts Bag x1
