TrueRC X²-AIR 5.8 MK II Antenna RHCP LHCP 13dBic High Gain Circularly Polarized for HDZERO Goggles
TrueRC X²-AIR 5.8 MK II Antenna RHCP LHCP 13dBic High Gain Circularly Polarized for HDZERO Goggles
Circularly Polarized
Sector type beam shape (widest on horizontal)
Mount direct on HDzero module with included slide-on mounts.
Compact low-profile design, easy to store and transport
High 13 dBic for unsurpassed long range and signal penetration
Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
Super wide 150 degree beam for each antenna combining to 165deg beam width
Custom knurled SMA connectors
Model: X²-AIR
Bandwidth: 5.1GHz-7.0GHz
Gain: 13 dBic
Polarization: LHCP or RHCP
Beam-width Horizontal*: 150deg
Beam-width Vertical*: 62deg
Hor. beam @-3dB**: 75deg.
Vert. beam @-3dB**: 34deg.
Connector: Custom knurled SMA
Dimension: 72mm x 34mm x 15mm
Weight: 20g each

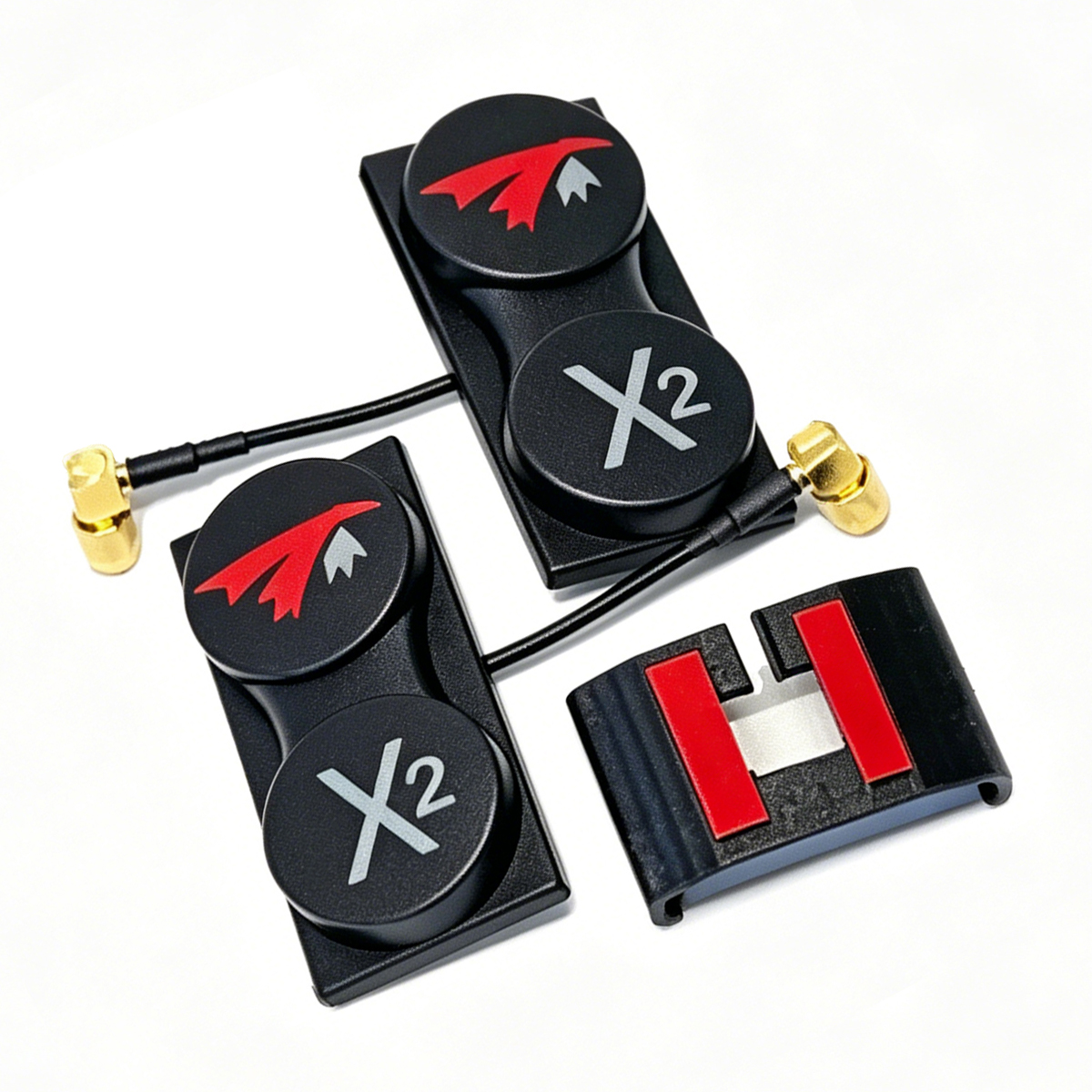

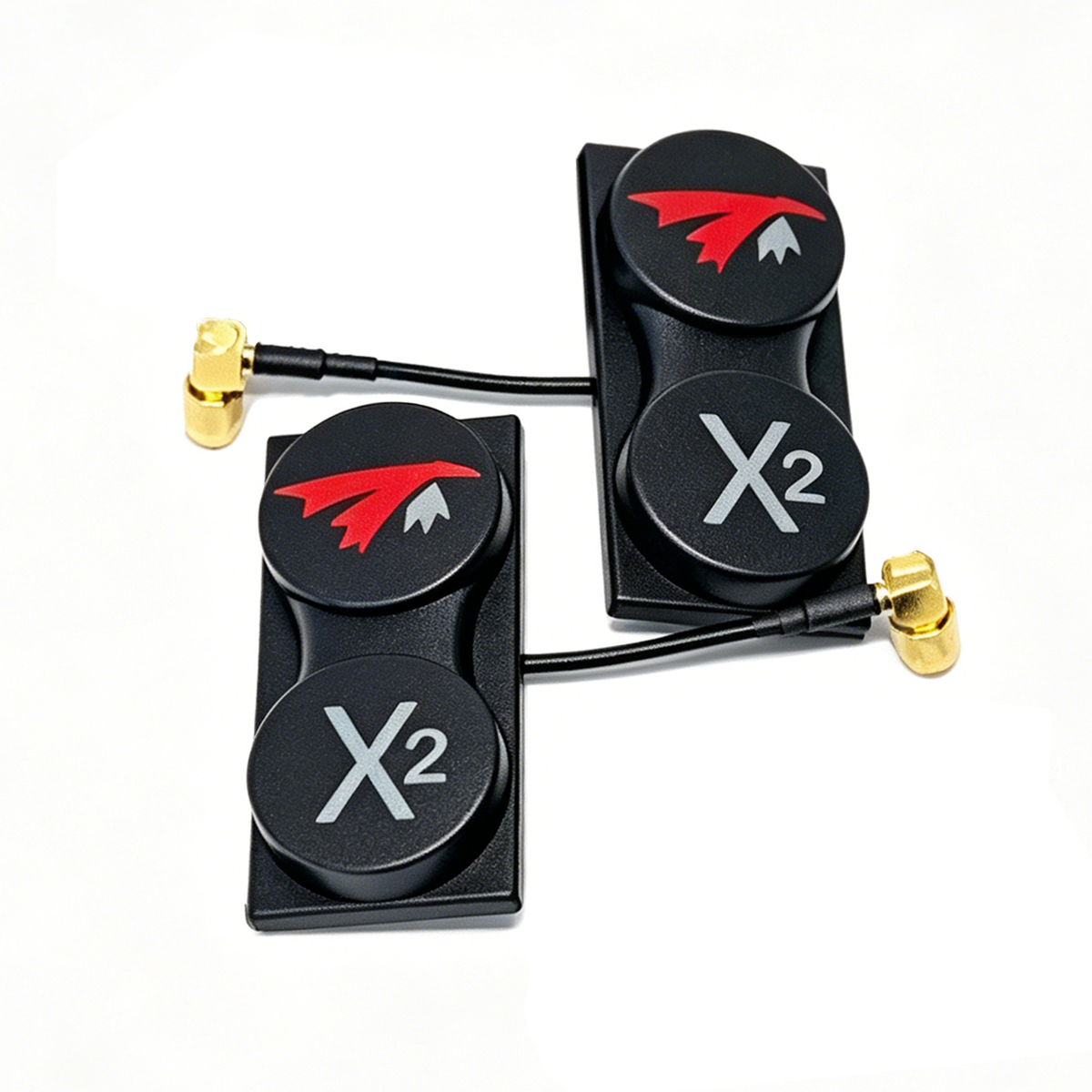

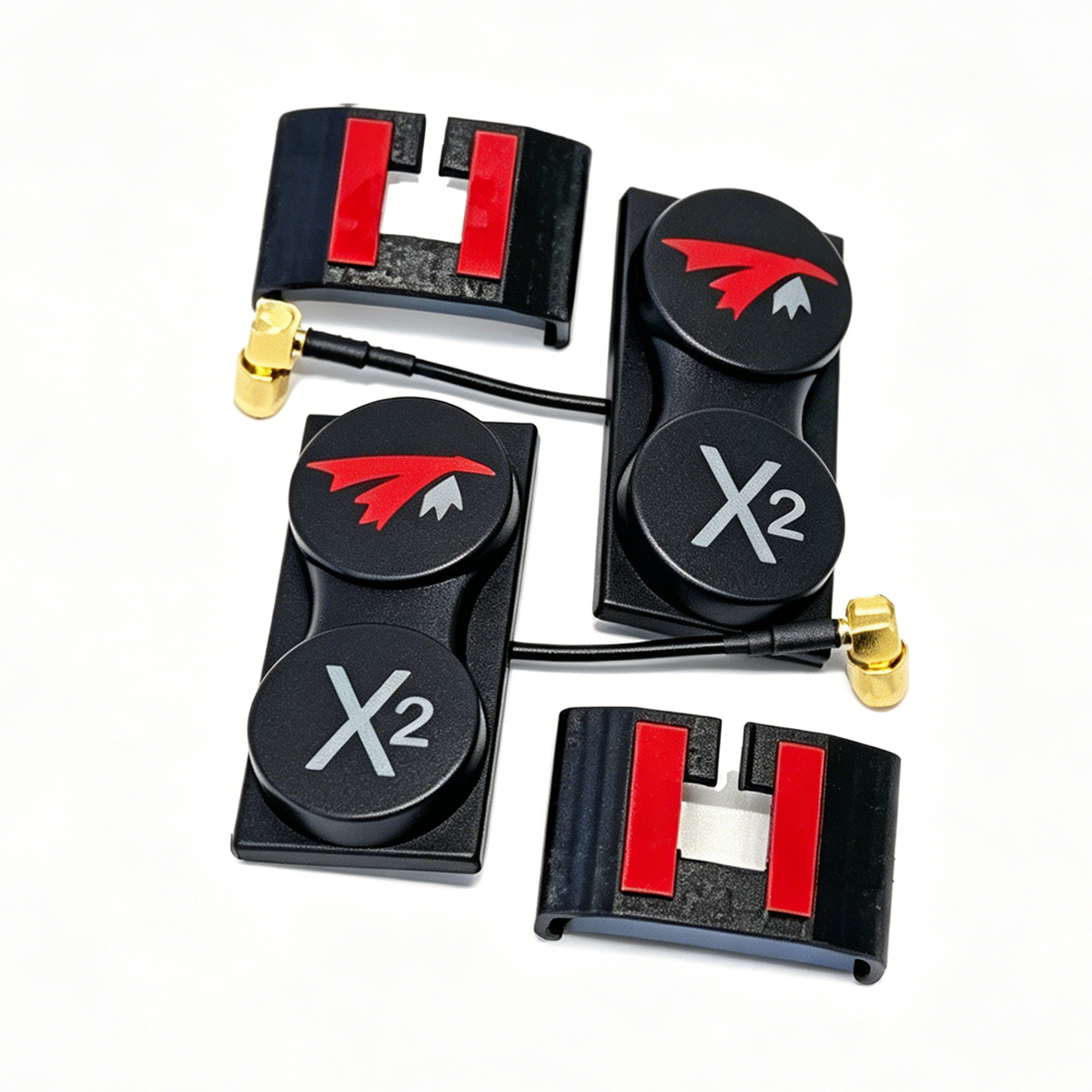

X²-AIR MK II Antennas x2
Slide-on Mounts x2
