TrueRC X-AIR 5.8 MK II Antenna RHCP LHCP High Gain 5.1-6.7GHz Wide Band for HDZERO Goggles FPV Racing Drone
TrueRC X-AIR 5.8 MK II Antenna RHCP LHCP High Gain 5.1-6.7GHz Wide Band for HDZERO Goggles FPV Racing Drone

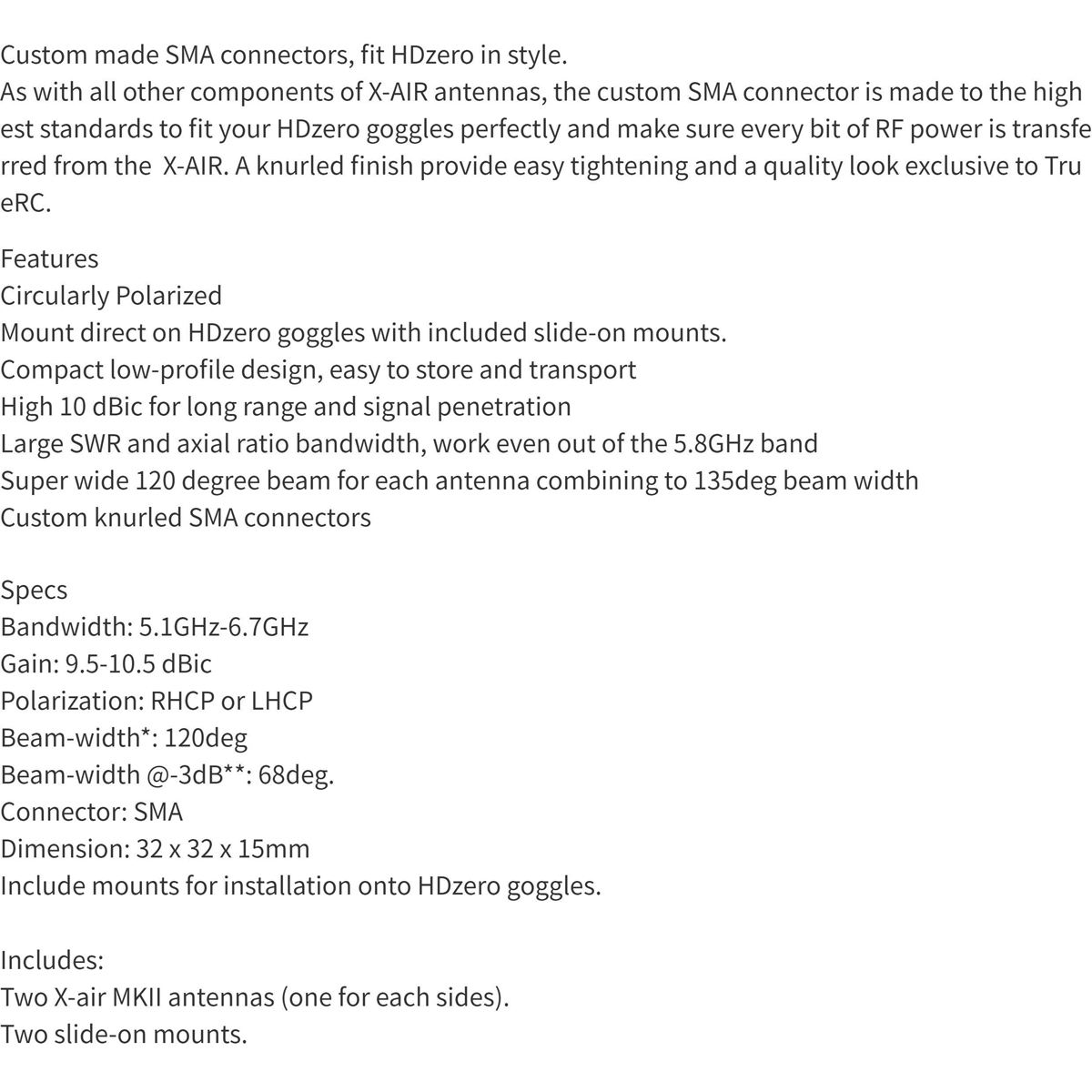

Circularly Polarized

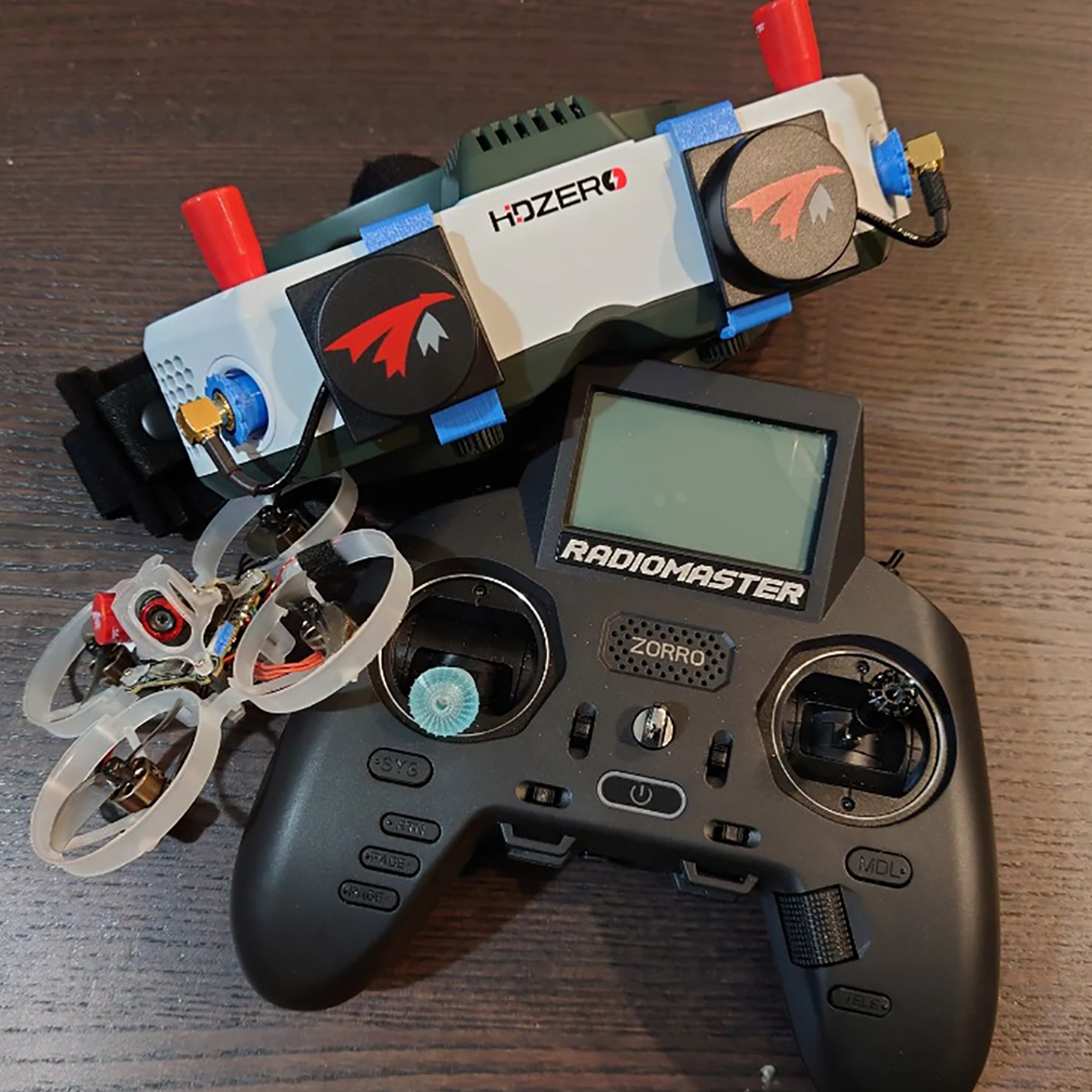

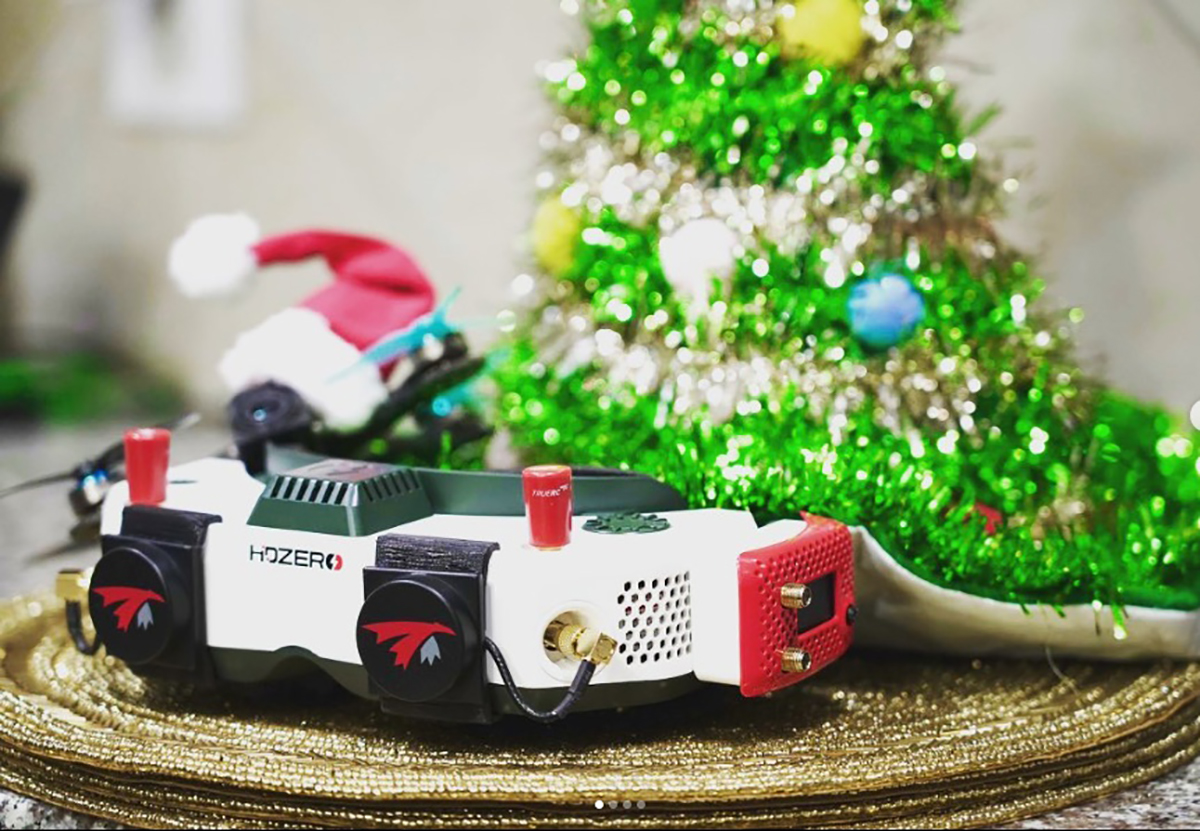

Mount direct on HDzero goggles with included slide-on mounts.
Compact low-profile design, easy to store and transport
High 10 dBic for long range and signal penetration
Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
Super wide 120 degree beam for each antenna combining to 135deg beam width

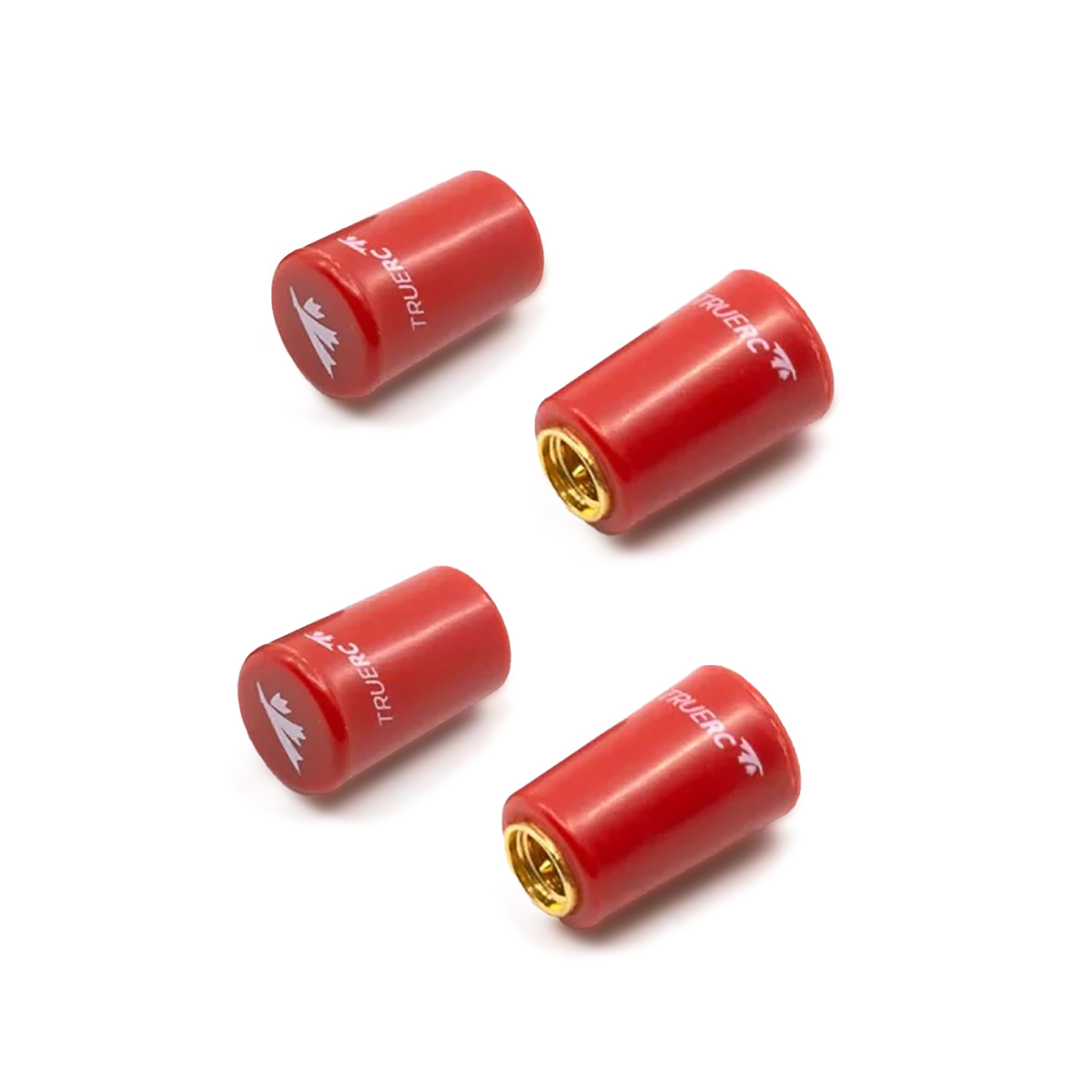

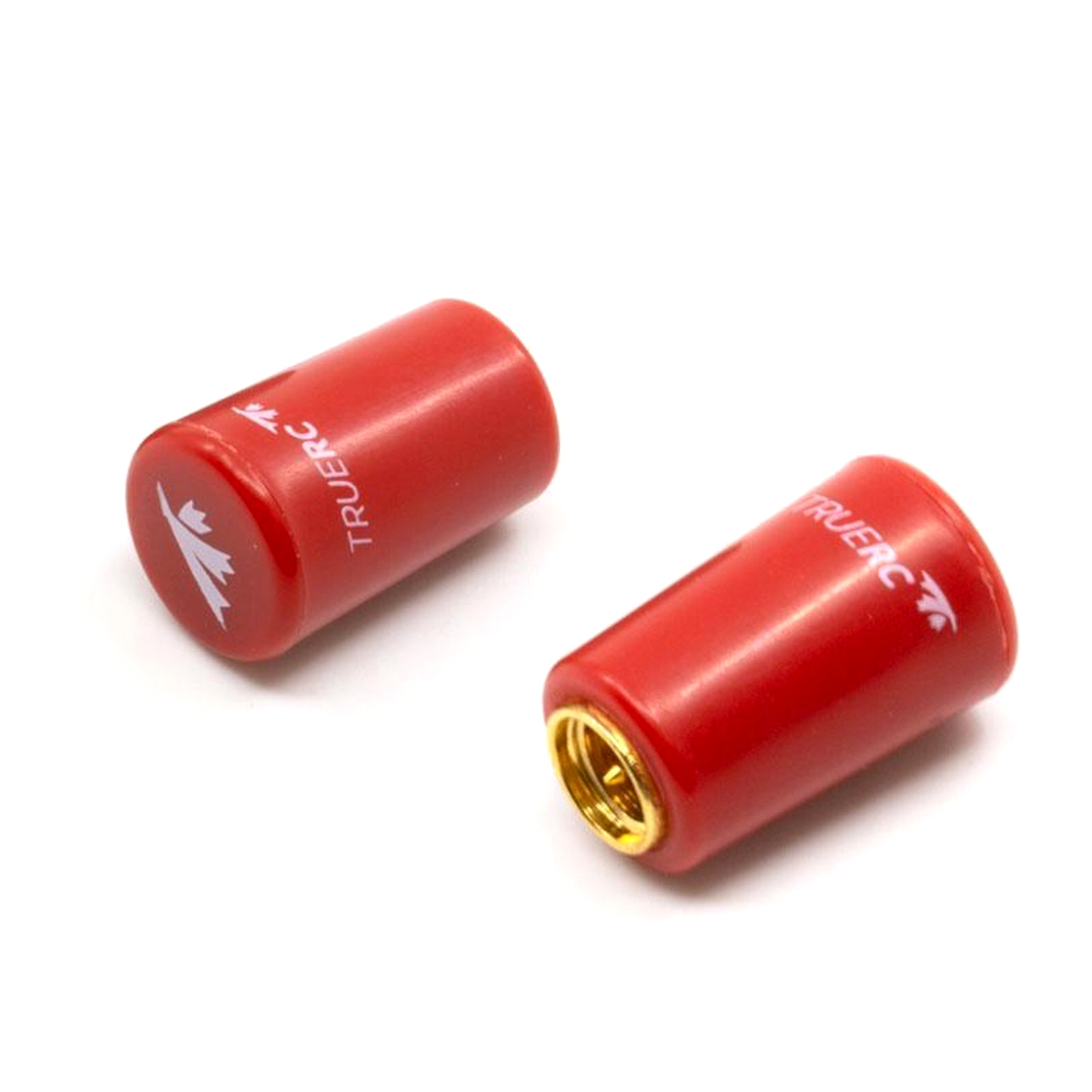

Custom knurled SMA connectors
Model: X-Air
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5 dBic
Polarization: RHCP or LHCP
Beam-width*: 120deg
Beam-width @-3dB**: 68deg.
Connector: SMA male
Dimension: 32 x 32 x 15mm

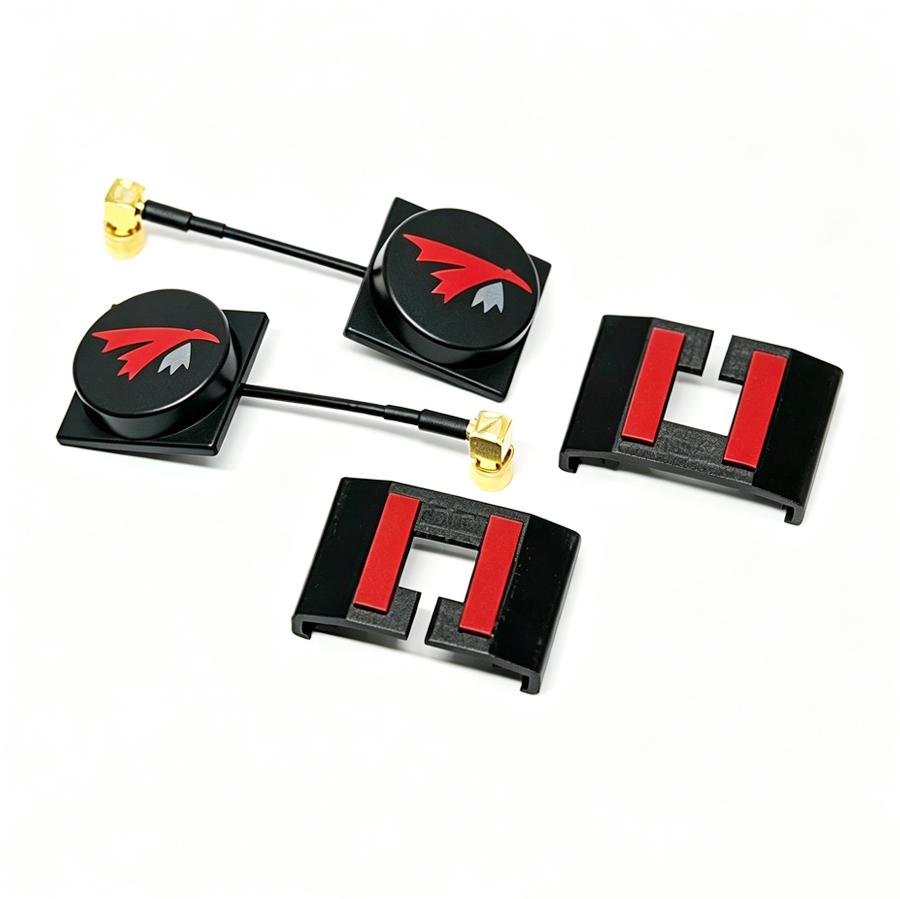

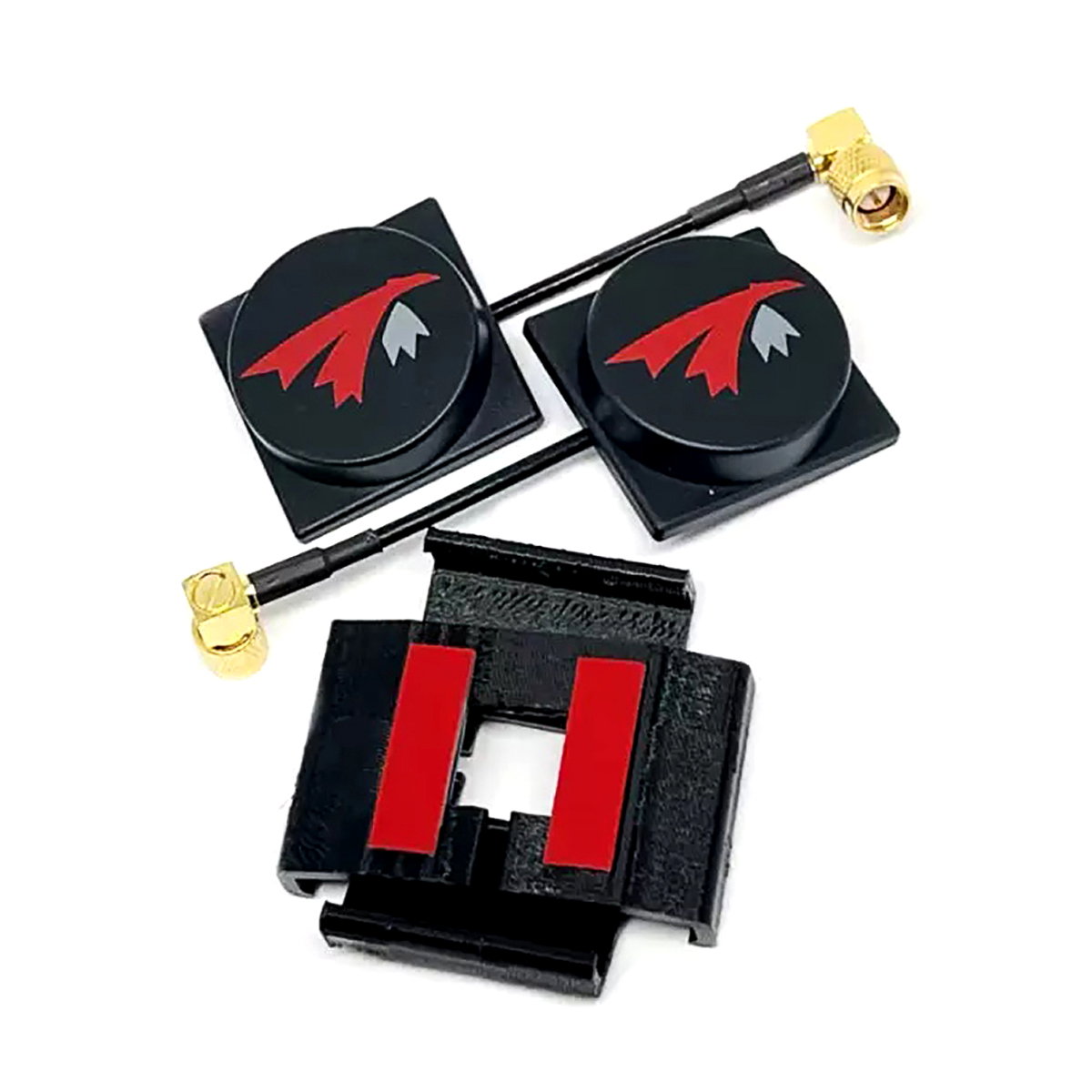

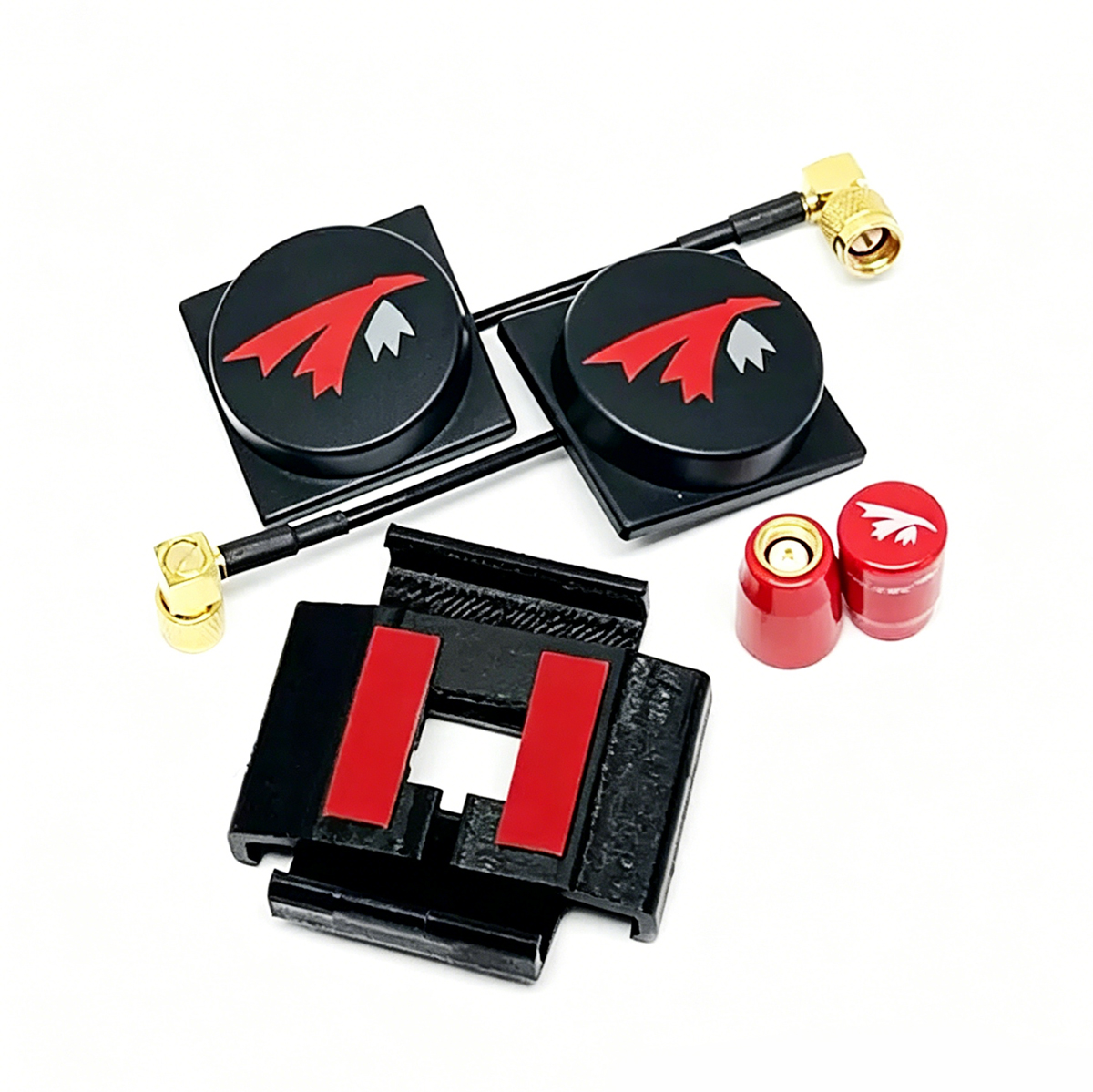

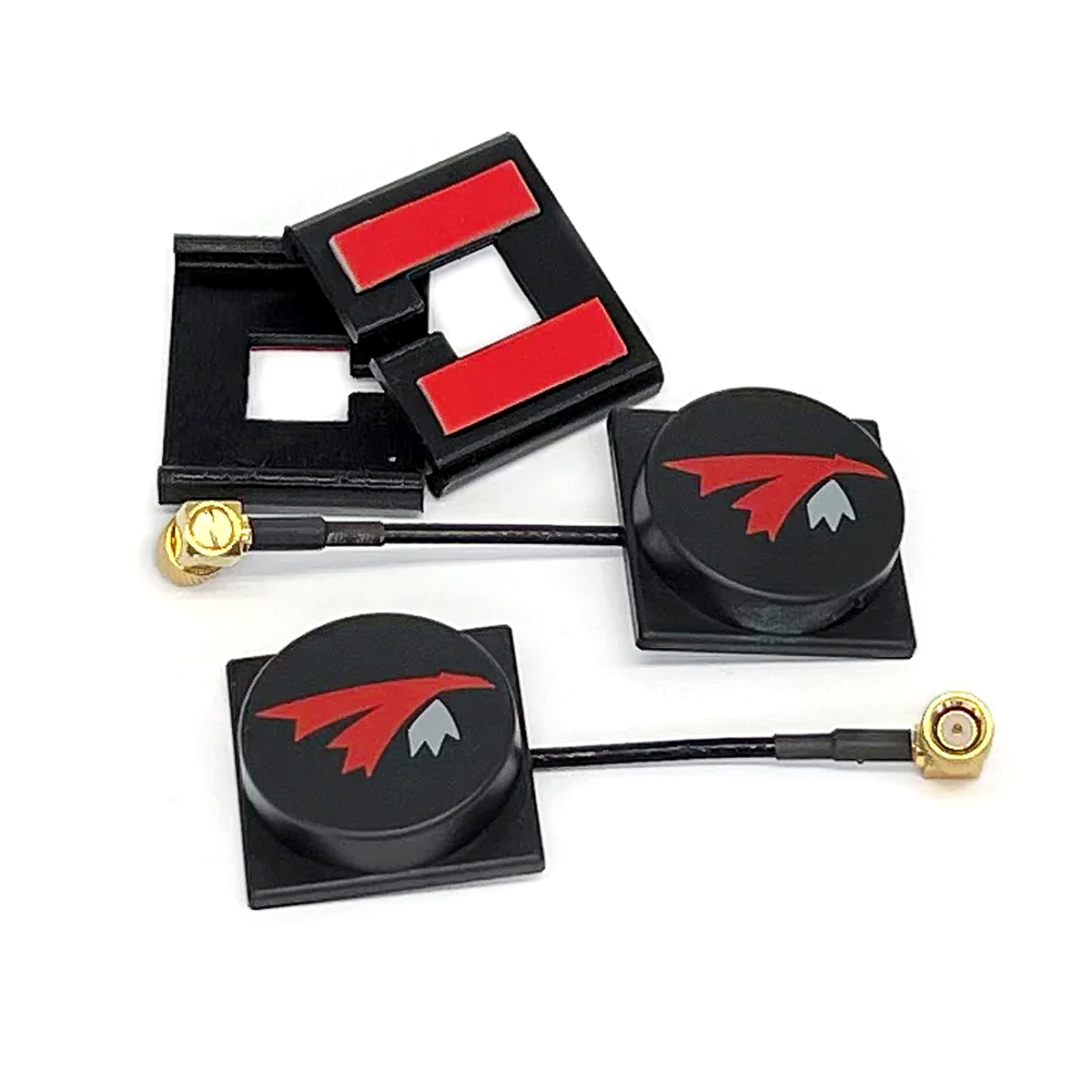

X-Air MK II Antennas x2
Slide-on Mounts x2
