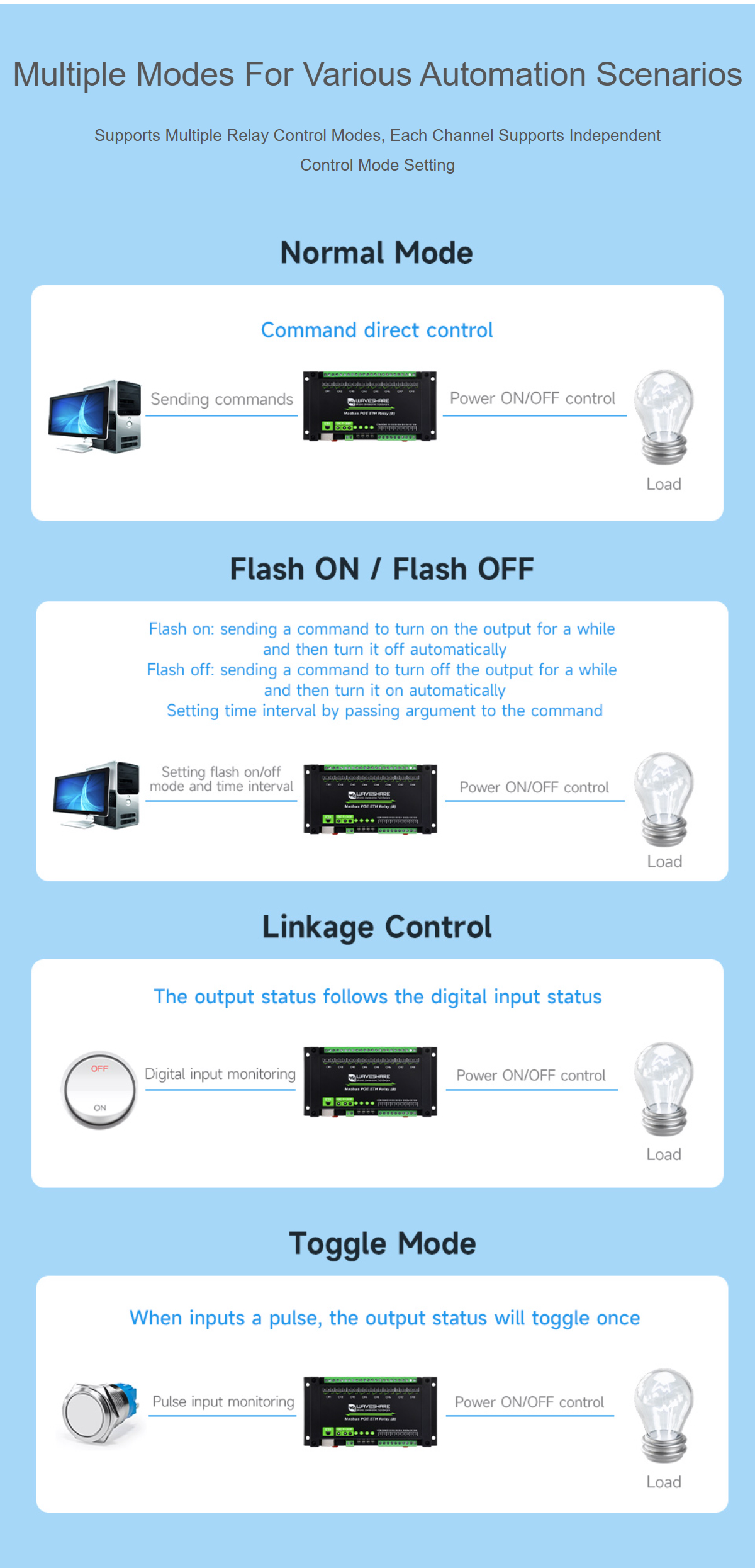

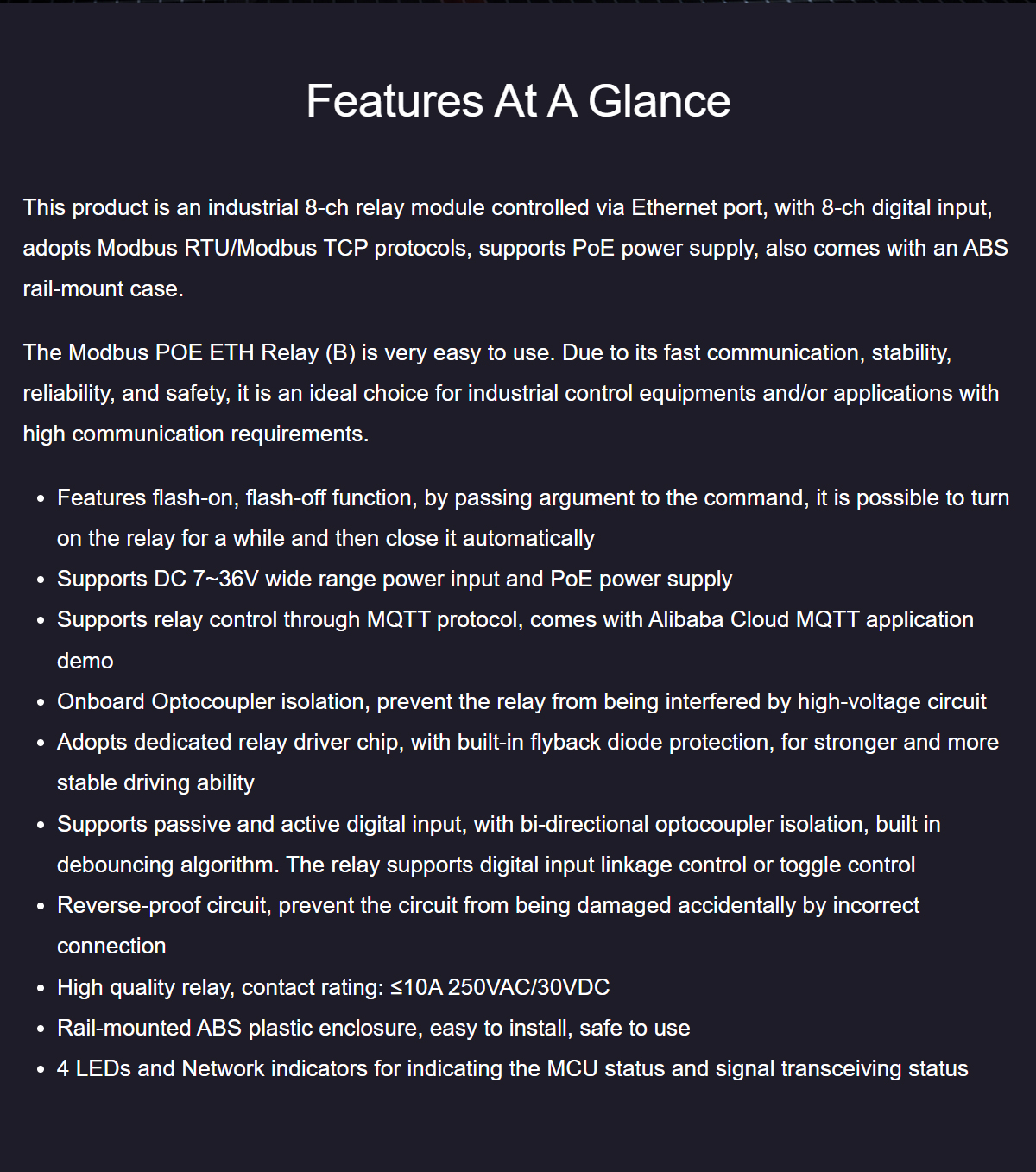

Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically

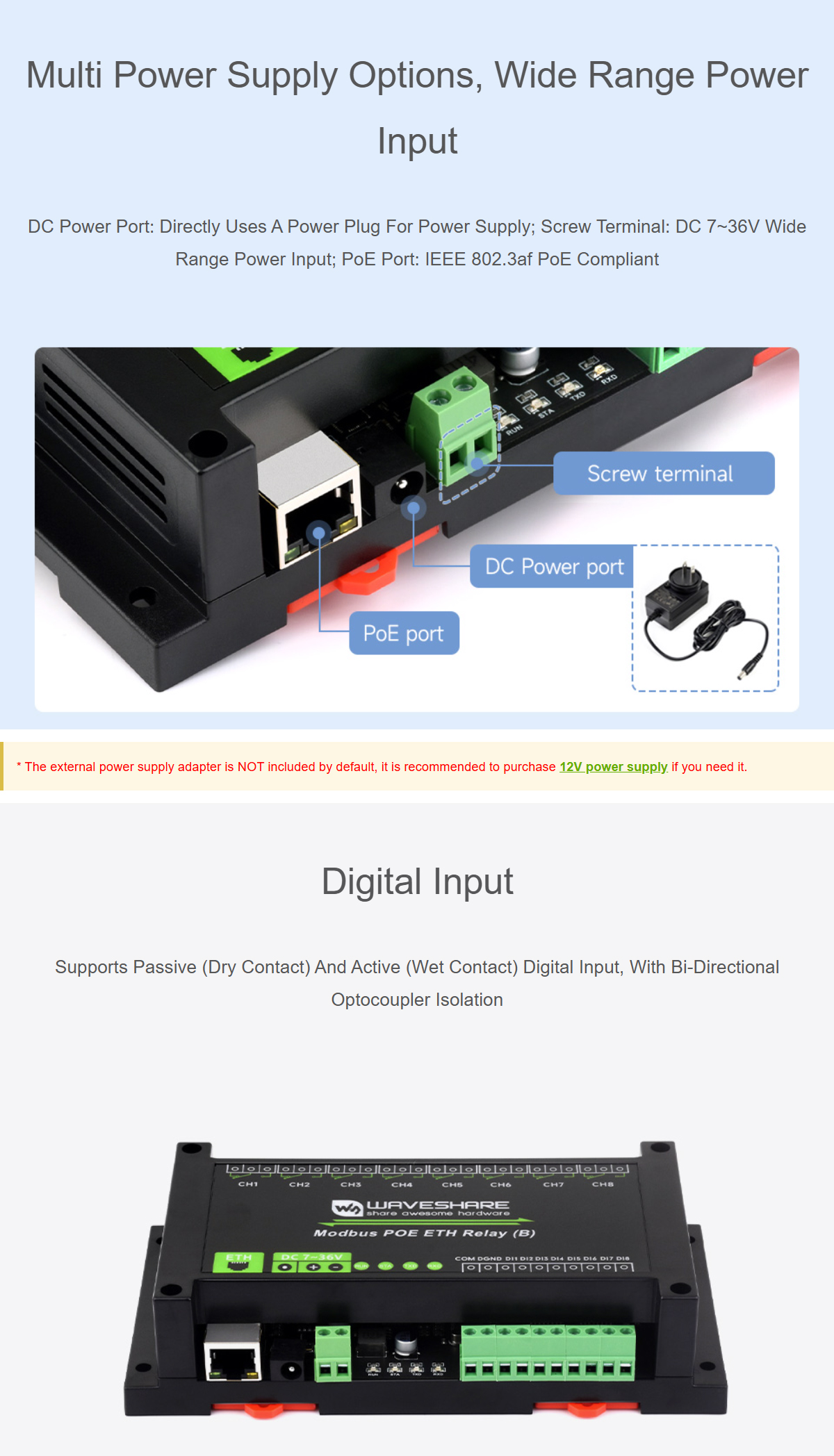

Supports DC 7~36V wide range power input and PoE power supply

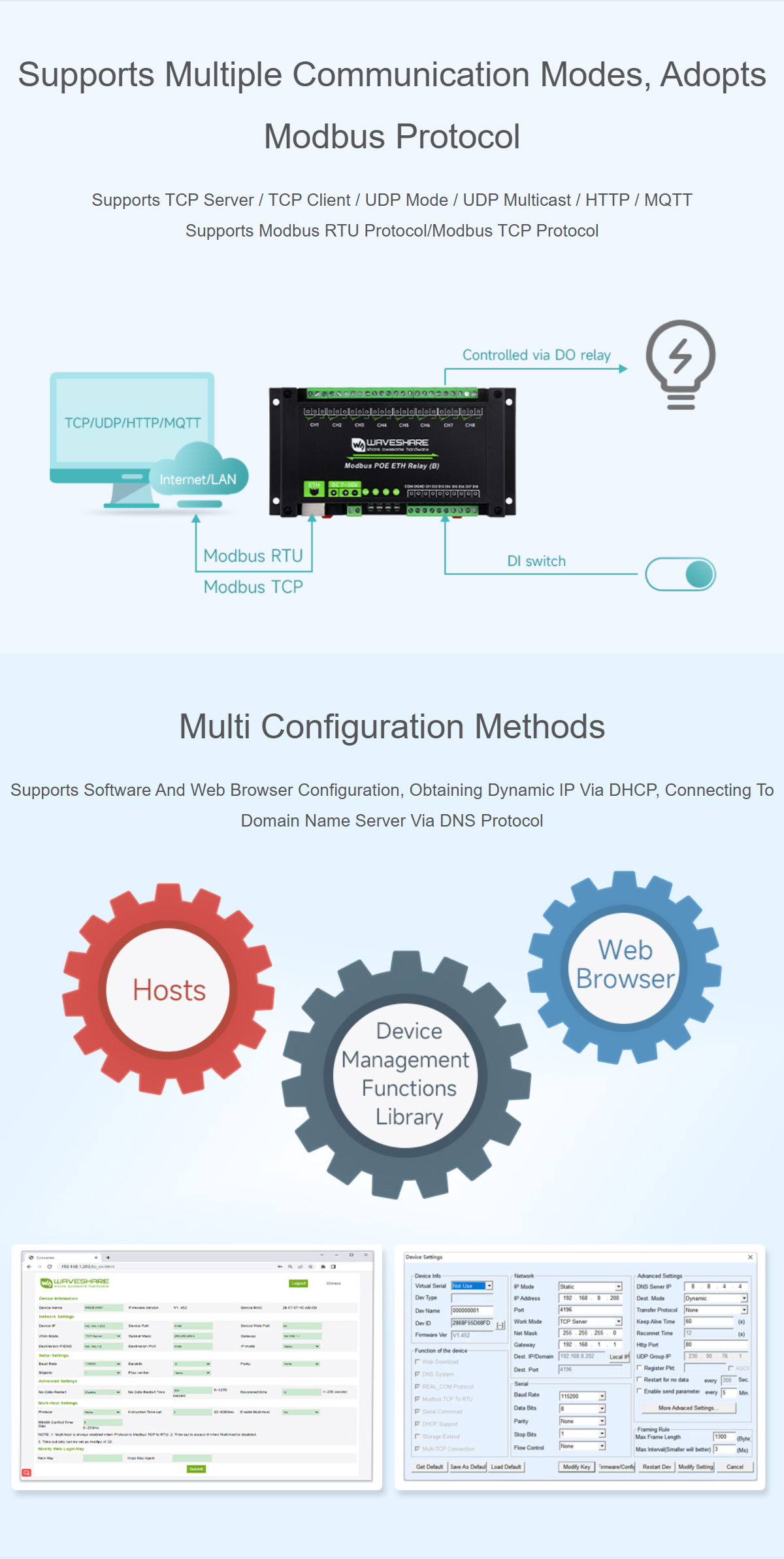

Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability

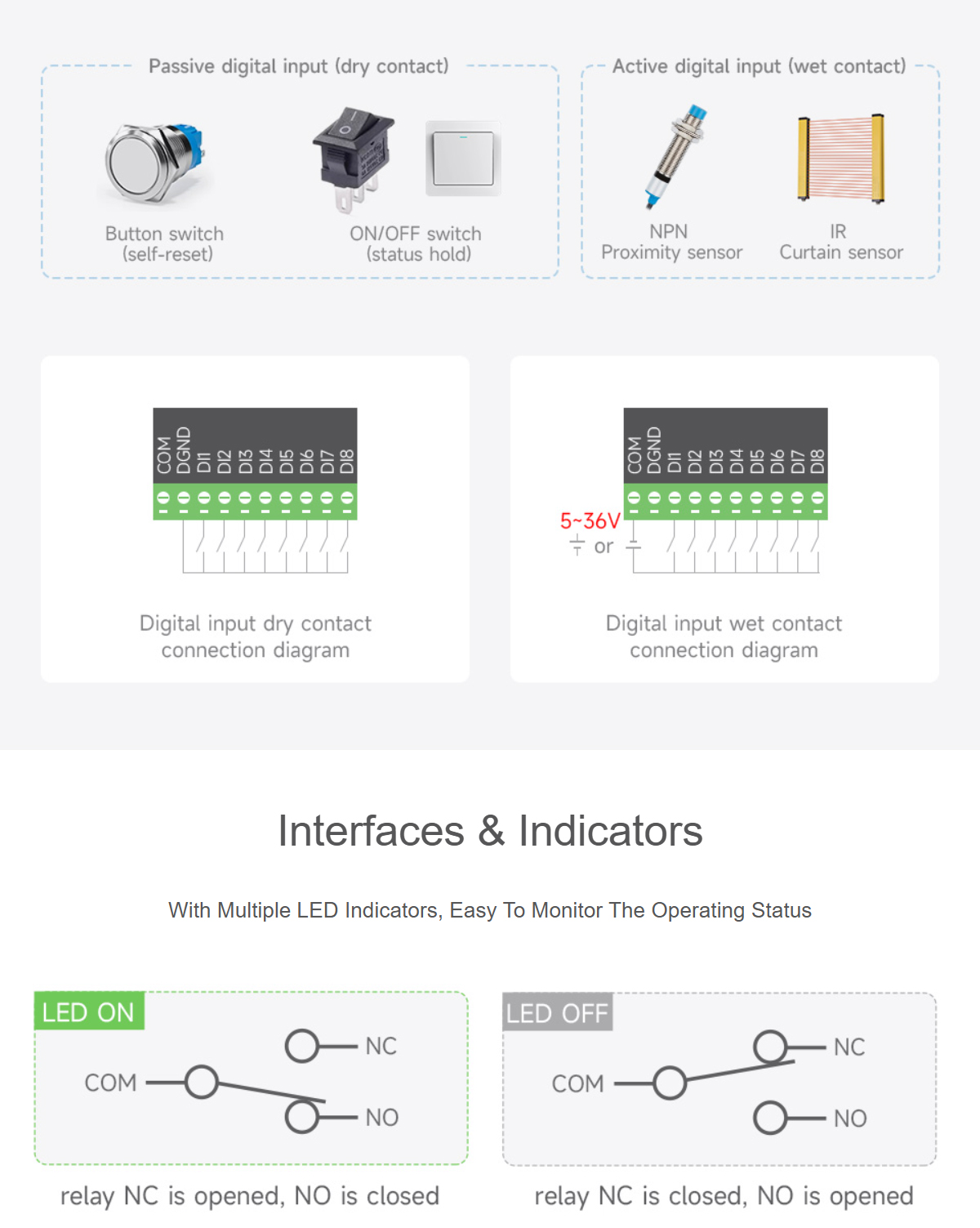

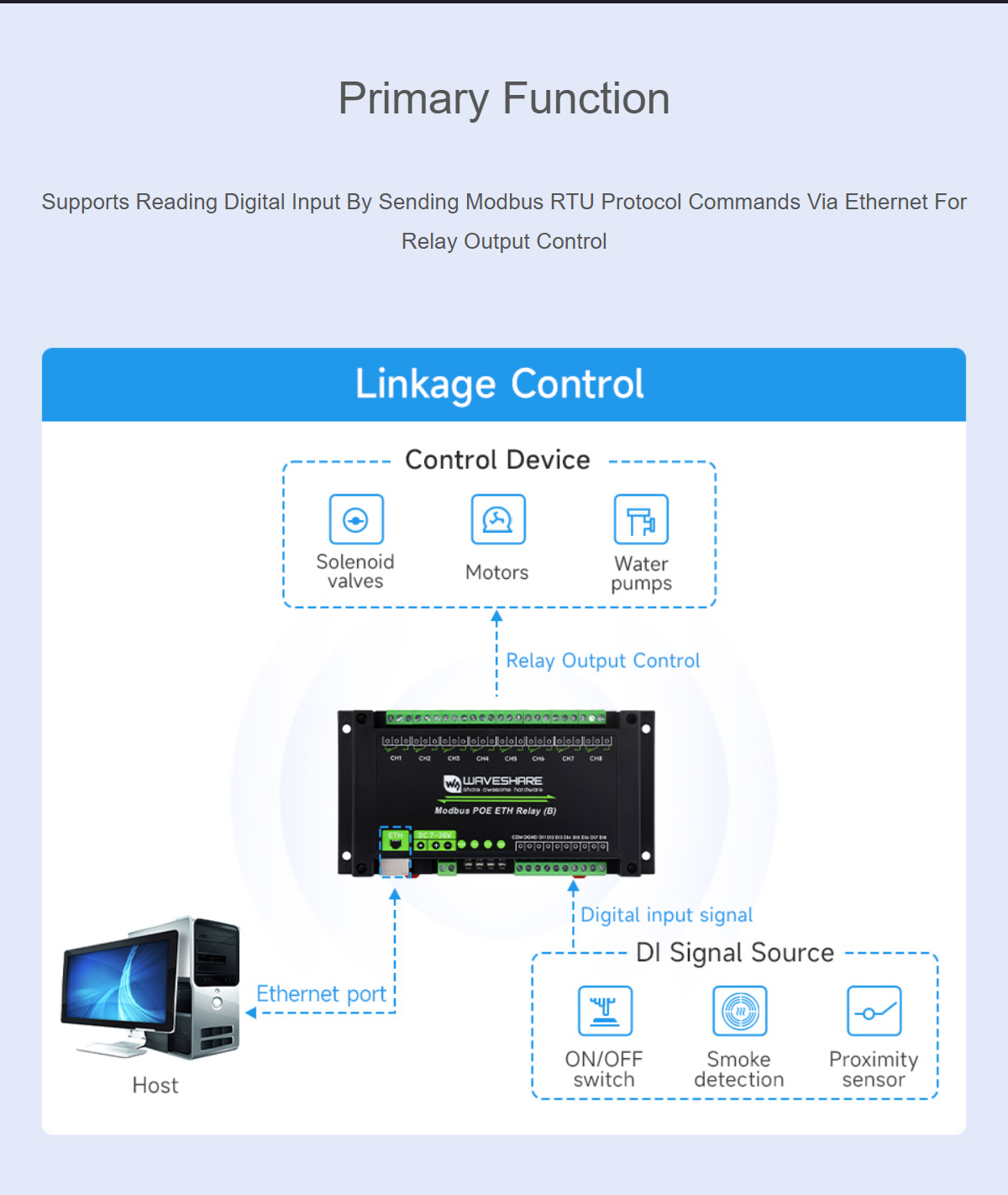

Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection

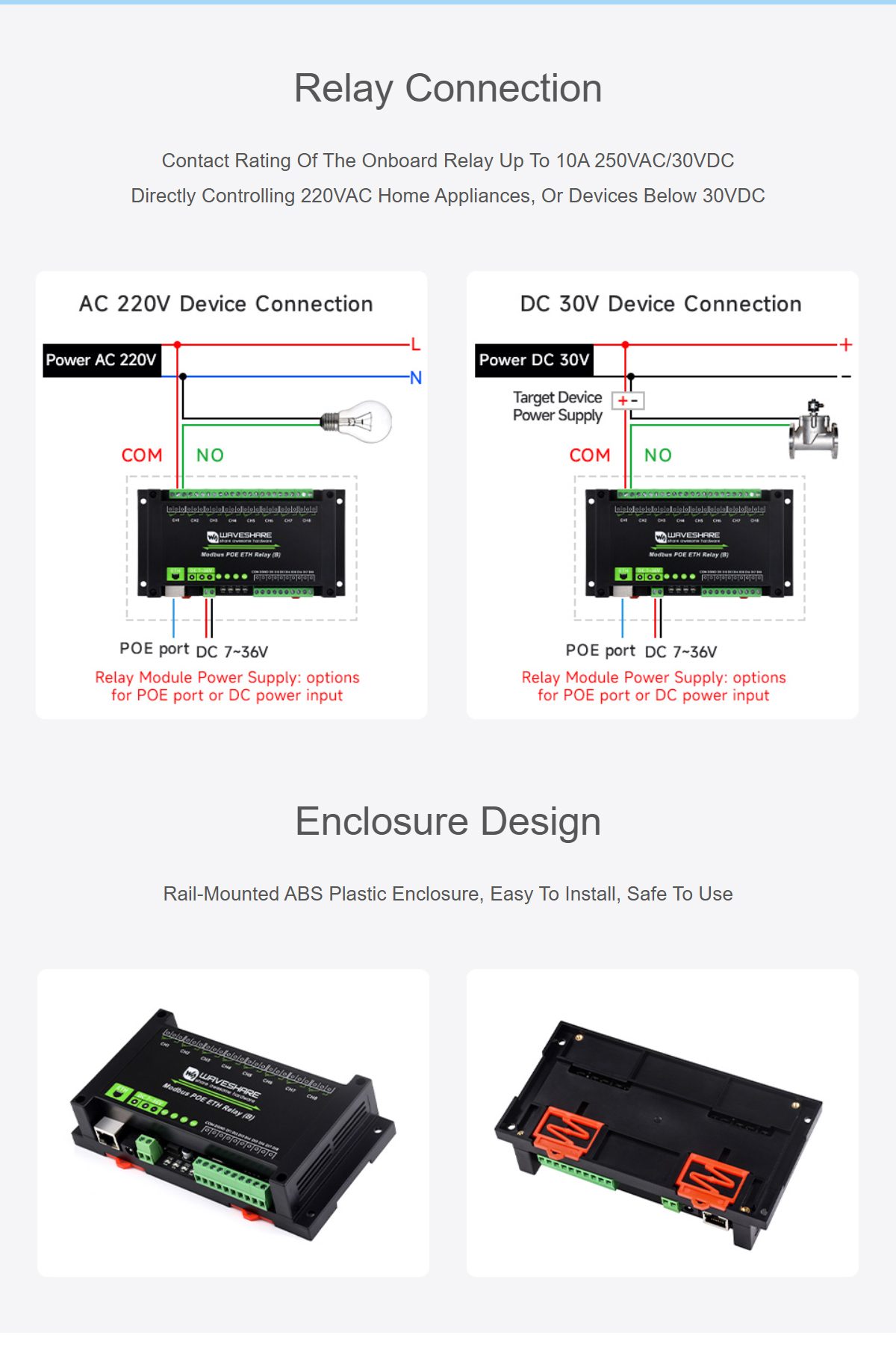

High quality relay, contact rating: ≤10A 250VAC/30VDC

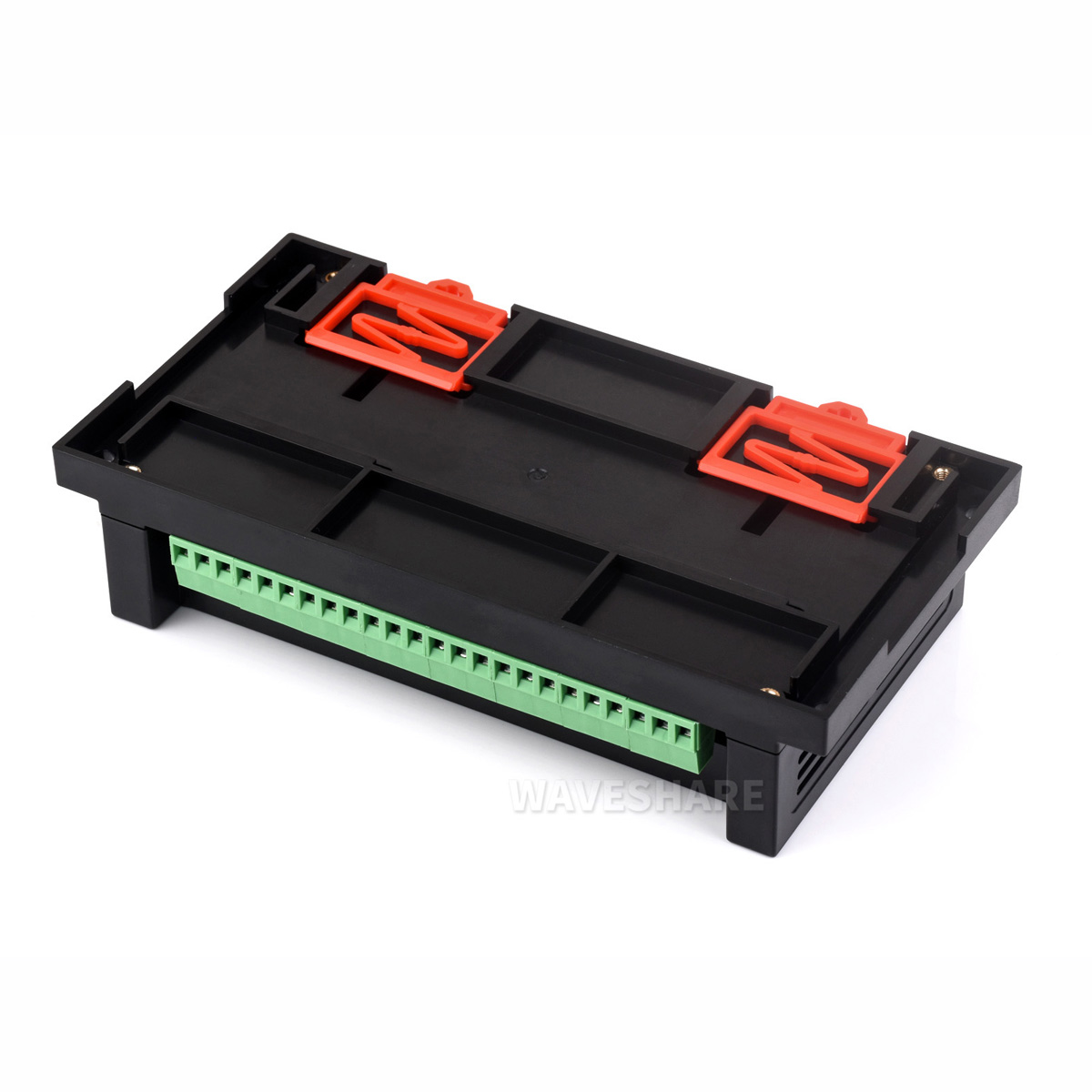

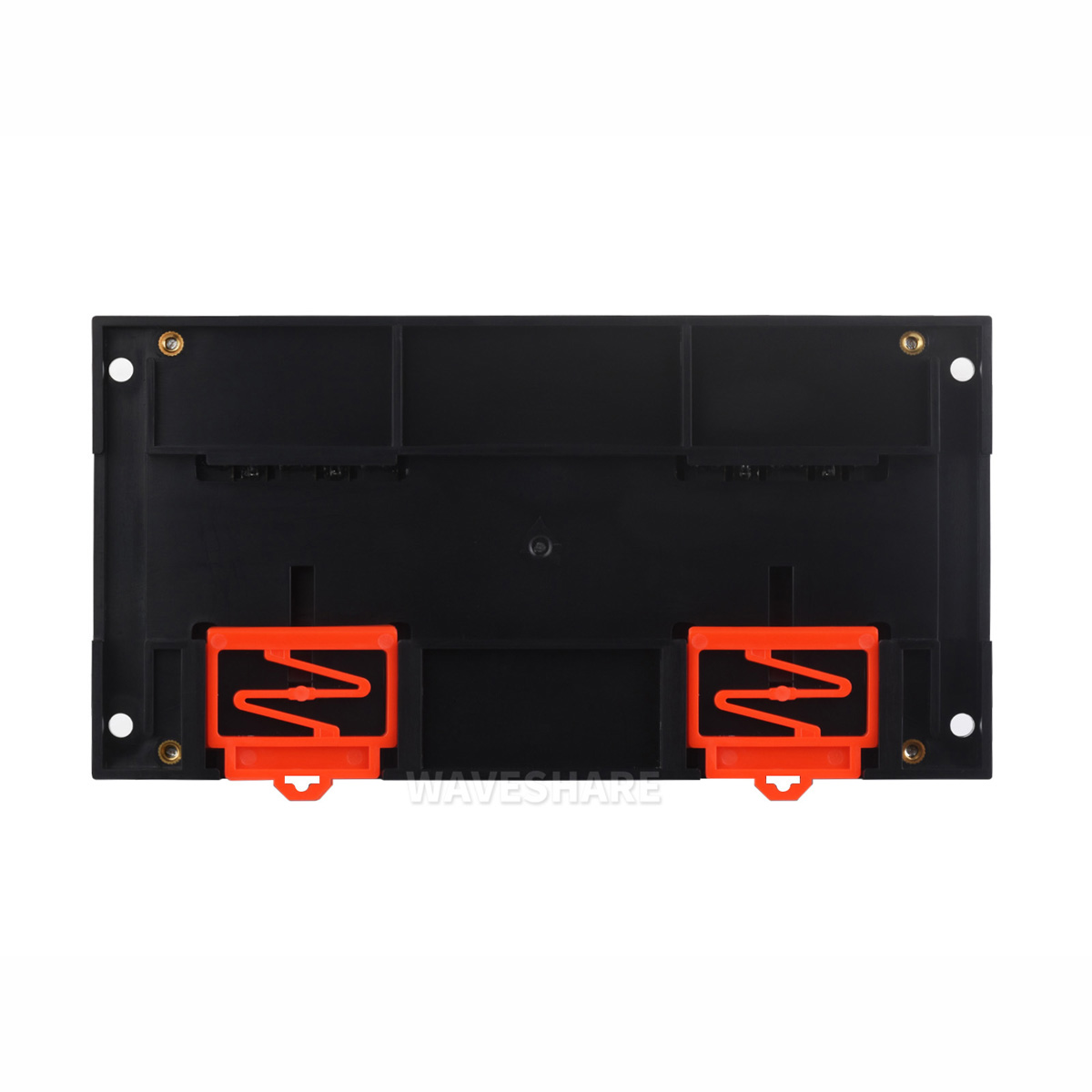

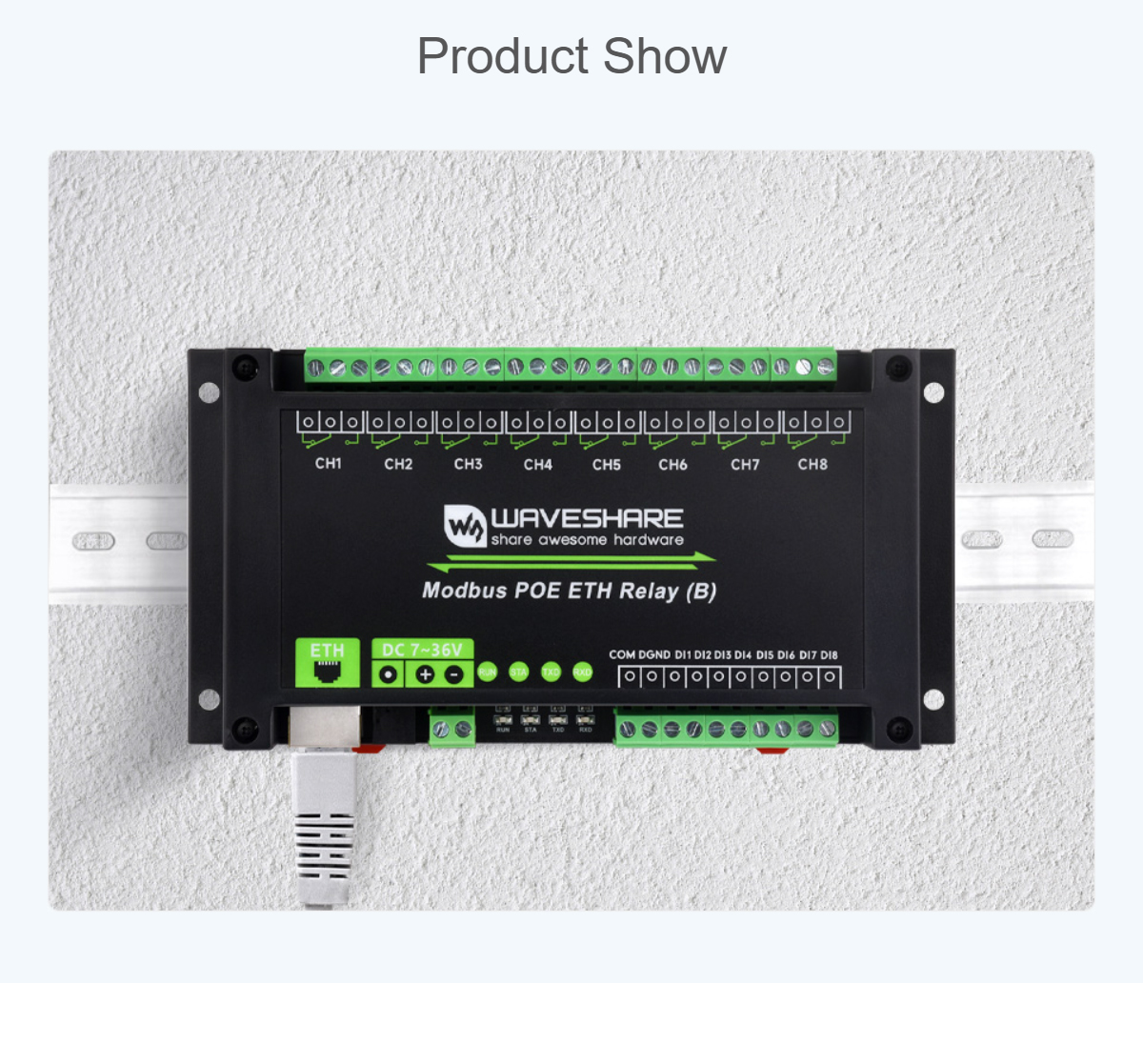

Rail-mounted ABS plastic enclosure, easy to install, safe to use

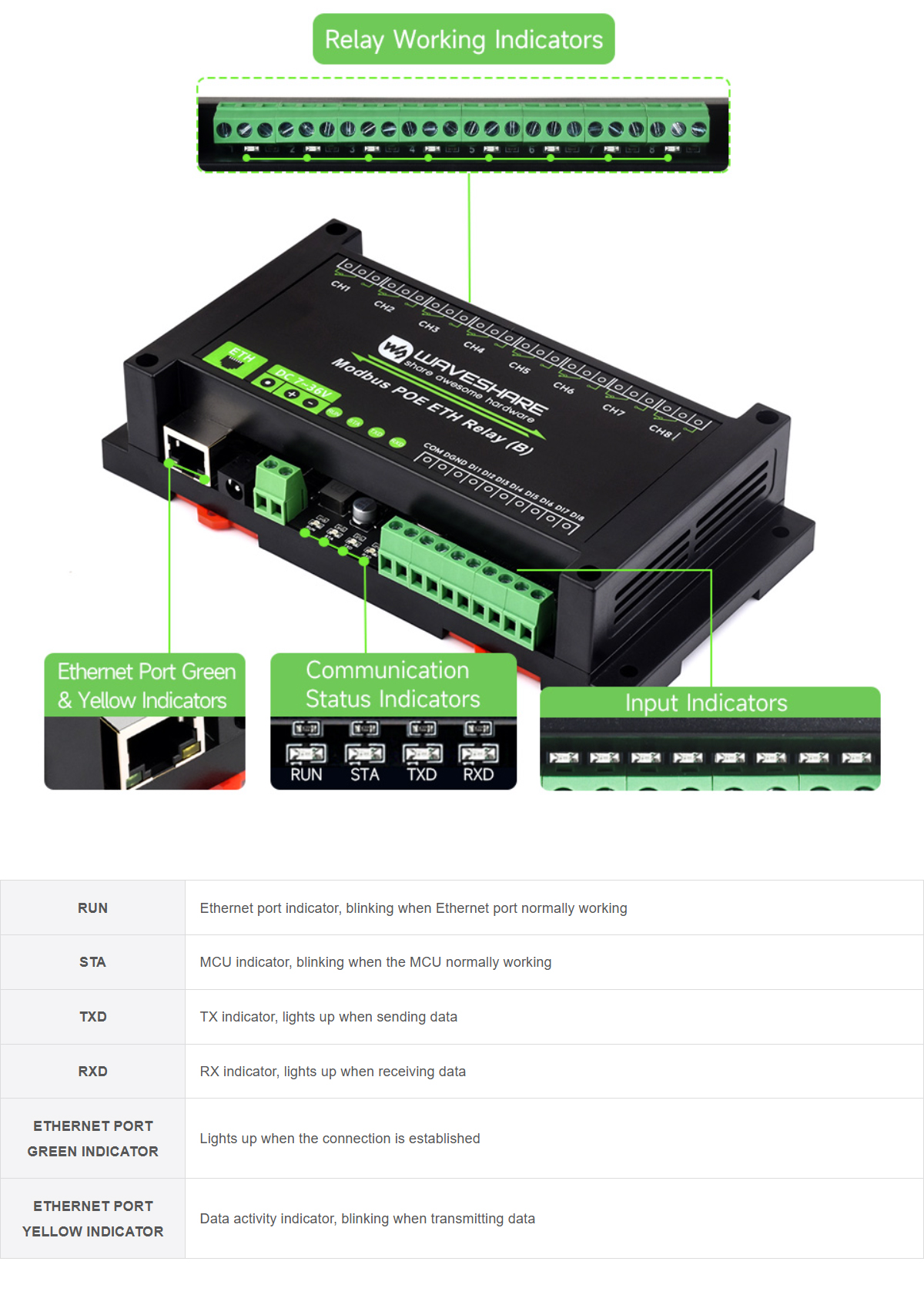

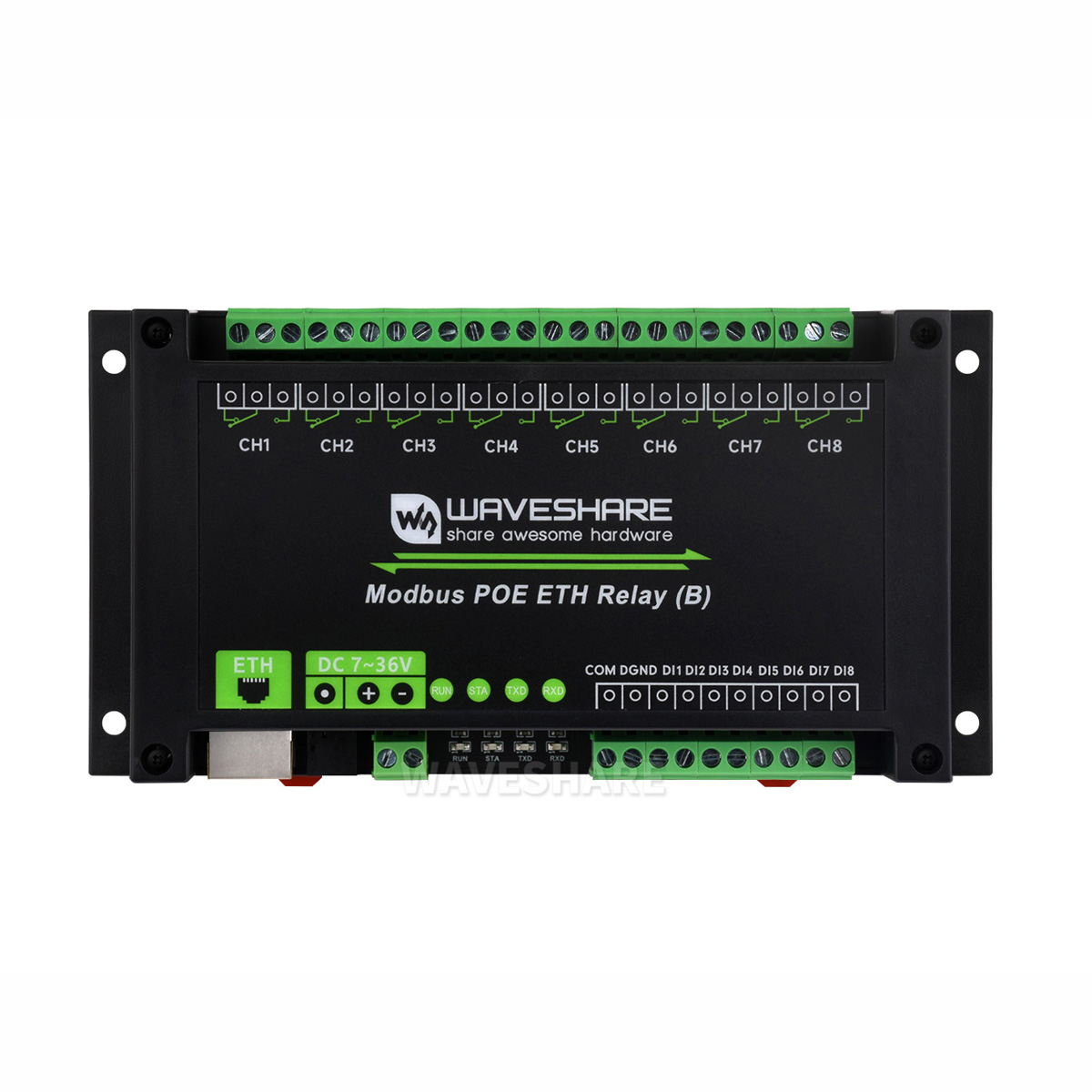

4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
